Strut Channel Forming Machine 5.5 kW Built for Stable Continuous Production
Two machines may produce the same strut channel profile, look similar on the outside, and sit close in price. For a buyer, that makes the choice hard. Appearance, price, and a few numbers on a spec sheet cannot show how the frame and transmission behave in long, continuous production.
That gap is where a strut channel forming machine earns its value. The frame, the shaft, and the motor decide whether the line holds its accuracy over thousands of meters. This article looks at what continuous production demands. We explain why the portal frame, the φ50mm shaft with gear transmission, and the 5.5 kW main motor deserve attention on a channel forming machine.
Where Strut Channel Forming Machines Are Used
Strut channel is a cold formed steel profile with a continuous slot, used mainly for support and connection. Its applications drive steady demand for this product.
-

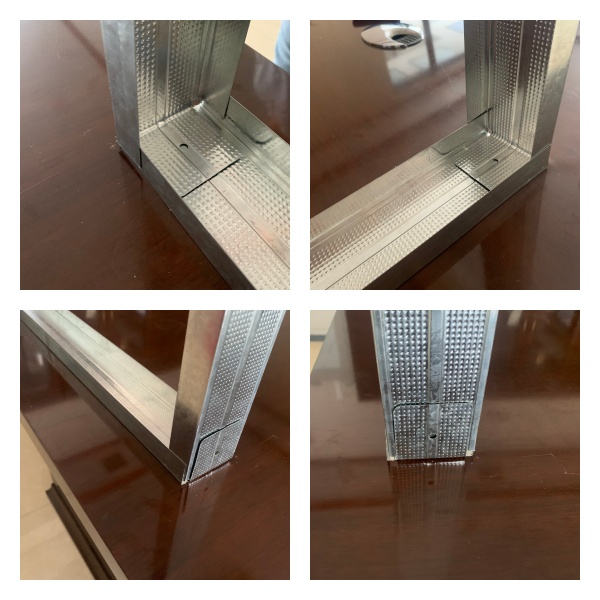

Support and connection in light gauge steel buildings: used as a connector between parallel framing members, giving the wall top a fixing point
-
Electrical and mechanical installation: supporting cable trays, power lines, water pipes, and air ducts
-
Solar mounting and seismic bracing: acting as the structural base for photovoltaic arrays, or as a diagonal brace in seismic zones
These applications require consistent dimensions and accurate hole positions. Steady demand means the equipment needs to run for long hours. That puts real pressure on the frame, the power transmission, and the energy use.
Why the Portal Frame Matters for Machine Stability
The portal frame is a clear structural choice on this strut channel forming machine.
A portal frame spreads the rolling force and shearing impact into the base. This spread helps limit vibration during high speed operation.
Frame rigidity affects forming accuracy. When the frame holds its shape under load, the roller stations keep their relative positions. The profile dimensions and hole positions stay consistent. For long production runs, this stability matters more than any single number on a spec sheet.
Advantages of the portal frame design
-
It spreads rolling force and shearing impact into the base instead of concentrating stress at one point.
-
It supports the forming stations as one rigid unit.
-
It gives the machine a stable base for continuous operation.
How the Shaft and Gear Transmission Deliver Power
The shaft is the core part of power transmission. This channel forming machine uses a shaft with a φ50mm diameter, made of 45# steel with tempering. Tempering gives the shaft both hardness and toughness, so it handles the torque and impact of long runs.
The drive uses gear transmission. Gear meshing creates a rigid connection between stations, so each roller keeps its relative angular position during operation. This helps keep punching and shearing positions stable over time.
The shaft and gear transmission together form the full power chain from motor to rollers. The stability of this chain directly affects profile quality and hole accuracy.
Understanding the 5.5 kW Main Motor
The main motor runs at 5.5 kW on this strut channel forming machine.
People often read this number as actual energy use. Rated power means the output the motor can deliver under rated conditions. Actual power draw depends on the load. The load depends on material thickness, the number of forming passes, and running speed.
For a narrow profile like strut channel, the equipment handles a material thickness range of 0.35 to 0.45mm. The forming load stays fairly limited. The 5.5 kW setup matches this production need.
Machine Parameters
| Parameter | Specification |
|---|---|
| Raw Material | Galvanized steel coil |
| Coil Capacity | 2.5 tons |
| Coil Inner Diameter | 450–550 mm |
| Max Coil Width | 300 mm |
| Finished Width Options | 63.5 mm / 92 mm |
| Finished Length Options | 406 mm / 610 mm |
| Main Motor Power | 5.5 kW |
| Power Supply | 480V / 60Hz / 3 phase |
| Working Speed | 0–15 m/min (with punching and shearing) |
| Number of Roller Stations | 12 |
| Roller Material | GCr12 bearing steel |
| Shaft Material | 45# steel, tempered |
| Shaft Diameter | φ50 mm |
| Frame Type | Portal frame (arch structure) |
| Transmission Type | Gear transmission |
| Blade Material | Cr12, quenched |
| Machine Weight | Approx. 5.5 tons |
| Required Floor Space | Approx. 12m × 2.0m × 1.5m |
Why Machine Structure Deserves Attention
Two machines can look alike and still produce the same profile. But they may perform differently over long runs on a channel forming machine.
The difference comes from inside. Whether the frame takes impact over time, whether the transmission stays in sync, and whether the motor holds a steady load all shape how the equipment performs in daily production.
Looks and single numbers cannot show these differences. What matters is how the structure serves real production, not just what sizes the machine can make.
What This Means for Your Production Decision
Back to the first question: the value of a strut channel forming machine goes beyond forming a profile.
The frame, transmission, and power system together make continuous production possible. A portal frame gives structural support. A φ50mm shaft and gear transmission keep power delivery steady. The main motor drives the line through long runs. Together, they help the equipment hold profile dimensions and hole accuracy over time.
If you are reviewing this type of equipment, look past single numbers and study the structure. How the frame handles impact, how the transmission stays in sync, and how the motor carries the load will tell you more than a spec sheet or a price tag. A unistrut channel roll forming machine built with the right structure will serve you longer than one chosen on price alone.
