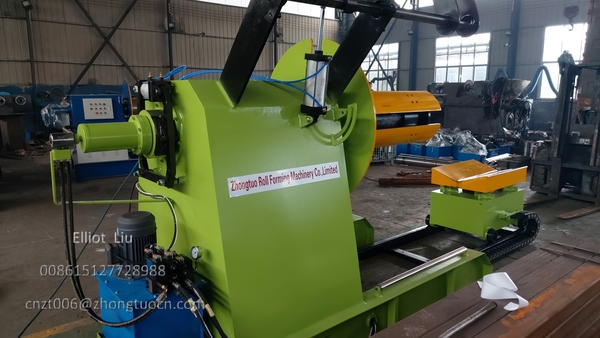

Rigid Stable 5/6/7 Ton Steel Coil Decoiler with PLC and Speed Control 4kw

7 Tons Capacity Steel Coil Decoiler Machine Solves Costly Line Speed Mismatch

Production starts up fine, but as soon as the downstream equipment speeds up, the uncoiler end doesn't keep pace. Material starts piling up. Then the downstream equipment slows down or stops briefly, and the strip gets pulled tight all of a sudden. Operators have to stop the line and adjust. The 7 tons capacity steel coil decoiler machine addresses exactly this problem: how the material supply end keeps up with the rhythm of the whole line.

This kind of problem doesn't necessarily come from one single machine. When the material supply speed and the downstream consumption speed lack coordination, the whole line goes loose and tight by turns. The rest of this article looks at how the machine fits into that picture.

Applications

This machine works in production settings where downstream equipment changes speed during operation:

• Structural steel purlin and framing lines

• Heavy gauge cable tray roll forming lines

• Industrial rack upright continuous forming lines

• Heavy roof and wall panel lines

• Large solar mounting structure lines

Parameters

The following parameters come from the standard configuration of this machine (code 002):

Why Line Speed Changes Affect Material Condition

When downstream equipment speeds up, it consumes more strip per unit of time. If the uncoiler end keeps releasing material at the old speed, the strip gets pulled tight and tension rises fast.

When downstream equipment slows down or stops briefly, consumption drops. If the uncoiler end doesn't slow down too, the material it releases has nowhere to go. It piles up in the middle of the line and wrinkles.

The question isn't whether the uncoiler can rotate. It's whether its release rhythm can change together with the downstream equipment.

What Speed Mismatch Looks Like on the Line

When material piles up, the strip folds into a heap in the buffer zone. Downstream rollers can press creases into it. In serious cases, the strip wanders off track or even tangles around the equipment.

When material gets over tensioned, the strip carries more tension than normal. Thin sheets get stretched narrow. Thick sheets put extra load on the uncoiler and downstream equipment. In extreme cases, the strip snaps and the whole line stops.

These two situations look opposite, but they share the same root: material supply speed and consumption speed have come apart.

How Speed Adjustment Fits Into This Process

Speed adjustment is what lets the uncoiler end change its release speed based on line conditions. The goal is to match material supply with what downstream equipment actually consumes.

When downstream equipment changes pace, the uncoiler end needs to respond accordingly. How fast and how accurately that response happens decides whether the material stays steady through speed changes, or piles up and gets pulled tight.

Operators shouldn't need to adjust speed by hand every time the line changes pace. That is the practical value of automatic speed adjustment for decoiler in this kind of setup.

How PLC Control Coordinates the Response

A plc controller decoiler machine can take part in coordinating the speed response. It receives signals about line running status and decides whether to accelerate, decelerate, or hold.

The PLC then works with the variable frequency system, which adjusts motor speed. The process is meant to run continuously, not wait until material has already piled up to react.

The practical point is that the uncoiler end stops being a passive, independent material feeder. It becomes part of the speed rhythm of the whole line.

Why Brake Response Matters During Deceleration and Stops

Deceleration and stops are the most overlooked part of speed matching.

When downstream equipment suddenly slows down, motor deceleration alone isn't enough on the uncoiler. The rotating inertia of the main shaft keeps releasing material. The brake needs to step in and hold back the excess.

If brake response is too slow, material goes slack. If it's too abrupt, the strip gets yanked tight. Brake action and motor deceleration need to work together so the slowdown transitions smoothly.

This machine comes with a pneumatic press arm that helps control material condition during uncoiling, keeping the deceleration and stop phases steadier. Speed changes are unavoidable, but material condition can stay within a controllable range through proper configuration and control logic.

Advantages

Speed response follows the line rhythm. Variable frequency speed control lets uncoiling speed adjust based on downstream equipment status, reducing pile up and over tension.

PLC coordination cuts manual intervention. Control logic takes part in speed judgment, so operators don't need to adjust manually every time speed changes.

Brake action supports the deceleration process. The brake controls main shaft inertia during stops and keeps material from going slack suddenly.

Wireless remote control makes on site operation easier. The 7 tons capacity steel coil decoiler machine comes with wireless remote control for convenient operation.

5 to 7 ton universal capacity covers common coil weights. Coils of 5, 6, and 7 tons all run on this equipment.

What This Means for Continuous Production

For a production line that needs to work continuously with downstream equipment, the uncoiler's job isn't just to hold the coil and spin.

It needs to keep up when downstream equipment accelerates, hold back when downstream equipment decelerates, and keep material in a reasonable state during stops. These actions together decide whether the whole line runs smoothly.

The Delta VFD, Chint or Delixi electrical components, and wireless remote are all parts already configured on this 7 tons capacity steel coil decoiler machine. They serve one goal: keeping material supply speed coordinated with line consumption speed.

Back to the question at the start. When pile up, slack material, or over tension shows up on your line, don't rush to blame the VFD, the PLC, or the brake alone.

These parts work together. If speed adjustment, control response, or brake action falls out of step with the line rhythm, material condition will suffer. For a 7 tons capacity steel coil decoiler machine that needs to run alongside downstream equipment for years, what really matters is whether the whole speed response logic matches your actual production rhythm. Send us your line speed and equipment setup, and we'll look at where the issue sits.
