The Retro Panel Click Lock Roofing Panel Roll Forming Machine is a professional automatic production line designed to manufacture 542mm wide click-lock metal roofing panels with a concealed fastening structure. Using advanced cold roll forming technology, the machine continuously forms pre-painted galvanized steel, galvanized steel, or aluminum coils into accurately shaped Retro Panel roofing sheets.
The finished panels feature a snap-lock connection design, allowing adjacent panels to connect securely while keeping fasteners concealed beneath the panel surface. This creates a clean architectural appearance while providing reliable weather protection and efficient installation.

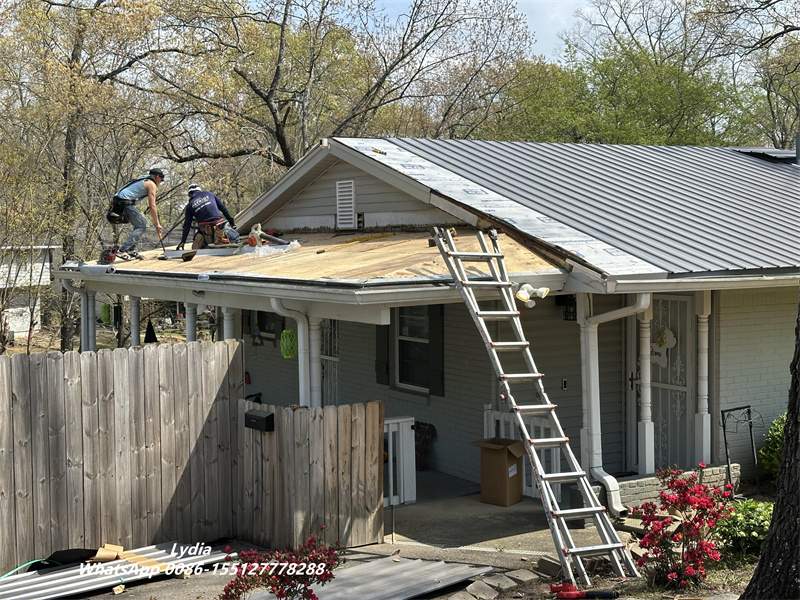

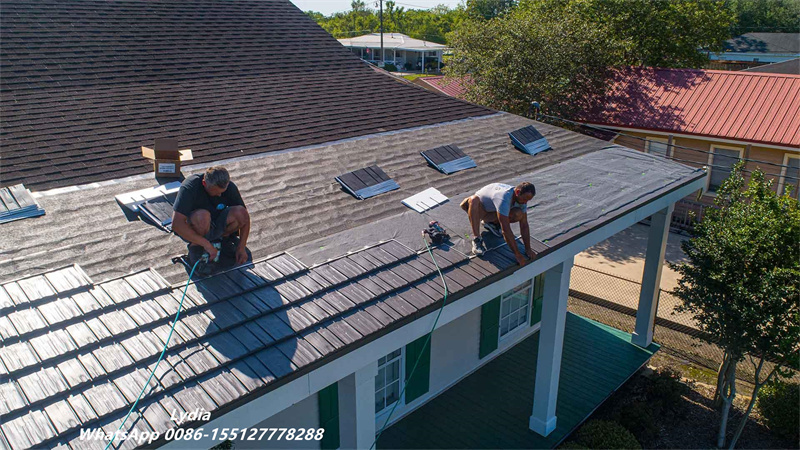

The machine is suitable for producing roofing panels for residential houses, villas, commercial buildings, office buildings, renovation projects, and other architectural applications where both appearance and long-term performance are important.
Click Lock Roofing Panel Machine for Retro Panel Production

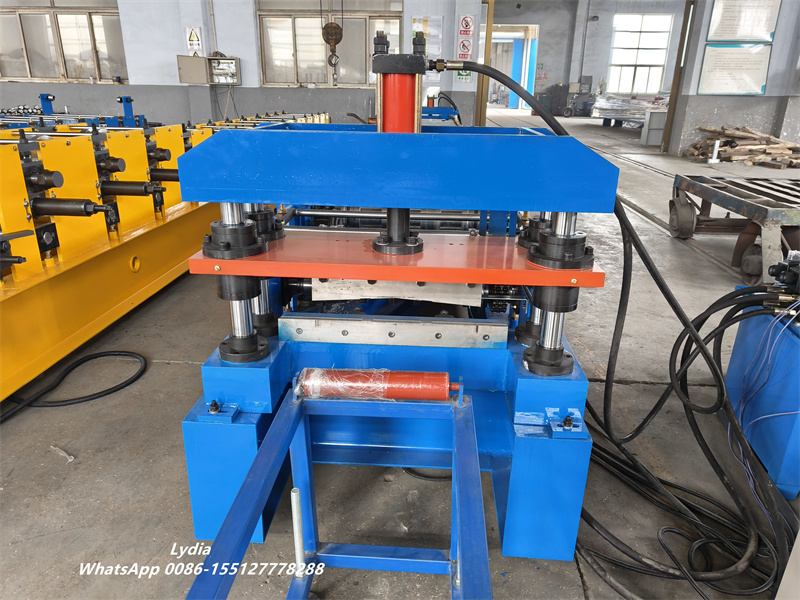

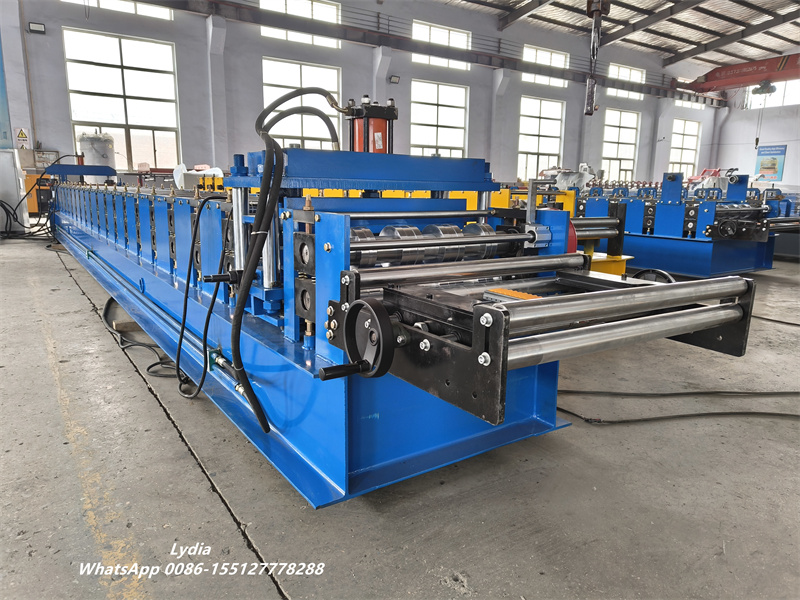

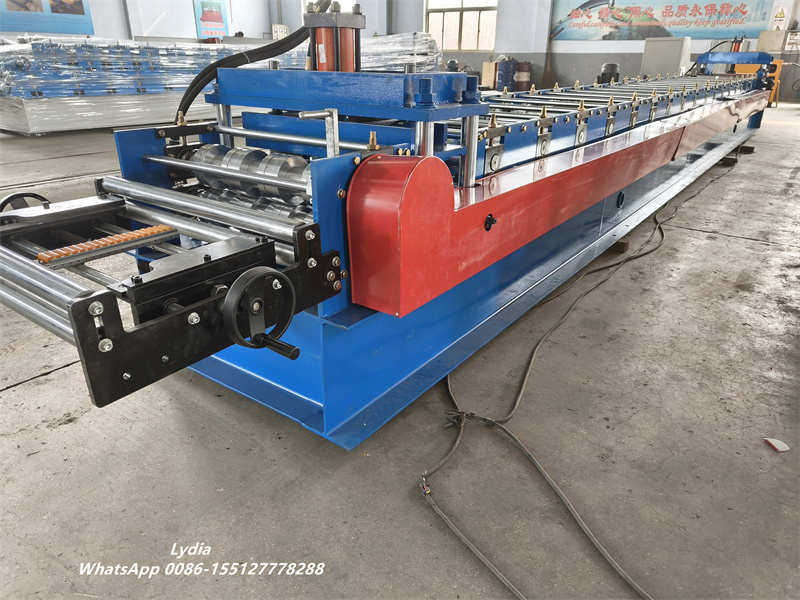

The Retro Panel Roll Forming Machine transforms metal coils into finished roofing panels through continuous feeding, punching, roll forming, and hydraulic cutting processes. The forming rollers gradually shape the flat metal strip into the required Retro Panel profile while maintaining consistent dimensions and protecting the coated surface.
Compared with conventional roofing systems with exposed screws, the click-lock roofing panel uses a concealed fastening structure. After installation, the fasteners are covered by the following panel, creating a smooth and streamlined roof surface.
This design makes Retro Panel roofing particularly suitable for modern residential architecture, commercial buildings, steep-slope roofs, heritage renovation projects, and other applications where the roof must combine functional performance with an attractive appearance.
The production line can also be customized according to the customer's panel drawing, material, thickness, forming speed, and production requirements.
542mm Retro Panel Roofing Sheet Profile

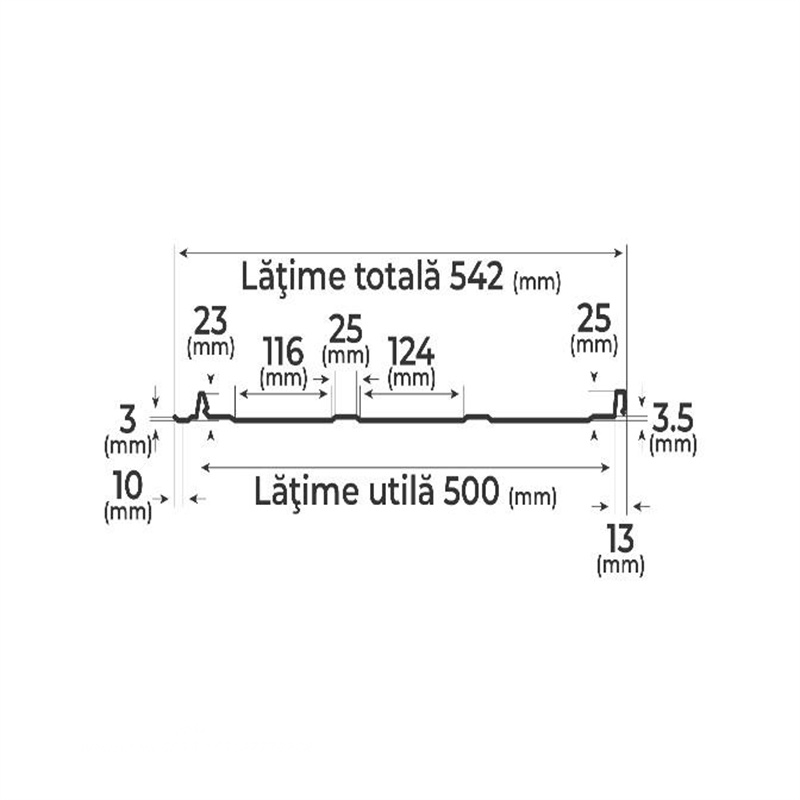

The machine is specially designed for manufacturing 542mm total-width Retro Panel roofing sheets, with an effective coverage width of approximately 500mm. The profile incorporates longitudinal ribs and concealed locking sections to improve panel rigidity and provide a reliable connection between adjacent sheets.
Typical specifications include:
| Item | Specification |
|---|---|
| Product Type | Retro Panel / Click Lock Roof Panel |
| Total Panel Width | 542 mm |
| Effective Coverage Width | 500 mm |
| Material Thickness | 0.45–0.60 mm |
| Suitable Materials | PPGI, Galvanized Steel, Aluminum Coil |
| Rib Height | Approx. 25 mm / 23 mm |
| Forming Stations | 14–18 Stations |
| Control System | PLC + Touch Screen |
| Cutting System | Hydraulic Cutting |
| Production Mode | Fully Automatic Continuous Forming |
The exact specifications can be adjusted according to the customer's roof panel profile drawing and production requirements.
Automatic Retro Panel Roll Forming Process
The complete production line integrates several working units to achieve continuous and automatic roofing panel production.
1. Coil Decoiling and Feeding
The metal coil is loaded onto the decoiler and continuously supplied to the forming line. A guiding and feeding system helps maintain stable material alignment before the sheet enters the forming rollers.
2. Automatic Punching
According to the panel design, the hydraulic punching unit can create the required fixing slots or holes before roll forming. These openings are positioned according to the customer's drawing and allow the roofing panels to be installed with concealed fasteners.
3. Precision Roll Forming
The metal strip passes through 14–18 forming stations, with each roller gradually bending the material into the final Retro Panel profile.
This progressive forming process reduces excessive deformation and helps maintain:
-
Accurate panel dimensions
-
Consistent profile geometry
-
Smooth coated surfaces
-
Stable click-lock connections
-
Reliable production quality
4. Hydraulic Cutting
After the panel reaches the preset length, the hydraulic cutting system automatically cuts the finished roofing sheet. Cutting length can be controlled through the PLC system according to production requirements.
5. PLC Automatic Control
The PLC control system provides centralized operation of the production line. Operators can set production parameters such as panel length, quantity, and operating functions through the touch screen.
This reduces manual intervention and helps improve production efficiency and consistency.
Main Advantages of Retro Panel Roll Forming Machine
The Click Lock Roofing Panel Roll Forming Machine offers several advantages for professional roofing manufacturers.
Concealed Fastener Design
The Retro Panel roofing system uses hidden fastening points, reducing the number of exposed screws on the roof surface. This produces a cleaner and more modern architectural appearance.
Fast Click-Lock Installation
The snap-lock structure allows adjacent panels to connect efficiently, helping reduce installation time and simplifying the roofing installation process.
Strong and Stable Panel Structure
The longitudinal ribs provide additional stiffness to the finished panel. This helps improve the structural performance of the roofing sheet while reducing visible waviness.
Excellent Surface Appearance
The progressive roll forming process is designed to minimize scratches and deformation of pre-painted or coated metal materials, helping produce roofing panels with a consistent surface finish.
Flexible Roofing Applications
Retro Panel roofing can be used for residential, commercial, renovation, and architectural projects. The concealed fastening structure is especially suitable for buildings where roof appearance is an important consideration.
Multiple Material Options
The machine can process different metal coil materials, including PPGI, galvanized steel, and aluminum, with the exact material thickness determined according to the required panel specification.
Applications of Click Lock Retro Panel Roofing
The finished Retro Panel roofing sheets can be used in a wide range of construction projects, including:
-
Residential houses and villas
-
Commercial buildings
-
Office buildings
-
Shopping centers
-
Architectural renovation projects
-
Historical and heritage buildings
-
Steep-slope roofing projects
-
Modern architectural structures
-
Metal roofing systems
-
Selected facade and architectural applications
The combination of a concealed fastening system, clean panel appearance, and efficient installation makes Retro Panel roofing a practical choice for projects that require both visual quality and reliable roof performance.
Customized Retro Panel Roofing Panel Production Line
Zhongtuo provides customized Retro Panel Roll Forming Machines according to different roofing panel drawings and production requirements.
The machine configuration can be customized in terms of:
-
Panel width and coverage width
-
Panel profile and rib dimensions
-
Material thickness
-
Number of forming stations
-
Punching position and hole pattern
-
Hydraulic cutting system
-
Decoiler capacity
-
Production speed
-
PLC control functions
-
Automatic stacking and other auxiliary equipment
Before manufacturing, customers can provide the Retro Panel profile drawing, material information, and required production specifications. Zhongtuo can then design the forming rollers and production line according to the actual panel requirements.
