Can a small factory fit a complete roofing tile production line? Many buyers worry about this before purchasing. A roofing tiles machine that does not fit, or fits but leaves no room to work, is a real problem. The full line space is not just the main unit size. It also includes decoiling, feeding, forming, cutting, output, collection, operator access, and material handling. This article helps you understand line space clearly, explains how automatic decoiler and stacker options affect production flow, and shows how our customization solves different factory conditions.
How to Layout a Complete Roofing Tile Line in a Small Factory
Line space is not the same as main unit size. The main forming unit may be about 11500mm long, but the whole line needs space at both ends to run properly.
Applications of Roofing Tile Production Lines
A roofing tile production line makes metal roof tiles used in several areas:
-
Roof and wall covering for industrial plants and warehouses
-
Sloped roofing for residential housing
-
Simple roof structures for agricultural greenhouses
-
Metal roofing systems for large public buildings
Different applications need different output, profiles, and automation levels. That changes the space and configuration needs. Industrial plants and large public buildings often need high volume continuous production, so they demand more automation and smoother production flow. Agricultural greenhouses and residential housing run smaller batches, so the configuration can be more flexible. A tile roof making machine can be set up for either production style.
What the Full Line Space Includes
A complete roofing tile production line takes up space in several areas:
-
Decoiler area: holds the steel coil and decoiler, with room for coil loading and unloading
-
Feeding section: transition area from decoiler to forming machine
-
Main forming machine: the core unit, about 11500mm long
-
Cutting section: hydraulic cutting mechanism and output transition
-
Output section: area where cut tiles leave the cutting machine
-
Collection or stacking area: space for finished tile collection and stacking
-
Operator access: walking space for monitoring and operation
-
Material handling access: entry and exit paths for coils and finished products
The quotation gives a working space of about 20m long, 2.5m wide, and 1.2m high. This is the basic reference for the full line. If your factory is short on length, you can adjust the receiving table layout. If width is limited, check whether operator access is enough. A roofing tiles machine with this working space fits many small factory layouts.
Machine Advantages
This roofing tile forming machine offers several practical advantages for limited factory space:
-
Working space of about 20m by 2.5m gives a clear reference for planning line layout in a small factory
-
Manual pre shearing device helps avoid wasting raw material during coil changes
-
Touchscreen supports Chinese, English, and Spanish for operator convenience
-
Double chain drive configuration for the transmission system
-
20 rollers with gradual forming for consistent profile shaping
How Automatic Decoiler and Stacker Change Production Flow
The automatic decoiler and automatic stacker are two optional functions that directly affect production flow.

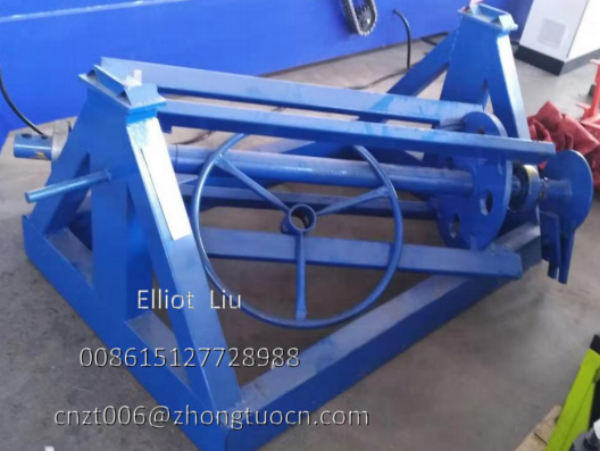

Automatic decoiler changes how material enters the line. The standard manual decoiler needs manual strip feeding. During coil changes, the operator manually guides the strip into the forming machine. With the optional hydraulic automatic decoiler, a loading cart moves the coil from the floor directly to the decoiler position. The hydraulic system expands and secures the coil. A speed sensor matches the decoiler speed to the main machine automatically. No crane or forklift is needed for coil changes, and operator workload drops.
Automatic stacker changes how finished products leave the line. The standard receiving table needs manual stacking of cut tiles. With the optional 6 meter automatic stacker, cut tiles drop automatically onto the stacking area. When the stack reaches the set height, one button moves the whole stack to the packing area. Finished tiles stack more neatly, and the collection area uses space more efficiently. A tiles making machine metal roof line with this stacker handles high output collection with less manual work.
Together, these two options reduce manual handling at both the material end and the finished product end. The whole line runs with smoother production flow.
Why Different Factories Need Different Equipment Configurations
Factory conditions vary a lot, so one standard configuration does not fit every customer.
Factory length affects line layout. A long factory can arrange decoiler, forming, cutting, and collection in a standard layout. A short factory may need to adjust the receiving table direction or use a more compact layout.
Tile profile affects forming machine configuration. Different profiles need different roller designs. Complex profiles need more roller stations, so the forming machine length changes.
Output requirements affect whether an automatic stacker is needed. For high output and high labor cost, the optional automatic stacker greatly reduces manual work in collection. For low output with enough labor, the standard receiving table is enough.
Considering these factors, a roofing tiles machine configuration should match factory space, tile profile, and output requirements together.
Main Line Parameters
| Parameter | Value |
|---|---|
| Material Thickness | 0.16 to 0.55mm |
| Raw Material Width | 1000mm |
| Effective Width | 812mm |
| Working Speed | 0 to 20m/min |
| Processable Materials | GI, PPGI, PPGL |
| Working Space | Approx. 20m x 2.5m x 1.2m |
| Main Forming Unit Size | Approx. 11500 x 1500 x 1500mm |
| Main Forming Unit Weight | 6.5 tons |
| Roller Material | 45# Steel with Hard Chrome Plating |
| Number of Rollers | 20 Rollers |
| Shaft Material | 45# Steel, Quench Treated |
| Shaft Diameter | 80mm |
| Drive Mode | Double Chain |
| Frame | H Beam Steel Welded |
| Cutting Tolerance | ±1.0mm per 3m |
| Voltage | 380V 50Hz 3 Phase |
How Our Customization Solves Space and Configuration Issues
Different customers have different factory sizes, product specifications, and automation needs. A standard configuration does not always fit. As a roll forming machinery manufacturer, we at Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. can design the configuration based on your actual factory conditions and production needs.
You can contact us directly to discuss factory space, tile profile, and output requirements, and get a targeted configuration suggestion. With factory direct supply, you can talk to us about real production needs and adjust equipment configuration based on your factory conditions.
Limited factory space does not mean you must give up automation. The key is to understand the full line space, see how automatic decoiler and stacker affect production flow and manual work, and then choose a configuration that fits your factory. If you have specific factory dimensions, tile profile, or output requirements, contact us directly for a targeted configuration suggestion. A tile roof make machine can be customized to fit your actual production floor.
