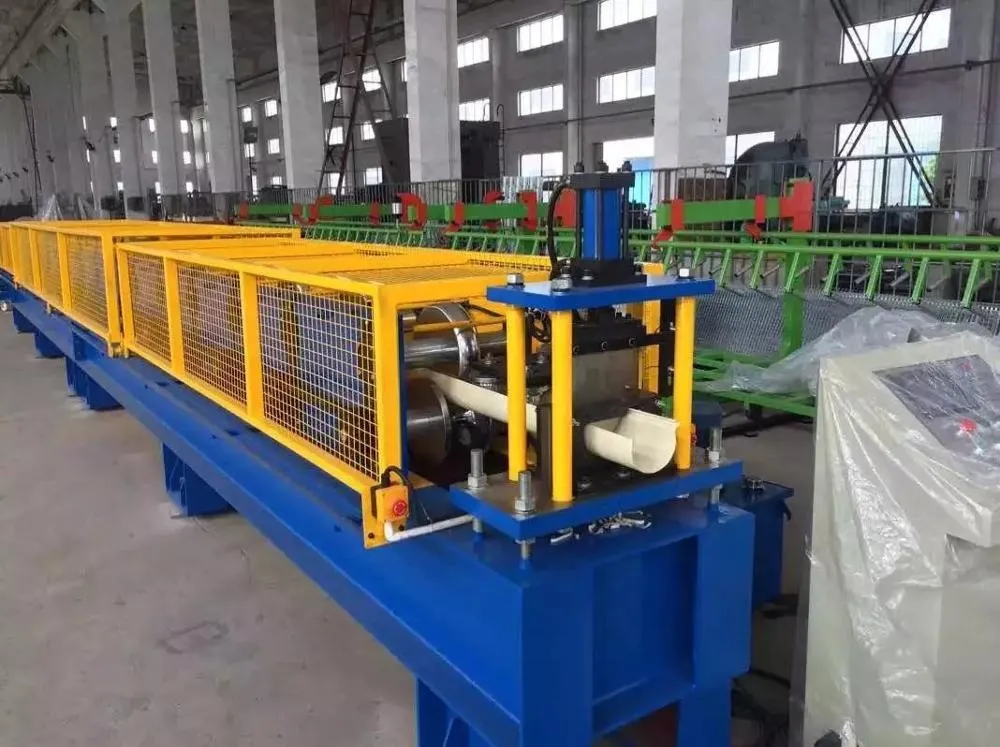

Rain Water Roof Valley Gutter Roll Forming Machine Rainwater Gutter Roll Forming Machine 10-15 meters/min+Light Steel+1120mm

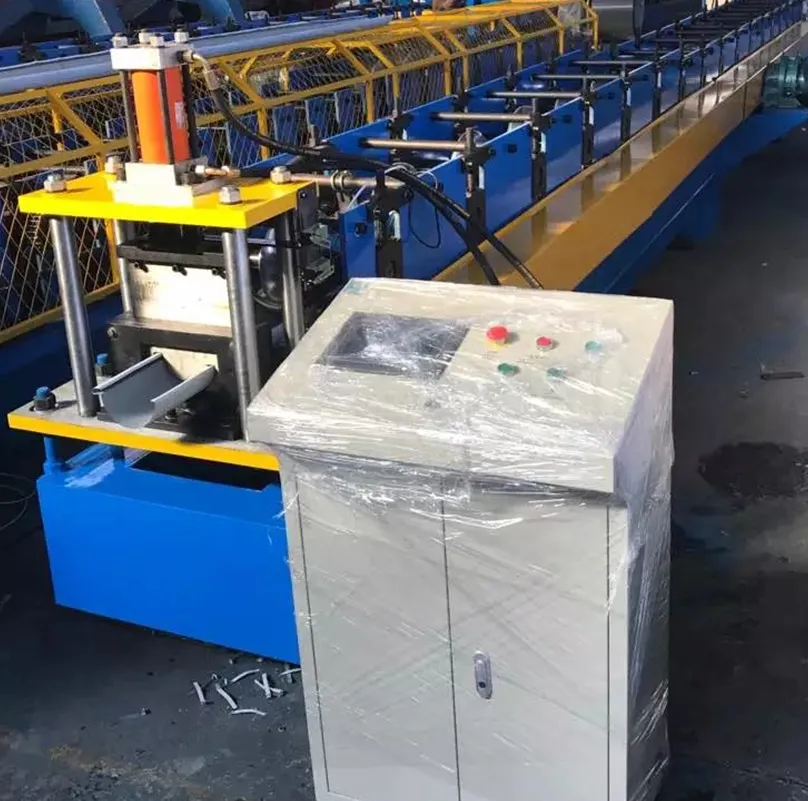

Rain Water Roof Valley Gutter Roll Forming Machine Rainwater Gutter Roll Forming Machine

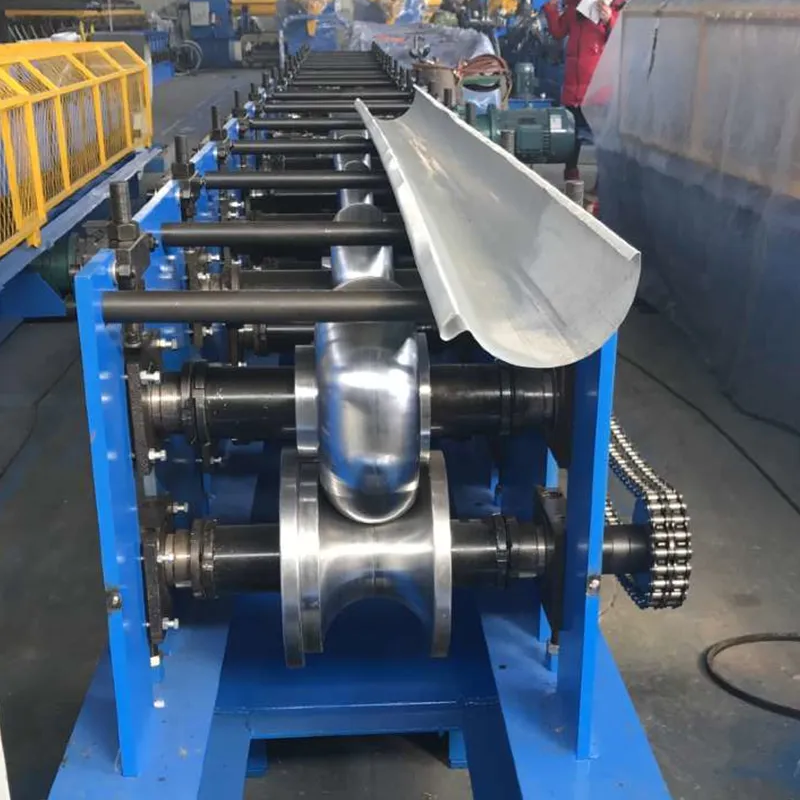

Rollforming line for rain gutter profiles is a kind of new building materials, used for the steel house as the necessary part for the gutter, While its main features are:

1.controlled by PLC control, multi-level security system to protect the normal production.

2. tools welding steel and tempered, stress relief, to avoid deformation of the body.

3. cast iron structure, and after tempering. Strong, long service life.

4. material roll axis, the hardness after quenching HB280.

5. forming mold material is GCr15, quenching, hardness: HRC56-62

6.binder according to the main choice of materials, bond prior to use to do the test performance.

7.can be used for a variety of investigations according to design specifications, plastic or aluminum alloy plate strips of roads, materials, variety, quality, specifications must meet the design requirements.

 Processing flow diagram of gutter roll forming machine

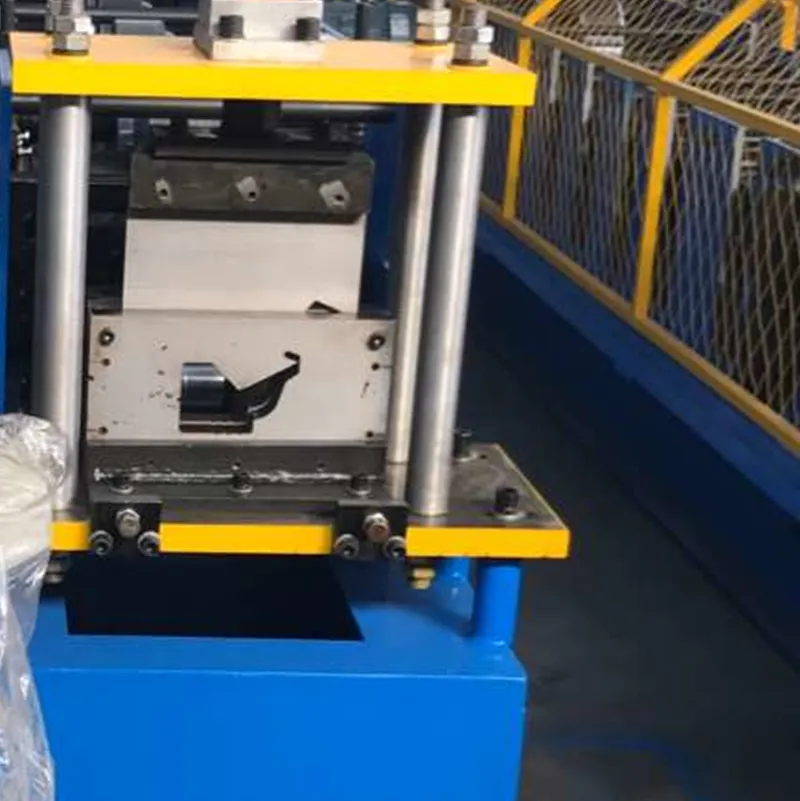

Manual decoiler →Feeding material into machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products



the main specification:

No.	Main parameter
1	Length of the main part	7500 * 650 * 1450 mm
2	Weight of main part	2.5 t
3	Voltage	380 V/ 50 HZ 3 Phase (as customer’s request)
4	Roller fixer	Middle plate welded
5	Frame	350 H steel welded
6	Frame thickness	30mm
7	Drive mode	Chain
8	Material of rollers	45# steel, surface hard chromium plating.
9	Material of shafts	45# steel
10	Diameter of shafts	Φ 60 mm

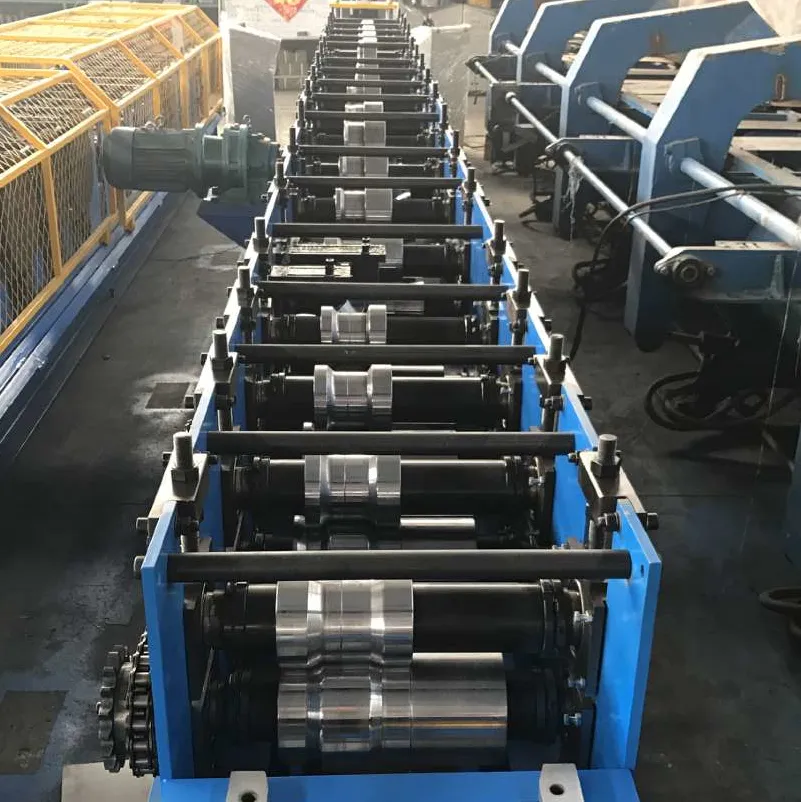

11	Number of rollers	15rollers
14	Main power	3 kw



1) What is the guarantee coverage? What does it include? Is there any possibility of broadening the guarantee time by paying an amount of money?

1   The free warranty is 1 year , and with All  life technical guidance for free.

2    We can offer the paid parts after one year, including all machine parts.

3   Ordinary, our machine can not broken in ten years or more, so there is no need by paying an amount of money.

The easy broken parts of  machine is : 1 Some parts of Hydraulic system, 2 some parts of  electric system, 3 some parts of  transmission system, 4 some parts of  cutting system, so we will delivery some spare parts of  this easy broken parts for free when delivery the machines



Questions 2:

2) Can we have estimated costs of the enterprise start? (installations, technical support, supplies such as batteries and oils or anything the machine needs to run)

1  The machine is completely finished before deliverying to you. When the machine arrived at your factory, all the machine need is the hydraulic oil, gear oil , power supply, electric wire, together this is less than USD 5000.

3) What is the production capacity in terms of units?

Every machine production capacity is 0-60 meters/Min

Questions 3:

4) What are the electricity specifications?

     The electricity is 380 V, 60 HZ, 3 Phrase

     (The electricity can be customized made according to your require)

Questions 4:

4) What are the additional requirements of the machinery (oil, batteries)?

The additional requirements of the machinery is oil, the oil pump need the oil.

The oil specification is: 46# hydraulic oil, gear oil

Questions 5:

5) What does the customer service include: maintenance plans, machinery parts, etc?

The maintenance is for all life, but the customer side need to pay the Accommodation , transportation, and some salary payment for the Engineer.

Ordinary, this case is few, often, the small problem can be solved by communicated through Email, or calling, we keep every machine documents in the technical department, so we are clear about every machine .

Questions 6:

2) What is the estimated life of the machinery?

The estimated life of the machine is 15-20 years or more.

Questions 7:

3) What is coil width and thickness to produce our profiles?

The feeding coil width can be offered to you in the machine operating manual book when the machine is finished.

The thickness of the strips is : 0.3-0.8 mm (as customer required)

Questions 9:

4) Can the machinery knurl the profiles?

The machine can knurl the profiles with any content or logo symbol,

It need to add a punching press part before the cutting system.
