Rain Gutter Downspout Roll Forming Machine Downspout Machine square Rectangular Downspout Making Machine

Name: Rain Gutter Downspout Roll Forming Machine Downspout Machine square Rectangular Downspout Making Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120564331

Key Selling PointsEasy to operate; forming pipe with no damage

Voltage220 V / 380 V / 440 V, support customized

Machine Weight8000 kg

WarrantyMore than 5 years

CertificationCE, BV, STV, ISO

After-Sales ServiceService machinery overseas

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Rectangular Downspout Making Machine

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Key Selling Points
Easy to operate; forming pipe with no damage
Voltage
220 V / 380 V / 440 V, support customized
Machine Weight
8000 kg
Warranty
More than 5 years
Certification
CE, BV, STV, ISO
After-Sales Service
Service machinery overseas
Forming Speed
20 m/min
Max Profile Size
500 mm
Roller Stations
22 stations
Roller Material
45# steel chrome plated
Shaft Material
45# steel, outer diameter 70 mm
Cutting Blade
Cr12 high grade steel
Power
11 kW
Control System
PLC (imported brand)

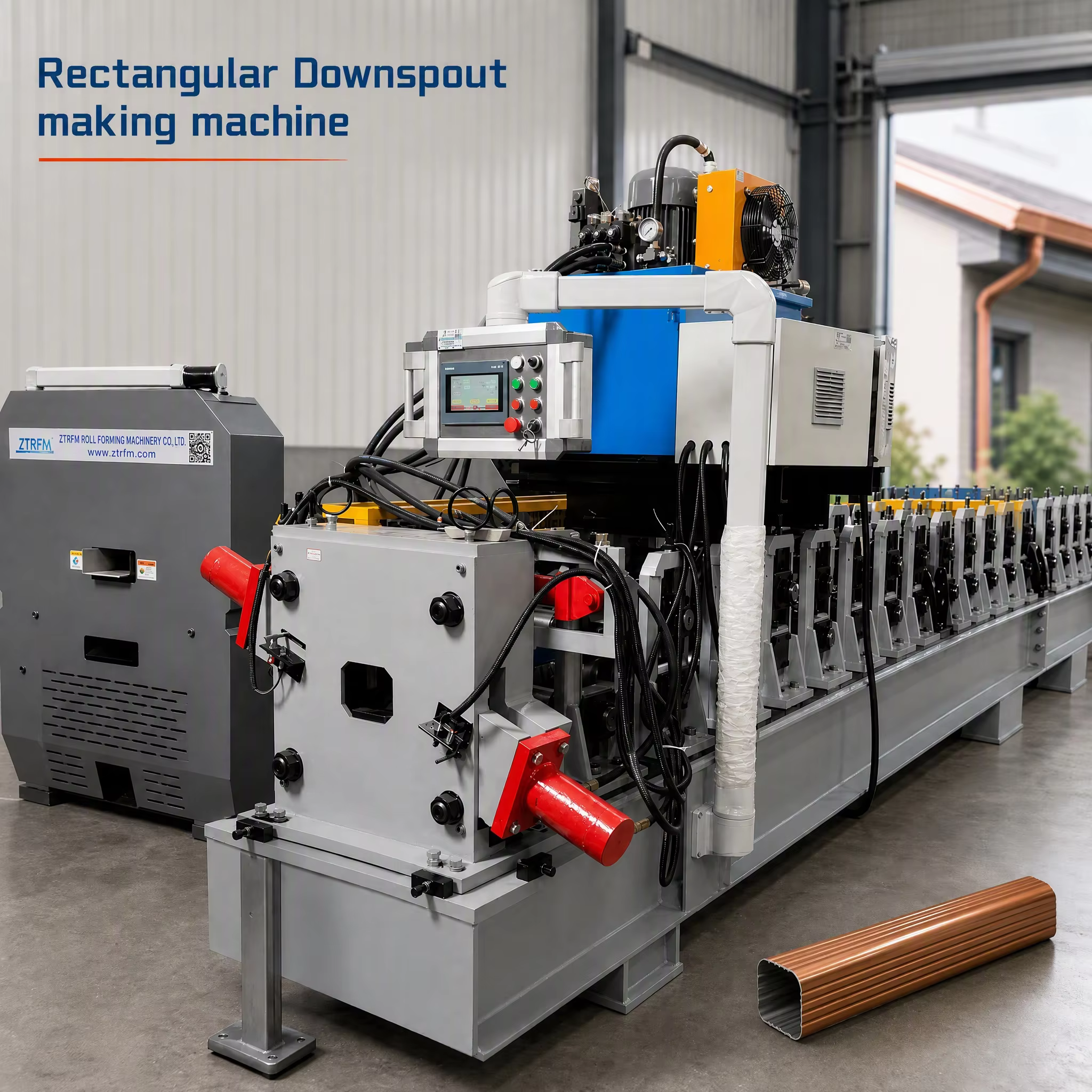

Rectangular downspout making machine with square downspout sample

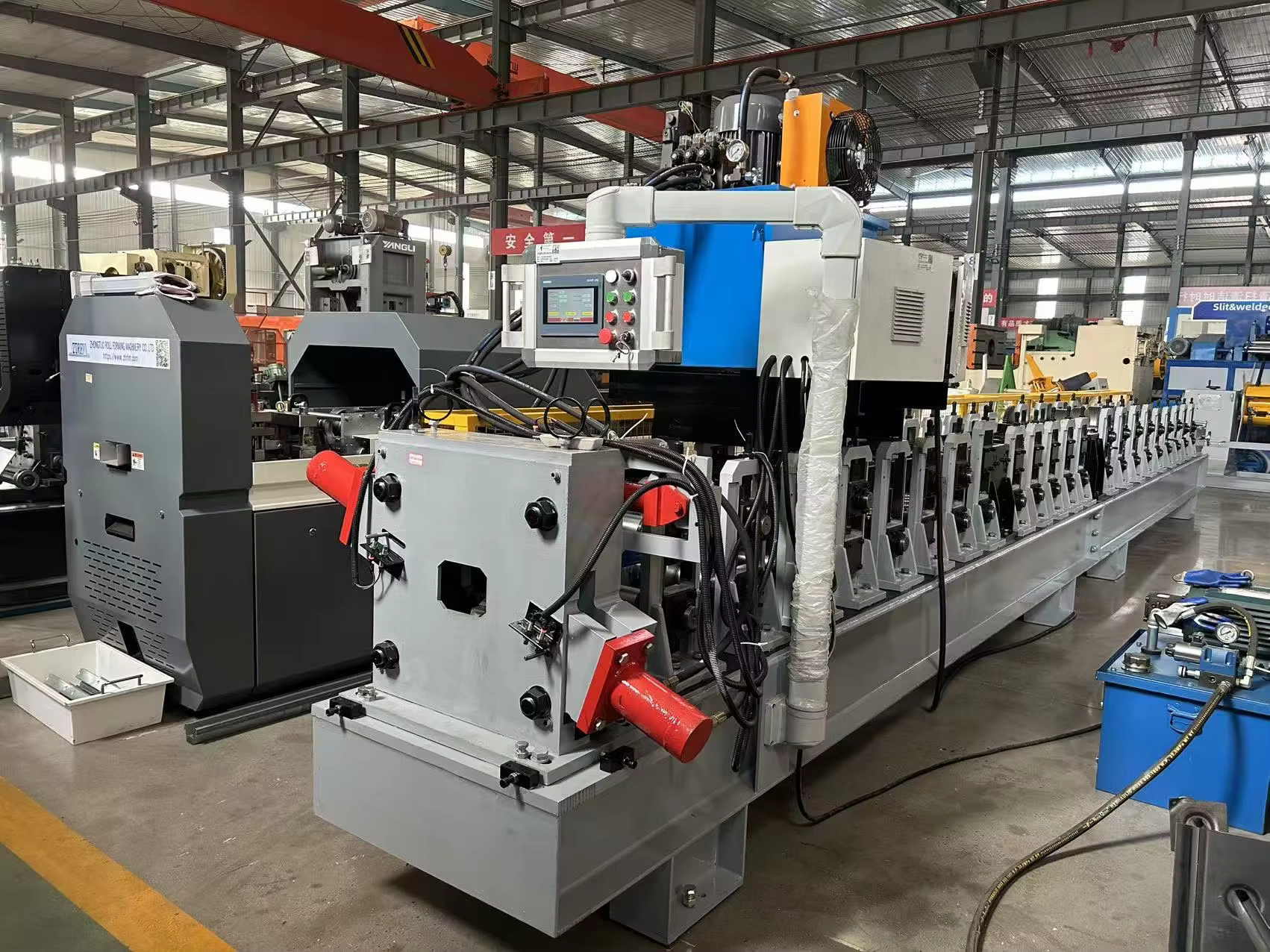

Rectangular downspout machine in factory

Product Overview

The rectangular downspout making machine is a roll forming line that produces square/rectangular downspout profiles for rain gutter systems. With 22 forming stations, 45# chrome-plated rollers, PLC (imported brand) control and a forming speed of 20 m/min, it forms square downspout pipe without damage to the finished surface.

Easy to operate with PLC (imported brand) control
Forming pipe with no damage - clean profiles without scratches
22 forming stations (as final rectangular downspout profile), 20 m/min
45# steel chrome-plated rollers, 45# shafts with 70 mm outer diameter
Cr12 high grade steel cutting blades, 11 kW power
CE, BV, STV, ISO certified

Key Features

Easy to Operate - PLC (imported brand) control system with simple operation for continuous production of square downspout profiles.
Forming Pipe with No Damage - The precision roll forming process shapes the pipe without scratching or deforming the coated surface.
22-Station Precision Forming - 22 forming stations produce accurate rectangular downspout profiles with a forming speed of 20 m/min; max profile size 500 mm.
Durable Tooling - 45# steel chrome-plated rollers, 45# steel shafts (70 mm outer diameter) and Cr12 high grade steel cutting blades for long service life.
Wide Compatibility - Runs 220 V / 380 V / 440 V or customized voltage; 11 kW power for efficient production.

Technical Specifications

Item	Specification
Product name	Rectangular Downspout Making Machine
Forming speed	20 m/min
Max profile size	500 mm
Roller stations	22 stations (as final rectangular downspout profile)
Roller material	45# steel chrome plated
Shaft material	45# steel, outer diameter 70 mm
Cutting blade material	Cr12 high grade steel
Control system	PLC (imported brand)
Power	11 kW
Voltage	220 V / 380 V / 440 V, support customized
Machine weight	8000 kg
Warranty	More than 5 years
Place of origin	China
Certification	CE, BV, STV, ISO

Machine Structure

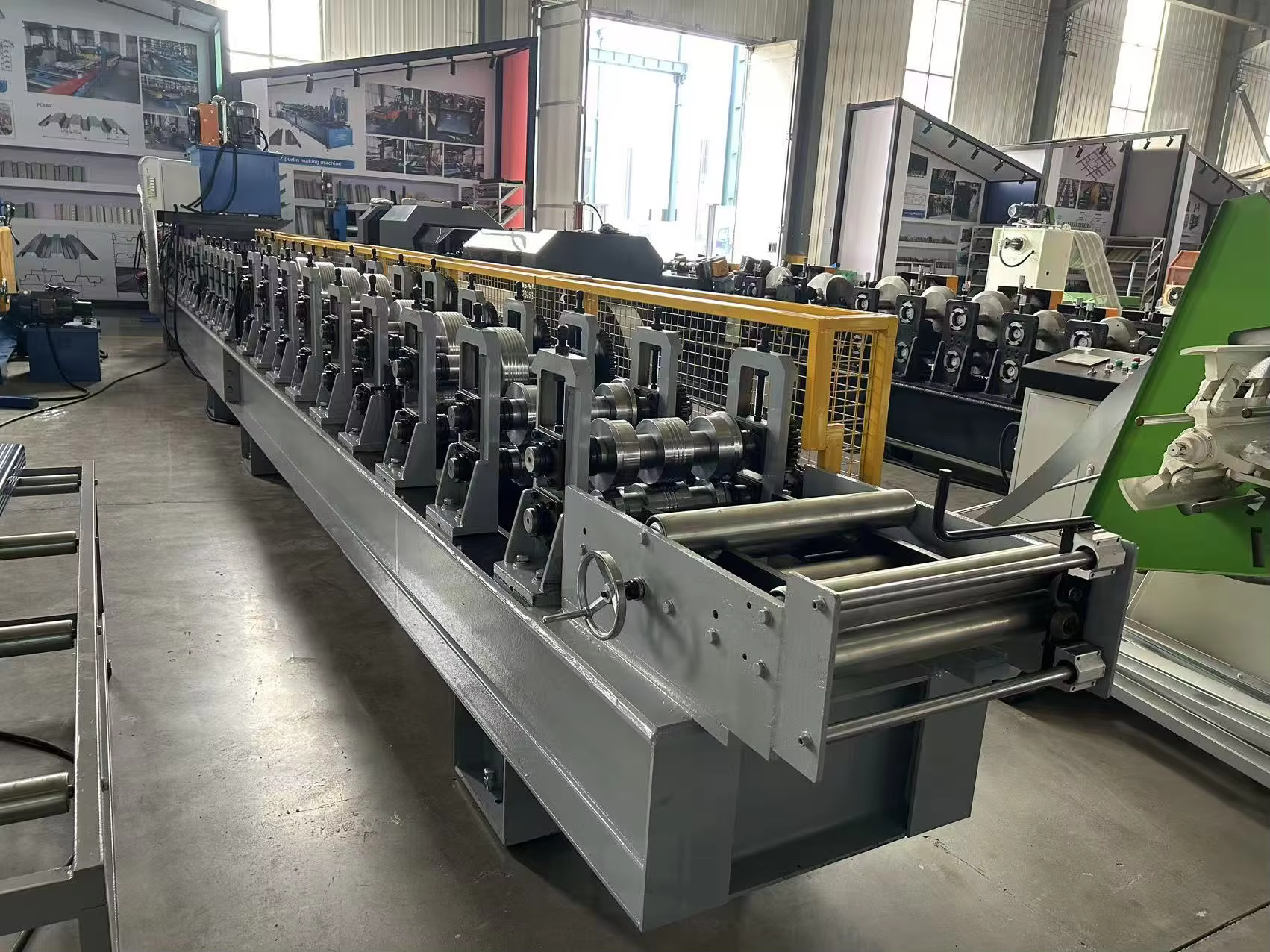

Downspout forming section with rollers and safety guard

The forming section features a long series of chrome rollers under a yellow safety guard with a handwheel adjustment mechanism, progressively bending the coil strip into the rectangular downspout profile.

Finished Product

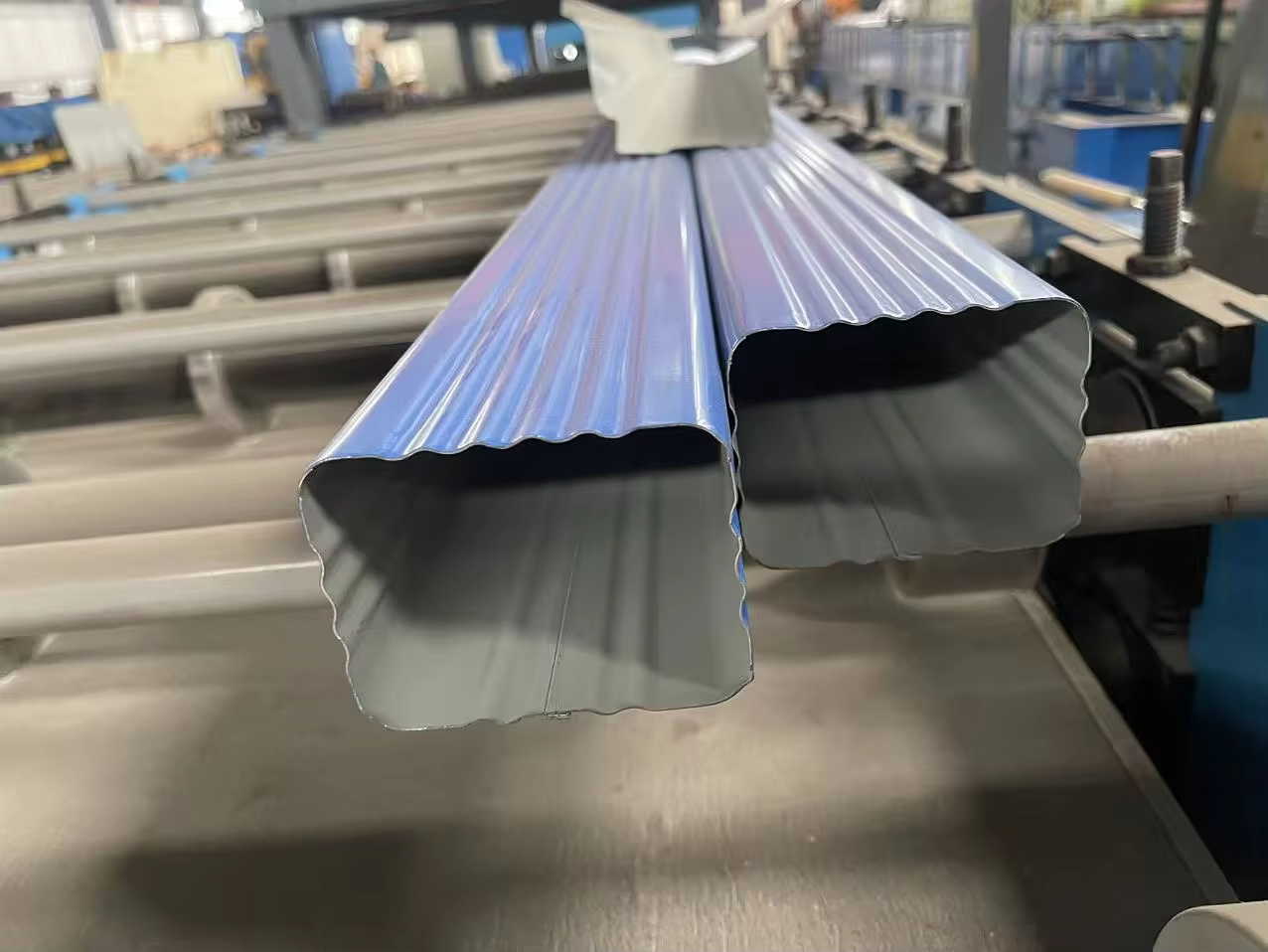

Finished rectangular downspout profiles in metallic blue

Finished rectangular downspout profiles with smooth coated surfaces, formed without damage to the coating, ready for gutter drainage system installation.

Certifications

CE certified equipment certificates

The company holds CE, BV, STV and ISO certifications for its roll forming equipment.

Company Profile

Company factory, showroom and workshop

The supplier is a dedicated roll forming machinery manufacturer with a modern factory, showroom and high-capacity workshop, delivering cold bending equipment solutions worldwide.

Packing & Shipping

Package size: 850 x 100 x 100 cm; machine weight: 8000 kg
Delivery time: 50 days for 1 set, 66 days for 2 sets
Machinery test report and video outgoing inspection provided
