R101 Trapezoidal Roof Roll Forming Machine for Color Coated Steel

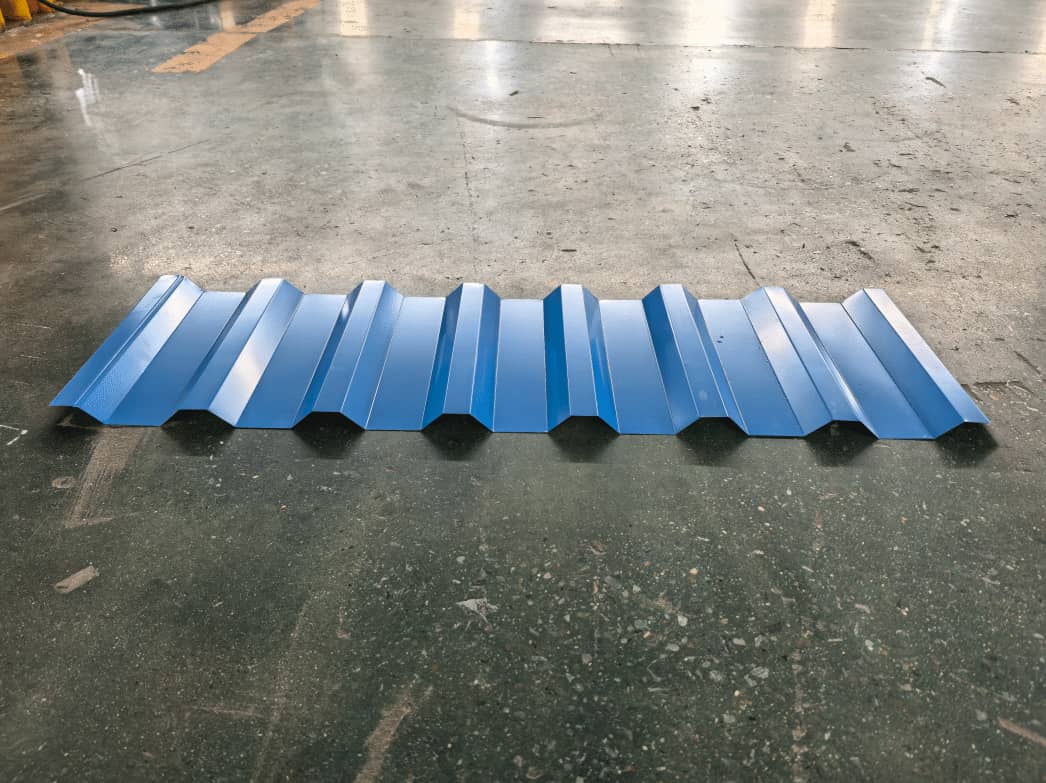

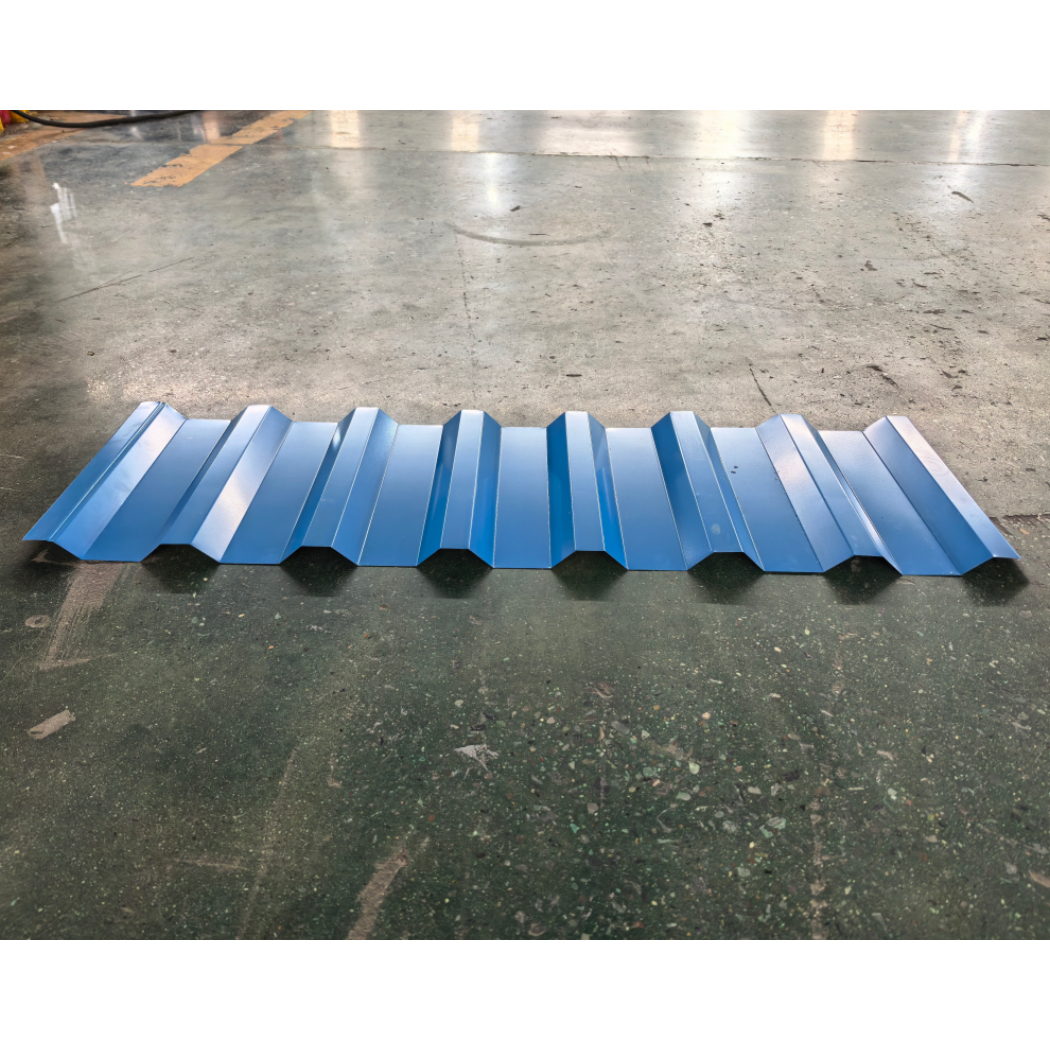

The R101 Trapezoidal Roof Roll Forming Machine for Color Coated Steel is a fully automatic cold bending equipment specifically designed for producing R101 trapezoidal metal roof panels. This equipment uses a progressive cold bending process with multiple rollers to form color coated steel coils, galvanized steel coils, or aluminum magnesium manganese coils into standard trapezoidal roof panels in one go.

Standard process flow:
Hydraulic/manual unwinding → Multi pass rolling mill progressive cold bending forming → Servo fixed length tracking cutting → Automatic discharge and stacking. The entire molding process is carried out at room temperature without the need for heating.

Application Scenarios：

• Industrial and civil buildings:
roofs and walls of large factories, warehouses, workshops, and steel structure factories

• Commercial and public facilities:
roofs and enclosures of sports venues, exhibition centers, stations, gas stations, and other buildings

• Prefabricated buildings:
activity board houses, temporary buildings, etc


Core advantages：

1. High precision molding
The trapezoidal wave peaks, wave spacing, and plate length tolerances are extremely small, ensuring tight overlap of roof panels and effectively preventing leakage.

2. Efficient and stable production
Adopting frequency conversion speed regulation, it can produce continuously for 24 hours without interruption. Some models have a molding speed of up to 0-20m/min, suitable for fast delivery of large orders.

3. Durable and sturdy
Adopting a heavy-duty steel structure body, the rolling mill is wear-resistant and not easily deformed, with low vibration and low failure rate during long-term operation.

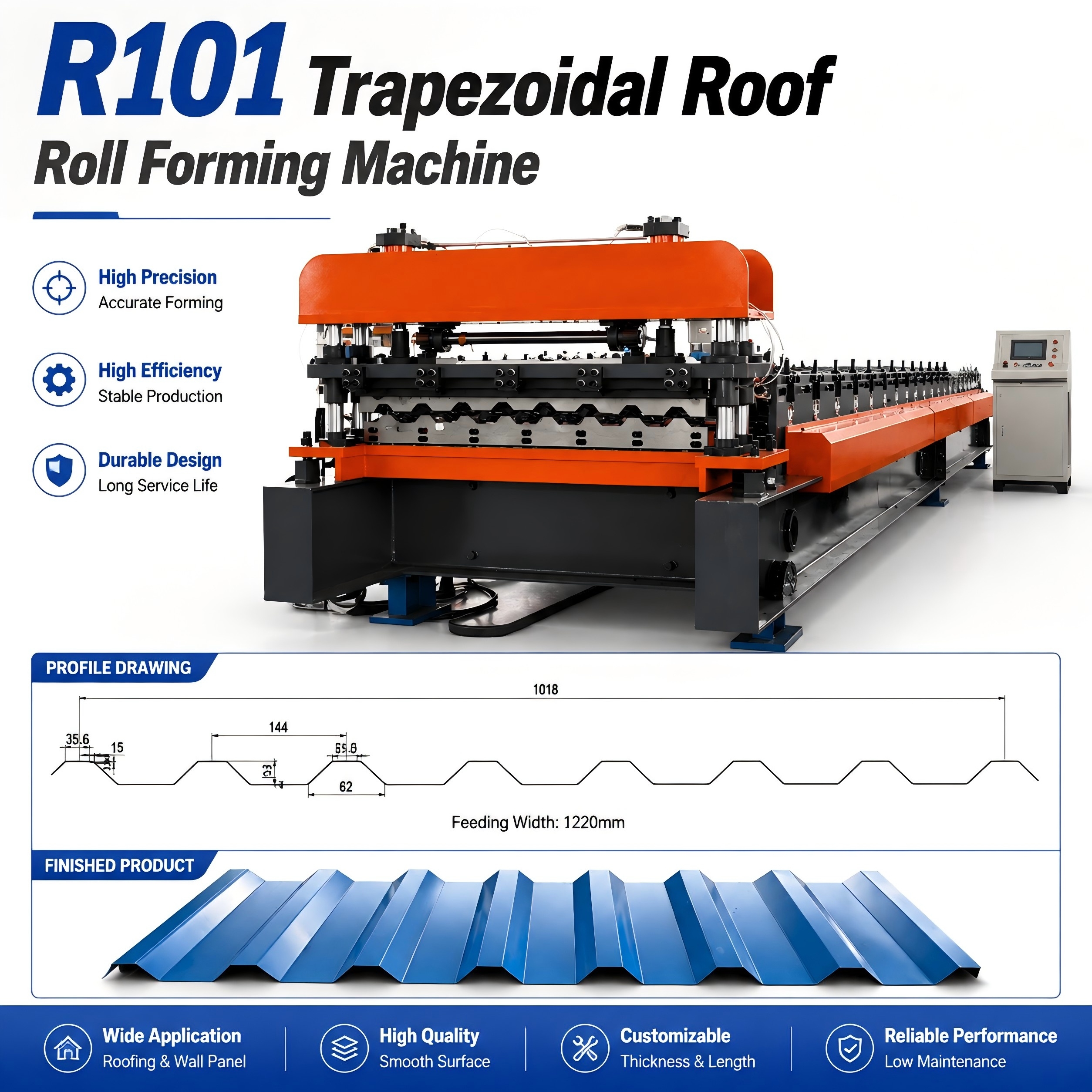

Pattern drawing：




Product Attributes :

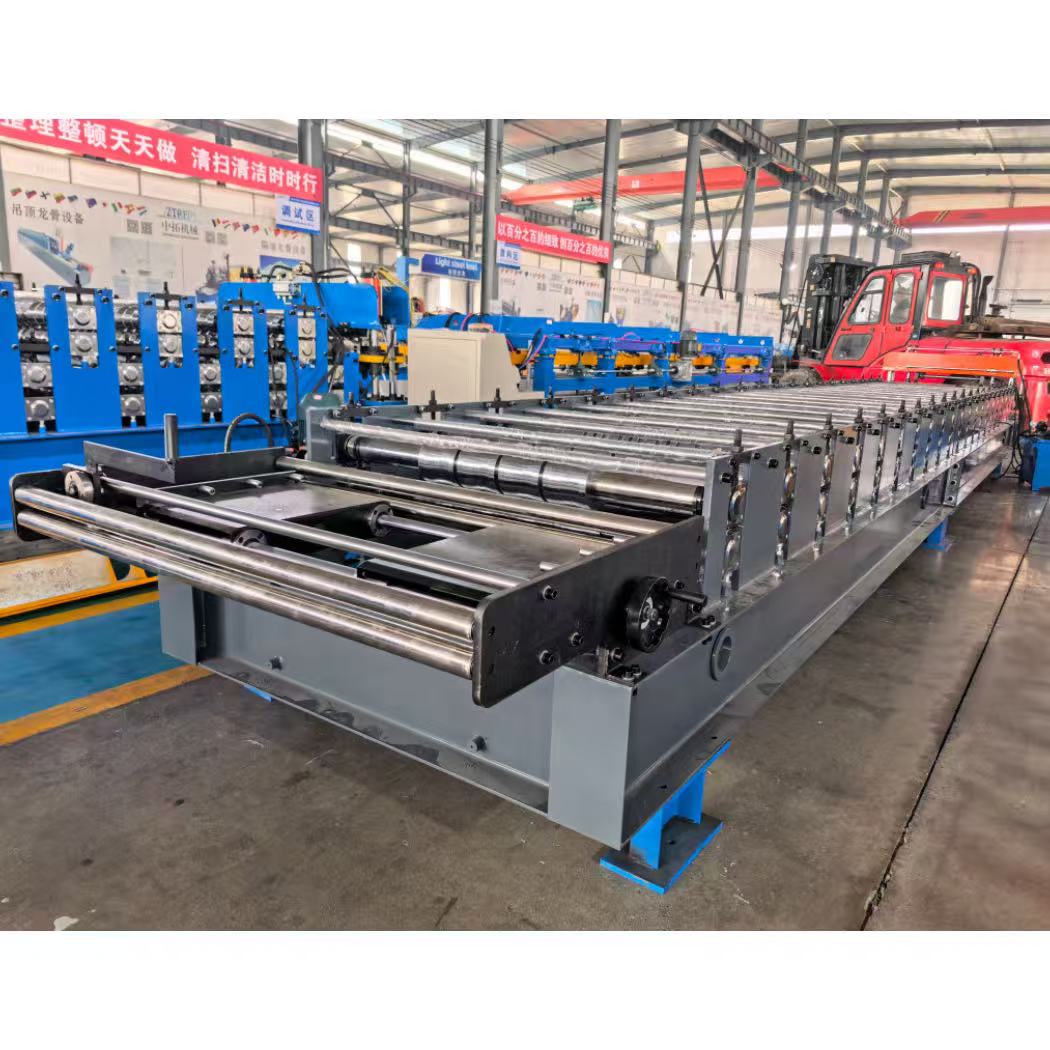

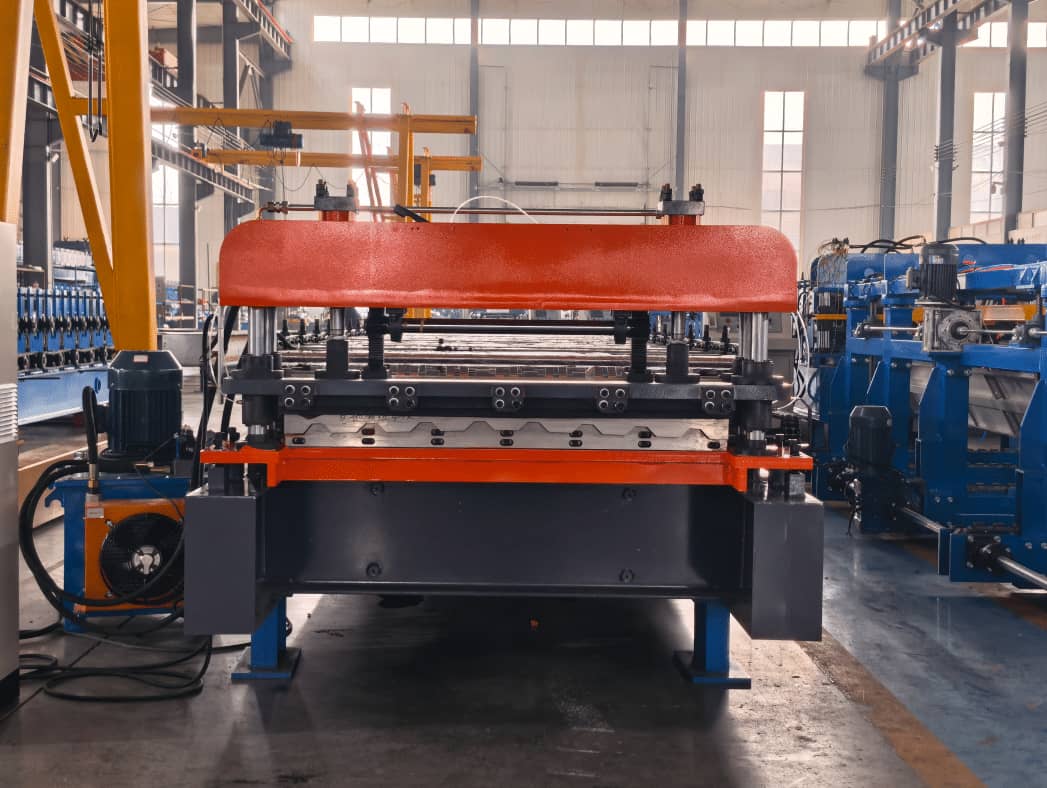

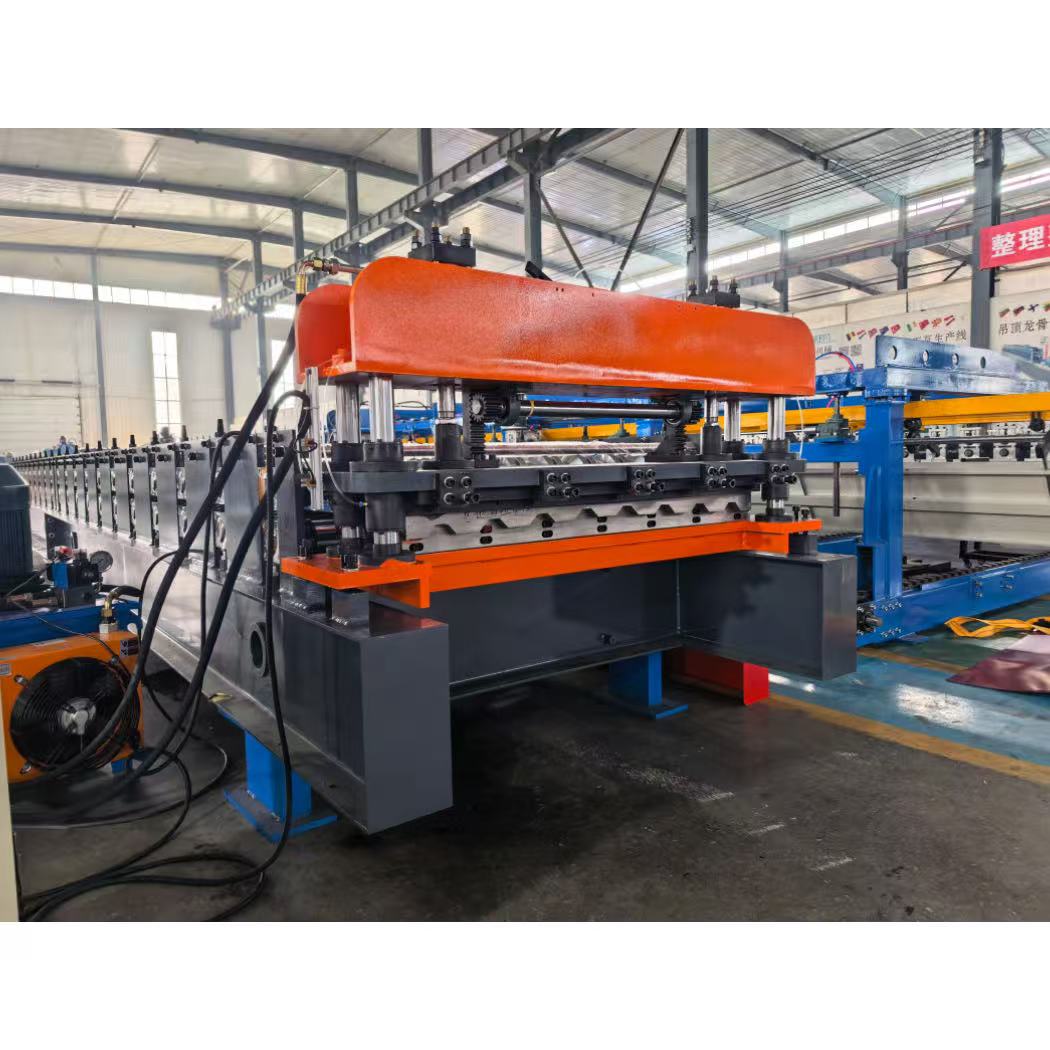

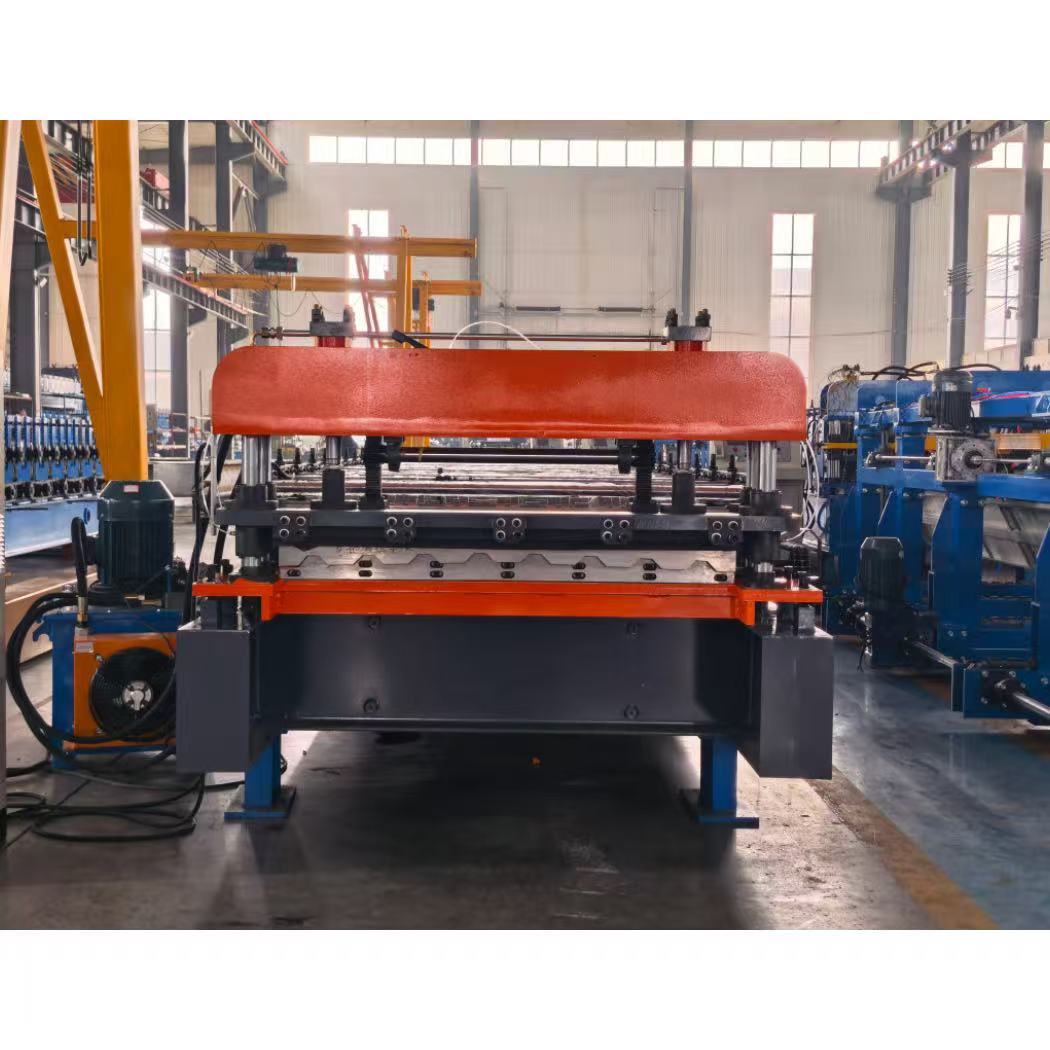

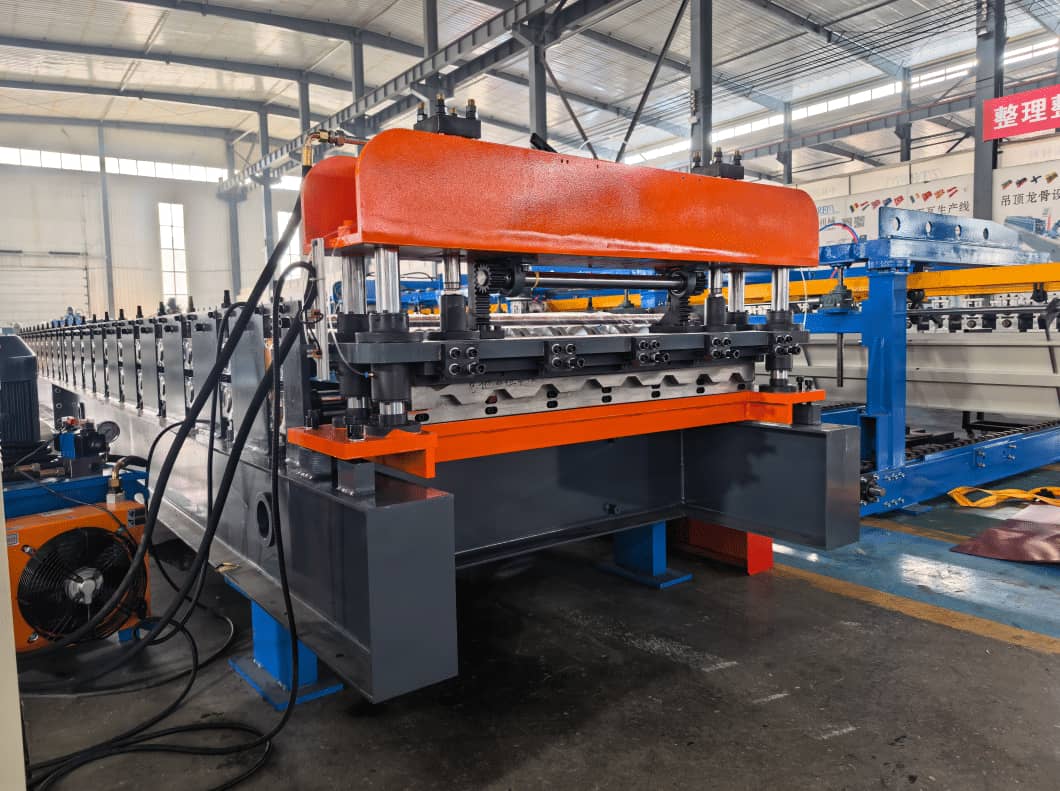

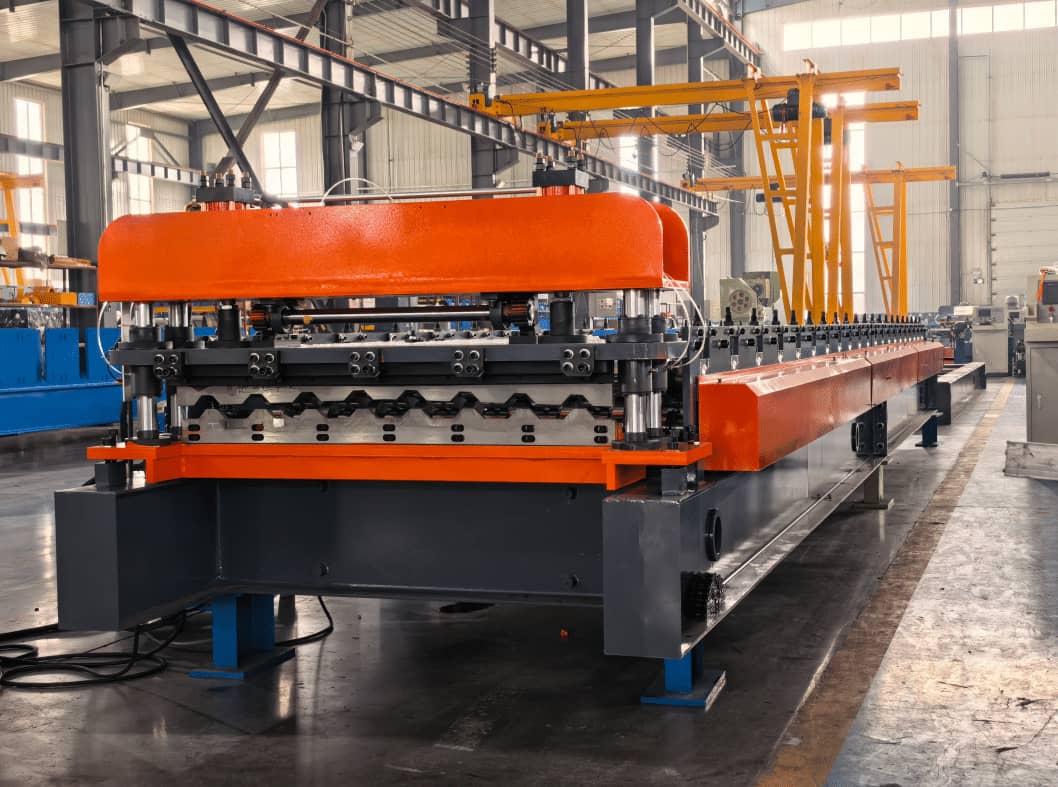

Machine photos:

Frequently Asked Questions (Q&A)：

Q1: What materials can the equipment process?

A: It can process color coated steel plates (PPGI), galvanized steel plates (GI), aluminum zinc coated plates (PPGL), aluminum magnesium manganese plates, etc. The material thickness is usually 0.3-0.6mm.

Q2: How many people are needed to operate a machine?

A: The entire fully automated production line only requires one person to operate. The PLC control system can automatically complete the entire process from molding to cutting.

Q3: What is the molding speed of the equipment?

A: The conventional production speed is 0-20m/min, and some models can reach up to 0-30m/min.

Q4: What are the certifications for the equipment?

A: Passed CE certification and ISO9001 quality system certification.
