Professional Glazed Tile Roofing Sheet Roll Forming Machine Metal Tile Making Machine 25 M/min+Glazed Tile Roofing Sheet Roll Forming Machine+15KW

Cangzhou Zhongtuo International Trade Co., Ltd

Professional Glazed Tile Roofing Sheet Roll Forming Machine Metal Tile Making Machine 25 M/min+Glazed Tile Roofing Sheet Roll Forming Machine+15KW

Name: Professional Glazed Tile Roofing Sheet Roll Forming Machine Metal Tile Making Machine 25 M/min+Glazed Tile Roofing Sheet Roll Forming Machine+15KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT80317025

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

25 M/min

Model Number:

Glazed Tile Roofing Sheet Roll Forming Machine

Power(W):

15KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
Wall
Voltage
380 V
Rolling Thinckness
0.35-0.5mm
Feeding Width
1250

Product Description

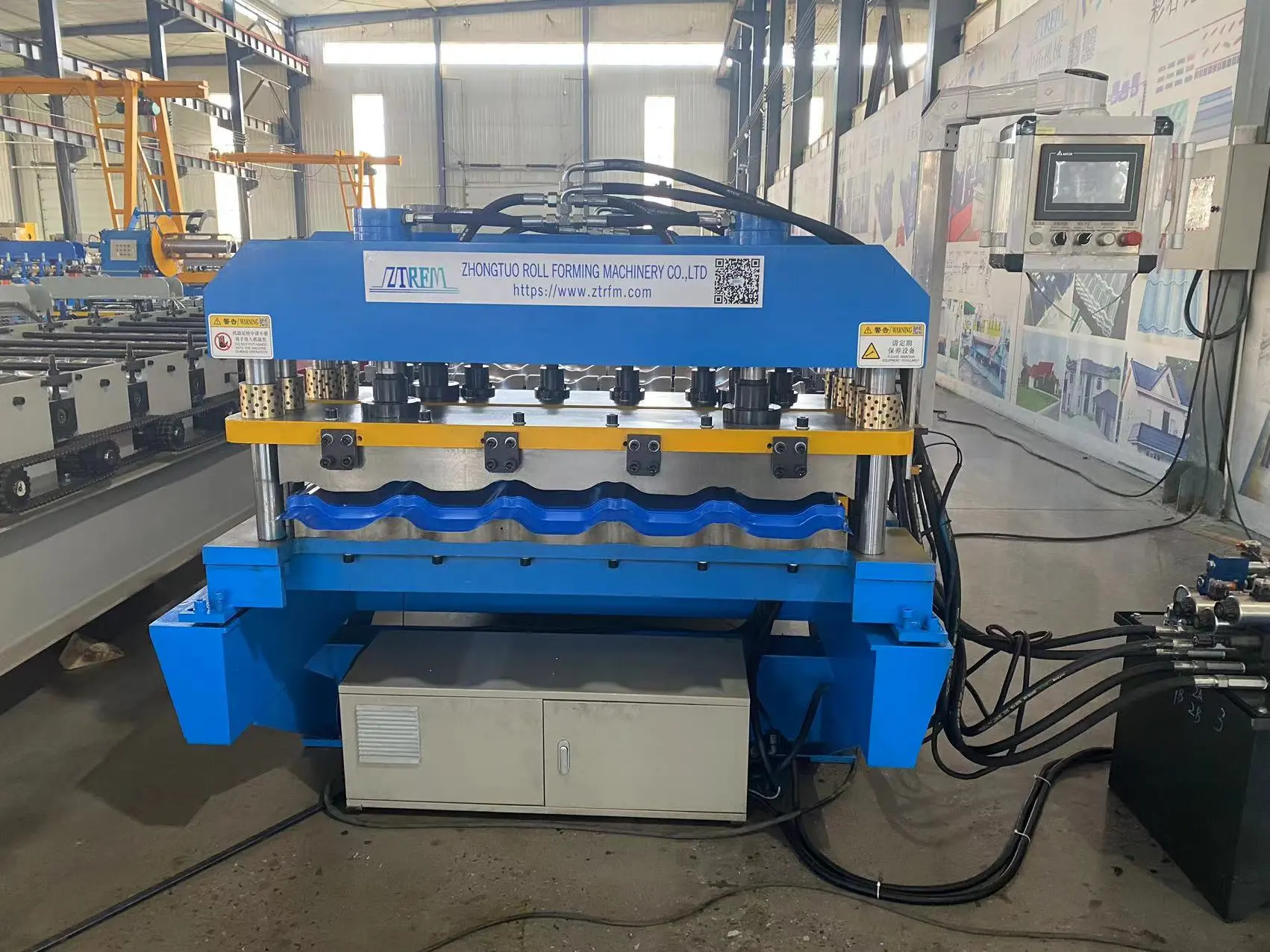

Professional Aluminum Glazed Tile Roofing Sheet Roll Forming Machine Metal Tile Making Machine

Professional Aluminum Glazed Tile Roofing Sheet Roll Forming Machine Metal Tile Making Machine For Making Roof Sheets,It is a machine to produce building material of metal roof.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

The features of Professional Aluminum Glazed Tile Roofing Sheet Roll Forming Machine Metal Tile Making Machine

1.machine provide customized,for produce different shapes roof sheet.

2.Our own Updated design-Easy installation and operation.

3.Full automatic-save labors.

4.Rollers with bearing inside which can eliminate linear velocity inconsistency,it can make the final product perfect.

5.Portable PLC control system,language customized.

Professional Aluminum Glazed Tile Roofing Sheet Roll Forming Machine Metal Tile Making Machine
1.Formed Material	PPGI,PPGL,AI,Etc.		Material Thickness:0.35-0.5mm
2.Decoiler	Hydraulic decoiler(optional)		Manual decoiler(will give you as free）
3.Main body	Roller station		Due to your requirement profile
		Diameter of shaft		Due to your requirement profile
		Material of rollers		High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
		Machine body frame		Due to your requirement profile
		Drive		gear and Double Chain transmission/gearbox transmission optional
		Dimension(LWH)		Due to design
		Weight		Due to design
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW×2
		Hydraulic system power		4.5KW
6.Voltage	As your requirement		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		Support multiple languages
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	0-25m/min		Provide customized

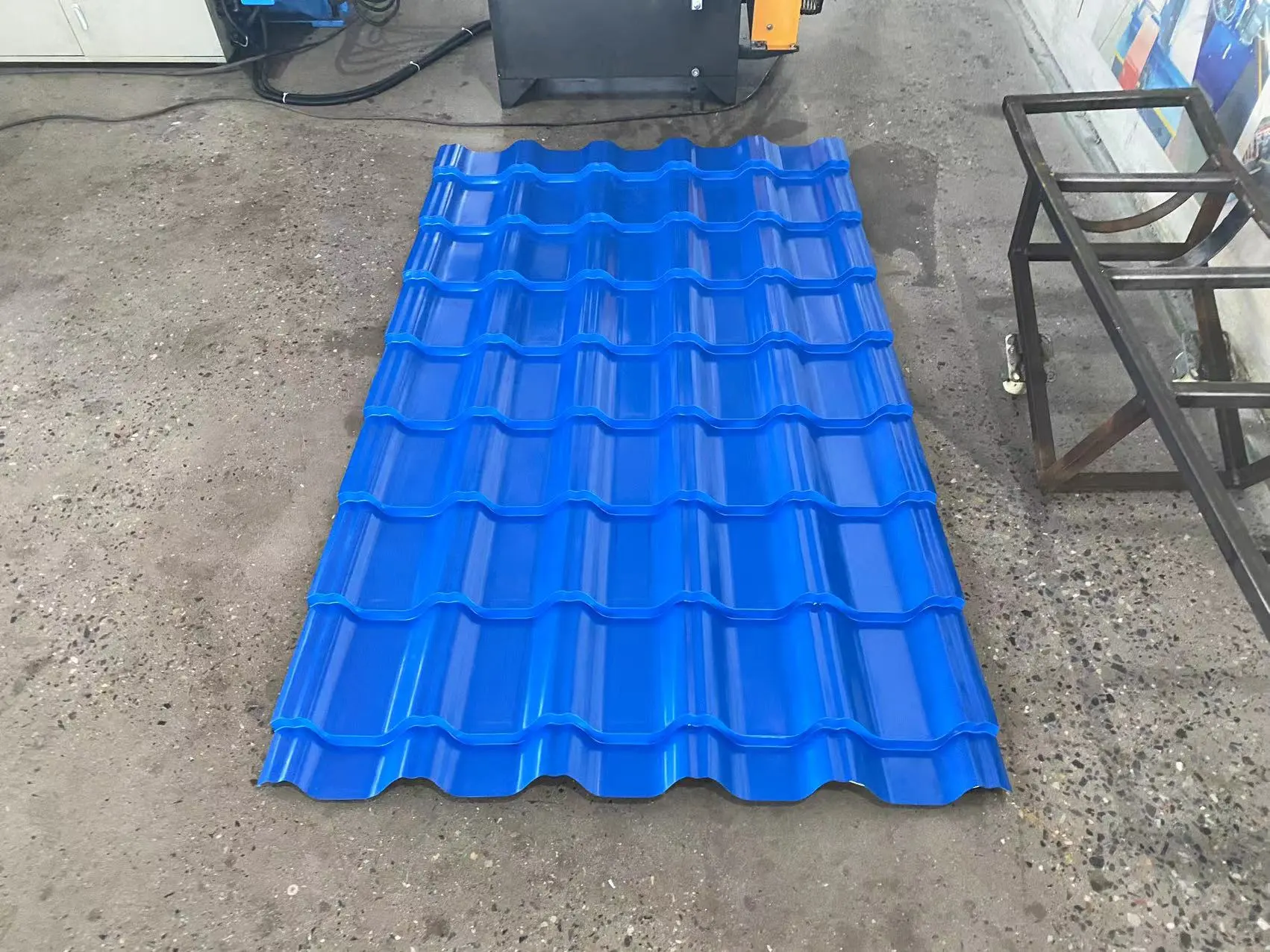

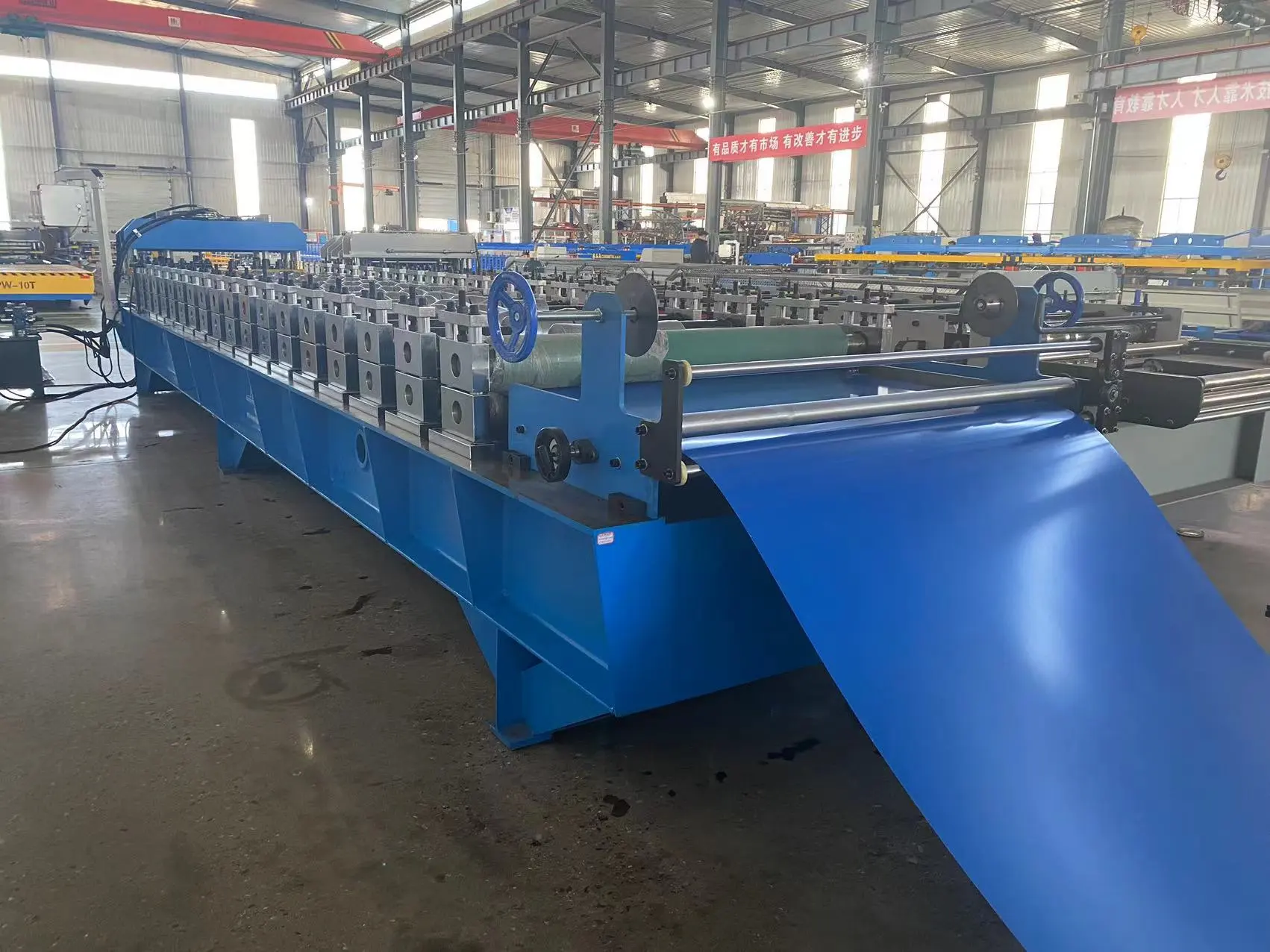

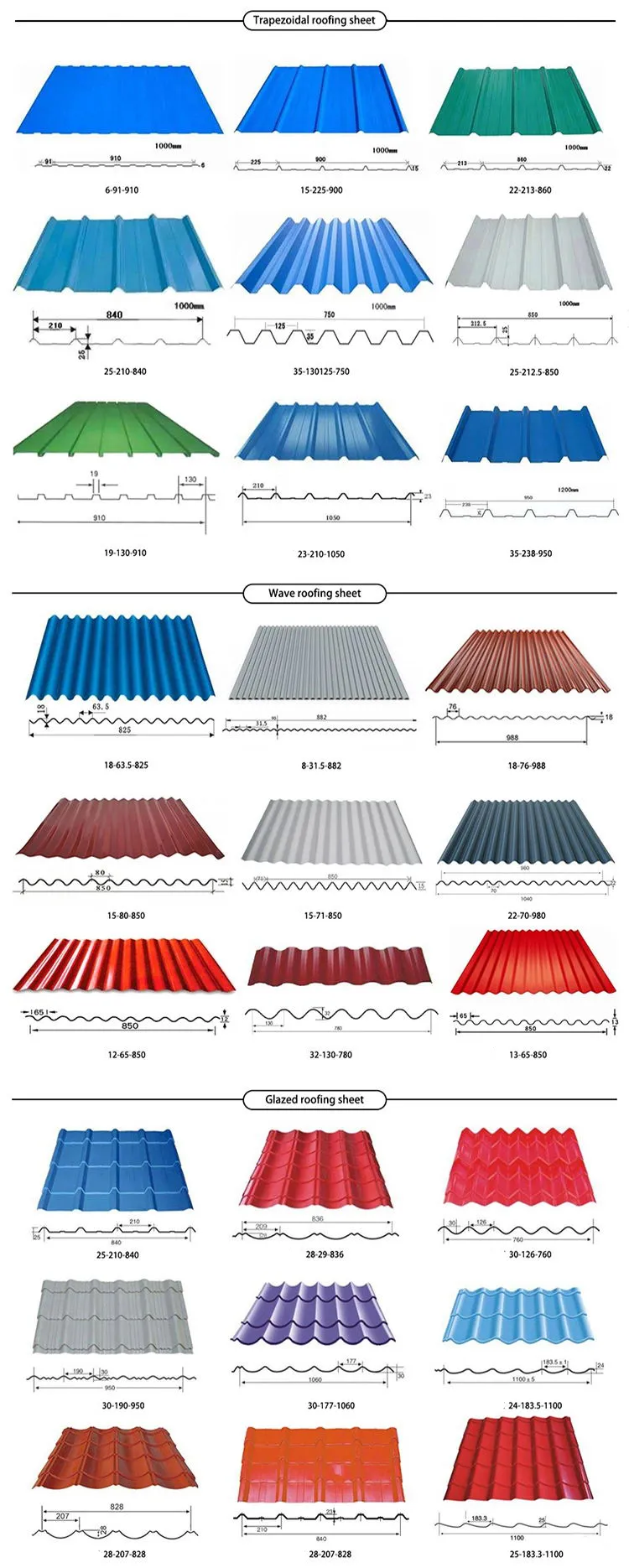

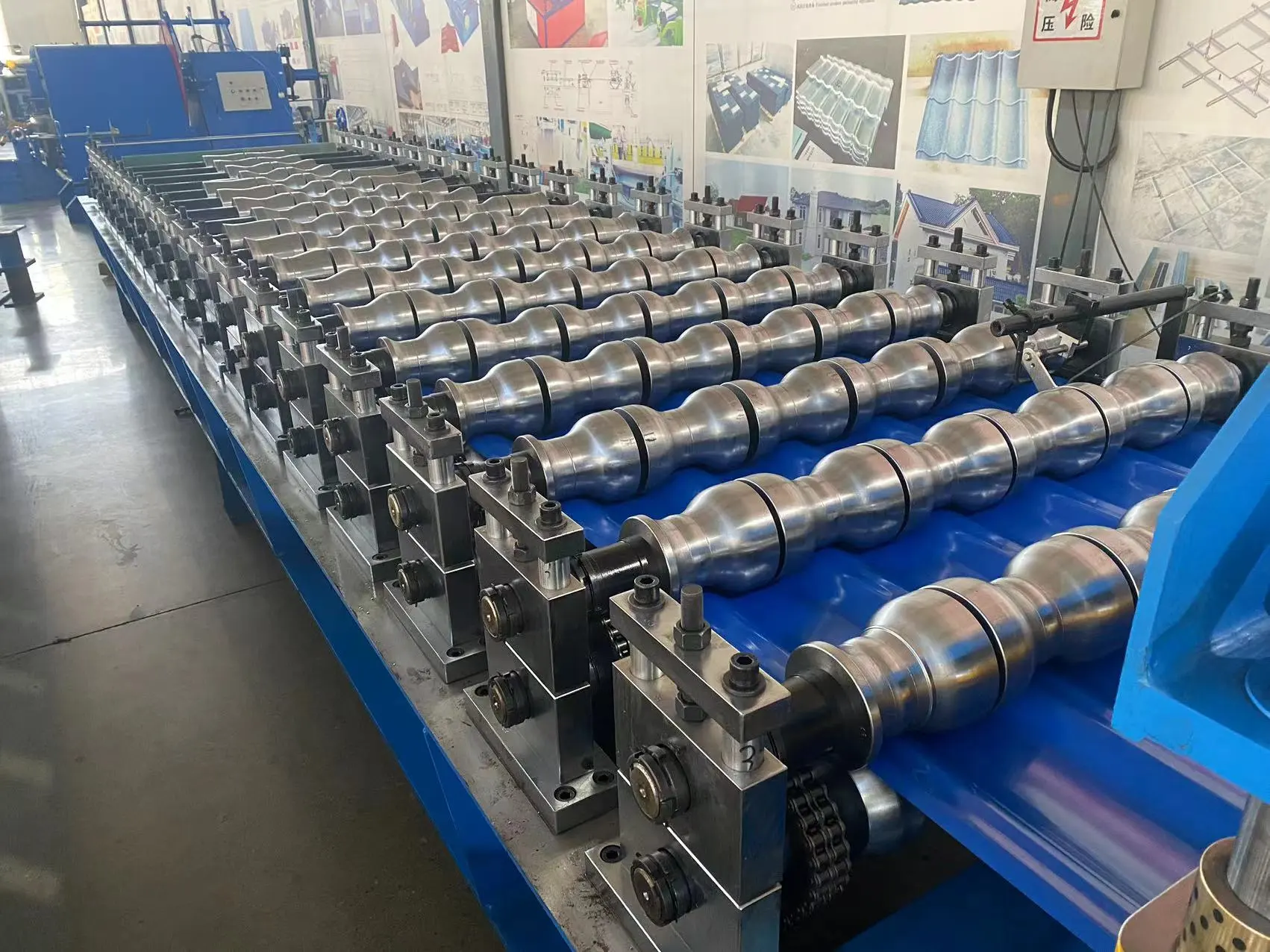

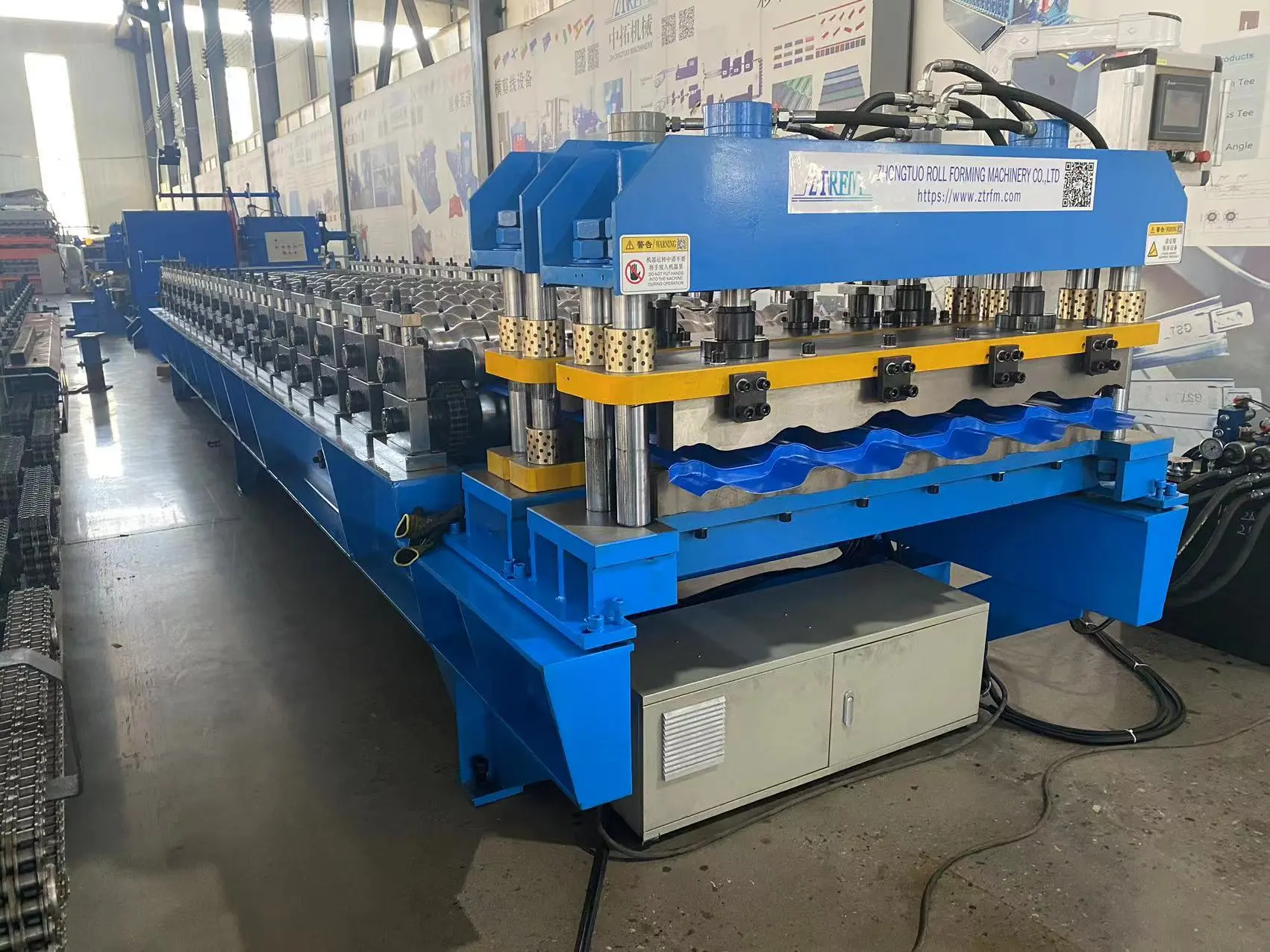

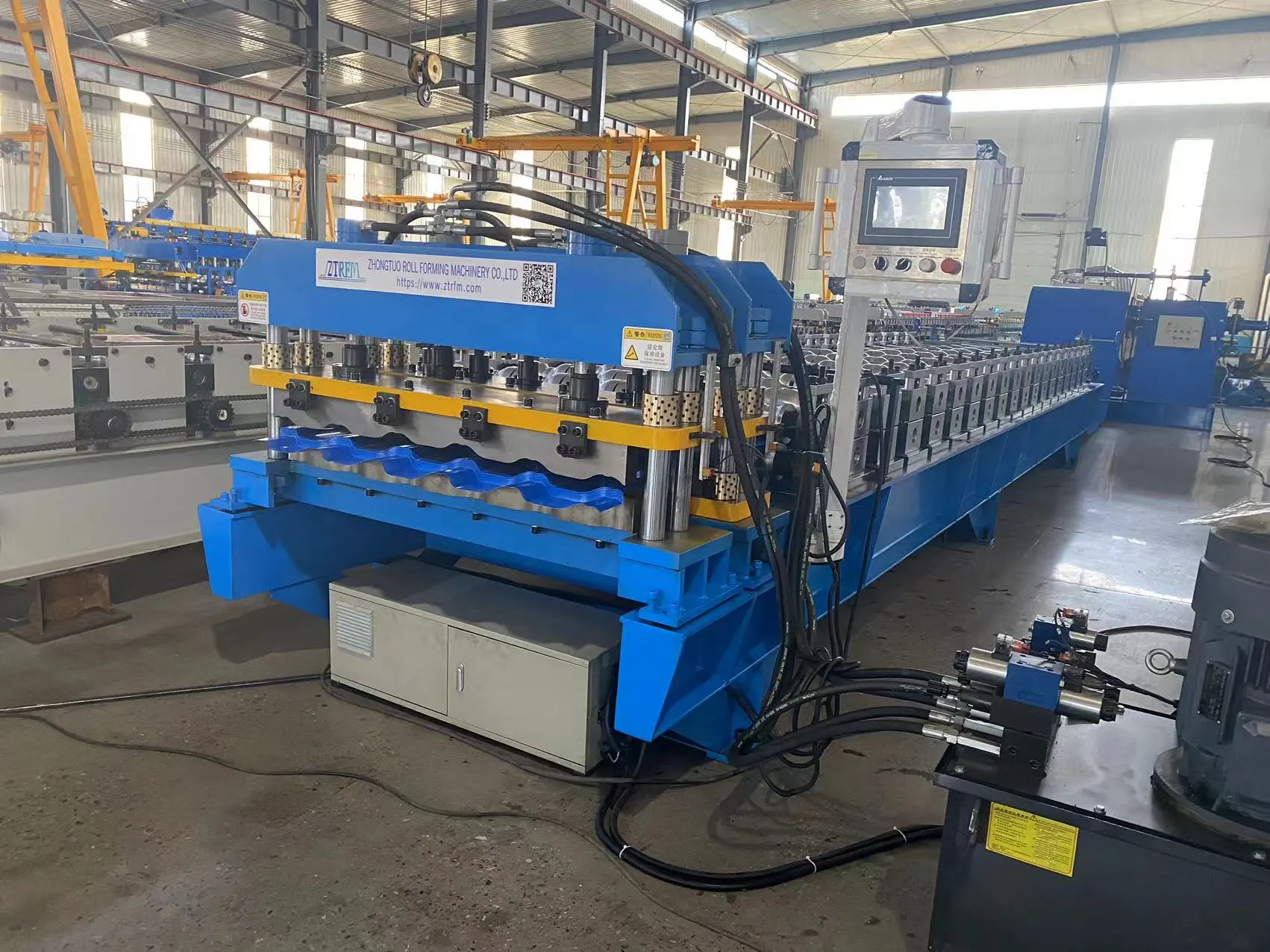

Products Display

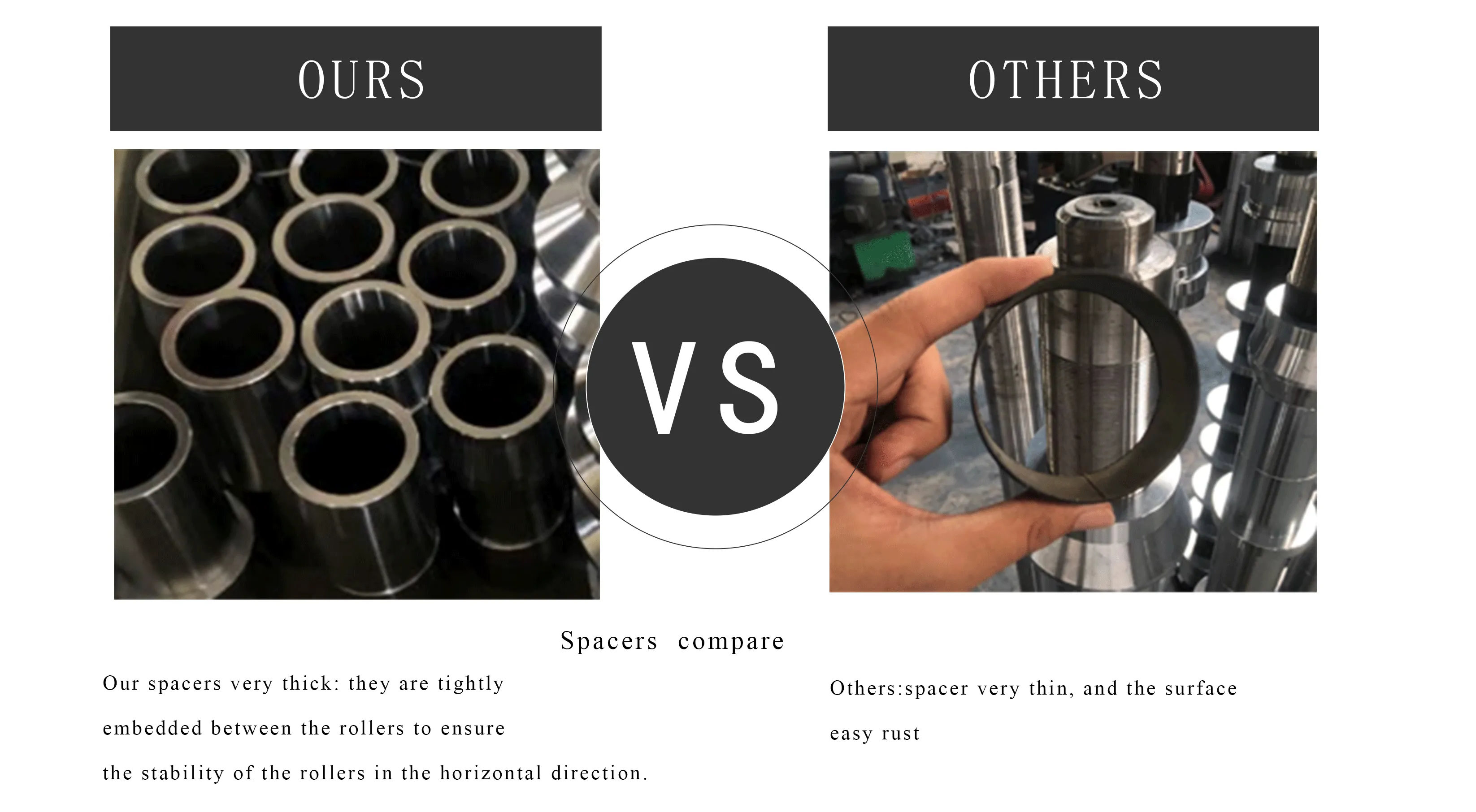

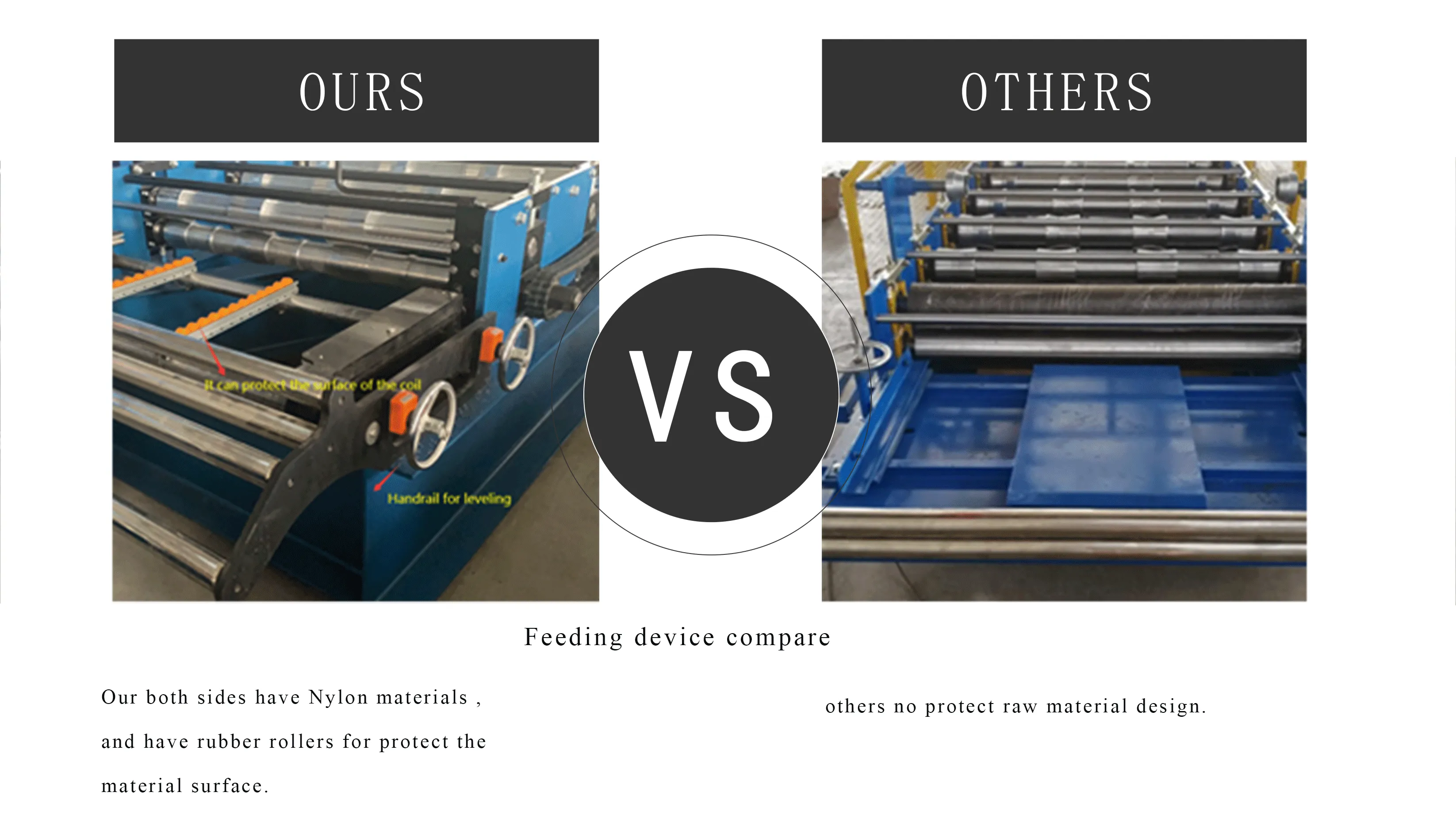

Why choose our machine

Recommend Products

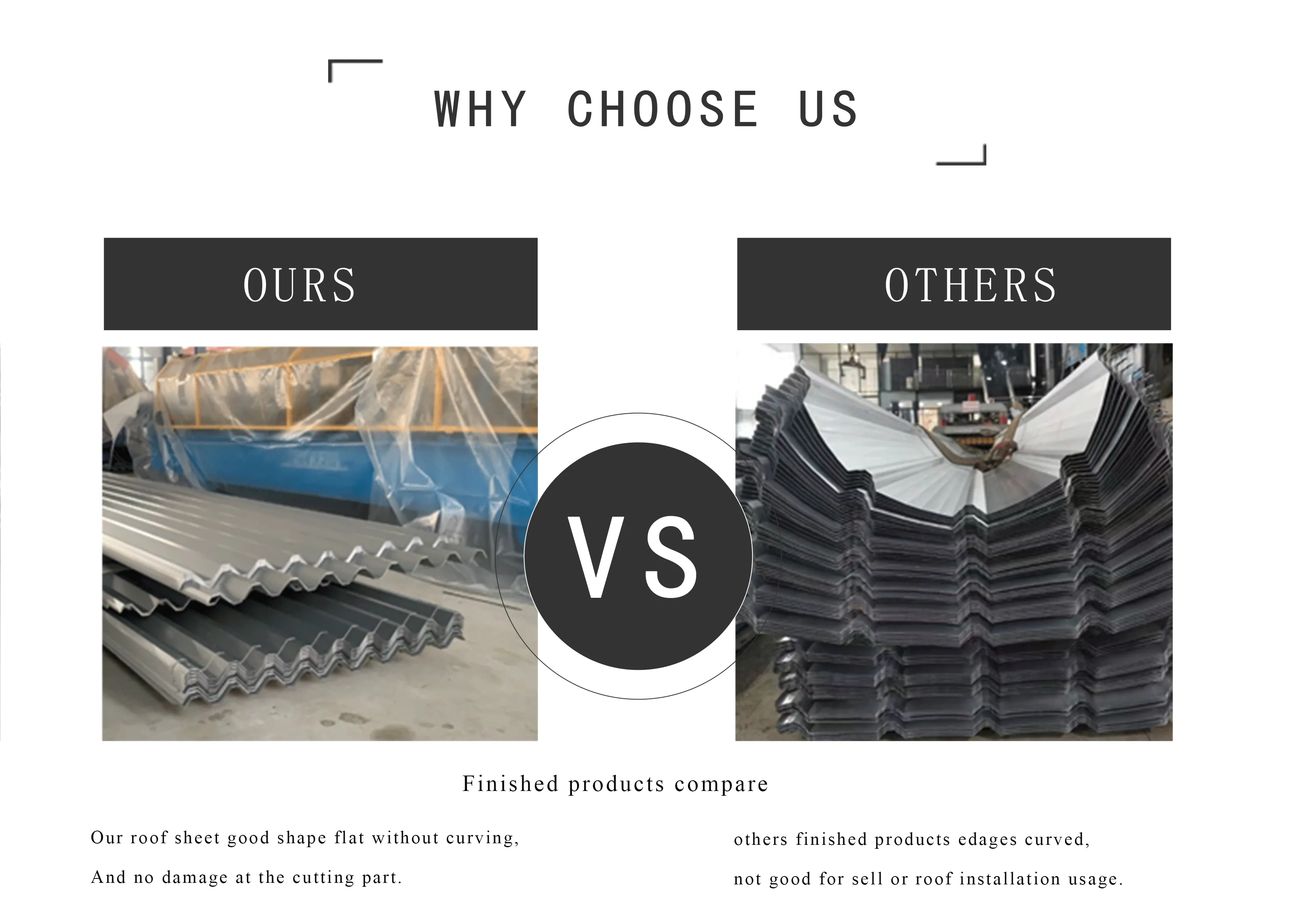

Why Choose Us

Company Profile

Product packaging

FAQ
