Professional Floor Decking Production Solution for Construction

The Floor Steel Deck Roll Forming Machine is a professional cold roll forming system designed for the continuous production of floor steel decking sheets. Floor decking is widely used in construction as an important structural component to support floor loads and is typically installed between building beams as part of the floor system.

The machine uses a cold forming process, bending and shaping metal coils at room temperature to produce floor decking with consistent dimensions and profiles. The complete production line can integrate hydraulic decoiling, feeding, embossing, roll forming, cutting, and automatic control systems for efficient and stable production.

Complete Floor Decking Production Process

Coil Loading → Hydraulic Decoiling → Guiding & Feeding → Embossing → Roll Forming → Automatic Cutting → Finished Floor Decking

The integrated production process helps achieve continuous and efficient manufacturing while maintaining stable forming quality.

Floor steel decking is mainly used in the construction industry as part of floor systems. It can be applied to building structures where floor decking is required to support floor loads and work between structural beams.

With different forming configurations available, the machine can be designed for different floor decking profiles and construction requirements.

1. Technical Specification:

Formed Material	GI
Thickness	0.7-1.5mm  Width:1220mm (as request)
Decoiler	Hydraulic automatic decoiler
Roller station	As your requirement
Diameter of shaft	90mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	400 H steel
Drive	Gearbox transmission
Weight	6T
Cutter	cr12mov material, no scratches, no deformation
Forming Speed	15-20m/min
Voltage	380V 50Hz 3Phase
Control system	Customized(famous brand)

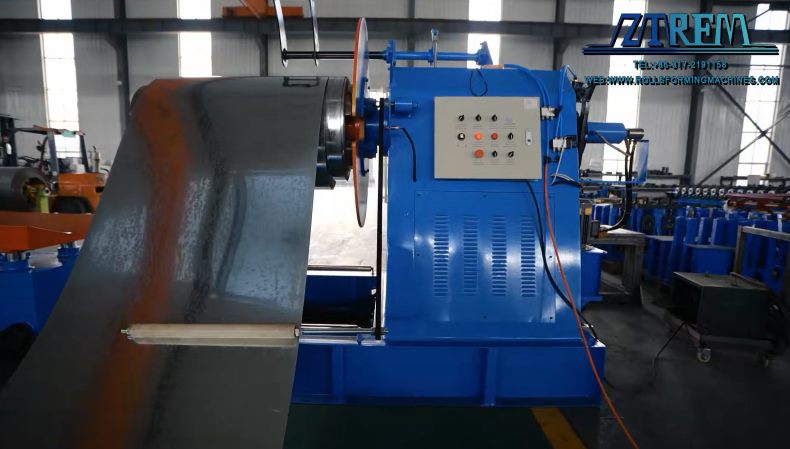

 2.  Hydraulic Decoiler

A 10-ton hydraulic decoiler is a commonly selected configuration for floor decking production.

The hydraulic system controls the expansion and contraction of the core shaft, making coil loading and operation more convenient, fast, and stable. The decoiler is driven by an electric motor and can be controlled by a frequency converter, allowing the operating speed to be adjusted according to production requirements.

Highlights:

Hydraulic expansion and contraction
Stable coil unwinding
Electric motor drive
Adjustable working speed
High level of automation

3.  Adjustable Feeding System

The feeding device guides the metal coil smoothly into the roll forming system.

It consists of a guiding roller and a welded steel plate feeding platform. The feeding width can be adjusted through the hand wheels, helping accommodate different material requirements.

For floor decking that requires an embossed pattern, an embossing system can be installed before the main forming section. The embossing rollers are supported by an adjustable frame to achieve the required pattern.

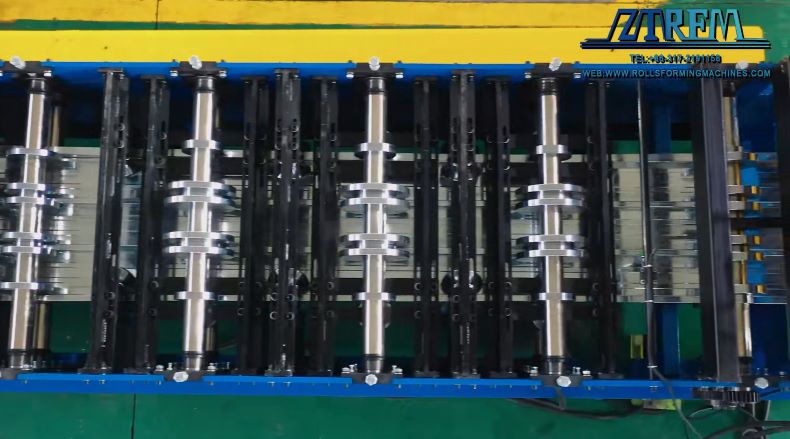

4.  Main Roll Forming Machine

The main roll forming section is the core component of the floor decking production line.

Different floor decking profiles require different forming designs, roller configurations, and numbers of forming stations. The machine can therefore be configured according to the required floor deck profile and design specifications.

The forming rollers can be manufactured from 1045# steel or GCr15 steel, with quenching treatment to improve durability and service life.

The continuous roll forming process provides consistent shaping and helps maintain uniform dimensions throughout production.

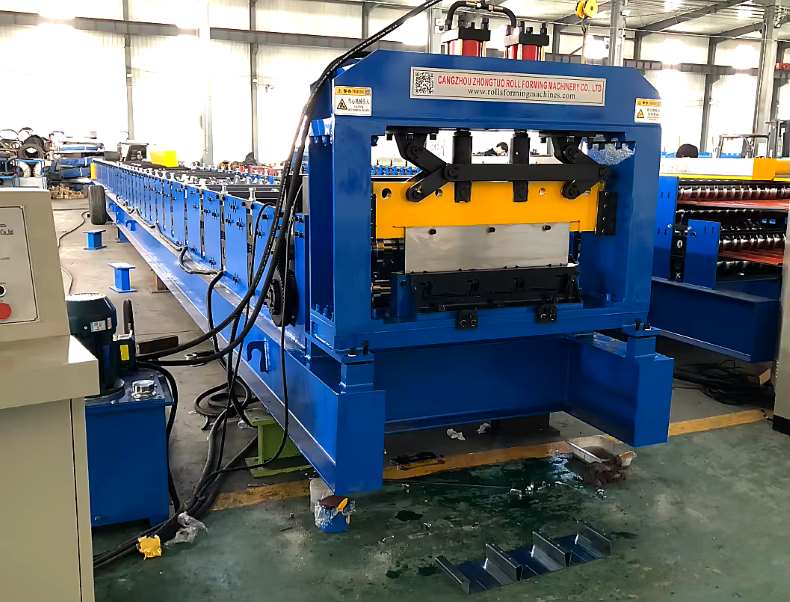

5.  Automatic Hydraulic Cutting

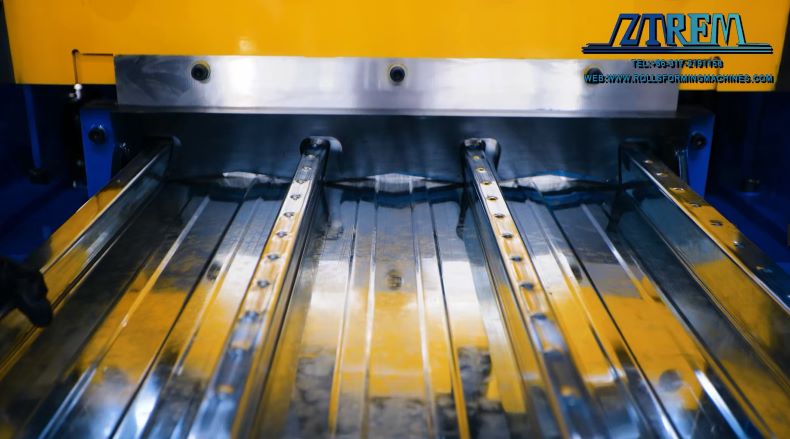

After the metal sheet passes through the forming stations and reaches the required floor decking profile, the cutting device cuts the finished sheet to the specified length.

This allows customers to produce floor decking sheets in different lengths according to project and construction requirements.

6. Product Collection Table

Length: 3 m
Used for receiving and collecting finished profiles

7.  Professional PLC Control

The control system manages the overall forming process and helps maintain production accuracy and product quality.

Customers can choose internationally recognized Delta or Siemens control systems. These brands also make replacement and maintenance more convenient when electrical components need to be serviced after long-term operation.

Control system functions include:

* Production process control
* Forming operation management
* Cutting length control
* Parameter adjustment
* Stable and accurate production

Why Choose Zhongtuo Floor Deck Roll Forming Machine?

Zhongtuo provides complete floor steel decking roll forming solutions, from coil feeding and embossing to roll forming and automatic cutting. The production line can be configured according to the customer's required floor deck profile and production requirements.

Reliable Forming · Efficient Production · Flexible Configuration · Consistent Quality

If you are looking for a floor deck roll forming machine, steel decking machine, or floor decking production line, Zhongtuo can provide a customized solution based on your profile and production requirements.
