Steel Coil Cut to Length Line 4mm Heavy Duty
Material specifications are shifting toward thicker sheets, wider widths, and higher strength grades. Processing methods must adapt. A steel coil cut to length line needs the right configuration to handle these changes reliably.
A cut to length line machine serves industries that require flat steel sheets. These include steel structures, storage racking, and transformer enclosures. We will examine how the properties of different materials affect the processing procedures, and which equipment functions can address the corresponding challenges.
Industries That Use Cut to Length Steel Sheets
A sheet cut to length line machine produces flat sheets for applications that require steel in panel form. Common industries include:
-
Steel structures: base plates, connection plates, stiffeners, and floor decking base sheets. These parts are used as flat panels or after light stamping.
-
Storage racking: shelves and back panels. Rack shelves are typically cut from flat sheets, with some requiring stamped edges.
-

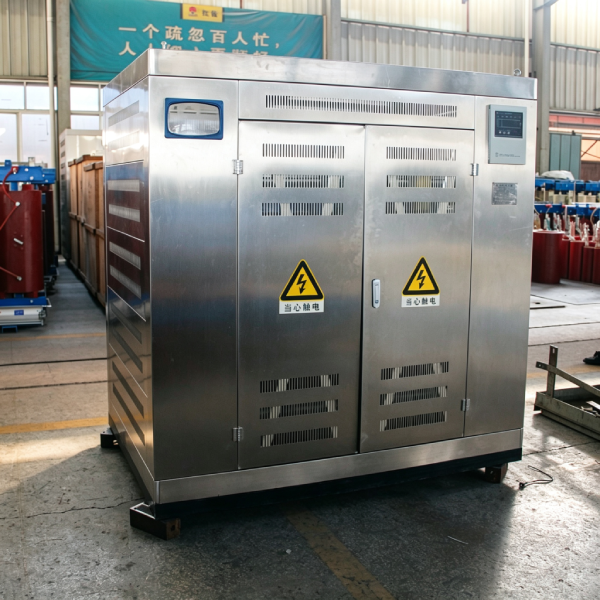

Transformer enclosures: cabinet panels. The walls and base plates are cut from flat sheets and welded.
Each industry has different thickness, width, and strength requirements. These factors directly affect equipment selection.
Processing Challenges with Thick, Wide, and High Strength Steel
The following sections describe the processing difficulties for each material type and the corresponding design features of a steel coil cut to length line.
Thick Steel Processing Requirements
Thicker coils weigh more and require greater force for leveling. The equipment needs enough rollers and structural rigidity.

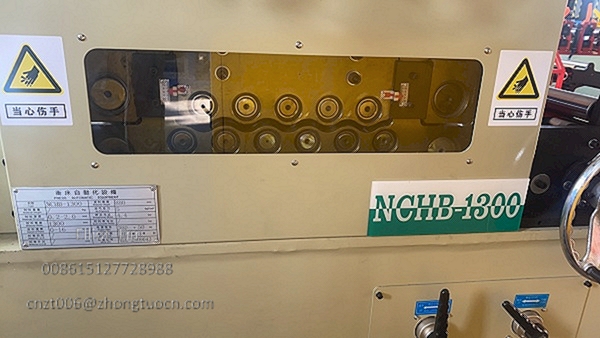

How the machine addresses this: 17 leveling rollers provide multiple bending points. The four high roller configuration uses backup rollers to distribute the load. Needle bearings at both ends of each roller support the additional radial loads.
Wide Steel Processing Requirements
Wider sheets increase the risk of wandering. The side guide system must have sufficient adjustment range.
How the machine addresses this: The equipment handles widths from 500 to 1500mm. The side guide uses lead screws to adjust the vertical edging rollers across this range. The rollers are precision ground for smooth contact that guides the strip without damaging the edges.
High Strength Steel Processing Requirements
High strength steel has greater yield strength and more springback. Roller hardness and wear resistance affect how long the machine holds its leveling accuracy.
How the machine addresses this: The leveling rollers use GCr15 bearing steel forgings with surface hardness HRC58-60 and a hardened depth of 3-5mm. This helps maintain the roller profile under repeated high pressure contact. The manufacturing process includes tempering, rough machining, hardening, finishing, and grinding.
Advantages
A steel coil cutting line with these specifications offers several practical benefits for processing demanding materials:
-

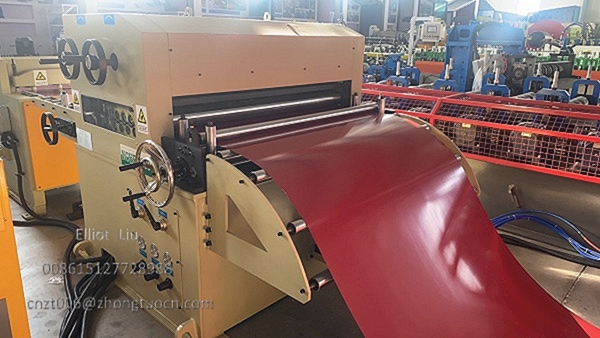

17 leveling rollers: More bending points help release internal stress across the full thickness range
-
Four high roller structure: Backup rollers distribute the load and reduce deflection under pressure
-

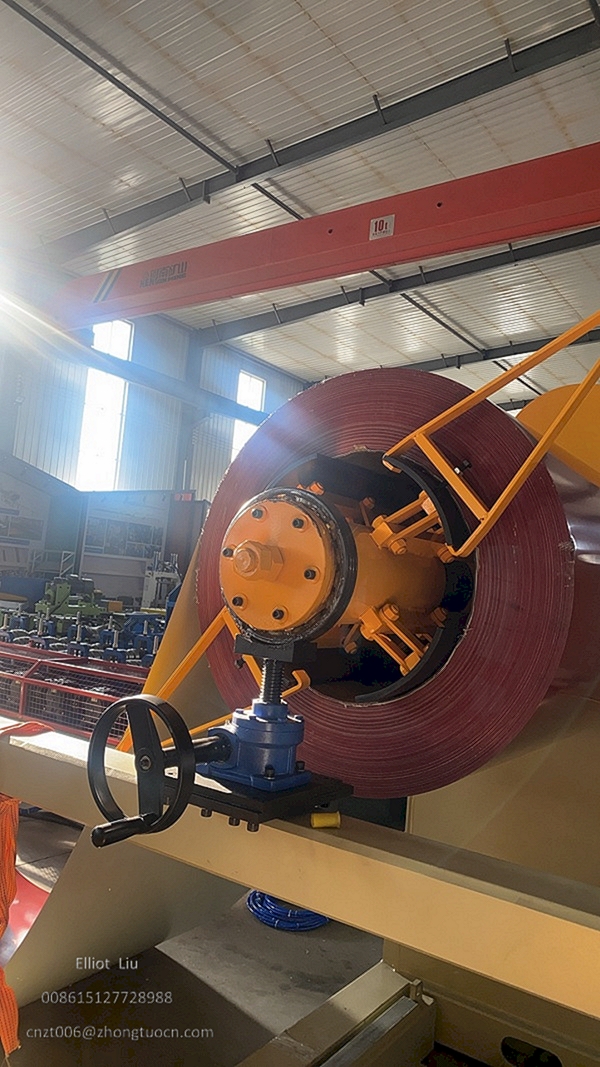

15 ton coil capacity: Larger coils reduce changeover frequency and extend continuous run time
-
Lead screw width adjustment: Side guides adjust from 500 to 1500mm without changing parts
-
Worm gear thickness adjustment: Roller gap adjusts manually for different material gauges
-
25 m/min line speed: Consistent speed across the operating range
-
Precision tolerances: Diagonal tolerance under 2mm, length tolerance at ±1.5mm, leveling precision at ±1.5mm
Key Equipment Parameters
| Parameter | Specification |
|---|---|
| Material | CR, GI |
| Thickness range | 0.4~4mm |
| Width range | 500~1500mm |
| Coil weight | ≤15 tons |
| Line speed | 25 m/min |
| Leveling rollers | 17 |
| Roller material | GCr15 |
| Hardness | HRC58-60 |
Production Rhythm and Delivery Reliability
A cut to length coil machine must deliver consistent output. Delivery performance depends on more than top speed. Changeover frequency and overall stability matter too.
-
Coil change efficiency: 15 ton coil capacity reduces changeovers and extends continuous run time
-
Running stability: The four high roller structure distributes loads evenly over long operations
-
Spec changes: Width adjusts through lead screws. Thickness adjusts through a worm gear mechanism. Both changes are simple and do not require part replacement.
These factors determine usable capacity, not just speed figures.
How Sheet Accuracy Affects Downstream Manufacturing Costs

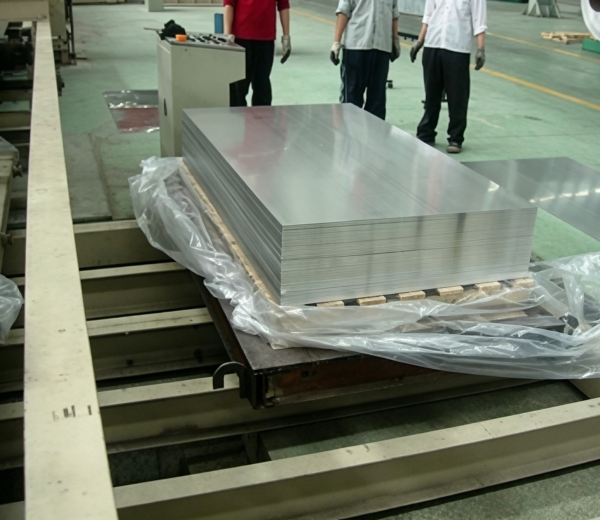

Once sheets reach the customer, they go into stamping, bending, and welding. The yield rate of these operations depends on the accuracy of the incoming sheet.
Diagonal tolerance under 2mm means better edge alignment for stamped parts. Length tolerance at ±1.5mm keeps bending reference points consistent. Leveling precision at ±1.5mm gives better fit up for welding, with less edge mismatch.
Higher sheet accuracy means fewer adjustments, less material scrap, and lower rework costs for the customer. The machine's accuracy specifications translate directly into performance on the customer's production floor.
Conclusion
Material specifications are moving toward thicker, wider, and higher strength grades. A steel coil cut to length line that handles these demands keeps production flexible as order patterns evolve. Choosing the right configuration helps maintain consistent output and product quality.
