Metal Slitting Machine Solves 3 Common Strip Production Problems

Steel coils come from the mill in wide rolls. But downstream manufacturers need strips in many different widths. A metal slitting machine closes that gap. It takes a wide coil and slits it lengthwise into multiple narrow strips for direct use in stamping, welding, roll forming, and other processes.

The machine works like a giant set of circular shears. The strip passes between rotating blades that cut it into narrower strips. The edges come out clean, and the strips recoil into tight coils ready for the next manufacturing step.

Why Slit Steel Coils?

Steel mills roll wide coils because continuous rolling is the most efficient production method. But downstream factories need specific widths for their products. Automotive stamping lines need one width. Tube mills need another. Roll formers need yet another. Slitting solves this mismatch.

A metal slitting machine lets you buy coils at lower cost and slit them to match your orders. You reduce material waste and keep more control over your production schedule.

Basic Steel Coil Slitting Process

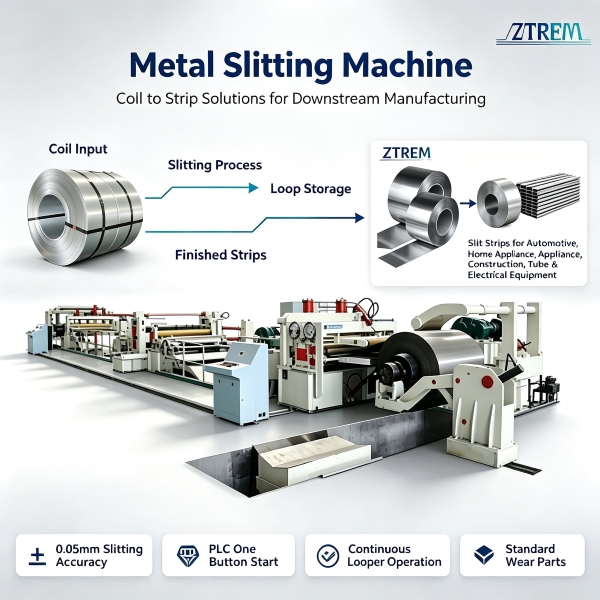

The slitting process follows four stages. Each stage must work in sync to produce quality strips.

1. Uncoiling – A coil loads onto the entry car and moves to the uncoiler. The uncoiler expands from inside the coil to secure it, then rotates to feed strip into the line.

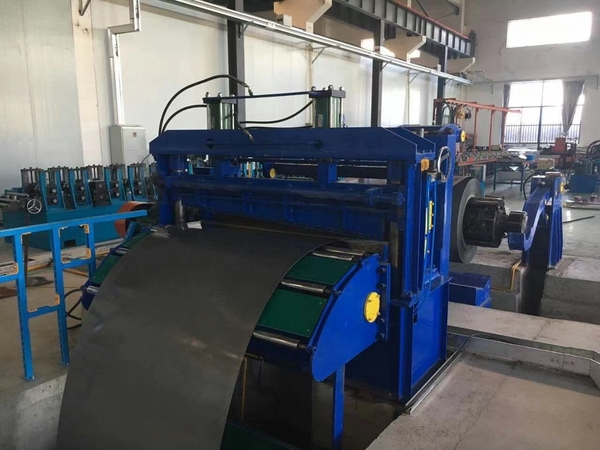

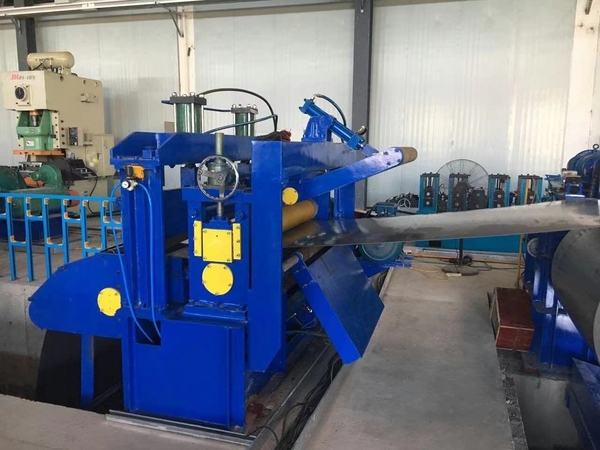

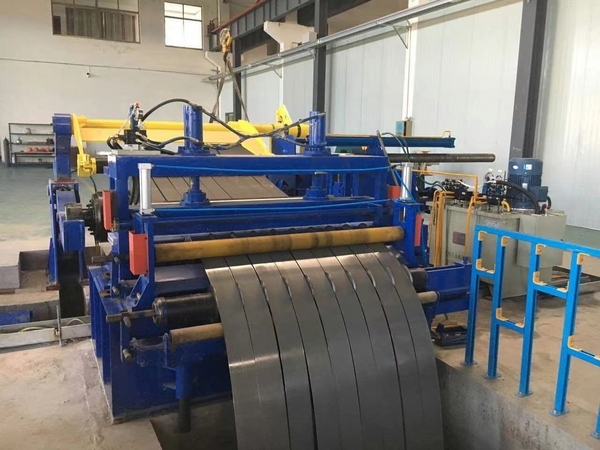

2. Slitting – The strip passes through a hydraulic cutter that trims the uneven head. A looper buffers speed differences. Side guide rollers keep the strip centered. Circular blades cut the strip lengthwise into multiple narrow strips.

3. Edge Scrap Removal – Slitting produces scrap edges on both sides. A scrap winder coils these edges automatically so they don't tangle or scatter.

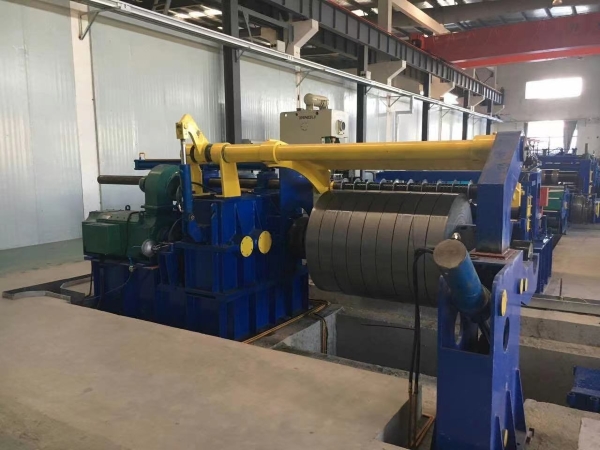

4. Recoiling – The narrow strips pass through a second looper and a tension stand, then enter the recoiler. The recoiler winds each strip into a separate coil. An exit coil car carries finished coils away.

Applications of Slit Steel Strips

Slitting is not the final step. It produces material for downstream manufacturing. The slit strips go into many industries:

• Automotive: stamping blanks for body structural parts, exhaust parts, and seat frames

• Home appliances: shells and internal parts for refrigerators, washing machines, and air conditioners

• Construction: C purlins, Z purlins, and other structural sections

• Tube and pipe: continuous welding feedstock for round, square, and rectangular tubes

• Electrical equipment: silicon steel strips for transformer cores and motor stators

Core Advantages of This Slitting Line Equipment

This slitting line machine metal offers advantages that matter on the shop floor. The machine holds width accuracy within tight tolerances, so strips feed smoothly into downstream processes.
Loopers keep the line running during coil changes, reducing downtime. Controls are straightforward, so operators learn quickly. Wear parts are designed for easy replacement, which simplifies maintenance. The equipment processes both carbon steel and galvanized steel across a range of thicknesses and widths.

Machine Parameters

So what is a steel slitter machine? It is the equipment that connects wide mill coils to the specific strip widths your production line actually needs. If you regularly buy narrow strips from service centers, an automatic metal steel coil slitter machine gives you an alternative that puts you in control of both material cost and delivery timing.
