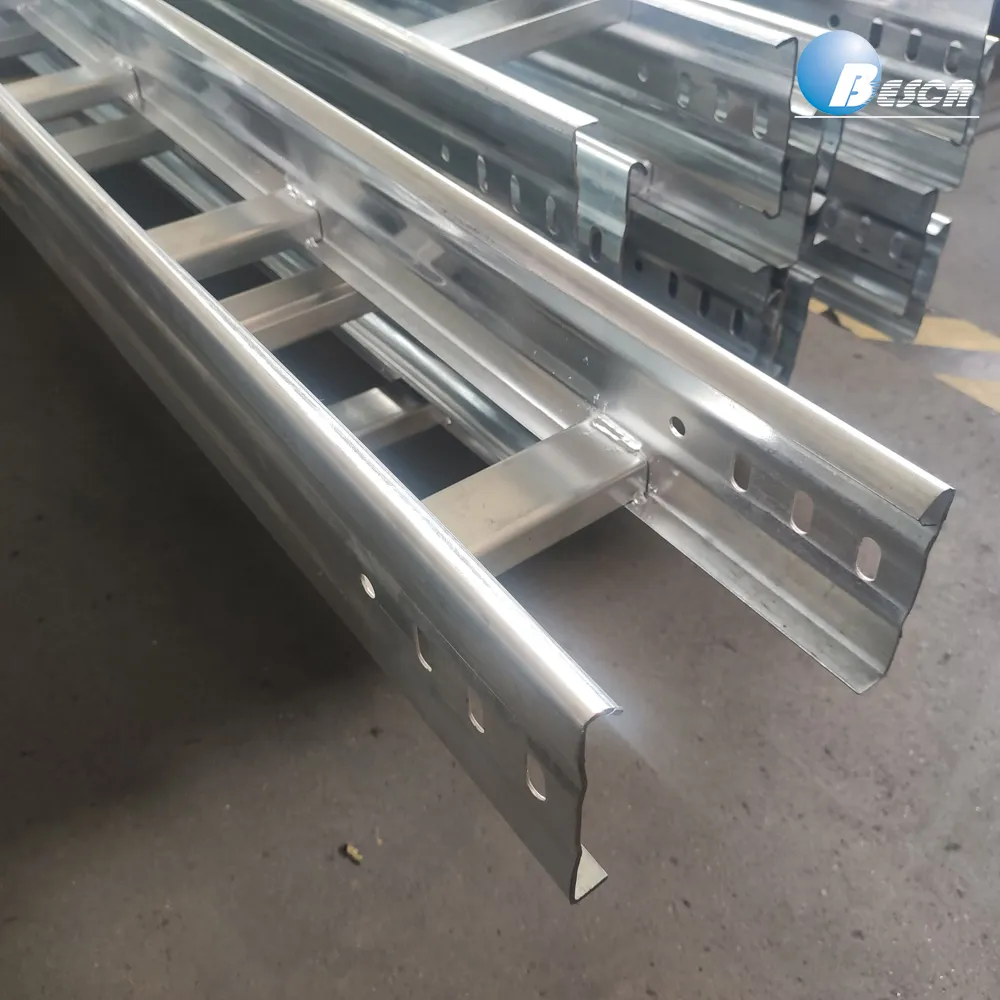

Pre Galvanized Steel Heavy Duty Cable Ladder Economical Price for Indoor Cable Management in Industrial Construction Projects 3 m+200 mm

Pre Galvanized Steel Heavy Duty Cable Ladder Economical Price for Indoor Cable Management in Industrial Construction Projects 3 m+200 mm

Name: Pre Galvanized Steel Heavy Duty Cable Ladder Economical Price for Indoor Cable Management in Industrial Construction Projects 3 m+200 mm
Brand: ZTRFM
SKU: ZT102406186
Availability: InStock

$6.50/ Set

Min. Order:10 Set

You can log in to view more discounted prices.Login Now

Price:

$6.50

Quantity:

≥10Set

Order CodeZT102406186

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Length:

3 m

Width:

200 mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Application
Industrial, Managing Cables, Cable Support, Cable Laying, Cable Wiring, Construction
Material
Steel
Max. Working Load
300kg
Side Rail Height
100mm, 150mm
Type
Ladder Tray

Details Images

BESCA offers a diverse range of cable ladders made from a variety of materials, with a wide choice of cabling depths and load capabilities. cable ladders are an excellent choice for supporting high volumes of heavyweight cables over long distances They provide a cable management solution for heavy commercial, industrial, mining, LNG or other applications. They are supplied in straight lengths, but use fittings to make directional or level changes with bends, tees, crosses or risers, or to change cabling widths with reducers. Cable ladders are generally offered in and tested to meet levels of performance in accordance with NEMA standards – NEMA 1, NEMA 2, NEMA 3, and NEMA 20C.

Hot Dipped Galvanized Cable Ladder Tray Corrosion Resistant for Long Span Support in Harsh Outdoor Environments

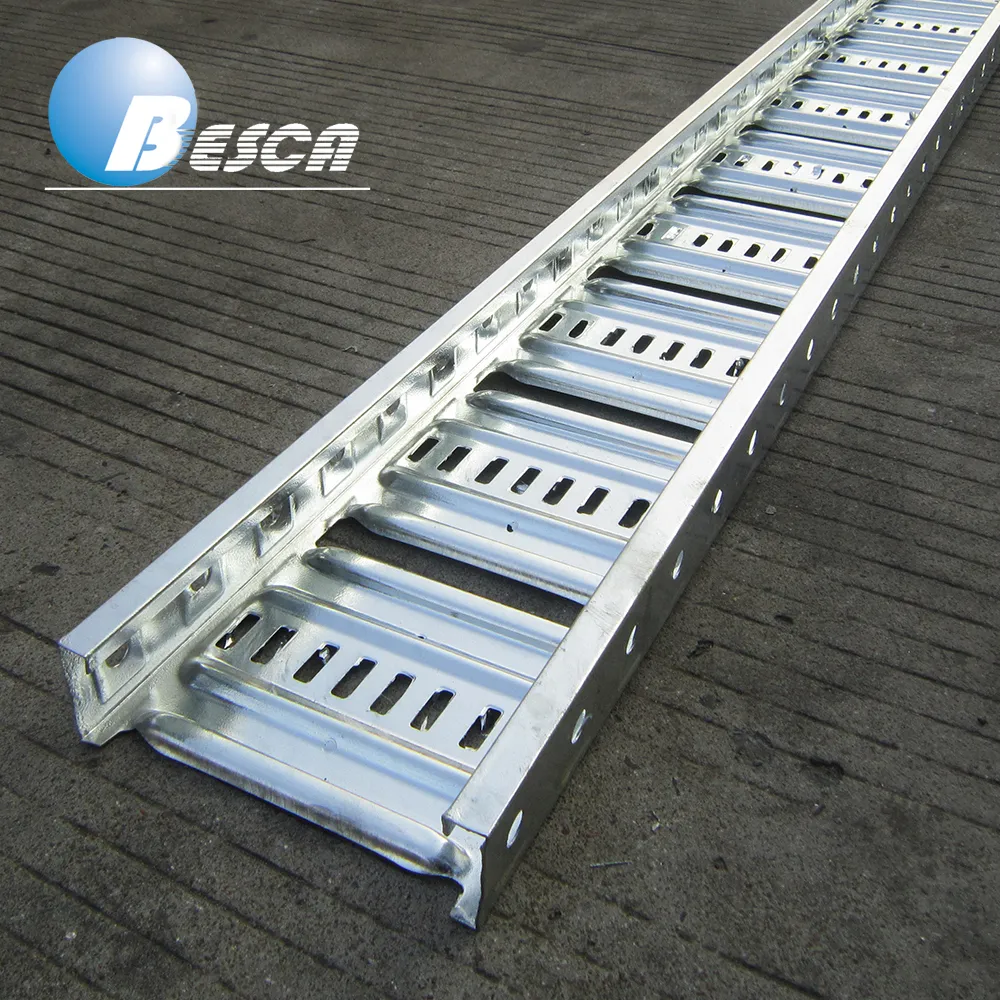

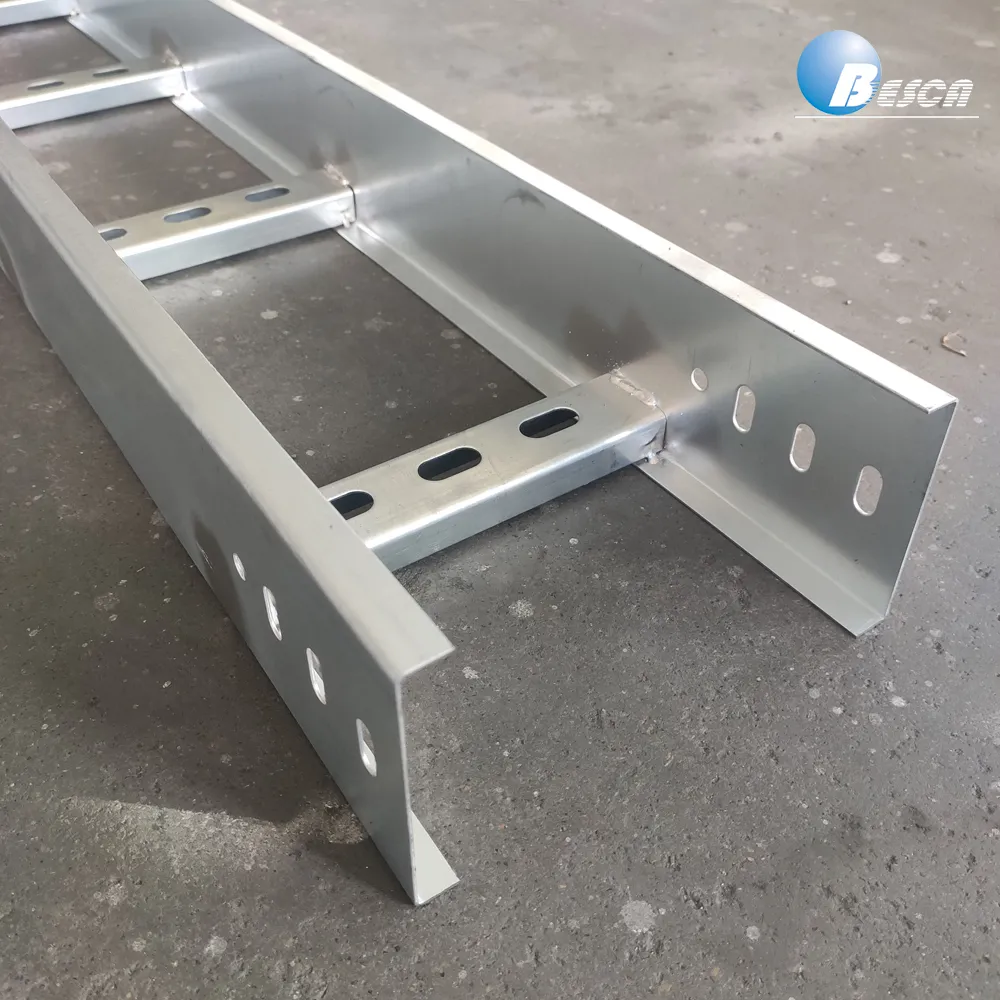

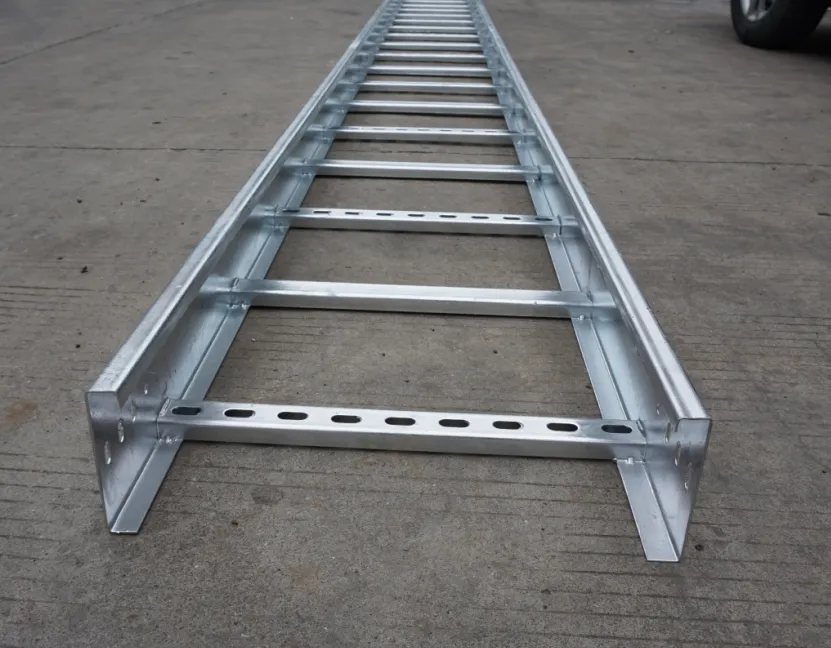

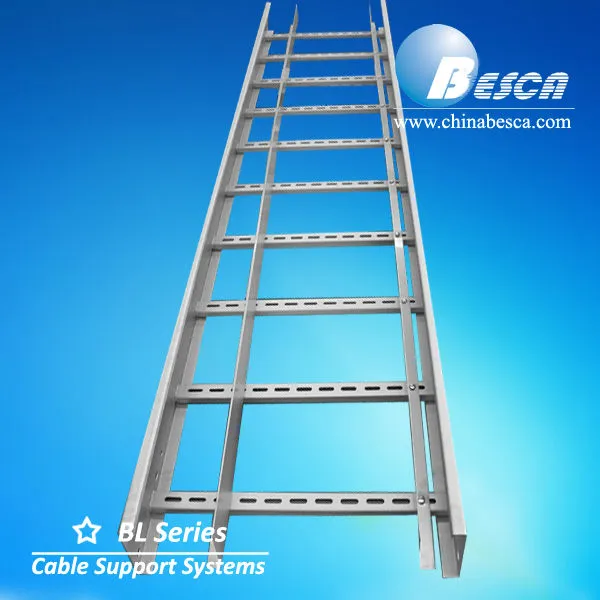

Galvanized Steel Cable Ladder

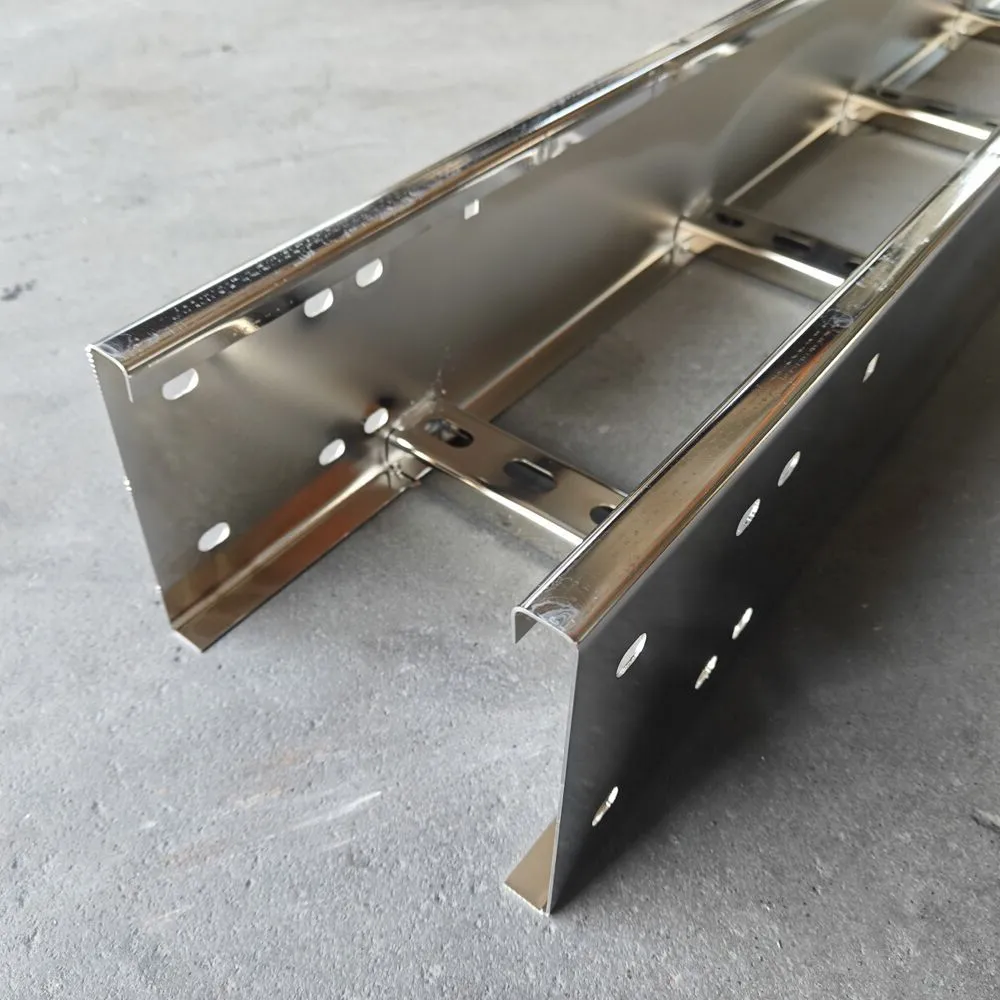

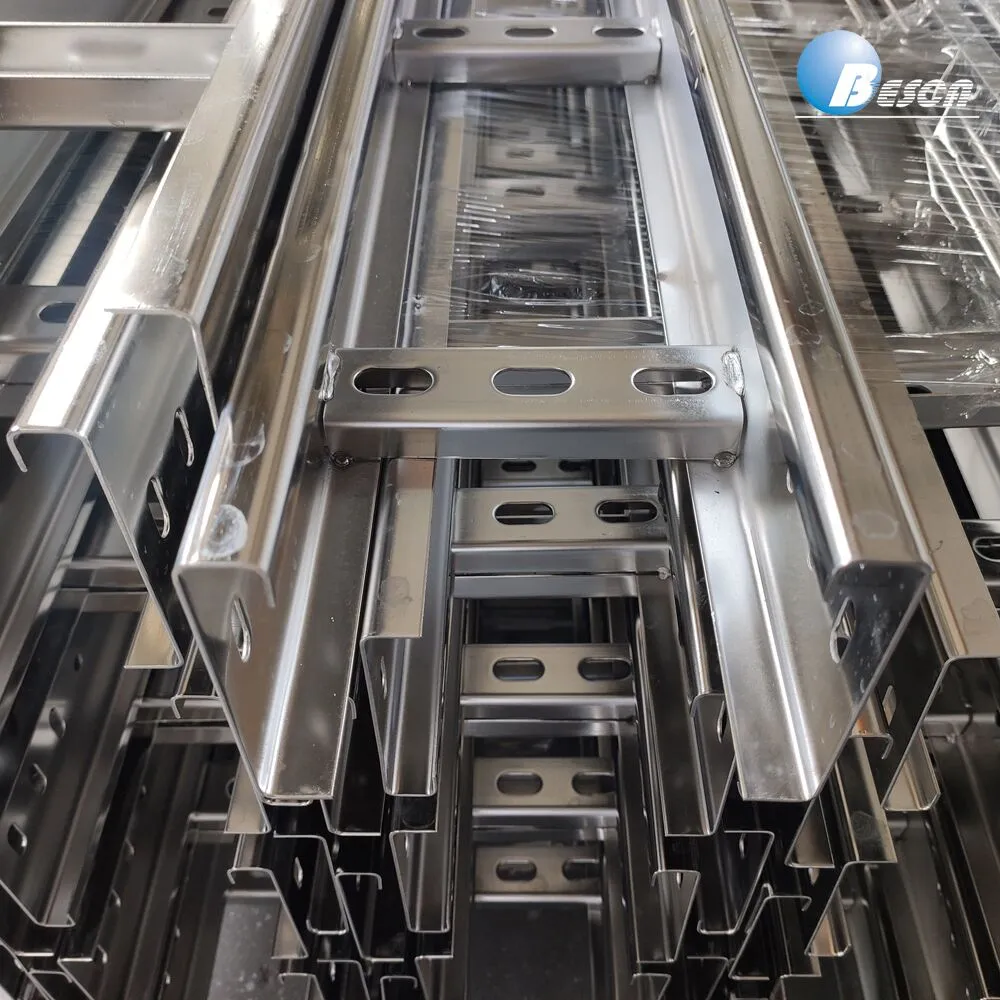

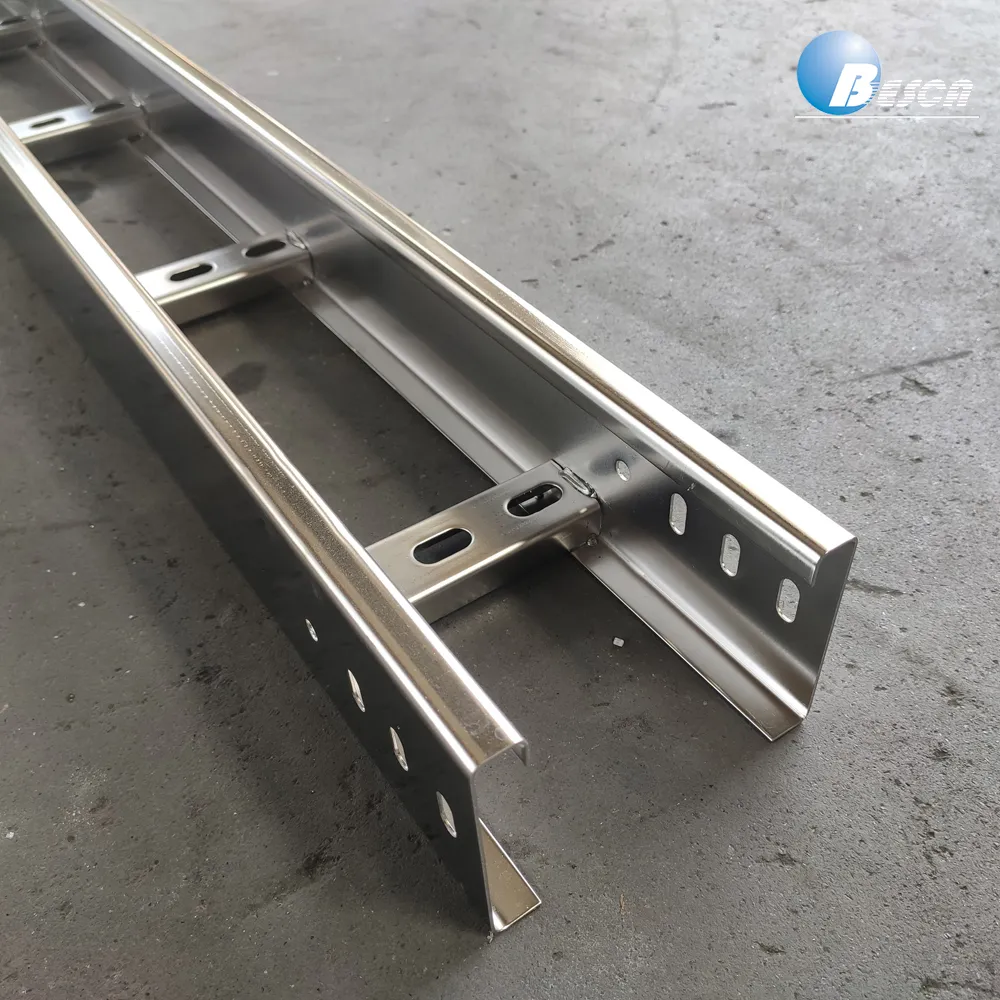

Stainless Steel Cable Ladder

Cable Ladder with Divider

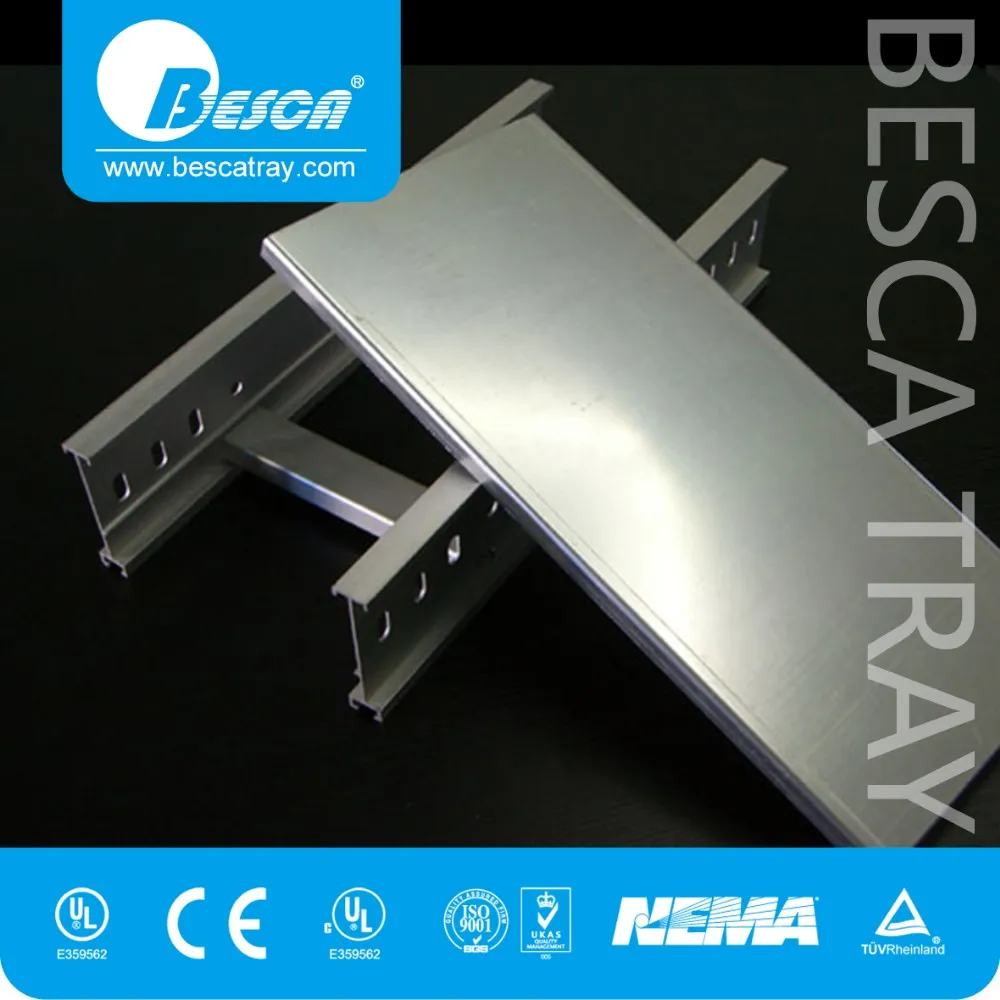

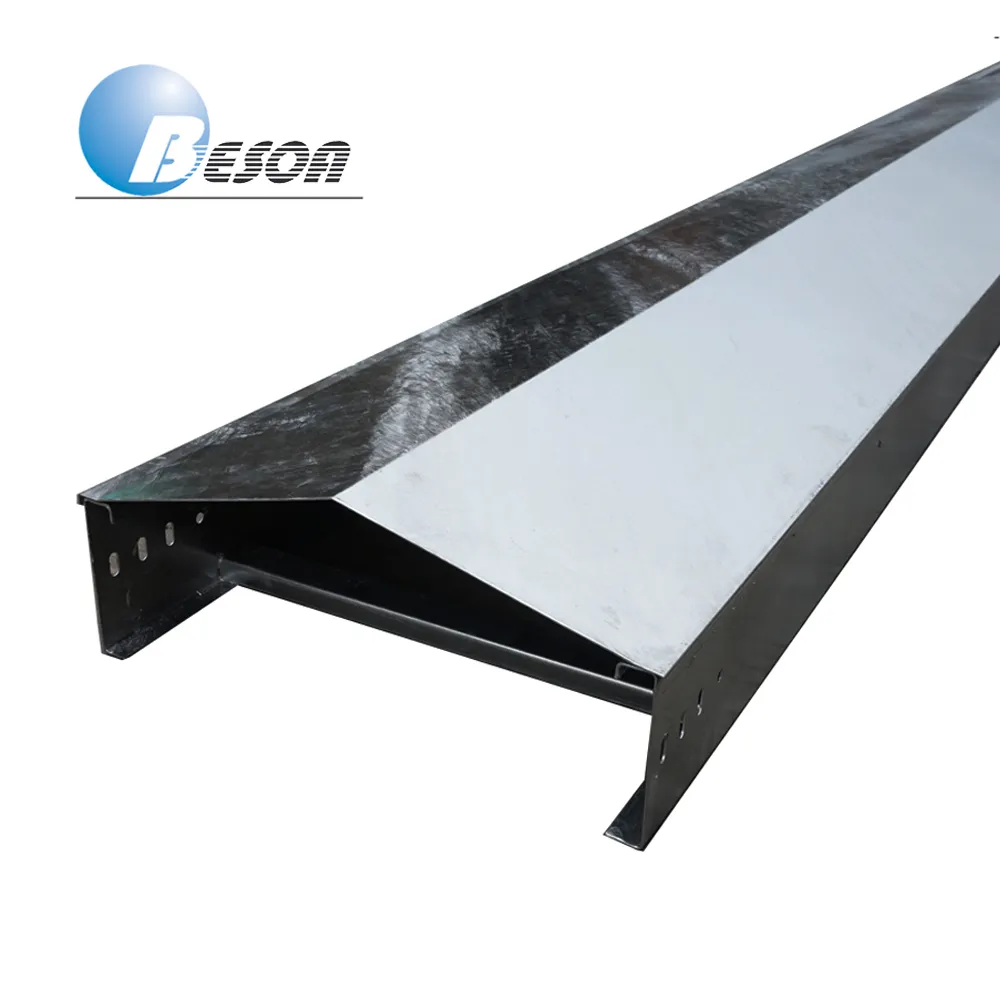

Cable Ladder with Peak Cover

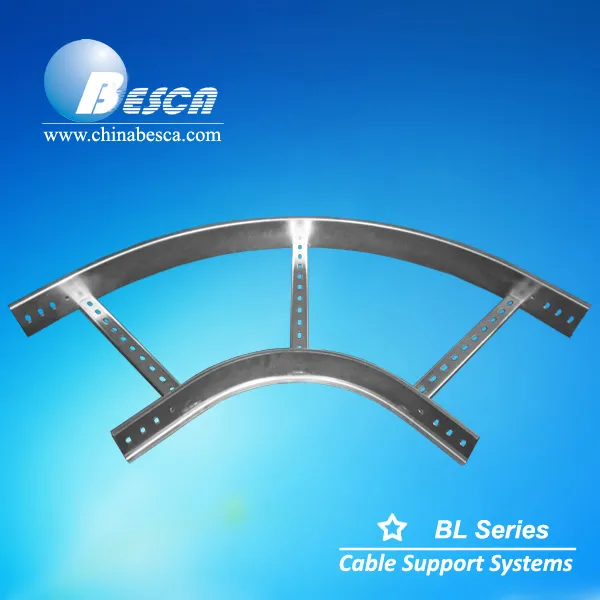

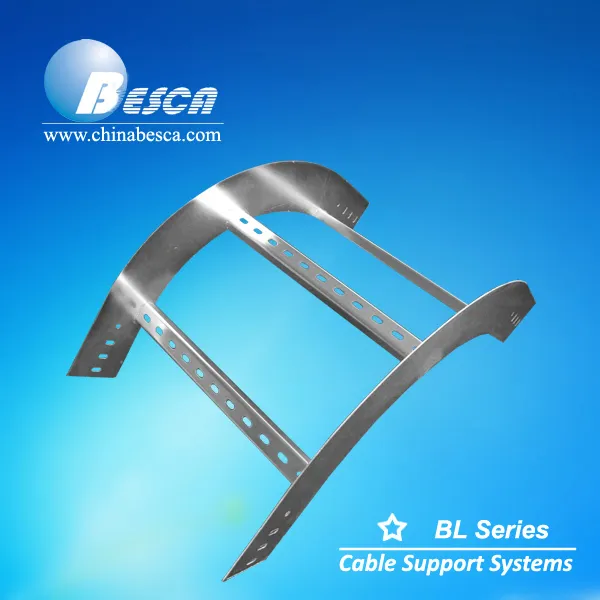

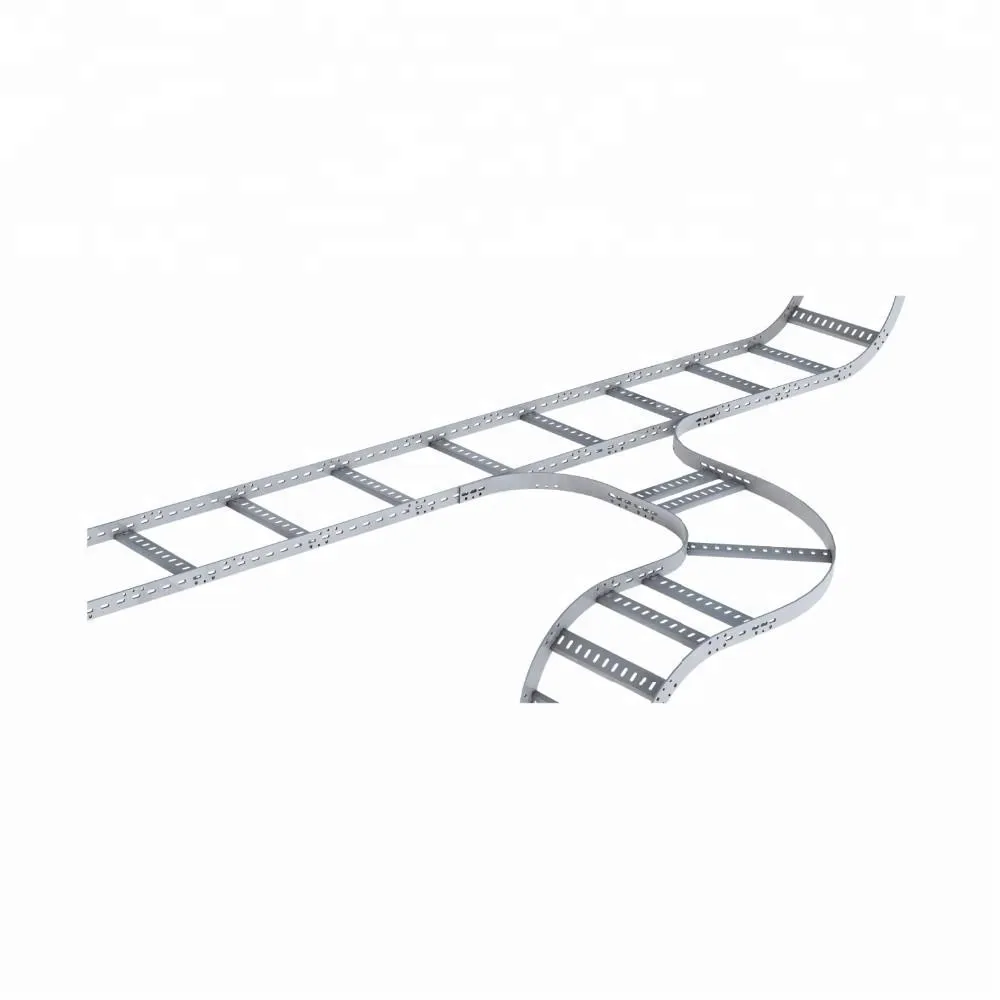

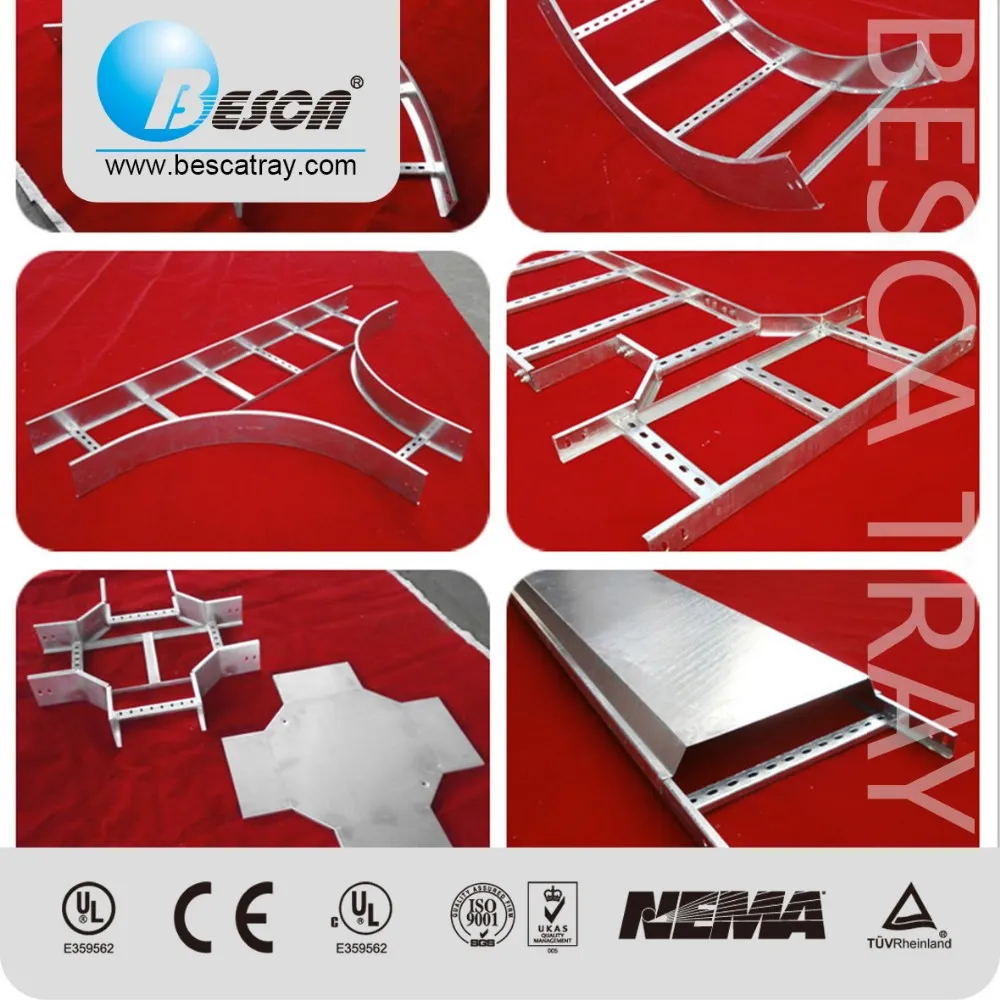

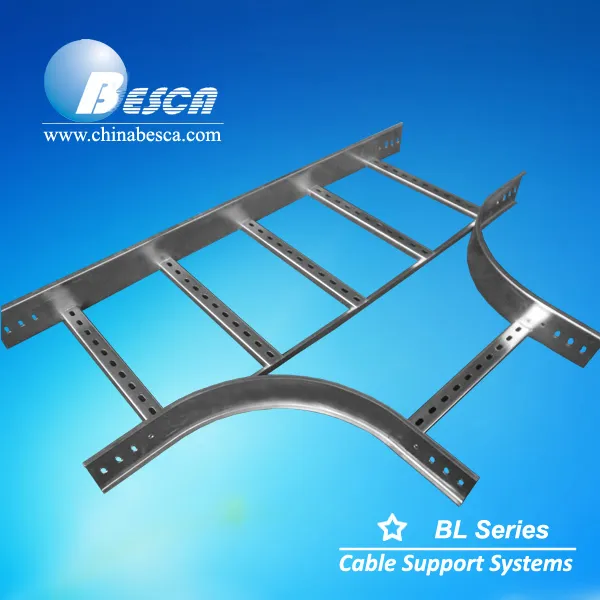

Here are elbow, riser, and tee of cable ladder:

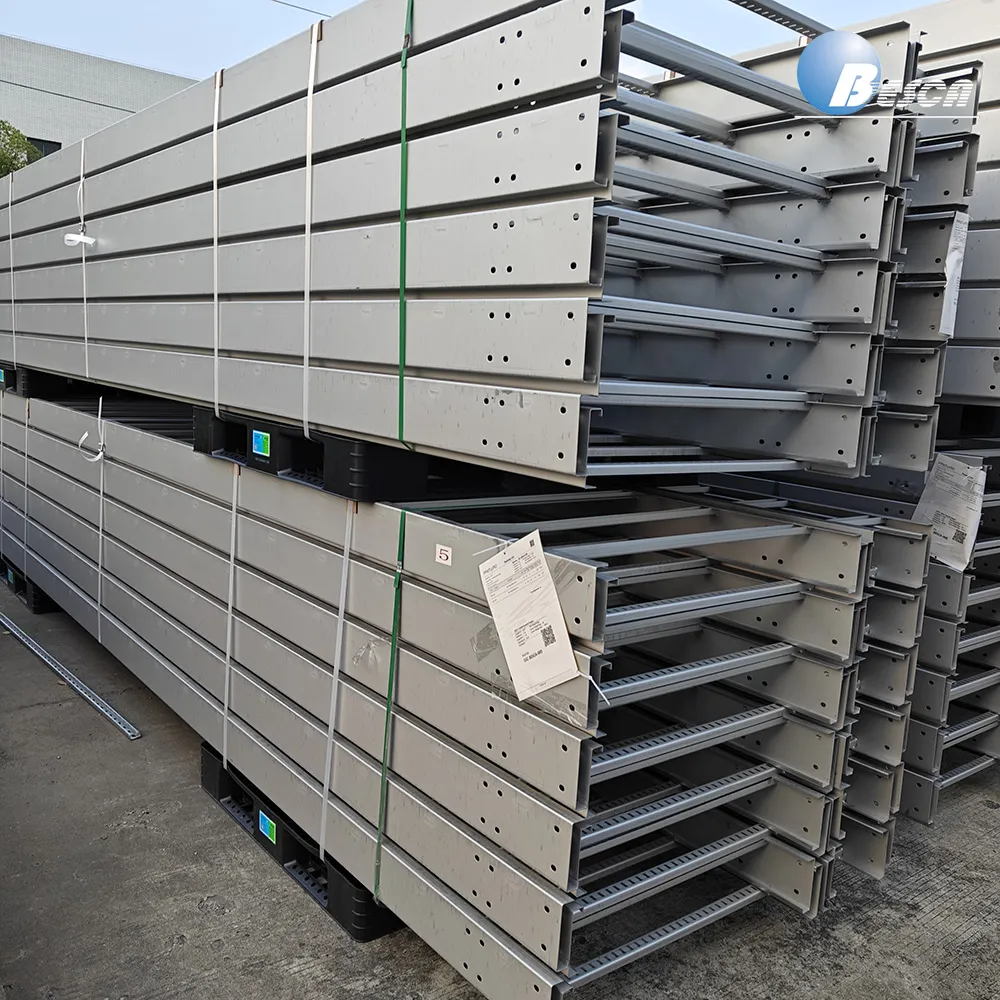

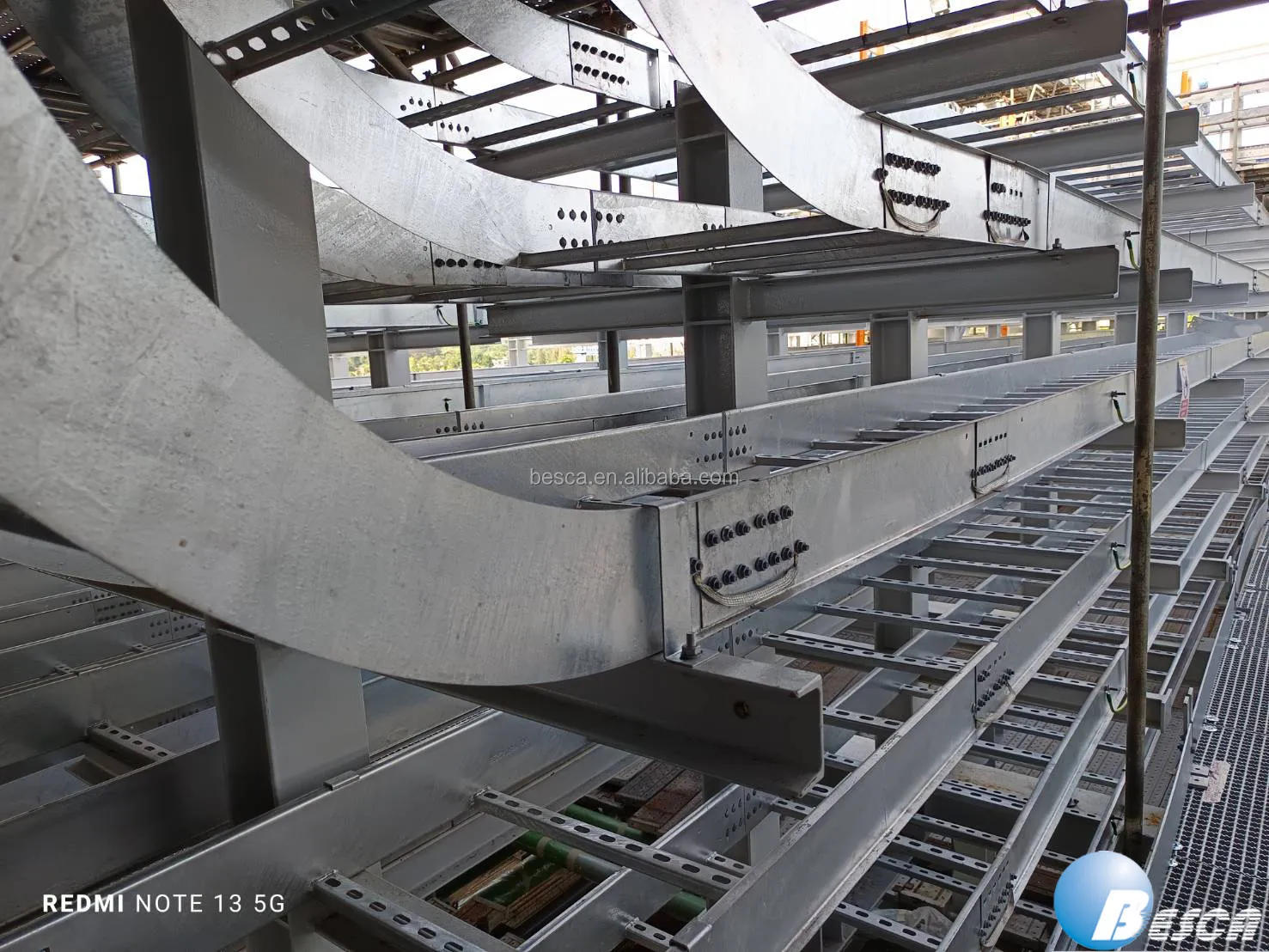

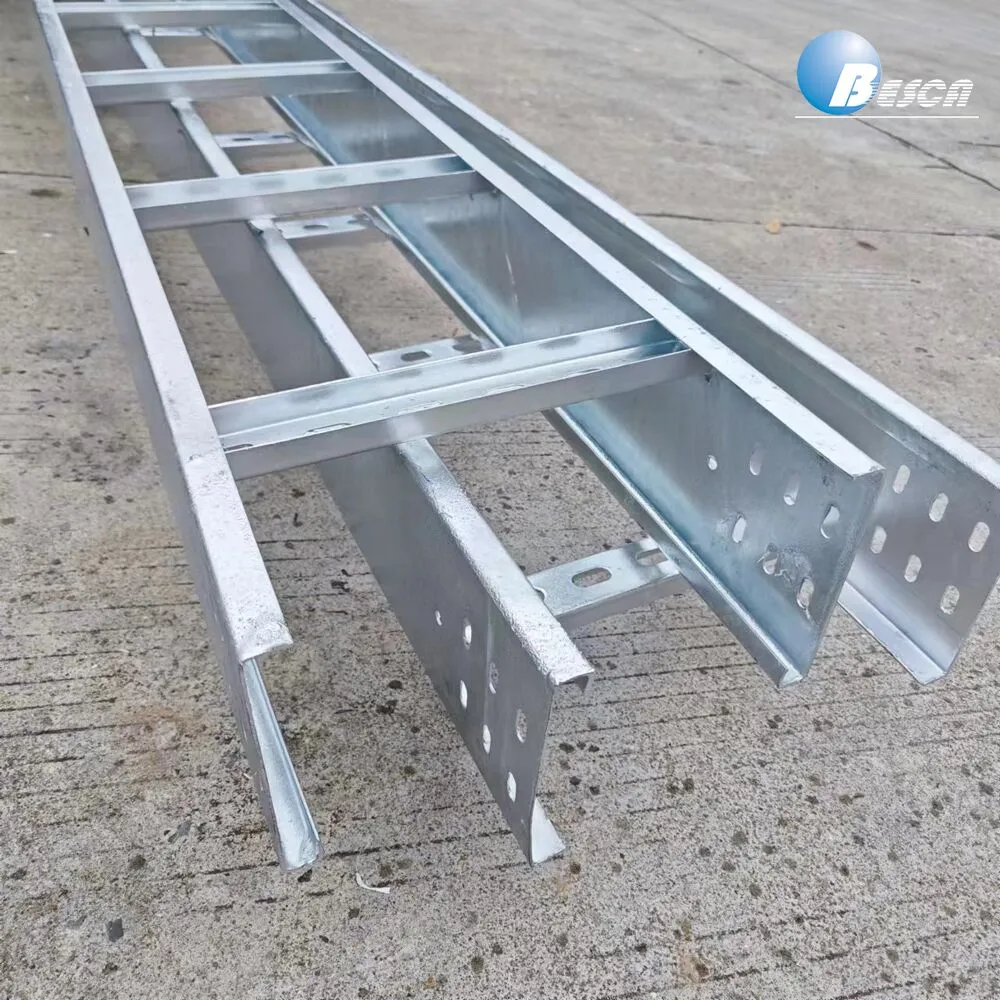

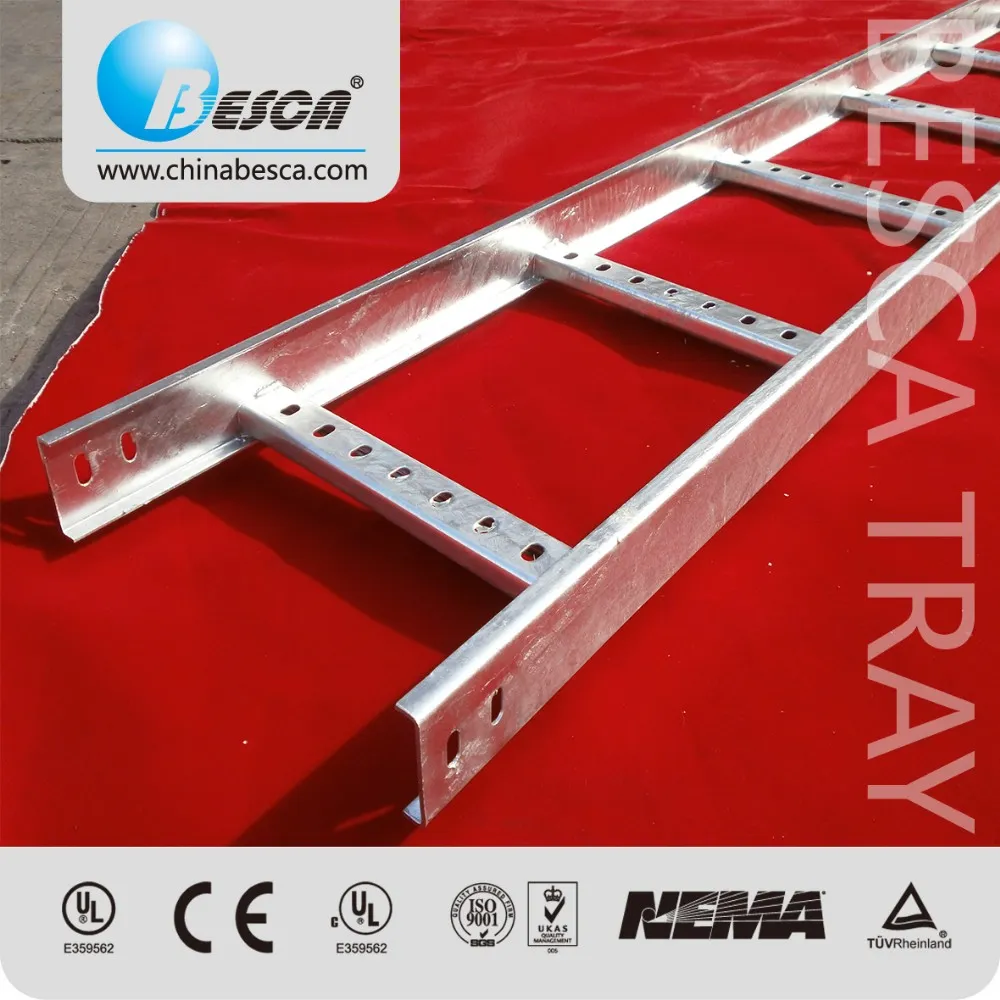

HOT DIP GALVANIZED CABLE LADDER

ALUMINIUM CABLE LADDER

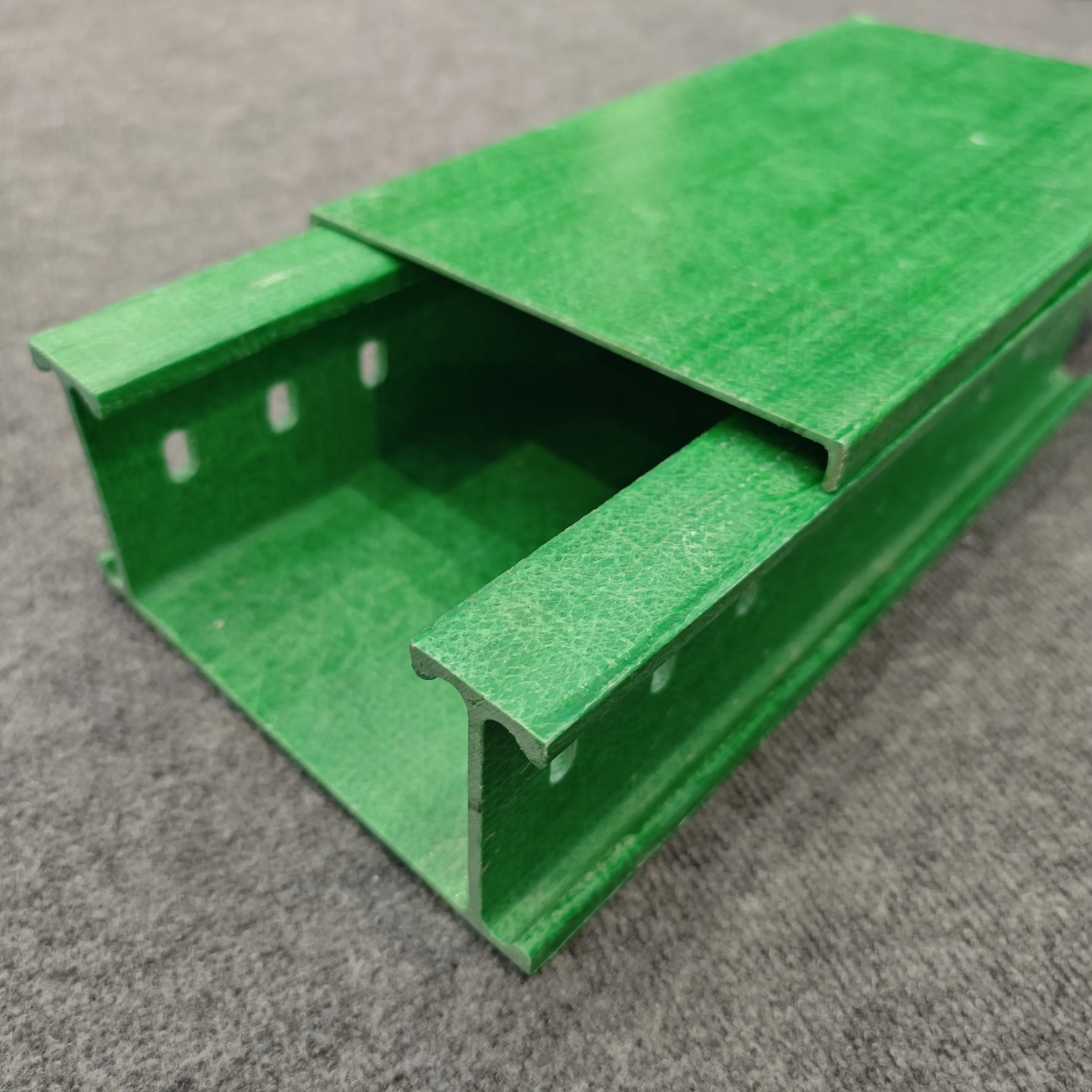

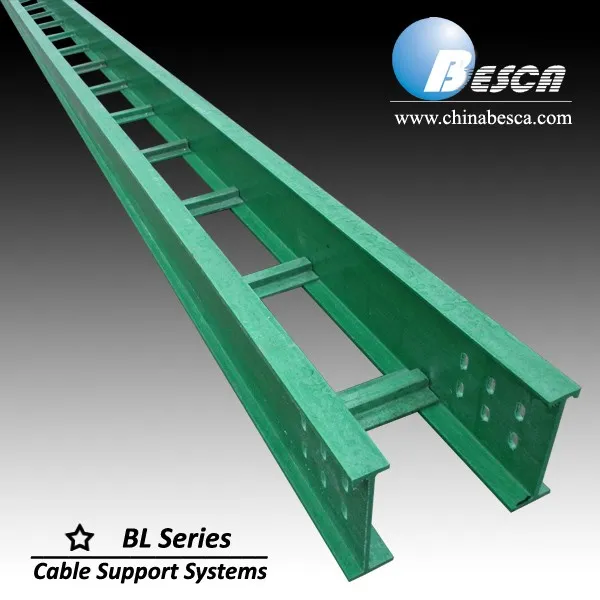

FRP / GRP FIBERGLASS CABLE LADDER

DIMENSION	RANGE (MM)
Thickness(mm)	1.2/1.5/2.0/2.5/2.75
Height(mm)	100/150/200
Width(mm)	150~900
Length(mm)	2440/3000/6000
Other Material & Finish Available	Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461 Pre-Galvanized / PG / GI – for indoor use to AS1397 Stainless Steel SS304 / SS316 Powder Coated – for indoor use to JG/T3045 Aluminum to AS/NZS1866 Fiberglass Reinforced Plastics Fire Rated to AS3013:2005 Electrolytic Polishing – for Stainless Steel use Mill / Mild /Plain Steel to ISO 4995

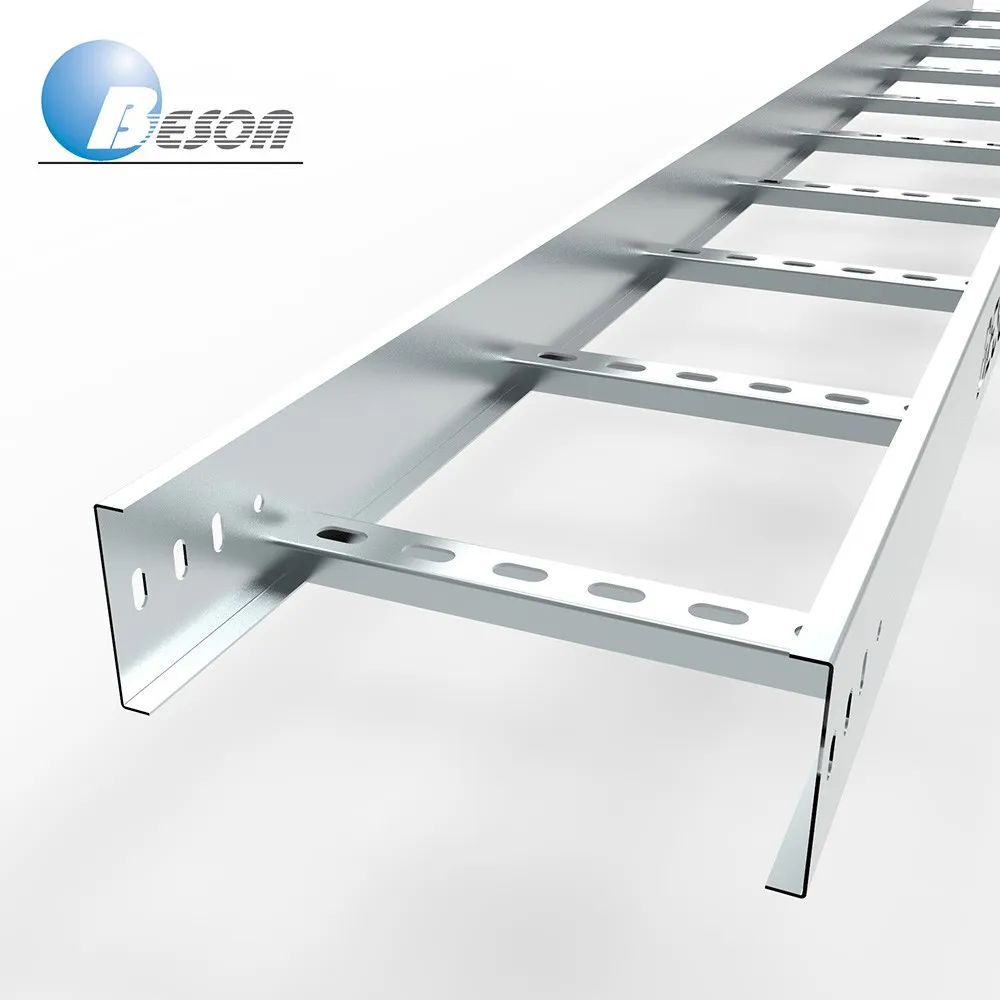

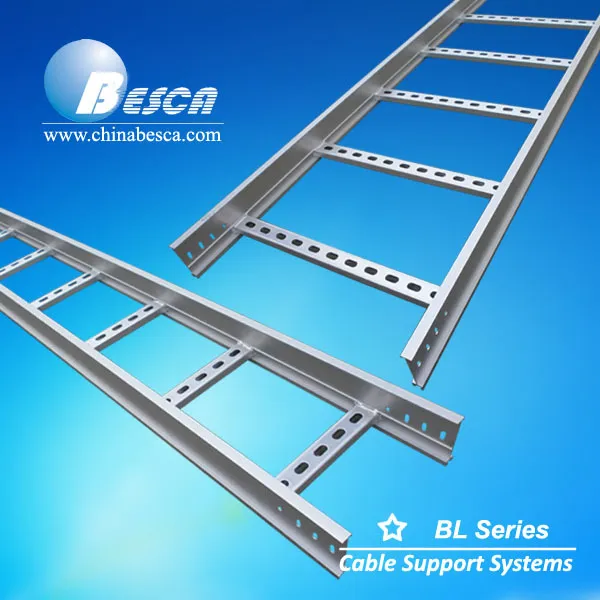

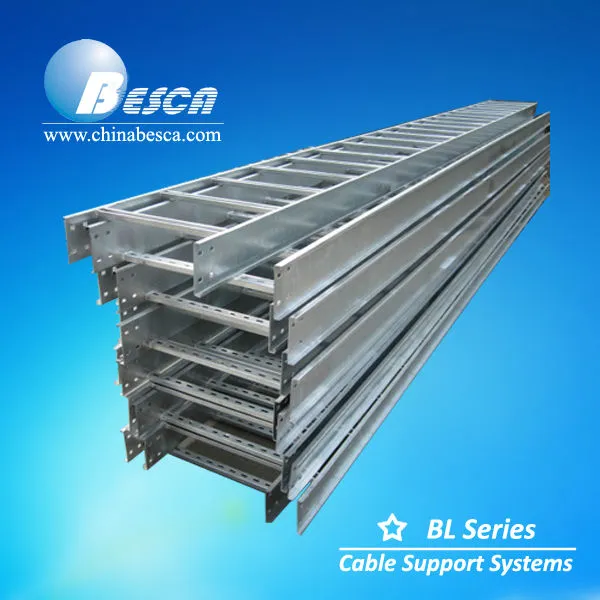

BESCA Cable Ladder

Cable Ladder of BESCA is an economical wire managerment system designed to support and protect electrical wires and cables.

Cable ladder is permitted in a variety of indoor and outdoor applications.

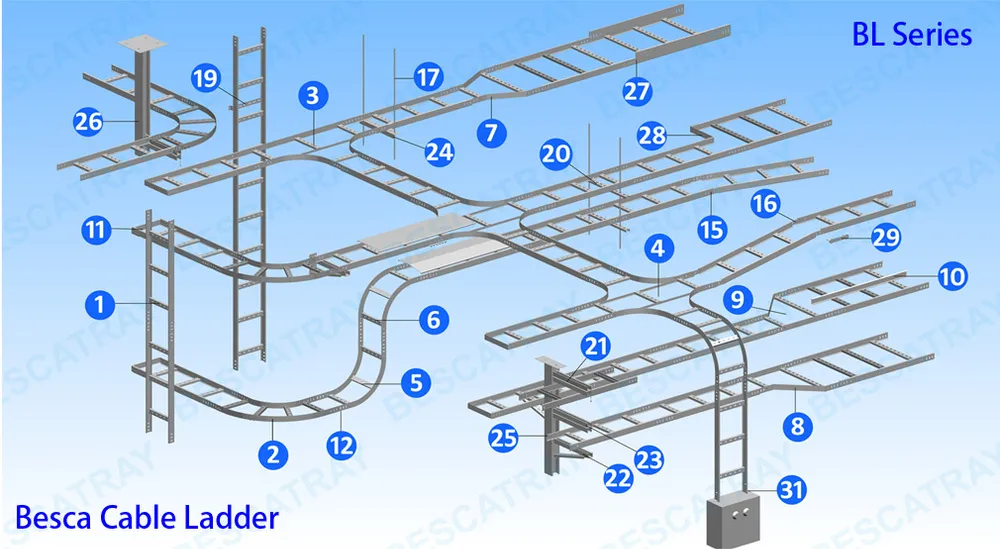

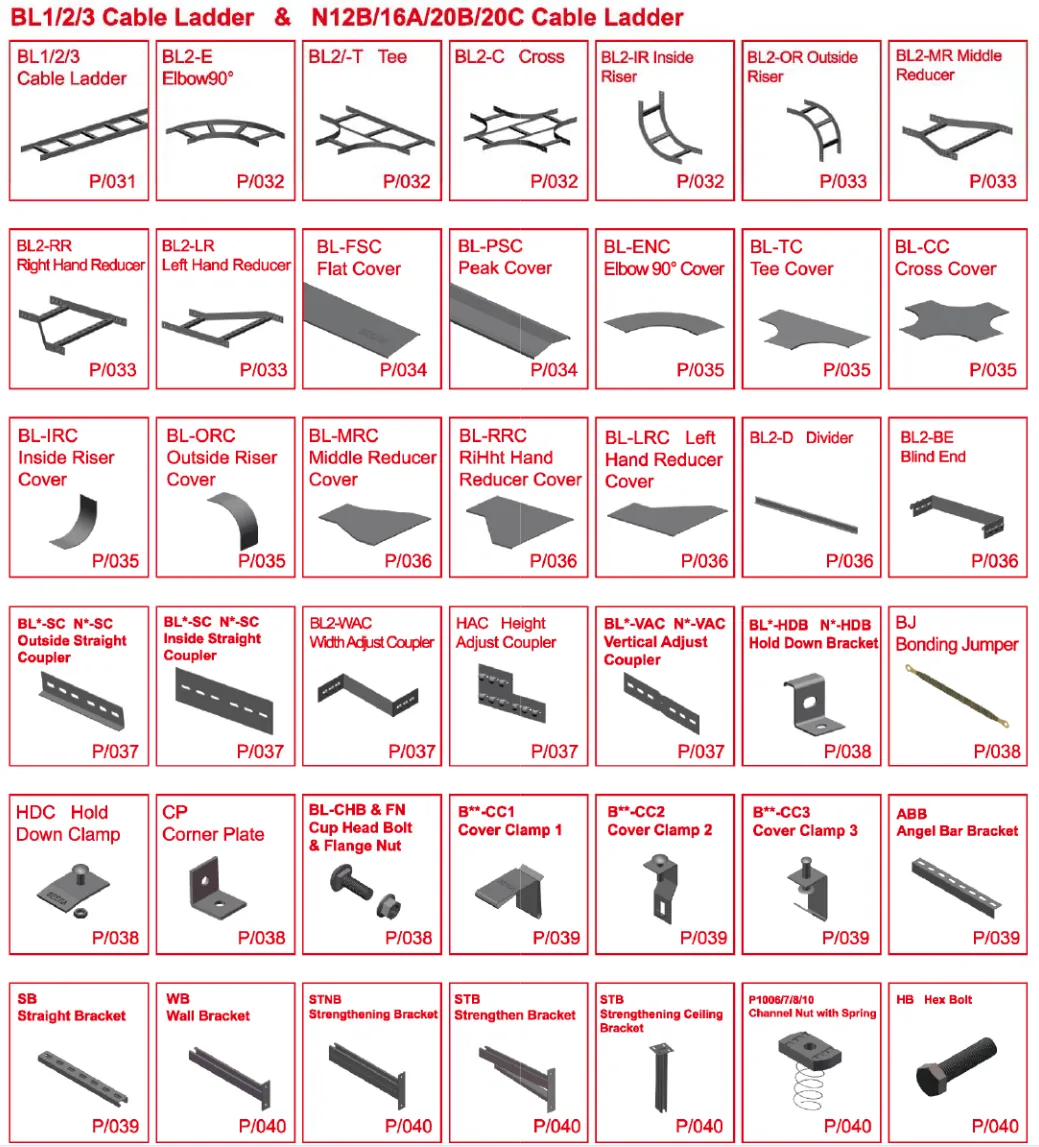

We also offer Cable Ladder Horizontal Elbow, Tee, Inside Riser, Outside Riser, Reducer, Cross and other fittinngs.

1. Cable ladder(BL*)	2. Elbow 90°(BL*-E)	3. Tee(BL*-T)	4. Cross(BL*-C)	5. Inside Riser(BL*-IR)
6. Outside Riser(BL*-OR)	7. Reducer(BL*-R)	8. Right hand reducer(BL*-RR)	9. Left hand reducer(BL*-LR)	10. Divider(BL*-D)
11. Blind End(BL*-BE)	12. Straight coupler(BL*-SC)	13. Cover Clamp(BL*-CLP)	14. Hold down bracket(BL*-HDB)	15. Horizontal adjust coupler(BL*-HAC)
16. Vertical adjust coupler(BL*-VAC)	17. Threaded rod(TR)	18. Bolts&nut(BN)	19. Under floor standard(UFS)	20. Straight bracket(SB)
21. Wall bracket(WB)	22. Strengthen bracket(STB)	23. 22. Strengthening bracket(STNB)	24. Angle bar bracket(ABB)	25. Ceiling bracket(CB)
26. Strengthrning Ceiling bracket(SCB)	27. Height abjust coupler(HAC)	28. Width abjust coupler(HAC)	29. Bonding Jumper(BJ)	30. Hold down clamp(HDC)
