Portable Standing Seam Metal Roofing Roof Roll Forming Machine for Warehouse Workshop 7.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

Portable Standing Seam Metal Roofing Roof Roll Forming Machine for Warehouse Workshop 7.5kw

Name: Portable Standing Seam Metal Roofing Roof Roll Forming Machine for Warehouse Workshop 7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT61206307

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
roll forming machine
Tile Type
Steel
Use
roof and wall
Voltage
380(or as your requirement)
Rolling Thinckness
0.8-1.2mm
Feeding Width
Other

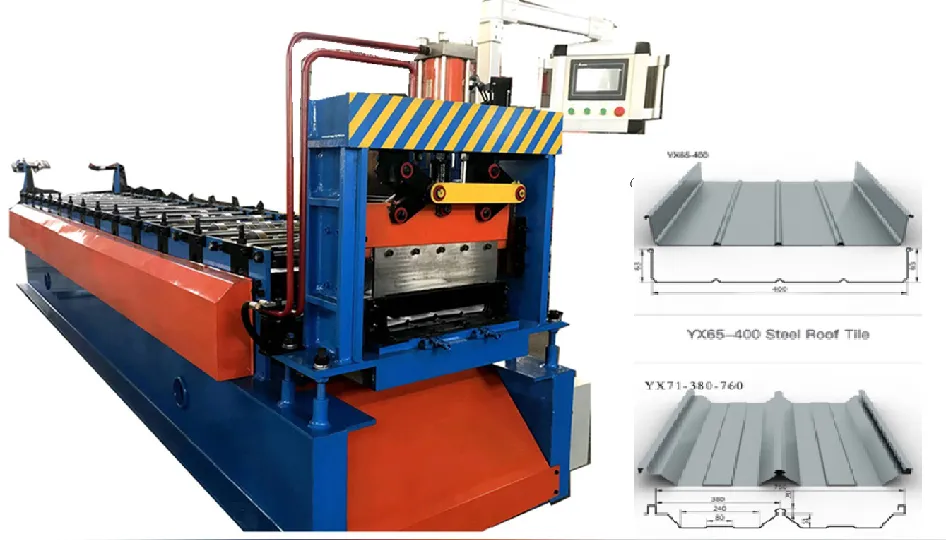

Portable standing seam metal roofing roof roll forming machine for warehouse workshop

Design Idea：
Full Automatic Easy Operation:Whole producing line just need one person for operation.

Before Wave Shearing Design:For making sure the wave shape is perfect good, we design the machine with before wave shearing. As hydraulic cutting after rolling will destroy the shape.

Machine Weight	8.2 Tons
Machine Dimension	780012001400 mm
Total Power	9 kw

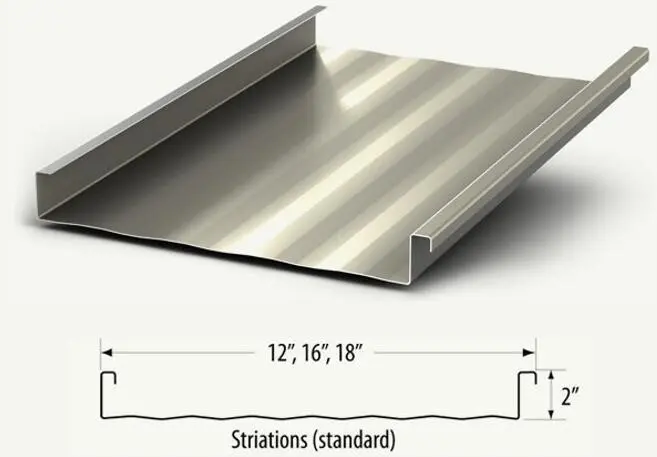

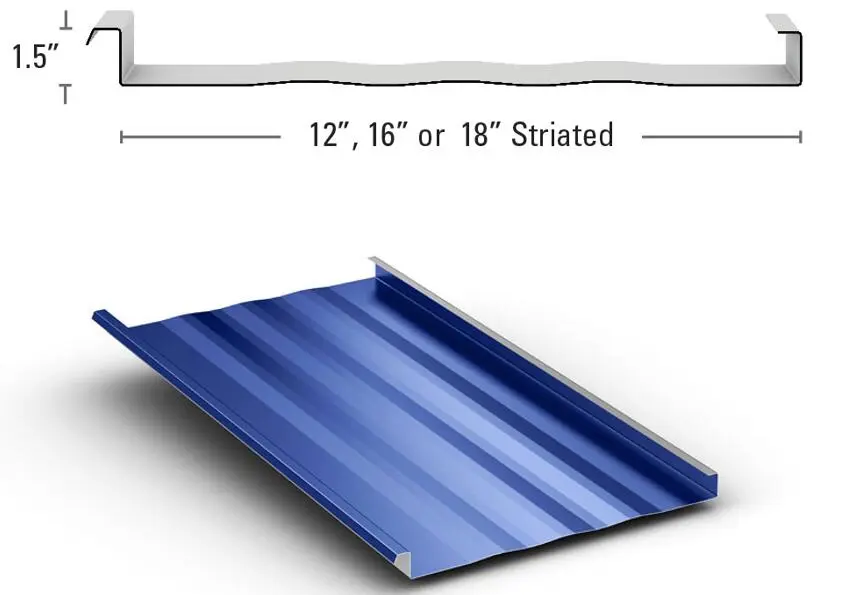

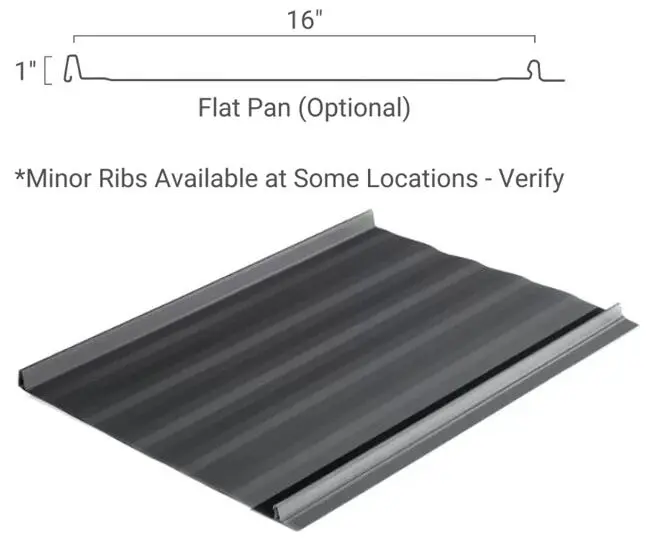

Profile drawing for reference:

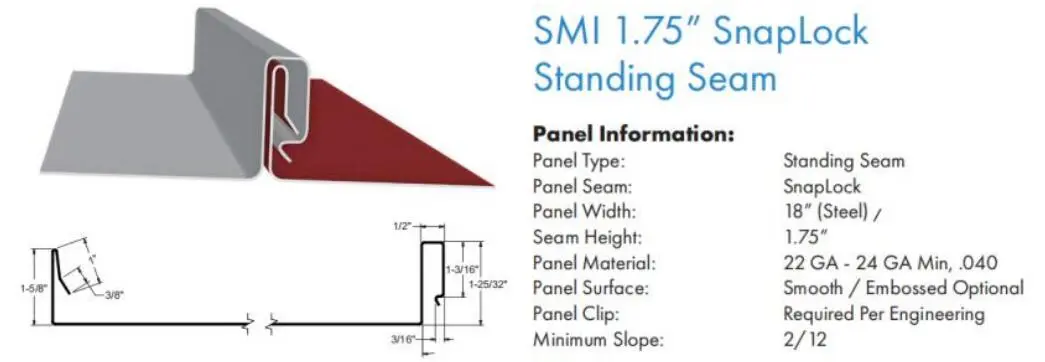

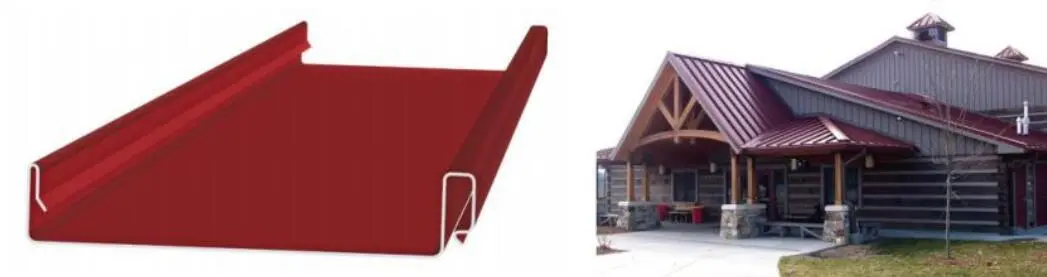

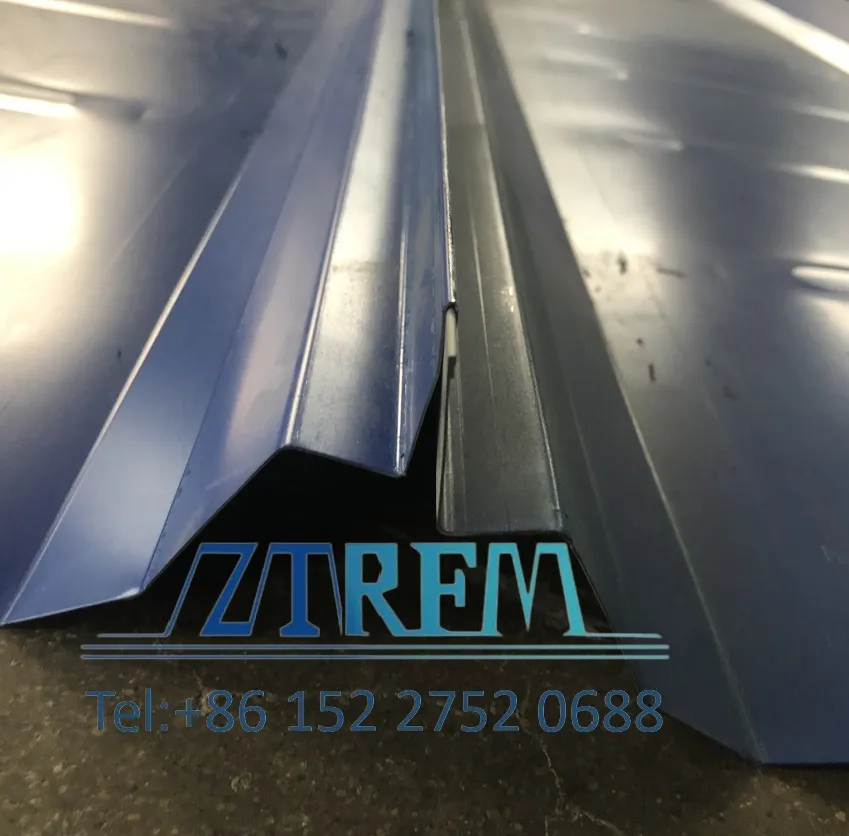

this type 1.75" SnapLock Standing Seam panel very hot sale in US.As we sold many machines to America,we have rich experience on it to confirm the finished product good and suit for market.

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving

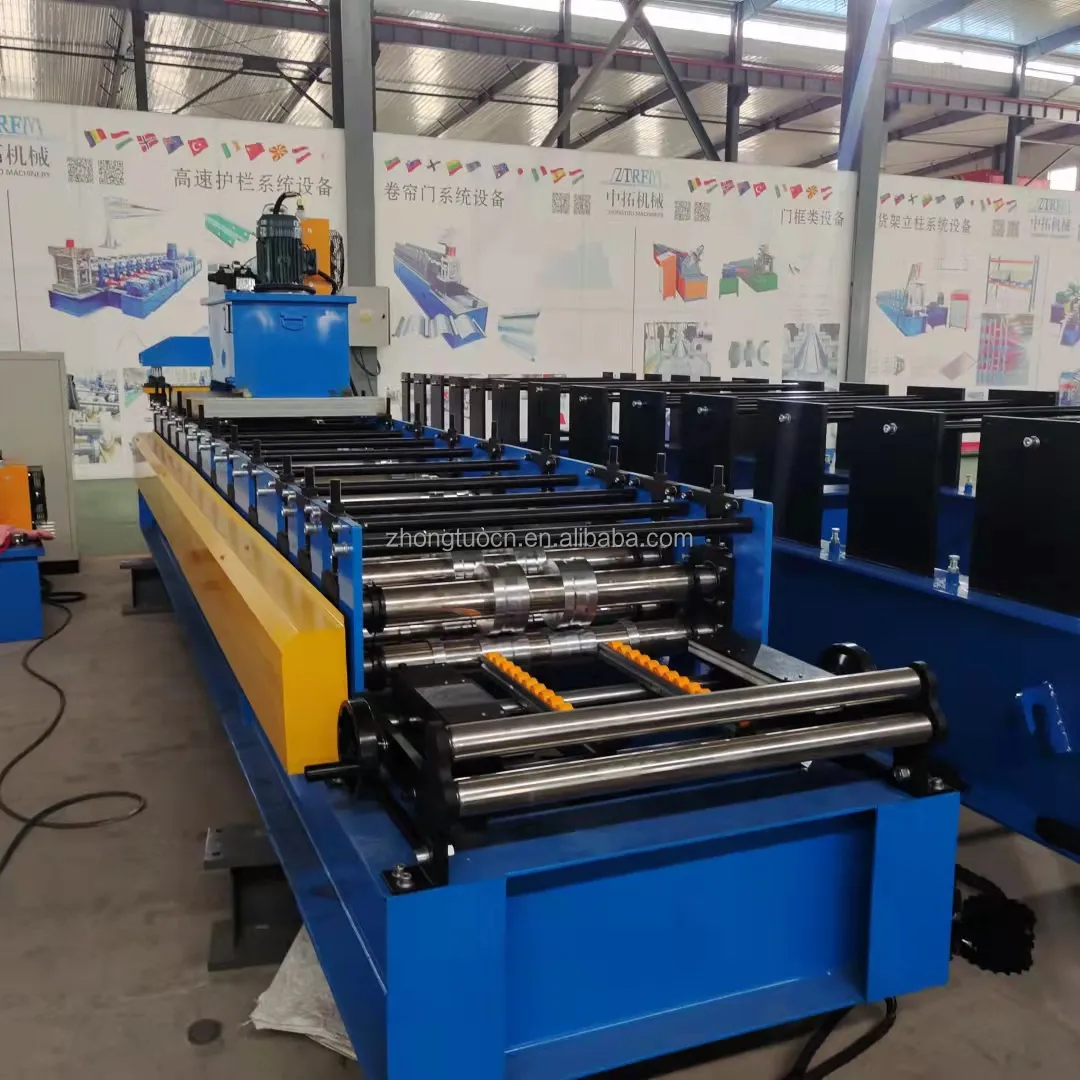

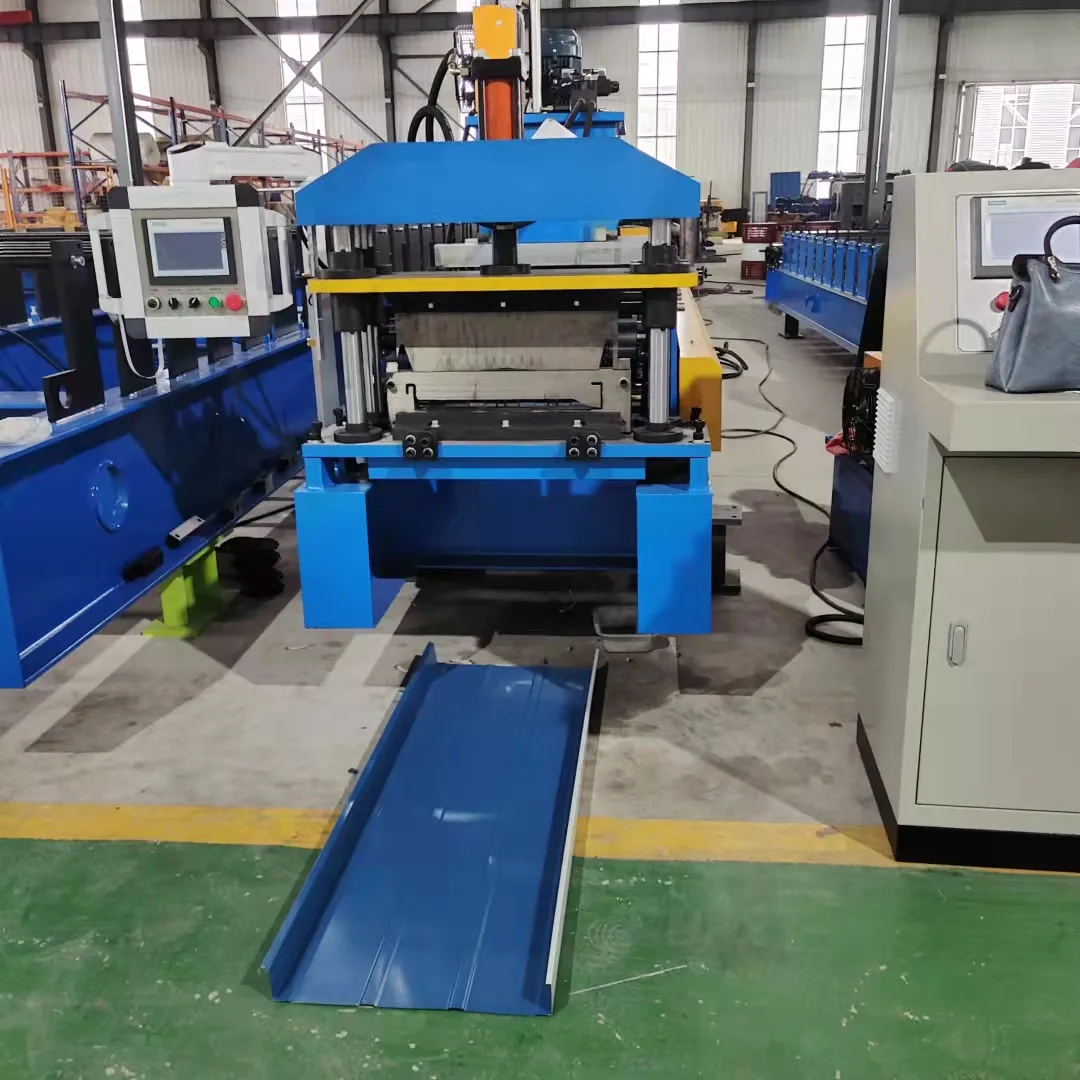

1.75" Snaplock Standing Seam Roof Standing Panel Roll Forming Machine For America
Raw Material	GI&PPGI&G550 GI и PPGI и G550
Raw Material	Raw material	Material thickness:22-24 gauge （0.3-0.8 mm) Coil width ：545 to 600mm Effective width:430 mm
Machine Frame	350# H steel welded,Steel plate welded structure
Material Of Rollers	45# Steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station	Roller stations :16 rows
Diameter of shafts	Φ75mm solid
Material of shafts	45# STEEL,Tempering treatment to prevent deformed and improve hardness
Forming speed	20 m/min
Voltage	380V/50HZ/3P (as requested)
Transmission way	By Chains with cover
Main motor	5.5 KW

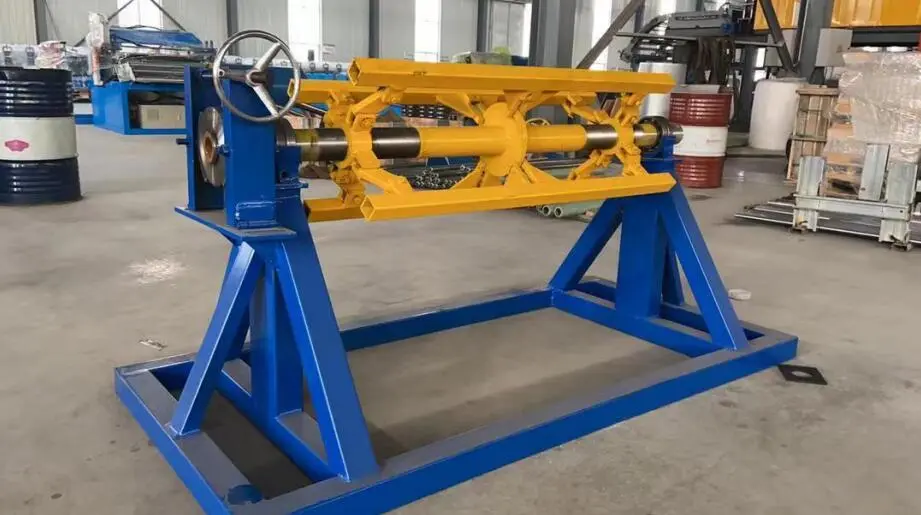

5t Manual Decolier For Free

Work type: passive type Structure: Steel channel welded for the basic frame Usage：To support the coil and make the uncoiling Loading capacity: 5 tons Inner diameter: 450-550mm (manual adjustment) Coil width: 1250mm Brake system: manual brake

Feeding Device

One set guiding roller Steel plate welded platform to carry the sheet and feed into roll forming system Feeding width is adjustable with the handle wheels

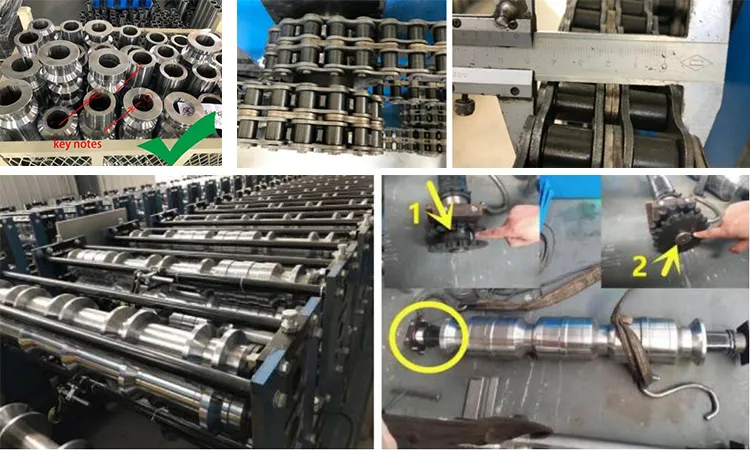

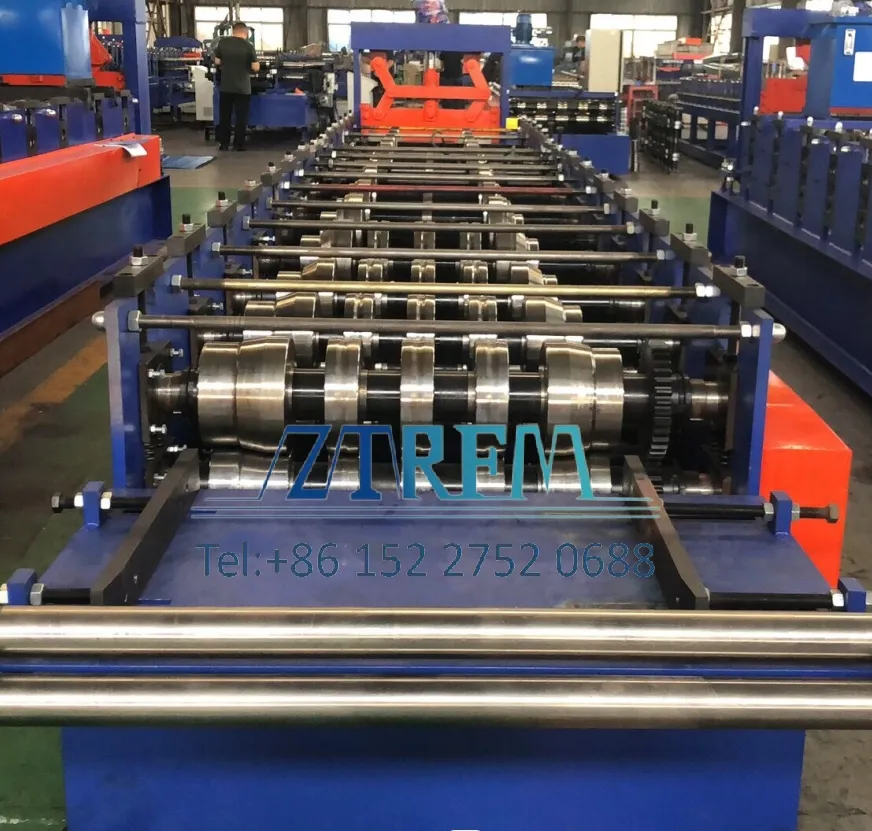

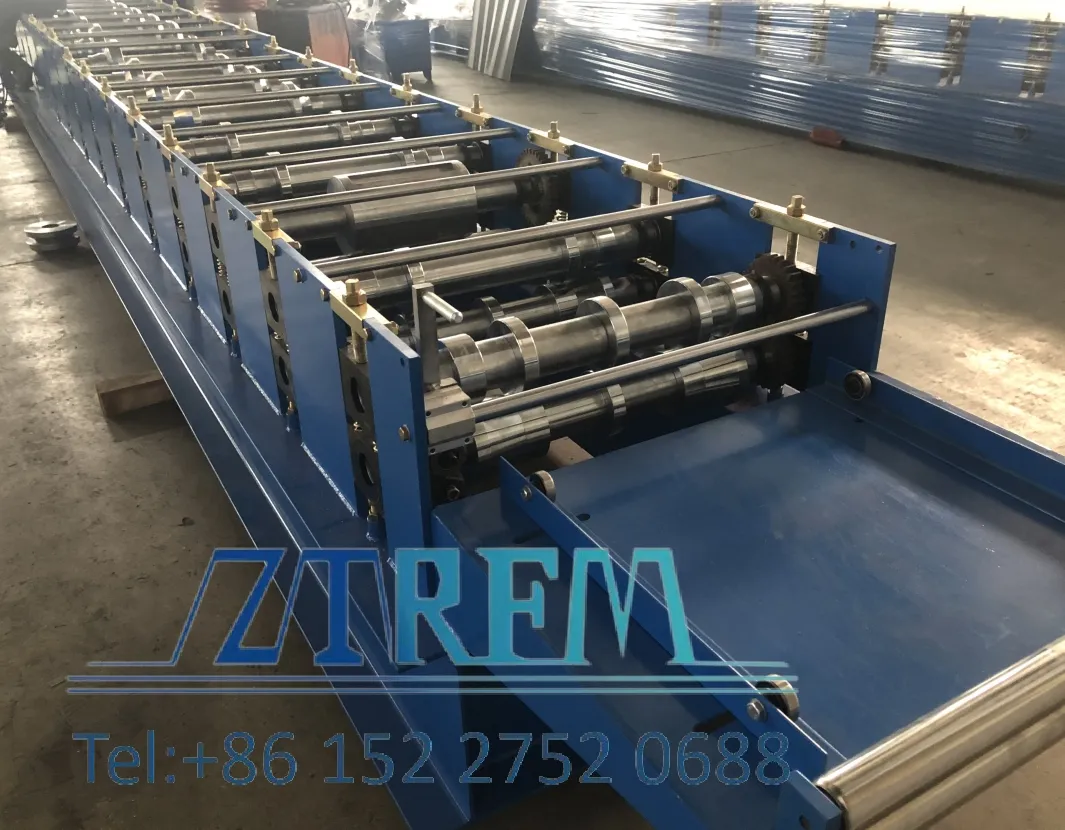

Roll Forming And Transmission Device

1.rollers:after thick chromed good hardness for long service time;Each roller has number and with keynotes, it can fix on the shaft stablely 2..gear and double chain,This design will make machine more strong, to prolong the machine using life. 3.We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to this design, shafts will be fixed more and more firm when it is working

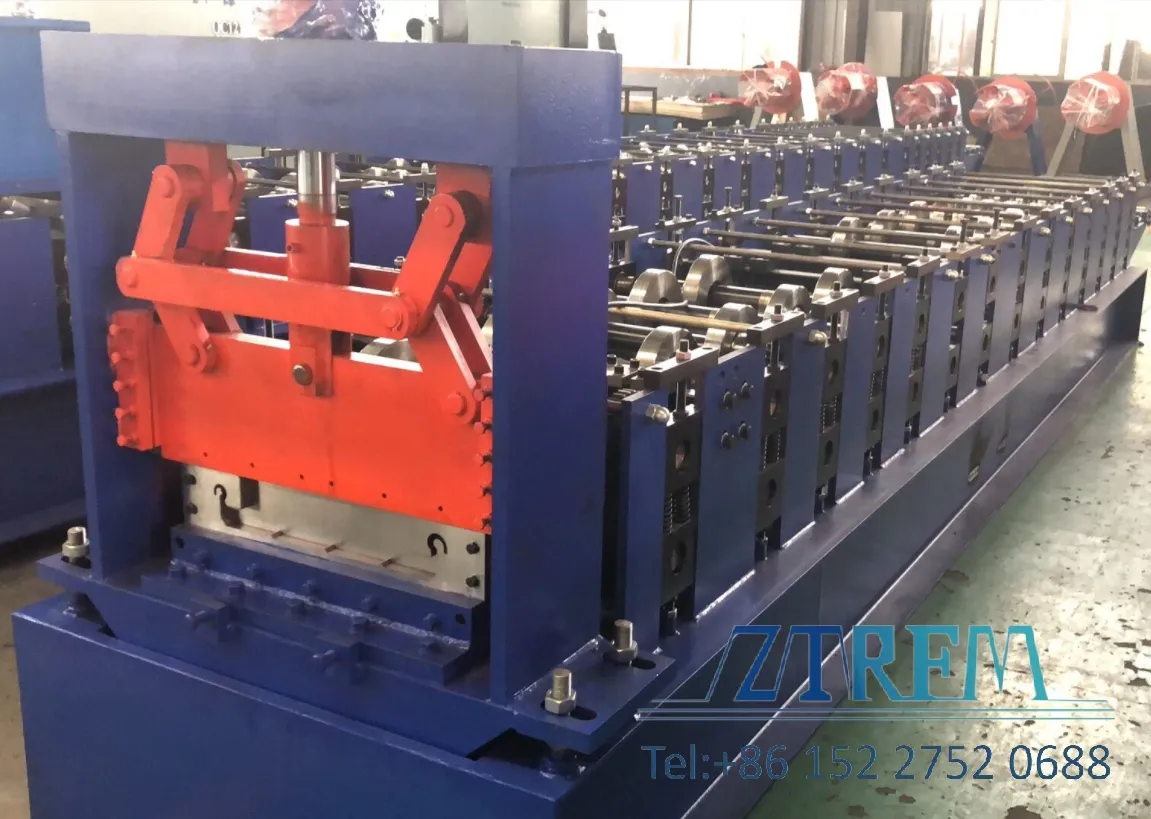

Hydraulic Cutting Device

Work type :Hydraulic cutting Driving method :By pillar type Cylinder Hydraulic motor power :3 kw Cutter material :GB-Cr12 with heat treatment Cutting length tolerance :±1mm/3m Cutting feature :Steady and safe working condition

PLC control system

Frequency brand :Delta (original) PLC brand :Delta (original) Frequency brand :Delta (original) Screen type :Touch screen, also have buttons on the panel Screen language: English/Chinese Cut command :Yes Profile length set-up :Yes Batch quantity program :Yes Low pressure electric part :Schneider brand Encode :Omron brand Remark :Support multi orders input,ensure the machine can work continuously according to different request without stop ;All the electrical parts are branded with a high quality, it can be fixed easily if damaged. Because you can find these again in any area of the country and it’s a standard parts.

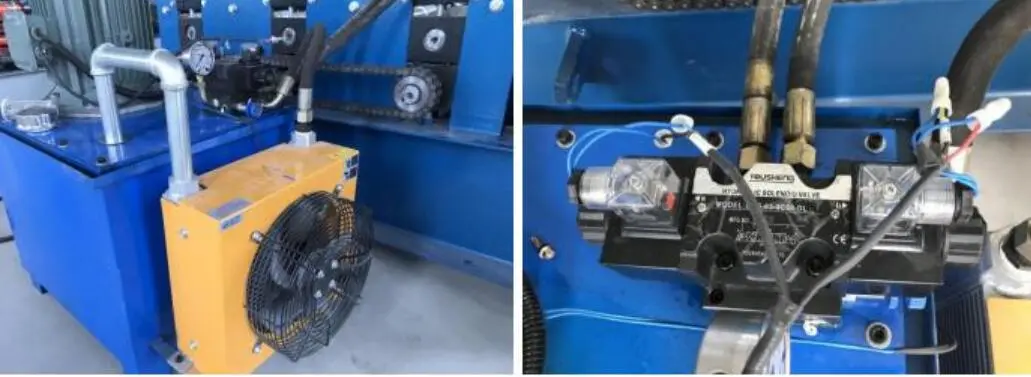

Hydraulic station

Advantage: with air-cooling system to prolong the service life. Oil tube and wires connection: All wires will be marked by numbers or letters,So very easy to connect. Power:4.5kw

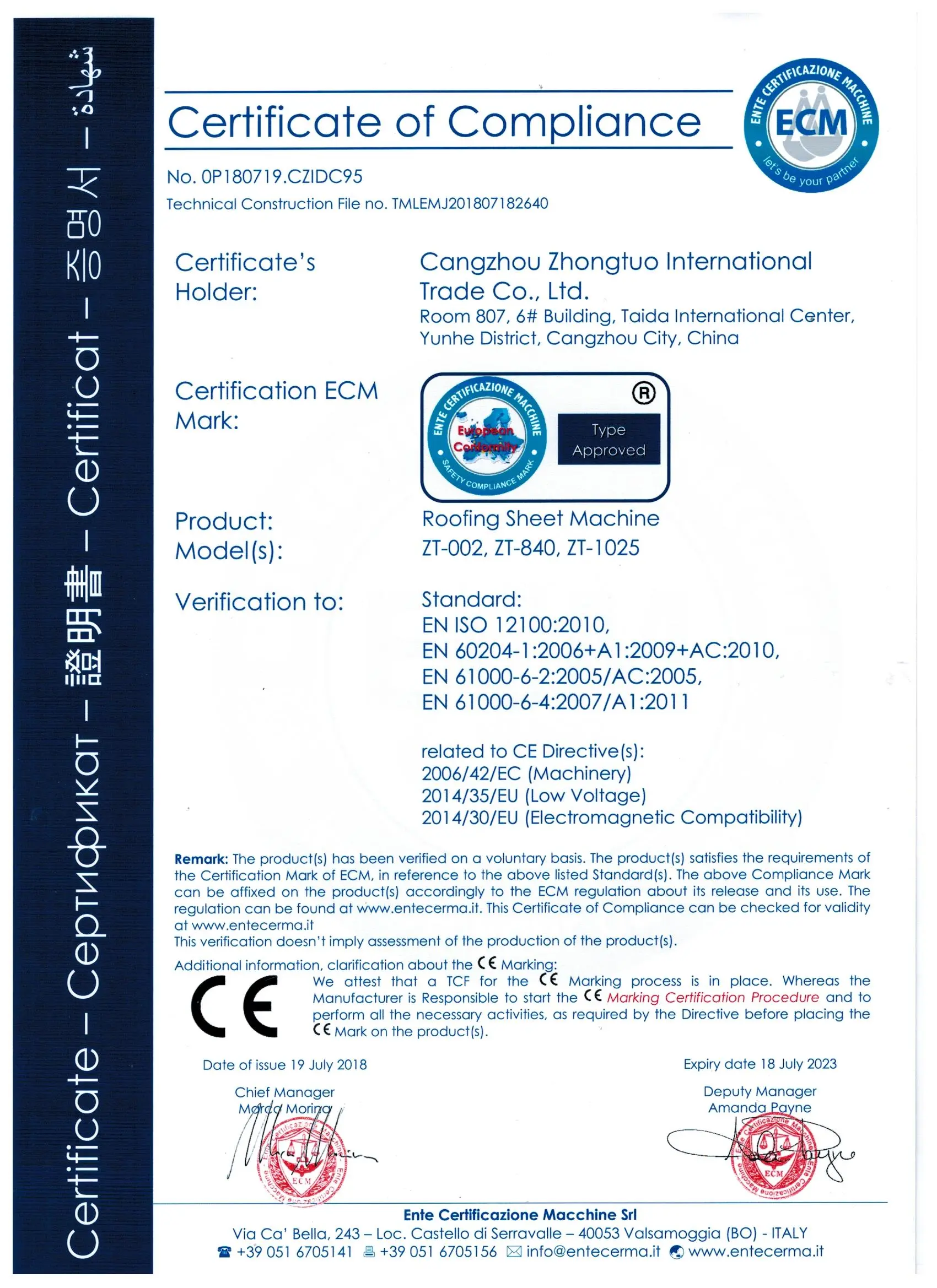

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)

Our Machine Sells Well In US
Gets High Praise From US Customers！
