Portable Automatic Adjustment Siding and Cladding Making Machine Standard Portable

Name: Portable Automatic Adjustment Siding and Cladding Making Machine Standard Portable
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120800232

Thickness0.3-0.8mm

Forming Speed15-20m/min

Weight4000kg

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Standard Portable

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Thickness
0.3-0.8mm
Forming Speed
15-20m/min
Weight
4000kg
Model
ZTRFM-Siding-P
Voltage
220V/380V/440V
Control System
Delta PLC
Adjustment
Automatic Width Adjustment

Portable Automatic Adjustment Canada Siding Machine

Engineered for the Canadian Market | Classic Board and Batten Profile

✔ Automatic Width Adjustment: Seamlessly switch between 6" to 12 1/4" widths.
✔ Job-Site Portability: Reinforced movable base with lifting points for easy towing.
✔ High-Efficiency Production: Integrated Delta PLC system with one-button start.

Product Overview

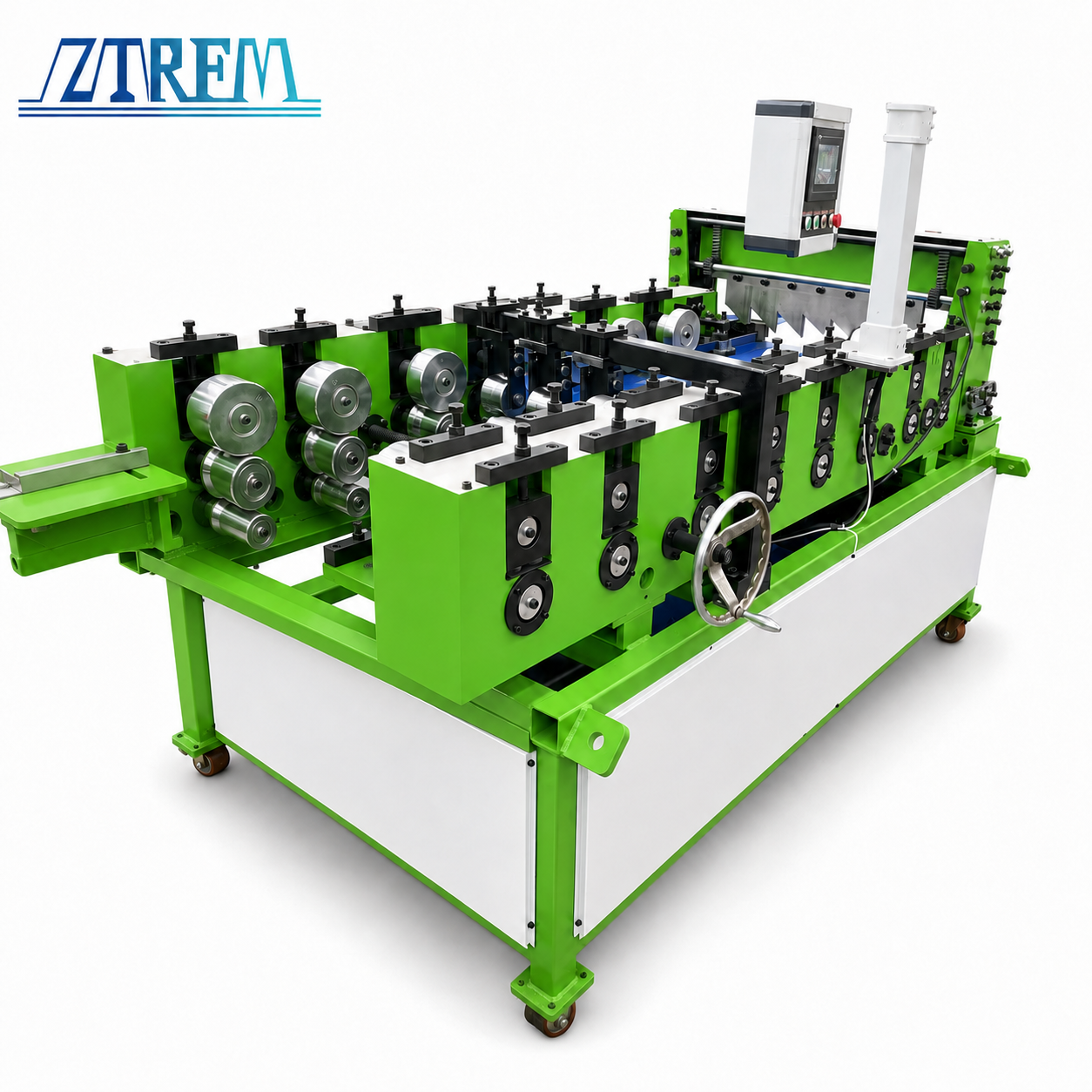

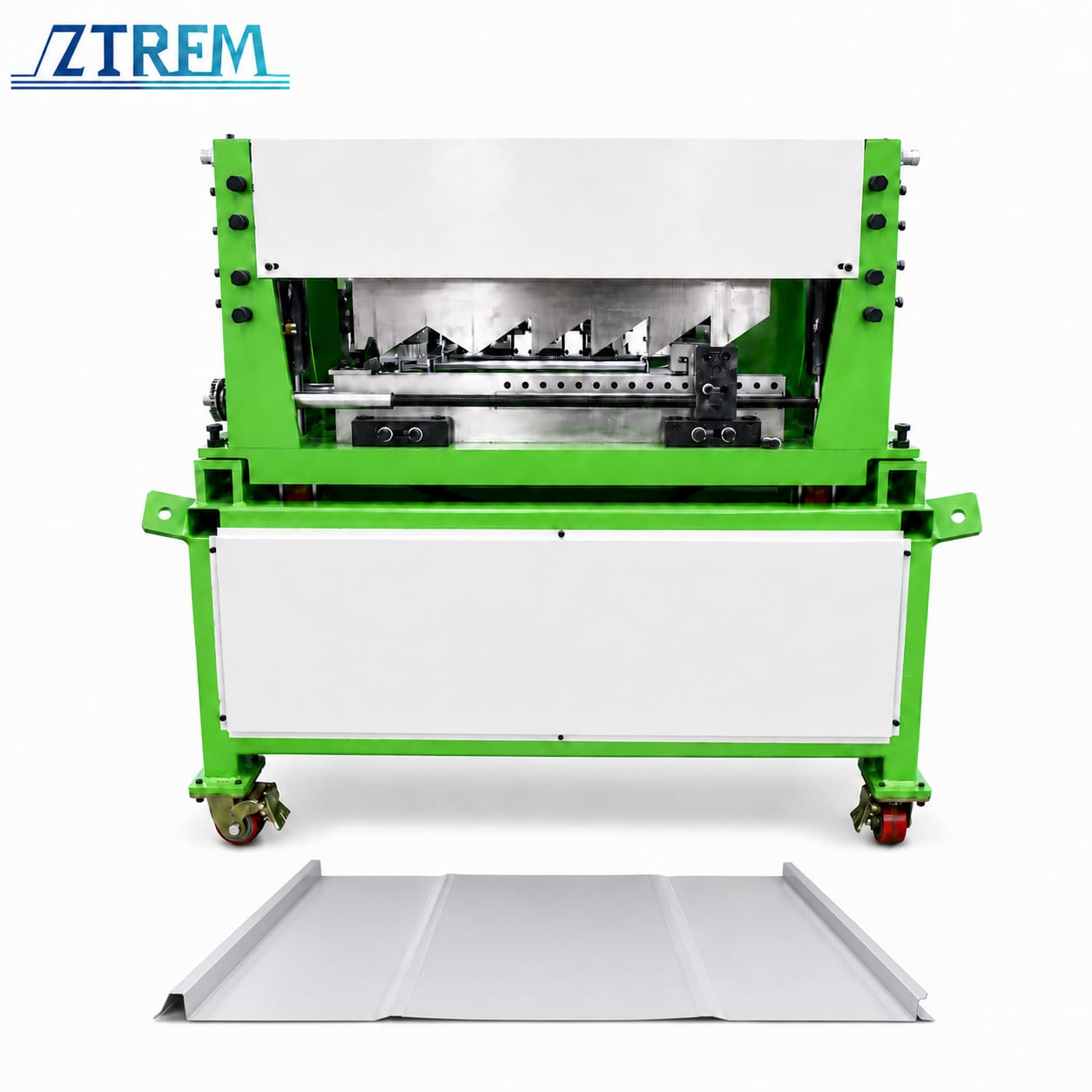

The Steel Board and Batten Roll Forming Machine is a specialized solution designed to meet the rigorous demands of the North American construction market. It produces the classic board and batten panel profile, characterized by deep, clean ribs that provide both architectural elegance and superior water shedding.

Unlike traditional fixed-width machines, this portable model features an automatic adjustment system, allowing operators to reposition rollers in minutes via the touchscreen HMI. This versatility makes it the ideal choice for contractors handling various residential and commercial siding projects.

Key Features & Advantages

Smart Automatic Adjustment

Supports a flexible width range of 6" to 12 1/4". No manual roller swapping required—adjust settings directly via the Delta PLC control panel for instant tooling changeover.

Reinforced Portable Design

Built on a heavy-duty 350H steel frame with dedicated lifting points and a reinforced base. Easily towable to job sites, cutting freight costs and enabling on-site roll forming.

Technical Specifications

Item	Specification
Profile Type	Canada Board and Batten / Siding
Feeding Width	Adjustable (6" to 12 1/4")
Material Thickness	0.3 - 0.8 mm
Control System	Delta PLC with Touchscreen HMI
Main Frame	350H High-Strength Steel
Shaft Material	45# Steel (Outer Diameter: 70mm)
Weight / Dimension	4,000 kg / 2.31.31.5 M
Certification	CE & ISO Certified

Why Choose ZHONGTUO?

Specialized Engineering: Over 20 years of experience in North American profile standards (Siding, Standing Seam, Purlins).
Premium Components: We only use trusted global brands like Delta, Siemens, and Schneider to ensure reliability and easy maintenance.
On-Site Expertise: Our portable machine series is optimized for stability and vibration resistance during transport and high-load operation.

After-Sales & Support

We provide a comprehensive support package to keep your production running smoothly:

1-Year Global Warranty: Fast replacement of core parts and components.
Lifetime Technical Support: 24/7 remote diagnostics, operation training, and maintenance guidance.
Customized Solutions: Full OEM/ODM support for custom profile drawings and technical adjustments.
