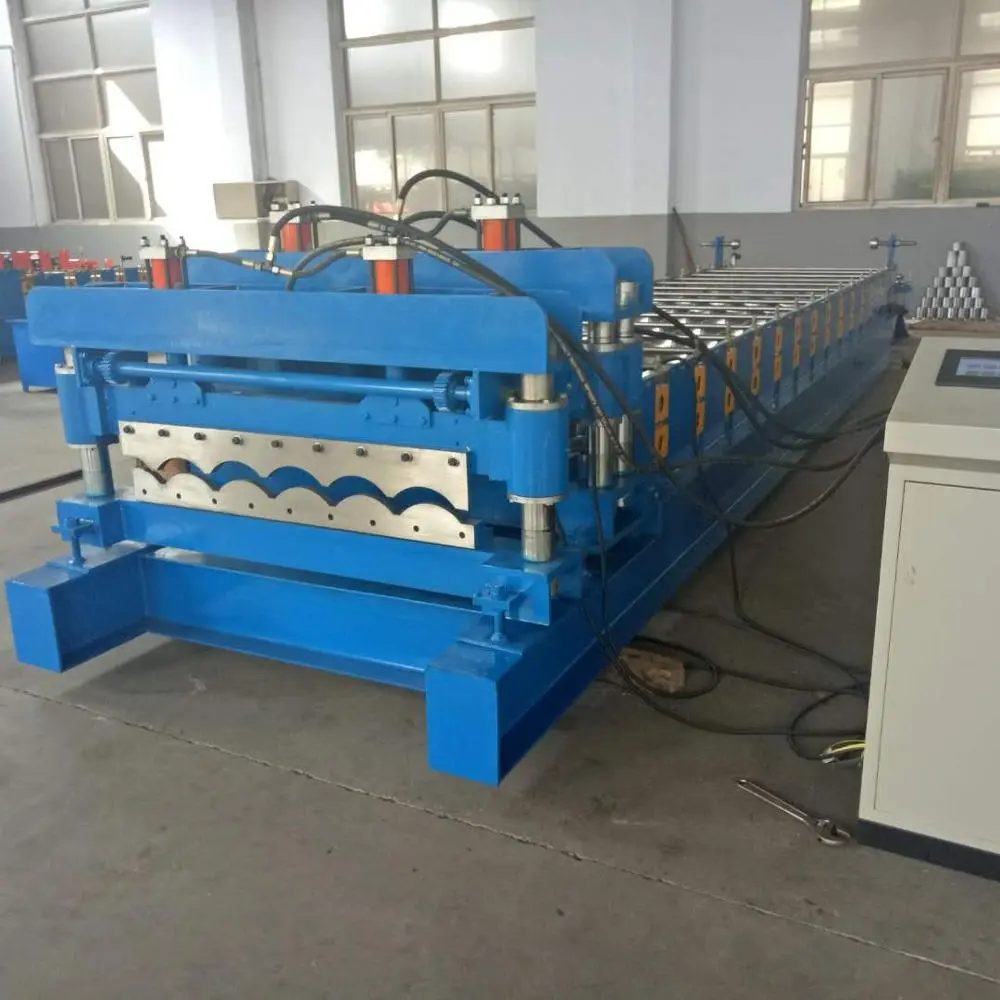

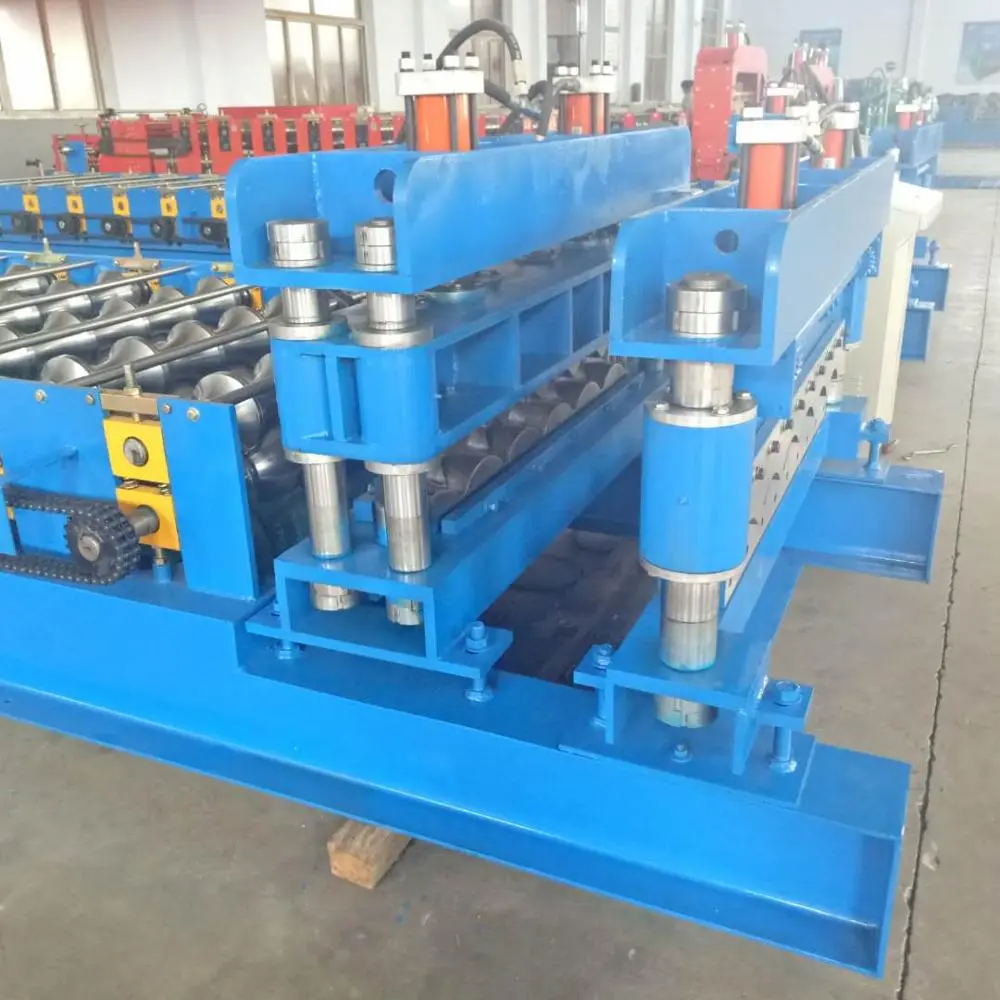

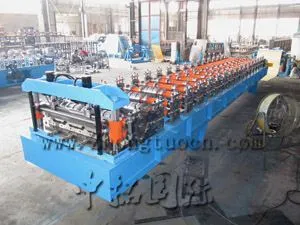

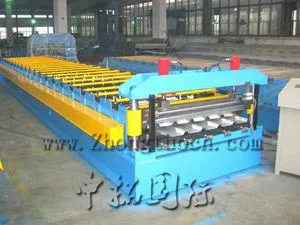

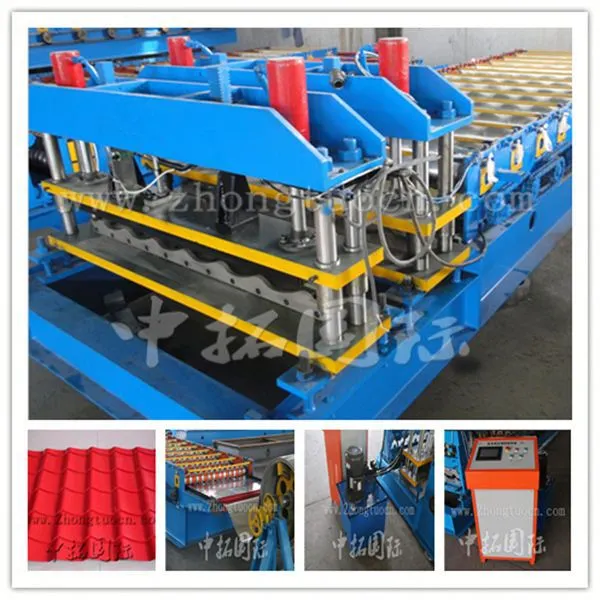

Poland Type Glazed Tile Zinc Roofing Sheet Roll Forming Machine

Cangzhou Zhongtuo International Trade Co., Ltd

Supplier Qualification

Poland Type Glazed Tile Zinc Roofing Sheet Roll Forming Machine

Name: Poland Type Glazed Tile Zinc Roofing Sheet Roll Forming Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT81303622

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

roofing tile roll forming machine

Power(W):

5.5 kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380V or as required
Rolling Thinckness
0.3-0.8mm
Feeding Width
1250 mm

glazed tile cameroon zinc roofing sheets corrugating machine golden supplier

Product Description

1.. glazed tile cameroon zinc roofing sheets corrugating machine golden supplier Processing technique and deployment

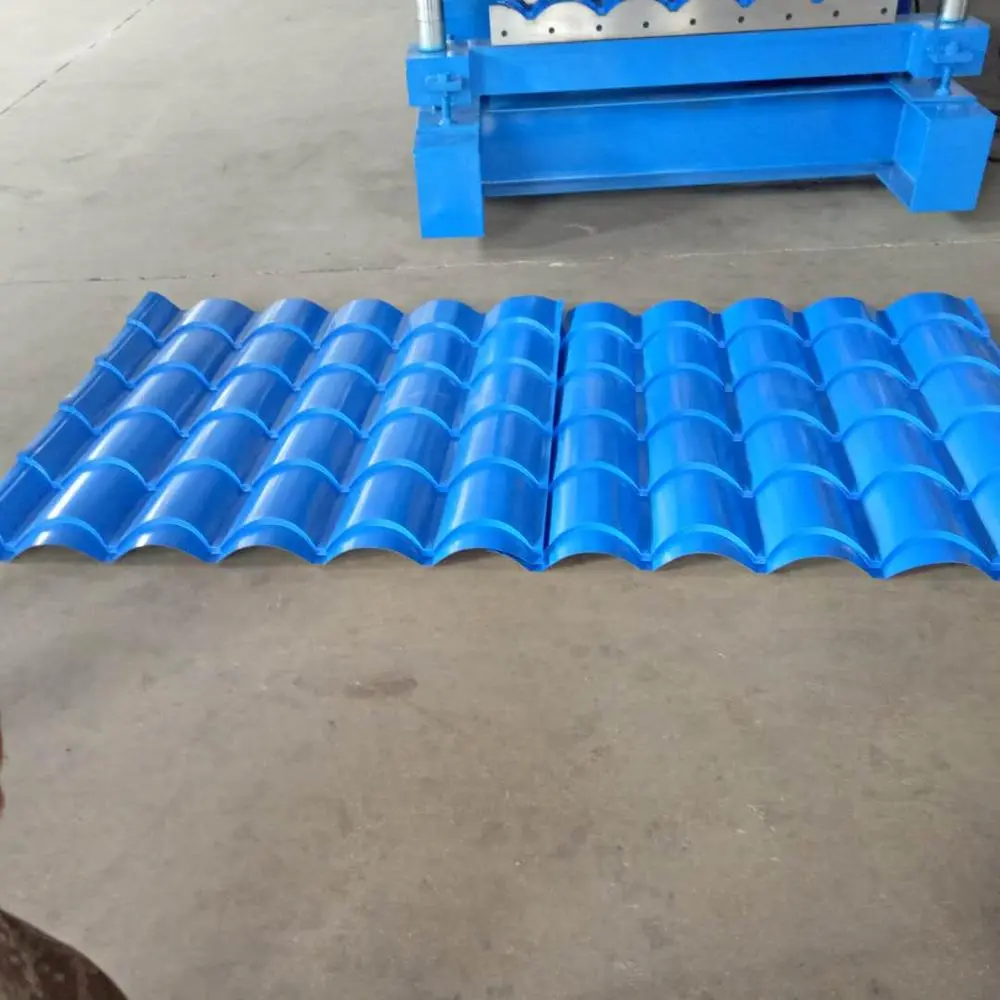

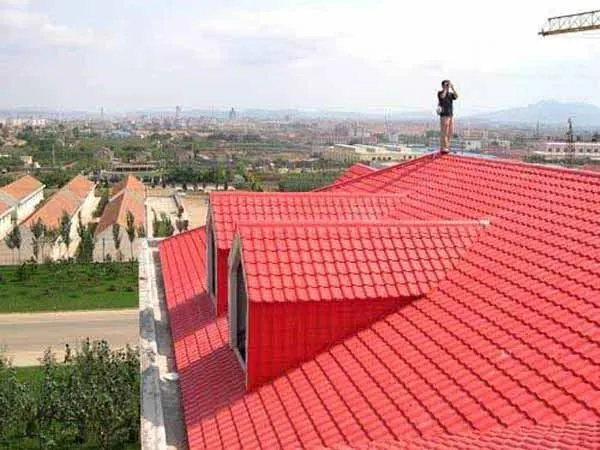

glazed tile cameroon zinc roofing sheets corrugating machine golden supplier by the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.

User parameters: the number of sheets, the length of the first section, distal, pitch, number of sections, pre-press section, and so on.

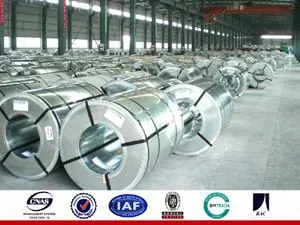

the material used in glazed tile cameroon zinc roofing sheets corrugating machine golden supplier

glazed tile cameroon zinc roofing sheets corrugating machine golden supplier Description	Introduction
Working efficiency	8-12m/min
Thickness of Material	0.3--0.8mm (can be changed according to customers need)
Width of material	914mm;940mm;1000mm;1200mm;1220mm;1250mm According to customers need
Control system	PLC(The brand can be choose)
Uncoiler system	5Ton Manual Operation(1250mm width)

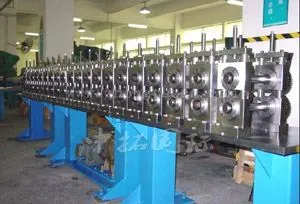

Forming by rolling	13 rows (According to the machine design)
Roller material	GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated
Shaft and the diameter of axle	45#Aluminium-processing ,diameter of axle=80mm
Main part power	5.5kw
Hydraulic motor power	4kw
Hydraulic pressure	12Mpa

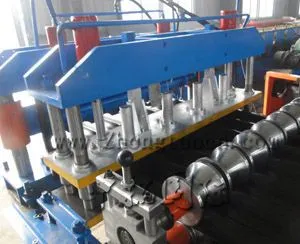

Scissor material	Cr12Mov, herd steel HRC 58-62°C
length tolerance	±1.5mm
voltage	380V, 50HZ,3 phase (adjustable by customer needs)
Frame form	Middle plate
Driving Method	Chain
Color	Yellow and blue(adjustable)
Size	lengthWidthHeight - 8.21.651.5m
weight	about 5.0T

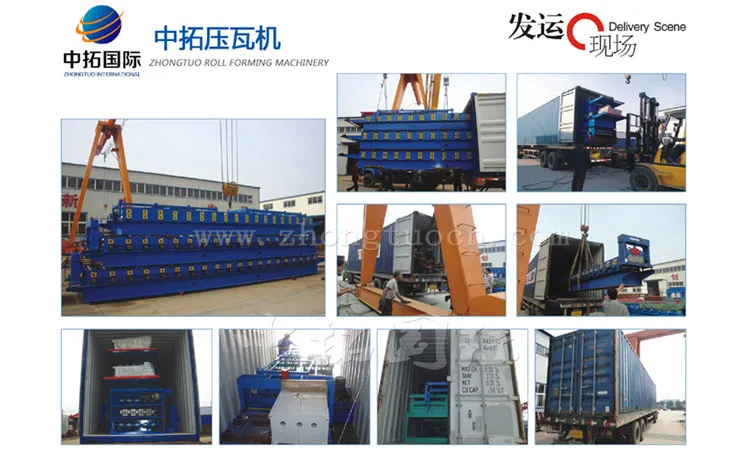

Package	Nude package in 1*20GP container
Delivery date	30 working days
Payment Method	30% T/T in advance and balance 70% after inspection confirmation before shipment.
If you have your own drawing, please send it to us, we can design the machine, depend on your drawing.
