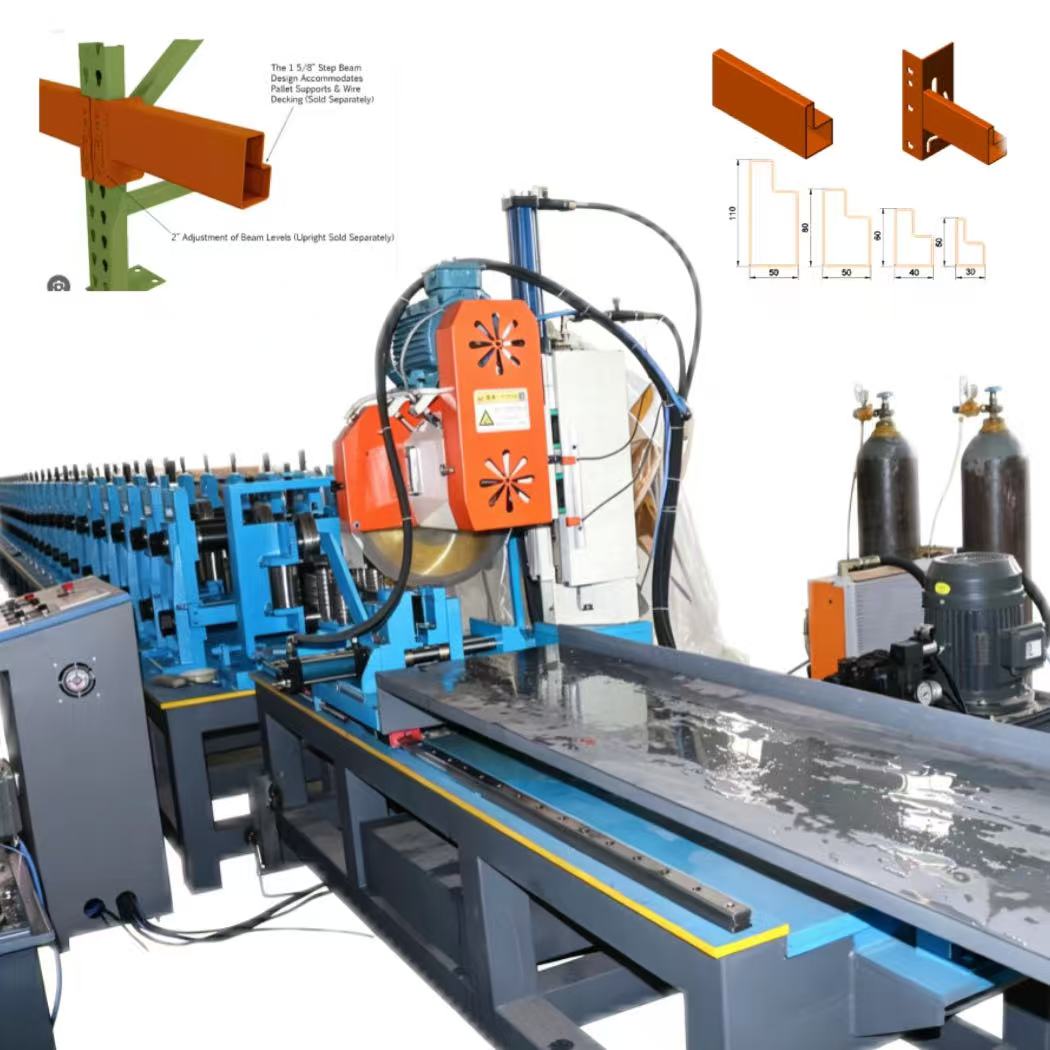

Pallet Rack Step Beam Roll Forming Machine for Warehouse Storage and Industrial Racking

At Zhongtuo, we manufacture pallet rack step beam roll forming machine solutions for warehouse equipment producers, pallet rack manufacturers, logistics companies, supermarket distribution centers, and industrial storage projects.

Our step beam line forms L-tube and pallet rack beam profiles from your selected metal coil. With a project-specific feeding, punching, forming, cutting, and control arrangement, you can produce rack beams that match your storage system design and installation requirements.

We develop each machine from your approved drawing or physical sample. Our engineering team reviews the beam section, flange shape, hole layout, finished length, material, surface finish, and target output before preparing the production configuration.

Produce Accurate Beams for Modern Warehouse Systems

Rack beams connect upright structures and support the shelf or pallet positions required by your facility. Accurate profile geometry, reliable connection details, and suitable material selection help you build a stable storage system for daily warehouse operations.

Our warehouse beam roll forming machine uses progressive cold forming to shape metal strip into your step beam or L-tube beam section. Punching and cutting can be coordinated with the forming process so each finished beam follows your rack design.

You can use this solution for heavy-duty pallet racks, drive-in racks, mezzanine racks, shuttle racks, e-commerce logistics centers, cold-chain warehouses, manufacturing warehouses, and supermarket distribution centers.

• Progressive roll forming for pallet rack step beams
• Integrated punching and profile processing
• Automatic Cr12MoV cutting tool
• Chain transmission forming drive
• PLC-controlled automatic production
• Batch, length, and quantity management
• Customized roller stations and shaft diameter
• Hydraulic automatic decoiler configuration
• Project-specific forming speed and machine dimensions
• Drawing-based and sample-based engineering

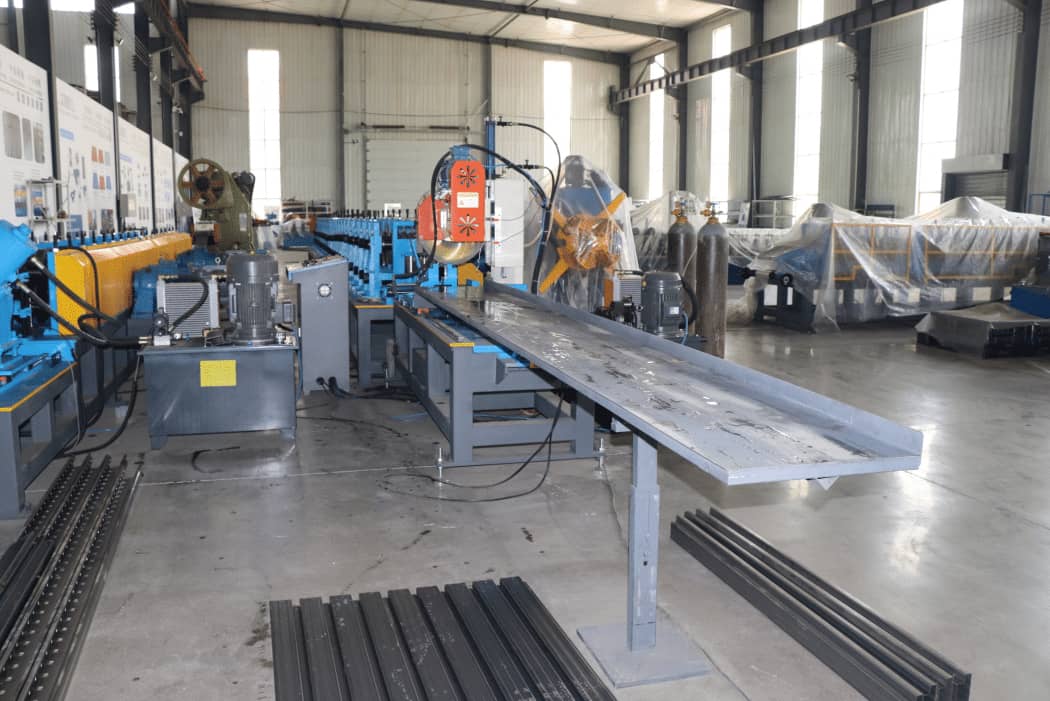

Advantages of Our Metal Rack Beam Forming Machine

When you choose Zhongtuo, our engineers develop your rack beam production concept around your material, profile, rack connection, output plan, and workshop conditions.

• Rack-focused engineering: We design the forming arrangement for pallet rack step beams, L-tube beams, warehouse racks, and related storage components.
• Progressive forming quality: Multiple forming passes gradually shape the metal and help maintain a stable beam section.
• Integrated punching: Punching functions can follow your hole layout and connection design.
• Automatic cutting: The forming line uses an automatic Cr12MoV cutting tool concept for project-specific beam lengths.
• Multiple material choices: PPGI, galvanized steel, and aluminum are available for project selection.
• PLC operation: PLC control coordinates forming production, with language and functions selected for your needs.
• Flexible customization: Beam width, flange design, hole pattern, length, forming speed, and line layout are engineered from your drawing.
• Chain transmission: Chain transmission provides the forming drive arrangement for the standard machine concept.
• After-sales support: Zhongtuo provides online technical support, spare parts assistance, installation guidance, and engineer service according to your order scope.

Standard Configuration and Project Configuration

Your rack system may require a specific beam width, flange shape, connection hole, length, or surface finish. We engineer the final specification from your approved drawing instead of applying one fixed layout to every project.

Our final technical schedule gives you the beam dimensions, station arrangement, shaft diameter, power list, tolerance, and acceptance requirements for your production line.

How Our Pallet Rack Step Beam Roll Forming Line Works

Our production process begins with your finished beam requirement. We coordinate the forming and punching sequence so the output fits your pallet rack structure and installation method.

1. Drawing review: Send our engineers your step beam drawing or sample, including the section, length, hole layout, and connection details.
2. Material planning: Confirm your metal type, thickness, coil width, finish, and strength requirements.
3. Line design: We select the decoiler, feeding system, punching tooling, forming stations, cutting method, and control arrangement.
4. Feeding: The coil enters through the hydraulic automatic decoiler and alignment system selected for your project.
5. Punching: Required connection holes and features are processed according to your approved punching drawing.

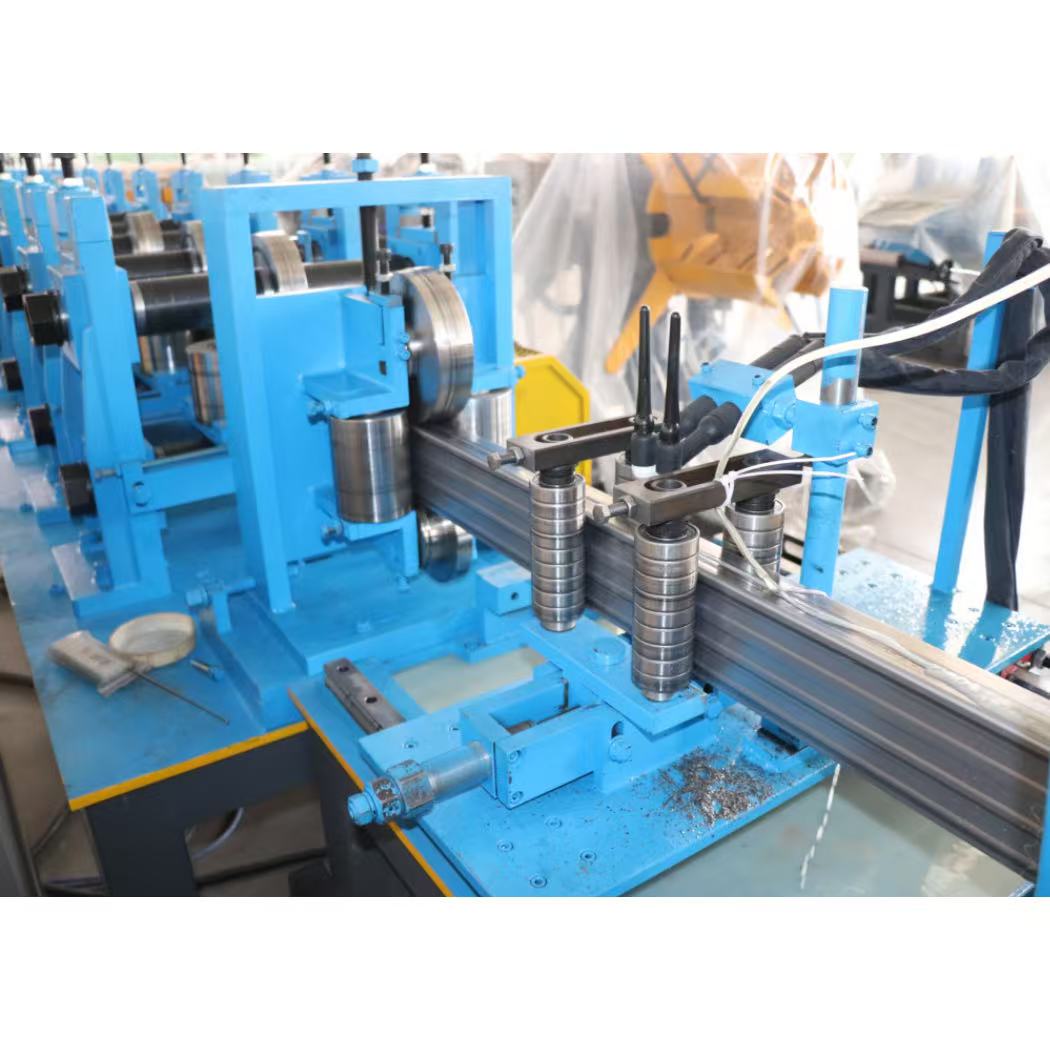

6. Progressive forming: Rollers gradually shape the strip into the pallet rack step beam or L-tube beam profile.
7. Cutting: The automatic cutting unit separates the formed beam according to your required length.
8. Testing and unloading: We check the finished beam against the agreed profile and prepare the equipment for delivery.

PLC settings can manage batch, length, and quantity parameters. Your acceptance criteria, cutting tolerance, and inspection method are included in the project documentation.

Applications for Warehouse Beam Production

Our metal rack beam forming machine is suitable for manufacturers serving warehouse, logistics, retail, and industrial storage markets.

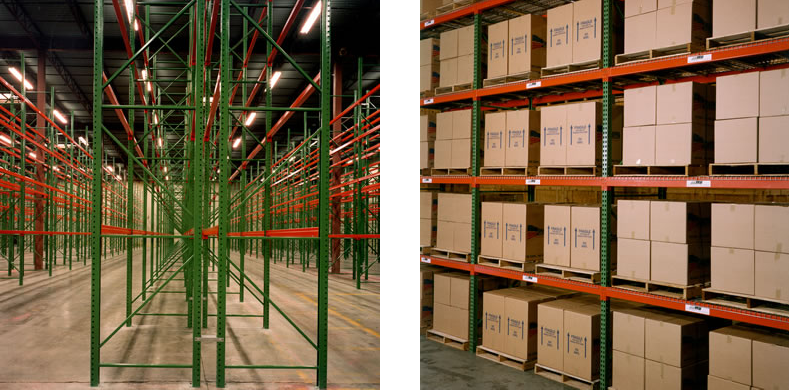

• Heavy-duty pallet racks: Produce step beams for pallet storage systems and high-load warehouse structures.
• Drive-in racks: Develop beam profiles for compact storage layouts.
• Mezzanine racks: Manufacture beams for elevated storage structures.
• Shuttle racks: Supply beam components for automated or semi-automated storage systems.
• E-commerce logistics centers: Produce beams for picking, sorting, and distribution facilities.
• Cold-chain warehouses: Build rack components for temperature-controlled storage.
• Manufacturing warehouses: Manufacture beams for raw material, parts, and workshop inventory storage.
• Supermarket distribution: Supply rack beams for commercial supply-chain operations.

Final beam capacity and service life depend on your material, profile design, surface finish, rack engineering, and installation. Our engineers help you define the suitable configuration for your application.

Customized Beam Design and Zhongtuo Engineering Support

Every storage rack project is different. You can work with our engineering team to develop a drawing-based, sample-based, minor, or full customization solution.

• Step beam and L-tube profile review
• Forming roller and punching die design
• Customized beam length and hole layout
• Material and surface finish planning
• PLC and electrical configuration
• Production testing before shipment
• Installation guidance and engineer service
• Online technical support and spare parts assistance

Send your beam drawing, material information, target output, voltage, and destination country to Zhongtuo. We will prepare a practical production plan for your rack beam business.

Frequently Asked Questions About Warehouse Beam Roll Forming

What does a pallet rack step beam roll forming machine produce?

It produces step beams and L-tube beam profiles for pallet racks, warehouse shelving, supermarket storage, logistics facilities, and industrial racking systems.

Which materials can I use?

You can discuss PPGI, galvanized steel, aluminum, or another suitable metal with our engineers. The final grade and thickness are selected for your approved beam design.

What is the forming speed?

A 15 m/min production option is available. Your final speed is engineered according to the beam section, material, punching process, and production target.

Can the beam include connection holes?

Yes. Punching can be integrated into the line. Send your hole layout and connection drawing so we can select the correct tooling.

Can you produce an L-tube step beam?

Yes. Our engineers can review your L-tube section and develop the forming arrangement from your drawing or sample.

What control system is used?

The standard solution uses PLC automatic control. Our team configures recipe settings, operating language, and production functions for your project.

How do I get a quotation?

Send your step beam drawing or sample, material details, required length, target output, voltage, and destination country. We will prepare a tailored technical and commercial proposal.

Request Your Pallet Rack Step Beam Solution

Choose Zhongtuo for a dependable warehouse beam roll forming machine designed around your storage rack profile and production goals.

Send your drawing or sample to our engineering team for a tailored proposal.
