PPGI Exterior Wall Cladding Roll Former Production Line 0-20m/min

PPGI Exterior Wall Cladding Roll Former Production Line

In today's rapidly changing construction industry, metal exterior panels have become one of the most widely used materials in building enclosure systems due to their excellent durability, rich aesthetic expression, and green environmental characteristics. Behind every high-quality exterior wall panel, an efficient and precise exterior wall panel roll forming production line is indispensable - it can continuously cold bend rolled metal strips into high-strength, waterproof and fireproof, and easy to install building decorative panels.

What is an external wall panel roll forming machine?

The external wall panel roll forming machine is a complete automated production line that sequentially processes metal coils (steel coils, aluminum coils, etc.) through unwinding, leveling, feeding, roll forming, cutting to length, discharging and stacking, and continuously produces finished wall panels that meet design requirements. The typical process flow includes five core steps:

1. Uncoiling - Hydraulic or mechanical uncoiler carries and actively unwinding;

2. Leveling and feeding - using a multi roll leveling machine to eliminate internal stress in the coil material and ensure the flatness of the board surface;

3. Roll forming - Multiple (usually 26) forming rolls are used to gradually cold bend the flat plate into the target cross-sectional shape;

4. Fixed length cutting - using servo flying shear or hydraulic shear to accurately cut according to the set length;

5. Finished product output - Automatic material racks or stacking systems neatly stack finished products for easy packaging and transportation.

Compared with traditional bending machines or single machine production methods, the biggest advantage of roll forming machines is their continuity, high speed, and automation, making them very suitable for production tasks with large quantities, long cycles, and strict quality requirements.

Widely applicable scenarios

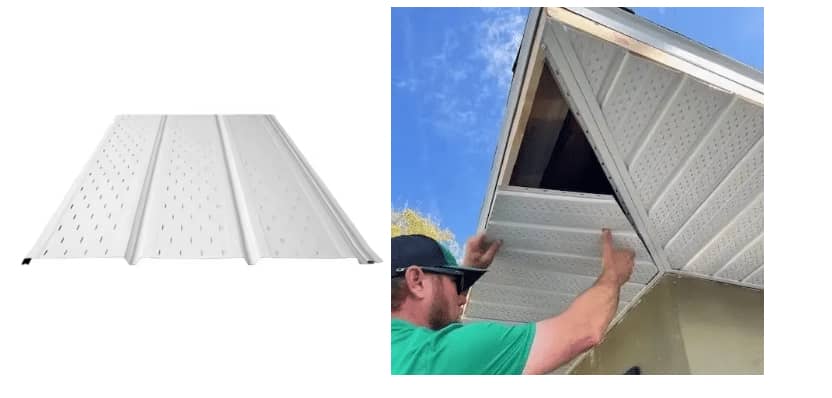

The finished panels produced by the external wall panel roll forming machine are widely used in the following construction fields:

• Residential buildings - interior and exterior wall decoration, insulation composite panels to enhance living quality;

• Commercial buildings - shopping malls, office buildings, hotel curtain walls, shaping a modern and fashionable appearance;

• Industrial plant - warehouse, workshop enclosure, both durable and economical;

• Prefabricated buildings - modular houses, temporary buildings, to achieve rapid construction;

• Public facilities - schools, hospitals, sports venues, to meet the aesthetic needs of large spans.

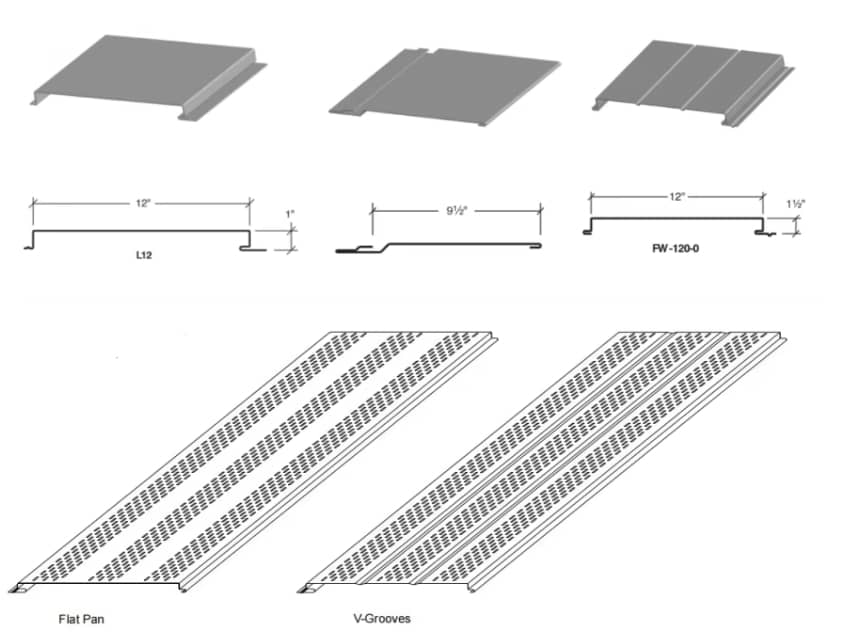

Pattern diagram：



Product Attributes :

1.Formed Material	PPGI,GI,AI,GL		Thickness:0.3-0.6mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler
3.Main body	Roller station		26 rows
	Diameter of shaft		65mm solid shaft
	Material of rollers		45# steel, hard chrome plated on the surface
	Machine body frame		350 H steel
	Drive		Chain transmission
	Dimension(L*W*H)		10500*1600*1600
	Weight		7.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
	Hydraulic system power		4KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
	Language		English(Support multiple languages)
	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-20m/min		Speed is adjustable according to customer’s request.

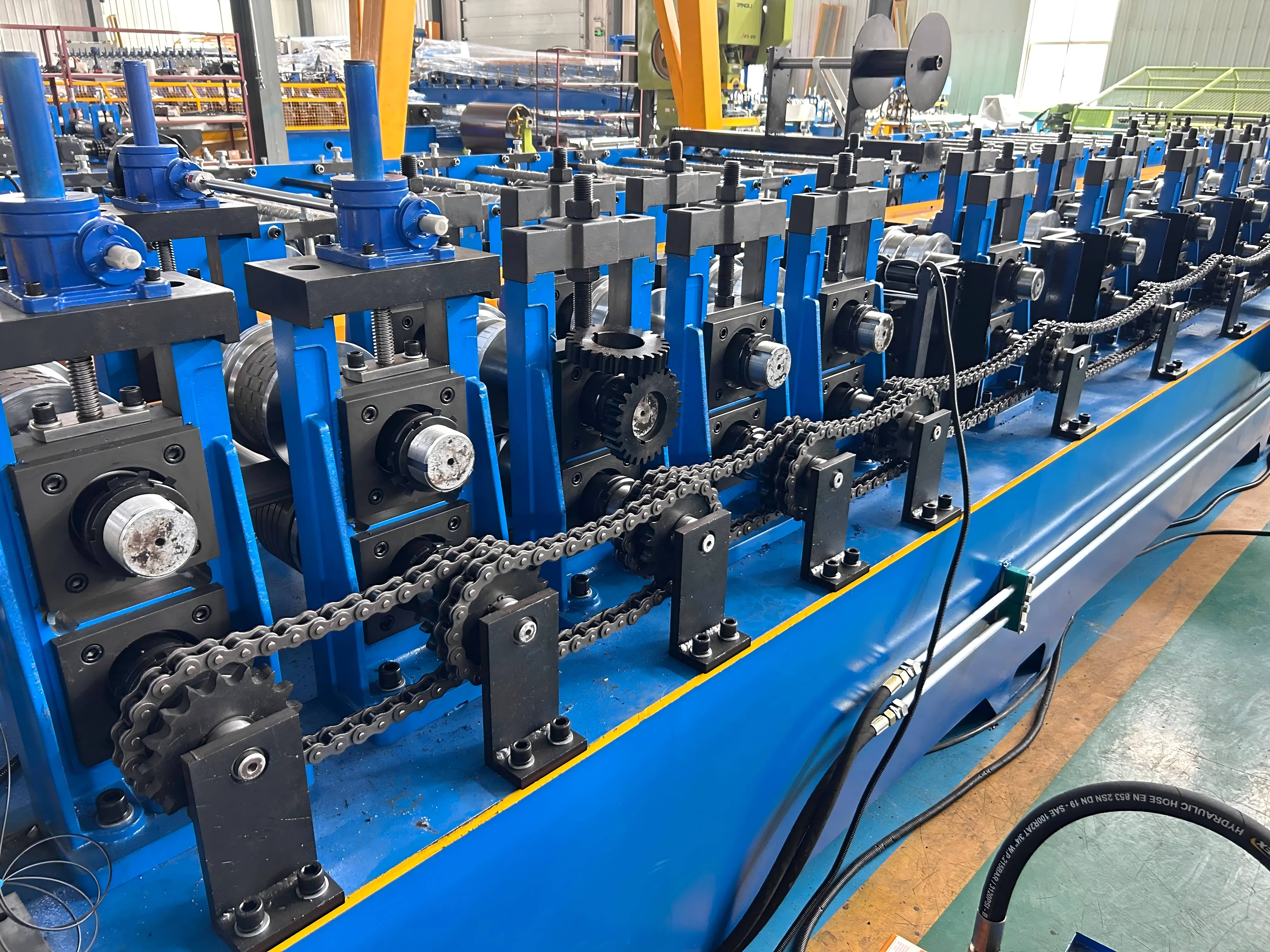

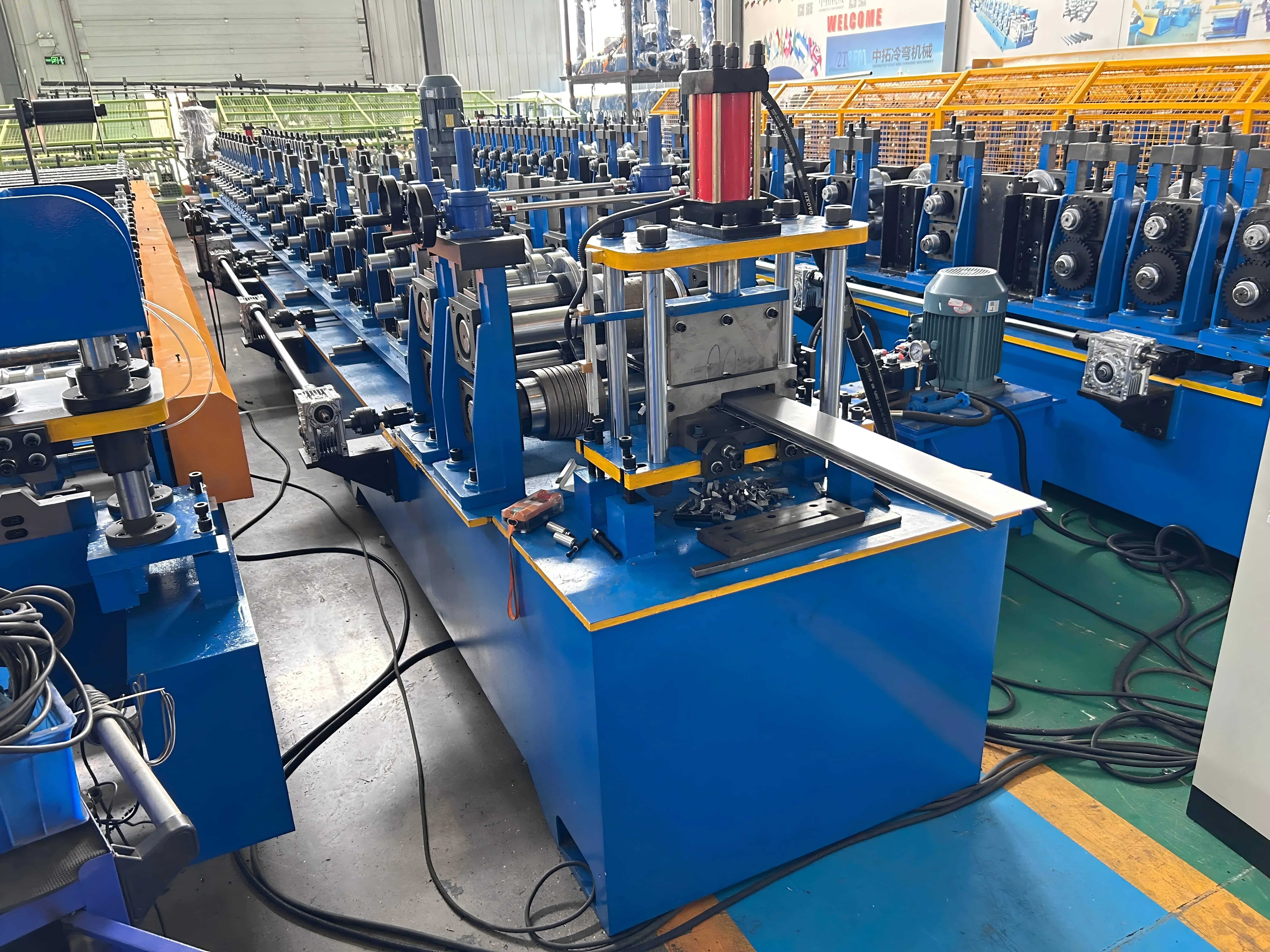

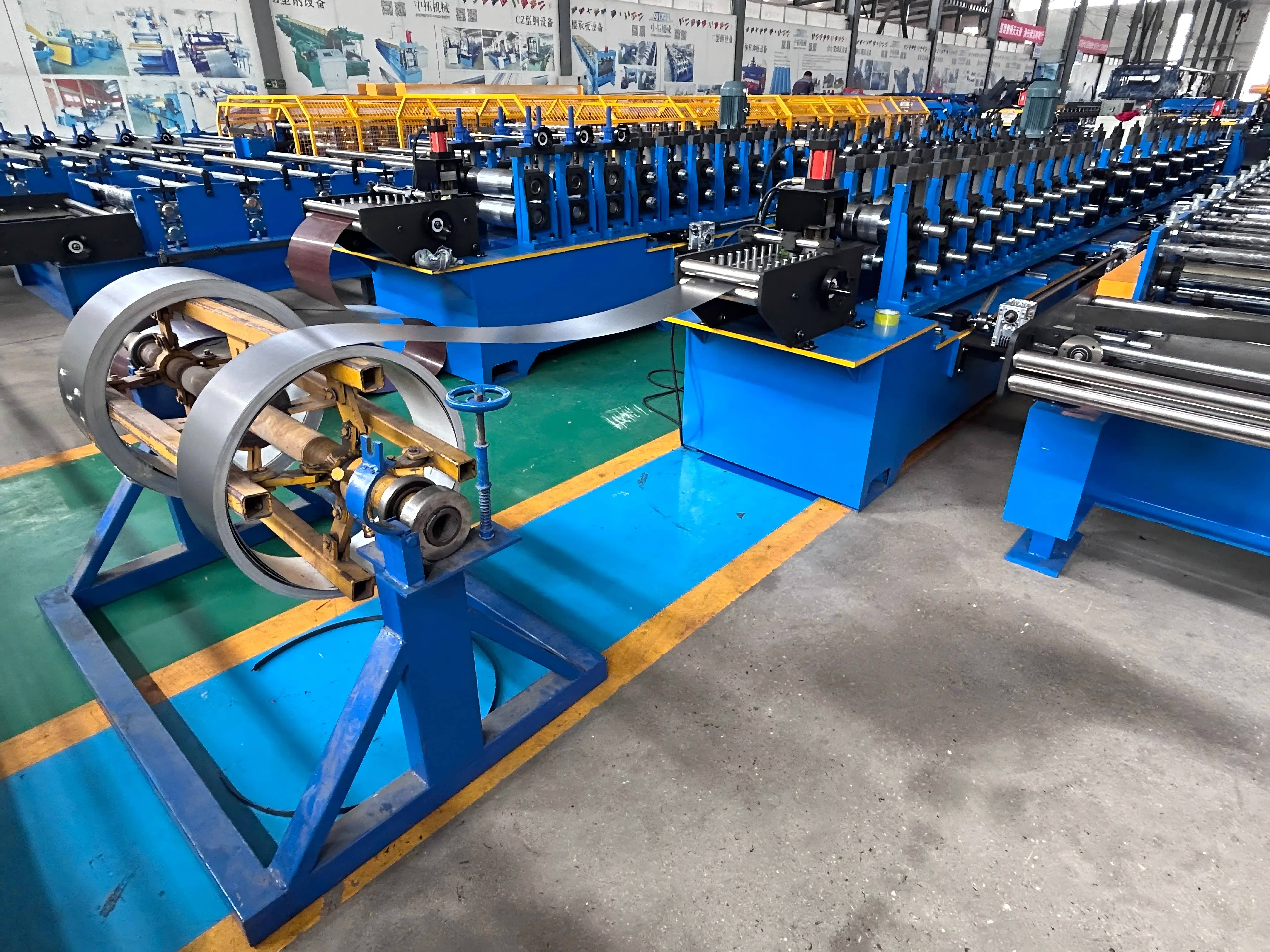

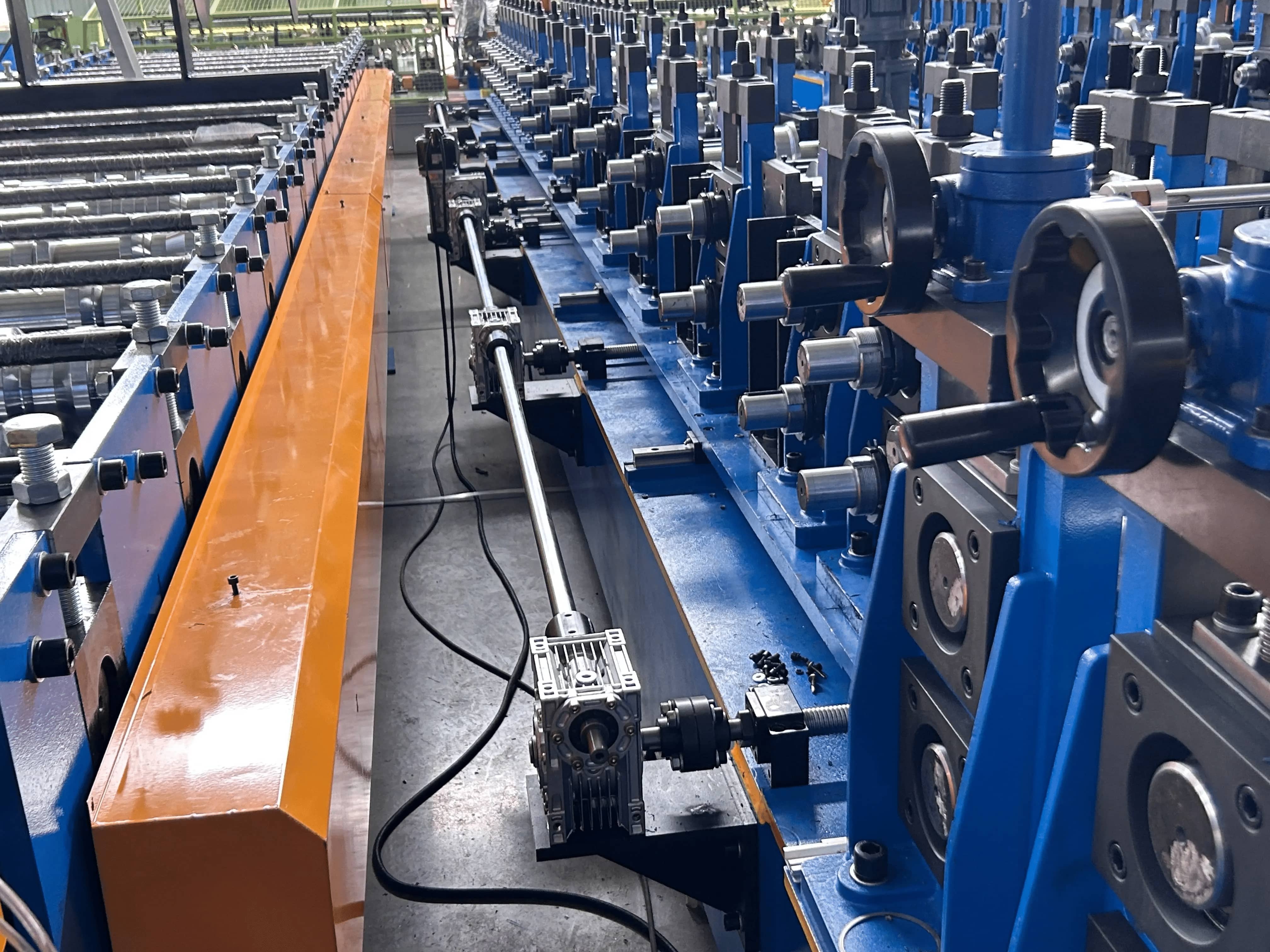

Machine photo:
