Omega Furring Channel Cold Roll Forming Machine 0-20m/min

Omega Furring Channel Cold Roll Forming Machine


In modern architectural decoration and light steel structure construction, Omega (Ω) - shaped ceiling keel has become an indispensable core component in ceiling systems, partition systems, and roof systems due to its unique cross-sectional shape and excellent load-bearing performance. The Omega Furring Channel Cold Roll Forming Machine is a professional equipment developed specifically for the large-scale, high-precision production of such light steel keel, helping manufacturers to produce high-quality Omega keel products that meet international standards with higher efficiency and lower costs.

Product Overview：
The Omega Furring Channel cold bending forming machine is a highly integrated automated production line that can gradually process galvanized steel coils into light steel keel profiles with a cross-section in the shape of the Greek letter "Ω" through continuous cold bending forming technology. The equipment usually consists of units such as uncoiler, feeding leveling device, servo punching system, cold bending forming host, hydraulic cutting device, PLC control system, and discharge platform. Full line collaborative operation, achieving full process automation production from steel coil loading to finished product output.

This equipment can process galvanized steel coils with a thickness range of usually 0.7mm to 1.2mm, and some models can be extended to 3.5mm. The forming speed can generally reach 0-20 meters per minute, which can be adjusted according to customer needs. The total power of the equipment is about 7.5KW, and the voltage supports standards such as 380V/50Hz/3Phase. It can also be customized according to the local power supply requirements of the customer.

Widely applicable fields：

The Omega keel profiles produced by the Omega Furring Channel cold bending forming machine are widely used in the following building scenarios:

• Commercial building ceiling system:
Light steel keel ceiling system for office buildings, shopping malls, hotels, hospitals, schools and other places, combined with the main keel and hanging components to form a flat gypsum board decorative layer.

• Residential interior decoration:
used for ceiling leveling, especially suitable for laying soundproofing cotton on the ground soundproofing structure.

• Partition wall system:
As a secondary keel fixed on the vertical keel, covered with gypsum board to enhance the impact resistance and sound insulation performance of the wall.

• Roof system and wall panel installation system:
used for structures such as roof purlins, wall panel support frames, etc

Product Attributes:

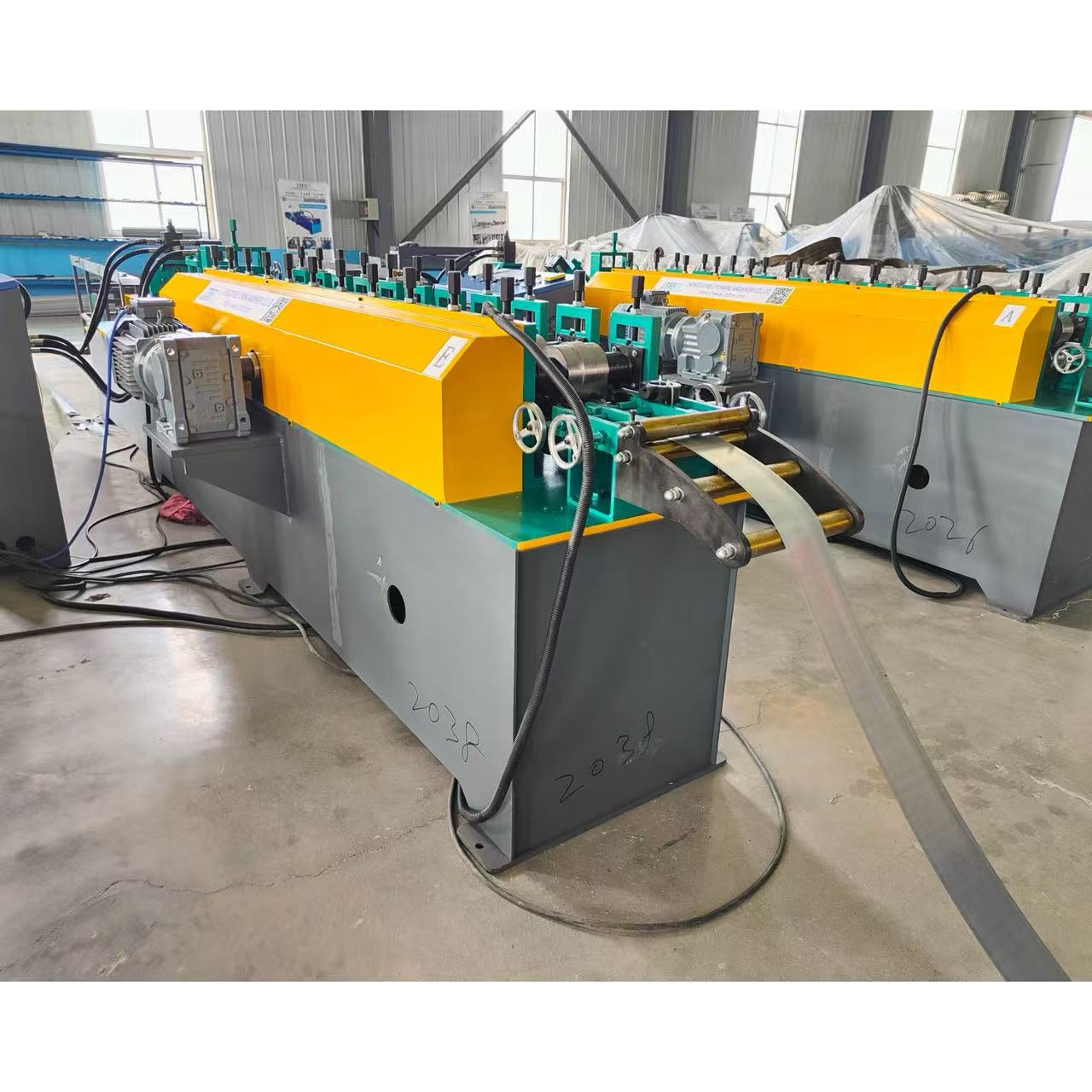

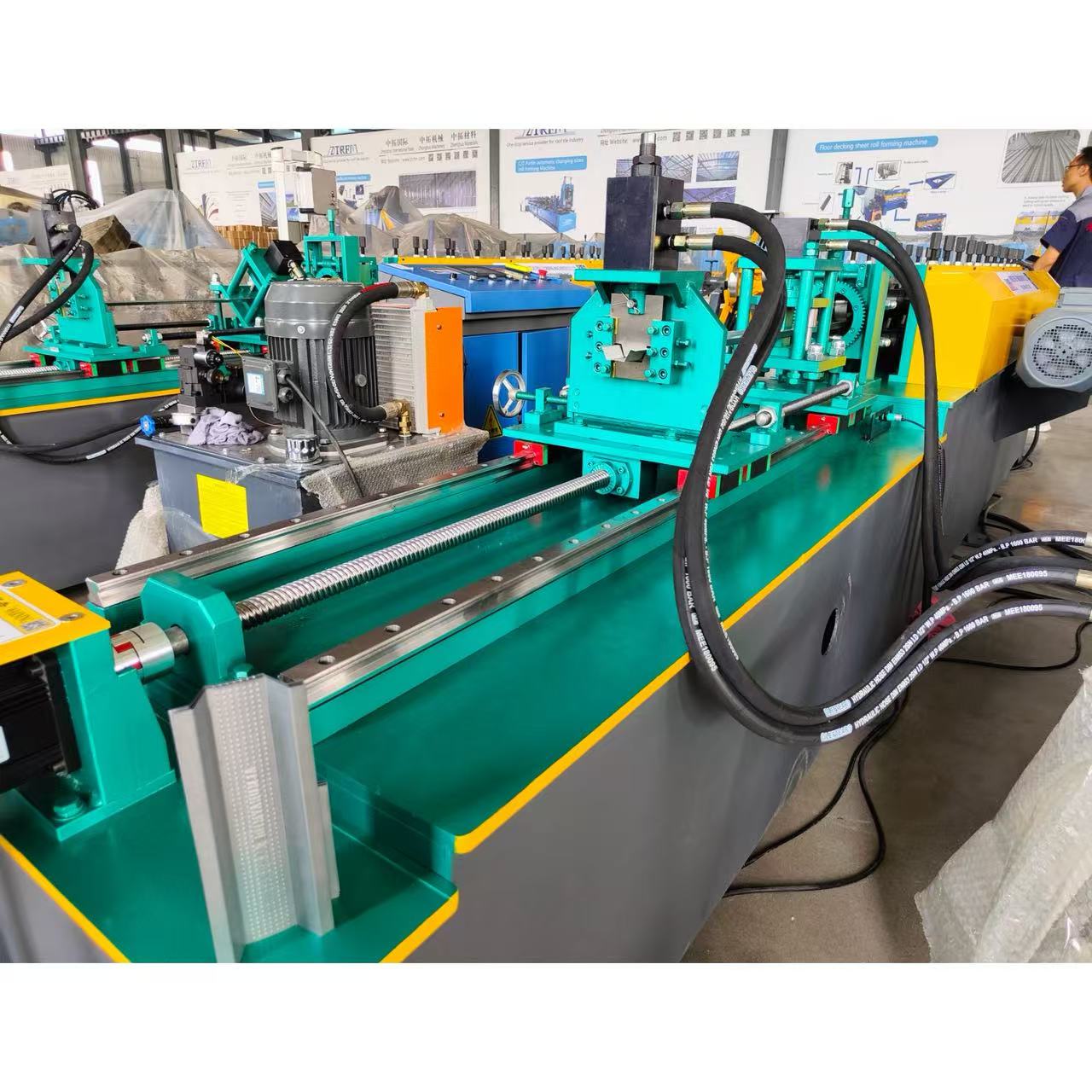

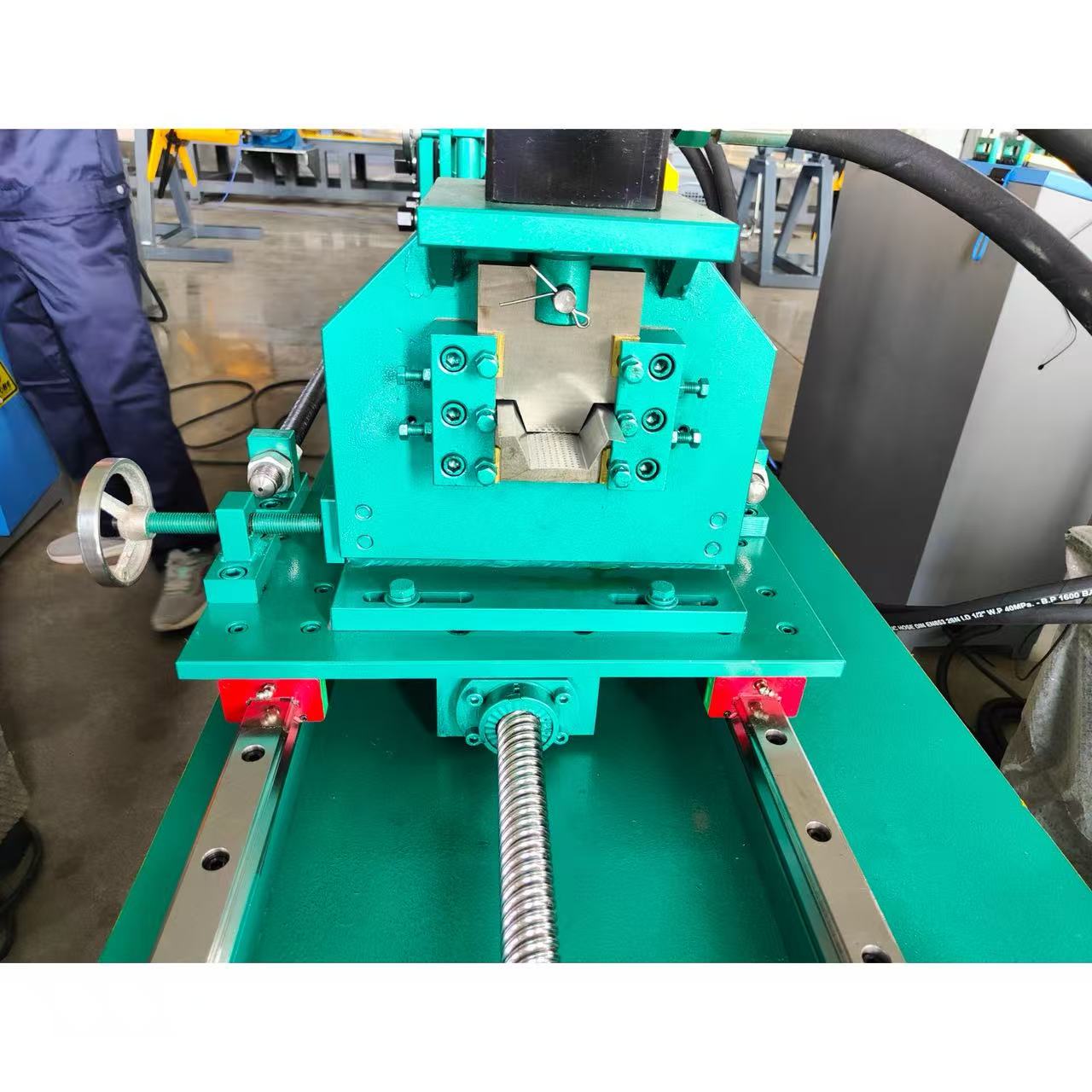

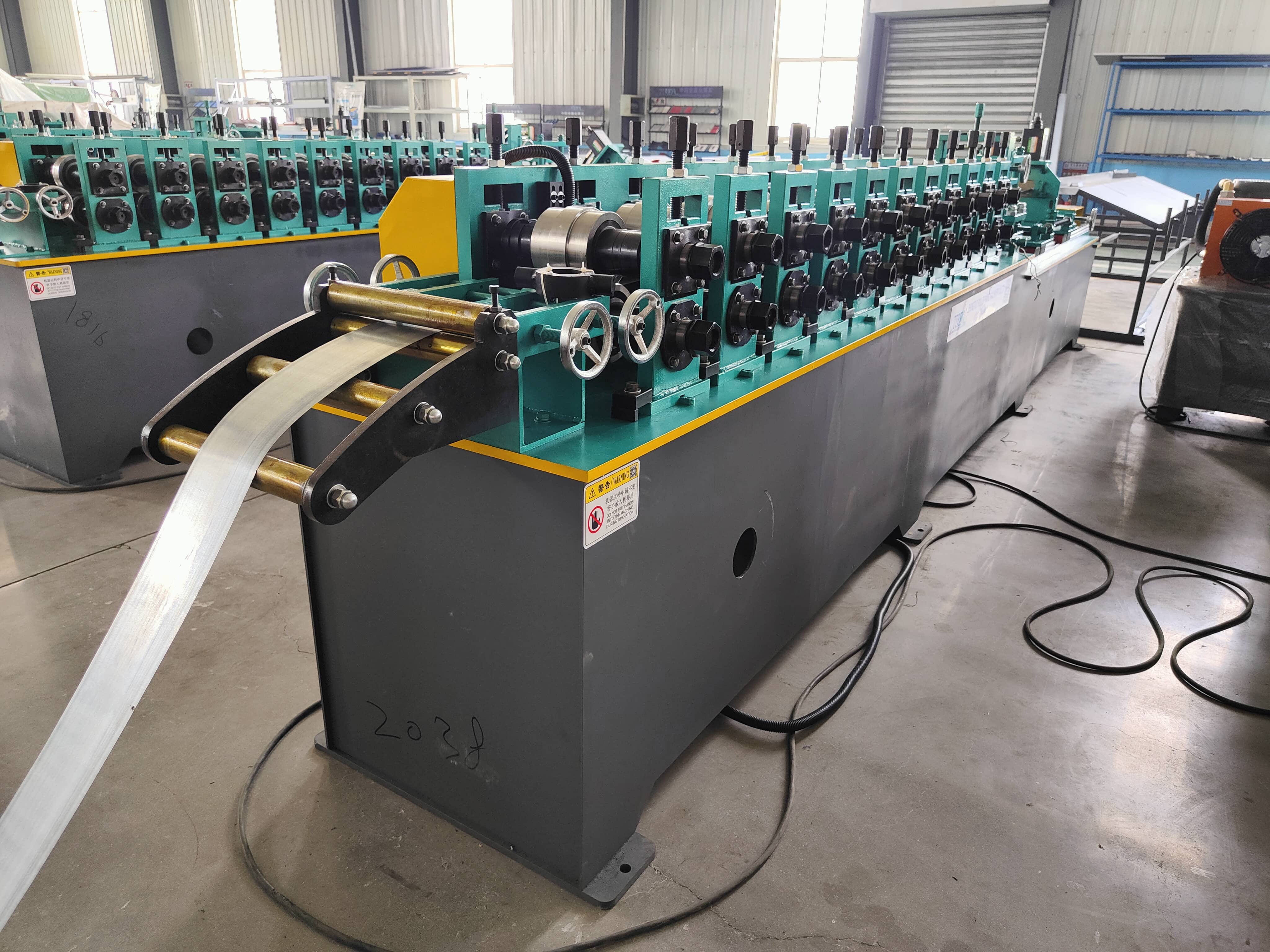

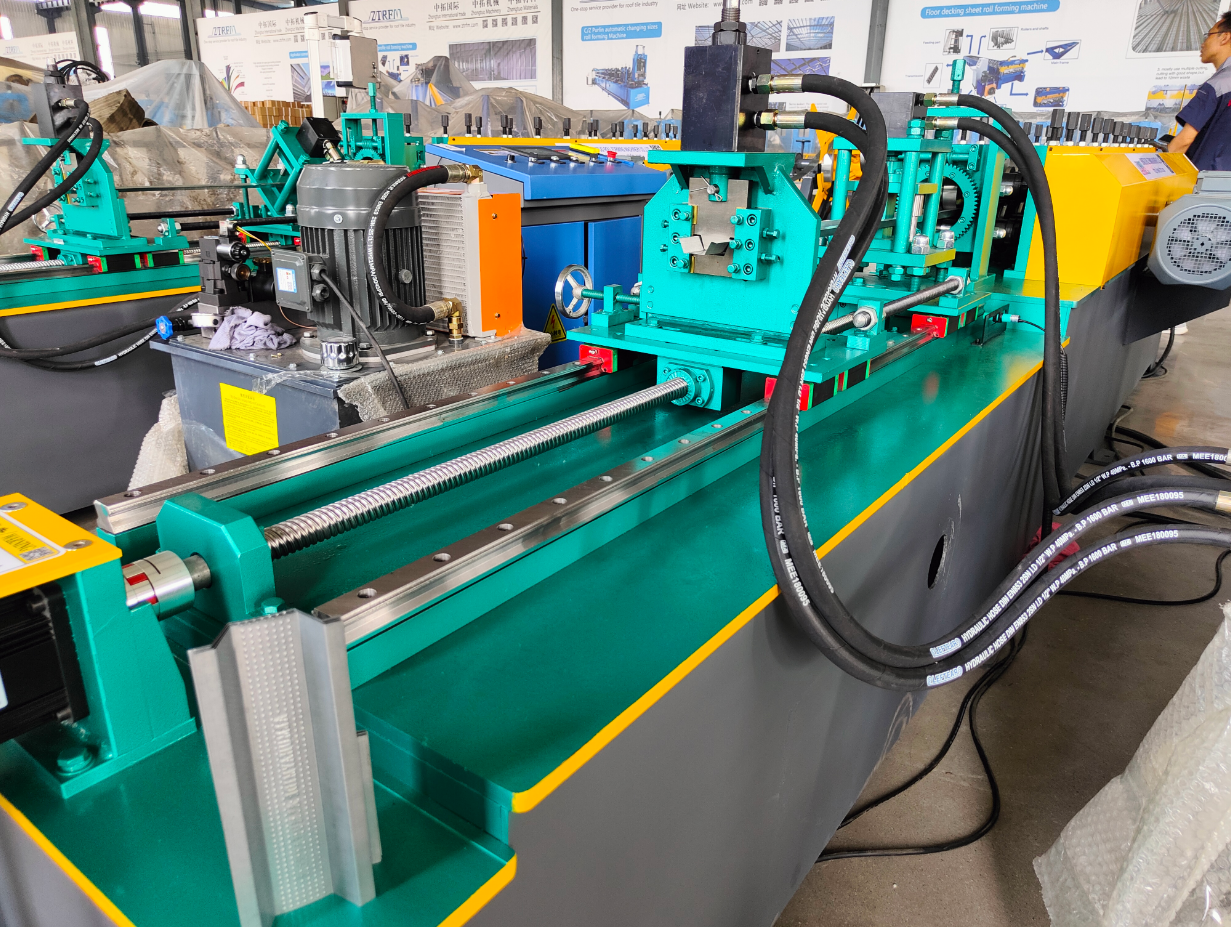

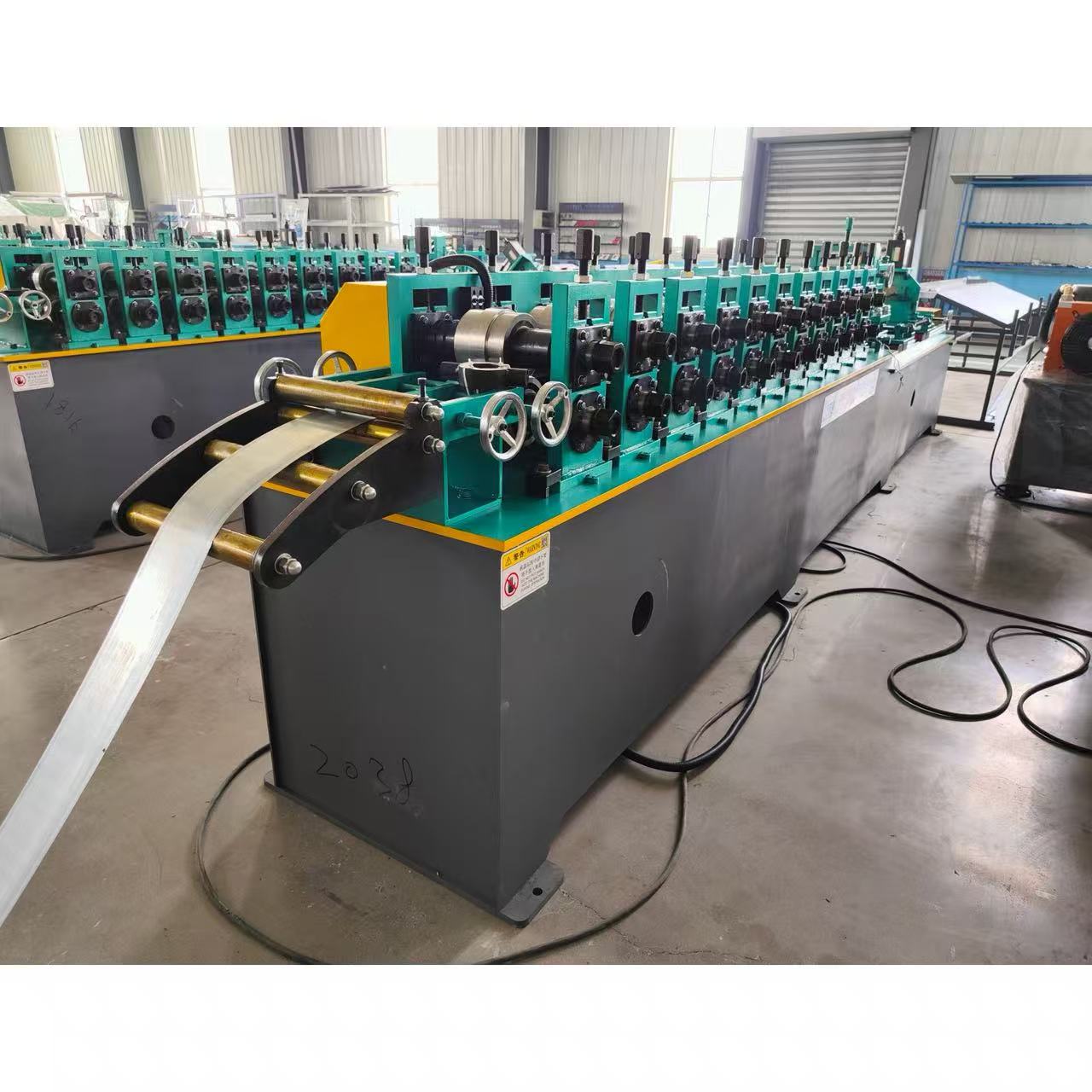

Machine photo:



Contact Us：

The Omega Furring Channel cold bending forming machine provides a one-stop precision intelligent manufacturing solution for light steel keel manufacturers with high-precision forming, fully automated control, flexible production capacity, and reliable long-term operation performance. Whether targeting the demand of the domestic ceiling market or exporting to overseas construction projects, this equipment can help customers produce Omega keel products that meet international quality standards in a more efficient and economical way, and gain an advantage in the fierce market competition.

Welcome to contact for more product details and customized solutions!
