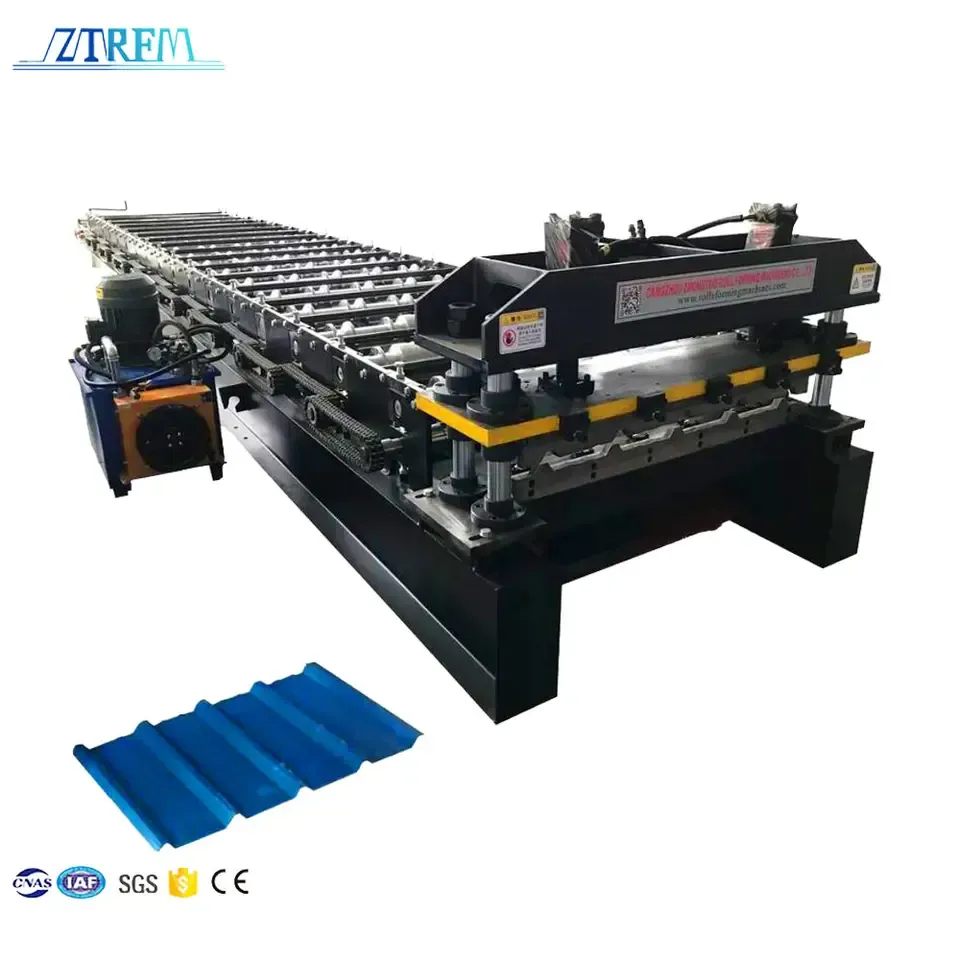

OEM ODM Roof Sheet Making Machine Ibr Roof Sheet Making Machine Roofing Sheet Roll Forming Machine 15-25M/MIN+11kw

Cangzhou Zhongtuo International Trade Co., Ltd

OEM ODM Roof Sheet Making Machine Ibr Roof Sheet Making Machine Roofing Sheet Roll Forming Machine 15-25M/MIN+11kw

Name: OEM ODM Roof Sheet Making Machine Ibr Roof Sheet Making Machine Roofing Sheet Roll Forming Machine 15-25M/MIN+11kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT51415884

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15-25M/MIN

Power(W):

11kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380V,50HZ,3PH
Rolling Thinckness
0.3-0.8mm
Feeding Width
1200 mm/1220 mm

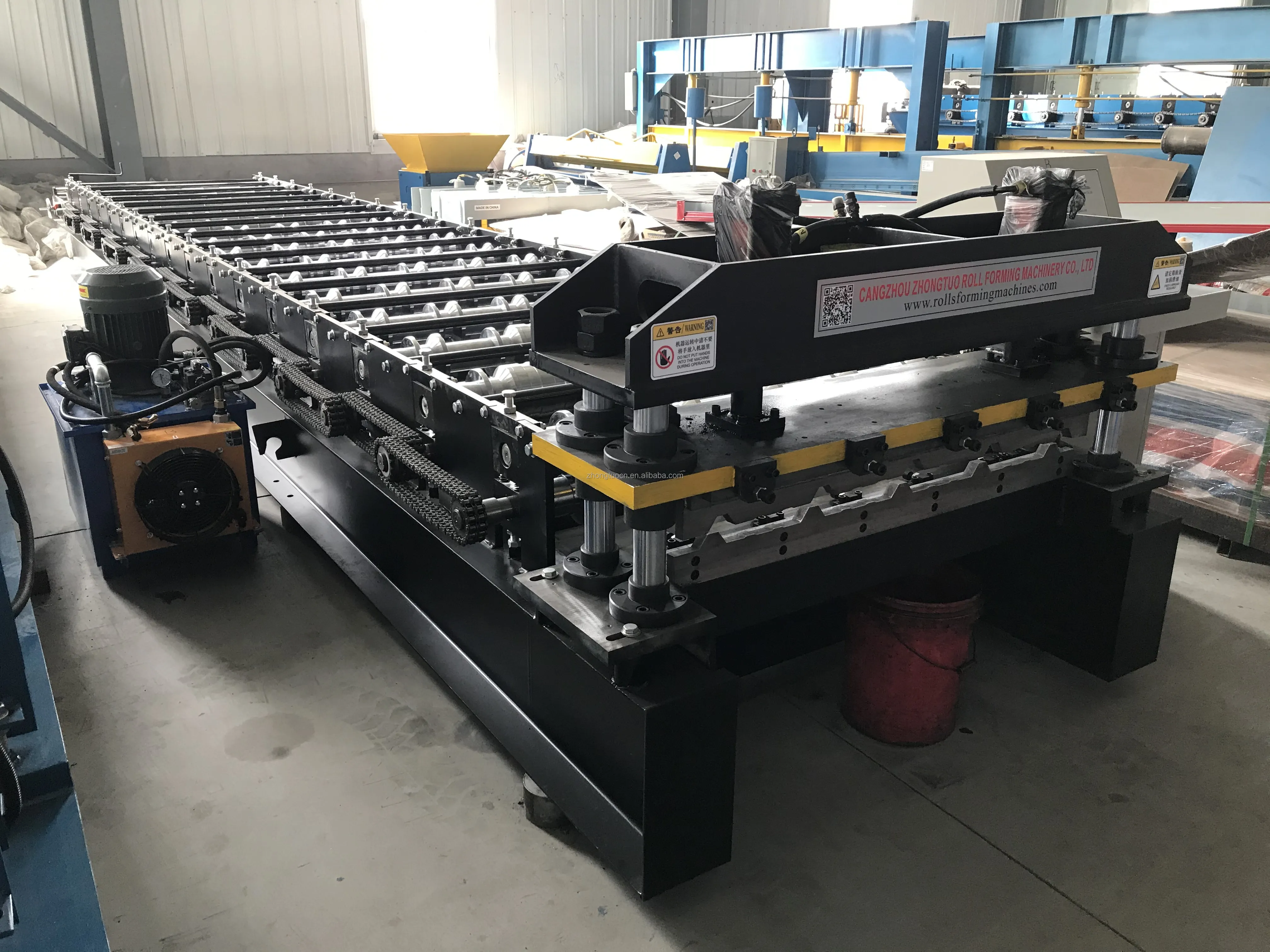

ZTRFM Full Automatic Alumminum Roof R Panel Sheet Machine Tr5 Roof Wall Panel Roll Forming Machine

The Features of the Machine:

1. Machine provide customized, for produce different shapes roof sheet.
2. Our own Updated design-Easy installation and operation.
3. Full automatic-save labors.
4. Rollers with bearing inside which can eliminate linear velocity inconsistency, it can make the final product perfect.

Profile drawing for reference:

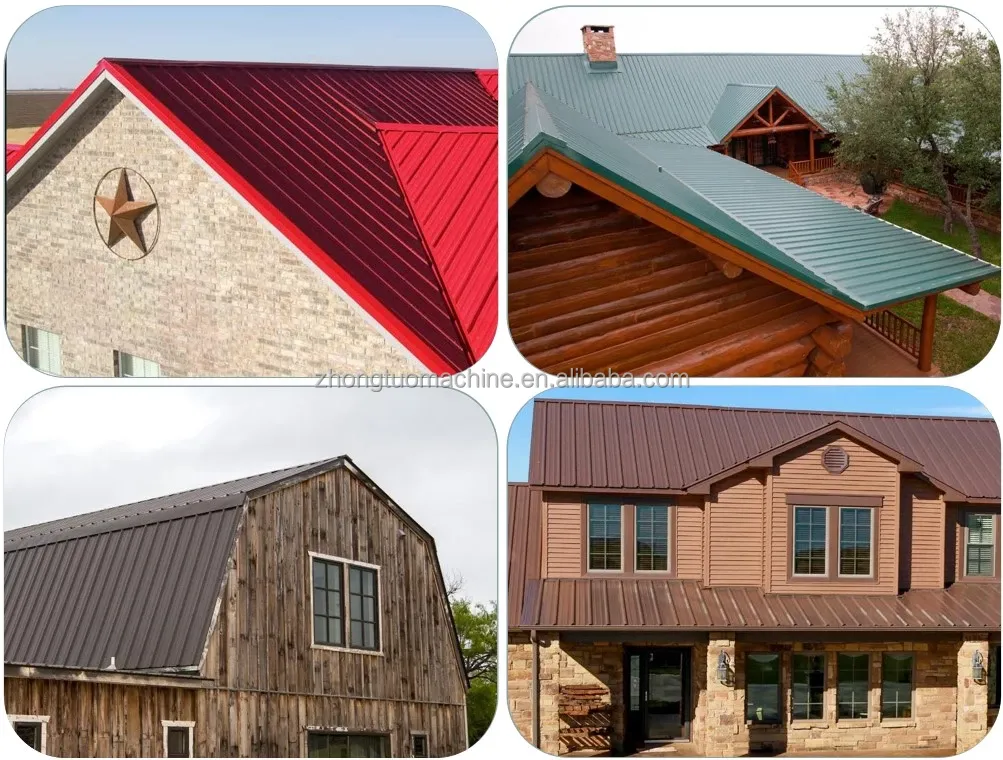

The Application of the finished product:

ZTRFM Full Automatic Alumminum Roof R Panel Sheet Machine Tr5 Roof Wall Panel Roll Forming Machine
Formed Material	PPGI,GI,AI
Thickness	0.3-0.8mm
Width	912mm/1220mm
Roller station	16 rows(As your requirement)
Diameter of shaft	80mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	350 H steel
Motor Power	5.5KW
Voltage	380V 50Hz 3Phase(As your requirement)
Control system	PLC
Forming Speed	15 - 20m/min
Cutting type	Hydraulic cutting
Hydraulic power	5.5kw
Cutting blade material	Cr12 with quenched treatment
Cutting tolerance	+/-1mm

Hydraulic decoiler

1. Capacity: 5 tons
2. Coil inner diameter: 450-550mm
3. Coil outer diameter: 1500mm
4. Coil width: 1250mm(as customers' profile drawing)

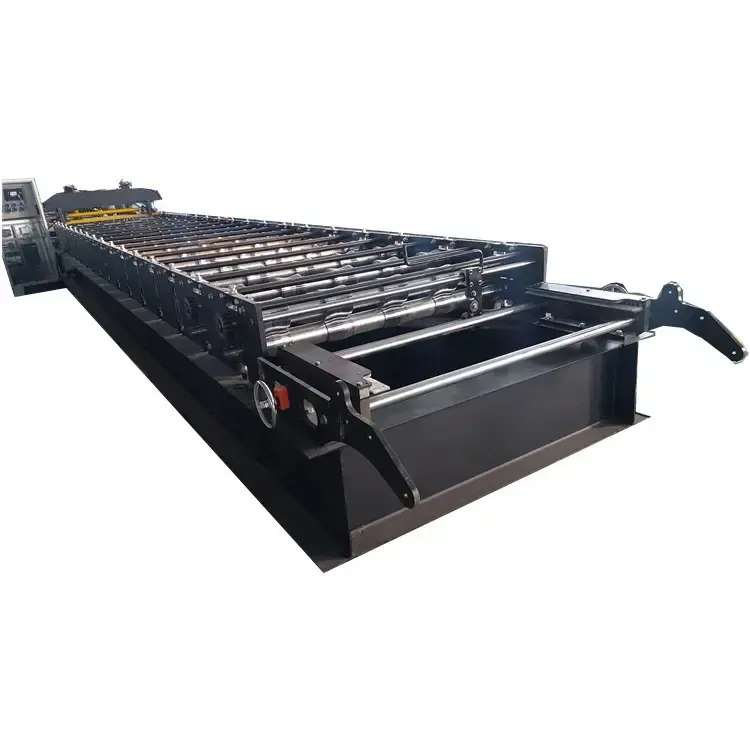

Feeding device

The feeding rollers which we use is stainless steel.
And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.

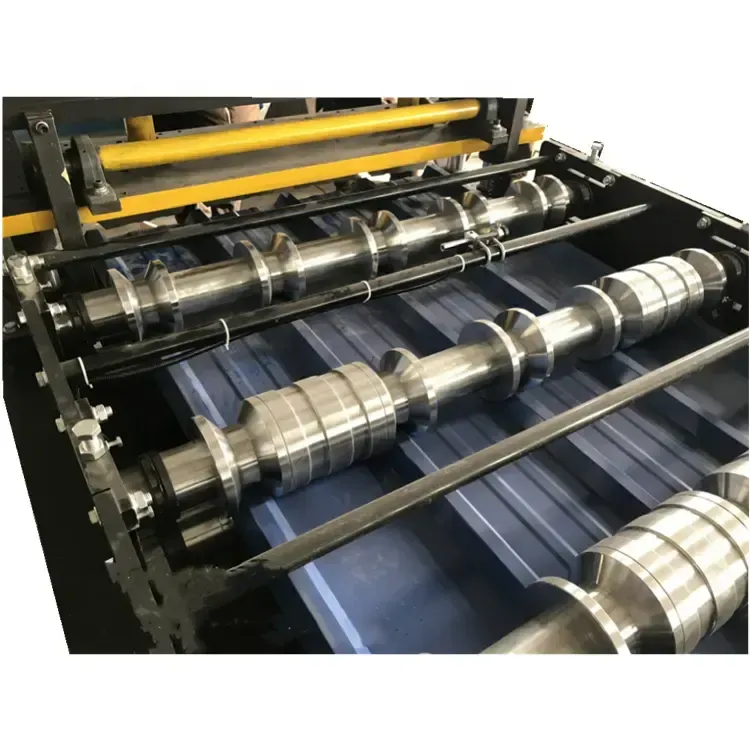

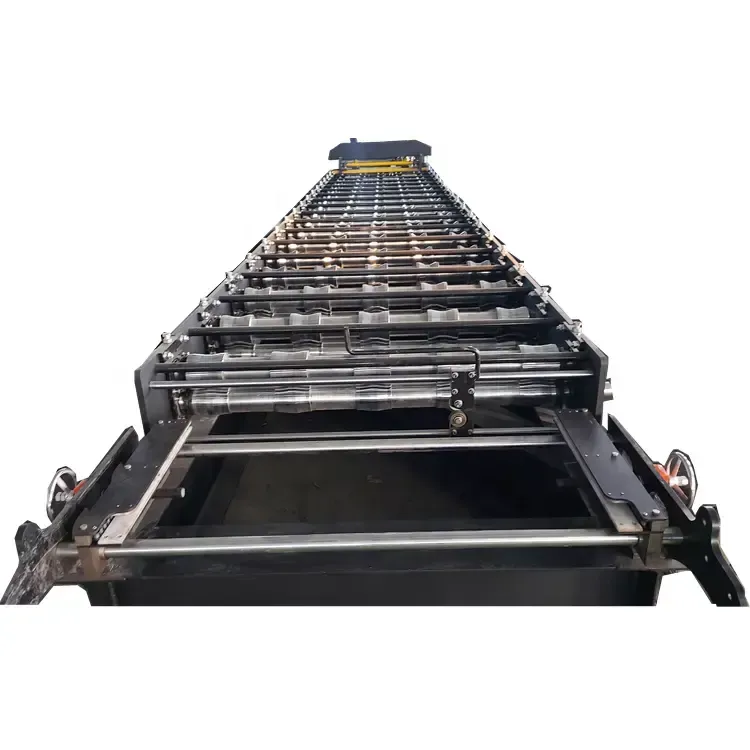

Roll forming device

1. rollers thick chromed good hardness for long service time.

2. Each roller has number and with keynotes, it can fix on the shaft stablely

3. gear and double chain, stable

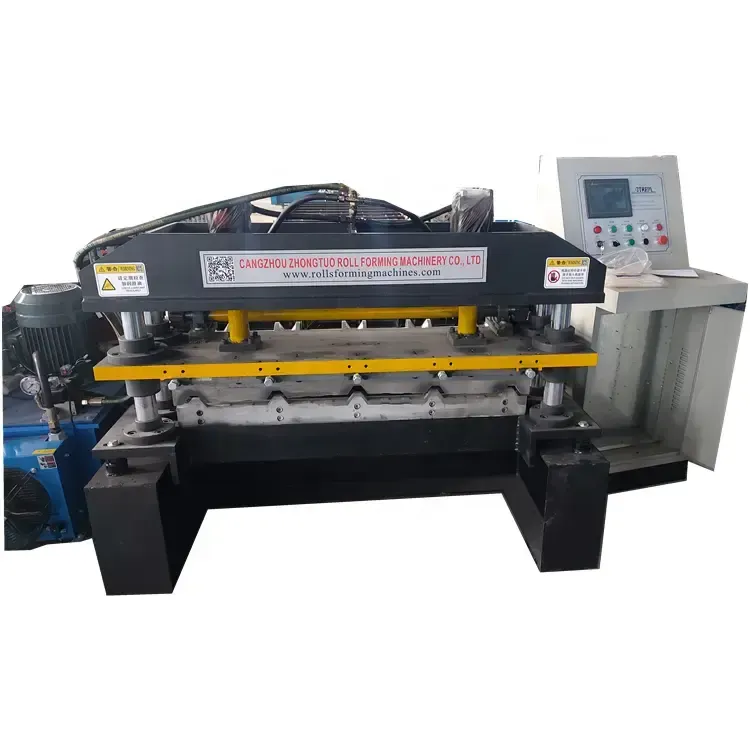

Hydraulic cutting device

We use four pillars cutting system structure, it can make sure the cutting stable Hydraulic oil pump station will provide power to cutting system.

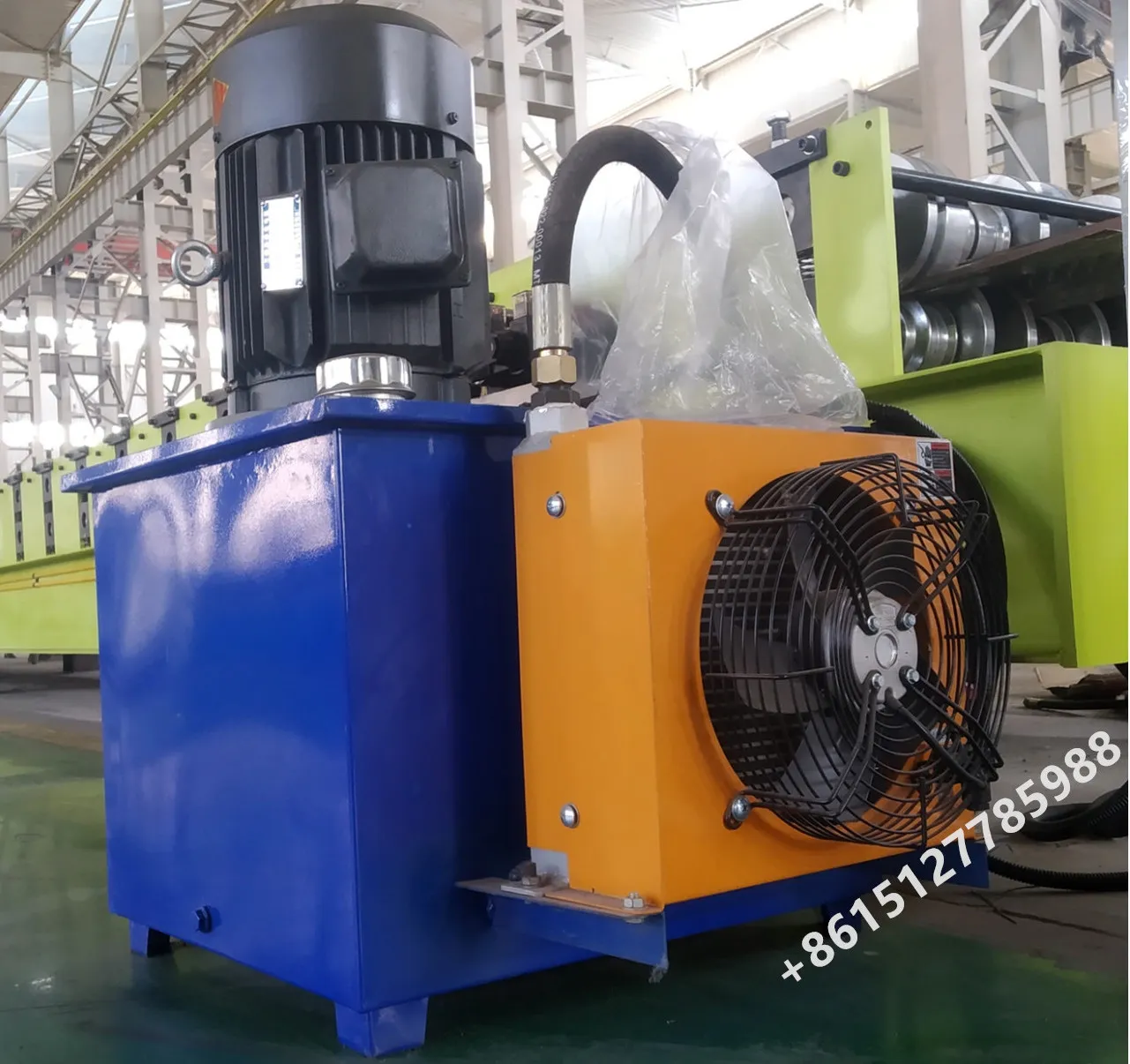

Hydraulic station

All of our hydraulic stations are equipped with fan cooling, which can cool down the coil’s temperature after long time working or the working at hot weather.

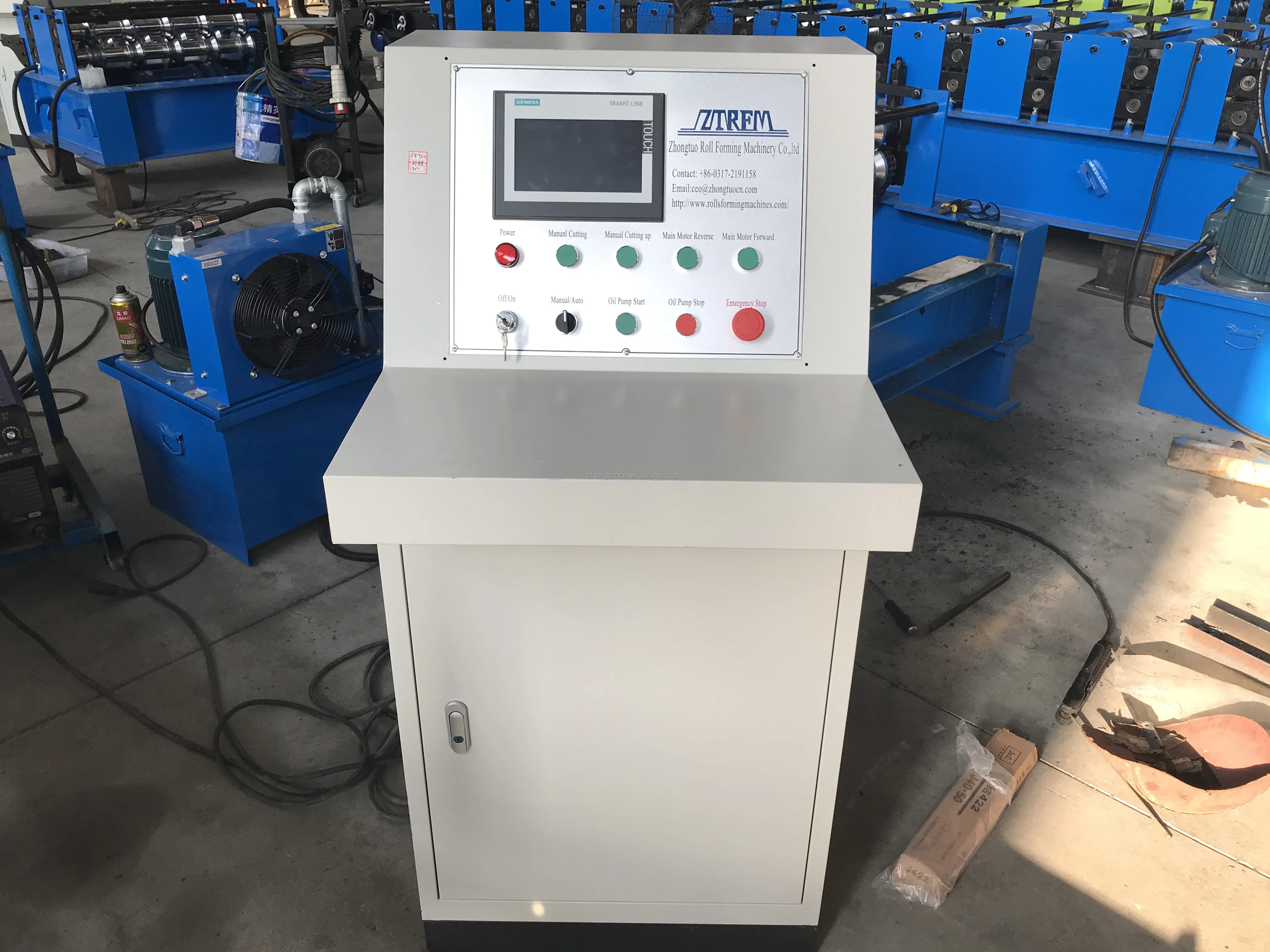

PLC control System

● Encoder brand: Omron

● Electrical components: Schneider
● language: muti-language as requested
