OEM ODM Customized High Speed Glazed Trapezoidal Roof Sheet Roll Forming Machine with Gear Bearing & Motor for High Productivity 30 m/min+Trapezoidal Roof Sheet Roll Forming Machine+11 kw

Cangzhou Zhongtuo International Trade Co., Ltd

OEM ODM Customized High Speed Glazed Trapezoidal Roof Sheet Roll Forming Machine with Gear Bearing & Motor for High Productivity 30 m/min+Trapezoidal Roof Sheet Roll Forming Machine+11 kw

Name: OEM ODM Customized High Speed Glazed Trapezoidal Roof Sheet Roll Forming Machine with Gear Bearing & Motor for High Productivity 30 m/min+Trapezoidal Roof Sheet Roll Forming Machine+11 kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT50264506

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

30 m/min

Model Number:

Trapezoidal Roof Sheet Roll Forming Machine

Power(W):

11 kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380v/50hz/3p (As Requested), 380 V
Rolling Thinckness
0.3-0.8mm
Feeding Width
max 1220mm

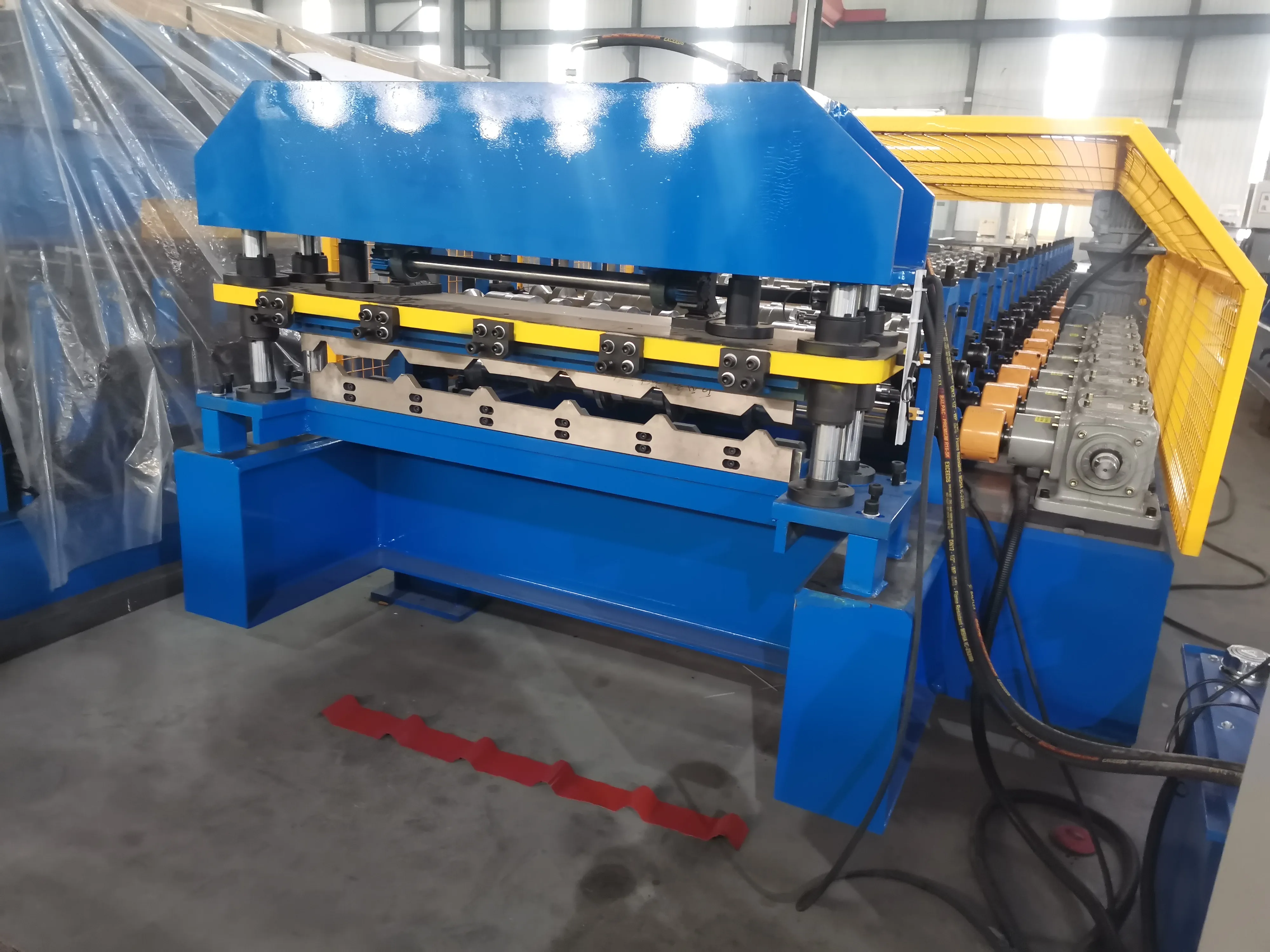

High Speed Trapezoidal Roof Sheet Roll Forming Machine

Design Idea：
Fast Speed: 25m/min forming speed ,very fast ,more efficiency.

Stable Forming:the roller stand is vertical cast steel stand ,gearbox driving,very strong ,the forming very stable and final product very accurate.

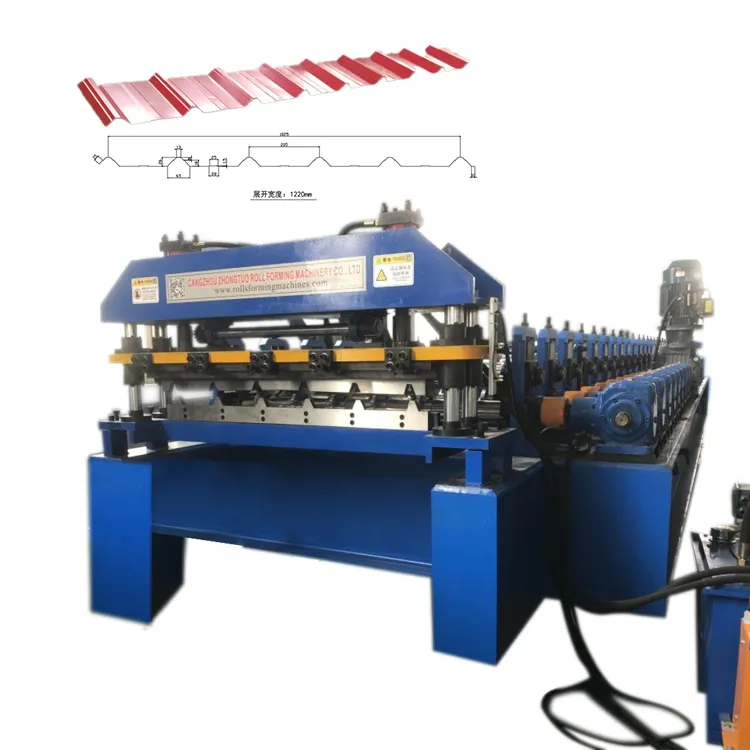

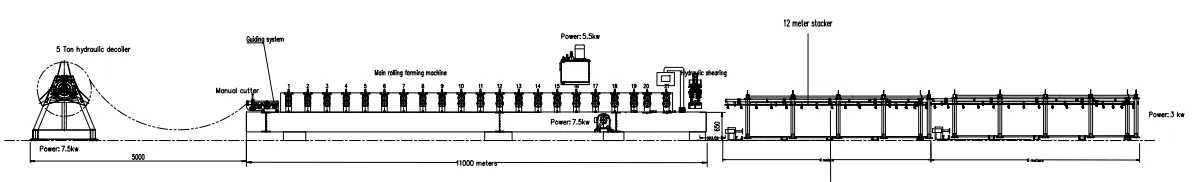

Profile drawing for reference:

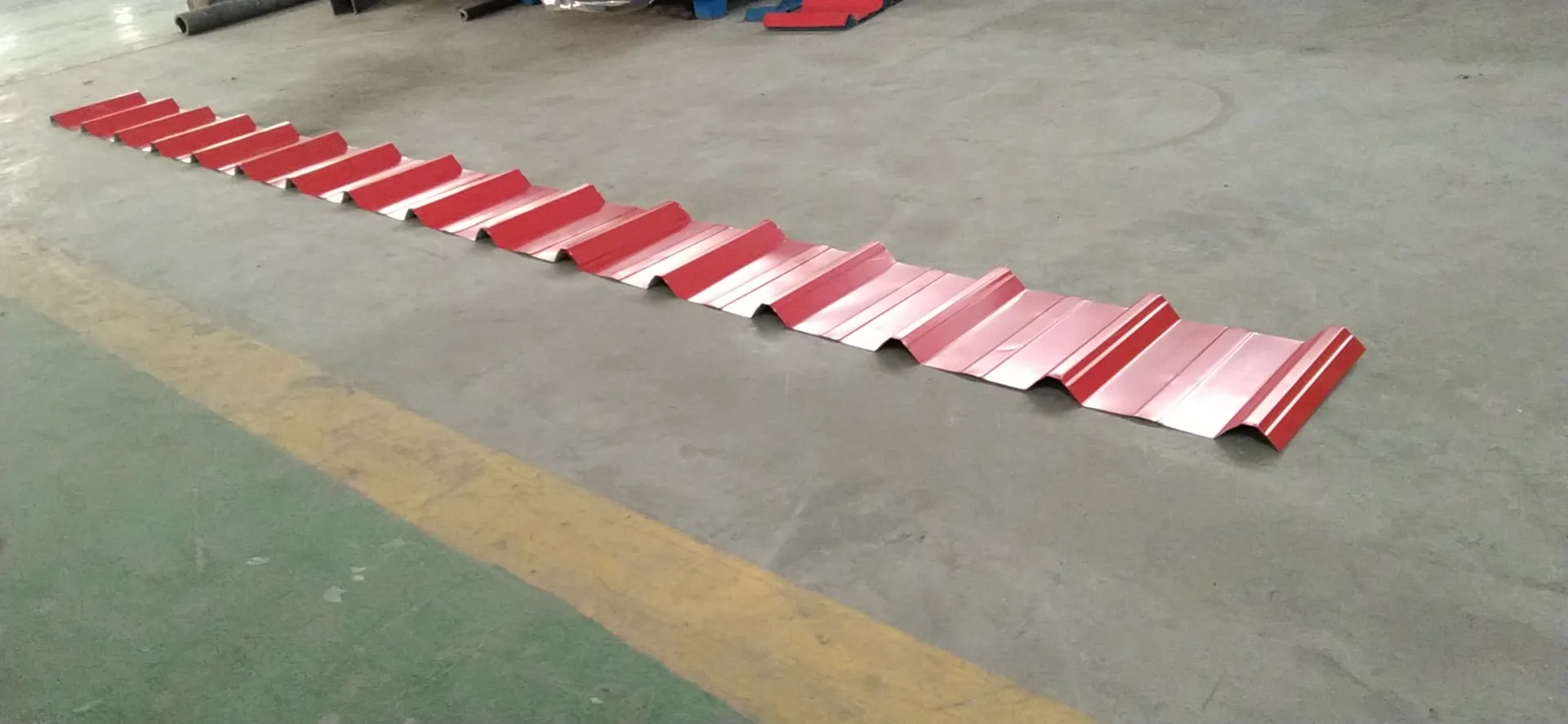

Roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand.

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving Table

R Panel Roll Forming Machine Hot Sale To America
Raw Material	PPGI,PPGL
Raw Material	Raw material	Material Thickness:24/26 Gauge （0.4-0.6 Mm)
Machine Frame	350mm H beam structure
Material Of Rollers	High grade 45# forged steel,Chromed treatment
Roller Stand	Vertical cast steel structure
Forming Stations	16 rows
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	25 M/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	By gearbox
Main Motor	11 KW
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving method	By pillar type Cylinder

5T Hydraulic Decolier

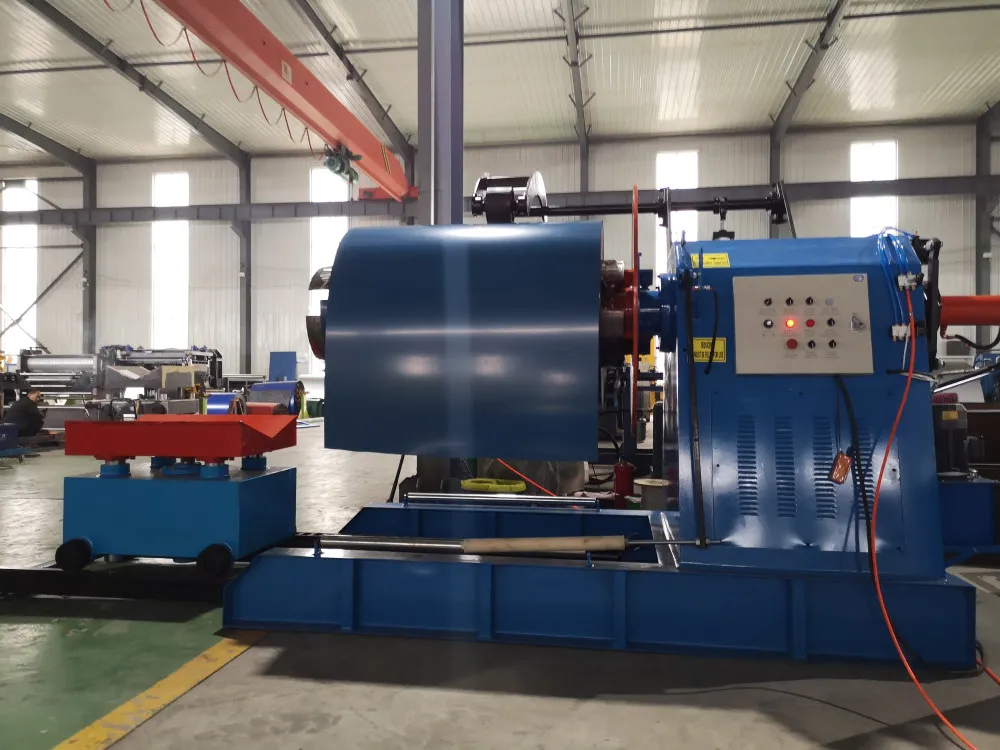

Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1220mm Function:Supporting the coils and doing uncoiling,It adopts the hydraulic cylinder to make the decoiler expand and fit to the inner diameter of coils. It is equipped with the cantilever.Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.

Feeding Device

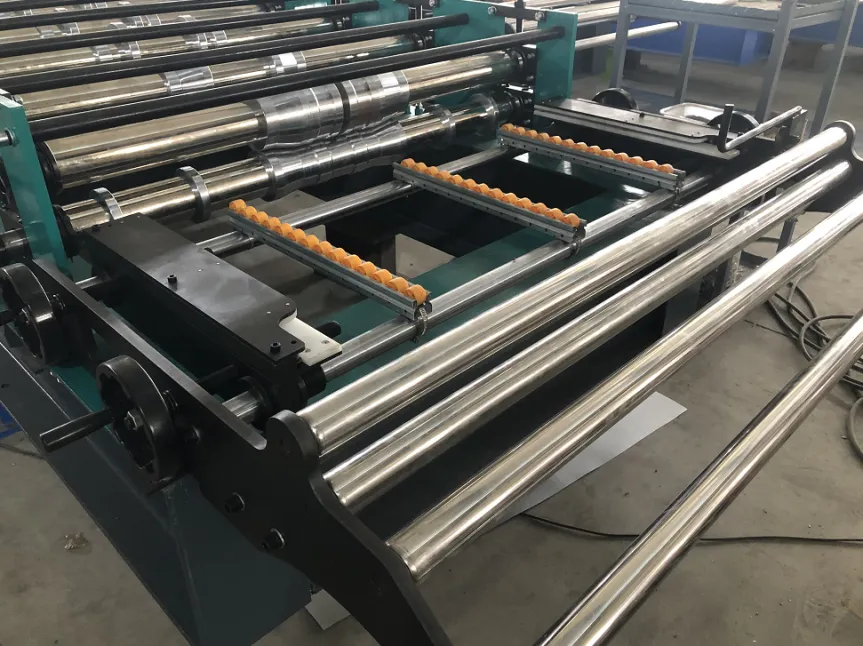

1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface. 3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

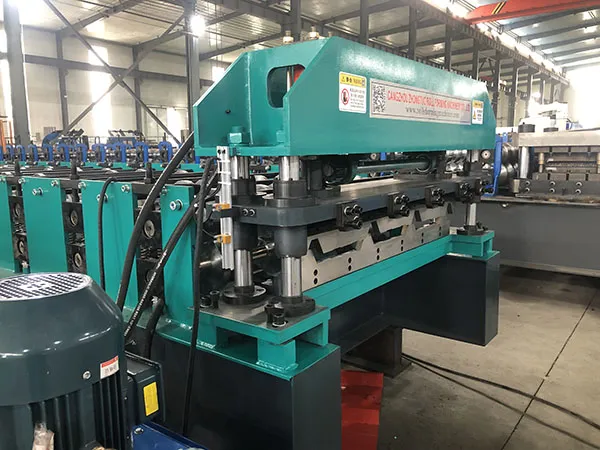

Roll Forming And Transmission Device

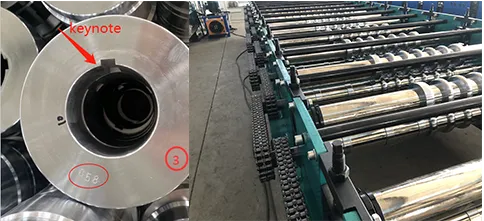

1.rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft stablely 3.gear and double chain,stable

Hydraulic Cutting Device

We use four pillars cutting system structure, it can make sure the cutting stable

PLC control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen ● Encoder brand:Omron ● Electrical components:Schneider ●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

Hydraulic station

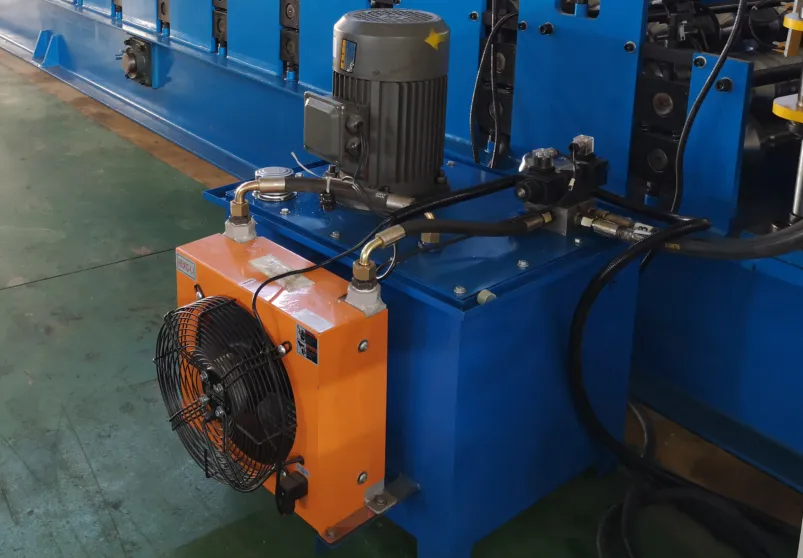

● Hydraulic station motor:7.5KW ● Hydraulic oil:46# hydraulic oil ● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve

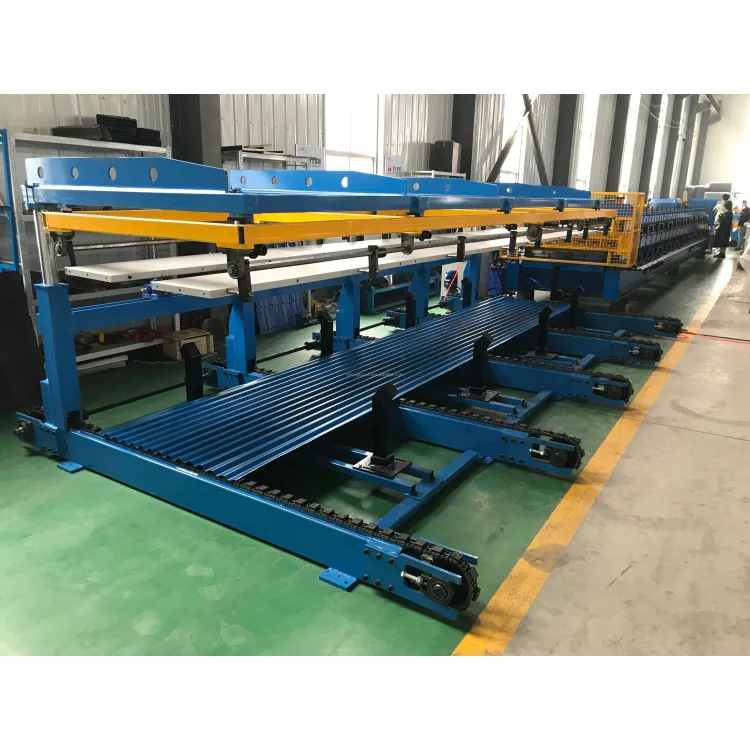

Automatic Stacker

Function :Collect the finished product automatically ,save labor,and very efficiency.

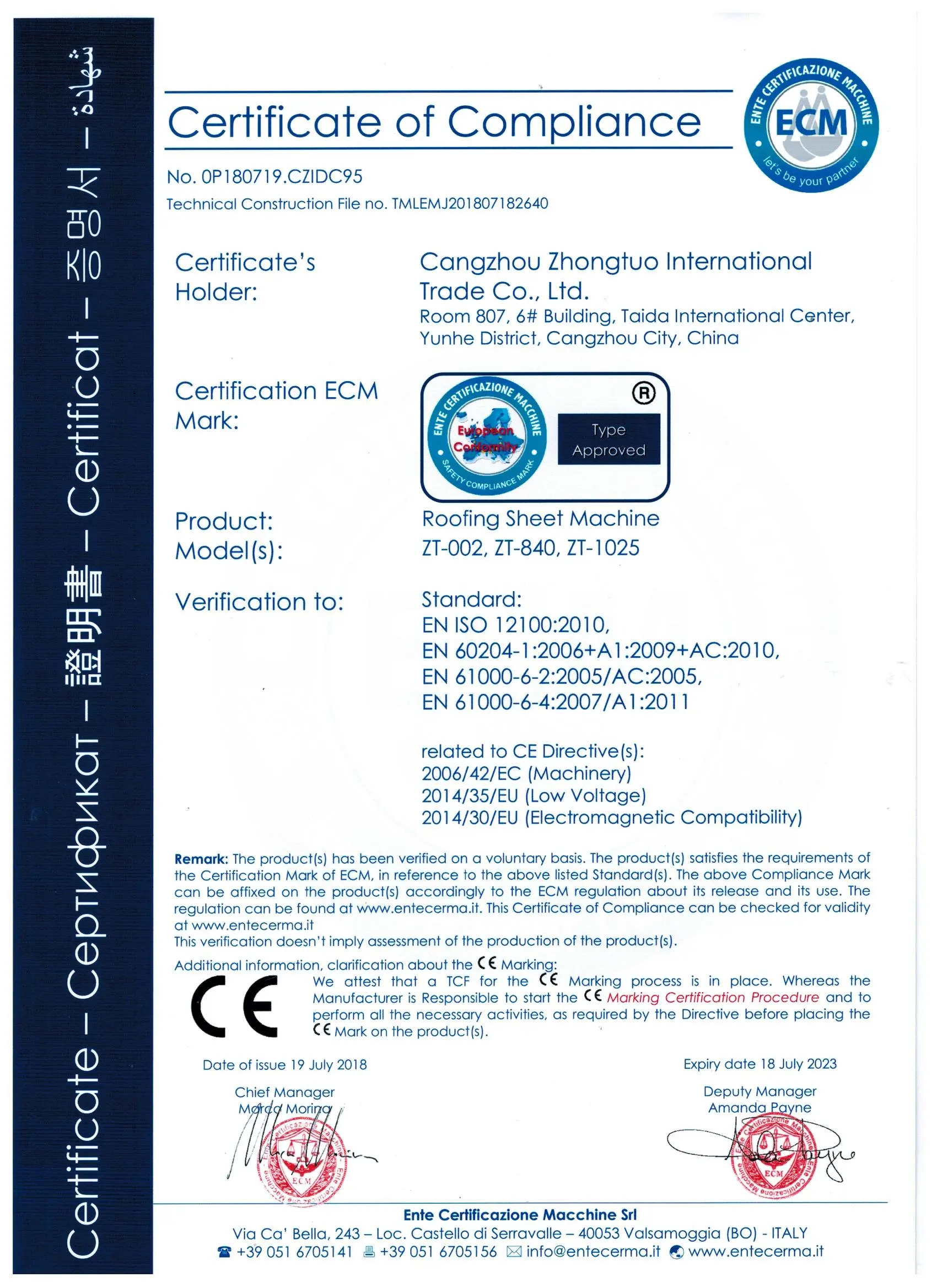

CE(NO.OP180719.CZIDC95)
