North America Aluminum Soffit Panel Roll Forming Machine Roof Pan Stand Seam Roll Forming Machine ZTRFM USA Aluminum Soffit Panel Roll Forming Machine+11KW+30 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

North America Aluminum Soffit Panel Roll Forming Machine Roof Pan Stand Seam Roll Forming Machine ZTRFM USA Aluminum Soffit Panel Roll Forming Machine+11KW+30 m/min

Name: North America Aluminum Soffit Panel Roll Forming Machine Roof Pan Stand Seam Roll Forming Machine ZTRFM USA Aluminum Soffit Panel Roll Forming Machine+11KW+30 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT64432488

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM USA Aluminum Soffit Panel Roll Forming Machine

Power(W):

11KW

Production Capacity:

30 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380V or As Customized
Rolling Thinckness
0.024inch-0.050inch(0.6-1.3mm)
Feeding Width
20inch(50.80cm)

Company Profile

CANGZHOU ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

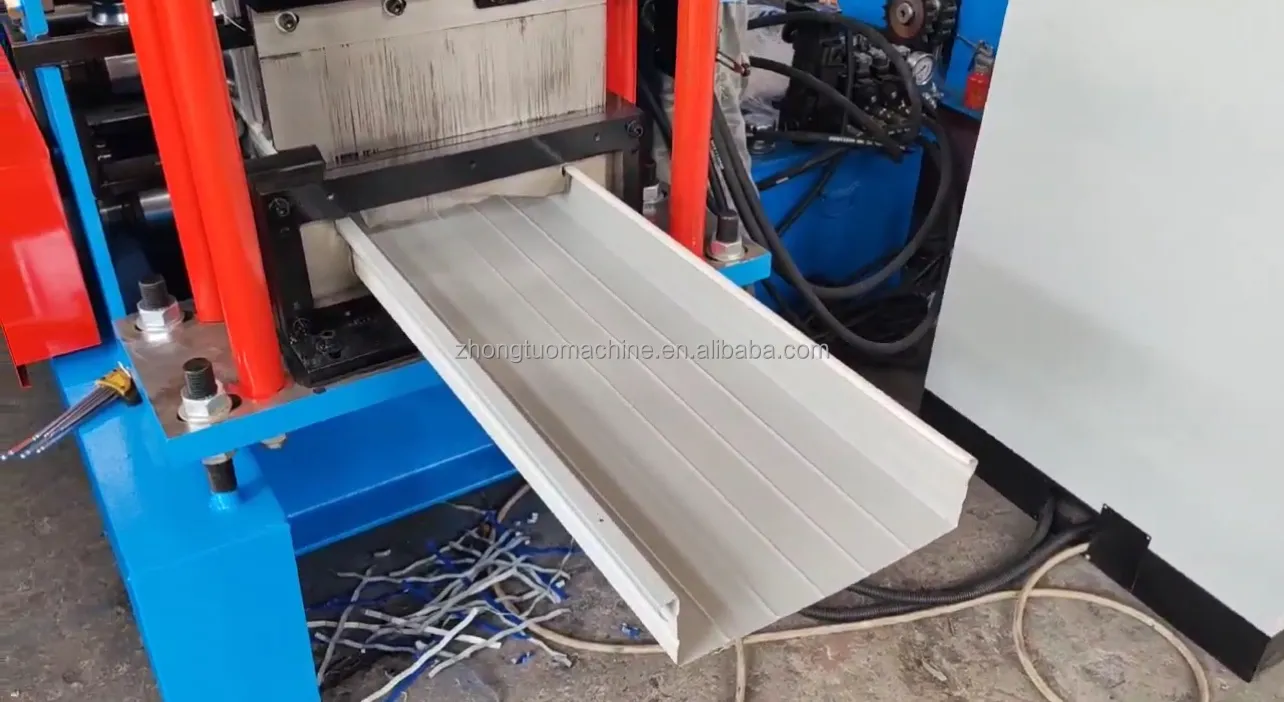

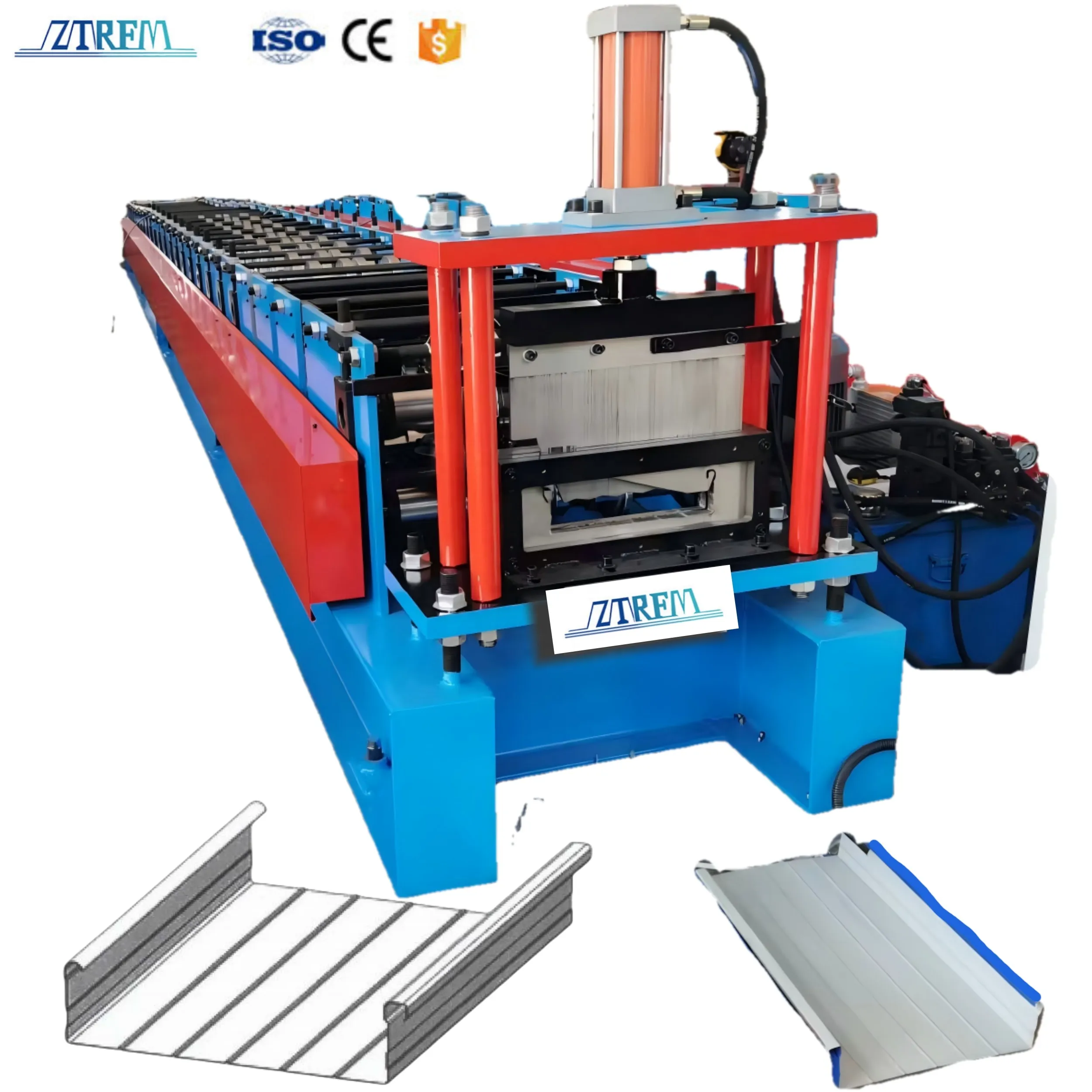

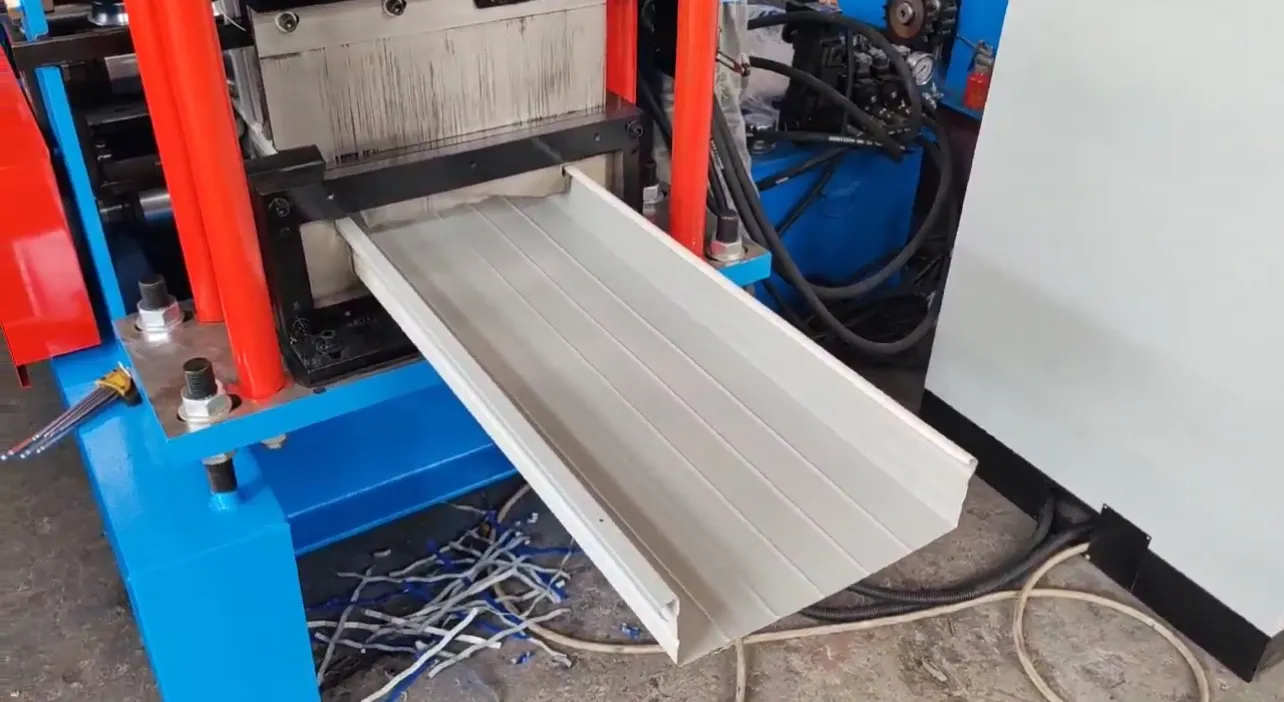

Aluminum Soffit Panel Roll Forming Machine

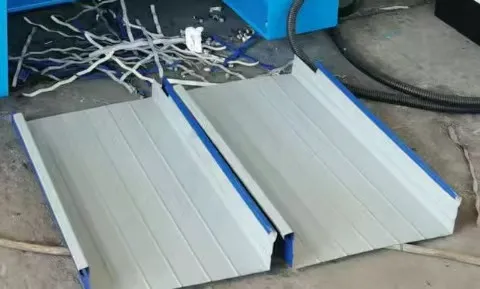

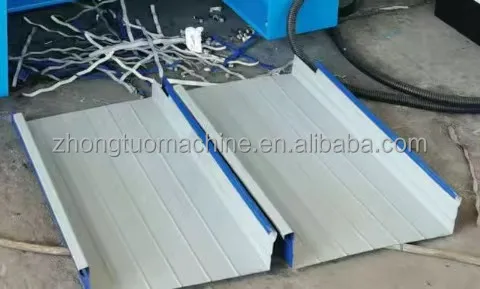

Our machine has been export many sets to North America and Canada , and using very well in local , this panel profile both height is 3inches, and feeding raw coils width is about 20inch. It also be called Pan roofs , flat soffit panel The flat soffit panel are a cost-effective solution for carports, patio covers, and screen rooms. Designed for durability and functionality, they provide reliable protection from the elements while being budget-friendly. These roofs are an excellent choice for your outdoor projects, offering a practical and economical option that doesn’t compromise on quality. Choose Affordable Aluminum for high-quality roll form pan roofs that combine affordability with superior performance. Contact us today for a free estimate and discover how our roll form pan roofs can enhance your carport, patio cover, or screen room.

Soffit Panel Machine
Profile	Customized and one machine adjustable for different profile
Roller station	20 roller station
Punching device	the punching roller are adjustable according to your needs,Punch or No punch
Control system	PLC control System,Brand Delta /Siemens
Frame Construction	molding frame or pillar frame
Support Material	Normally Auluminum
Forming Stations	All Rollers painted surface of the conductor pipe are hard chrome plated to insure long roll life and protect the finish.
Driving part	All the stations of the machines are driving stations by gear, top and bottom. They are all spring loaded which creates a constant load on the material. The springs make our machines the most versatile on the market allowing you to run different material with virtually no adjustments. And also the machine can produce the profile with punching or without.

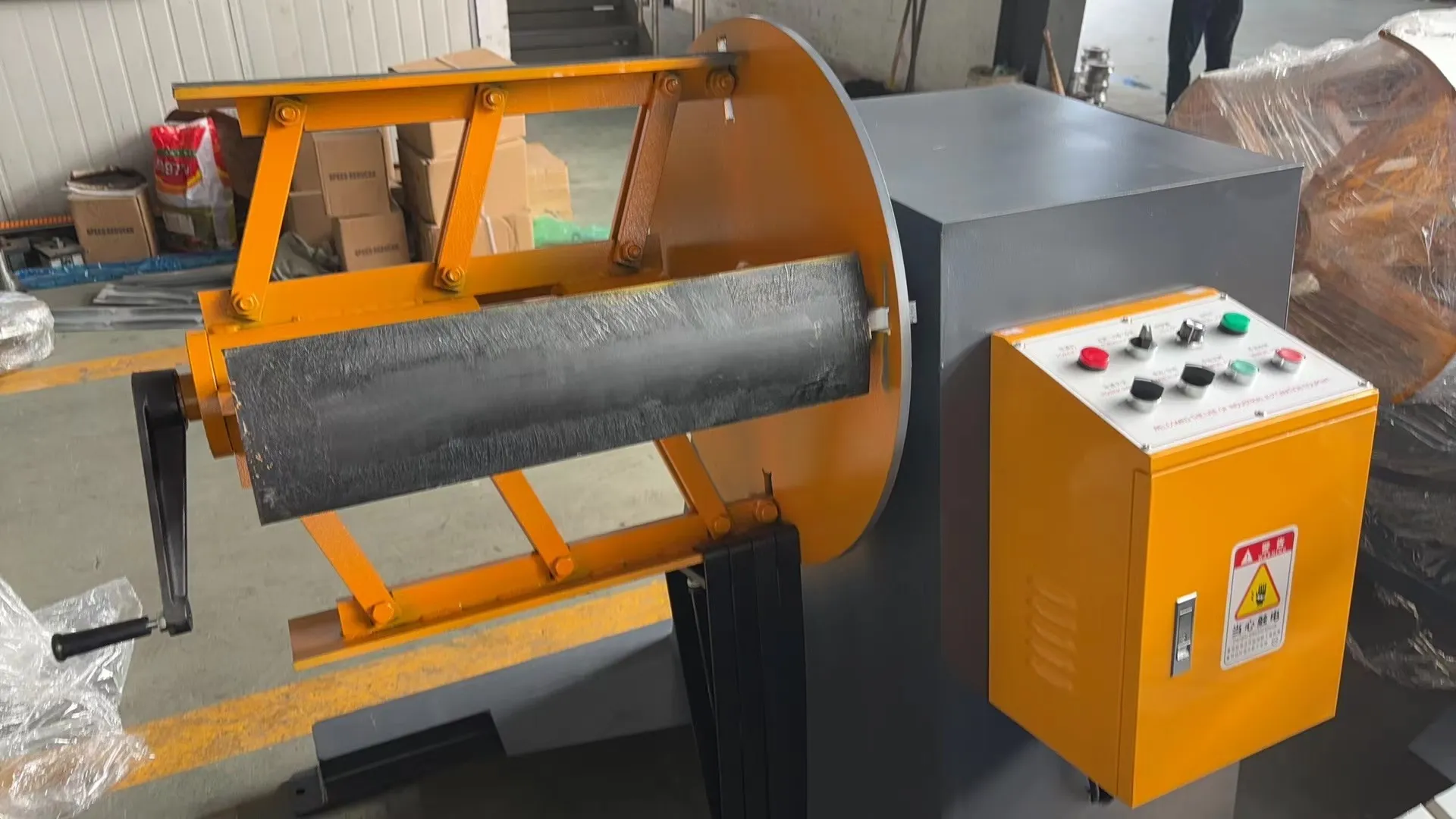

Electric automatic Decoiler

1.Loading capacity :3 Tons

2.Automatic opening steel coil, save labor.
3.Adapt Siemens electronic control system and is additionally fitted with infrared sensing devices. It can constantly monitor the feeding situation of the opening process and prevent the accumulation of debris.

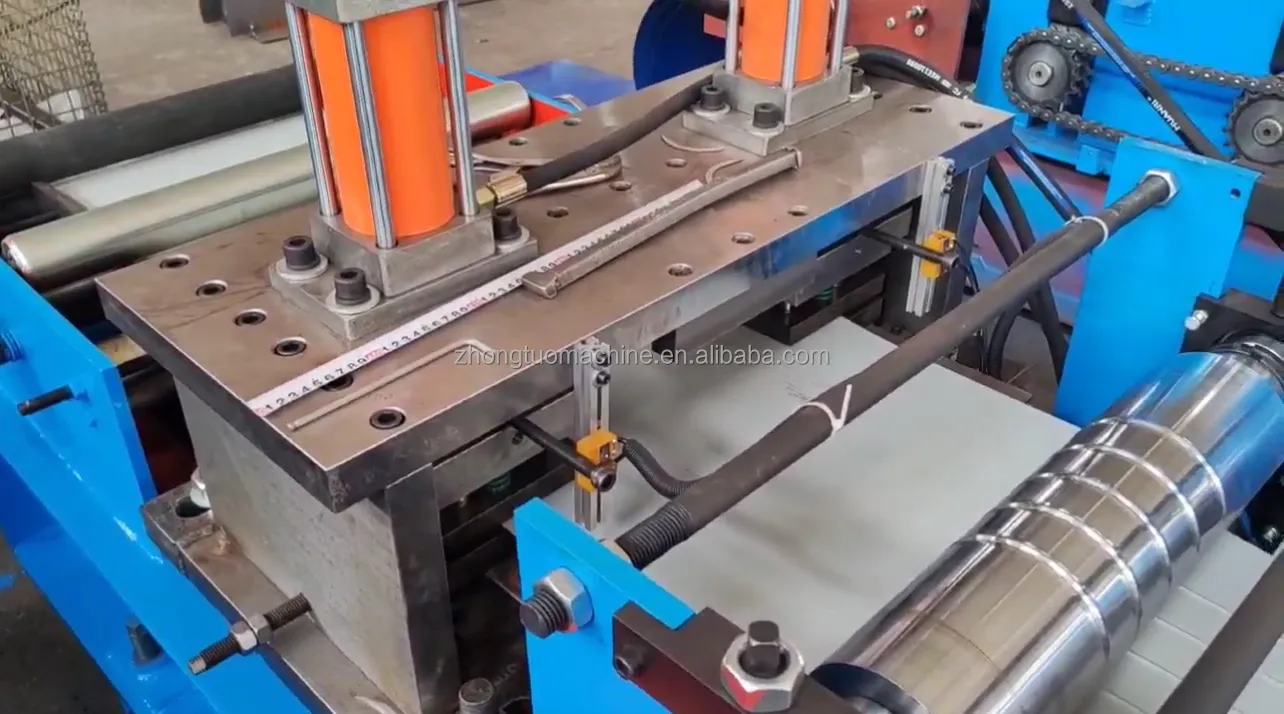

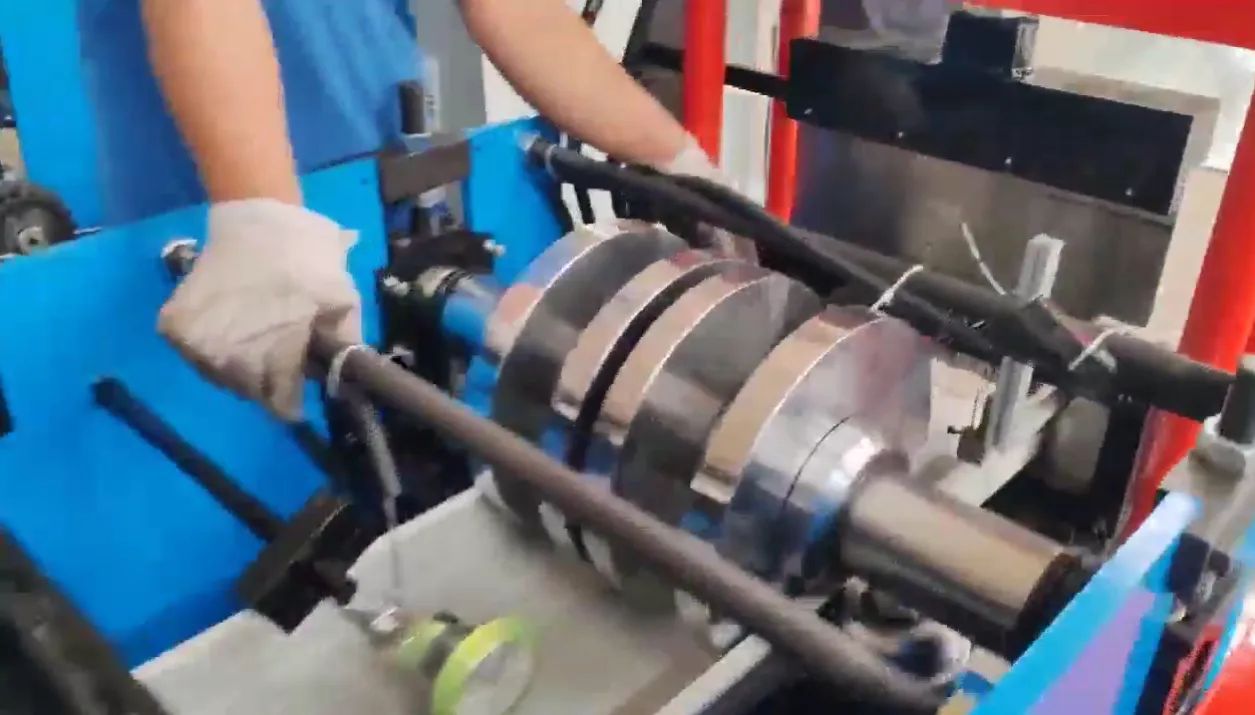

Pre-Punching device

1.Can punching gap on production panel, make panel installation waterproof and improve ventilation efficiency.

2.Can adjust these rollers turn on or off to control punching or not

Feeding device

1.With handwheels for easy adjustable.

2.Two additional pairs of stainless steel protective rollers have been added to ensure that there are no scratches on the edges of the material!

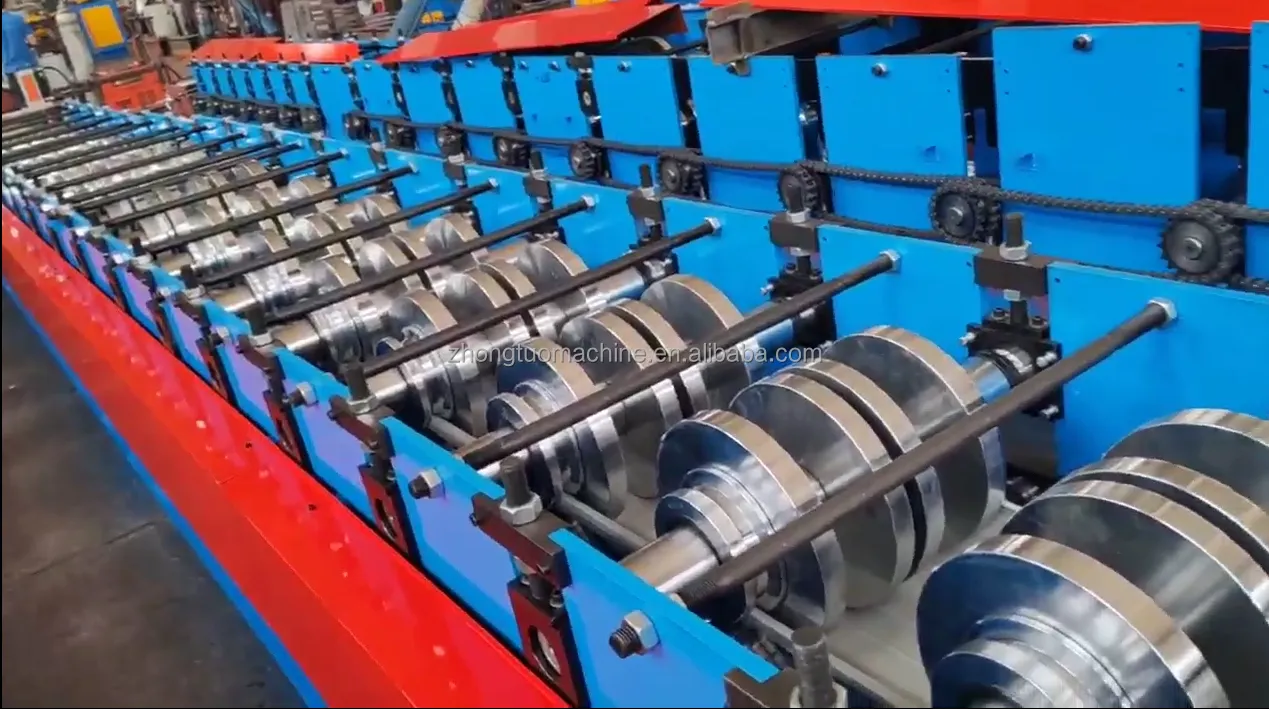

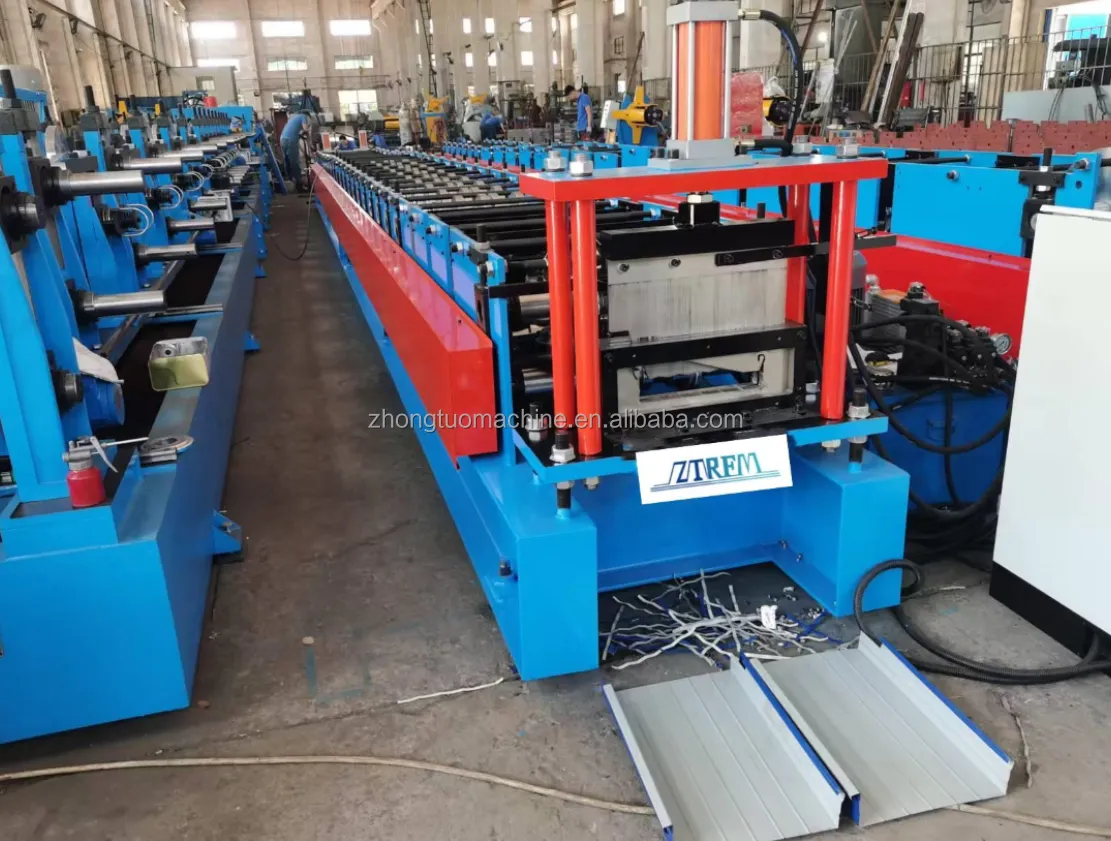

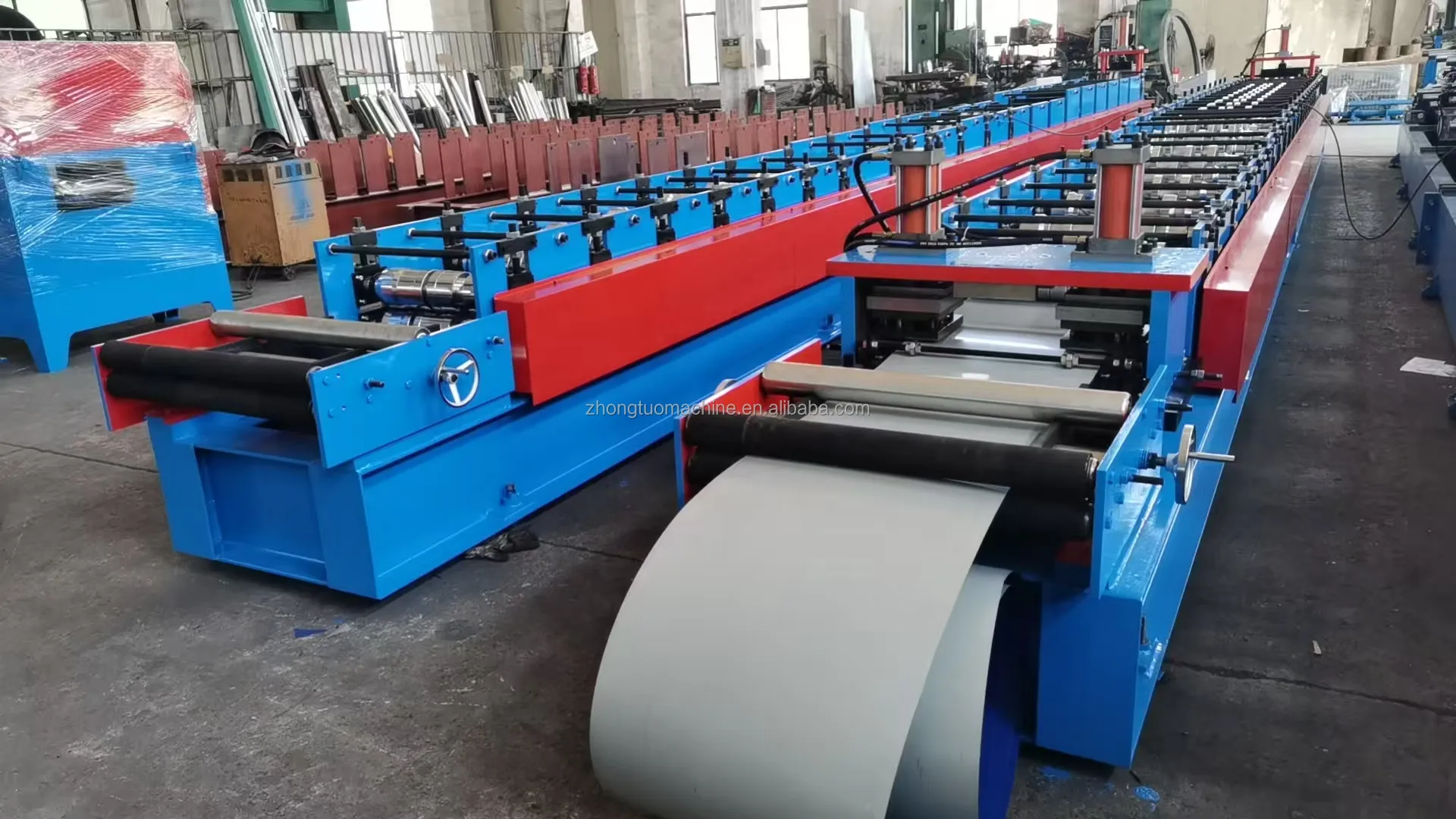

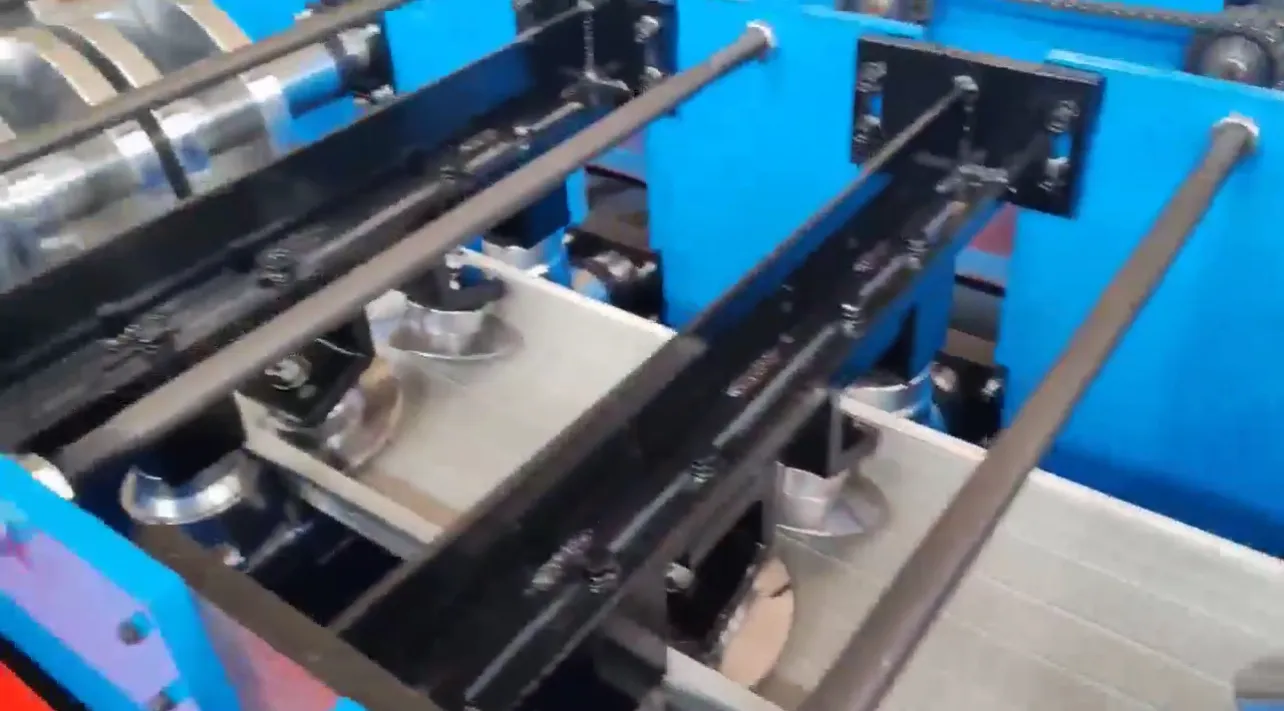

Main roll forming machine

1.Shaft material:45# steel with quenched treatment
2.Shaft diameter: 70mm
3.Roller station:20 stations
4.Roller material: GCr15
5.Motor power: 11kw
6.Speed: 50-65ft(15-20m/min)
7.Transmission:Double chains/ Gearbox
8.Voltage:customized

Hydraulic cutting system

1.Feature: it is used to make the step , the glazed tile's final formed.
2.Material of mold: Cr12 quenched

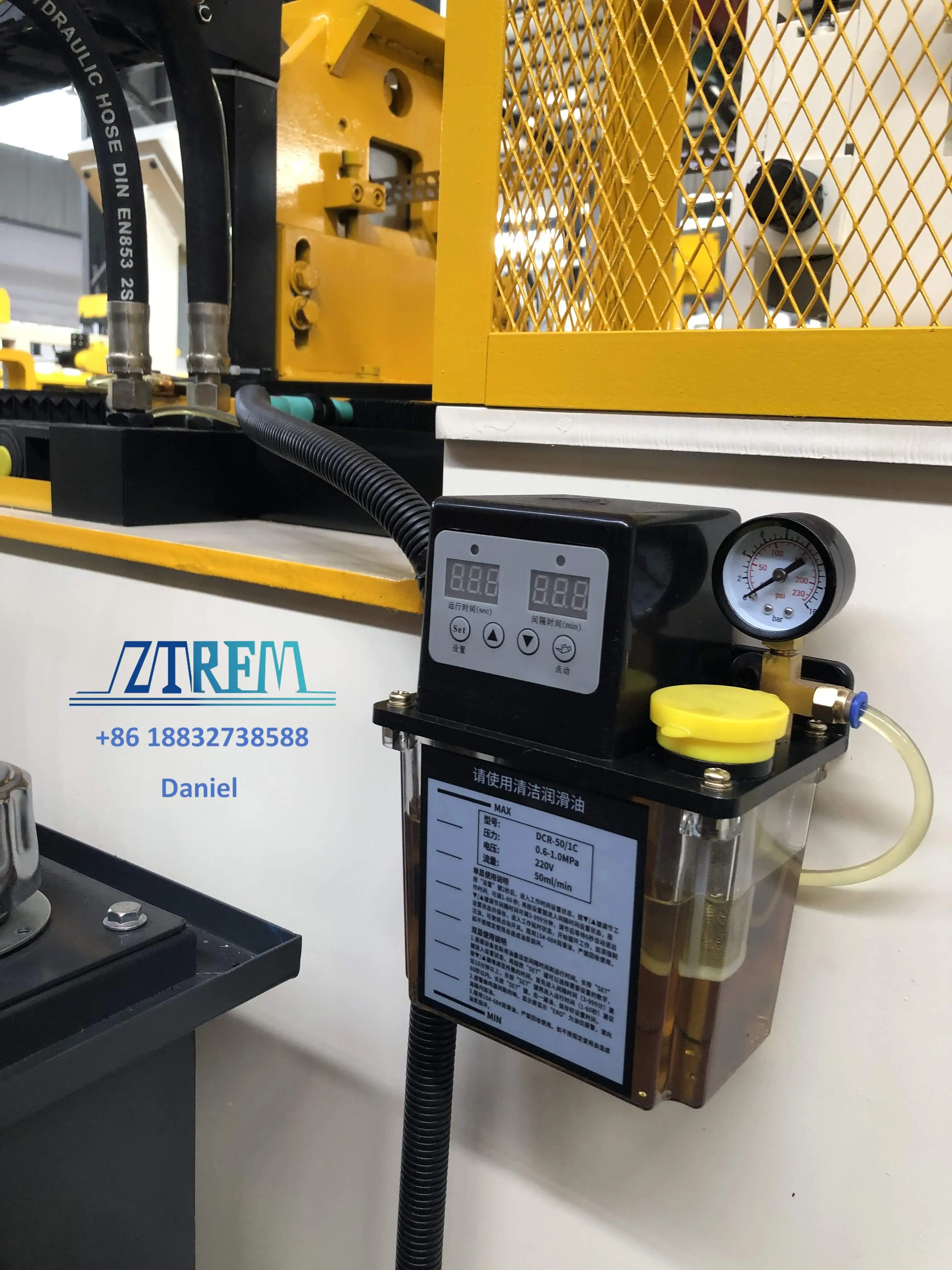

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

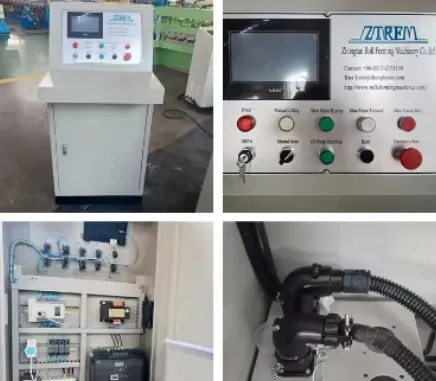

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control2.Adopt touch screen for easy operation.3.Adopt aviation plugs for easy installation

4.Languages can be customized

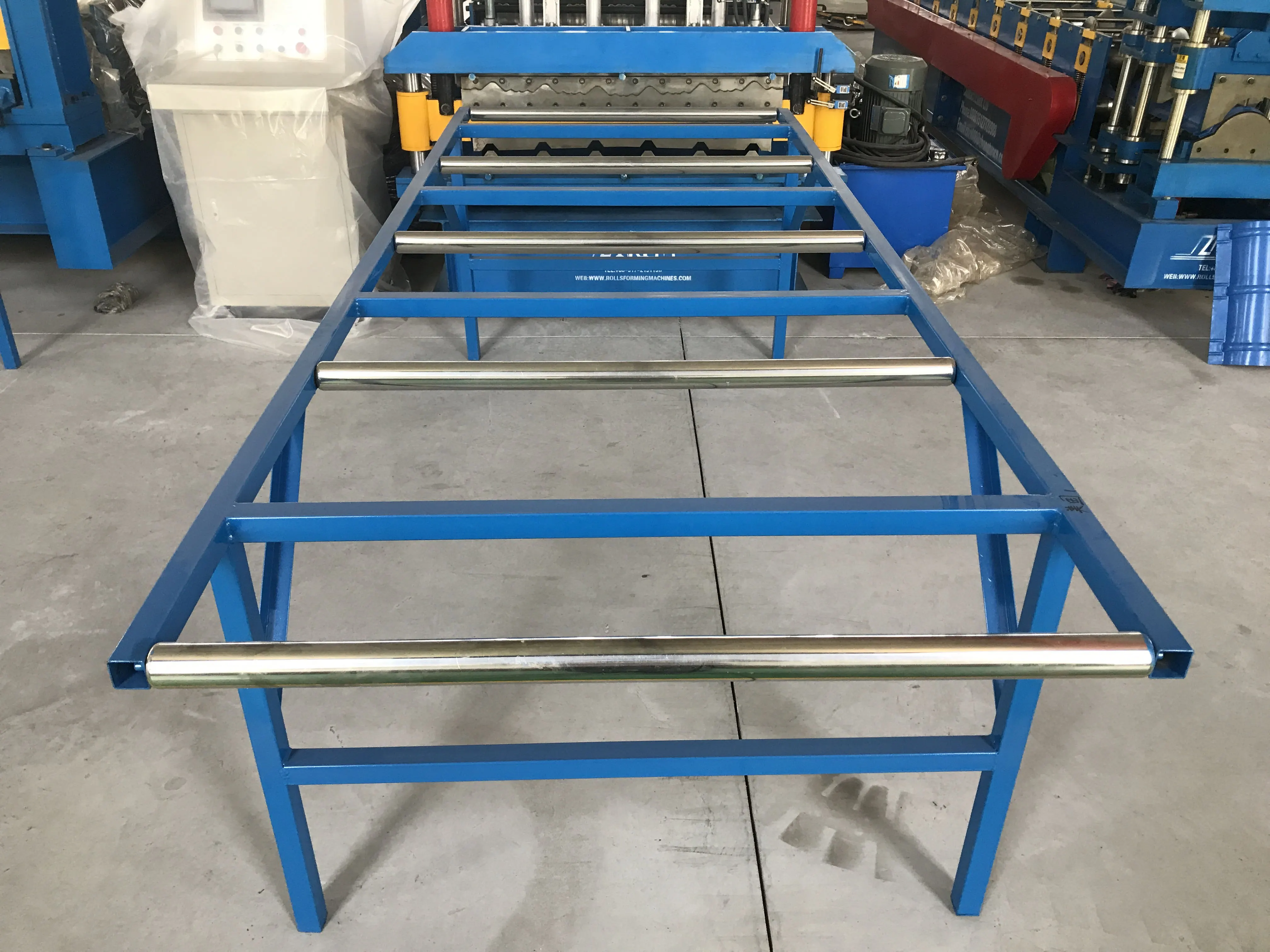

Production receive table

1.Convenient collection of finished products

2.Protecting worker safety

3.Surface add stainless steel roller , more fluently and easy using

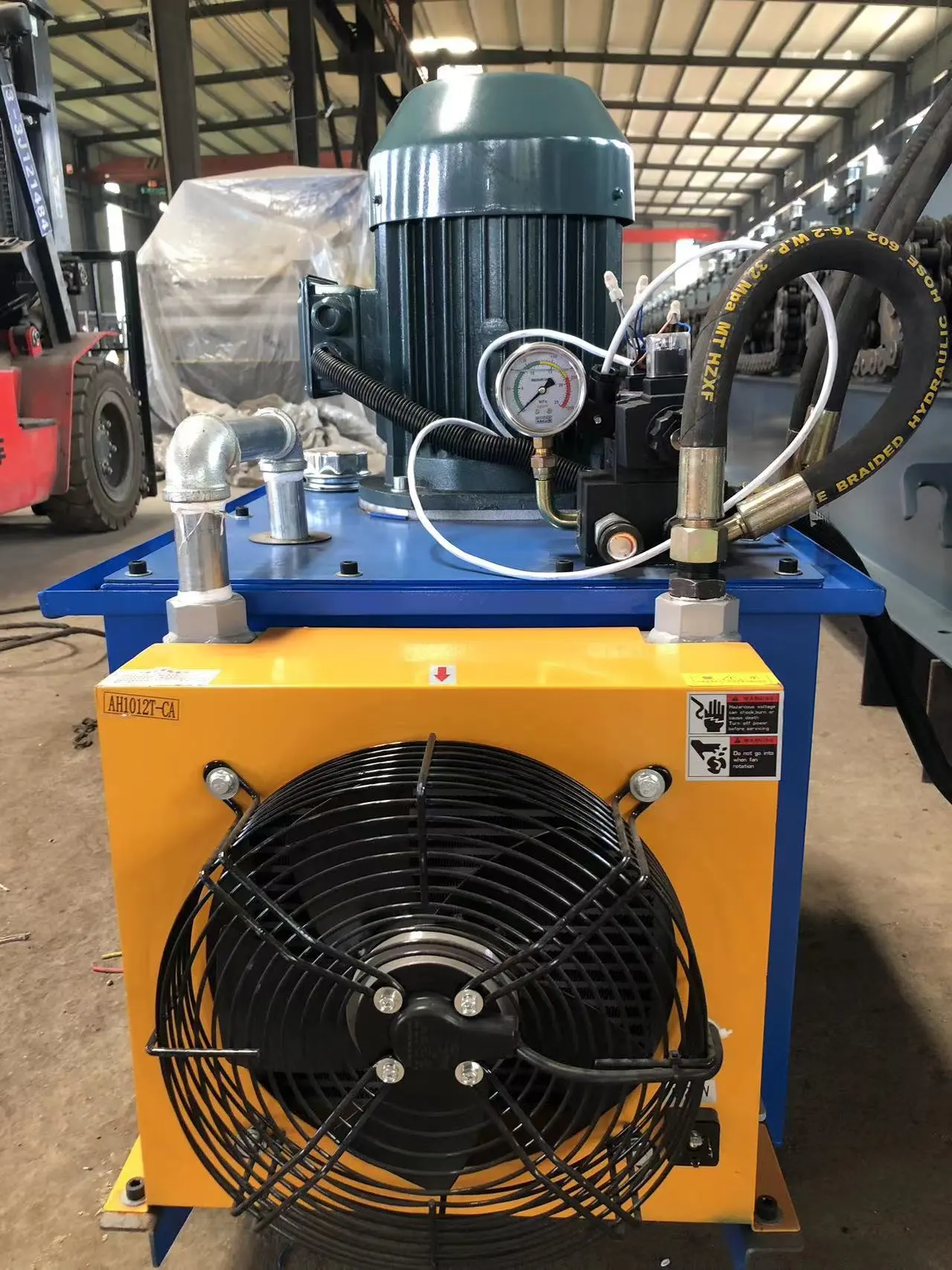

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

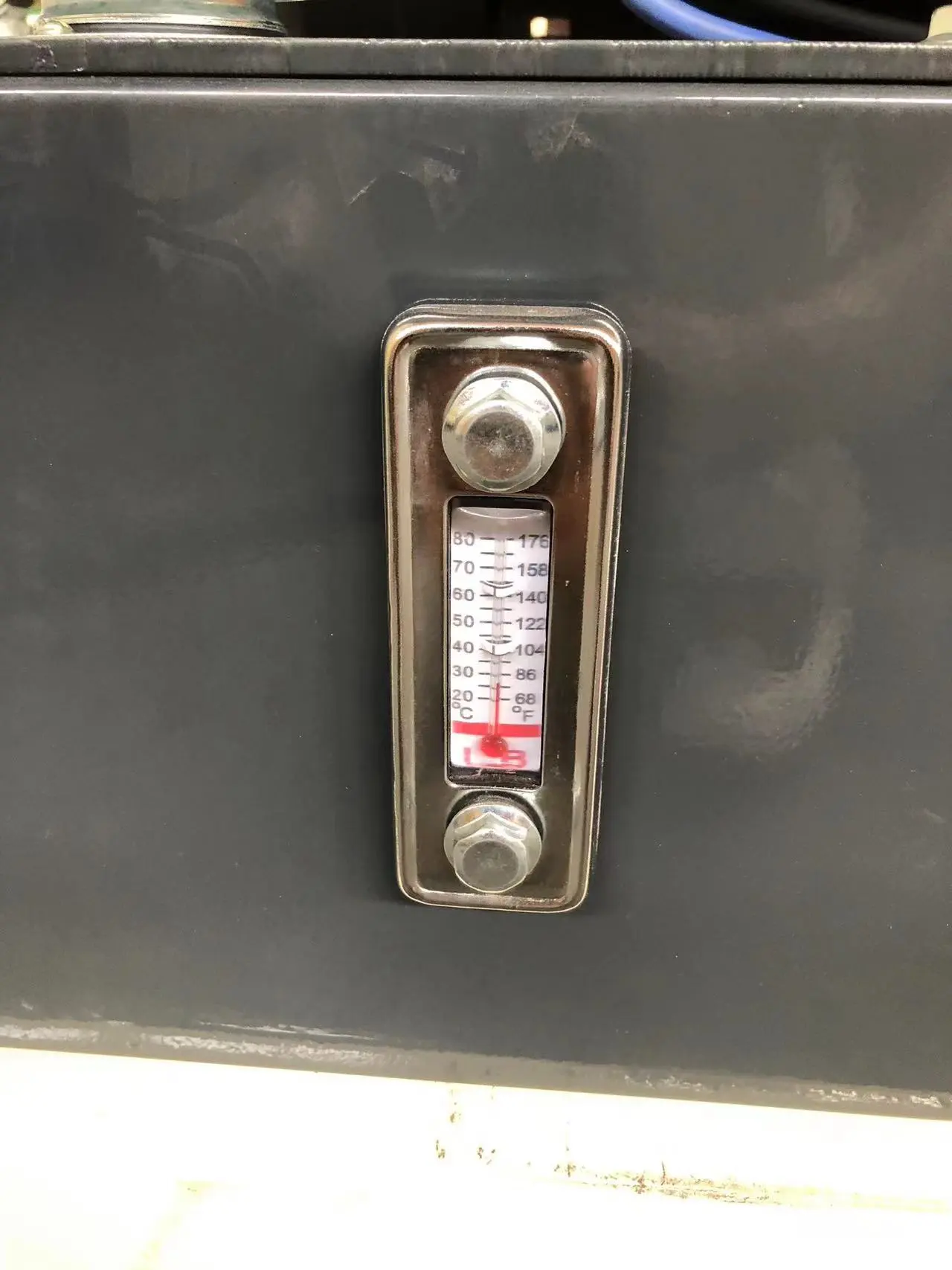

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster
