Nigeria Stone Coated Metal Roof Tile Production Line High Quality Machinery for Tile Making 15 m/min+ZTRFM-stone+1500

Cangzhou Zhongtuo International Trade Co., Ltd

Nigeria Stone Coated Metal Roof Tile Production Line High Quality Machinery for Tile Making 15 m/min+ZTRFM-stone+1500

Name: Nigeria Stone Coated Metal Roof Tile Production Line High Quality Machinery for Tile Making 15 m/min+ZTRFM-stone+1500
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT82426523

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15 m/min

Model Number:

ZTRFM-stone

Power(W):

1500

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380 V, 440 V, 220V Electrical Equipment
Rolling Thinckness
0.8 mm ~ 1.2 mm
Feeding Width
1220 mm

Nigeria Stone Coated Metal Roof Tile Production Line High Quality Machinery for Tile Making

Product Description

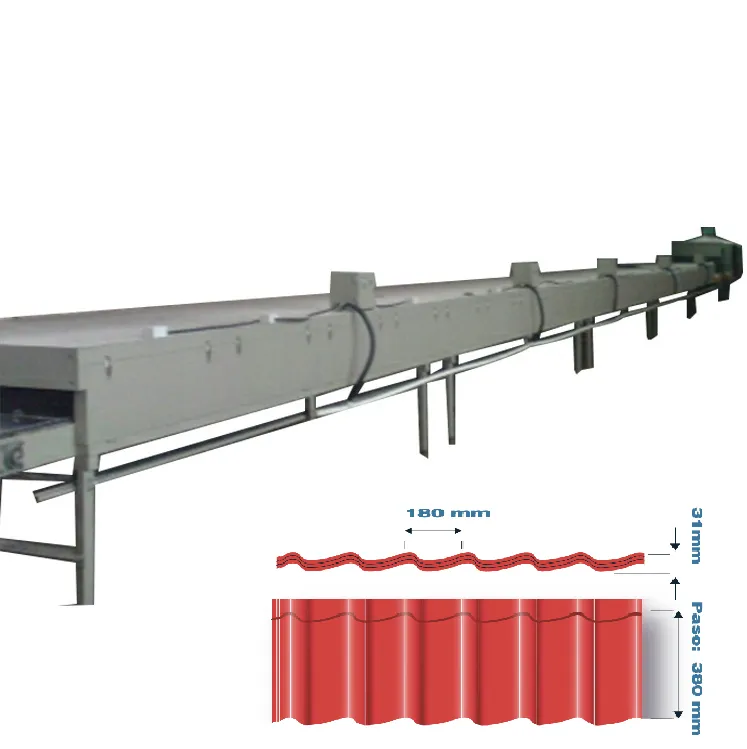

Advanced Colored Stone-Coated Metal Tile Production Line

Our state-of-the-art production line is designed for manufacturing high-quality stone-coated metal roofing tiles, combining durability, aesthetics, and weather resistance. The fully automated process includes:

Metal Coil Feeding & Cutting – Precision uncoiling and cutting of galvanized steel or aluminum coils.
Profile Roll Forming – Shapes metal sheets into tile profiles (e.g., shake, slate, or scallop designs).
Surface Treatment – Pre-treatment (cleaning, priming) and base-coat application for enhanced adhesion.
Stone Coating – Automated sprinkling of natural stone granules with acrylic/resin binders for UV protection and color stability.
Curing & Drying – High-temperature curing to ensure coating hardness and weatherproof performance.
Quality Inspection – Automated thickness measurement, adhesion tests, and visual checks.
Packaging – Stacking, wrapping, and palletizing for secure transportation.

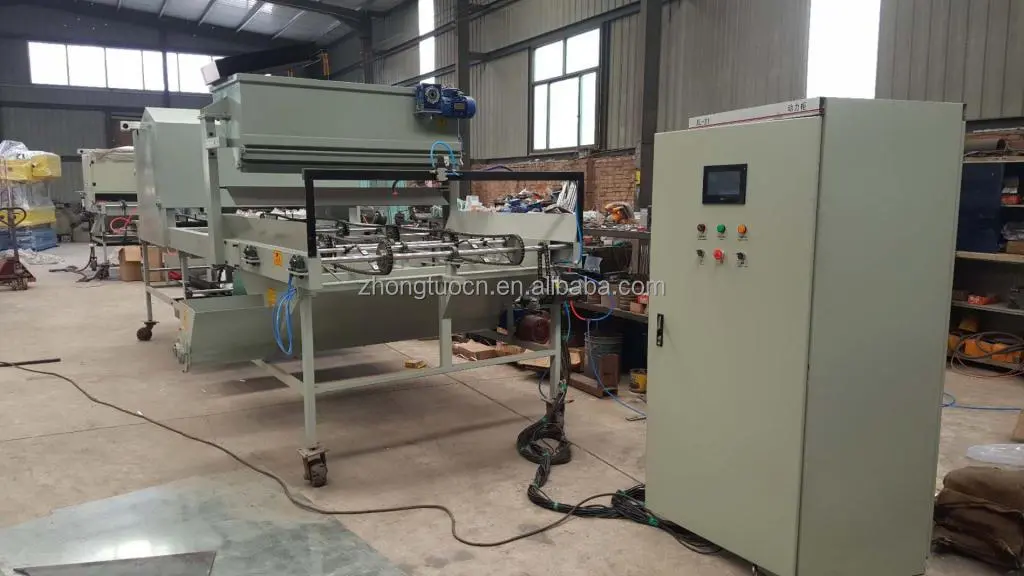

NO. 1 Auto bottom glue spraying section
Appearance size	400010002000mm
Driving section	3KW Excitation motor or frequency speed regulation (AS per customers’ requirements )
Automatic pressure spray tank	1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Automatic glue machine motor	Servo motor ; Power: 750w ; PLC
Automatic spray gun	4 set (spare parts)
Dust collecting fan	1 set ; Power: 200w
Damp proof lamp	1 pc ; Power: 100w
Conveying device	Chain reciprocating
Air compressor	1 set ; Power: 7.5kw
Dust control of axial flow fan	1 set ; Power: 200w
Agitator	1 set ; Power: 1.5kw

NO. 2 Auto stone coated section
Appearance size	350010001500mm
Framework	Steel welding
Conveying device	Chain reciprocating
Automatic sand hopper	1 set ; Capability: 200kg
Bucket lift	1 set
Manual sandblast gun	4 sets

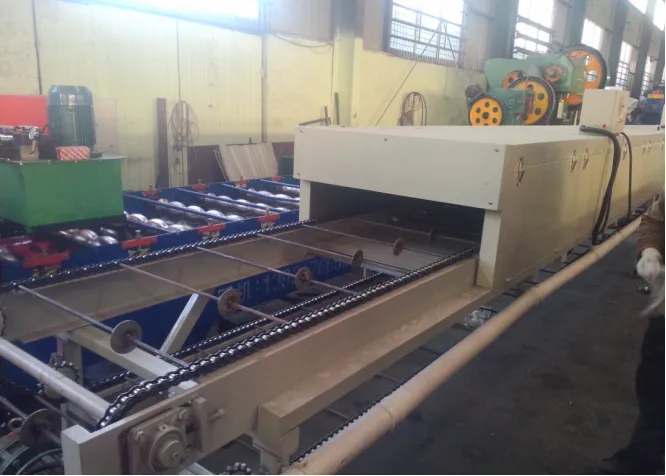

NO. 3 The first time drying section
Appearance size	2500010001200mm
Framework	Steel welding
Frame type thermal insulation wall	1.2mm cold steel with Rock wool
Automatic temperature controller	4 sets ; Range: 0°~160°
Infrared heating tube	30pcs ; Power: 30kw
Conveying device	Chain reciprocating
Air cooling device	1 set ; Power: 200w

NO. 4 Auto face glue spraying section
Appearance size	300010002000mm
Framework	Steel welding
Damp proof lamp	1 pc ; Power:100w
Automatic pressure spray tank	1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Conveying device	Chain reciprocating
Automatic spray gun	4 sets (spare parts)
Manual patch glue gun	4 sets
Dust control of axial flow fan	1 set ; Power: 200w
Automatic glue machine motor	Servo motor ; Power: 750w

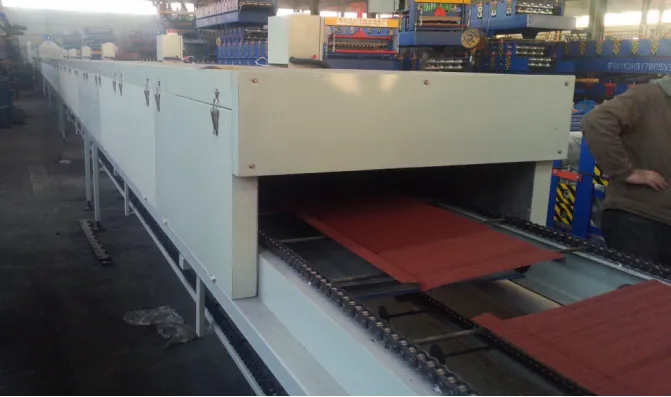

NO. 5 The second time drying section
Appearance size	3000010001200mm
Framework	Steel welding
Frame type thermal insulation wall	1.2mm cold steel with Rock wool
Automatic temperature controller	4 sets ; Range: 0°~160°
Infrared heating tube	30pcs ; Power: 30kw
Conveying device	Chain reciprocating
Air cooling device	1 set ; Power: 200w

About the workers need:

PLACE	QTY.
Panel loading	one
Bottom spraying	one
Stone coating	one
Fill stone	one
Face glue	one
Bottom glue mixing	one
Finish goods receiving	one

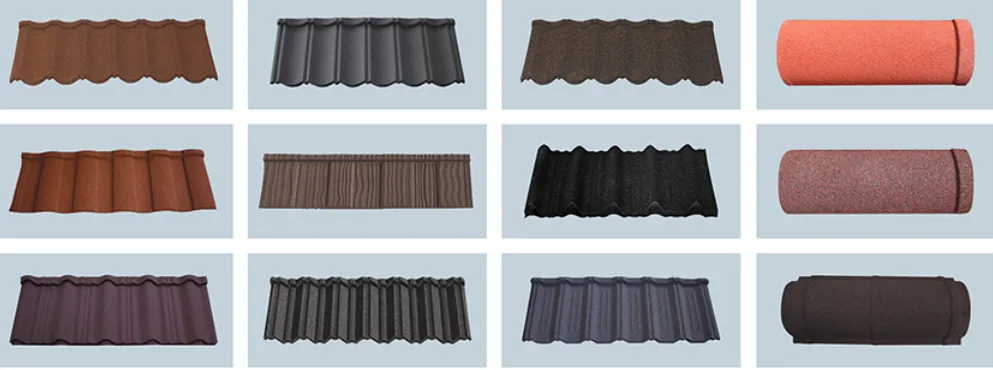

the picture of finished products

Our Services

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation

overseas and USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment)

Packaging & Shipping
