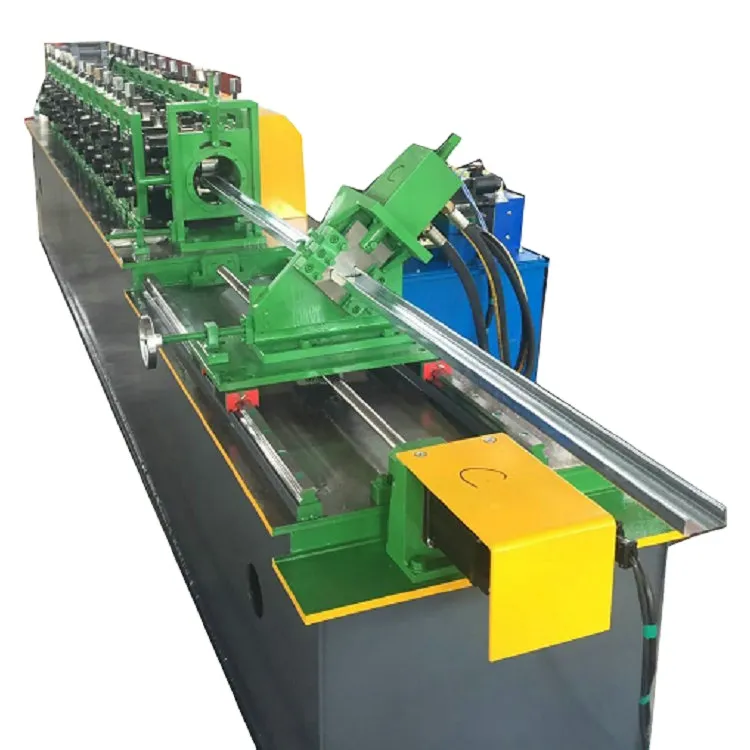

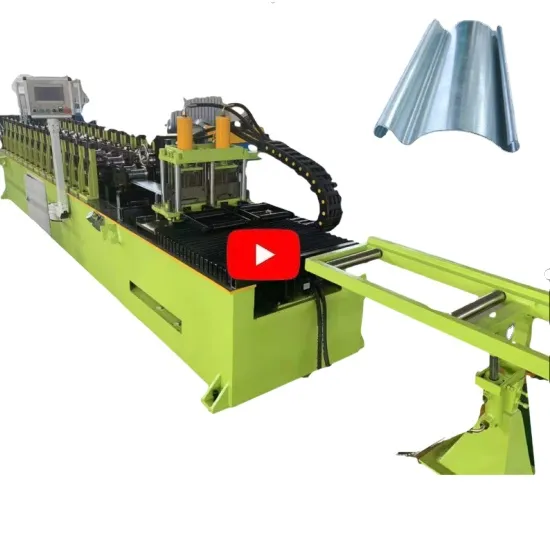

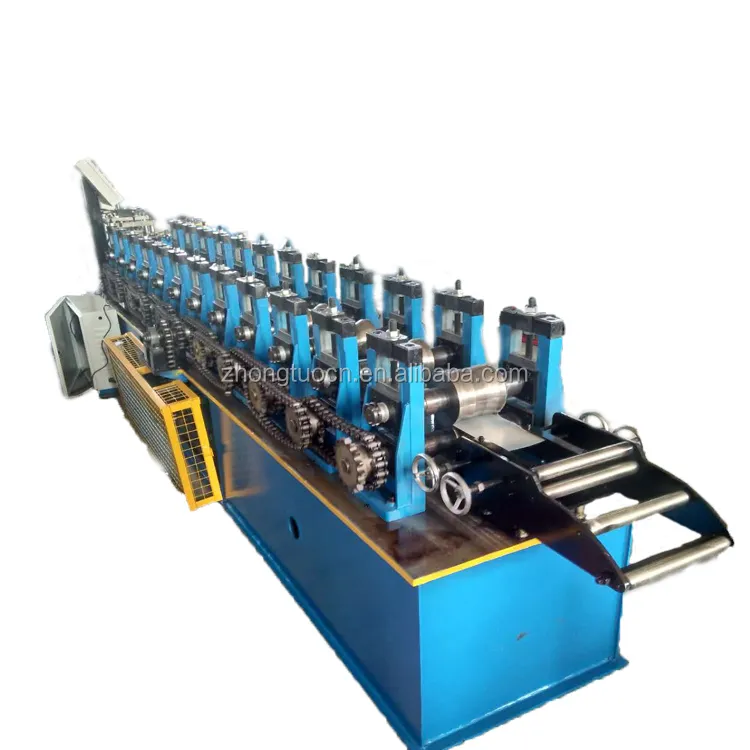

New Product Roller Shutter Door Guide Rail Roll Forming Machine customized

What is the application of guide rail roll forming machine?

Our company specializes in making door system machines since 1996.  Now, we can manfacture almost every part of the shutter door, like door frame window guide rail roll former,guide rail roll forming machine, bottom lath machine,roller shutter slats window guide rail roll former and so on.

What is the working flow of guide rail roll forming machine?

guide rail roll forming machine is consisted of decoiler, main forming machine,cutting device,runouttable.The working flow is as follows:

some drawings of guide rail roll forming machine

If you want to buy a guide rail roll forming machine, first you should give us a profile drawing of hte roller shutter guide rail like the following.

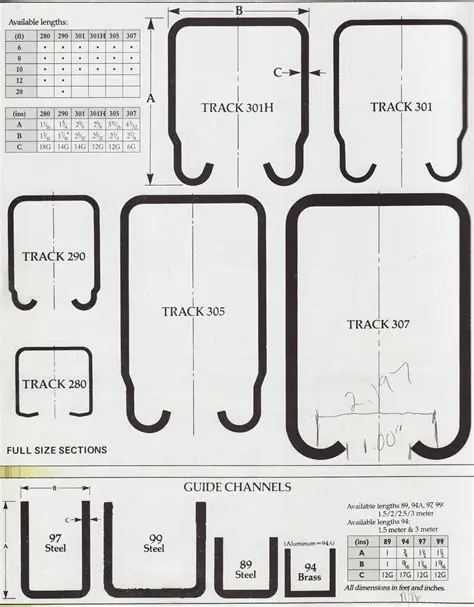

And if you don't have a drawing, we can recommend you the most popular roller shutter guide rail drawing in your country.The following is some drawings for your reference, we can also design the roller shutter guide rail  machine according to your drawing.

Usually if you want holes on the roller shutter guide rail, we can add a punching  machine.

the basic  Information of guide rail roll forming machine

name	guide rail roll forming machine
Processing material	galvanized plate, or aluminium plate
Material thickness	0.8---2.0 mm
Material hardness	550 mpa---350 mpa
Material width	200mm(according to the profile)
Formed width	101.6mm (according to the profile)
Forming speed	12m/min
Working speed	8m/min
Voltage	380V 50HZ 3Phase
Roller fixer	Guide column
Frame	400 H steel
Drive mode	chain
Material of rollers	45# steel, surface hard chromium plating.
Material of shafts	45# steel with tempering
Diameter of shafts	φ70mm
Number of rollers	20 rollers
Main power	5.5kw
Hydraulic power	3kw

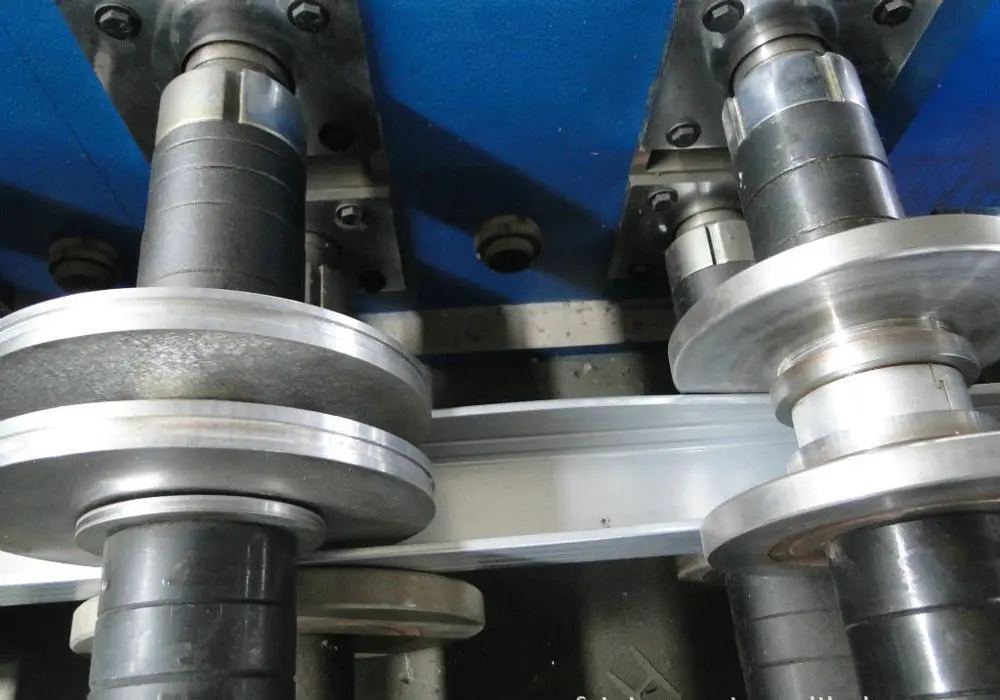

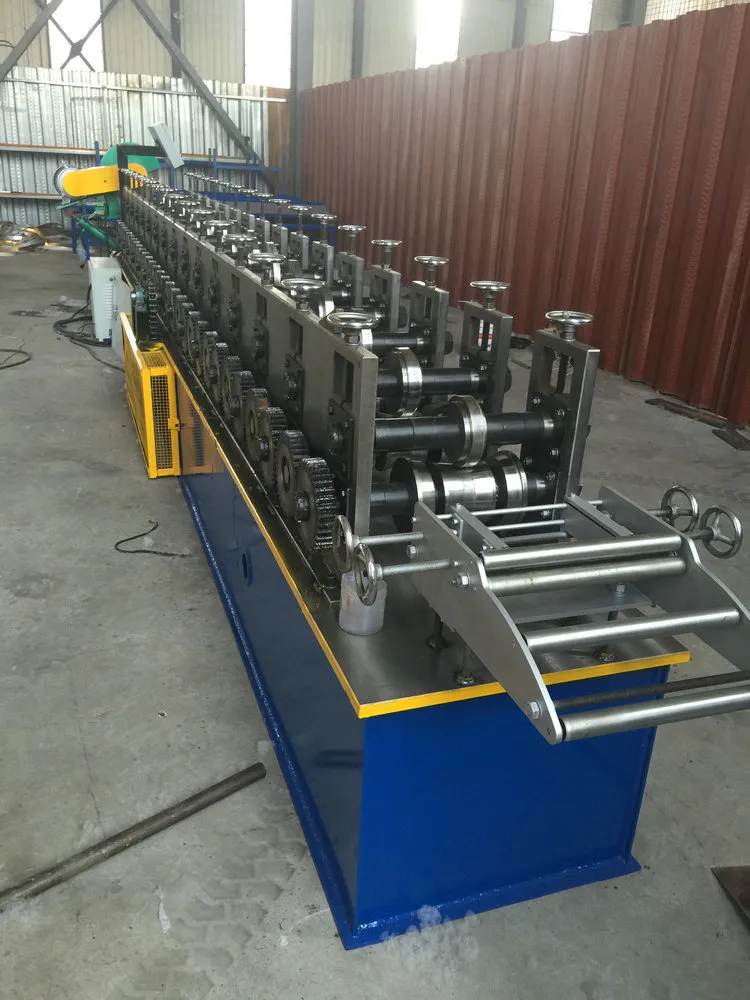

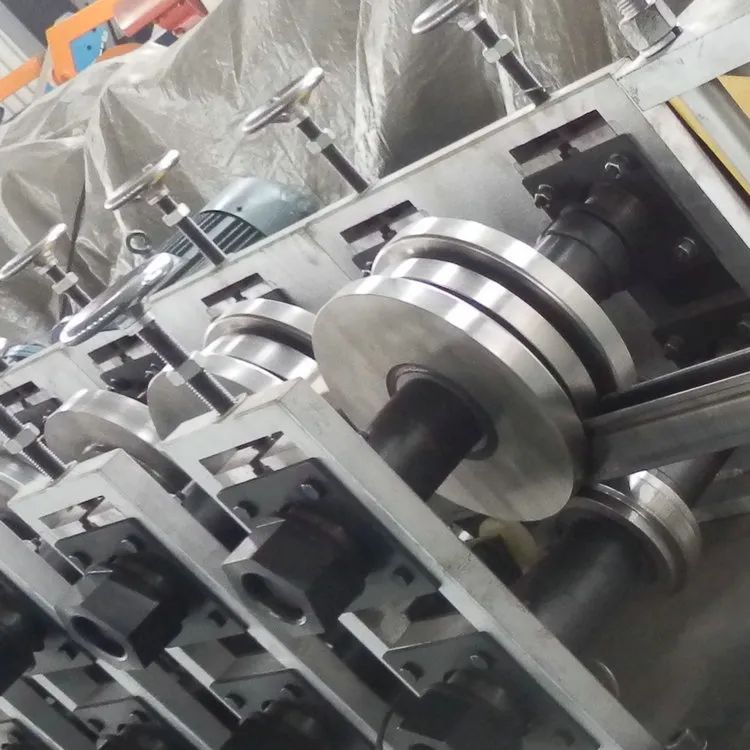

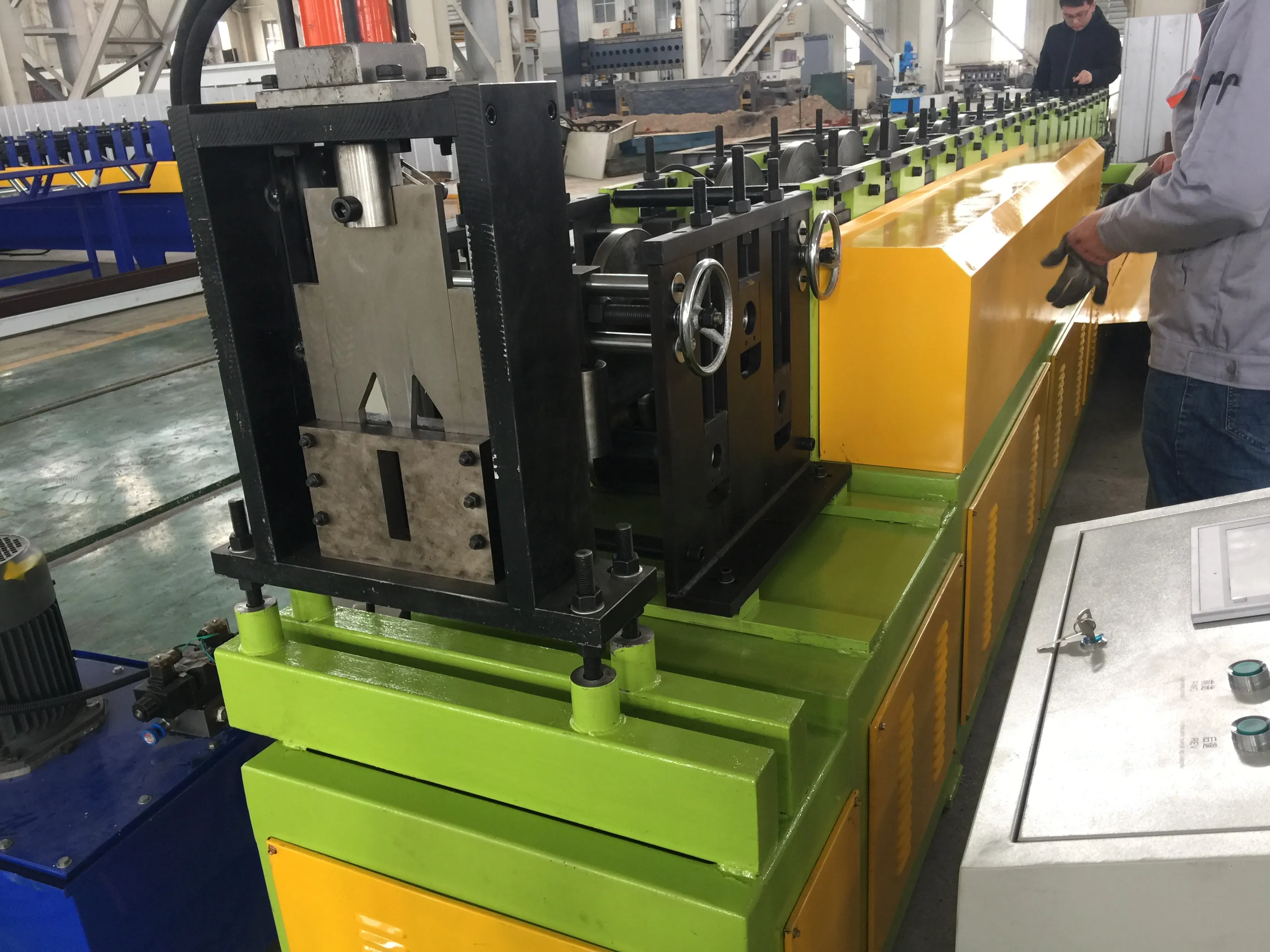

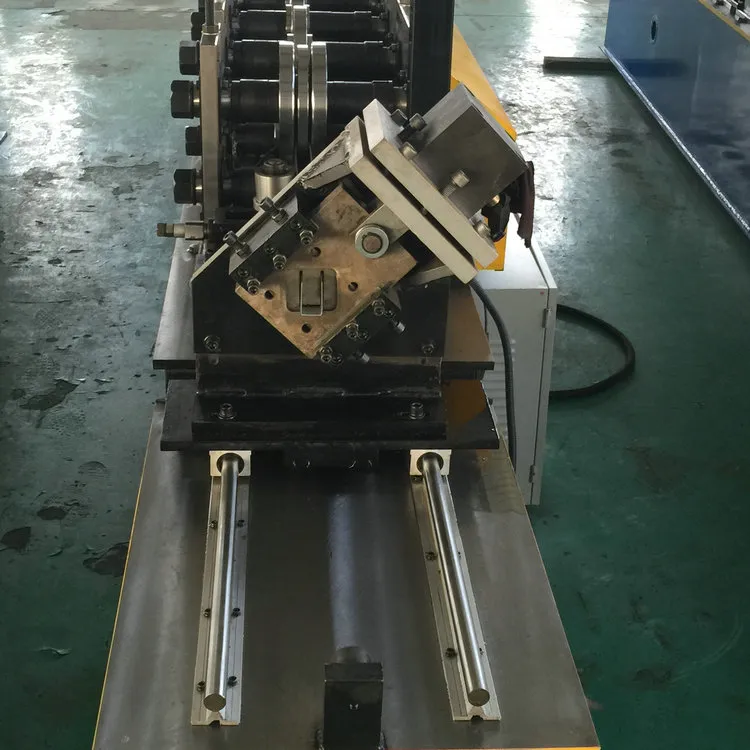

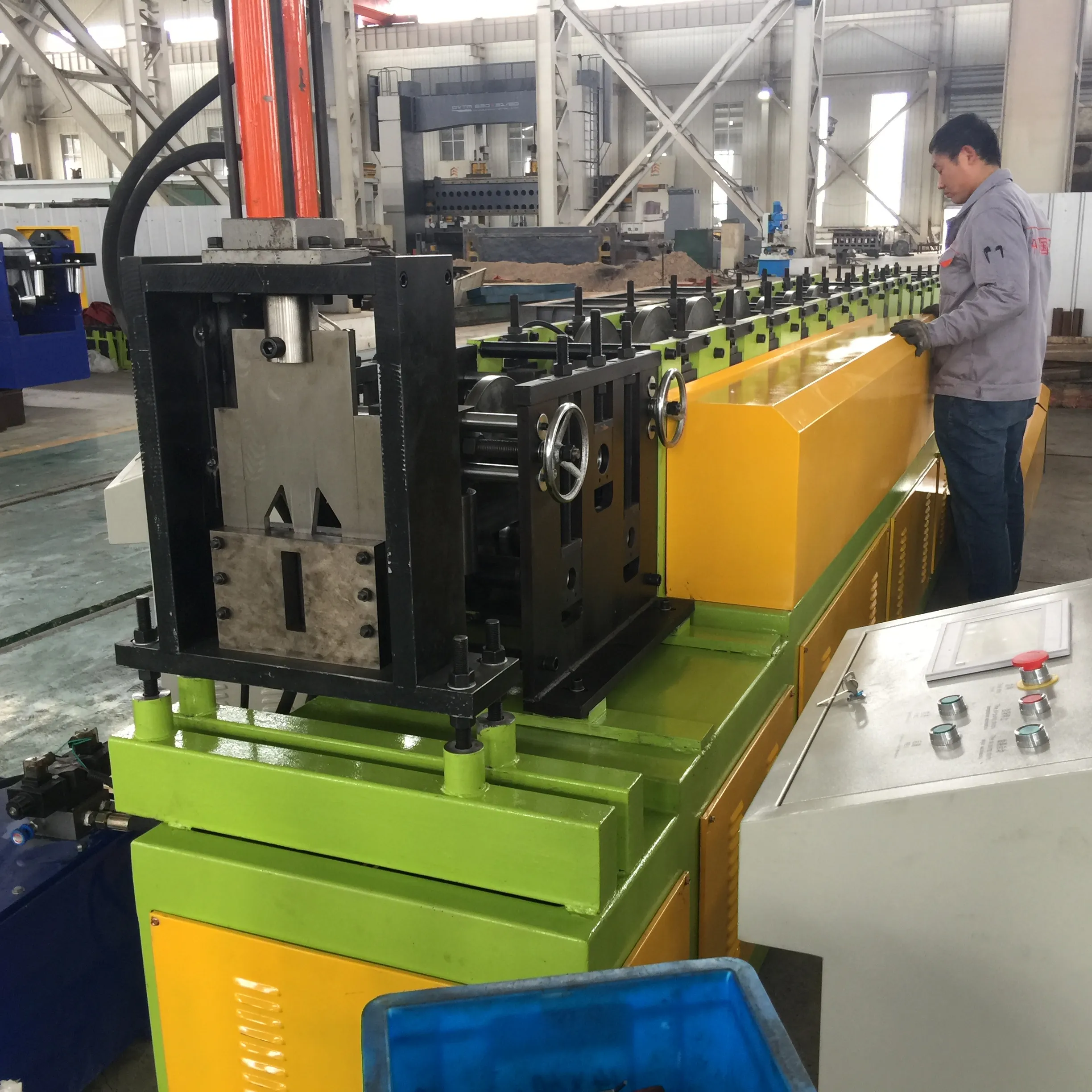

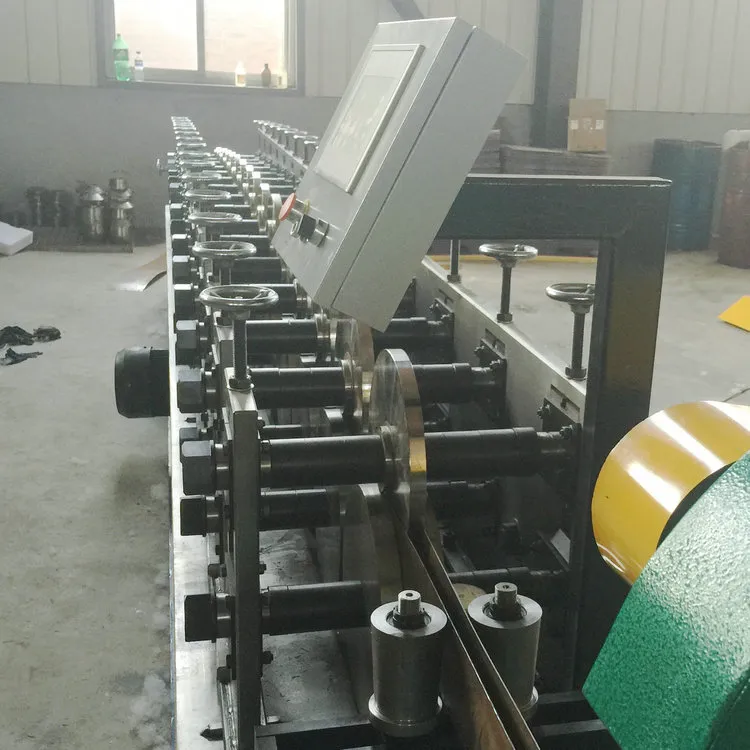

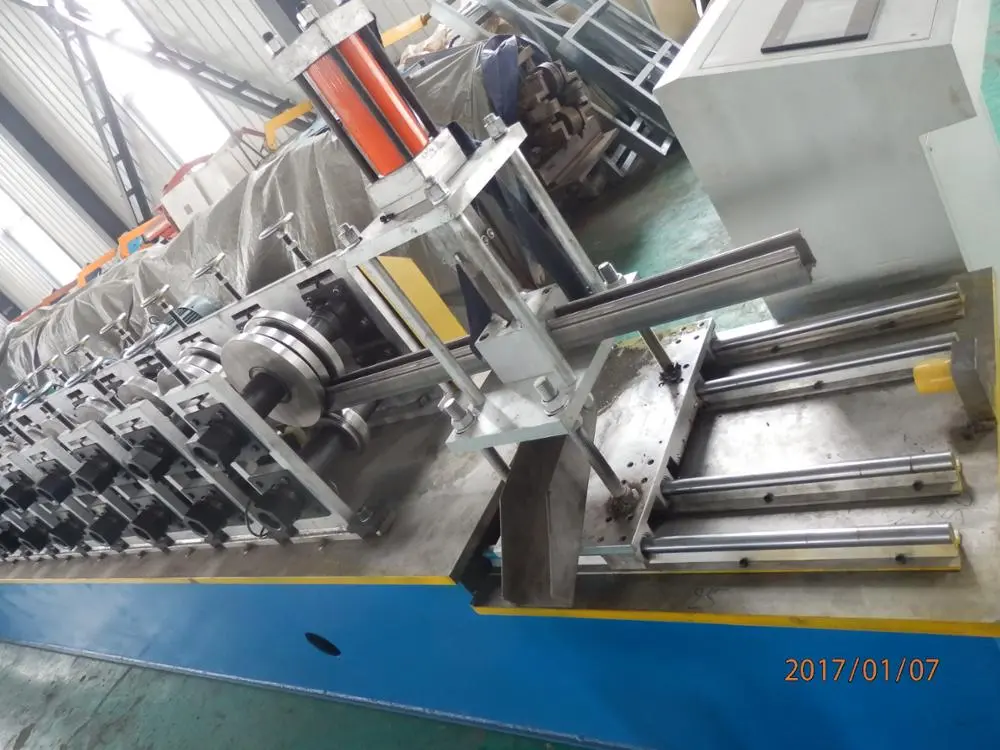

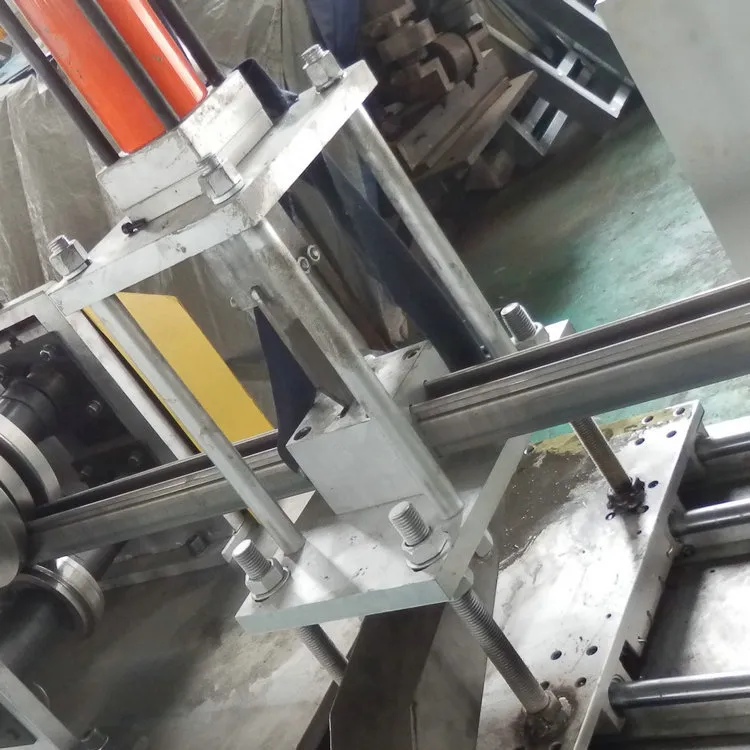

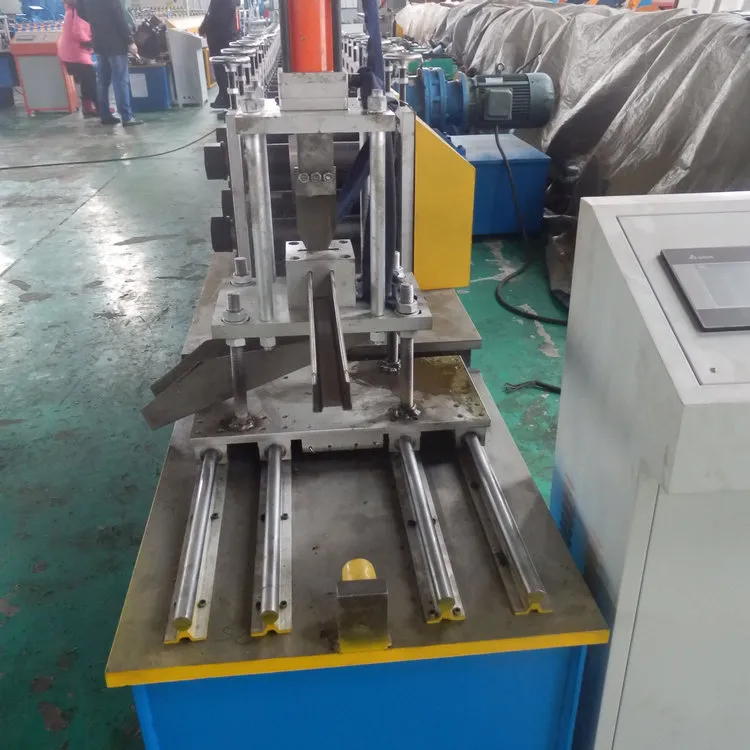

some details of guide rail roll forming machine



If you want to know more about our products,please copy and paste the link into your web browser.

   https://www.youtube.com/channel/UCea3FfE-LRSPhycSuiY4snA



 Cangzhou ZHONGTUO Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold window guide rail roll formers. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.

We specialized in manufacturing Color steel roll forming machinery, C U M Z purlin roll forming machine,Glazed tile roll forming machine, steel floor deck window guide rail roll former, shutter door roll forming machine, metal stud and track window guide rail roll former,highway guardrail roll forming machine, downspout machine,guide rail roll forming machine,no beam roof tile machine,  welding pipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.

FAQ:

1.How to get a quotation of guide rail roll forming machine?
Give me the profile drawing and thickness for the roller shutter guide rail,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.



2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.



4. What is your after-sale service?
guide rail roll forming machine's warranty period is 24months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.
