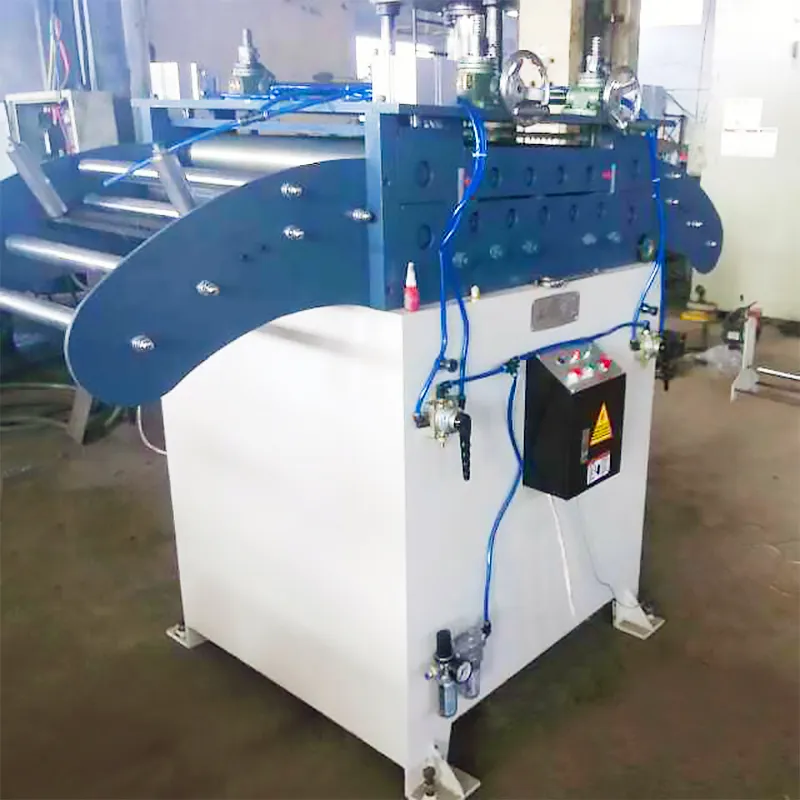

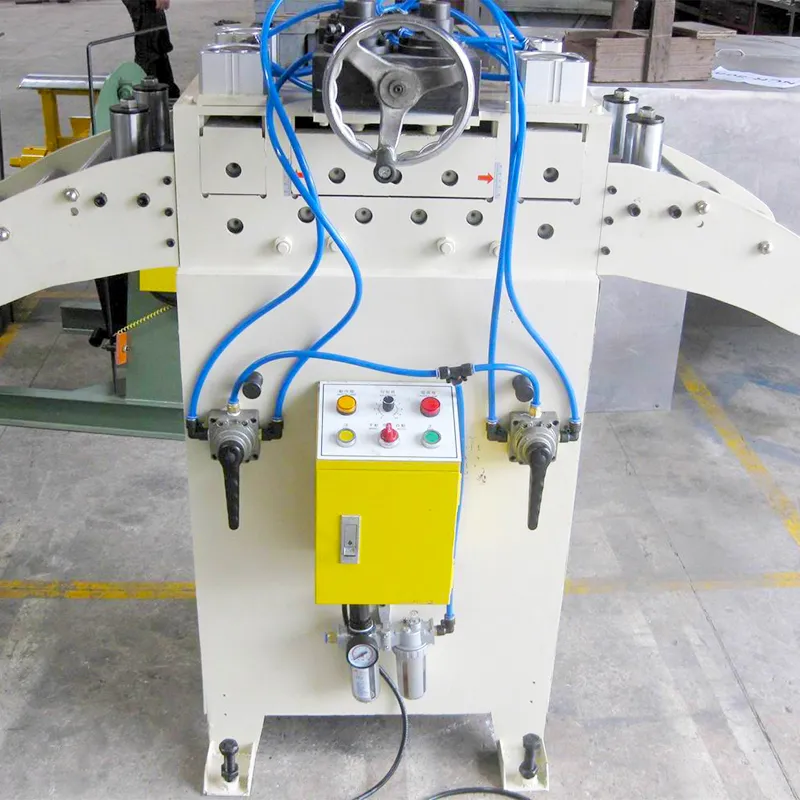

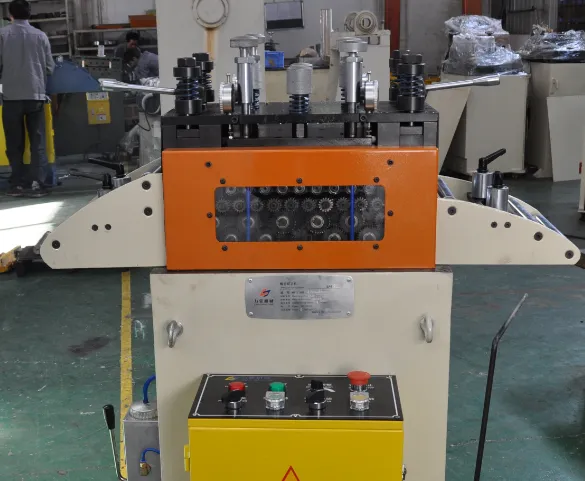

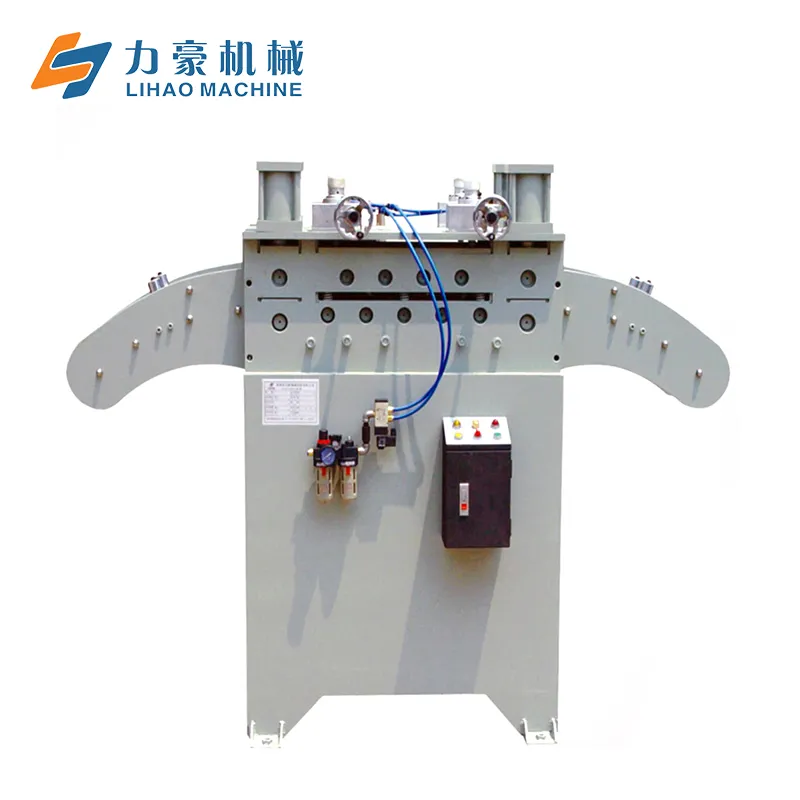

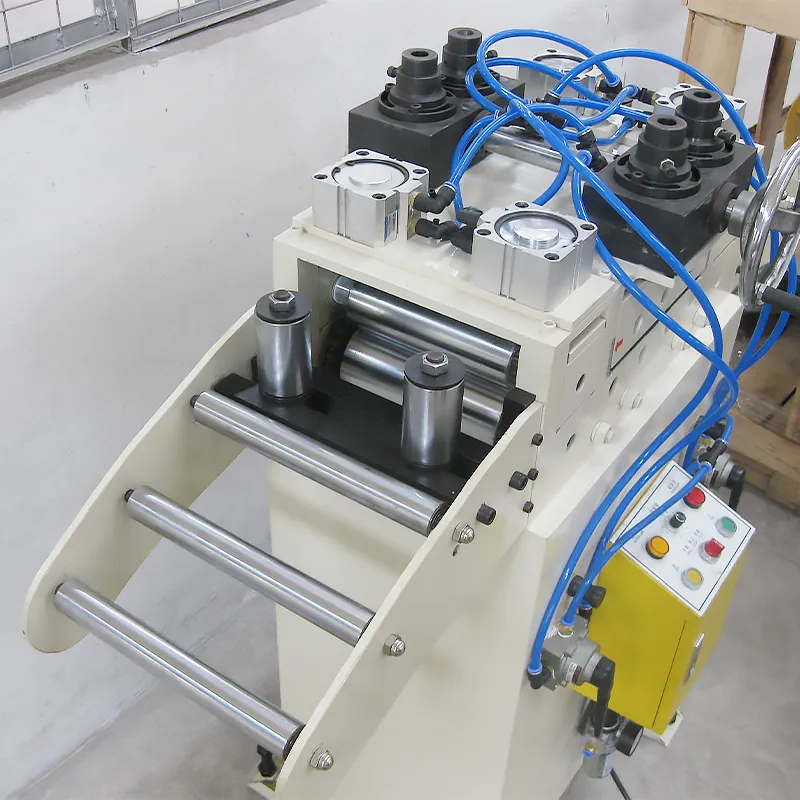

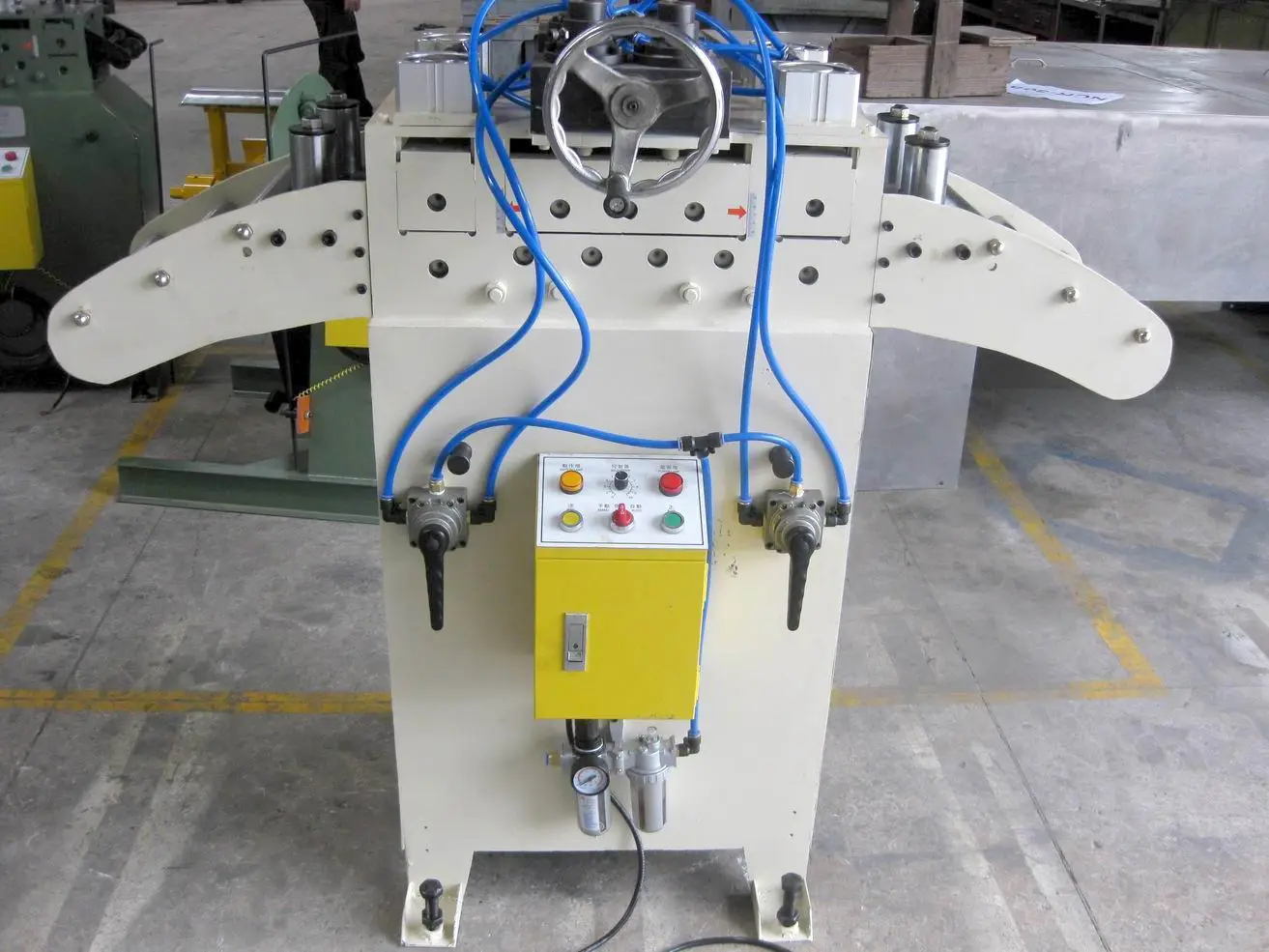

New High Precision Steel Plate Straightening Machine | Roll Type Metal Sheet Flattening Equipment with Motor 380V 20 M/Min HS-600A





Straightener for Thick Material Sheets (HS TYPE)

sheet metal straightening machine



Description :
We are the Manufacturer and Supplier of Metal Sheet Straighteners of various dimensions. Straightener of high precision, high speed and special structure for sheet is a powerful new equipment, used in high-speed pressing. It can improve the quality and quantity of press workpieces.



Feature :

1. Suitable for straightening difference thicker metal sheets.
2. Equipped with Japanese magnetic contactor and electronic components, minimum breakdown.
3. Efficient automatic material feeding equipment, a dramatic increase in productivity is achieved by land up with Uncoiler ( MT-type). Double head Coil cradle (DBMT-type).

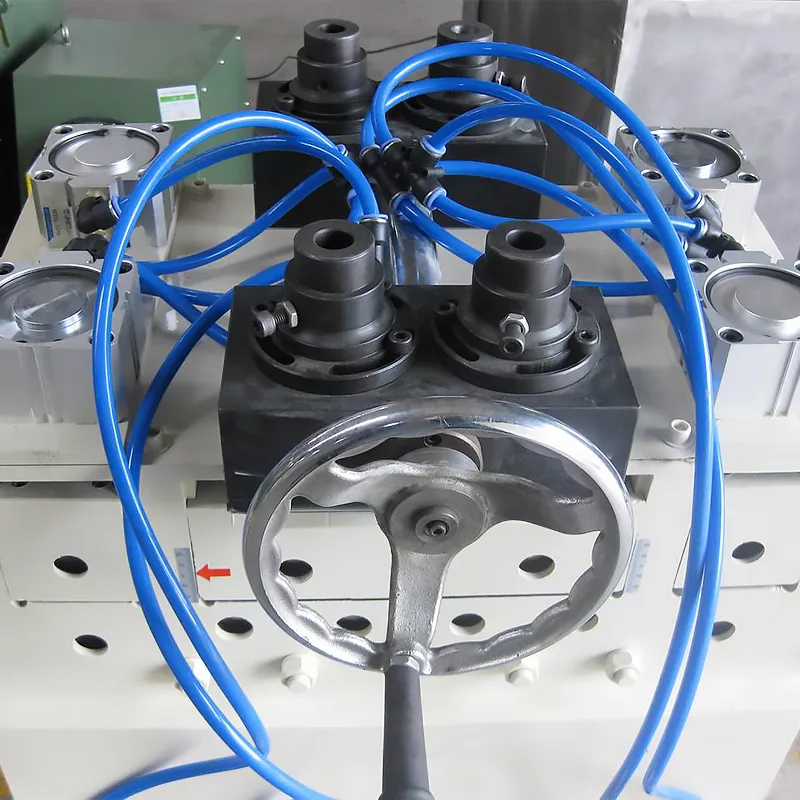

4. Straightening capacity is full enhanced by back-up rolls
5. The rack of input and output to assist and support the material.
6. All rolls are made of bearing steel, have all been quenched, hard-chrome plated and grinded with mim HRC60.

Specification :

HS Type ( For Thickness 0.4-2.2mm)

Type	HS-200	HS-300	HS-400	HS-500	HS-600
Max.Material width	200mm	300mm	400mm	500mm	600mm
Material thickness	1.5-6.0mm
Max.Feed speed	15m/min
Motor	2HP	3HP	3HP	5HP	5HP

Straightening Performance

Type	HS-200	HS-300	HS-400	HS-500	HS-600
Material Thickness(mm)	Material Width(mm)
3.2	200	300	400	500	600
4.0	200	300	400	500	600
4.5	200	300	400	400	400
5.0	200	250	300	300	300
6.0	180	180	200	200	200
