New Design of Lace Shearing and Molding Cutting Metal Roofing Step Tile Glazed Tile with 3D Effect Rolling Forming Machine 5 m/min+ZTAC+15 kw

Cangzhou Zhongtuo International Trade Co., Ltd

New Design of Lace Shearing and Molding Cutting Metal Roofing Step Tile Glazed Tile with 3D Effect Rolling Forming Machine 5 m/min+ZTAC+15 kw

Name: New Design of Lace Shearing and Molding Cutting Metal Roofing Step Tile Glazed Tile with 3D Effect Rolling Forming Machine 5 m/min+ZTAC+15 kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT80937565

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

5 m/min

Model Number:

ZTAC

Power(W):

15 kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Type
  Tile Forming Machine
- Tile Type
  Colored Steel
- Use
  ROOF
- Voltage
  Customize
- Rolling Thinckness
  0.3-0.8mm
- Feeding Width
  1220 mm
Product Overview

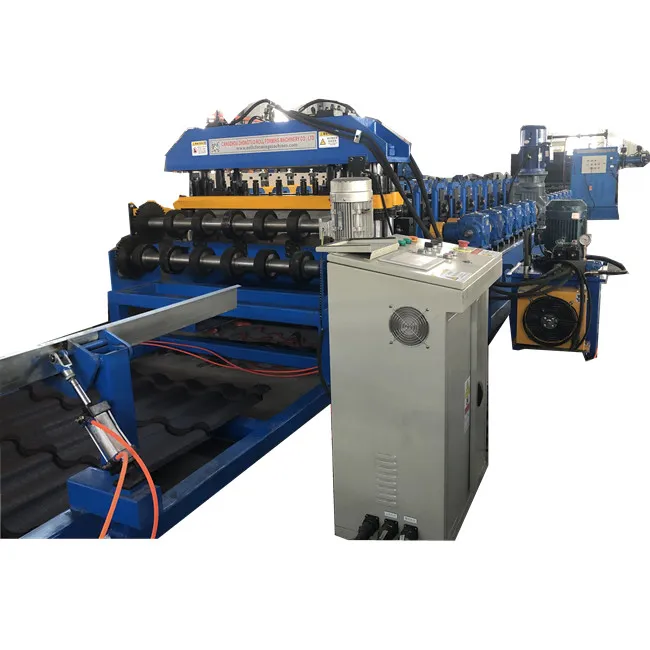

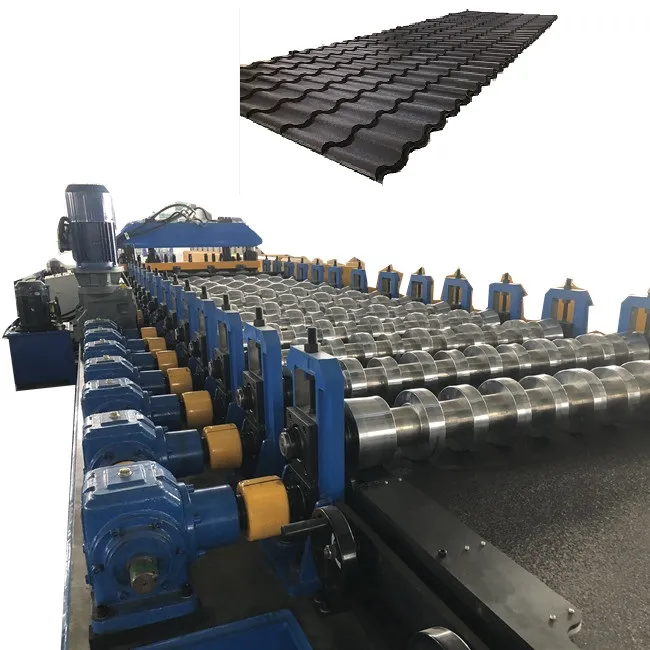

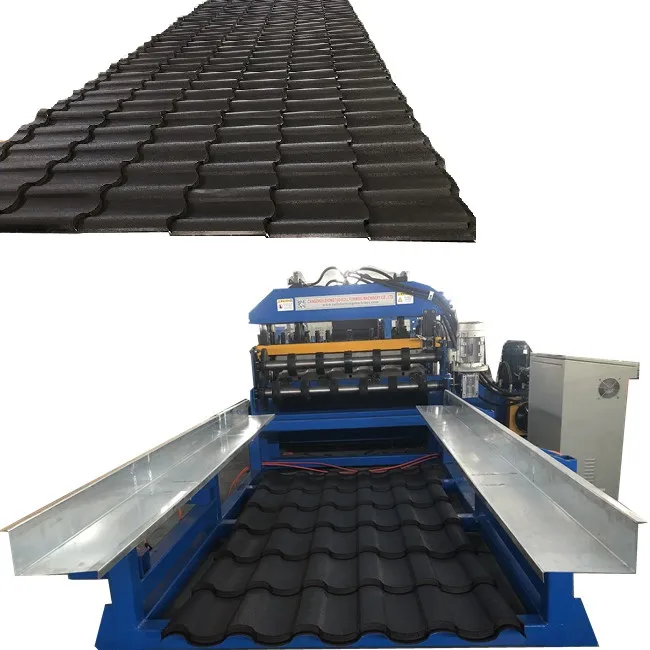

New design whole molding lace shearing step tile roofing sheet machine

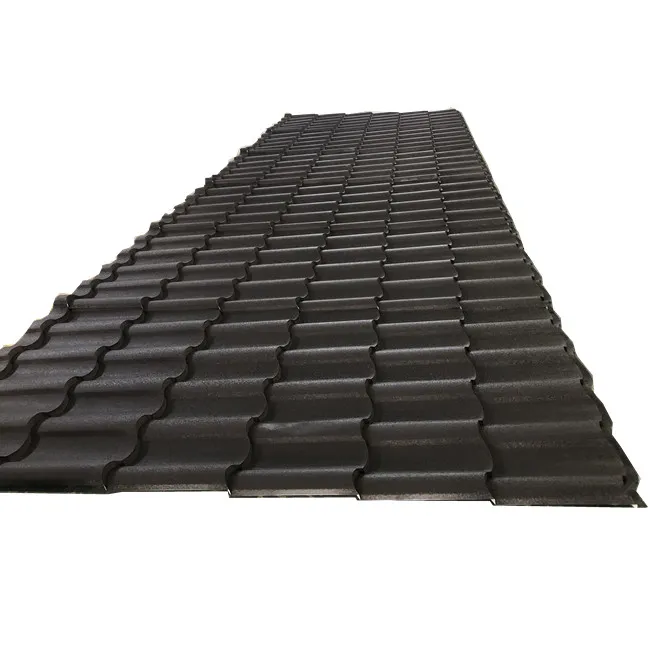

High speed glazed tile or we call it as step tile for metal roofing sheets by metal rolling forming method. Different with other traditional metal step tile, it is designed with lace shearing for beautiful edge and whole mold shearing for fast speed.

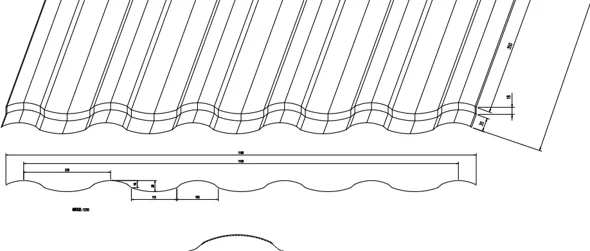

Here are we can take some drawing profile for you to show more details

1. Speed can reach 7 to 10 meter per minute 2. With beautiful lace cutting for good installation effect. 3. Whole mold stepping and shearing, it can keep same distance of all stepping.

Front view
Left elevation
Front elevation

PRODUCT SPECIFICATIONS

No
Item
Data
1
Power
15 KW
2
Roller station
19
3
Shaft diameter
80mm
4
Base frame
500 H beam
5
Working speed
7 to 11 m/min
6
stepping method
Lace shearing
7
Shearing power
hydraulic
8
Transmission
Gearbox

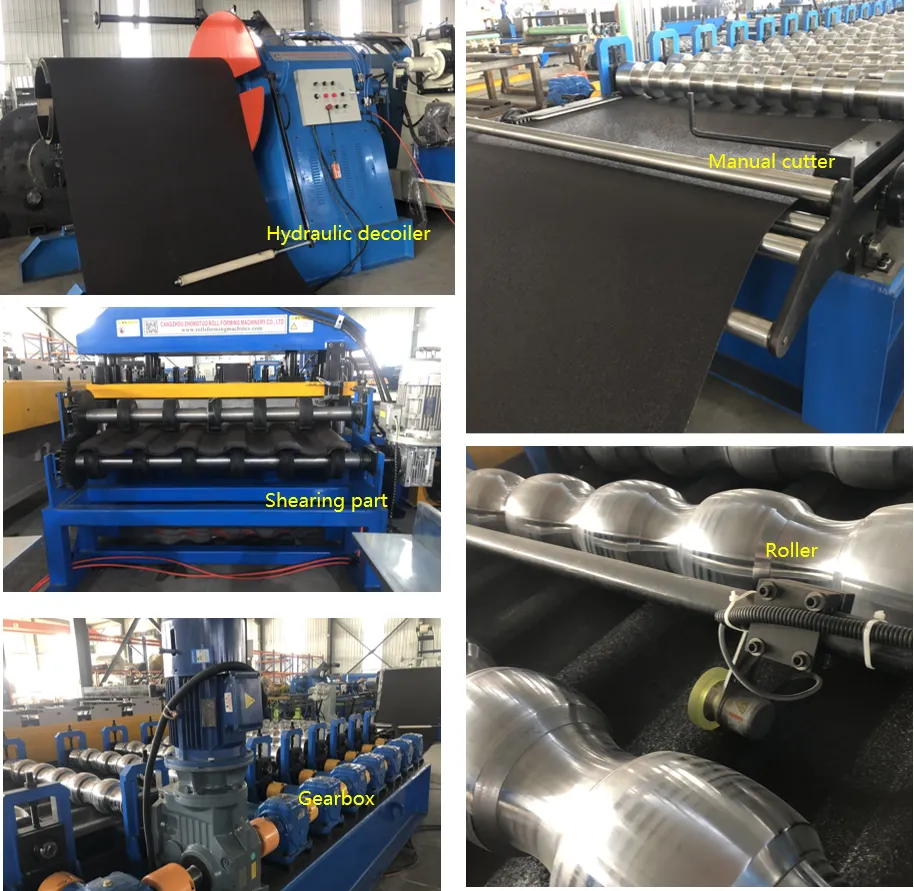

PRODUCT CONFIGURATION

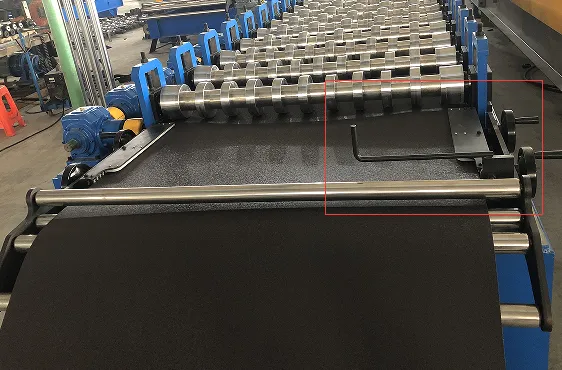

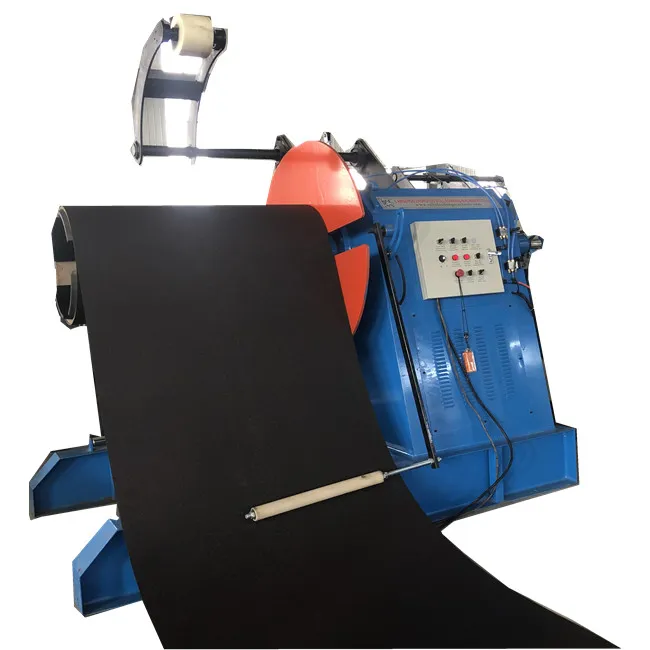

Hydraulic decoiler
Manual cutter
PLC connection

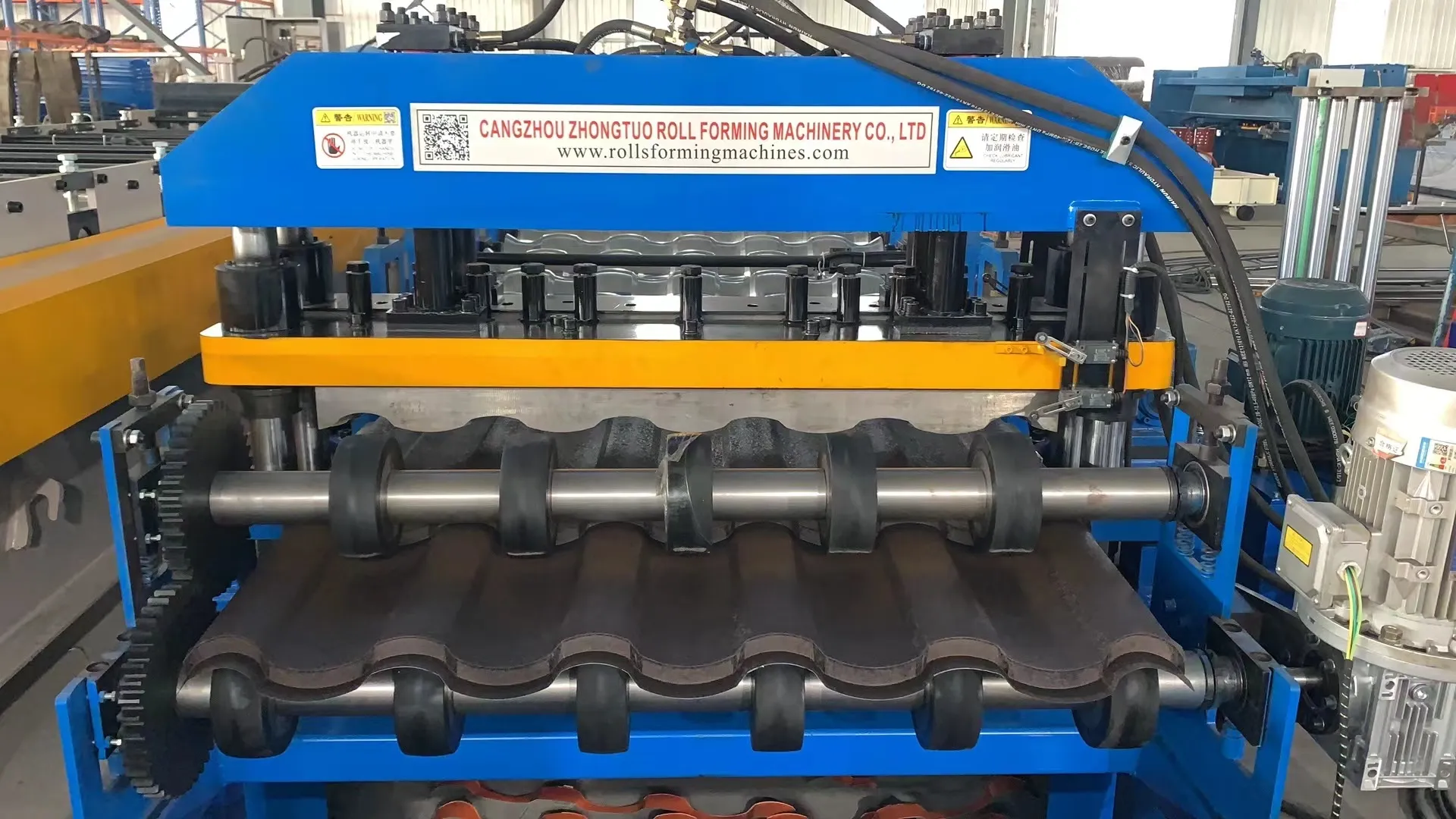

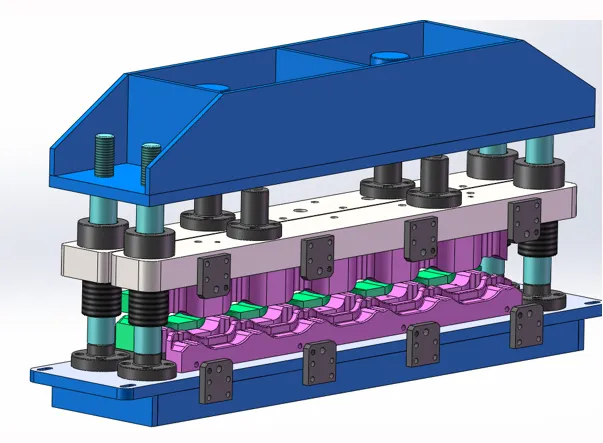

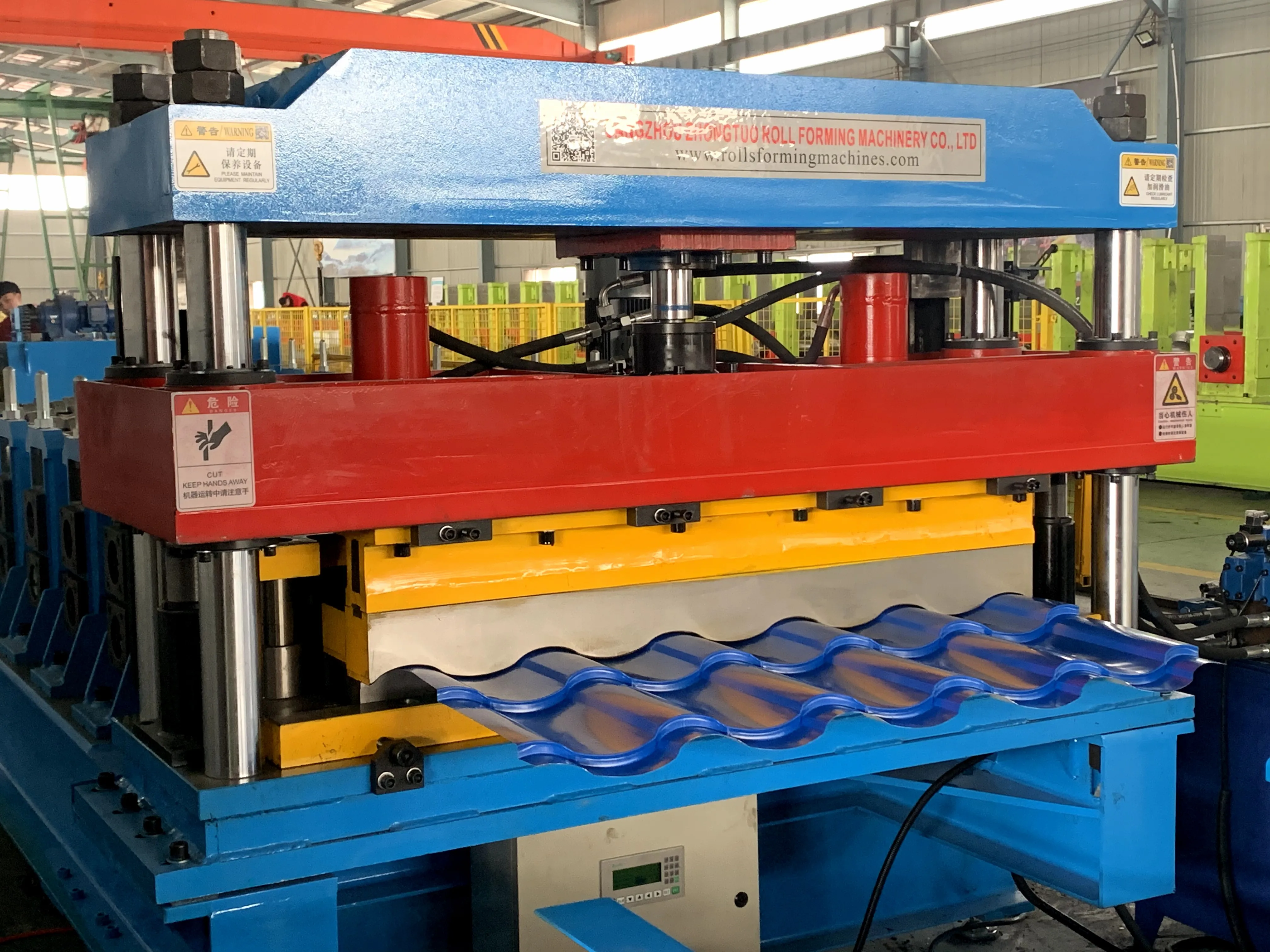

Molding shearing design
The lower cutting knife is fixedly installed on the lower knife beam, and the lower knife beam is arranged on the cutting knife frame

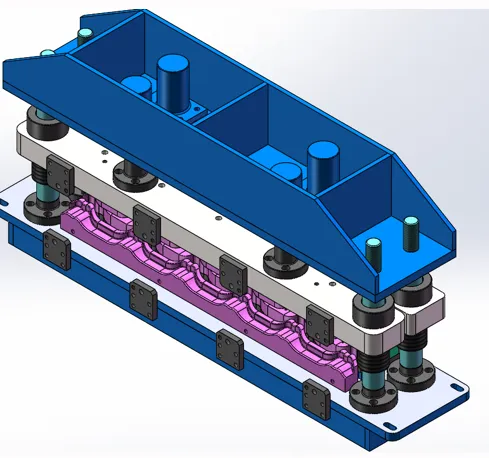

Whole molding shearing
It can do the shearing and stepping together by this way we can save time and enhance the working speed of metal roofing tile machine.

All the elements of the metal roofing tiles are adjustable and customized.
1. For the decoiler, you can choose the hydraulic one or the metal decoiler.
2. As to the stacker, you can choose auto type or the manual one.

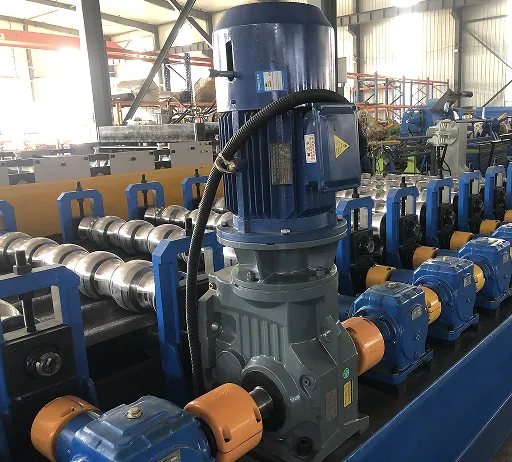

3. The machine design using the gearbox type.
4. Shearing we use the servo motor.

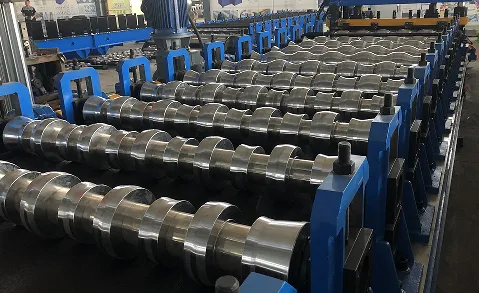

7. High grade of the roller chroming for long time to use.

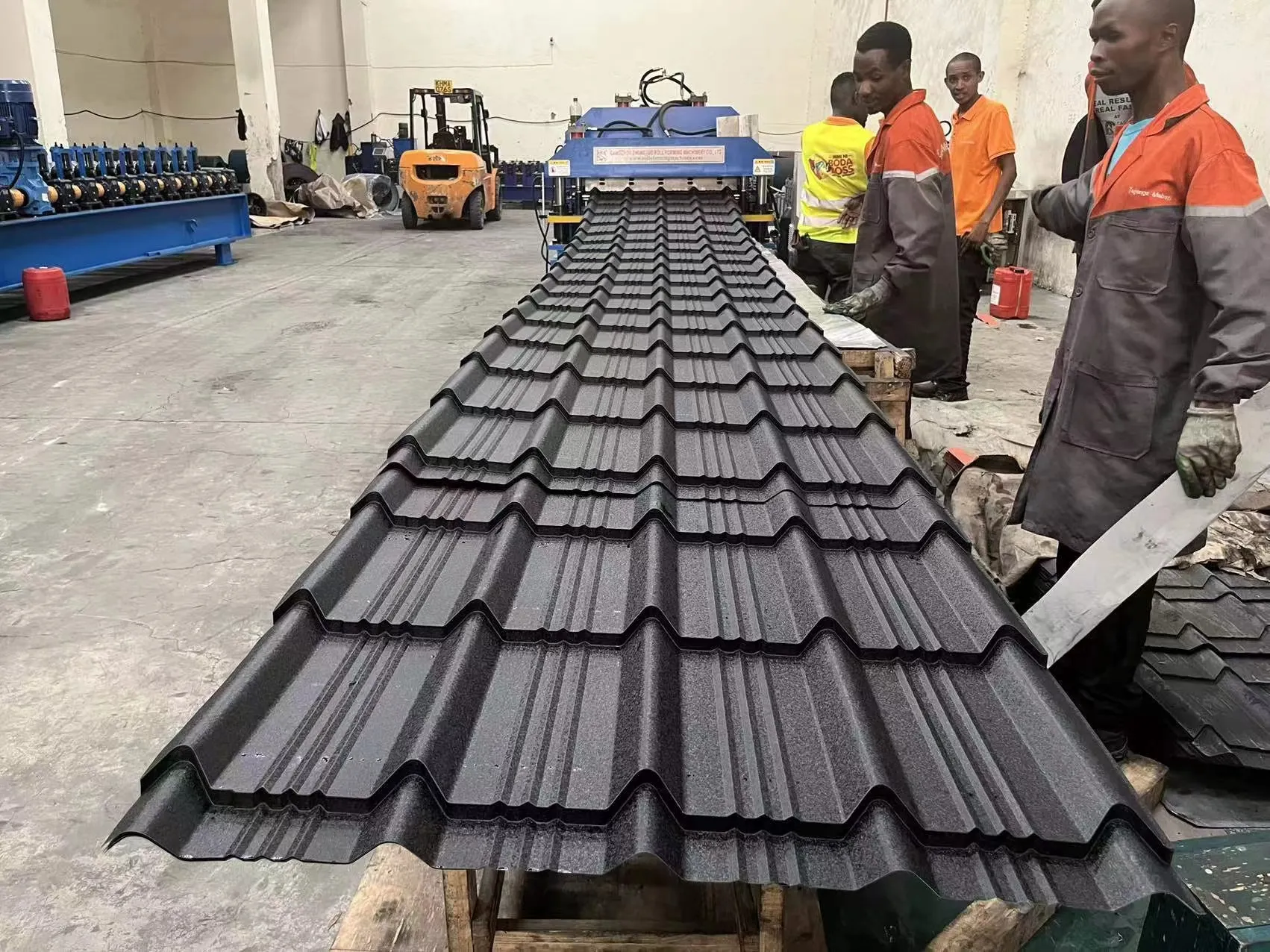

Successful Project

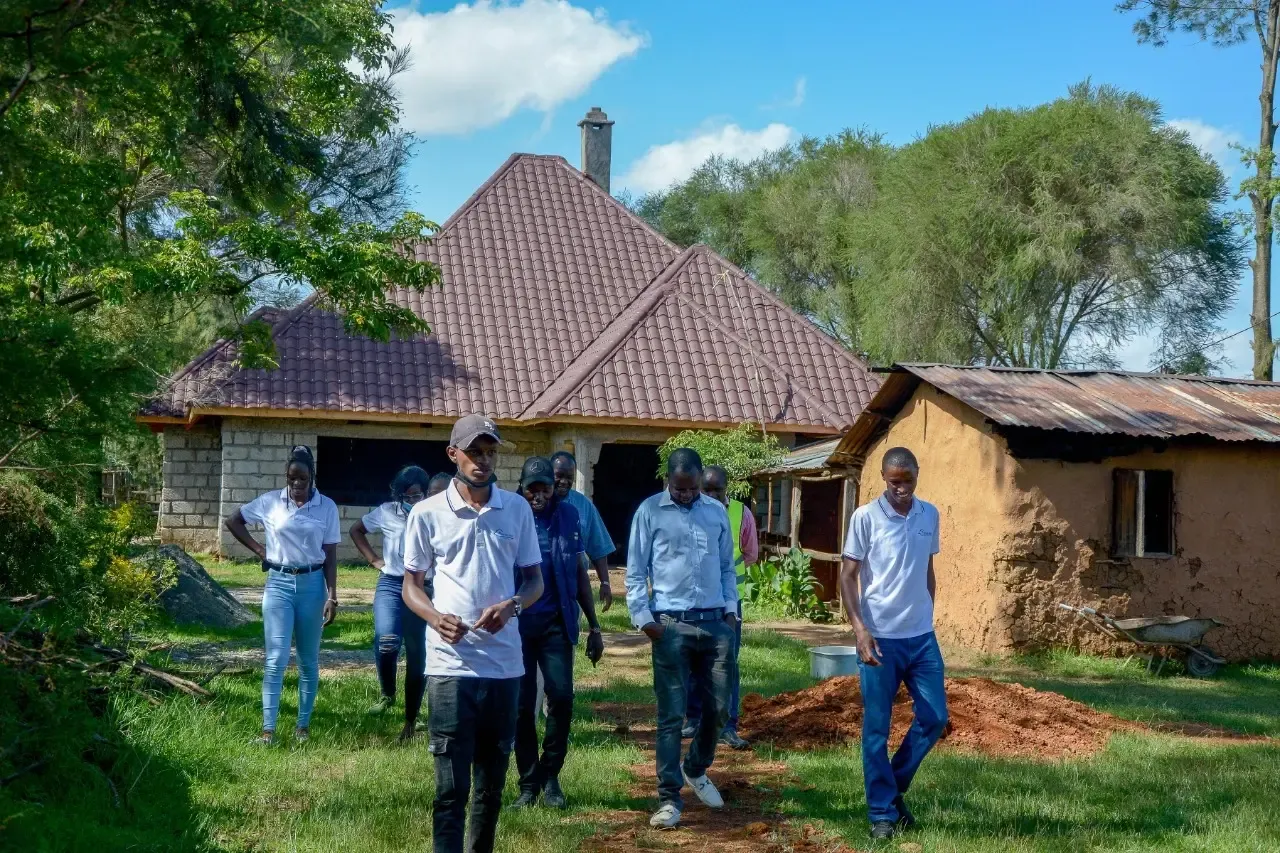

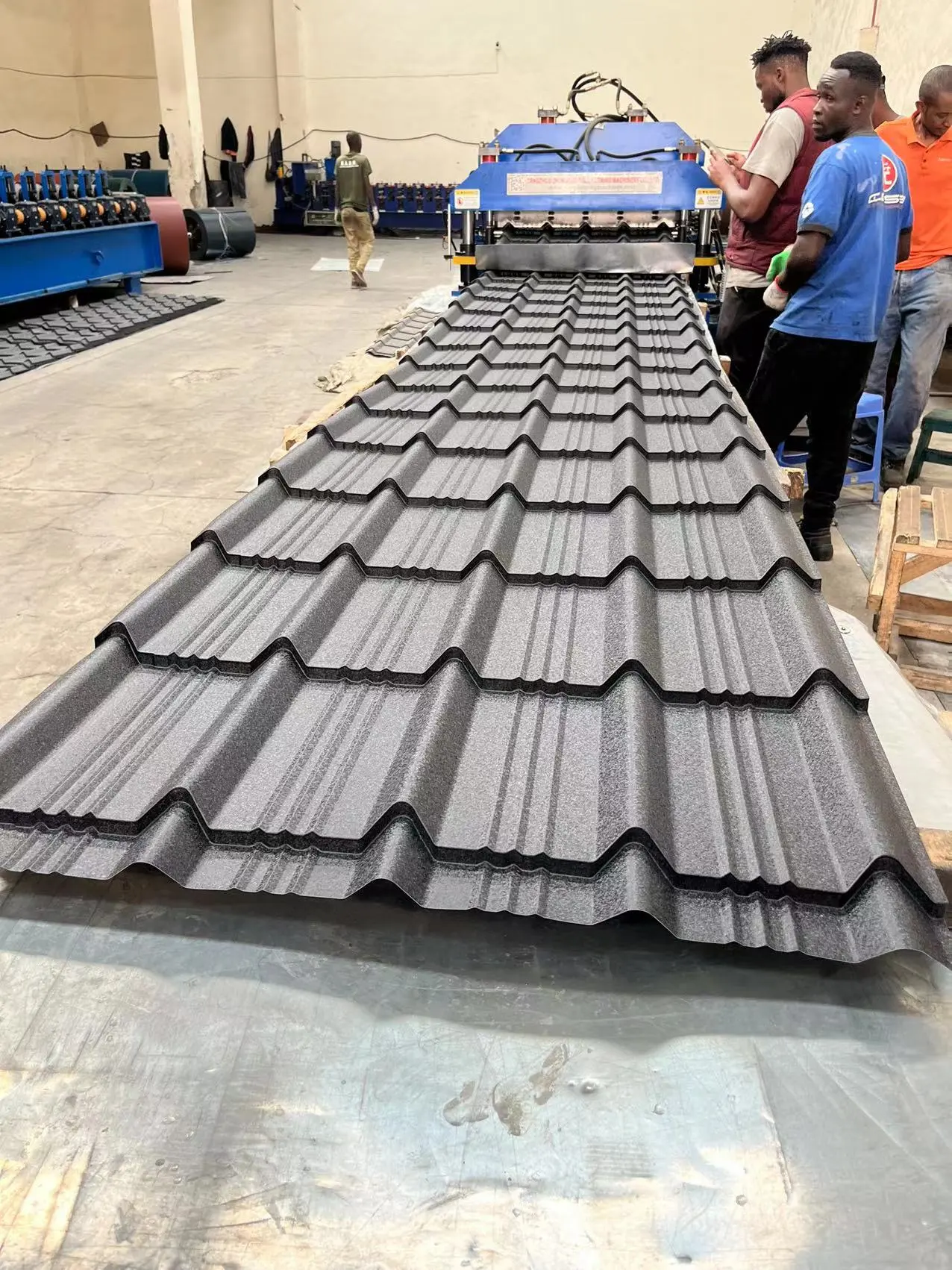

Project in Kenya
Project in Kenya
Project in Kenya
