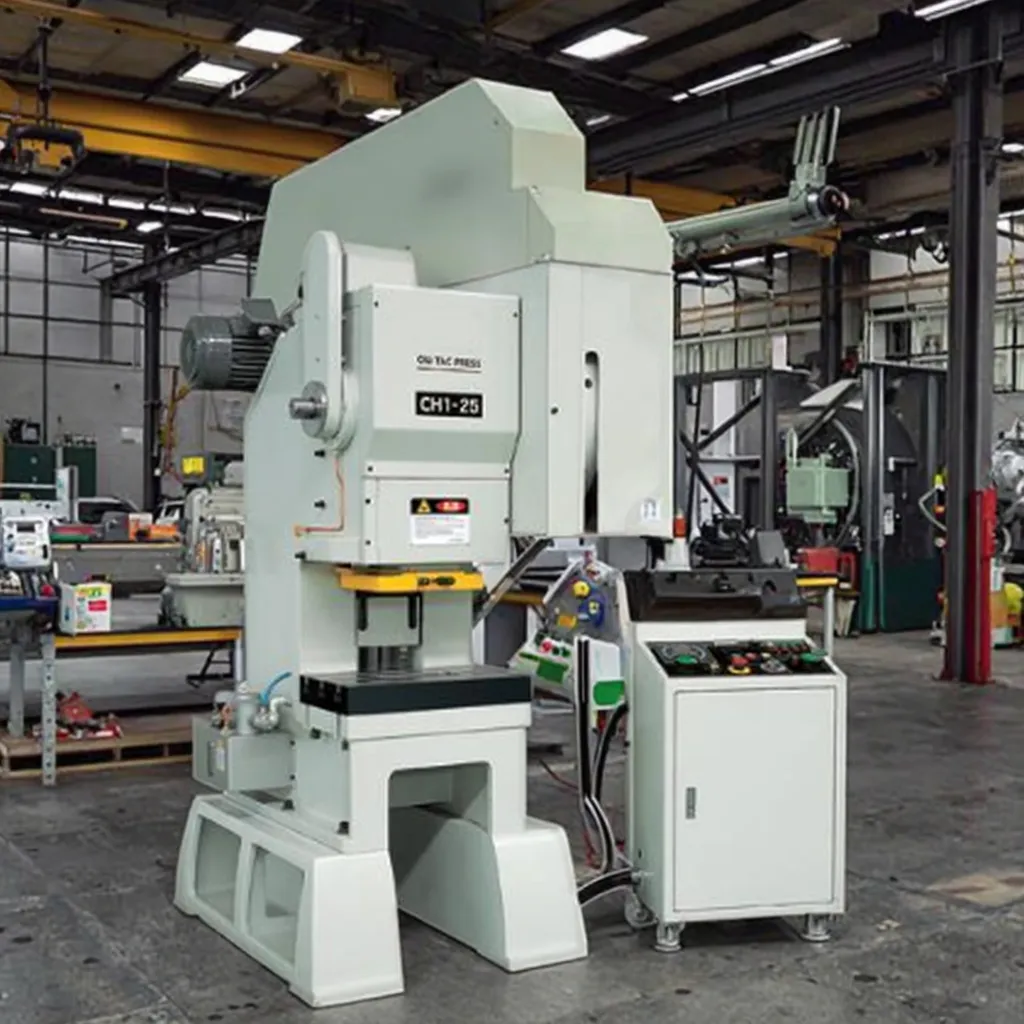

New Condition Stainless Steel Plate Metal Hole Punching Machine Punch Press Stamping with Core Motor and Pump Components ZT-200-1250

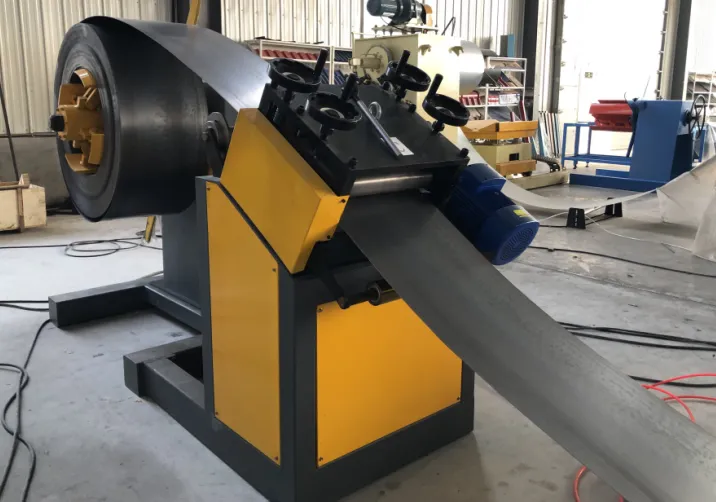

1.Decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system.

Decoiler type: Manual

Loading capacity: 5T

Uncoiling width: 1250mm

Inner diameter: 450-550mm

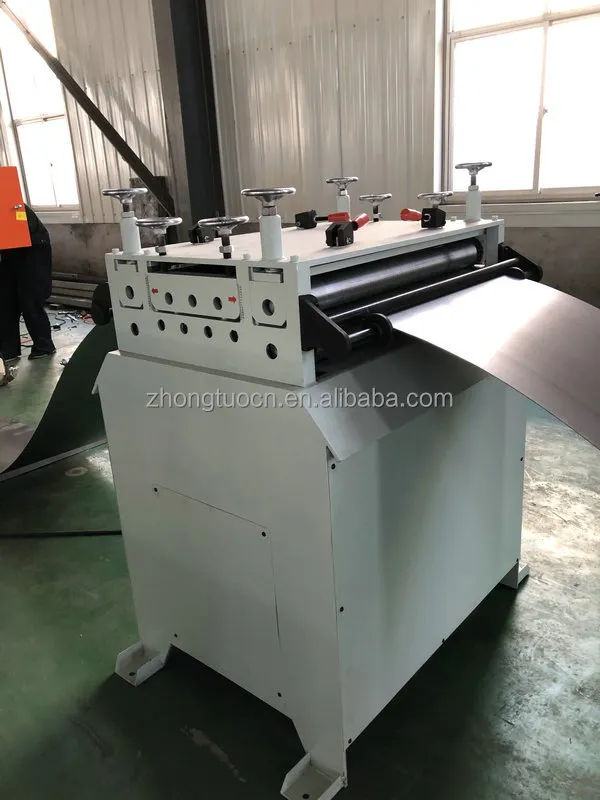

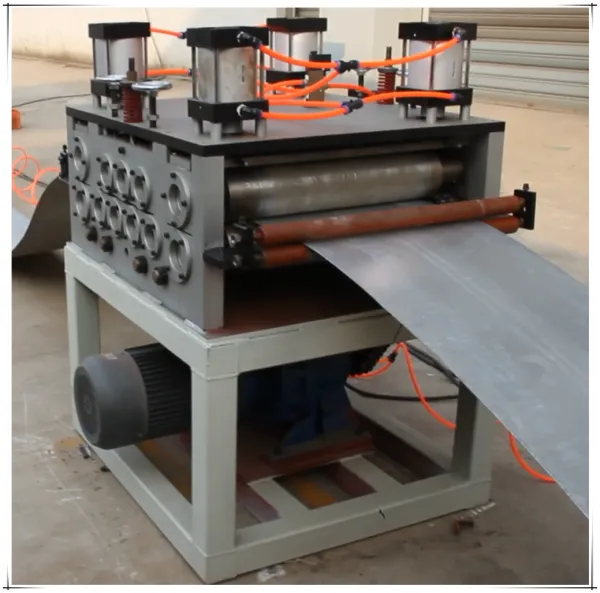

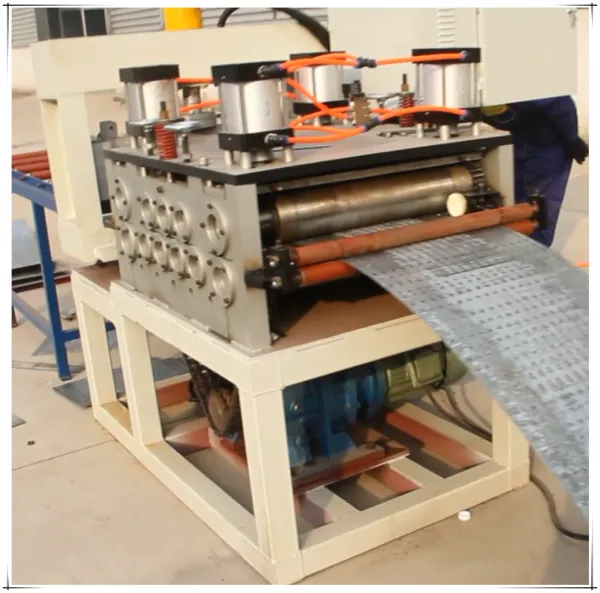

2.Flattener

Usage: The coil from Decoiler is a little bit curves, so the leveling system is to help make the coil straight, neat and clear. We will take 11 rollers, upper 5 rollers and down 6 rollers to level the coil.

leveling Rollers: 11 Rollers

Diameter: 80 mm

Leveling thickness: 0.8-1.5 mm

Max leveling speed: 12 m/minute

Drive type: Gear

Motor power: 3 kw

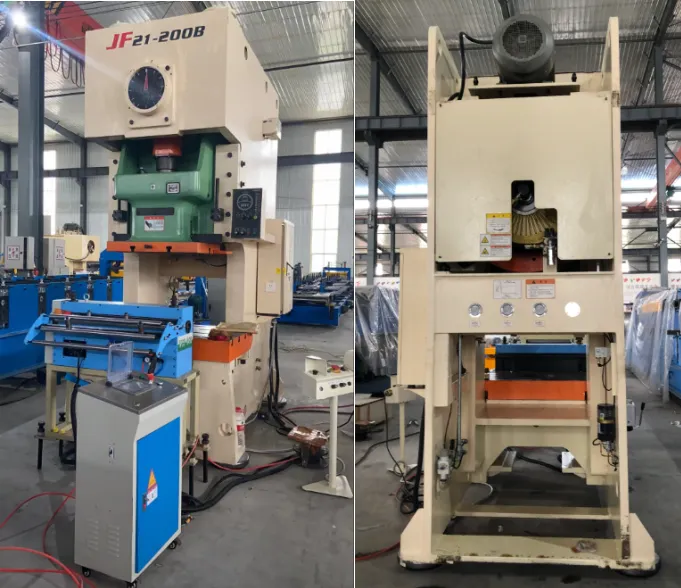

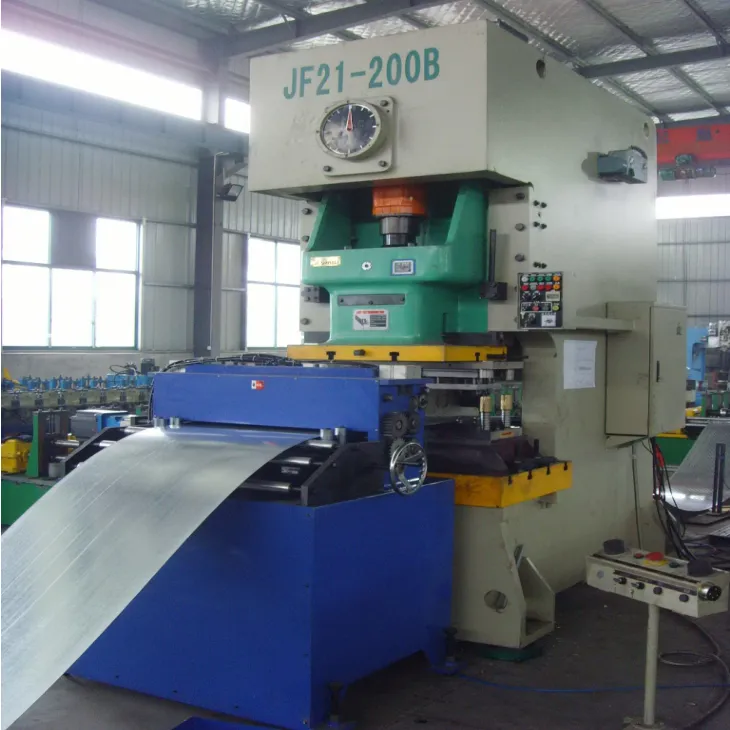

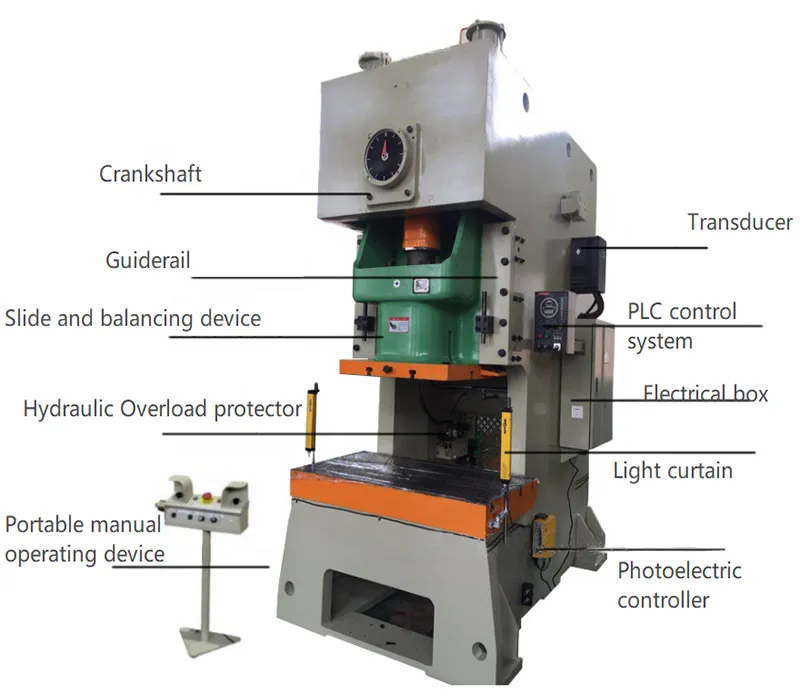

3.Punching Machine

The specification of the the punching system:

1. Press tonnage : 200 T

2. Layout Form: Standing type

3. Size : 2.5*1.6*1.8 m (H*W*L)

4. Model No : J 21-200 T (GANTRY TYPE)

5. Punching machine weight : 10 T(The whole line weight 14 tons)

6. Power type: Electric power

7. Voltage: 380 V 50 Hz 3 Phrase

8. Feeding power: 1.5 kw

9. Main motor power: 18.5 kw

10. Slider trip: 30 mm

11. Slide Strokes: 55-60 times/minute

12. Punching speed: 1.5-2.5 meters /minute

13. Feeding type: Automatic servo feeding (Automatic stop when punching)

14. Punching mould: 2 sets (Double line mould, each time double line of holes)
