Muti Sizes in One Automatic Changing Sizes C Channel ud cd Profile Machine Metal Stud and Track Roll Forming Machine 0-20m/min+ZTRFM-c01+customized

Name: Muti Sizes in One Automatic Changing Sizes C Channel ud cd Profile Machine Metal Stud and Track Roll Forming Machine 0-20m/min+ZTRFM-c01+customized
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT75740065

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

0-20m/min

Model Number:

ZTRFM-c01

Max. Working Width:

customized

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Voltage
  220V Electrical Equipment, 220V-3P-50HZ
- Power(W)
  21KW

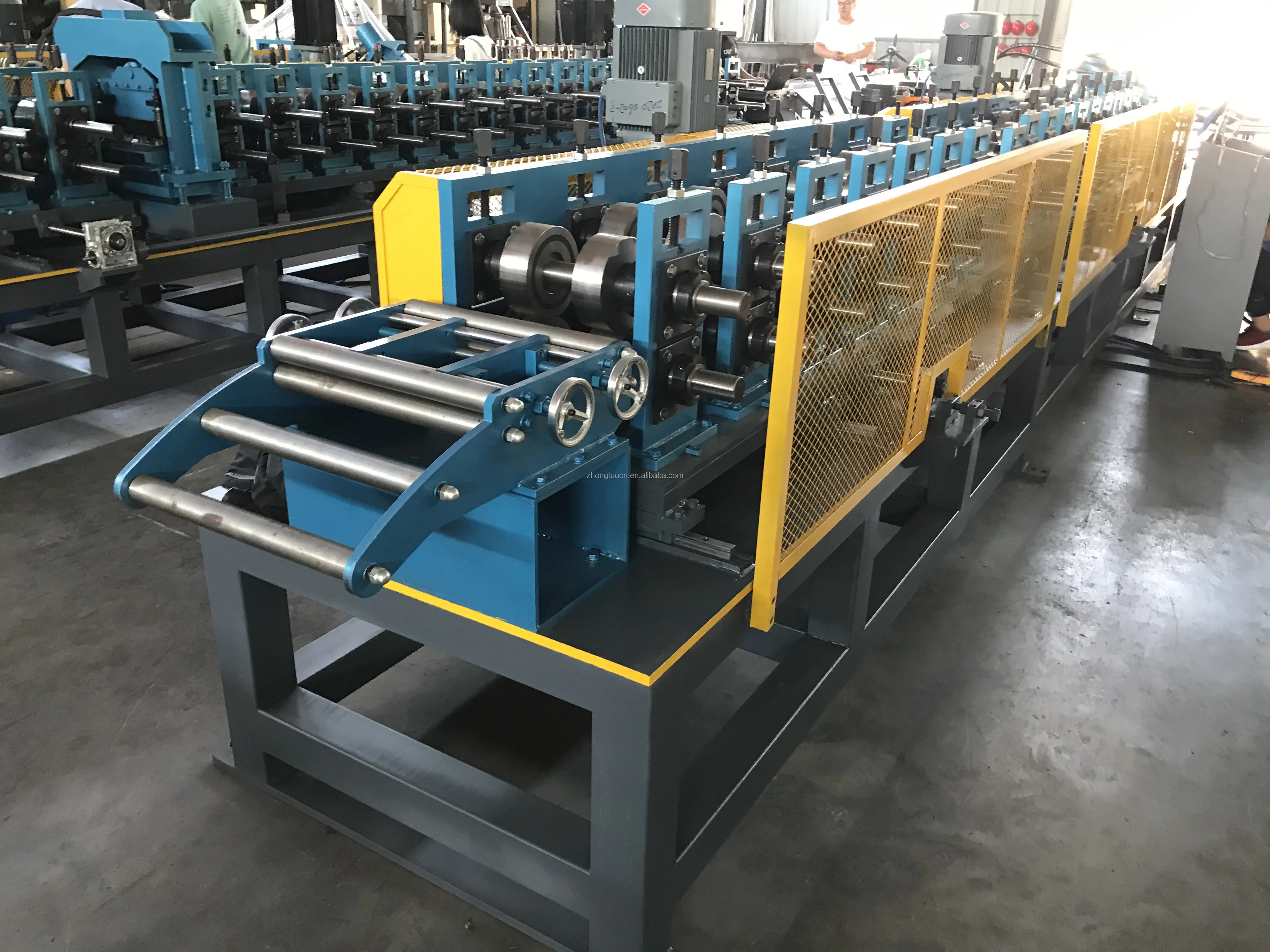

Muti Sizes in One Automatic Changing Sizes C channel ud cd Profile Machine Metal Stud And Track Roll Forming Machine

One machine can produce both c and u channel with several dimensions. The machine can be adjusted on PLC screen automatically, just need one minute then machine can start to produce other dimension. Below is the machine automatic move video for your reference.

Profile drawing as below:

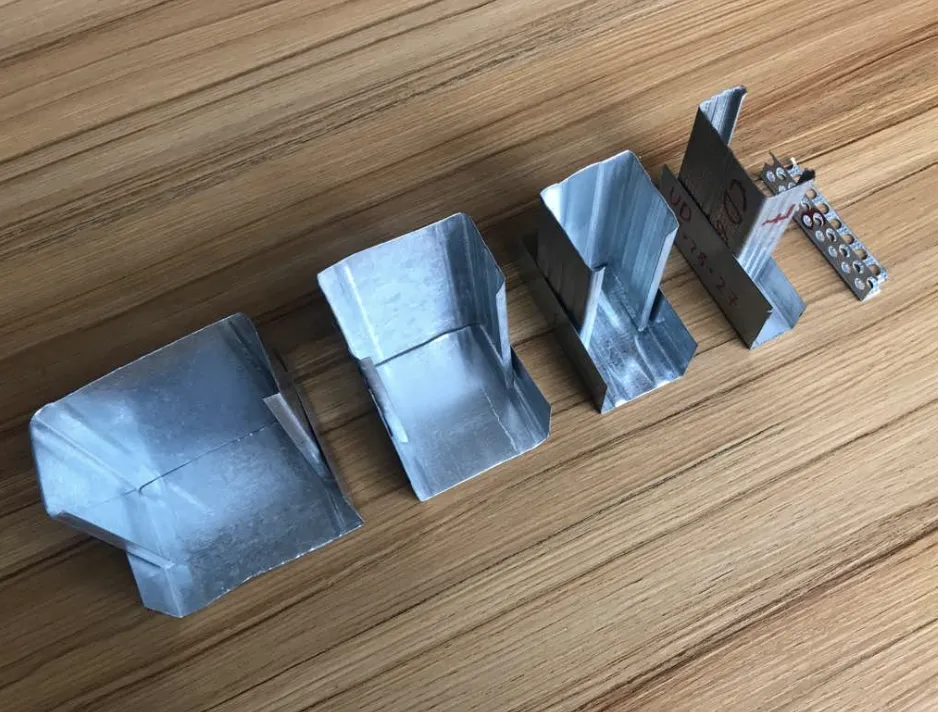

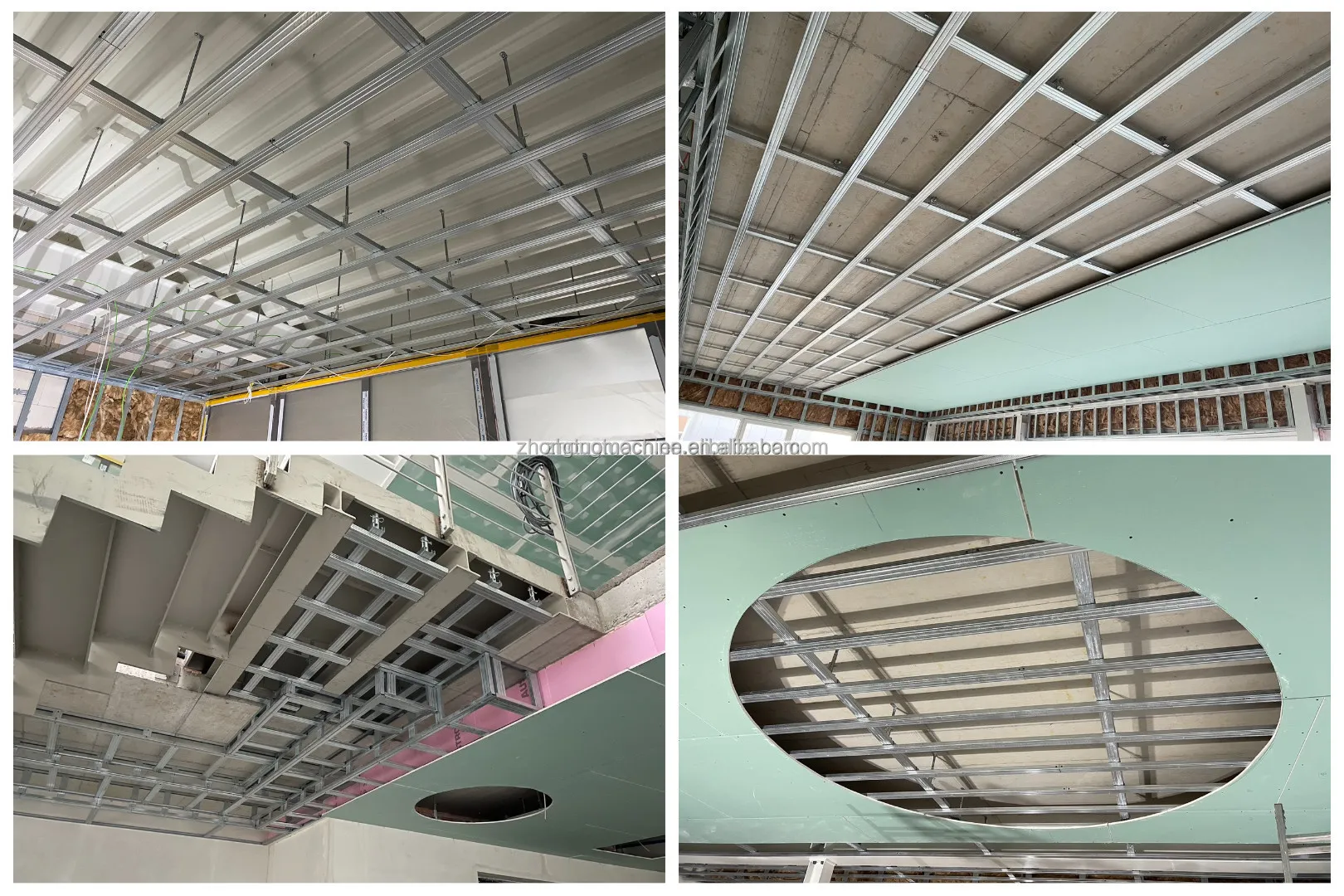

Here is the C and U channel profile drawing and dimensions for your reference. In drywall system, stud will insert into track, so usually stud need punching holes. One machine can produce both C and U sizes by adjust the roller spacer manually or automatically. We have different machine speed for you choose, like 25 m/min, 45 m/min, 70 m/min with semi-automatic and full automatic type.

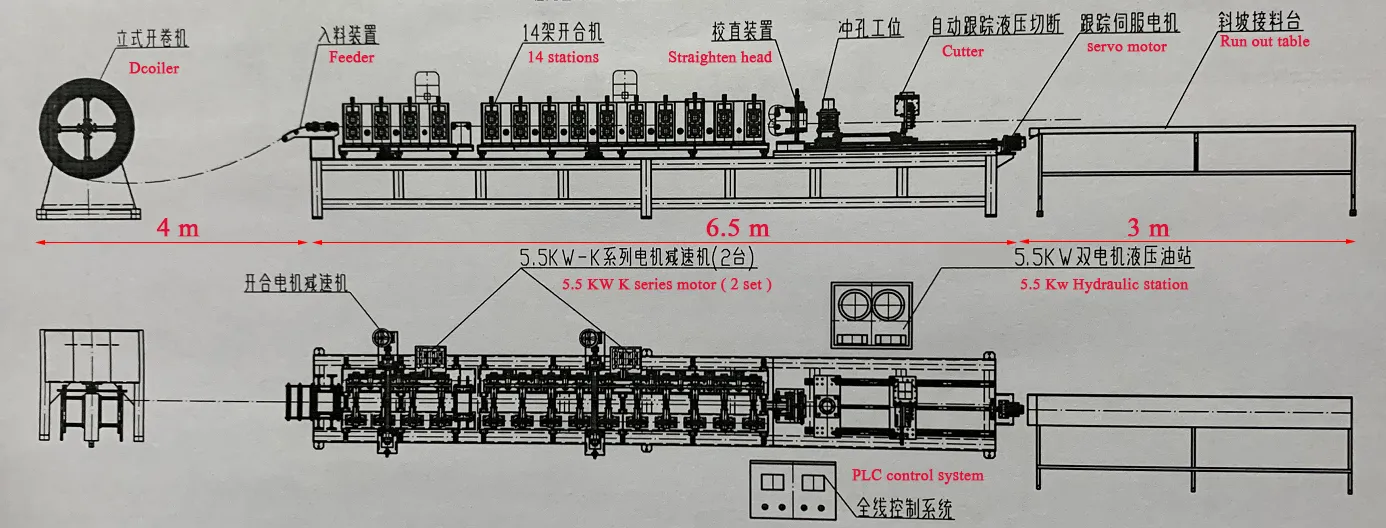

The C U channel drywall production machine working process:
Uncoiling---feeding material---roll forming---staightening---punching holes---tracking cutting---product collect

Product
Details
Parameter
Raw material
Galvanized steel
Material thickness
0.4-0.9 mm
Cutting length
Adjustable

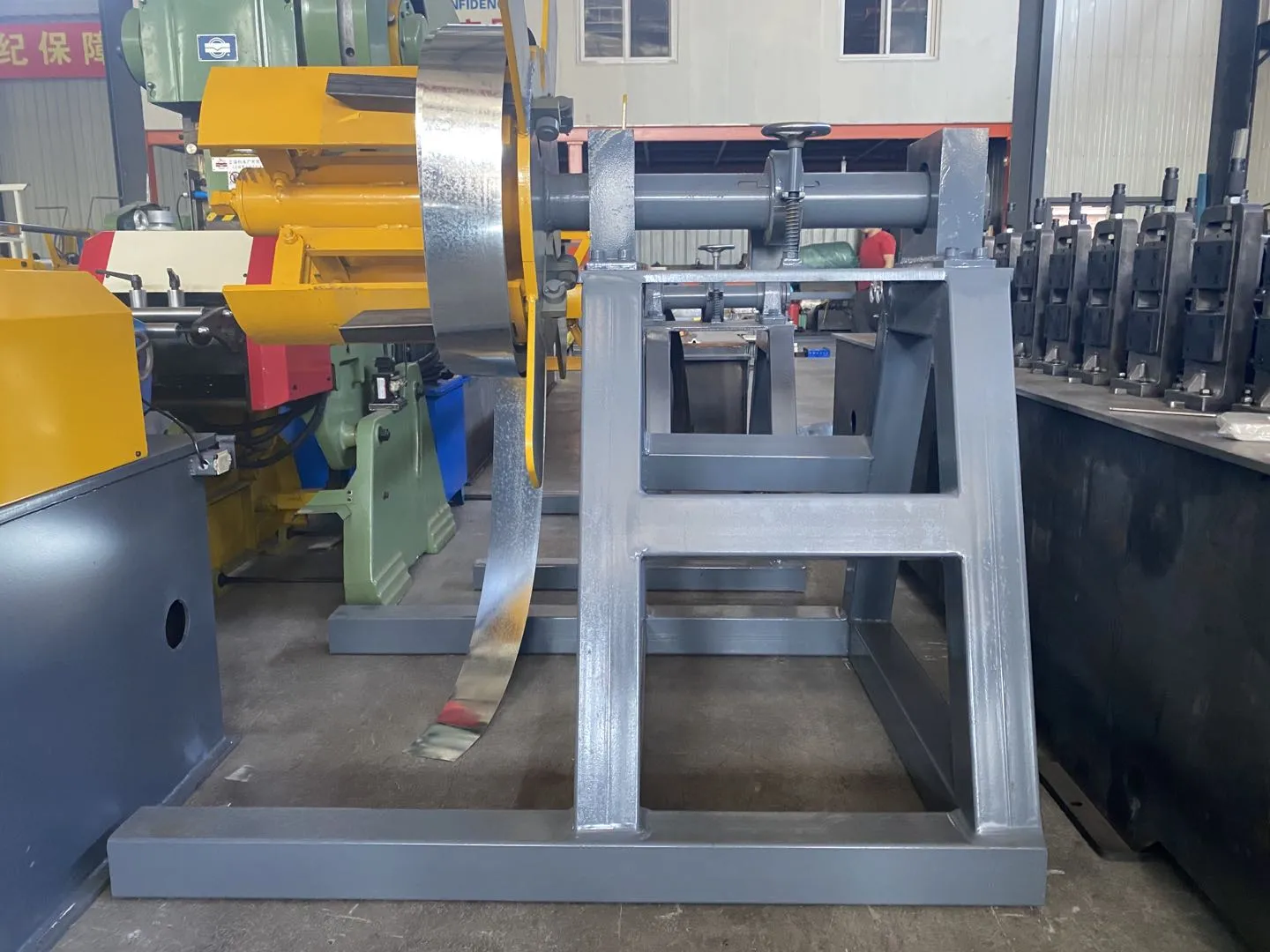

Decoiler
Work type：Passive type Loading capacity：3 Tons Coil inner diameter：450-550 mm (adjustable) Quantity：1 set

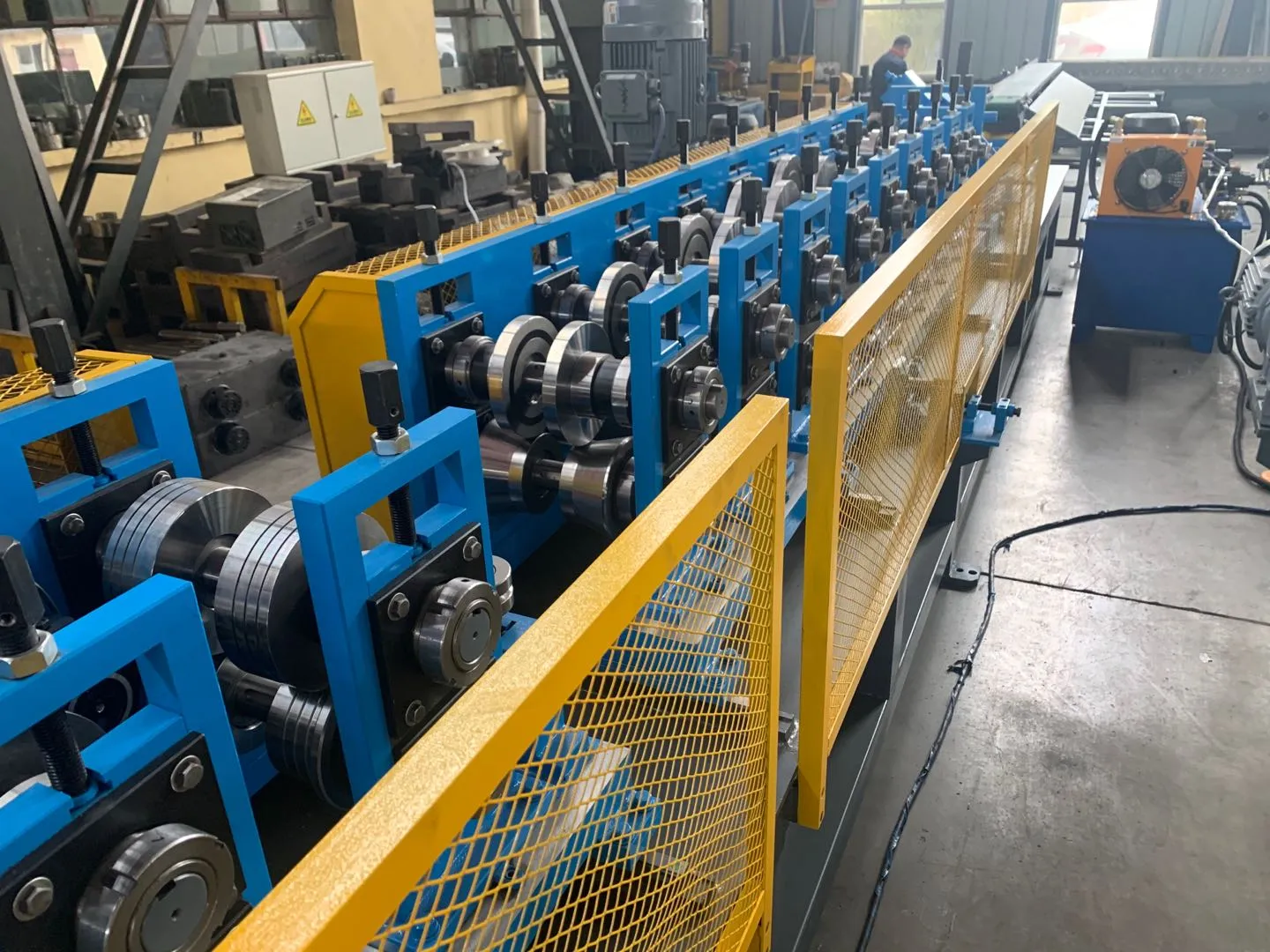

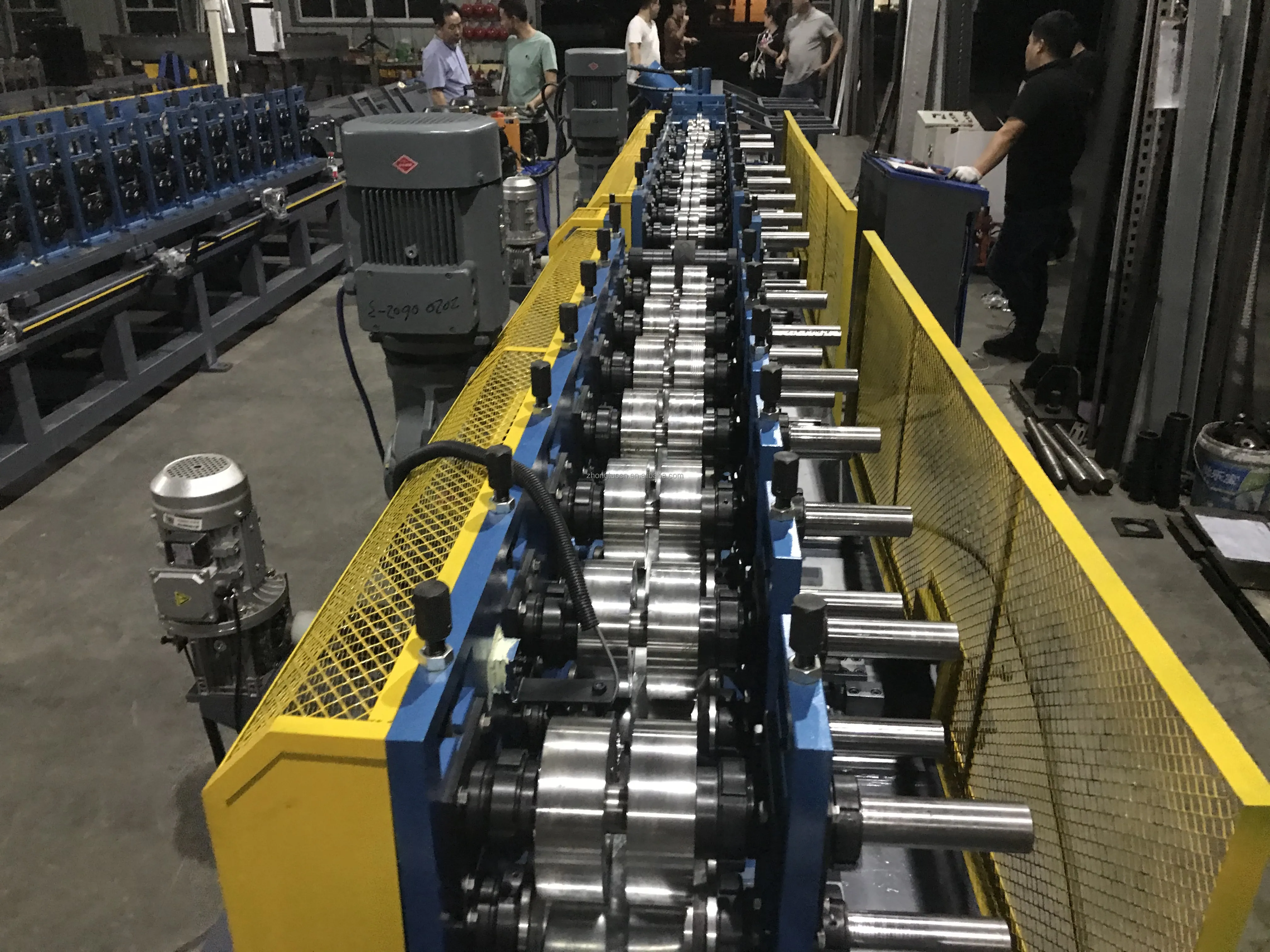

Roll Forming System
Feature;The one side machine frame can be move by PLC control to adjust the stud and truck dimension. Rolling shaft:
Shaft material: 45# steel Shaft diameter: 50 mm Tempering treatment Roller: Roller material: Cr12 Quenched treatment Rolling station number:14 stations Work speed:0-40 m/min, if punching, 30m/min Machine frame:Vertical iron arch casting frame structure Bearing:Chinese famous brand Harbin Work power:5.5+5.5 kw Transmission:By chains

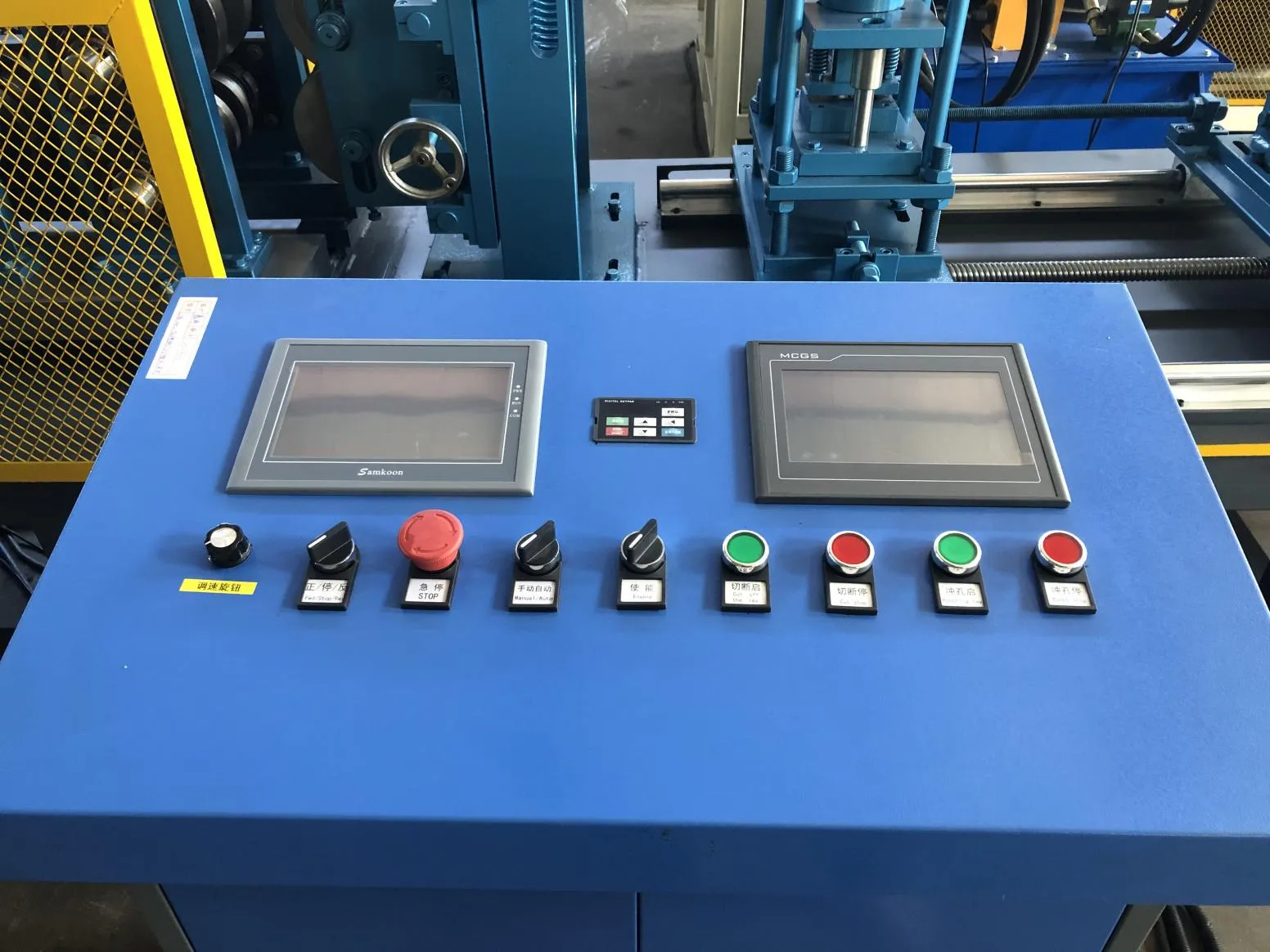

PLC Control System
Frequency brand: Delta (original) PLC brand: Delta (original) Screen type: Touch screen & buttons Screen language:English/Chinese Encoder: Omron Low pressure electrical part brand: Schneider Function: Cutting length and quantity control, speed adjustment control, dimension adjust.

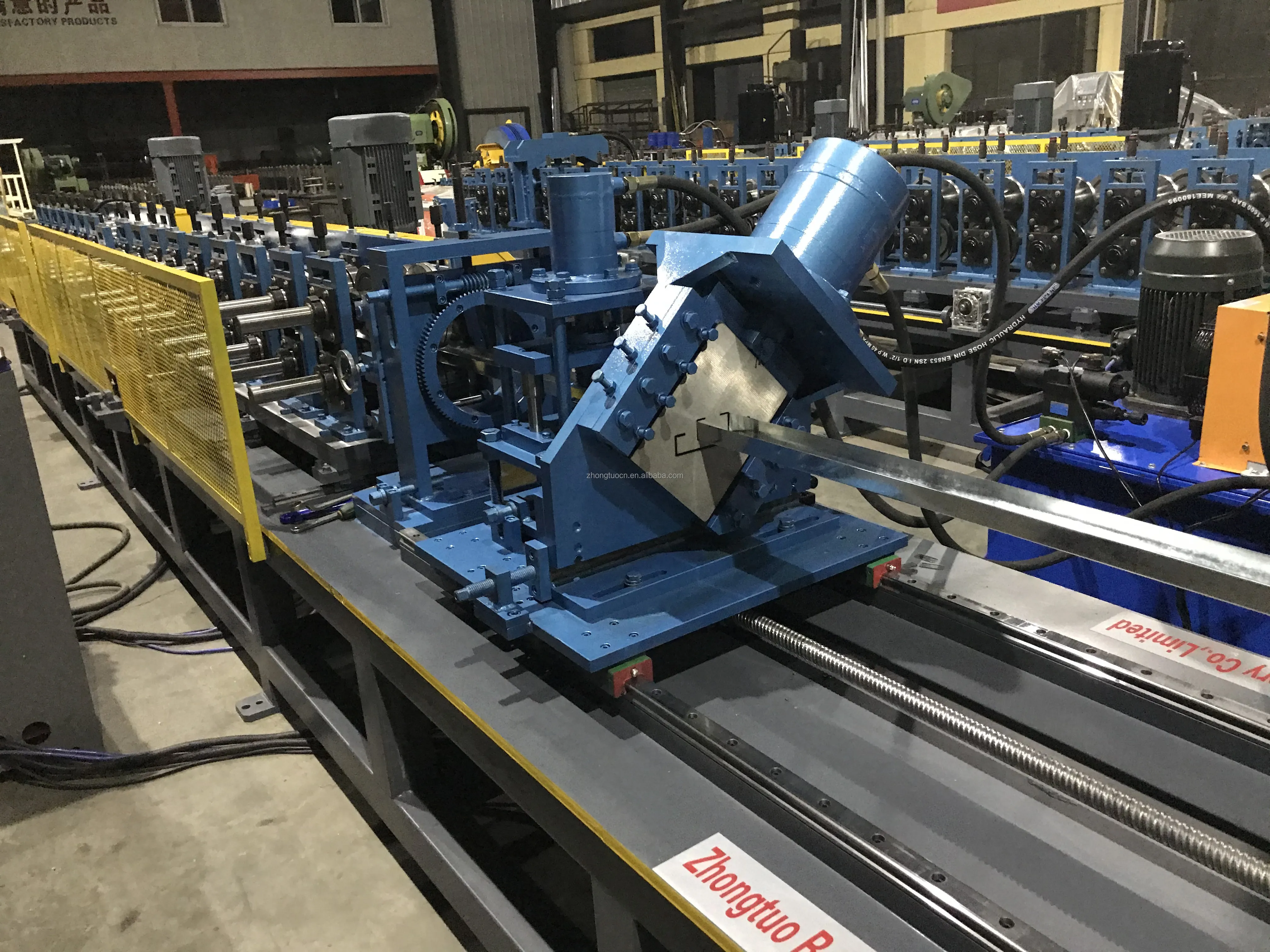

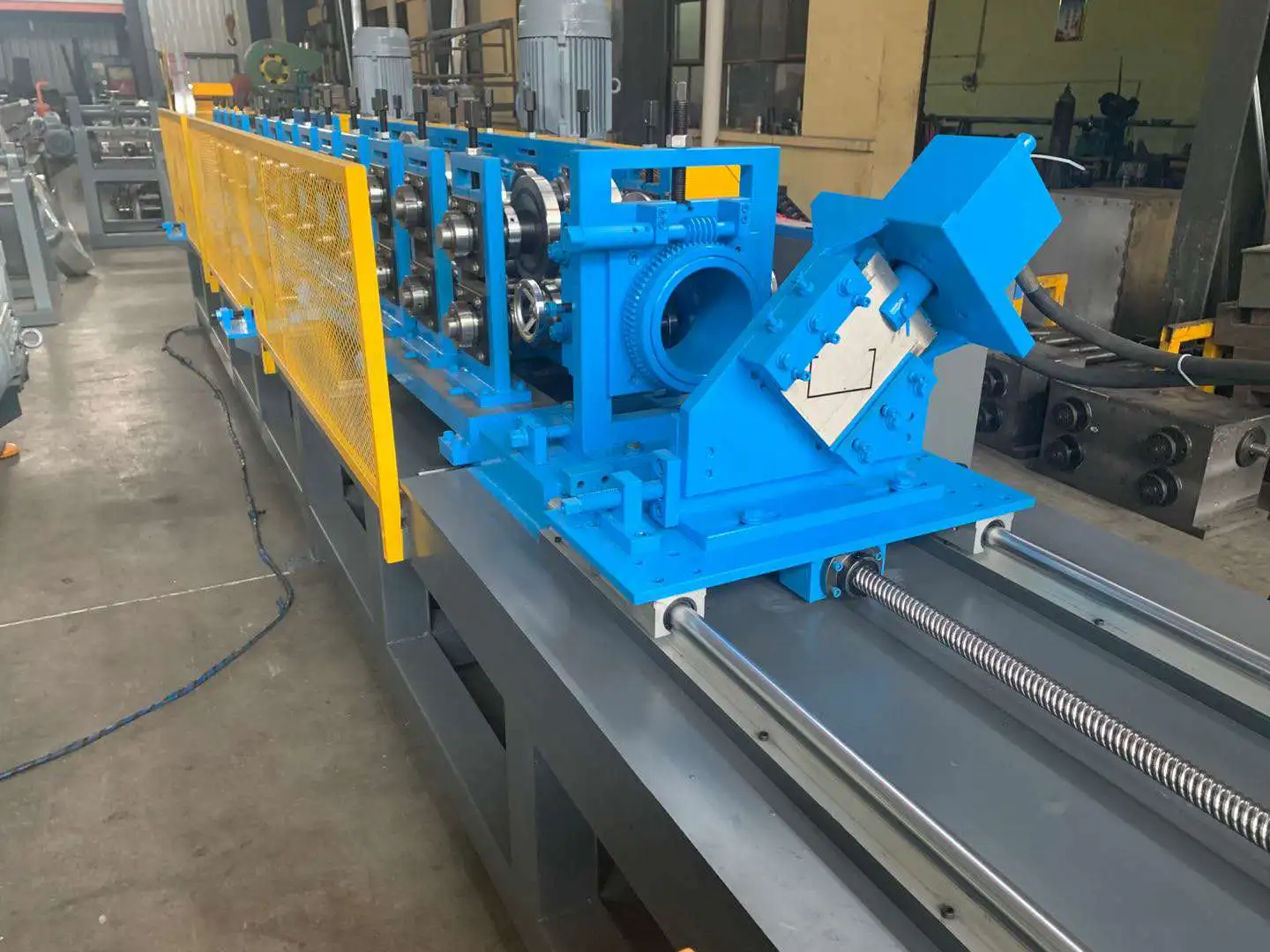

Hydraulic System
Feature: The cutter have different holes according to the product dimension. PLC brand: DELTA brand Work type: Hydraulic track cutting with servo motor Servo motor power: 2.3 kw Hydraulic power: 3+5.5 kw Driving method: By pillar type Cylinder Cutter material: GB-Cr12 Cutting length tolerance:±1 mm/3 m Cutting feature: Automatic cutting after forming, no distorting.

Afer-Sale Service
1.Payment: 30%T/T in advance and 70%balance after testing and before shipment. 2.Delivery: 50 working days after the deposit. 3.Validity time: 15 working days 4.After-sales service A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available. B: Training and service: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD 80/person/day for salary. C.The advantage of my factory: we have a team of skilled engineers and one group for after-sale service. D: we will provide you the manual for installation, operation and maintenance in English.
