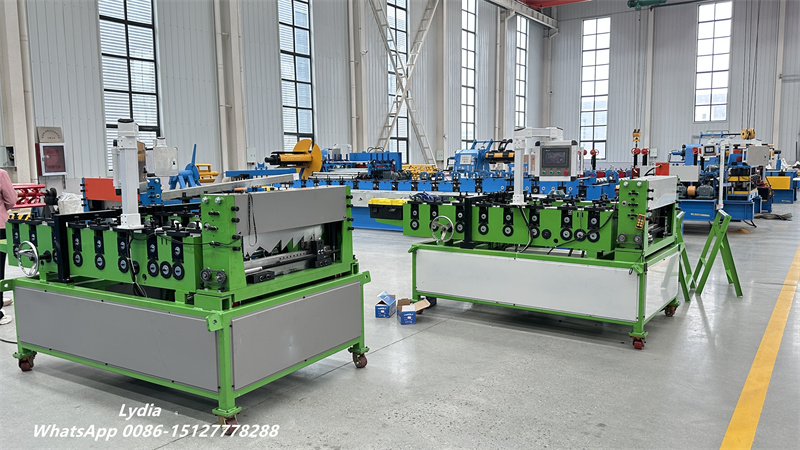

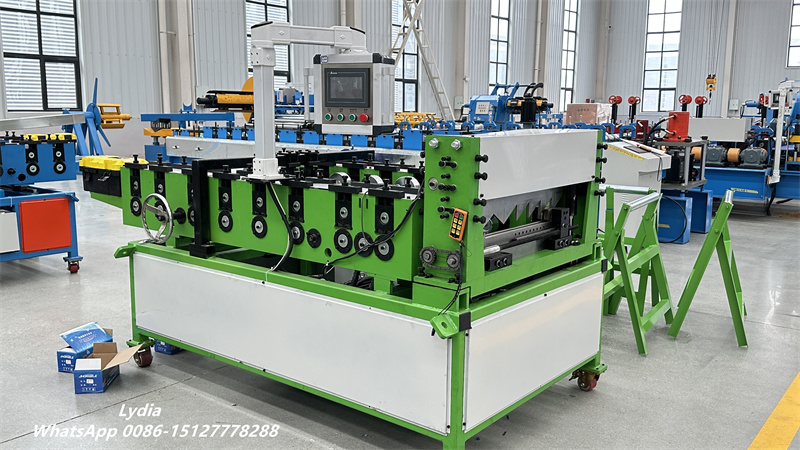

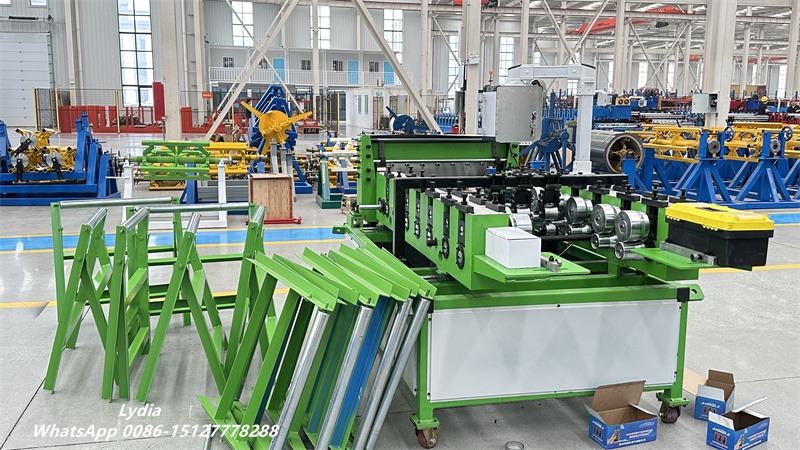

Multi-Profile Standing Seam Roof Sheet Roll Forming Machine Approx. 75 ft/min (23 m/min)

As the demand for standing seam metal roofing continues to grow worldwide, contractors and manufacturers need equipment that can produce multiple panel profiles efficiently and accurately.

Whether you are producing mechanical seam panels, snap-lock roofing systems, or specialized architectural profiles, the Profiles helps streamline production while reducing equipment investment.

Why Multi-Profile Roof Panel Machines Are Becoming More Popular

Modern roofing projects often require different panel configurations depending on building design, climate conditions, and installation methods. Instead of purchasing separate machines for each profile, many contractors now prefer versatile roll forming systems capable of producing multiple panel styles.

The Profiles allows manufacturers to quickly switch between popular standing seam profiles, helping businesses respond to changing project requirements while maximizing equipment utilization.

Furthermore, producing panels directly at the job site reduces transportation costs and minimizes the risk of panel damage during delivery.

Key Advantages of the Profiles System

The Profiles stands out because it combines versatility with productivity.

First, its advanced PLC control system simplifies operation and improves production accuracy. Operators can quickly enter panel lengths and production settings through an intuitive control interface.

Second, the hydraulic drive and cutting system ensure smooth operation while reducing operator fatigue. Compared with traditional manual systems, automated controls help increase efficiency and minimize production errors.

Another major benefit is production speed. The machine can reach approximately 75 feet per minute, making it one of the fastest portable standing seam roll forming systems available.

Additionally, the ability to manufacture both roofing and siding profiles allows contractors to expand their service offerings and generate additional revenue opportunities.

Applications Across Residential and Commercial Projects

The wide profile selection enables the Profiles to support numerous construction sectors.

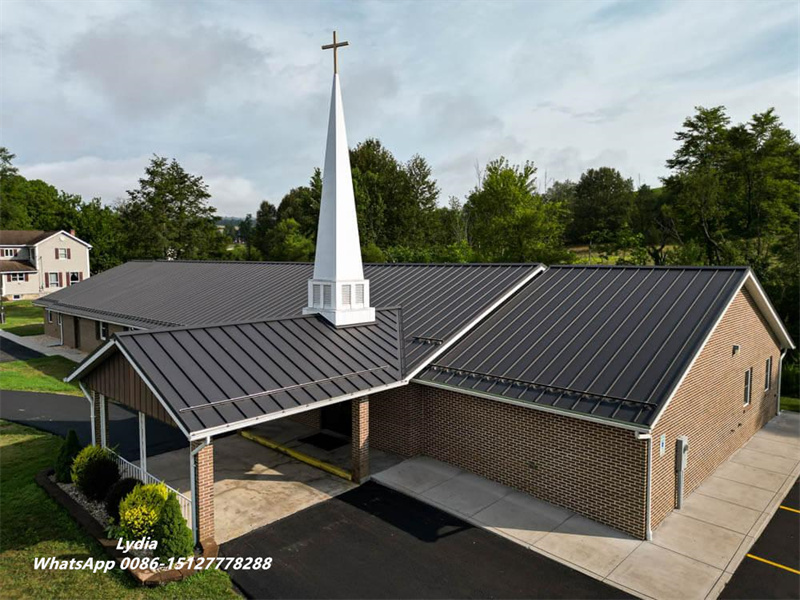

SS450 and SS450SL snap-lock panels are particularly popular for residential homes, luxury villas, churches, schools, and light commercial buildings. Because these profiles do not require field seaming equipment, installation is faster and more cost-effective.

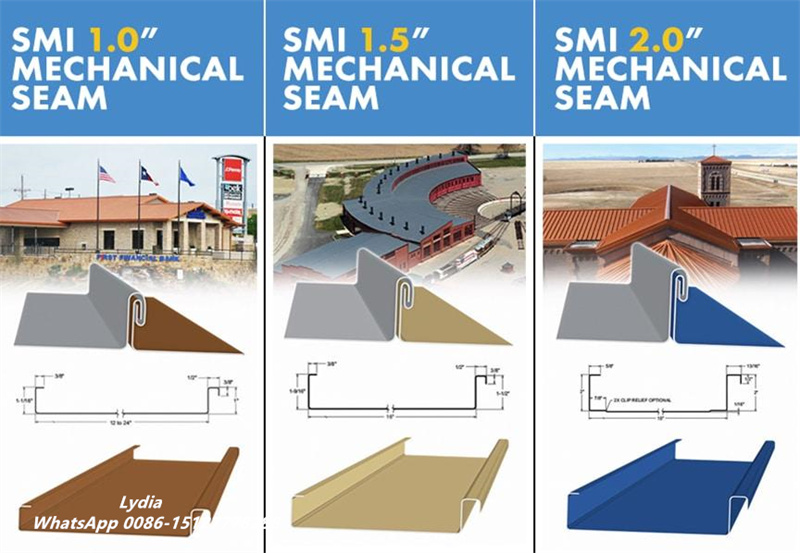

Meanwhile, SS100, SS150, SSQ200, and SSQ210A mechanical seam profiles are commonly specified for commercial buildings, warehouses, manufacturing facilities, government structures, airports, and projects located in high-wind regions. Mechanical seam systems provide enhanced weather resistance and superior long-term performance.

Consequently, contractors can use a single machine to serve both residential and commercial markets.

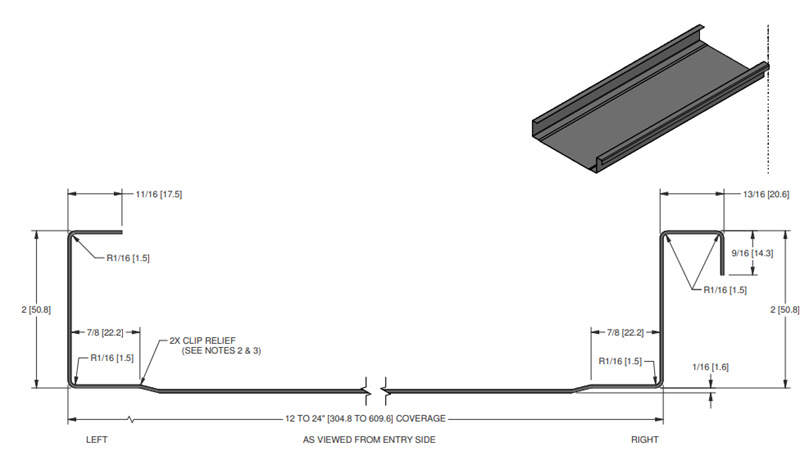

The SSQ200 2″ Mechanical Seam Profile is designed for demanding roofing environments that require superior weather protection. Featuring a 2-inch seam height, it supports 28–22 gauge steel, 0.027″–0.040″ aluminum, and 16–20 oz. copper materials. The finished panel coverage can be adjusted from 12″ to 24″, and this profile is exclusively produced by the Profiles Roof Panel Machine. It is frequently specified for large commercial buildings, airports, government facilities, and architectural roofing systems exposed to severe weather conditions.

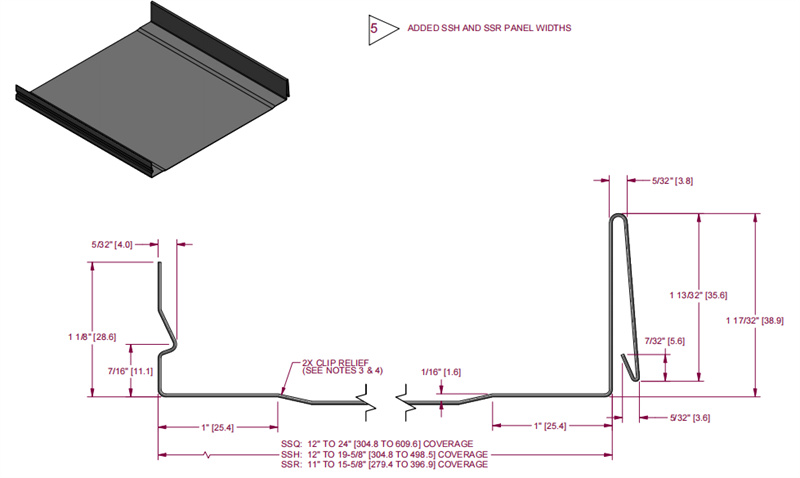

The SS450SL 1.5″ Snap-Lock Profile offers similar installation advantages to the SS450 while incorporating a slightly modified locking geometry for specific architectural requirements. It processes 28–22 gauge painted steel, Galvalume steel, coated galvanized steel, aluminized steel, 0.027″–0.040″ aluminum, and 16–20 oz. copper. The panel coverage ranges from 12″ to 24″ on the Profiles, 12″ to 19 5/8″ on the SSH, and 11″ to 15 5/8″ on the SSR Jr. This profile is widely used on premium residential properties, architectural metal roofing systems, educational facilities, and commercial buildings requiring an attractive standing seam appearance combined with efficient installation.

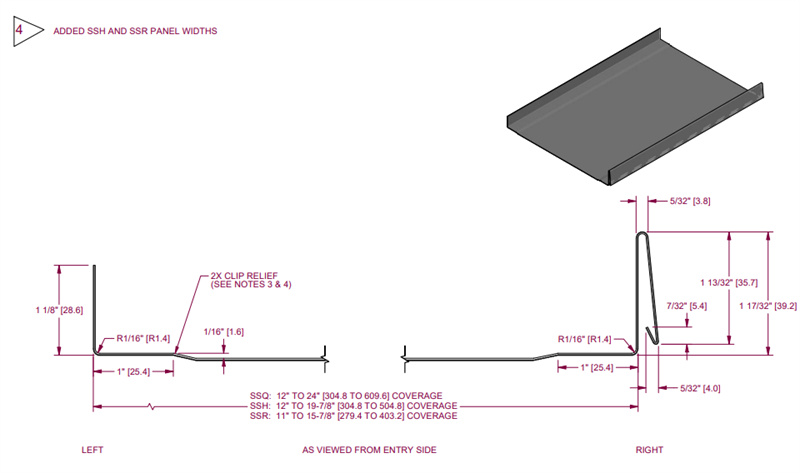

The SS450 1.5″ Snap-Lock Profile utilizes a snap-together installation system that eliminates the need for mechanical seaming during installation. It supports 28–22 gauge steel, 0.027″–0.040″ aluminum, and 16–20 oz. copper. Panel coverage ranges from 12″ to 24″ on the Profiles, 12″ to 19 7/8″ on the SSH, and 11″ to 15 7/8″ on the SSR Jr. Due to its fast installation and clean appearance, the SS450 profile is a popular choice for residential homes, churches, retail buildings, agricultural structures, and light commercial projects.

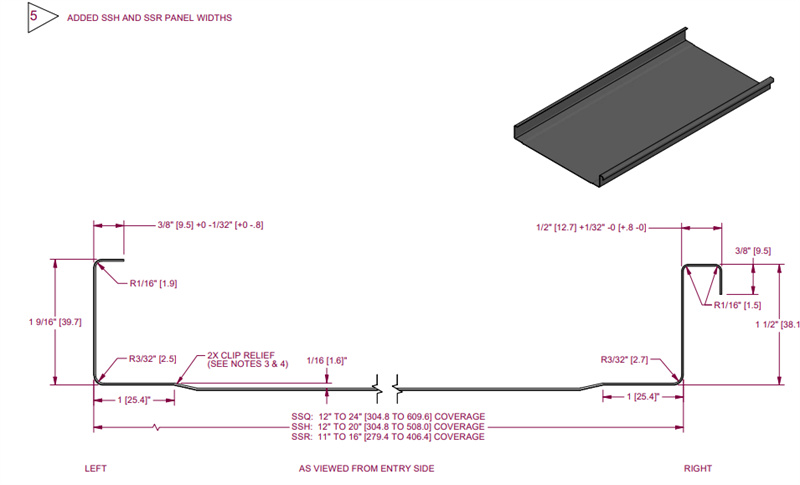

The SS150 1.5″ Mechanical Seam Profile incorporates a higher 1.5-inch standing seam for improved water-tightness and wind uplift resistance. It accommodates the same material range as the SS100, including steel, aluminum, and copper roofing materials. Panel coverage is available from 12″ to 24″ on Profiles, 12″ to 20″ on SSH, and 11″ to 16″ on SSR Jr. Because of its enhanced structural performance, this profile is widely selected for commercial buildings, industrial facilities, schools, warehouses, and low-slope roofing applications.

The SS100 1″ Mechanical Seam Profile features a 1-inch high standing seam designed for mechanically locked roofing systems. It can process 28–22 gauge painted steel, Galvalume steel, coated galvanized steel, aluminized steel, 0.027″–0.040″ aluminum, and 16–20 oz. copper. The panel coverage ranges from 12″ to 24″ on the Profiles, 12″ to 20″ on the SSH, and 11″ to 16″ on the SSR Jr. This profile is commonly used for residential roofing, light commercial buildings, and architectural metal roof projects where durability and weather resistance are required.

Materials and Production Capabilities

The Profiles is engineered to process a variety of metal roofing materials commonly used throughout North America, Europe, Australia, and other international markets.

Compatible materials include:

• Painted steel
• Galvalume steel
• Coated galvanized steel
• Aluminized steel
• Painted aluminum
• Copper

The machine can typically process:

• Steel thickness: 28–22 gauge
• Aluminum thickness: 0.027″–0.040″
• Copper thickness: 16 oz. to 20 oz.

In addition, finished panel widths can be adjusted according to the selected profile, providing greater flexibility for different roofing systems.

As a result, manufacturers can produce custom-length panels on demand while maintaining consistent quality and dimensional accuracy.

Item	Specification
Machine Model	Profiles Roof Panel Machine
Machine Type	Portable Standing Seam Roof Panel Roll Forming Machine
Supported Profiles	SS100 (1″ Mechanical Seam), SS150 (1.5″ Mechanical Seam), SSQ200 (2″ Mechanical Seam), SSQ210A (2″ ARMCO Mechanical Seam), SS450 (1.5″ Snap-Lock), SS450SL (1.5″ Snap-Lock), SMI 550, SMI 1.75″, Fastener Flange Profiles, T-Panel, Trapezoid Panels
Number of Profiles	Up to 15 Different Profiles
Forming Method	Roll Forming
Control System	PLC Automatic Control System
Drive System	Hydraulic Drive
Cutting System	Hydraulic Shear Cutting
Production Speed	Approx. 75 ft/min (23 m/min)
Finished Panel Width	10″ – 16″ (254 – 406 mm)
Steel Thickness	28 – 22 Gauge
Aluminum Thickness	0.019″ – 0.040″ (0.48 – 1.0 mm)
Copper Thickness	16 oz – 20 oz (3/4 Hard Copper)
Coil Materials	Painted Steel, Galvalume Steel, Galvanized Steel, Aluminized Steel, Aluminum, Copper
Panel Length Control	Automatic Length Programming
Application	Roofing Panels & Wall Cladding Panels
Installation Mode	Factory Production or On-Site Production
Typical Markets	Residential, Commercial, Industrial, Architectural Projects

A Smart Investment for Growing Roofing Businesses

For roofing contractors looking to expand their capabilities, the Profiles offers a practical long-term solution. Instead of purchasing several dedicated roll forming machines, businesses can produce a wide variety of standing seam profiles using one versatile platform.

Its combination of profile flexibility, high production speed, material compatibility, and advanced automation makes it an excellent choice for companies involved in standing seam metal roofing, architectural metal panels, and portable on-site panel production.

As project requirements continue to evolve, investing in a multi-profile standing seam roll forming machine can help contractors remain competitive while improving operational efficiency and profitability.
