Modular Hot Dipped Galvanized Steel Wire Mesh Cable Tray for Data Center Cable Management Server Rack Heat Dissipation Solutions 1-6m+50-1000 mm

Modular Hot Dipped Galvanized Steel Wire Mesh Cable Tray for Data Center Cable Management Server Rack Heat Dissipation Solutions 1-6m+50-1000 mm

Name: Modular Hot Dipped Galvanized Steel Wire Mesh Cable Tray for Data Center Cable Management Server Rack Heat Dissipation Solutions 1-6m+50-1000 mm
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:4000 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥4000Set

Order CodeZT100264206

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Length:

1-6m

Width:

50-1000 mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Application
Construction, Network, Industrial, Managing Cables, Cable Support, Cable Laying, Cable Wiring
Material
Steel
Max. Working Load
300 kg
Side Rail Height
12-200 mm
Type
Wire Mesh

Detailed Images

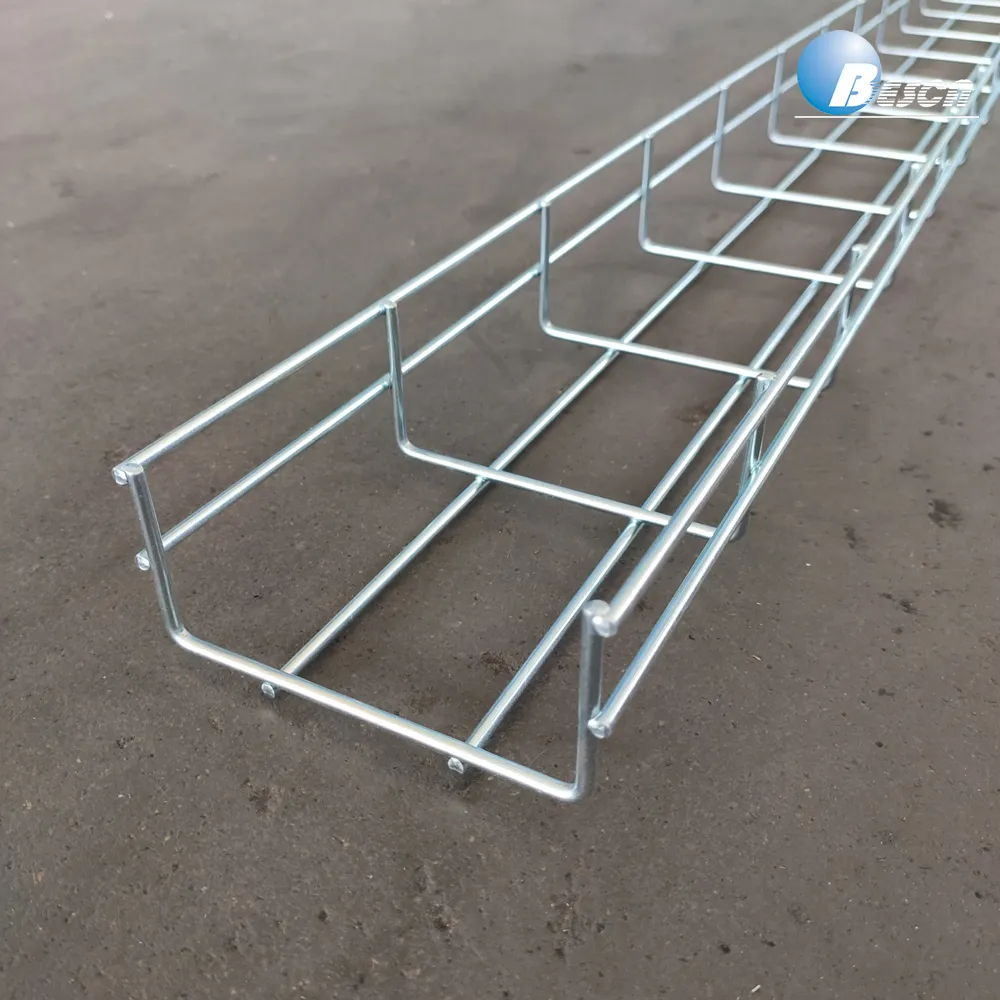

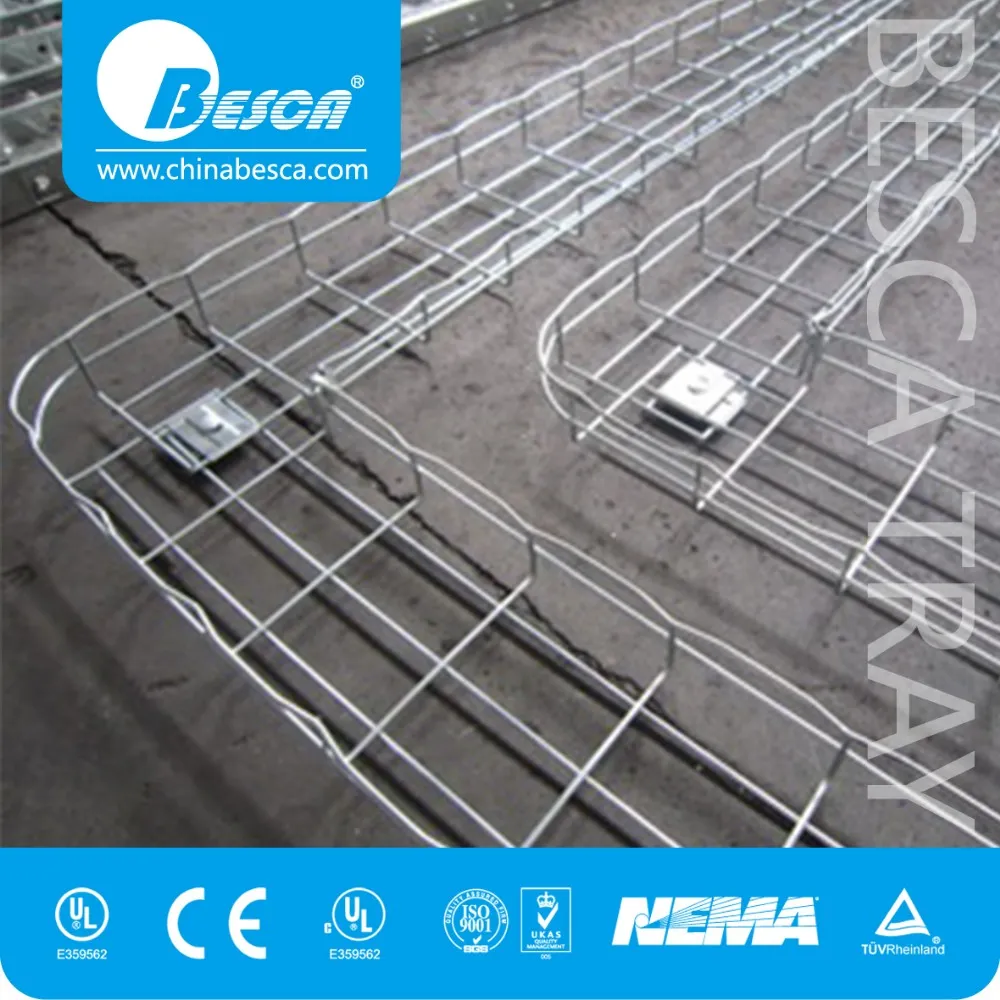

Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.
Strong, versatile, and easy to install, Besca Wire Mesh Cable Tray is complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses, Besca Wire Mesh Cable Tray lengths can be fabricated to suit the application on site. Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Tray is available in stainless steel against firm orders only. - Minimum production may quantities apply.

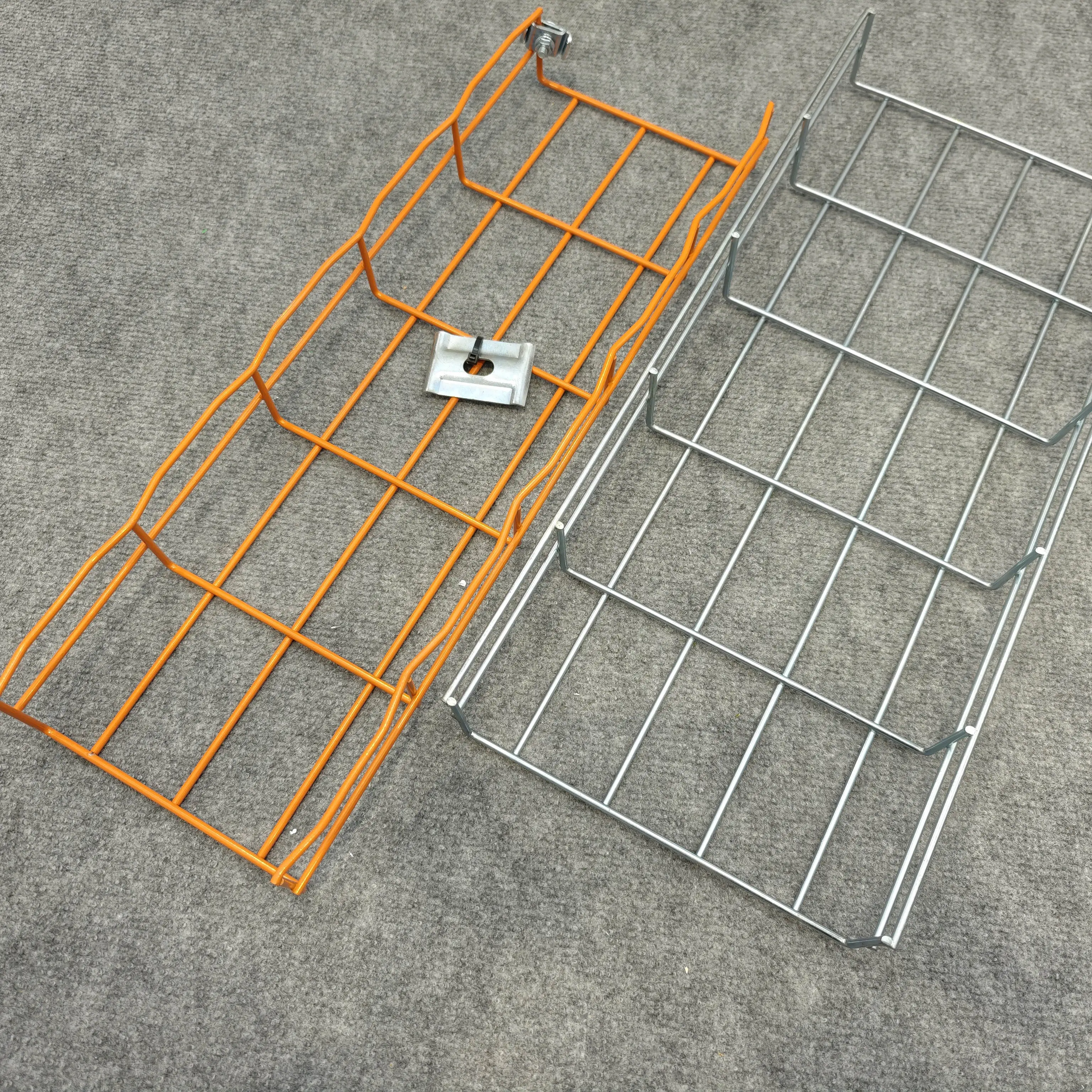

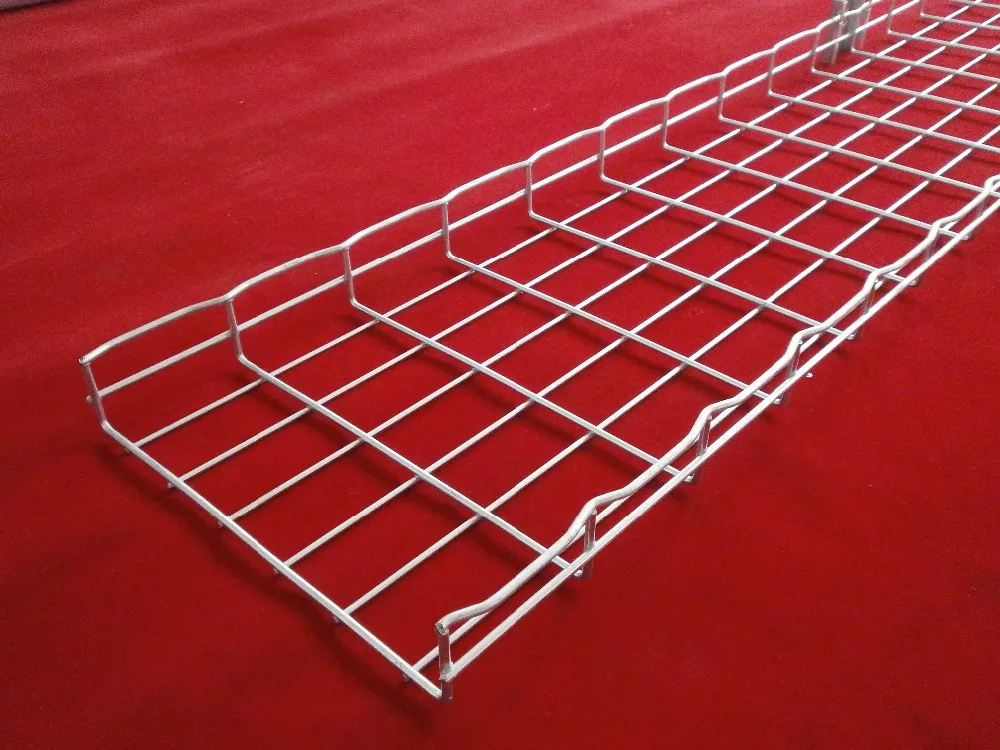

WAVE TYPE (CABLOFIL TYPE)

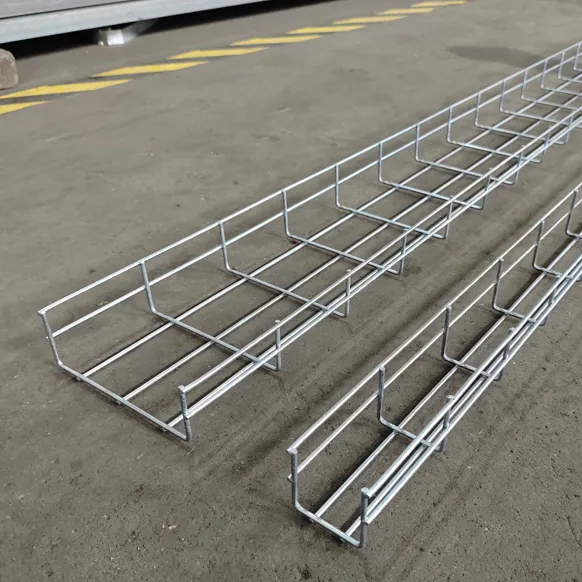

STRAIGHT TYPE

Installation Instructions

BESCA Wire Mesh Cable Tray

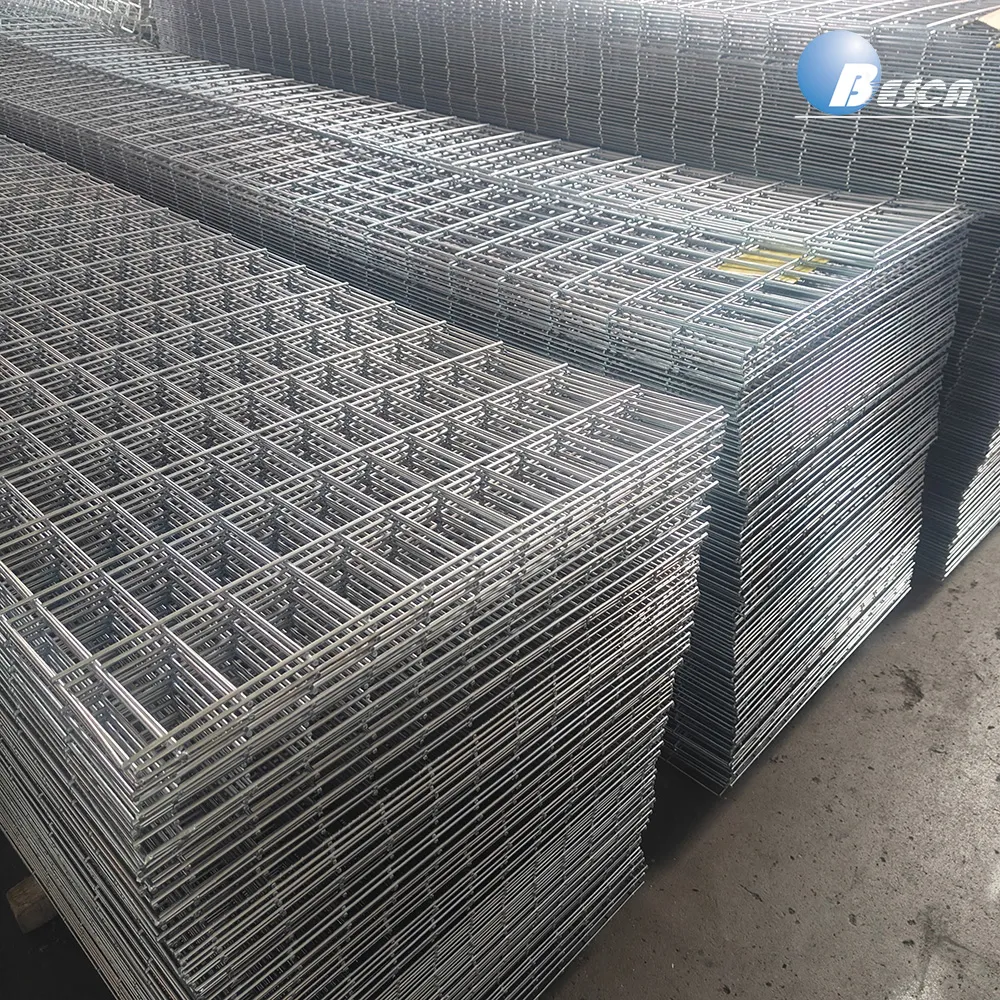

Besca Wire Mesh Cable Tray systems are produced from ASTM A510 high strength steel wires. A fully automated welding process produces continuous wire mesh, which is formed into our Wire Mesh Cable Tray system.

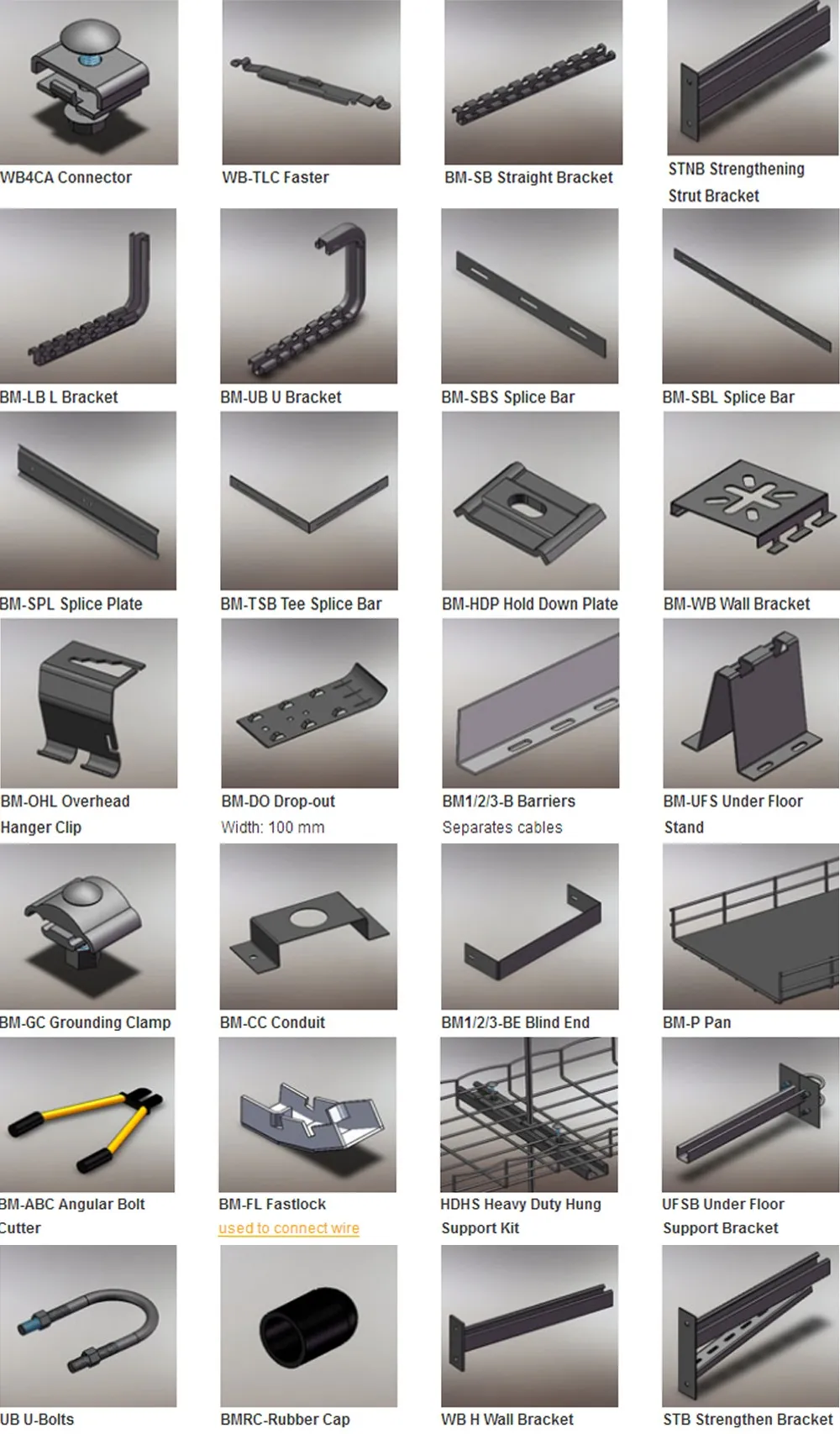

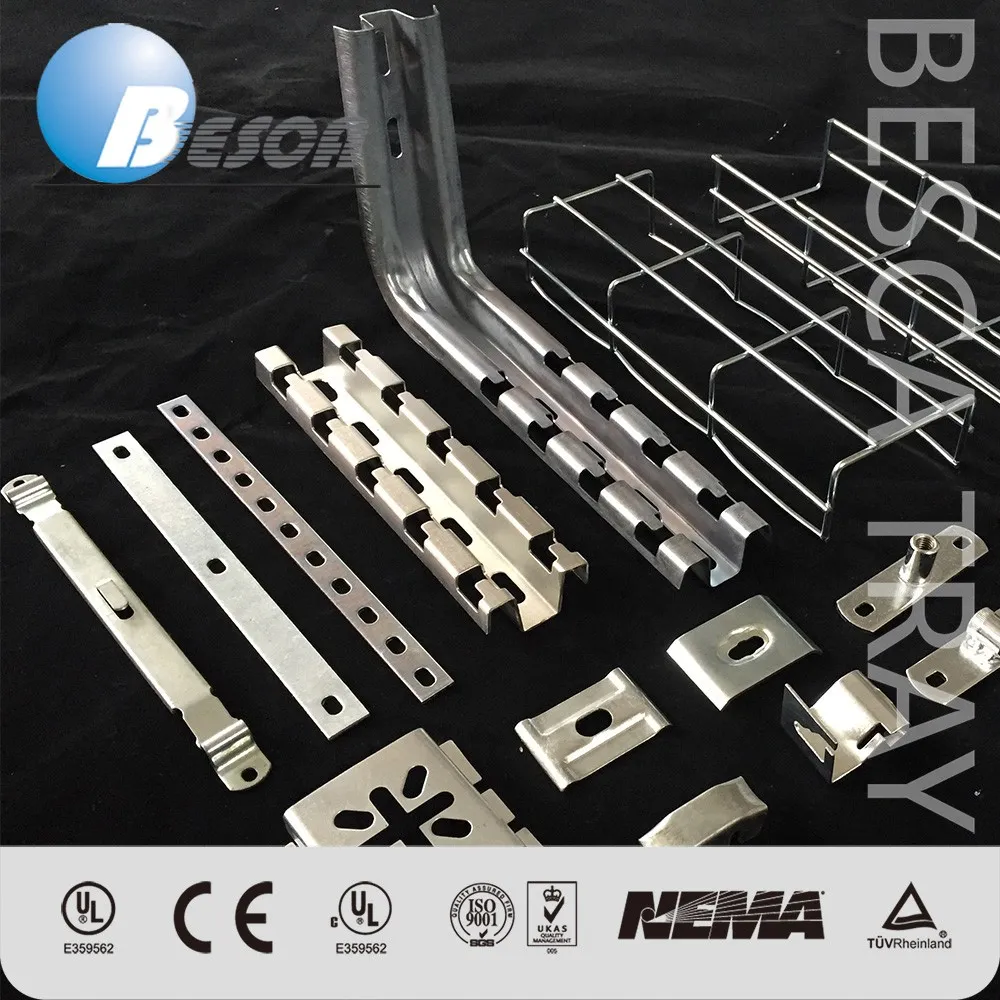

Accessories for Wire Mesh Cable Tray for choosing.
Connect Assembly, brackets, Splice, Faster Connector, Hold Down Plate , Over head clip, Drop Out, Separator, Grouding Clamp, Under floor stand, etc..

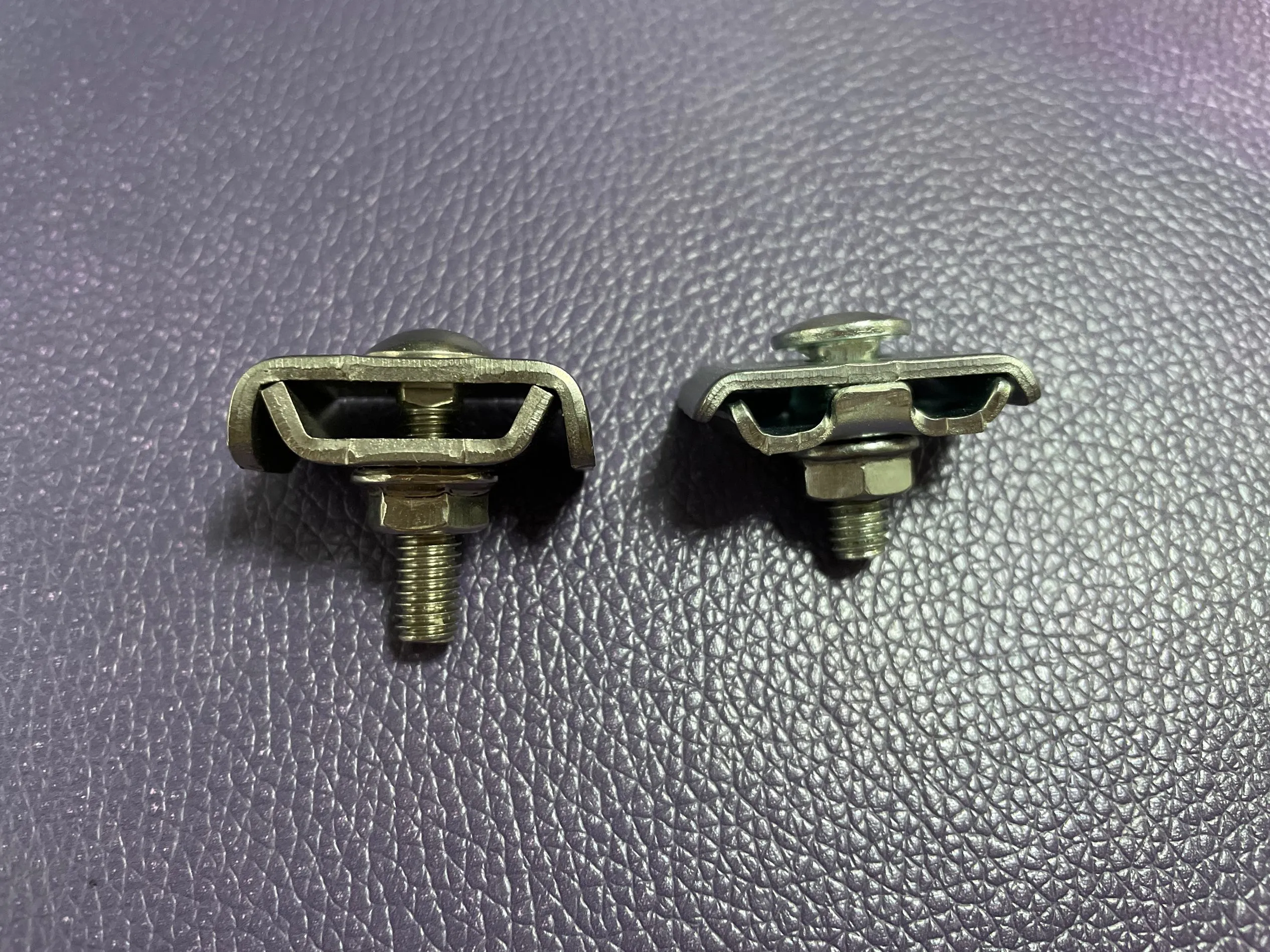

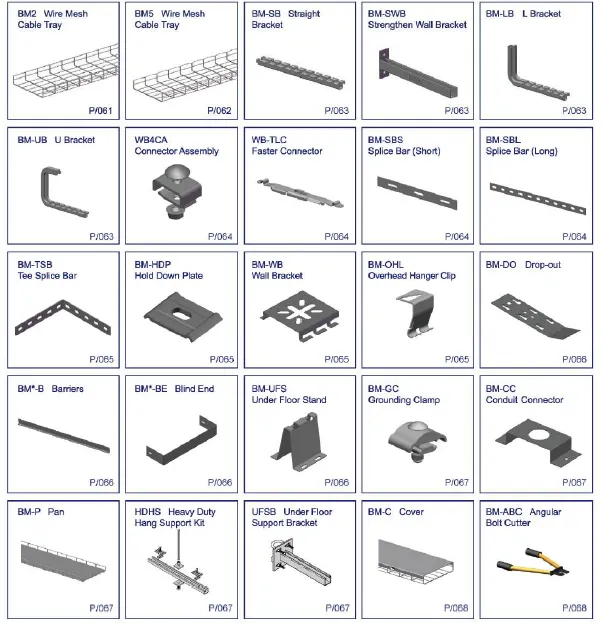

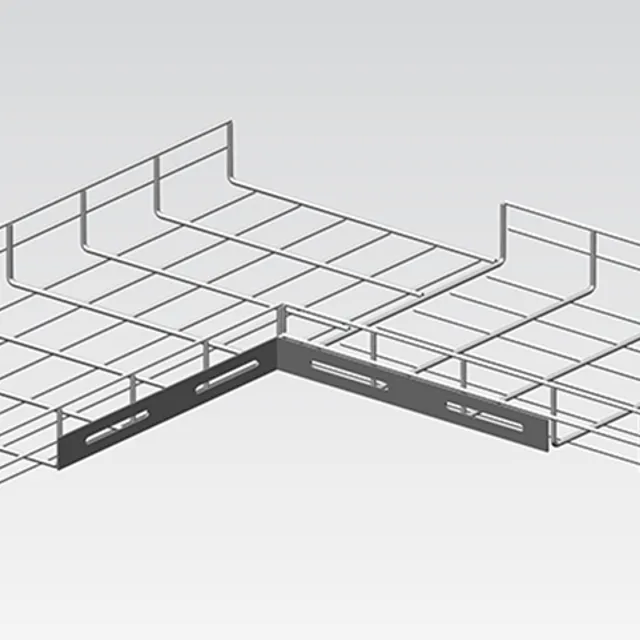

1. Wire meshcable tray straight(BM*)	2. Connector assembly(WB4CA)	3. Faster connector(WB-TCL)	4. Straight bracket(BM*-SB)	5. L Bracket(BM-LB)
6. U Bracket(BM-UB)	7. Splice bar(short)(BM-SBS)	8. Splice bar(long)(BM-SBL)	9. Splice plate(short)(BM-SPS)	10. Splice plate(long)(BM-SPL)
11. Tee splice bar(BM-TSB)	12. Hold dowm plate(BM-HDP)	13. Wall bracket(BM-WB)	14. Overhead hanger clip(BM-OHL)	15. Radius shield(BM*-RS)
16. Drop-out(BM-DO)	17. Barriers(BM*-B)	18. Under floor stand(BM-UFS)	19. Grounding clamp(BM-GC)	20. Conduit connector(BM-CC)
21. Blind end(BM*-BE)	22. Pan(BM-P)	23. Wall termination kit(BM-WTK)	24. Angular bolt cutter(BM-ABC)	25. Fastlock(BM-FL)
