Mobile Truck Mounted Standing Seam Roof Panel Roll Forming Machine High Percision

Truck Mounted Standing Seam Forming Machine：Mobile On-Site Roof Panel Roll Former

Description:Truck mounted standing seam forming machine is a fully mobile, trailer-integrated roll forming solution designed for on-site metal roof panel production. Unlike traditional fixed factory roll formers that require prefabrication, transportation, and secondary handling, our truck-mounted standing seam machine realizes on-demand on-site production, greatly cutting construction cycles, logistics costs, and panel damage risks. Widely applied in industrial factories, commercial buildings, stadiums, villas, and large-span steel structure roofing projects, this mobile forming equipment has become the preferred choice for global roofing contractors and engineering companies pursuing high efficiency and low cost.

What Is a Truck Mounted Standing Seam Forming Machine?

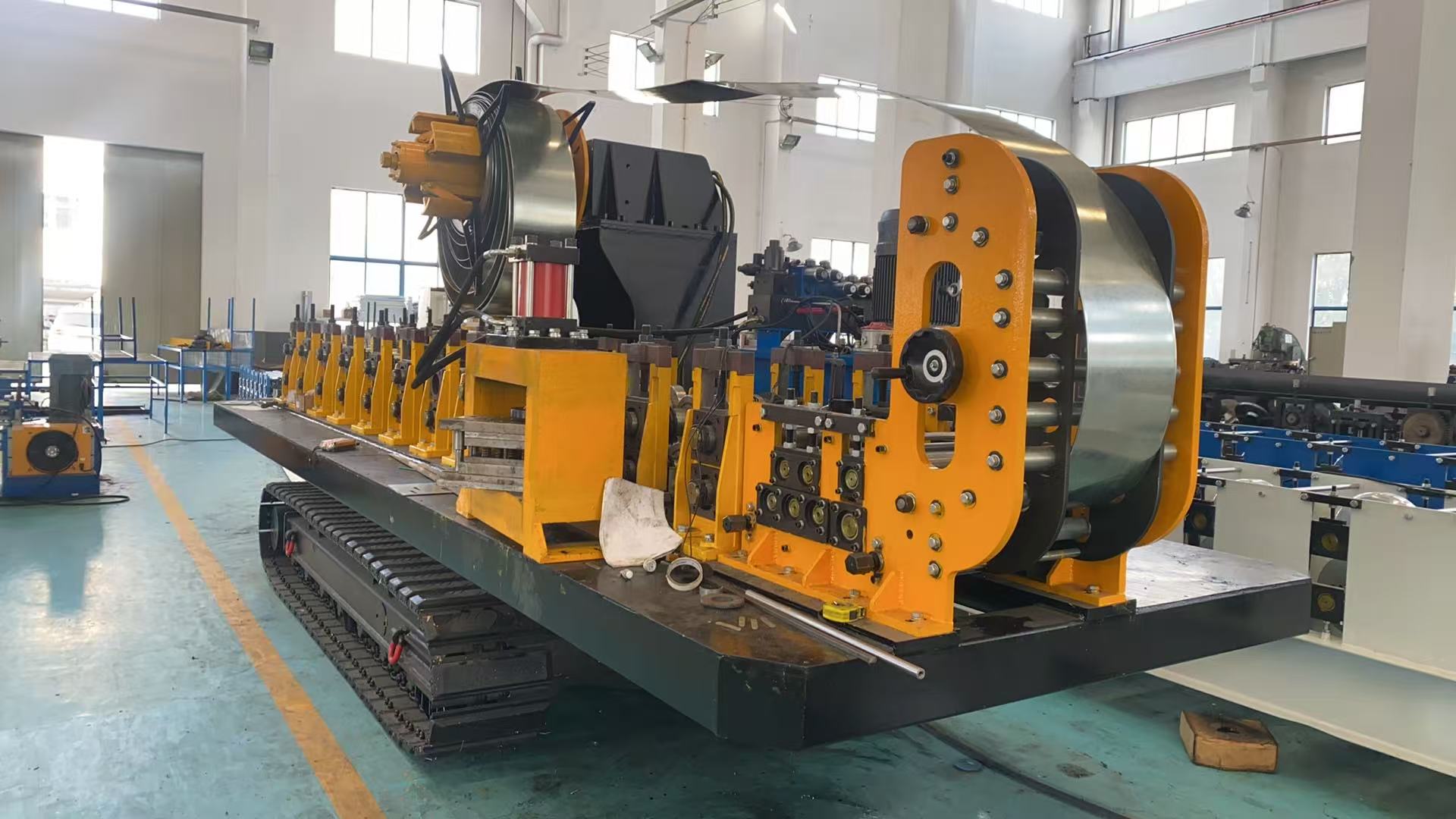

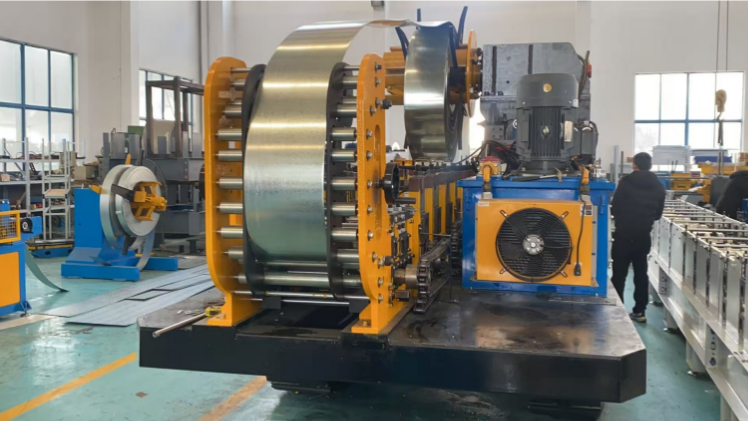

A truck mounted standing seam forming machine is an integrated mobile processing device that installs the full set of roll forming, hydraulic cutting, and control systems on a standard trailer or truck chassis. It specializes in manufacturing vertical standing seam roof panels with snap-lock and clip-lock structures on construction sites.

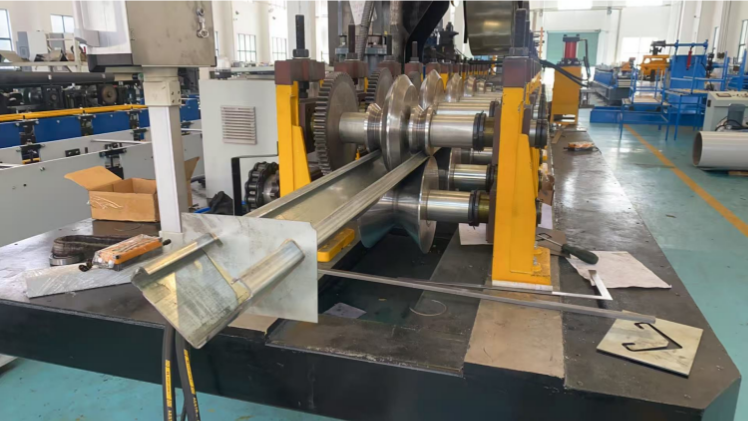

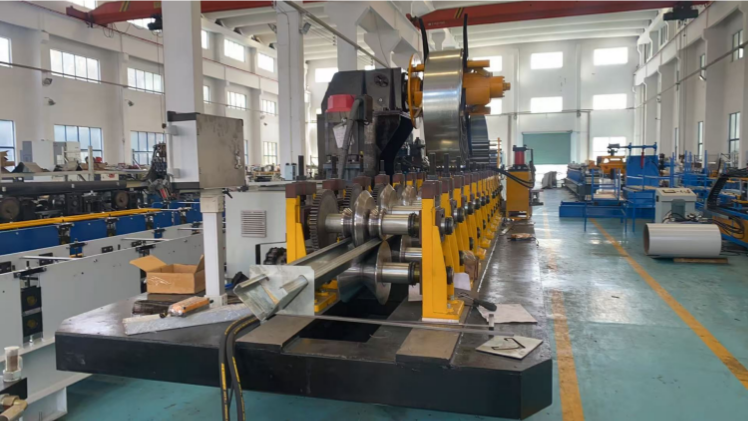

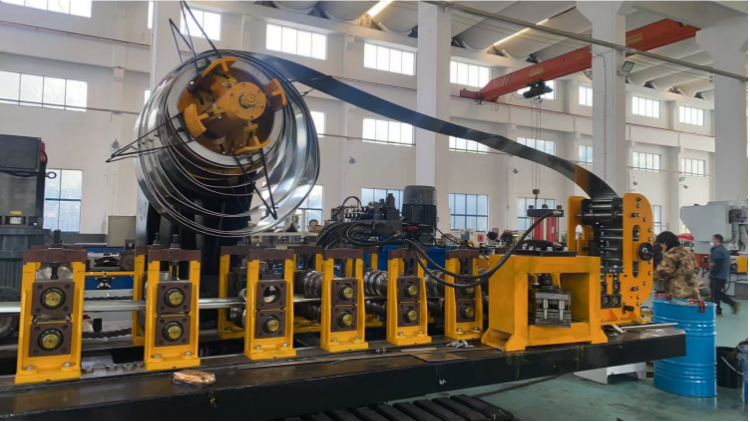

The machine integrates feeding, leveling, roll forming, sizing, and hydraulic shearing into one automatic workflow. It supports continuous production of seamless roof panels with unlimited length, effectively solving the pain points of limited factory panel length, inconvenient long-distance transportation, and high splicing leakage rate of traditional roof panels. All operational procedures are finished on-site, realizing the transformation from "factory prefabrication" to "site direct production".

Core Advantages of Truck Mounted Standing Seam Forming Machine

Compared with conventional fixed standing seam roll forming machines and ordinary portable roof panel machines, the truck-mounted model boasts irreplaceable competitive advantages in engineering construction and commercial use, fully fitting the diversified needs of overseas roofing projects.

100% On-Site Mobile Production, No Logistics Restrictions

Equipped with a standard mobile trailer chassis, the whole machine can be towed by ordinary vehicles to any construction site, adapting to complex road conditions and remote project locations. It eliminates the high freight cost of finished roof panels and the panel deformation, scratch and damage problems caused by long-distance transportation. For large-span and ultra-long roof projects, the machine can produce unlimited-length panels on-site, completely avoiding water leakage risks caused by intermediate splicing.

High-Precision Forming, Stable Roofing Quality

Adopting high-precision alloy steel forming rollers and multi-pass rolling design, the machine ensures uniform stress on metal plates, no damage to galvanized layers and color coated layers. The hydraulic guillotine cutting system achieves burr-free and deformation-free cutting with precise sizing error controlled within ±1mm. The formed standing seam panels have tight seams, strong wind resistance and waterproof performance, meeting the building roofing standards of Europe, America, Southeast Asia, and other regions.

Intelligent Automatic Operation, Labor & Time Saving

Configured with PLC intelligent control system and touch screen operation panel, the machine supports one-click parameter setting, automatic counting, automatic forming and automatic cutting. Only 1-2 workers can complete the whole production process, greatly reducing labor dependence. The production speed can reach 8-12 meters per minute, with stable continuous operation, effectively shortening the overall project construction period and improving project delivery efficiency.

Strong Compatibility & Customization

This truck mounted forming machine supports processing multiple metal materials such as color steel plate, galvanized steel plate, aluminum magnesium manganese plate, and stainless steel plate. It can be customized to produce mainstream standing seam models including KR18, KR24, and clip-lock vertical seam panels. The adjustable thickness range covers 0.4-0.8mm, meeting the roofing needs of different building types and climatic environments.

Low Operation Cost & High Return on Investment

The integrated design saves factory workshop rental and fixed equipment investment costs. On-site production reduces material waste and secondary processing links. The whole machine features low failure rate, simple daily maintenance, and long service life, enabling contractors to obtain higher profit margins in engineering projects and equipment leasing businesses.



Complete Machine Technical Parameters

We provide standardized and customized truck mounted standing seam forming machines with stable and reliable core parameters, supporting one-stop configuration adjustment according to customer project demands:

Applicable Materials: Color steel coil, galvanized steel coil, aluminum magnesium manganese coil, stainless steel coil

Material Thickness: 0.4mm - 0.8mm

Forming Speed: 8-12 m/min

Cutting Precision: ±1mm

Control System: PLC full automatic intelligent control

Cutting Mode: Hydraulic automatic shearing (burr-free)

Mobile Configuration: Standard trailer chassis, towable design

Applicable Panel Type: KR18, KR24, customized vertical standing seam panels

Working Voltage: 380V/220V 50/60Hz (customizable)

Machine Weight: 2800KG - 3500KG



Wide Application Scenarios

The truck mounted standing seam forming machine is widely used in various new construction, renovation and expansion projects of metal roofing, with strong market adaptability:

Industrial Buildings: Steel structure factories, warehouses, workshops, logistics parks

Commercial Buildings: Shopping malls, exhibition halls, stadiums, gymnasiums, airport terminals

Civil Buildings: High-end villas, residential buildings, pastoral architecture

Special Projects: Large-span temporary buildings, outdoor venue construction, remote area engineering projects

Leasing Business: Engineering equipment leasing companies, roofing construction teams



Why Choose Our Truck Mounted Standing Seam Forming Machine?

As a professional manufacturer of mobile roll forming equipment with years of export experience, we focus on providing high-cost-performance and stable-quality roofing forming solutions for global customers. All ourtruck mounted standing seam forming machines undergo strict factory testing to ensure stable operation in high-temperature, low-temperature and humid harsh environments.

We support OEM & ODM customization, including machine model optimization, chassis configuration upgrade, panel size adjustment, and multi-functional parameter modification. Equipped with a complete after-sales service system, we provide overseas installation guidance, operation training, long-term technical support, and spare parts supply services. All products comply with international CE certification and export standards, supporting safe and smooth customs clearance in various countries.
