    Color Coated Steel System > Production Equipment > roof sheet making machine

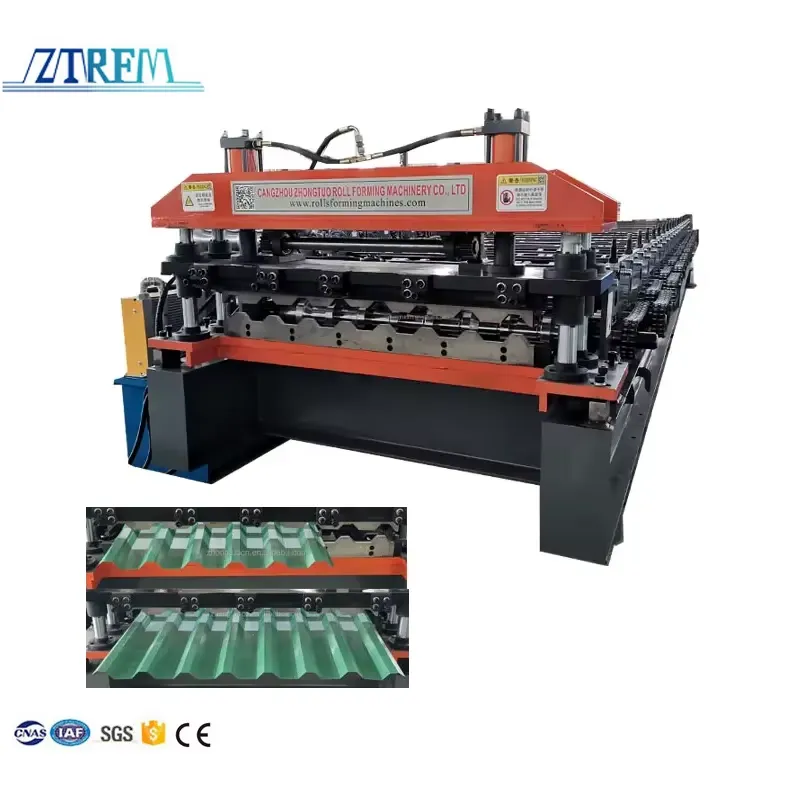

    Mexico Hot Sale Full Automatic Multi Functional Tr72 and Tr101 Integrated Metal Colored Steel Roofing Sheet Making Machine Tr72+Tr101+7.5kw+20 M/Min
    Cangzhou Zhongtuo International Trade Co., Ltd
    Supplier Qualification

    Mexico Hot Sale Full Automatic Multi Functional Tr72 and Tr101 Integrated Metal Colored Steel Roofing Sheet Making Machine Tr72+Tr101+7.5kw+20 M/Min

    $***/ Set
    Min. Order:1 Set

    Coupons: More >

    You can log in to view more discounted prices.Login Now

    Price:
    $***
    Quantity:
    ≥1Set

    Order CodeZT51606845
    Shipping:
    Delivery to:
    • Select country
    • 中国
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antarctica
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bonaire, Saint Eustatius and Saba
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cabo Verde
    • Cambodia
    • Cameroon
    • Canada
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Cook Islands
    • Costa Rica
    • Croatia
    • Cuba
    • Curacao
    • Cyprus
    • Czechia
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • Dominican Republic
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Eswatini
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and McDonald Islands
    • Honduras
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Ivory Coast
    • Jamaica
    • Japan
    • Jersey
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Libya
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • North Korea
    • North Macedonia
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestinian Territory
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Republic of the Congo
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthelemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • Samoa
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Serbia and Montenegro
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and the South Sandwich Islands
    • South Korea
    • South Sudan
    • Spain
    • Sri Lanka
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Sweden
    • Switzerland
    • Syria
    • Tajikistan
    • Tanzania
    • Thailand
    • The Netherlands
    • Timor Leste
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • U.S. Virgin Islands
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • Uzbekistan
    • Vanuatu
    • Vatican
    • Venezuela
    • Vietnam
    • Wallis and Futuna
    • Western Sahara
    • Yemen
    • Zambia
    • Zimbabwe
    • Select province
    • Select city

    Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

    Specification:

    Model Number:
    Tr72+Tr101
    Power(W):
    7.5kw
    Production Capacity:
    20 M/Min
    Payment:
    Transaction Protection:
    • Secure payments
    • Money-back protection
    • 24/7 support
    • Data privacy
    ZT51606845
    Quantity:
    -
    +
    Add to CartBuy Now
    • Product Details
    • Reviews(0)

    • Technical Specifications

      • Type
        Tile Forming Machine
      • Tile Type
        Colored Glaze Steel
      • Use
        ROOF
      • Voltage
        380V 50Hz 3phases or as your requireme
      • Rolling Thinckness
        0.3-0.8mm
      • Feeding Width
        914mm and 1220mm
      Why Choose Us
      How Mexico customer say about us?
      Mexico Hot Sale Full Automatic Multi Functional Tr72 and Tr101 Integrated Metal Colored Steel Roofing Sheet Making Machine

       The metal roofing sheet machine we designed could use two input coil width 914mm and 1220mm, the working speed is around 15 to 20 meter per minute.
      Simple adjusting the leveling beach and then it can switch from those two different input coil width.
      This machine is popular in Mexico, Guatemala, Honduras, Costa rica, Colombia… If feeding this roll former raw material 914mm or 36 inch width, machine will make R72. If feeding 1220mm or 48 inch, machine will make R101 only feed different width raw material, no need to change machine.

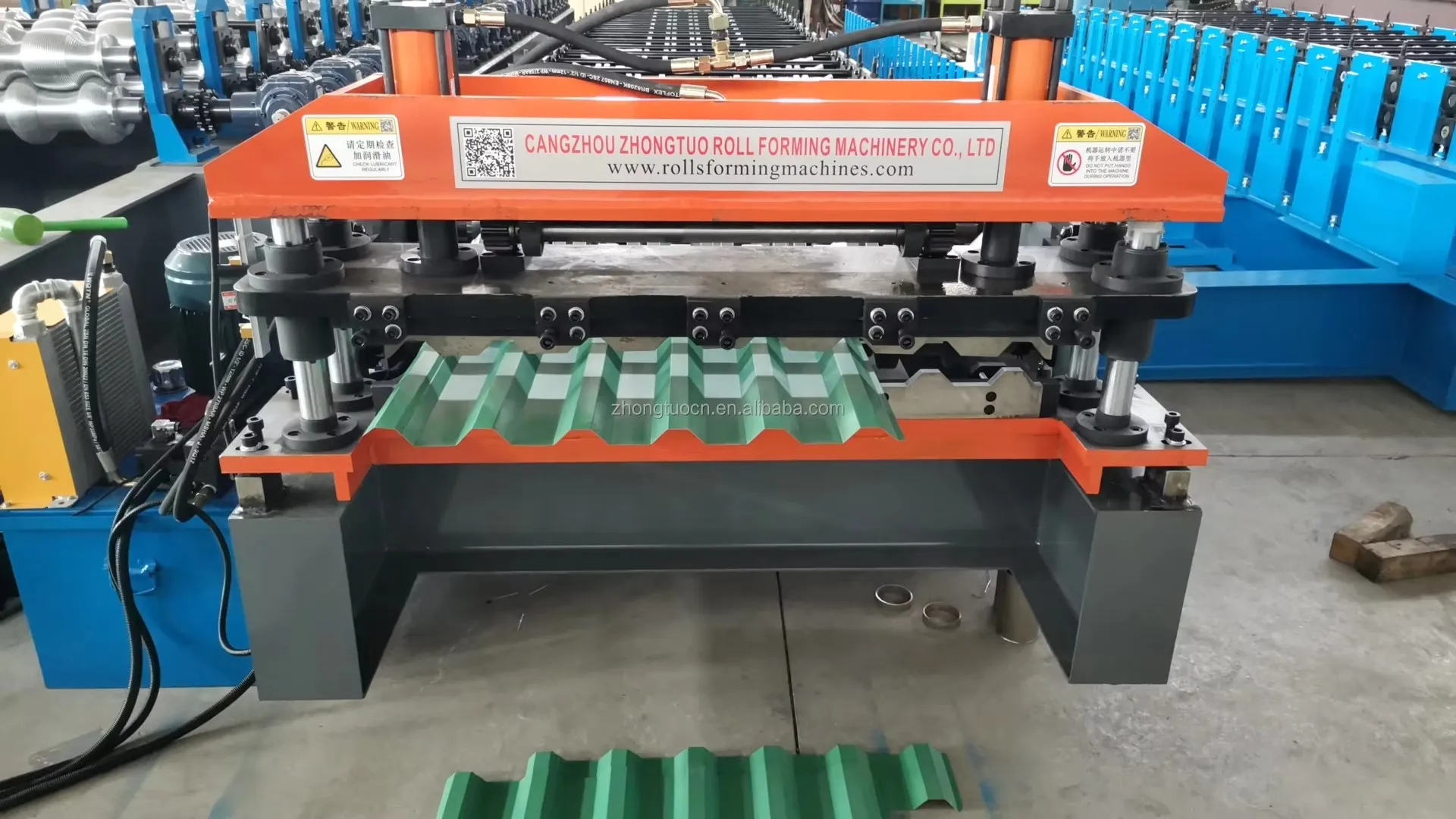

      R72 roof sheet making

      When you use the input the coil width of 914mm, it has 6 waves.

      R101 roof sheet making

      When you use the coil width of 1220, it has 8 waves.

      Profile drawing for reference:


      Mexico Hot Sale Full Automatic Multi Functional Tr72 and Tr101 Integrated Metal Colored Steel Roofing Sheet Making Machine
      Formed Material
      PPGI,GI,AI
      Thickness
      0.3-0.8mm
      Width
      912mm/1220mm
      Roller station
      21 rows(As your requirement)
      Diameter of shaft
      80mm solid shaft
      Material of rollers
      45# steel, hard chrome plated on the surface
      Machine body frame
      350 H steel
      Motor Power
      5.5KW
      Voltage
      380V 50Hz 3Phase(As your requirement)
      Control system
      PLC
      Forming Speed
      15 - 20m/min
      Cutting type
      Hydraulic cutting
      Hydraulic power
      5.5kw
      Cutting blade material
      Cr12 with quenched treatment
      Cutting tolerance
       +/-1mm

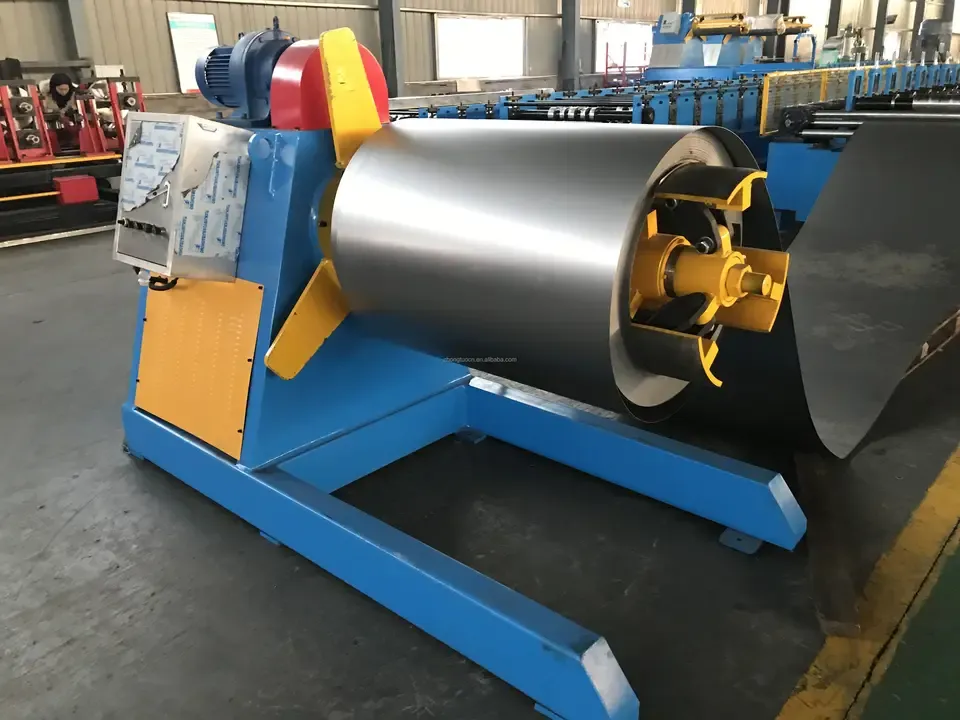

      Hydraulic decoiler

      1. Has power, it can work automatically
      2. Automatically adjust the decoiler to fit into the coil accorind to the coil diameter
      3. With Pneumatic braking system
      4. With press arm to keep coil from loosing

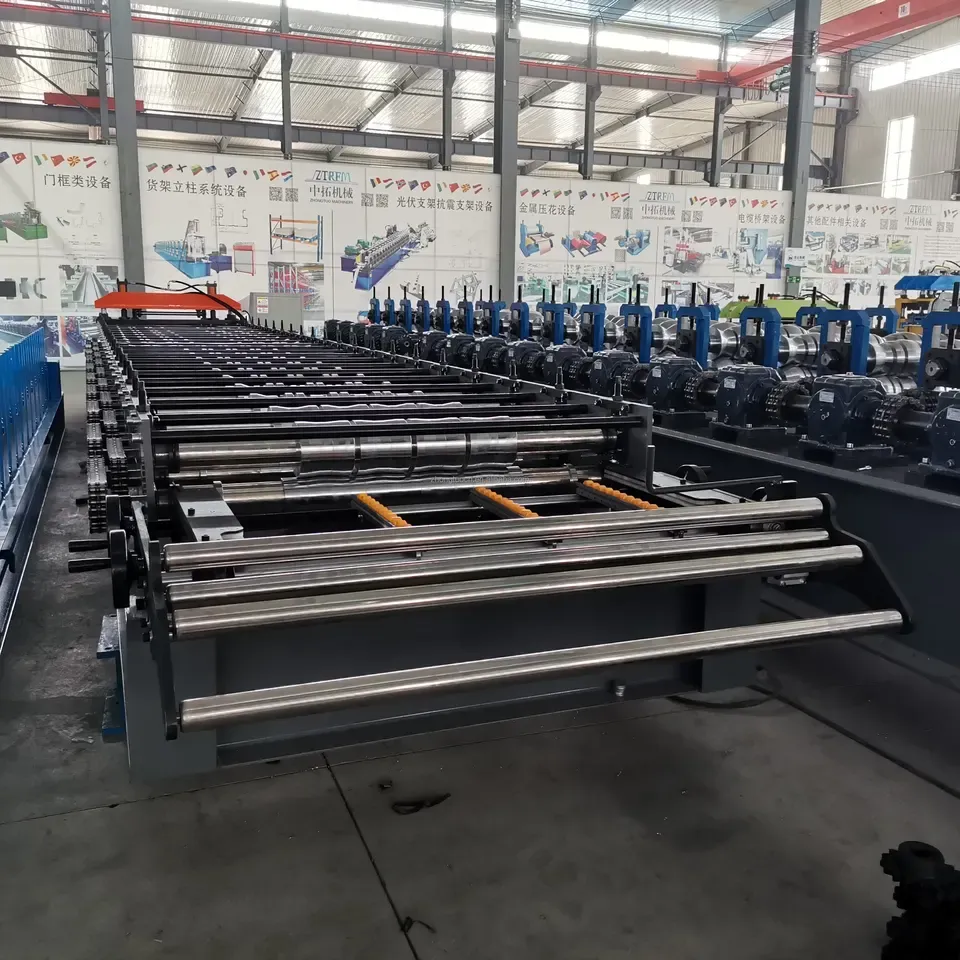

      Feeding device

      The feeding rollers which we use is stainless steel.
      And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.

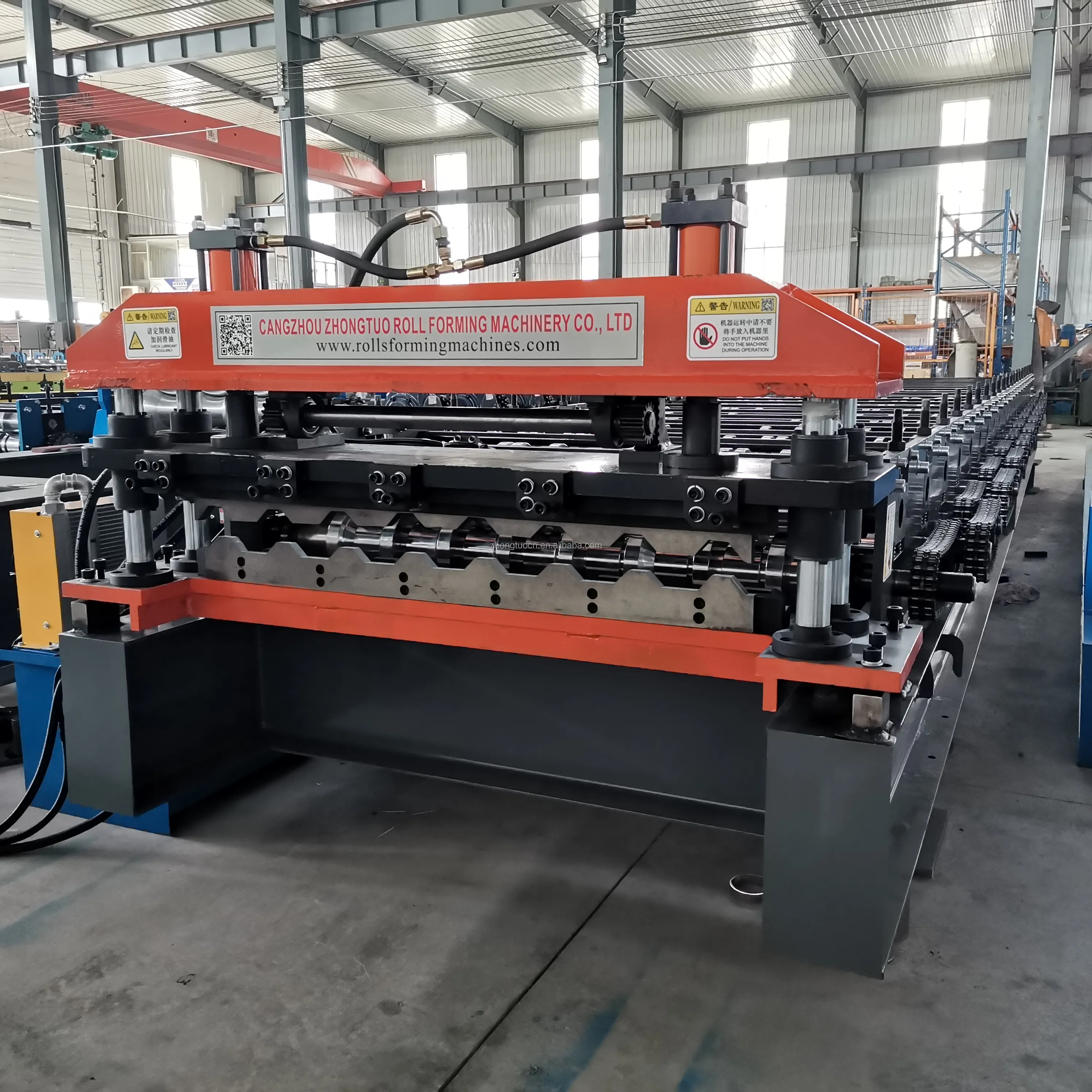

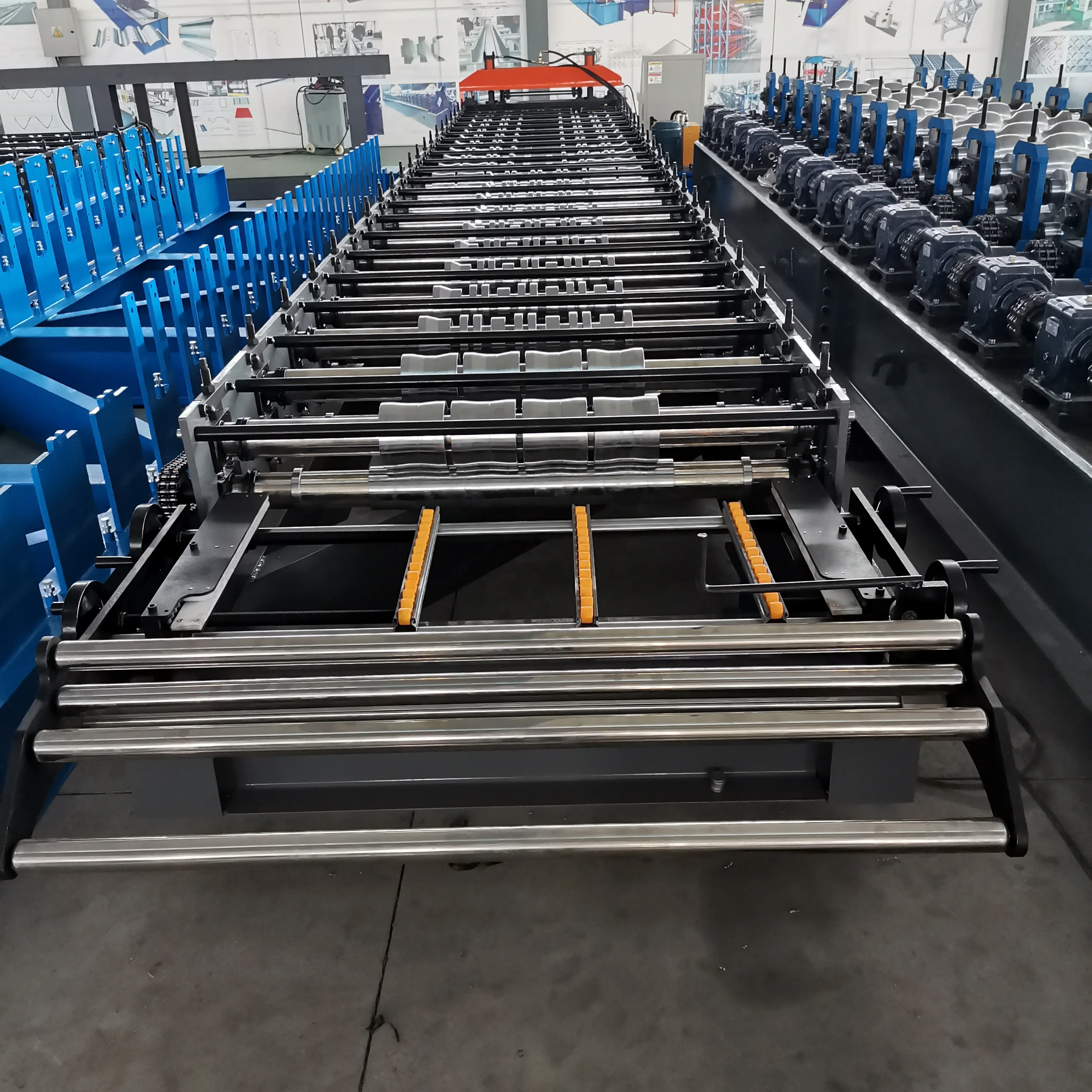

      Roll forming device

      1. Roller station: 21 rows(As your requirement)
      2. Diameter of shaft: 80mm solid shaft
      3. Material of rollers: 45# steel, hard chrome plated on the surface
      4. Machine body frame: 350 H steel
      5. Drive chain: 1.2inch(As your requirement)

      Hydraulic cutting device

      We use pillars cutting system structure, it can make sure the cutting stable Hydraulic oil pump station will provide power to cutting system.

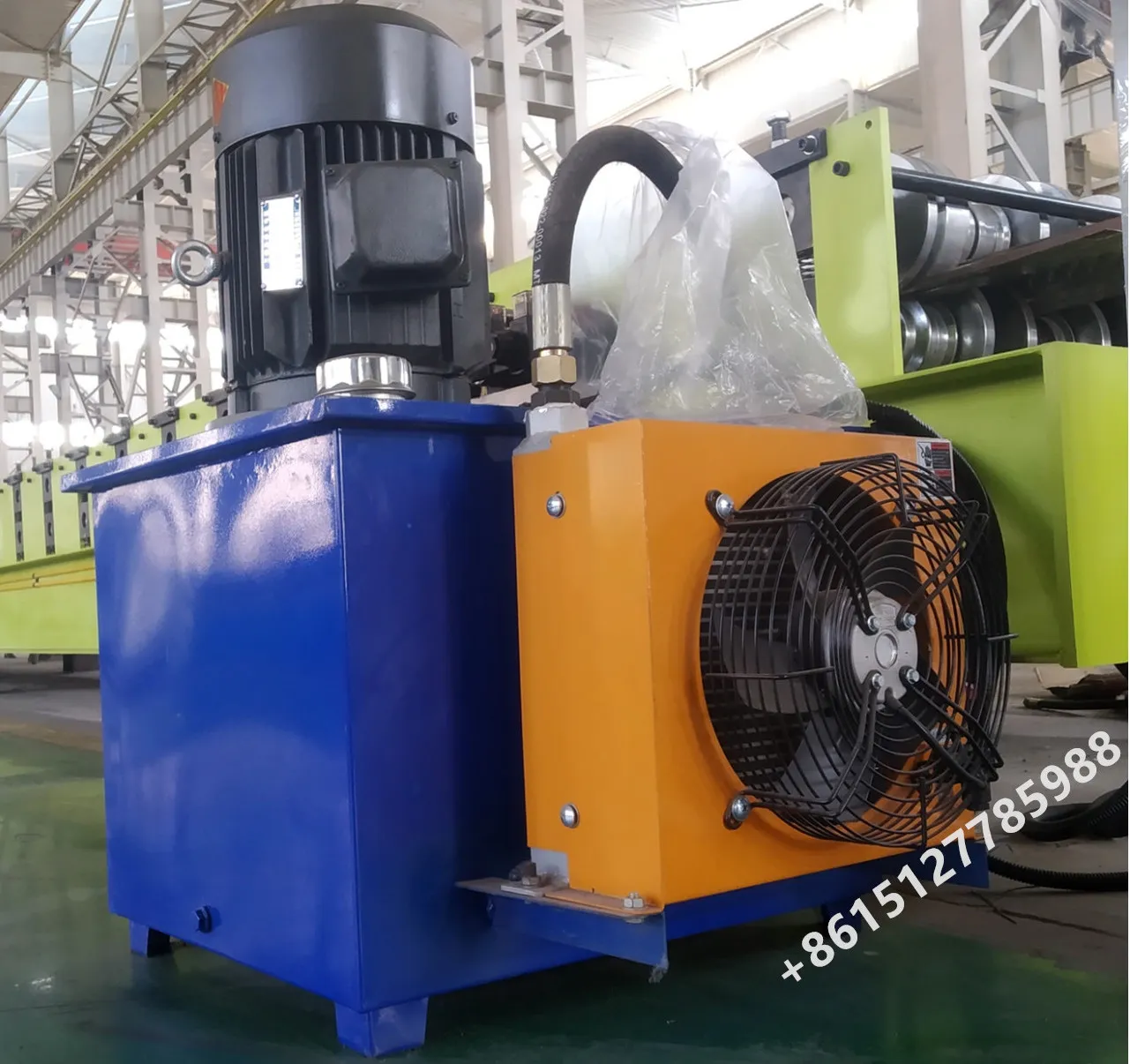

      Hydraulic station

      All of our hydraulic stations are equipped with fan cooling, which can cool down the coil’s temperature after long time working or the working at hot weather.

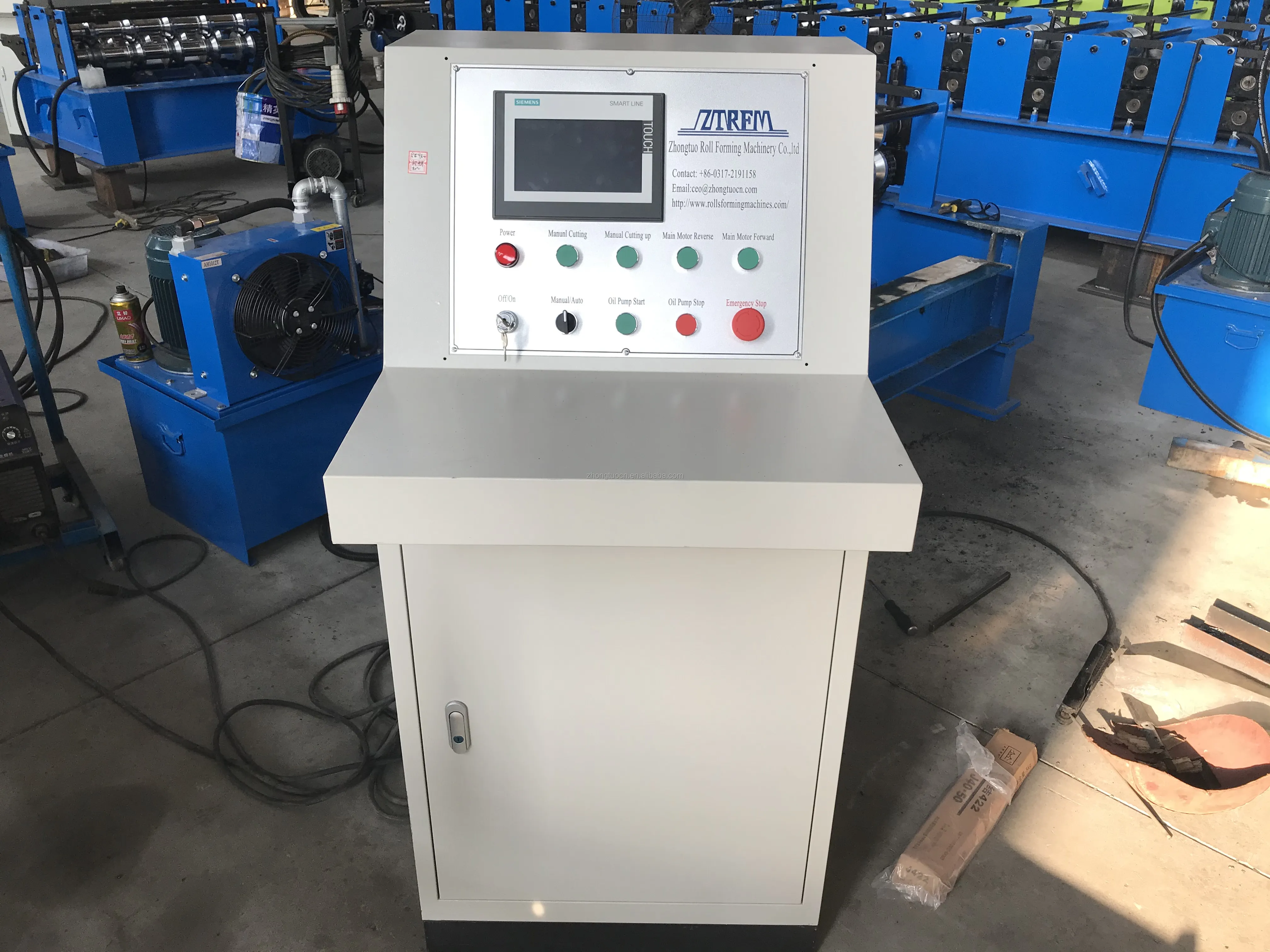

      PLC control System

      Function: Automatic control the length,quantity and batch
      Feature: Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

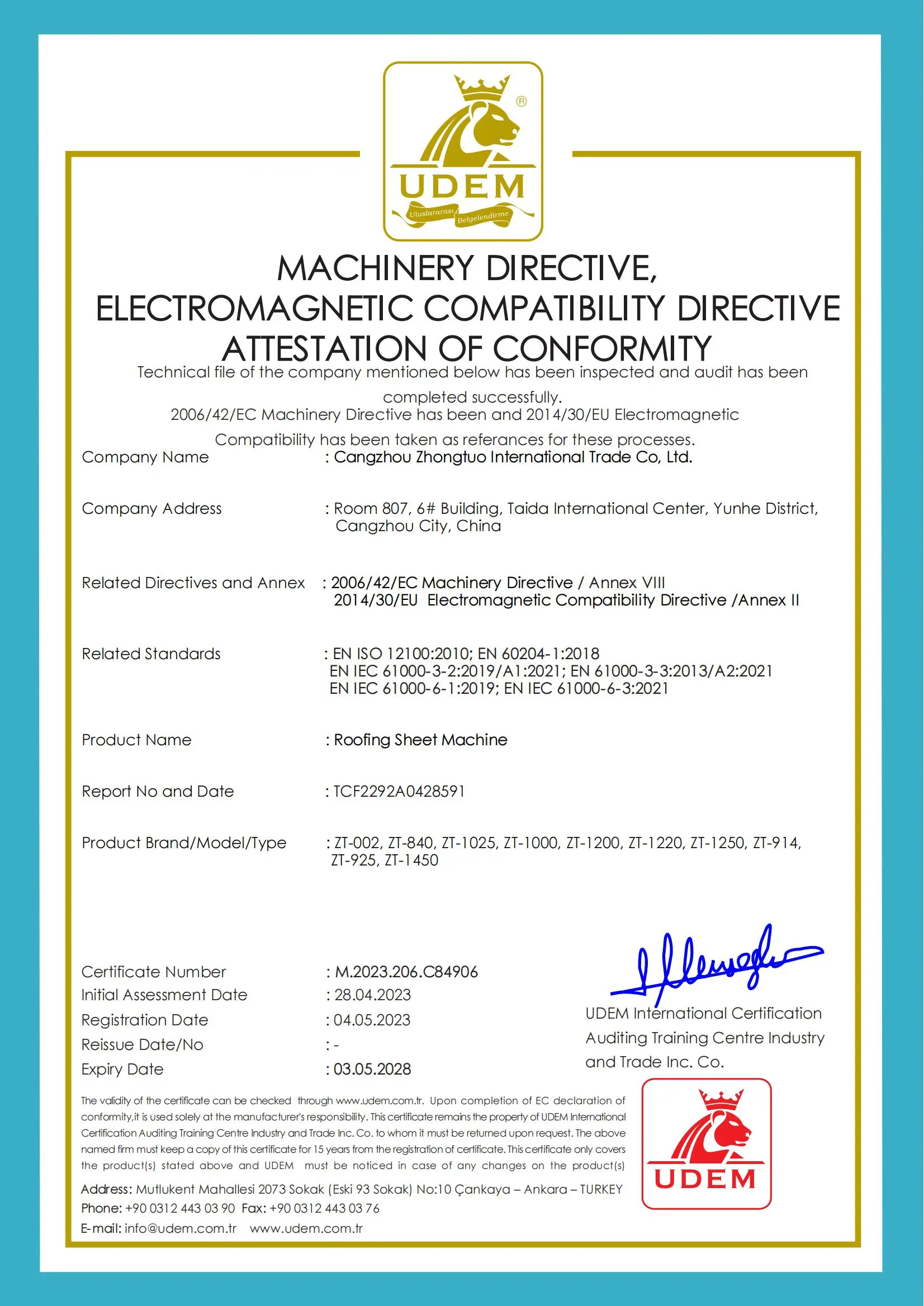

      CE(No.OP180719.CZIDC95)
      ISO 9001(No:ZL92090220234630)
