Metal Tile 3D Model Metal Roofing Sheet Rolling Forming Machine 22 KW

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Tile 3D Model Metal Roofing Sheet Rolling Forming Machine 22 KW

Name: Metal Tile 3D Model Metal Roofing Sheet Rolling Forming Machine 22 KW
Brand: ZTRFM
SKU: ZT80512365
Availability: InStock

$23,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$23,000.00

Quantity:

≥1Set

Order CodeZT80512365

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

22 KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380V or customize
Rolling Thickness
0.3-0.5mm
Feeding Width
1220 mm

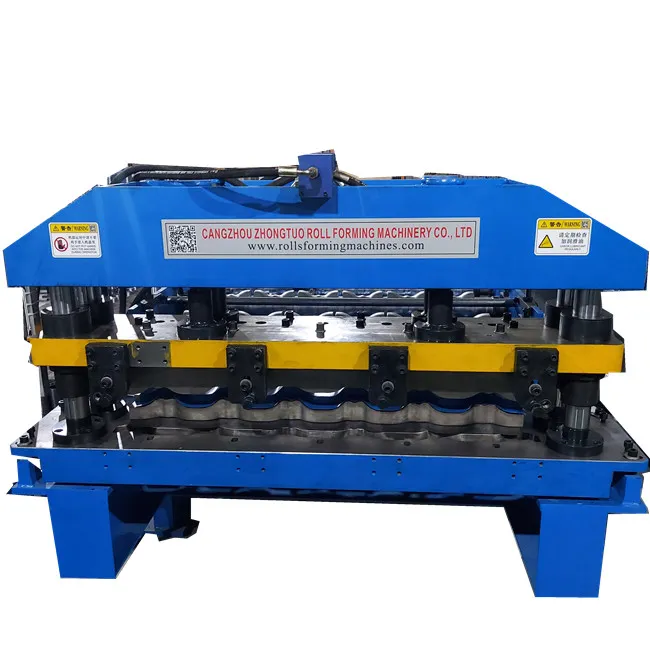

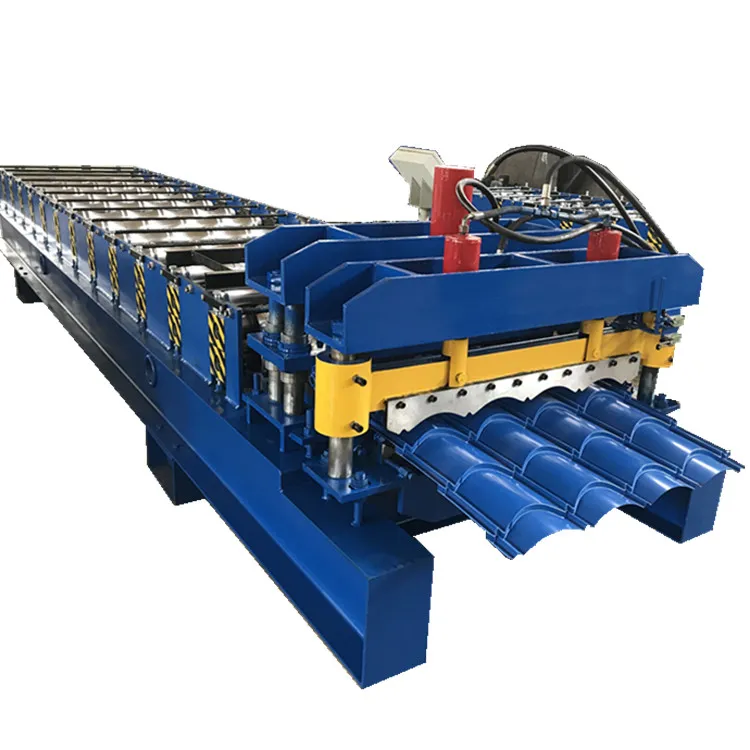

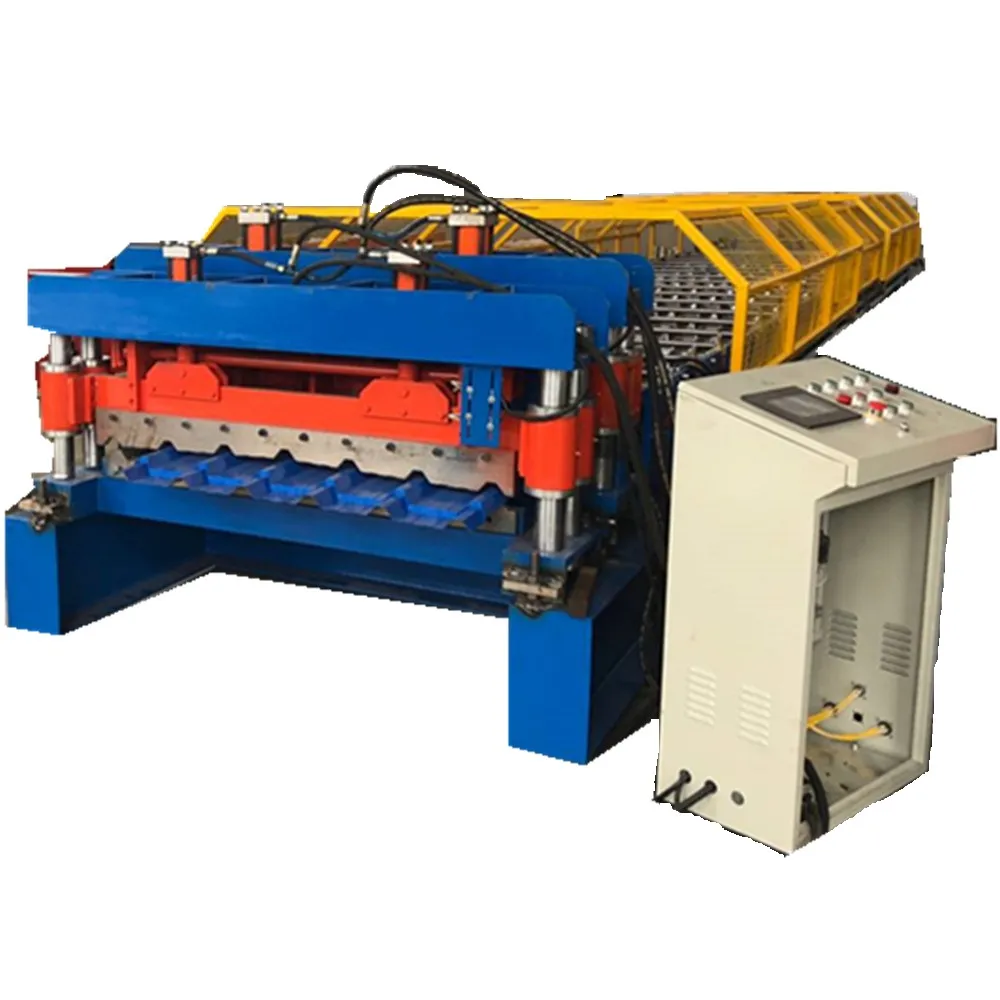

Metal tile 3D model metal roofing sheet rolling forming machine

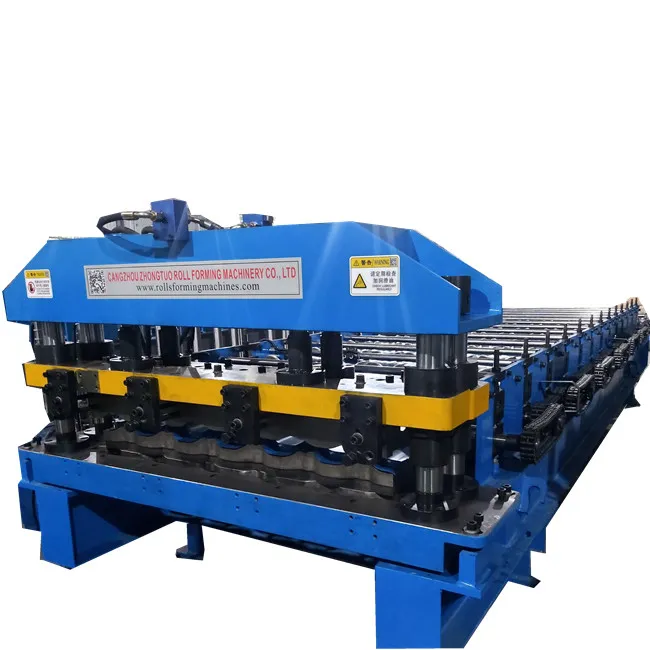

Metal tile 3D model metal roofing sheet rolling forming machine is designed to make the metal roofing tiles in batch fully automatically. The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.5mm, the standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. Normally for the 3D model metal roofing sheet, the more smaller in range and the more beautiful in the profile shape.

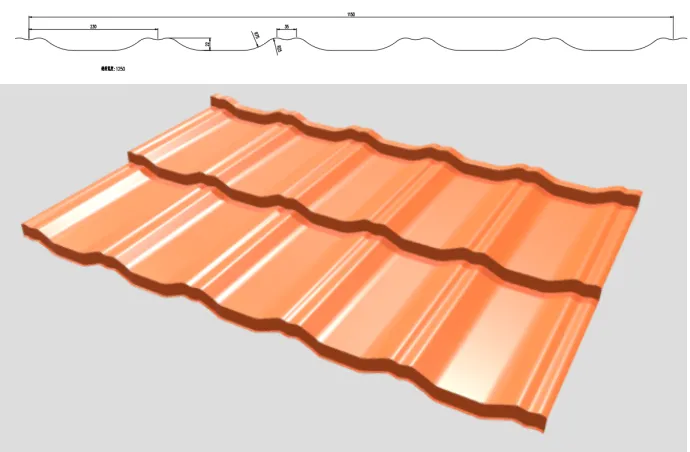

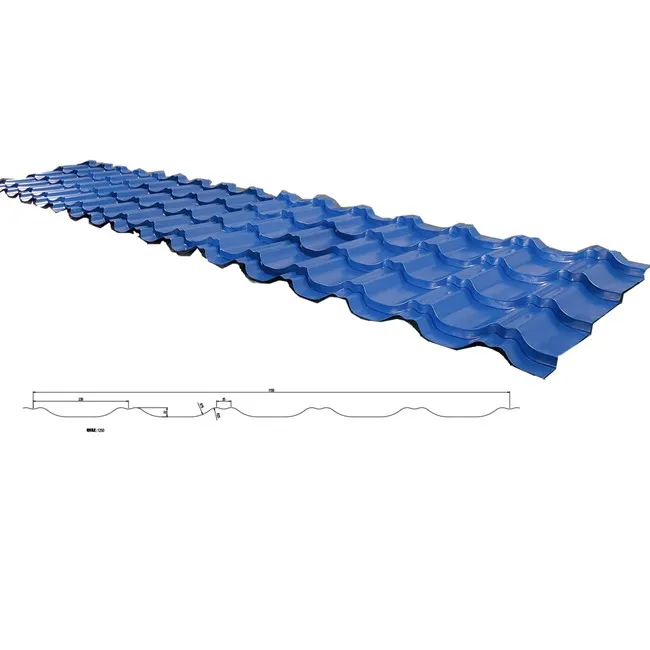

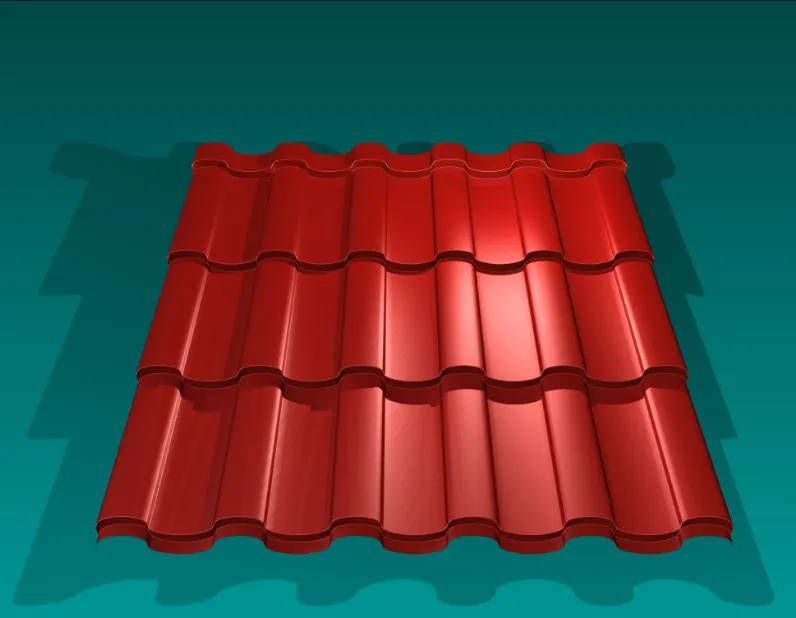

Take the following drawing profile for your reference:

Metal tile 3D model metal roofing sheet rolling forming machine

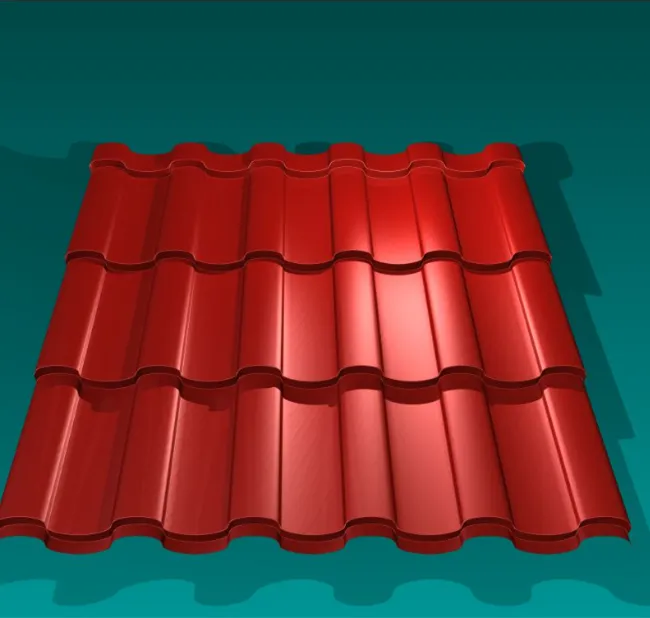

There are many types for your reference:

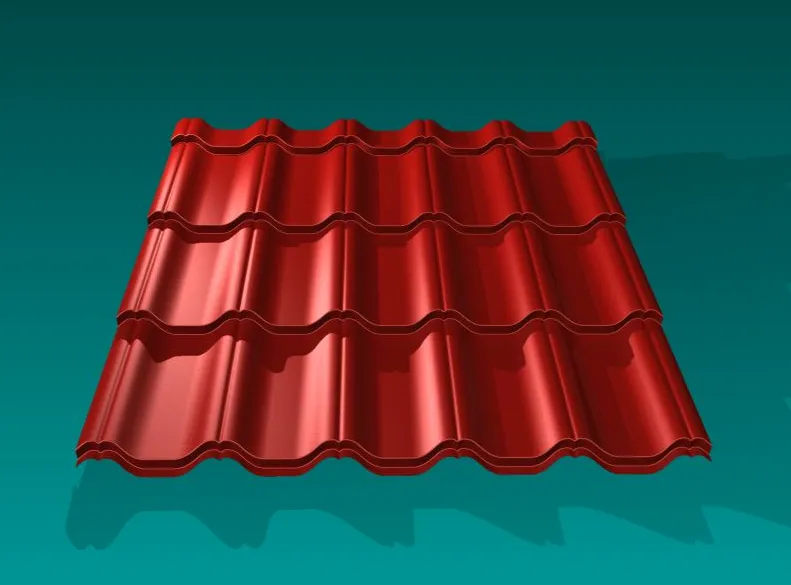

TILE TYPE FOR YOUR REFERENCE

DESIGN IDEA

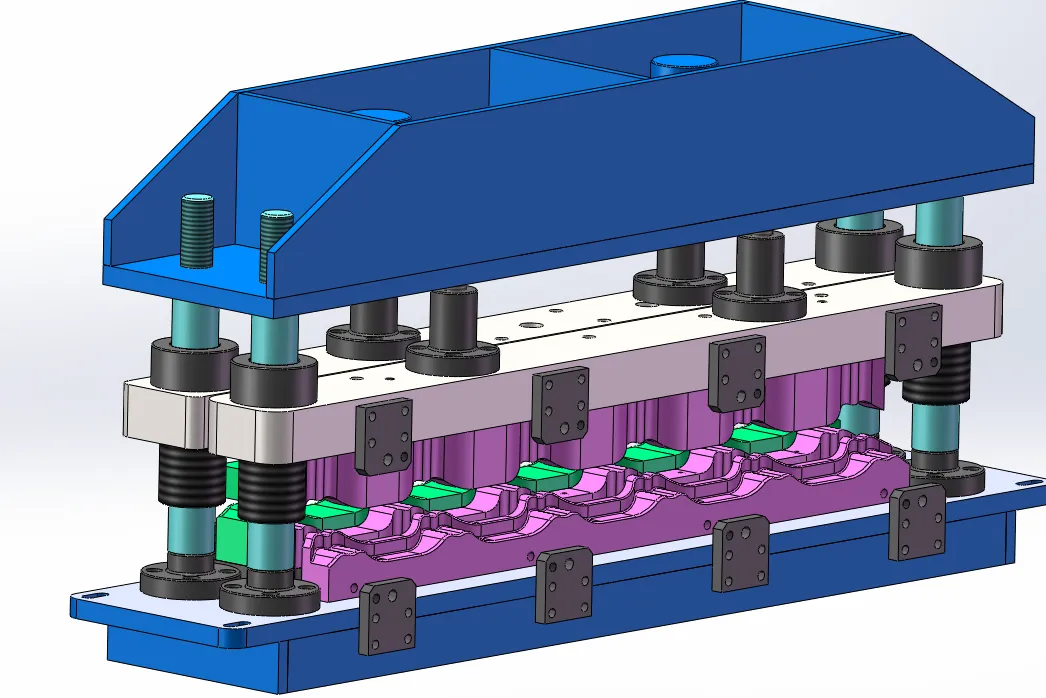

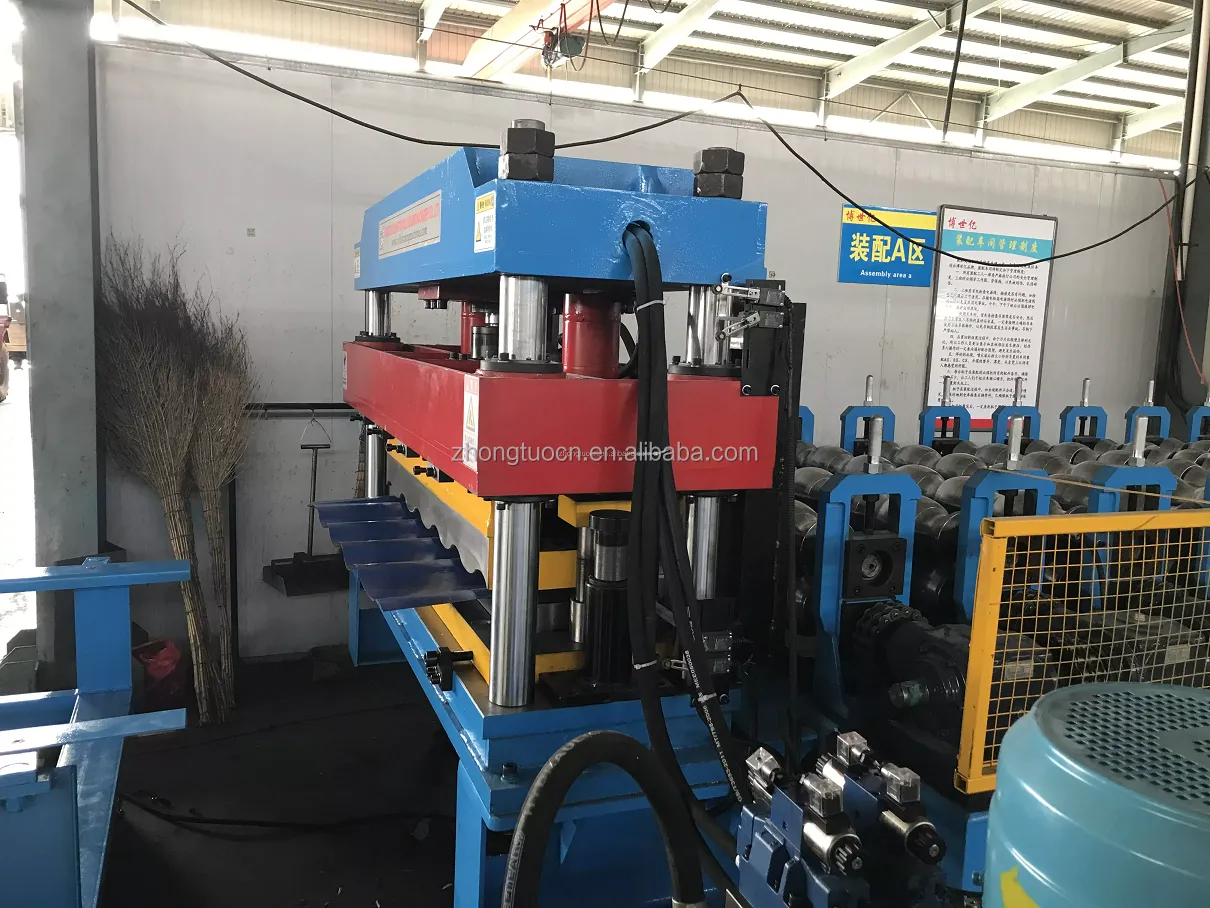

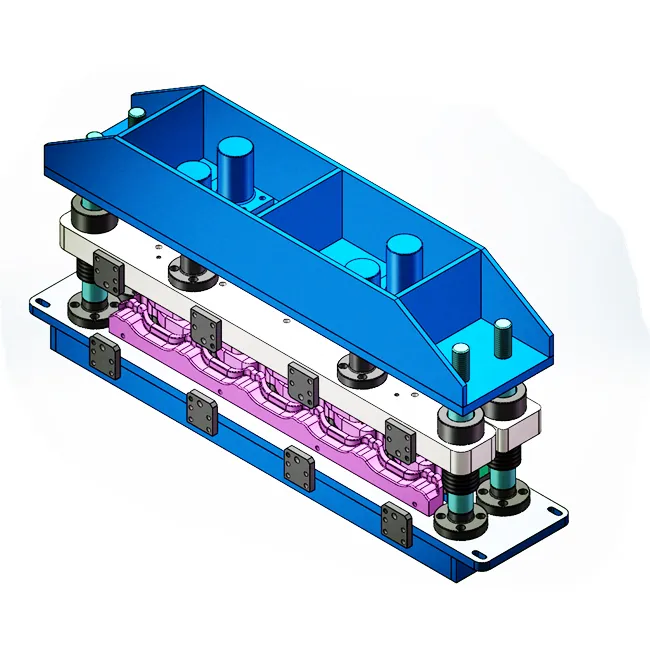

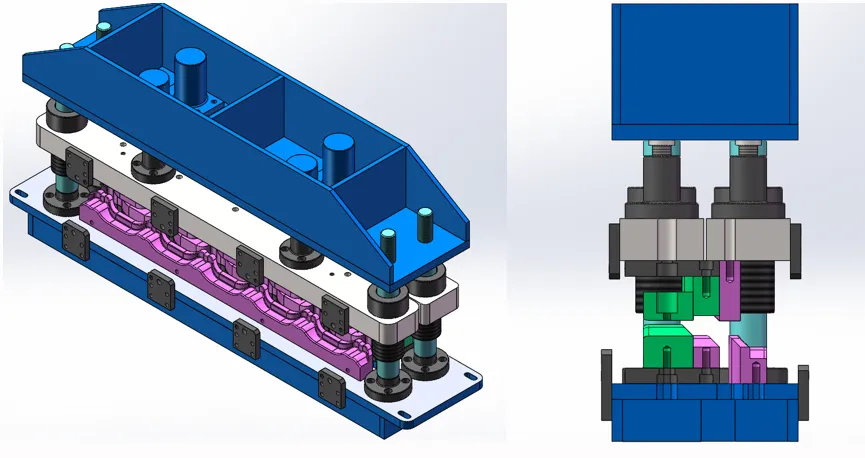

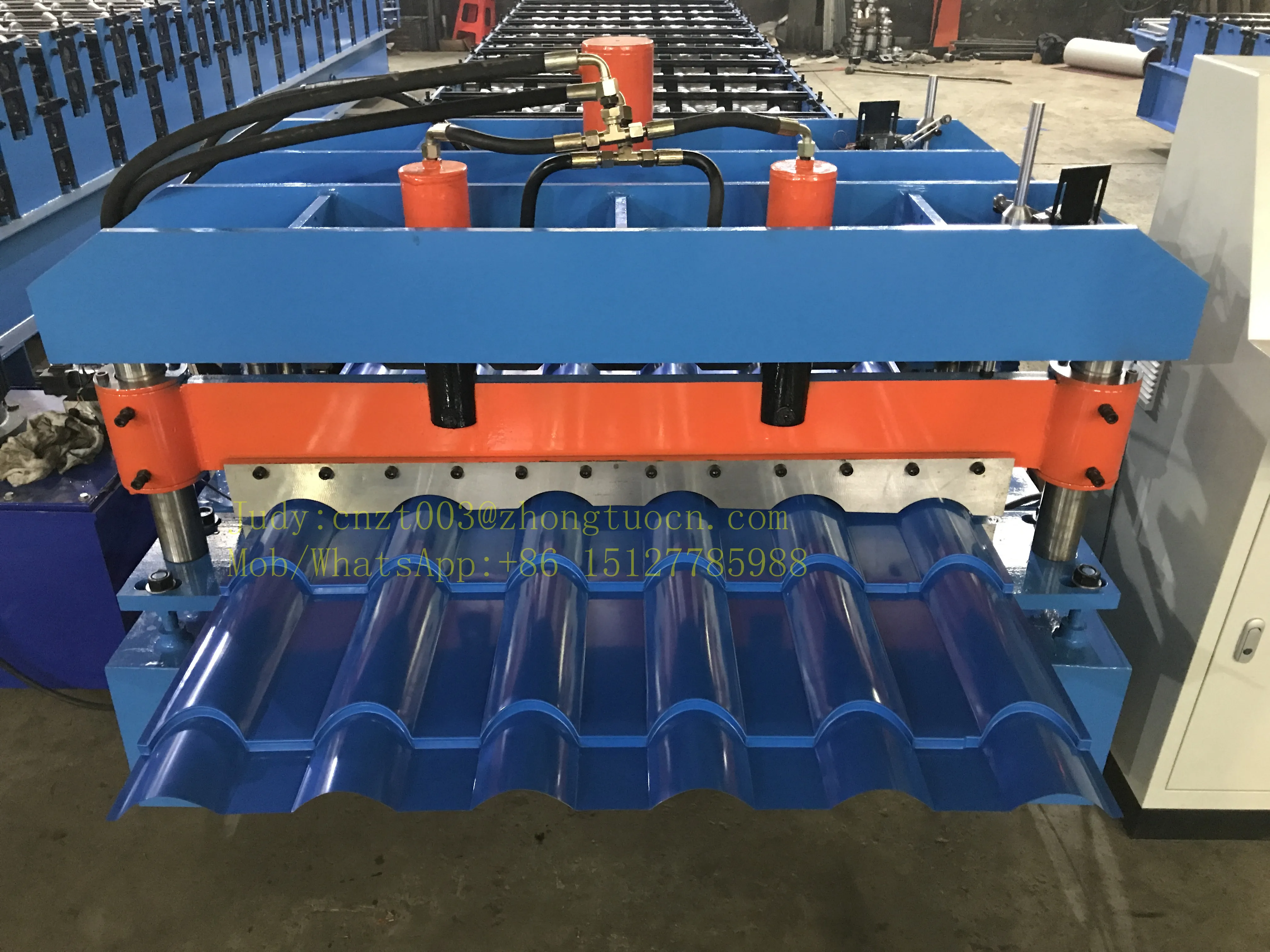

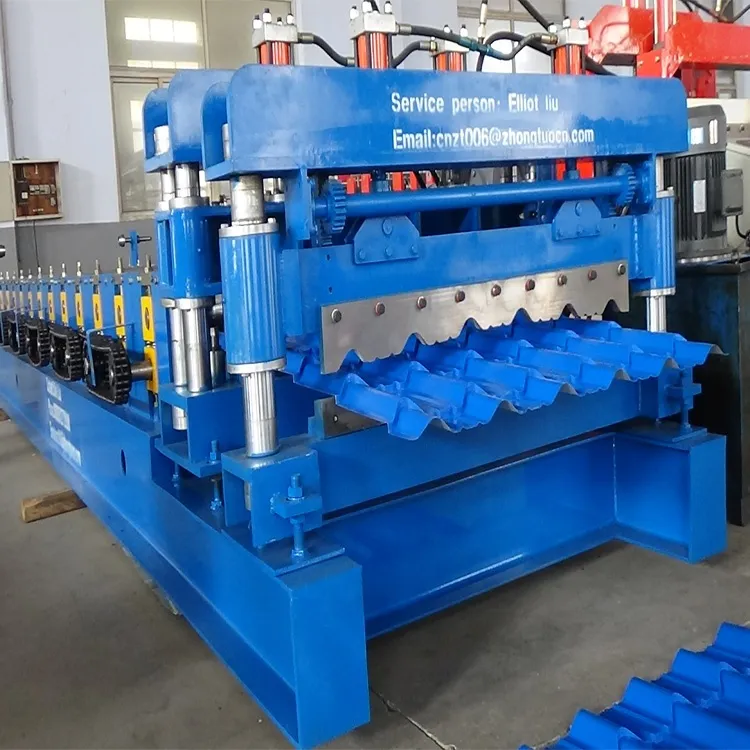

Compared with the 3D mode metal roofing tiles and the normal step tile, the most big difference lie in the shearing system. It includes a cutter holder, the upper part of the cutter holder with an oil cylinder, With an upper knife beam, upper cutting knife is fixedly installed on the upper knife beam through the connecting plate, and the lower cutting knife is arranged corresponding to upper cutting knife. The lower cutting knife is fixedly installed on the lower knife beam, and the lower knife beam is arranged on the cutting knife frame.

High speed:0-8m/min

Special Design Cutting Device:As azerbaijan customer’s requirement different with others,for the cutting device we made special design and obtain a patent.
Stable Transmission: gearbox drive.

PRODUCT PARAMETERS

Processing Flow: Decoiler-Feeding Material-Roll Forming-Cutting-Receiving the Product

raw material	PPGI
raw material		material thickness:0.32-0.5mm
machine frame	350#H steel frame welded
machine structure	vertical arch frame structure

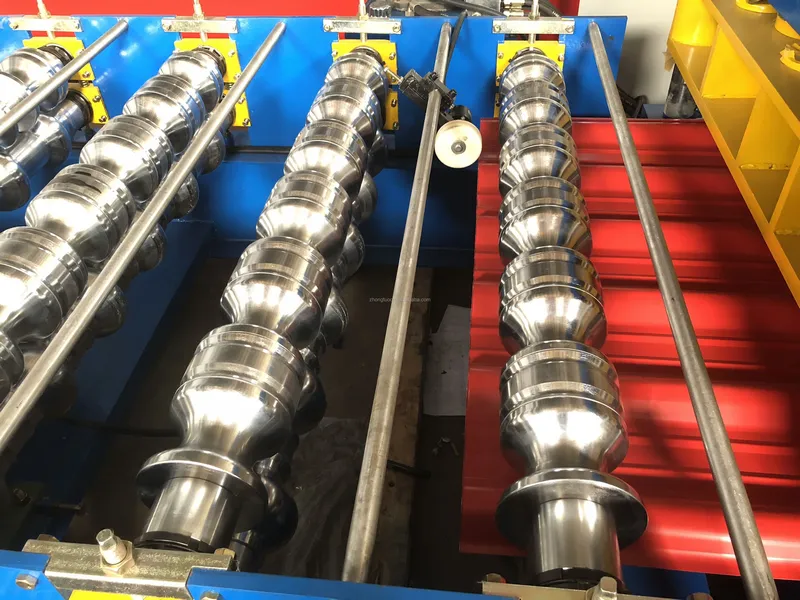

material of rollers	45# steel chromed treatment (Cr Thickness:0.05mm), anti-corrosion, increase hardness, ensure the precision and good abrasion performance
forming stations	16 stations
diameter of shafts	φ80mm
material of shafts	45# steel tampering treament prevent deformed and improve the hardness
forming speed	about 0-8m/min
voltage	380v 50hz 3ph or as required
transmission	gear box transmission
		material of gear box: iron casting
		material of gear:20 Crmnti
		the connection between gear boxes are chains
		gear box will connect with the rolling station one for one
		advantage : can improve the speed directly after cutting
work power	11kw (gear reducer and servo motor driving)
cutting blade material	Cr12Mov quenched treatment to improve hardness
cutting type	hydraulic cutting

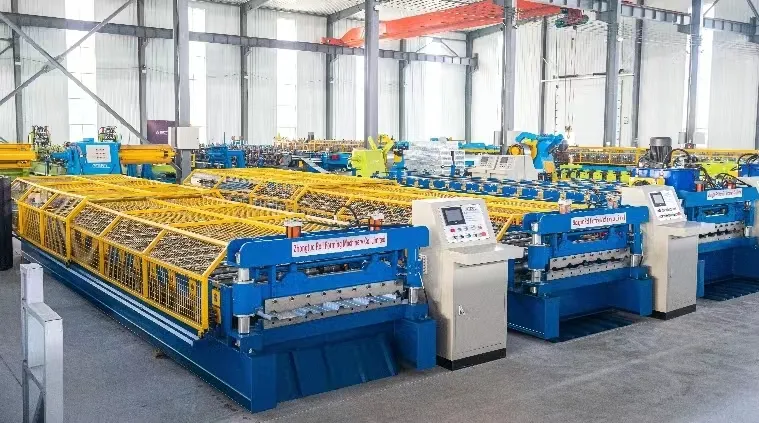

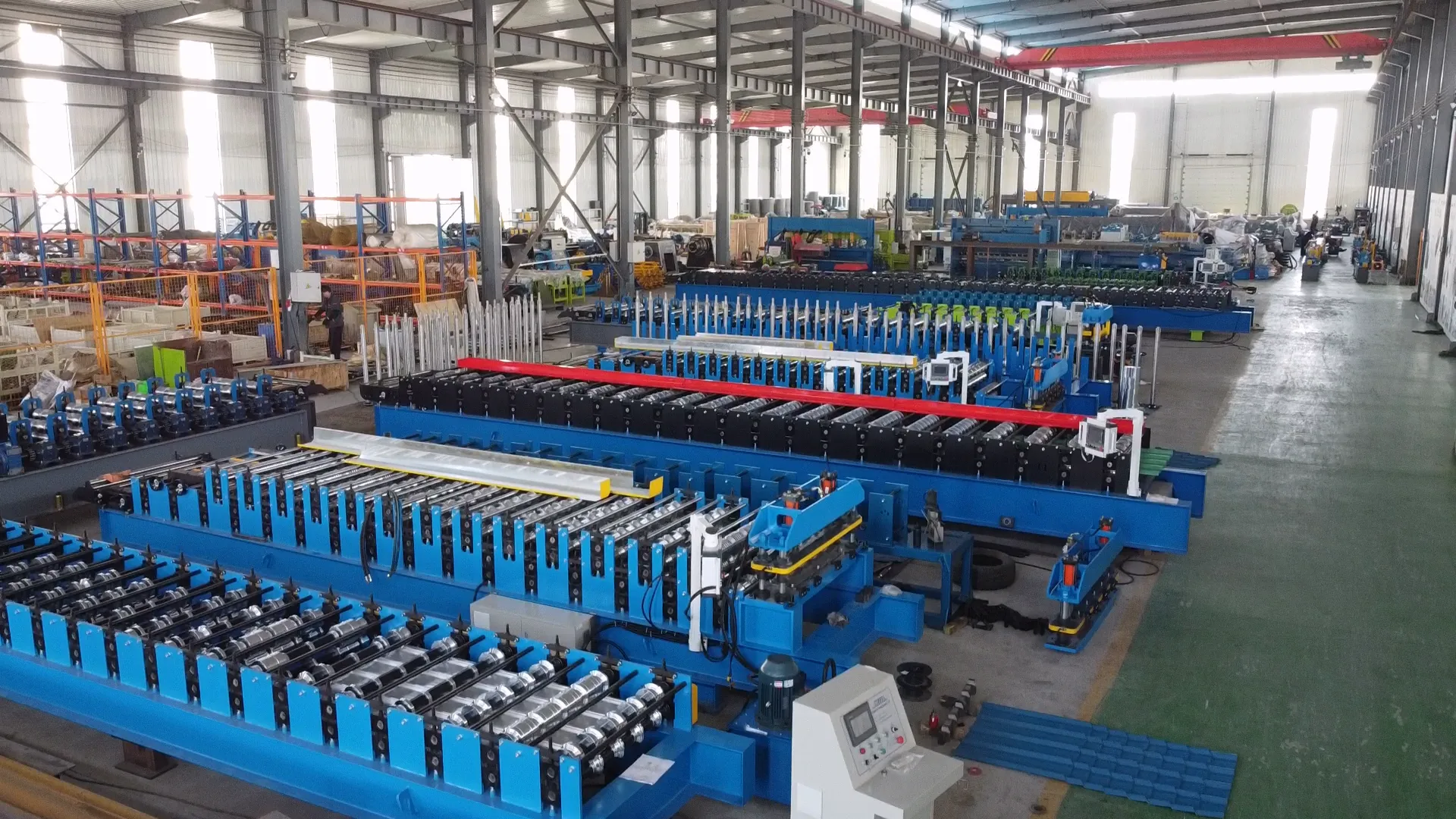

PRODUCT DISPLAY

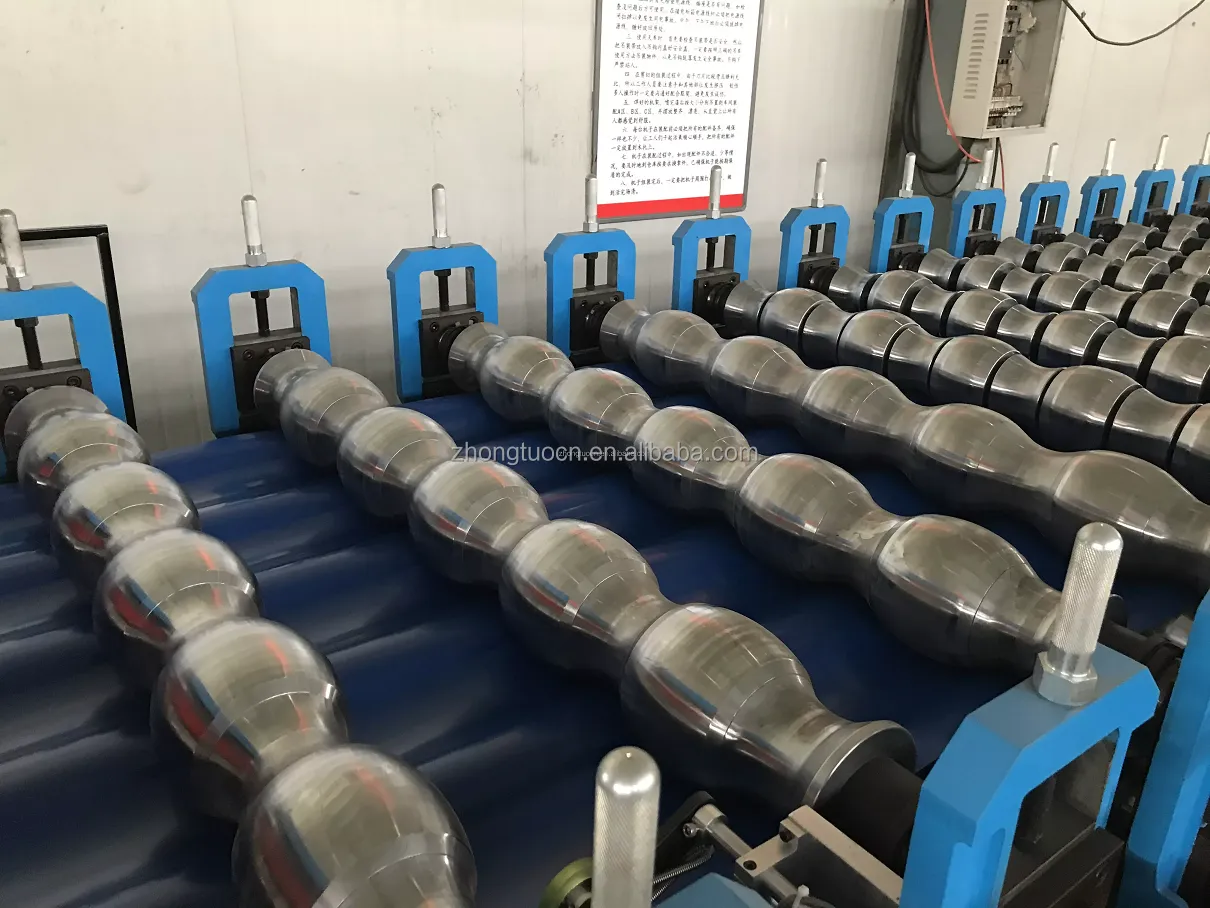

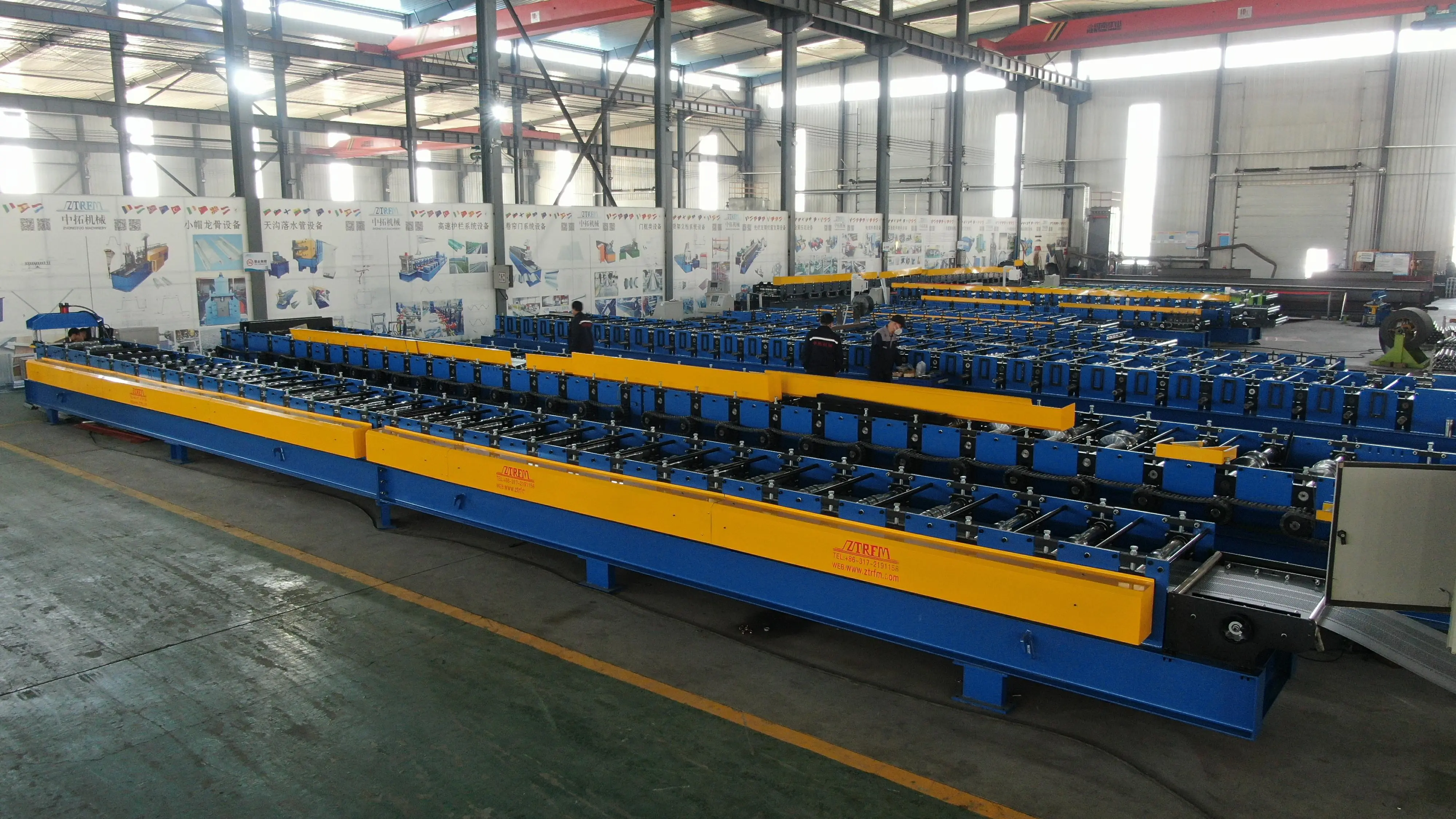

Roll Forming System

1. Frame: 350 H steel, with 20 mm middle plate support.

2. Roller stations: 16 stations

(depend on the profile drawing)

3. Roller material: 45# steel with quenched treatment and hard chrome

4. Shaft diameter: 80 mm , solid

5. Shaft material: 45# steel with tempering treatment 6. Motor power: 7.5 kw

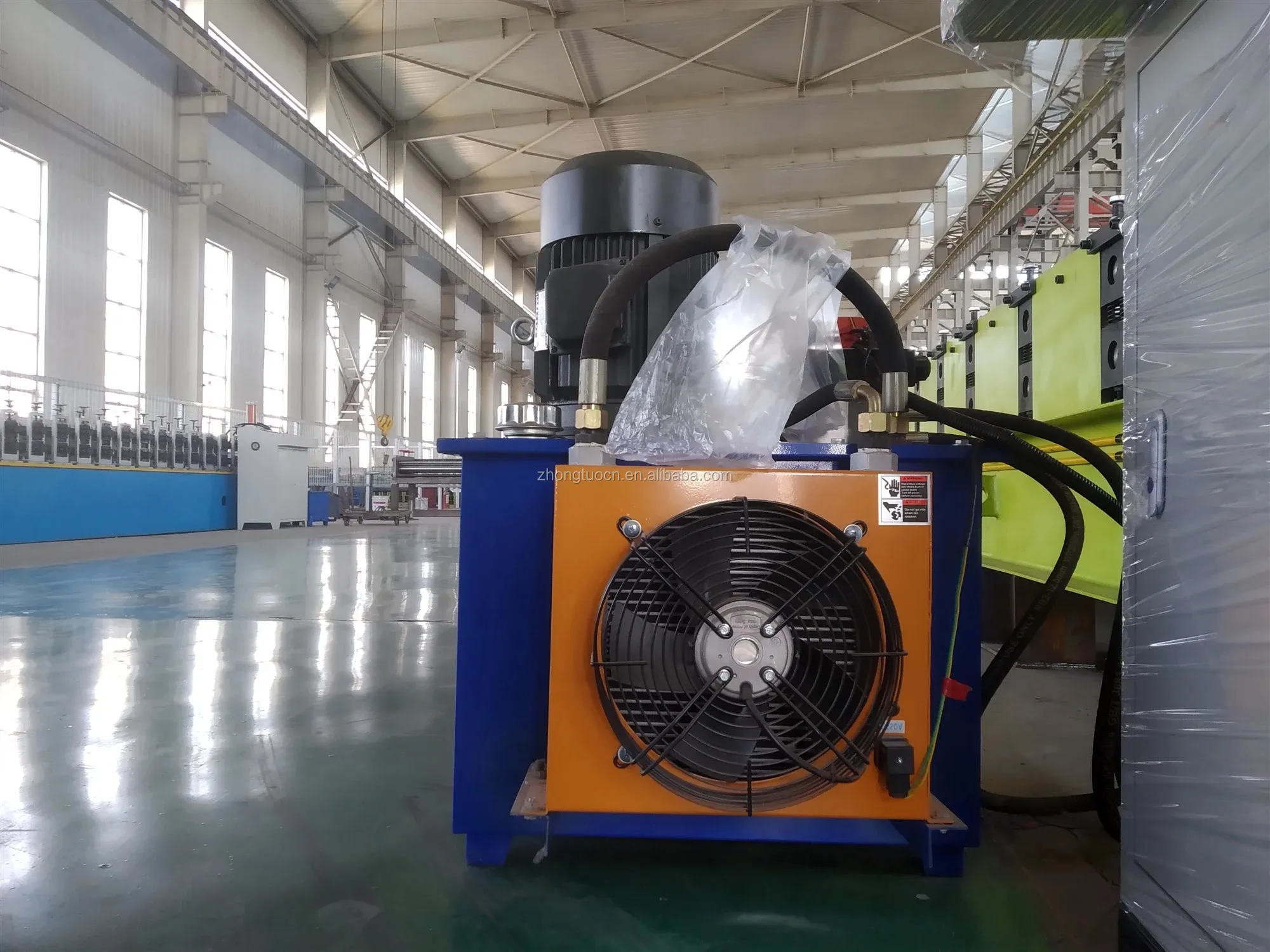

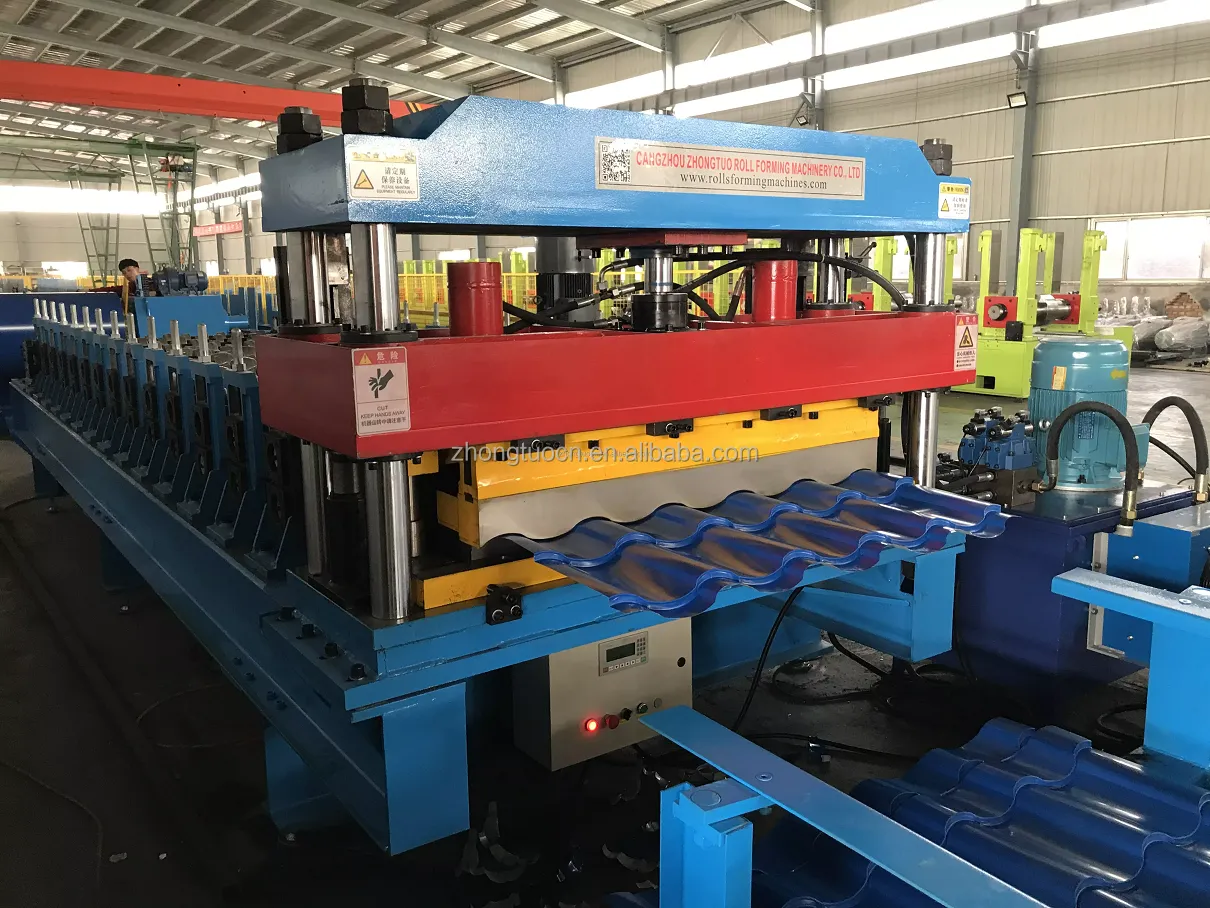

Hydraulic Cutting System

1. Blade material: Cr 12, with quenched treatment 2. Hydraulic power: 7.5 kw 3. Cutting tolerance: ±1 mm 4. With fan cooling on the oil pump

PLC Control System

1. Control system: PLC 2. PLC brand: Delta from Taiwan 3. Frequency converter brand: Delta from Taiwan 4. Encoder: Omron 5. Function: Automatic control the length and quantity

Hydraulic Station

1. Hydraulic station motor: 5.5KW

2. Hydraulic oil: 46# hydraulic oil

3. Main components: include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism value

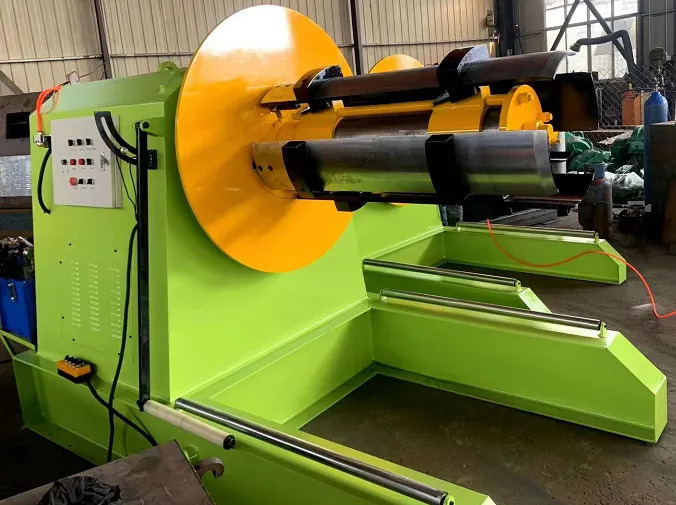

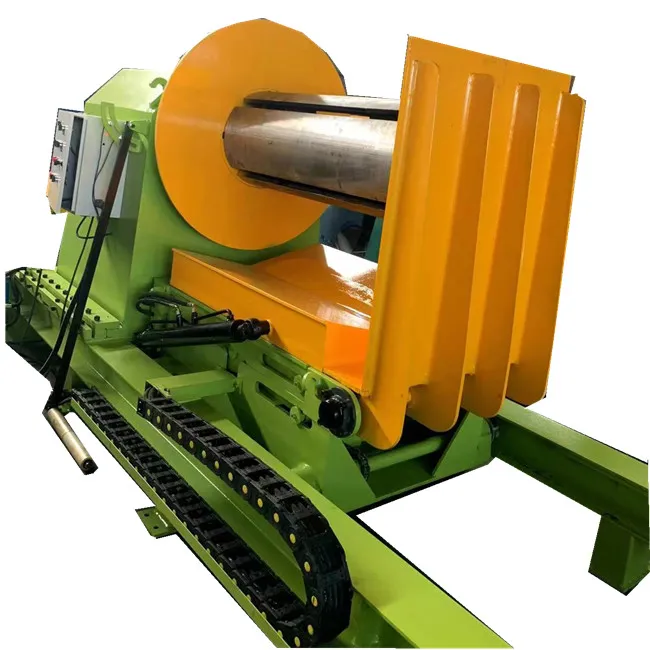

As to the decoiler, you can choose the hydraulic one or manual one depends on your options.
