Metal Step Tile with Filming for Roofing Sheet Rolling Forming Machine ZTRFM+11KW

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Step Tile with Filming for Roofing Sheet Rolling Forming Machine ZTRFM+11KW

Name: Metal Step Tile with Filming for Roofing Sheet Rolling Forming Machine ZTRFM+11KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT80787876

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM

Power(W):

11KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380V,50HZ,3PH or cutomized
Rolling Thinckness
0.3-0.8mm
Feeding Width
As per profile drawing

Product Description

Metal step tile with filming for roofing sheet rolling forming machine

Metal step tile with filming for roofing sheet rolling forming machine is used to make either supporting the normally coil or the filmed coil with functions. Those roofing sheets are used in building constructions, decoration, printing, packing, electronics, communication industries, aluminum panel solar mounting structure etc. Metal Step Tiles Aluminium Roofing Sheet or filmed roofing sheet Features : 1.Compared to a typical composition shingle roof or cement roof, metal Step Tiles Roofing Sheet is much lighter. This helps it withstand an earthquake. 2.Wind-resistant: Its interlocking design helps it withstand the strong wind. 3. Leakage-proof. Filmed Step Tiles Roofing Sheet is good for the rainy areas. 4. Hailstone-resistant: Such corrugated metal roofing sheet can protect the building from the hailstone. 5.Noise-resistant: Step Tiles Aluminium Roofing Sheet shingle deadens the sound of the rain and hailstone.

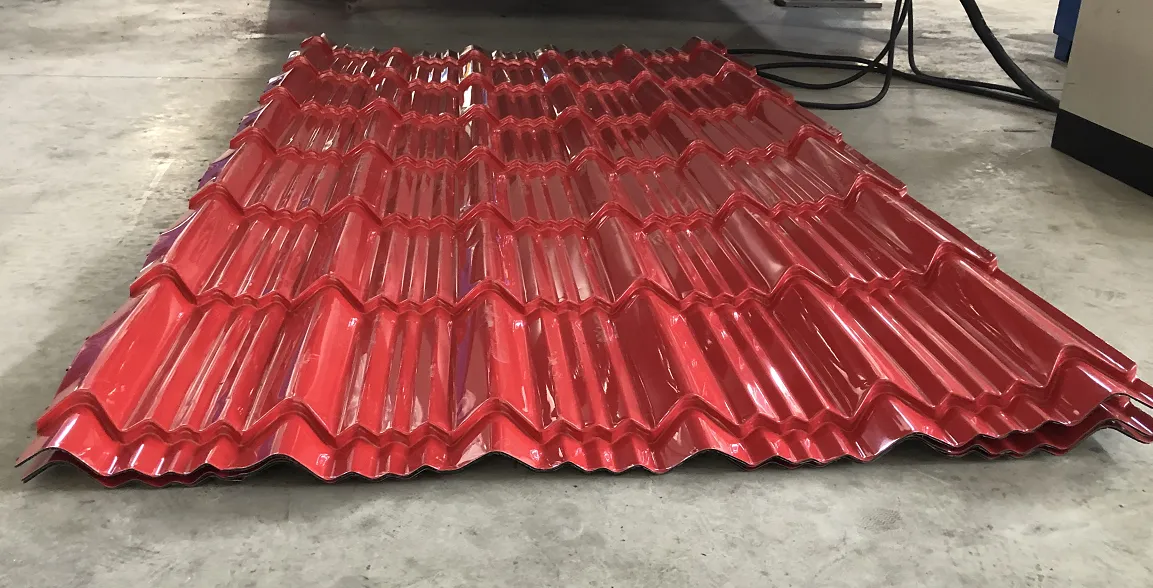

Take the following drawing profile of the step tile for your reference to show you more details about this machine:

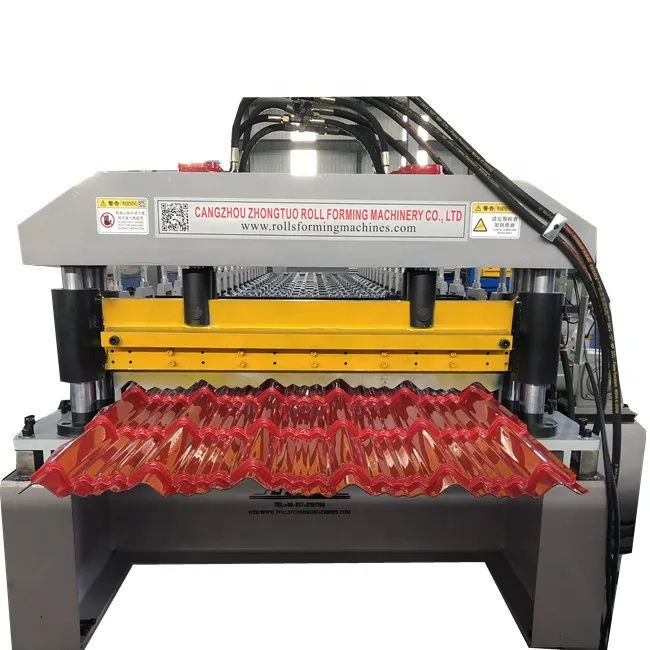

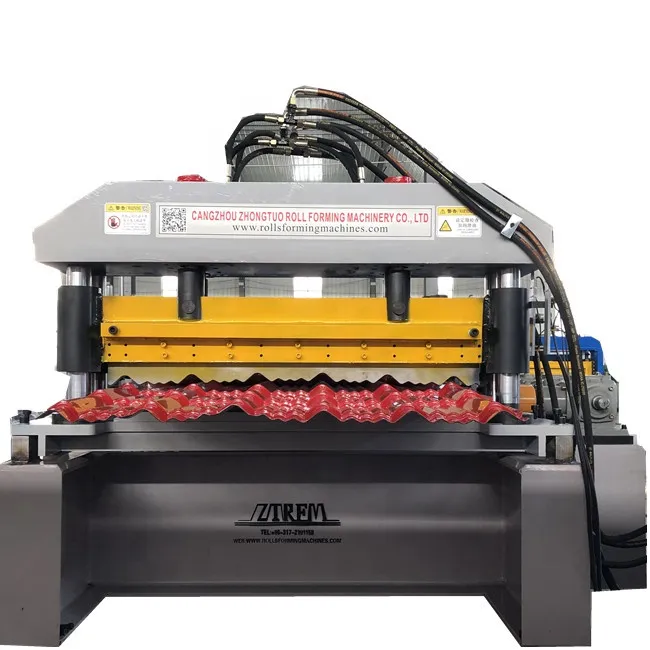

High quality step tile machine

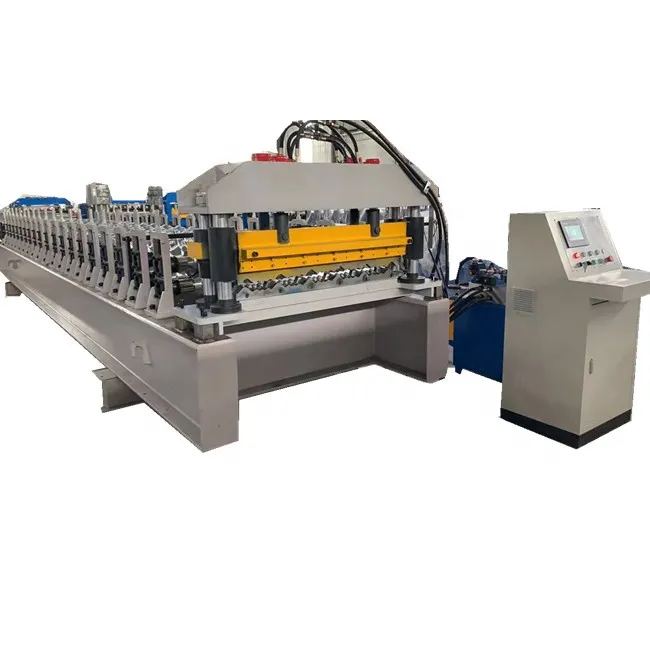

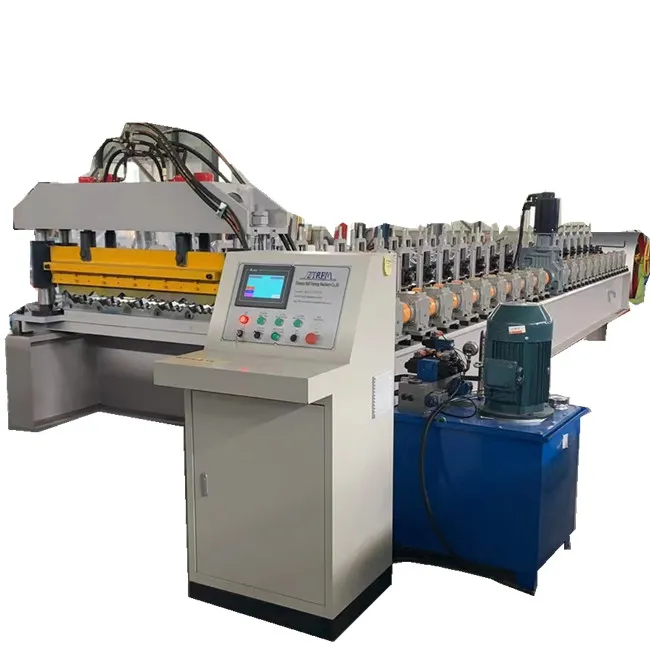

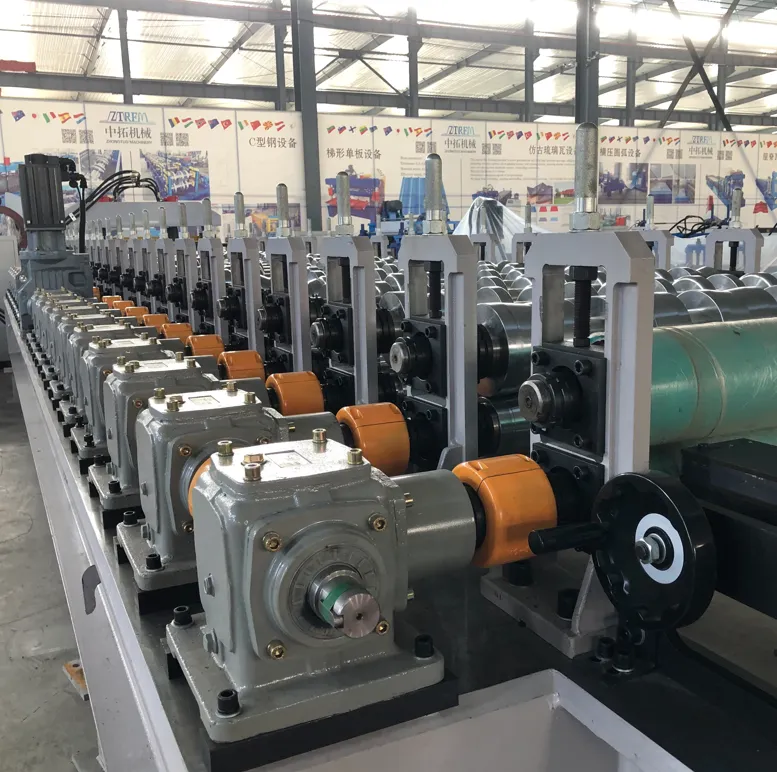

Steptile roll forming machine with gearbox transmission and molding frame

STEP TILE ROOFING SHEET MACHINE
1.Formed Material	PPGI,GI,AI		Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		16 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive		Gearbox transmission
		Dimension(LWH)		850016001600(customize)
		Weight		7.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		11KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	30-35m/min		The speed is adjustable as customer's request

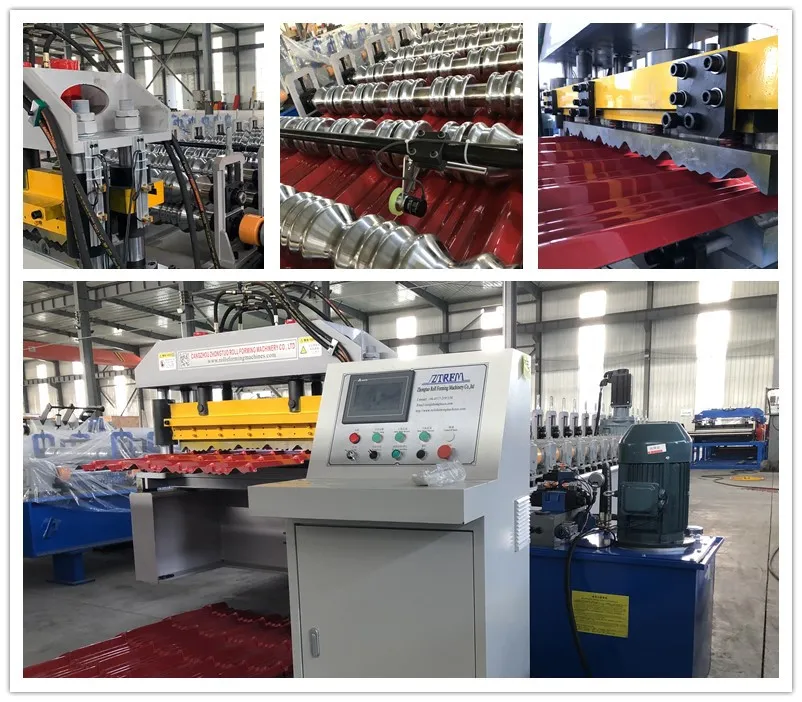

More details of the machine

Why it belongs to high quality step tile rolling forming machinery:

Roll Forming System 1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession. 2、40mm thickness wall for forming system to ensure machine 15 years long life.

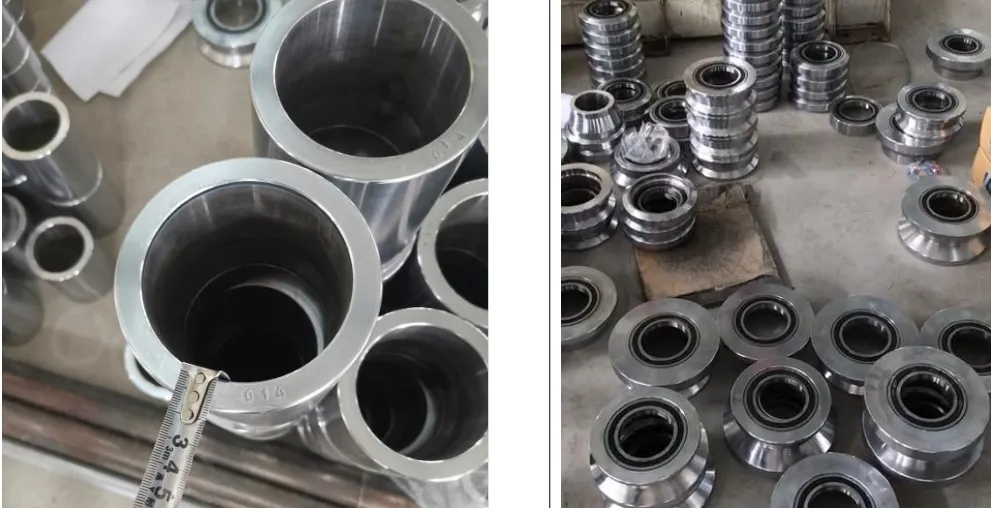

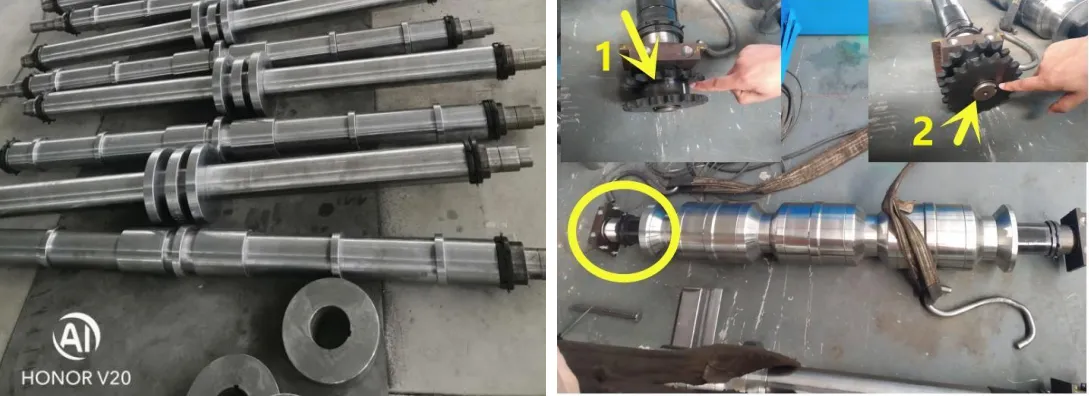

High Accuracy processing in shaft and rollers:

1、Shaft material is No.45 steel with diameter 80mm with keynote, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy. 2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy

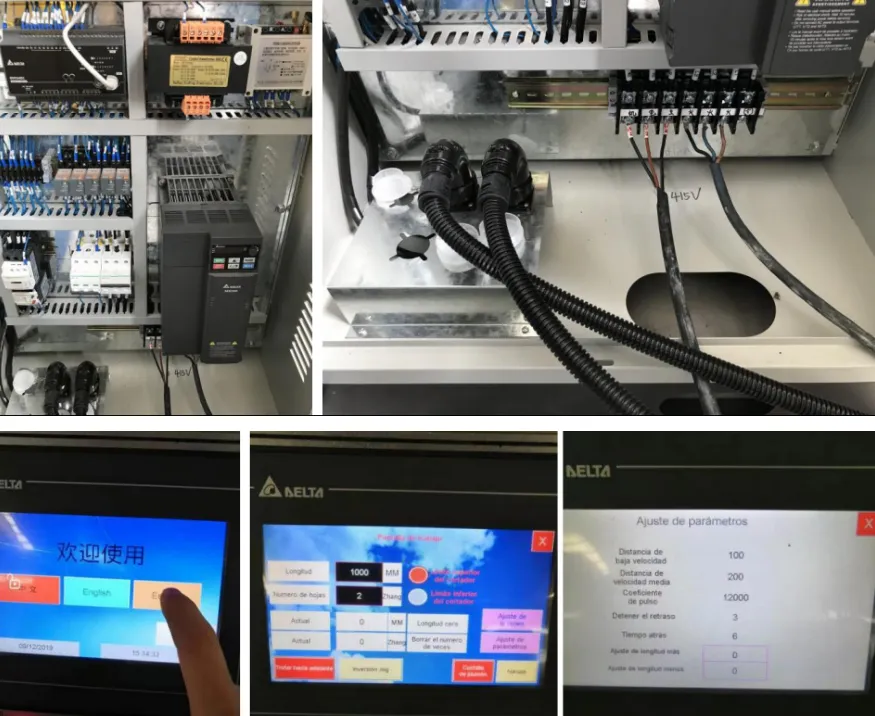

Automatic & Easy Operate

1. Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate. 2. Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Packaging Details 1. One *40GP container for loading one set of machine with mechanical decoiler; 2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3.Spare parts and some small parts packed in plastic tooling box; 4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping. Delivery Time Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers. As to the hydraulic decoiler and the stacker, it is optional.
