Metal Steel Roof AG R Panel Roll Forming Machine for America 40m/ min

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Steel Roof AG R Panel Roll Forming Machine for America 40m/ min

Name: Metal Steel Roof AG R Panel Roll Forming Machine for America 40m/ min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT53464804

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

40m/ min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
380V 50Hz 3Phase(As your requirement)
Voltage
380V/50HZ 3Phase
Power(W)
7kw

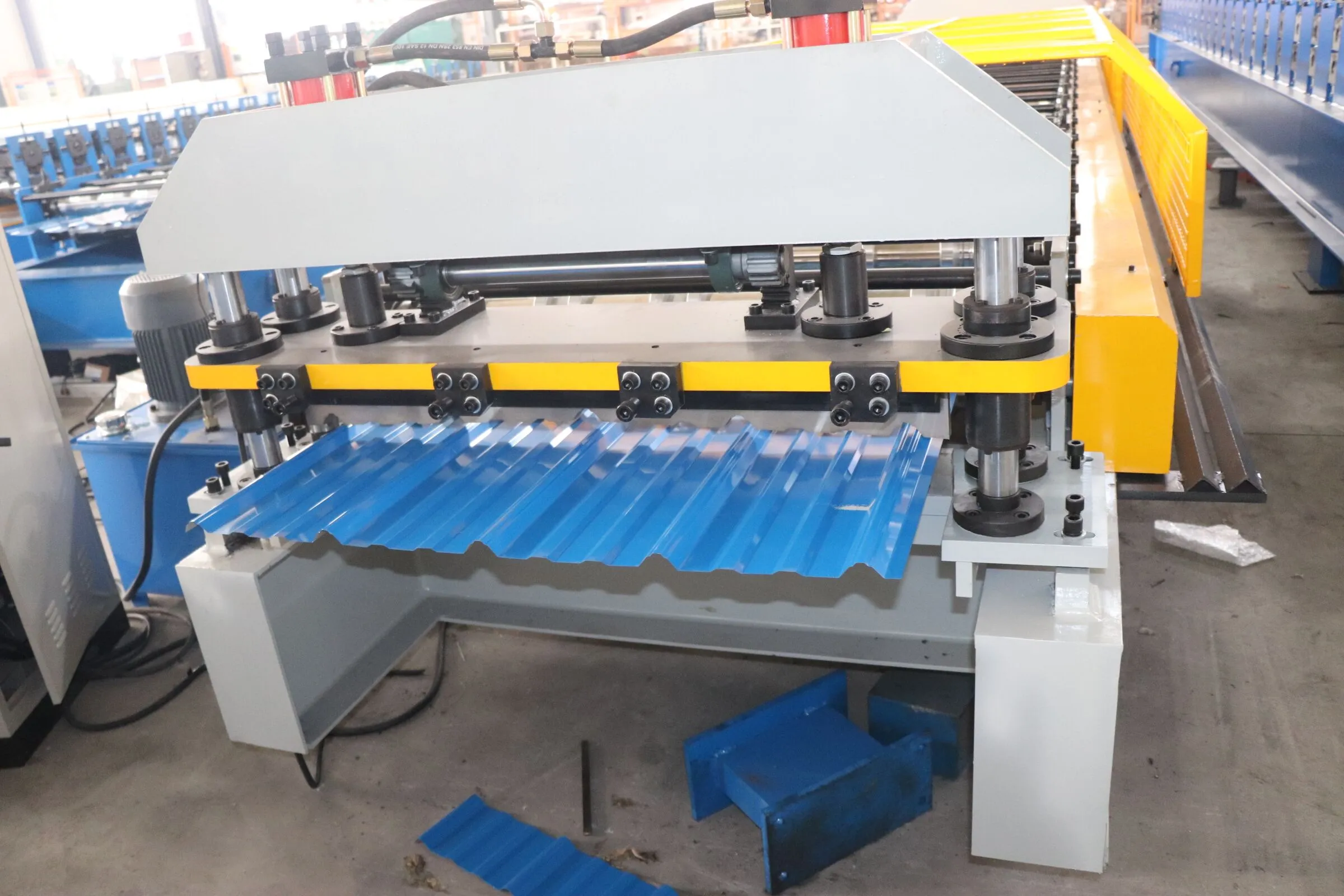

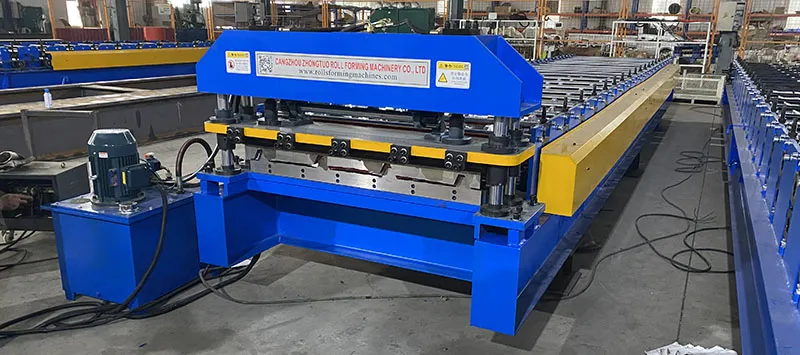

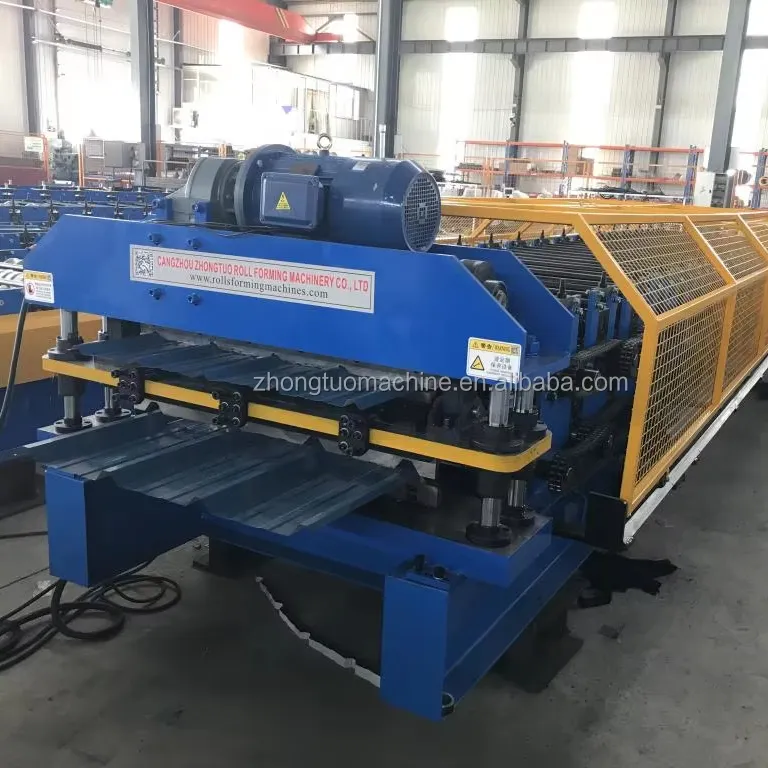

Metal Steel Roof AG R Panel Roll Forming Machine for America

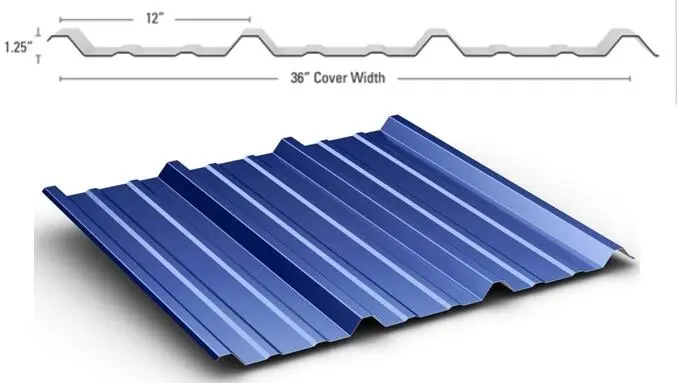

Servo motor tracking system can help to enhance the production and speed.This is the equipment that mainly produces trapezoidal tile.Such as work shop,warehouse,carport,portable house.Everything has its two sides,of course it does.Its advantages are light weight,high strength,heat insulation,easy installation,bright colors and waterproof.This machine will equip with servo motor tracking system for the clients to save the manpower and improve the production.

Working flow:

N/M	Name	Specifications
Hydraulic decoiler	Max coil Width	1250mm
		Feeding speed	0-40m/min
		Driving motor power	5.5kw
		Hydraulic motor power	3kw
		Carry Capacity	10T
		Structure	Welding by the steel plates and profiled bar

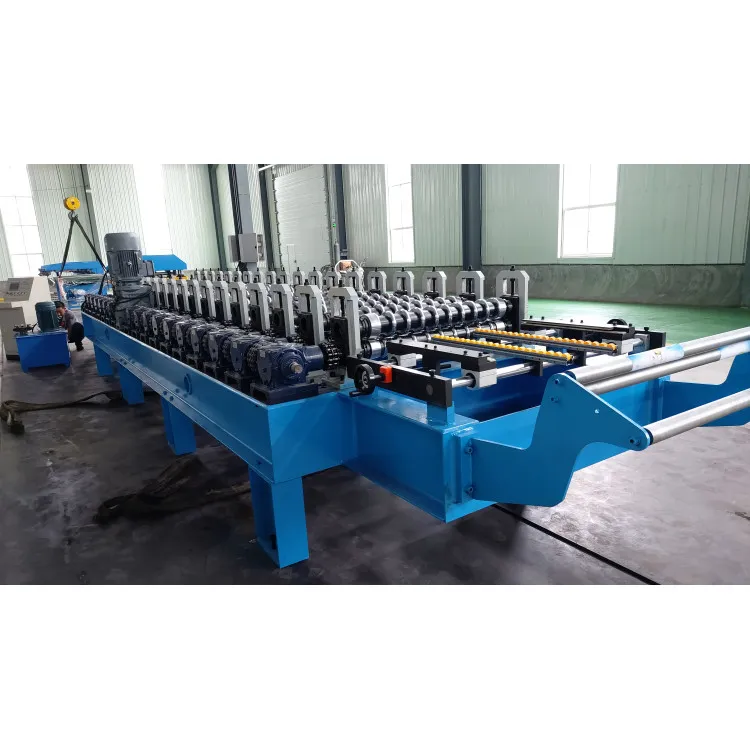

Main roll forming system	Machine dimension	6.91.51.35m
		Work voltage	380V
		Power	7KW
		Feeding thickness	Material thickness:0.3 mm-0.8mm
		Material of roller	45#steel,forging with surface hard chrome plating
		Roller shaft	Φ70mm solid
		Material	PPGI,PPGL
		Number of roller stations	18 stations
		Main frame	400mm H beam structure, with 20mm thickness welded steel middle support plate

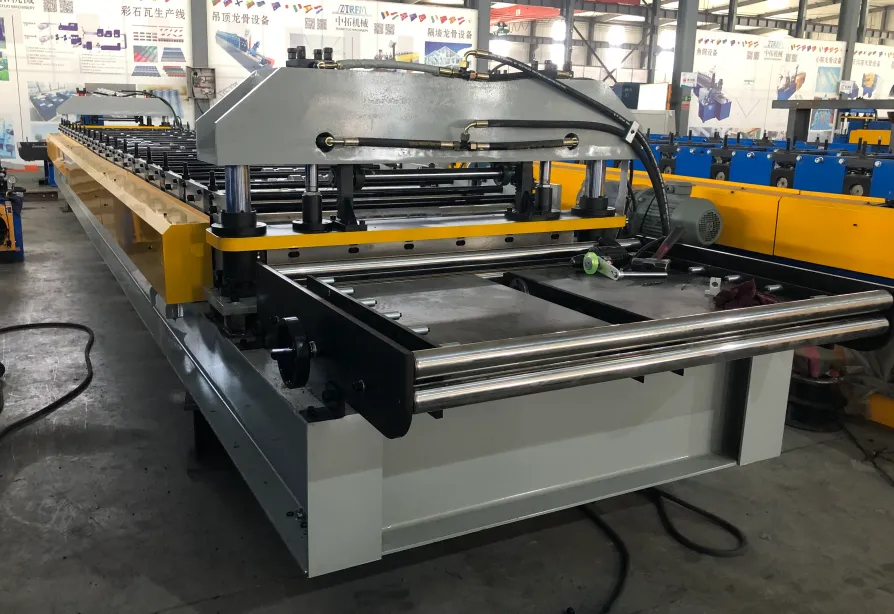

Cutting device	Cutting blade	Cr12 quenched HRC58-62
		Cutting length tolerance	±1mm/3m
		Cutting type	Hydraulic cutting
PLC Control system	Brand	Delta
PLC Control system		Operation	Touch screen

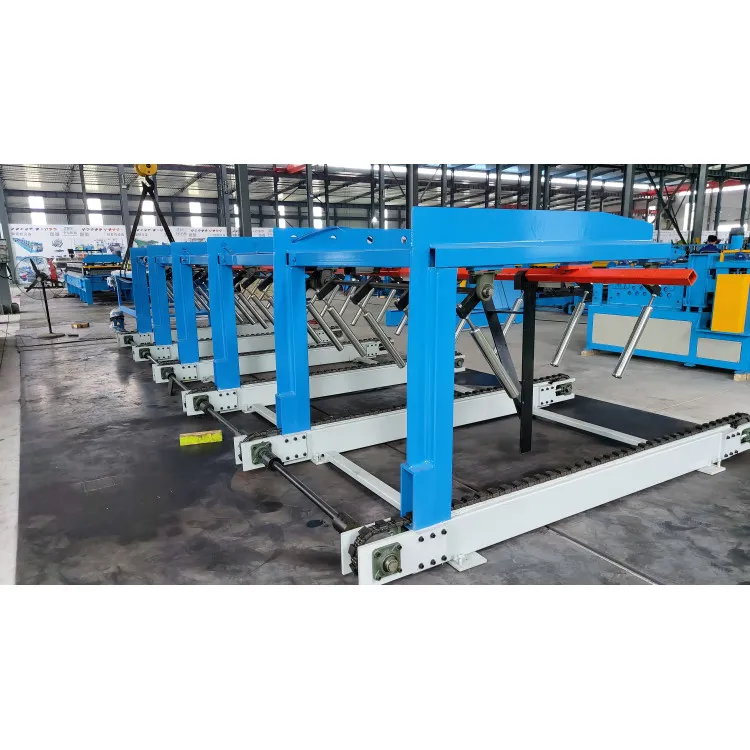

Automatic stacker

We equip with this stacker for the clients if the working machine has the high speed working and could save the manpower.The four
rolling tubes are smooth which can help to protect the finished sheets.

PLC Control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen

● Encoder brand:Omron

● Electrical components:Schneider

● Operating
language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

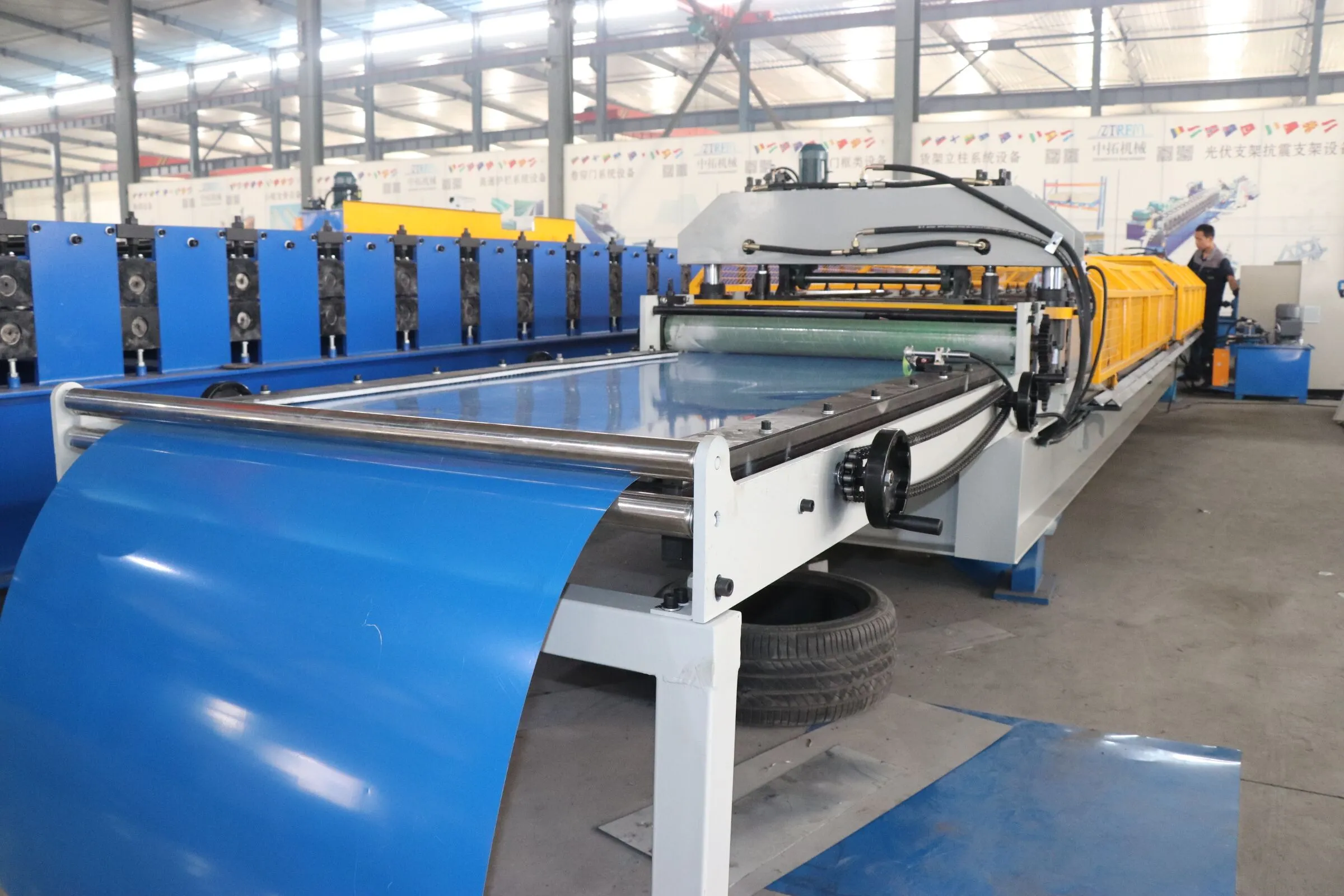

Feeding device

1.Hand wheels on both sides can be used to adjust the feeding width.

2.Stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.

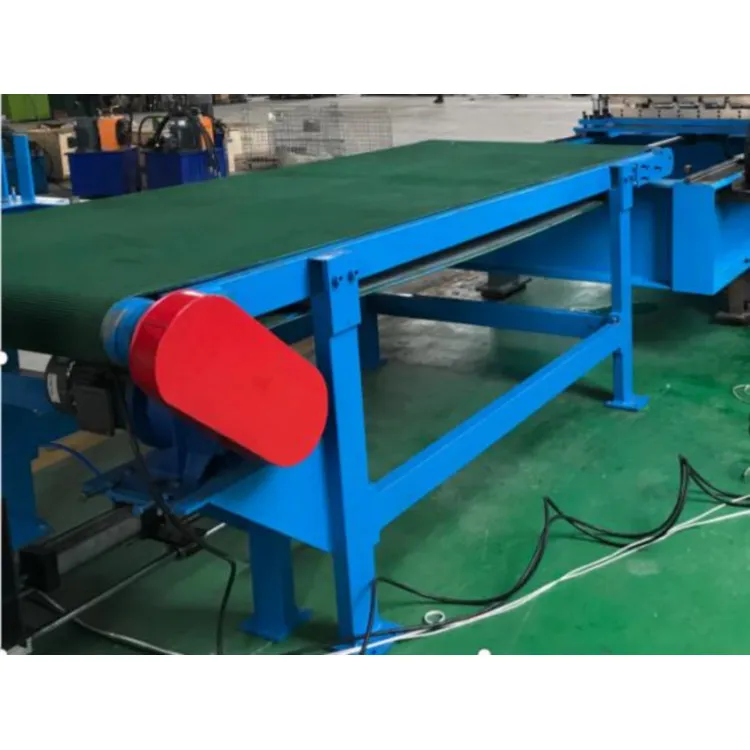

Transmission Platform

The platform can highly help the finished sheet to avoid the scratches after high speed working.It can buffer the transmission and the forming system which can help to protect the final sheet.

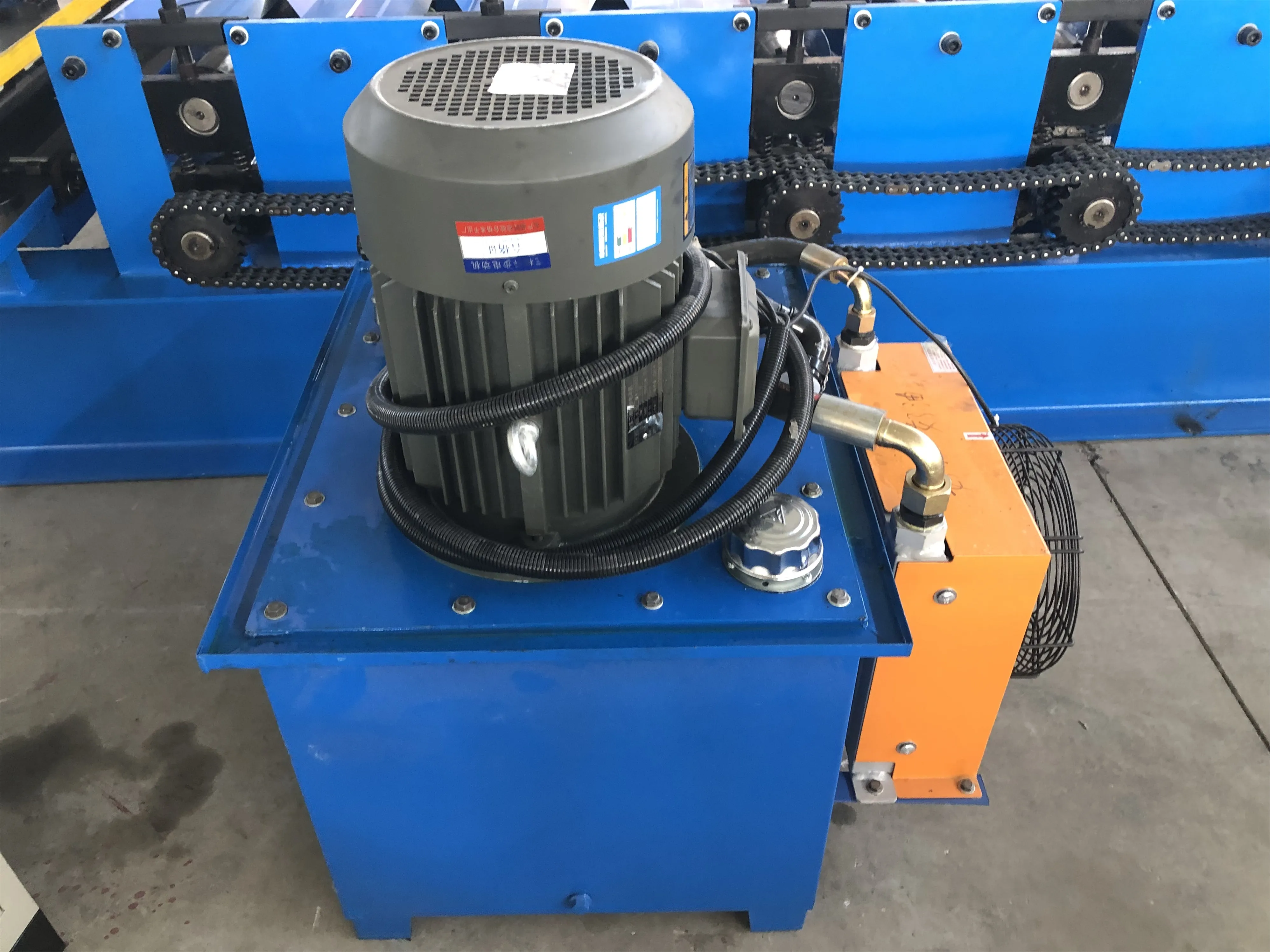

Hydraulic station

1.Hydraulic station motor:5.5KW 2.Hydraulic oil:46# hydraulic oil
3.Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic
pipes. And one of electromagnetism valve

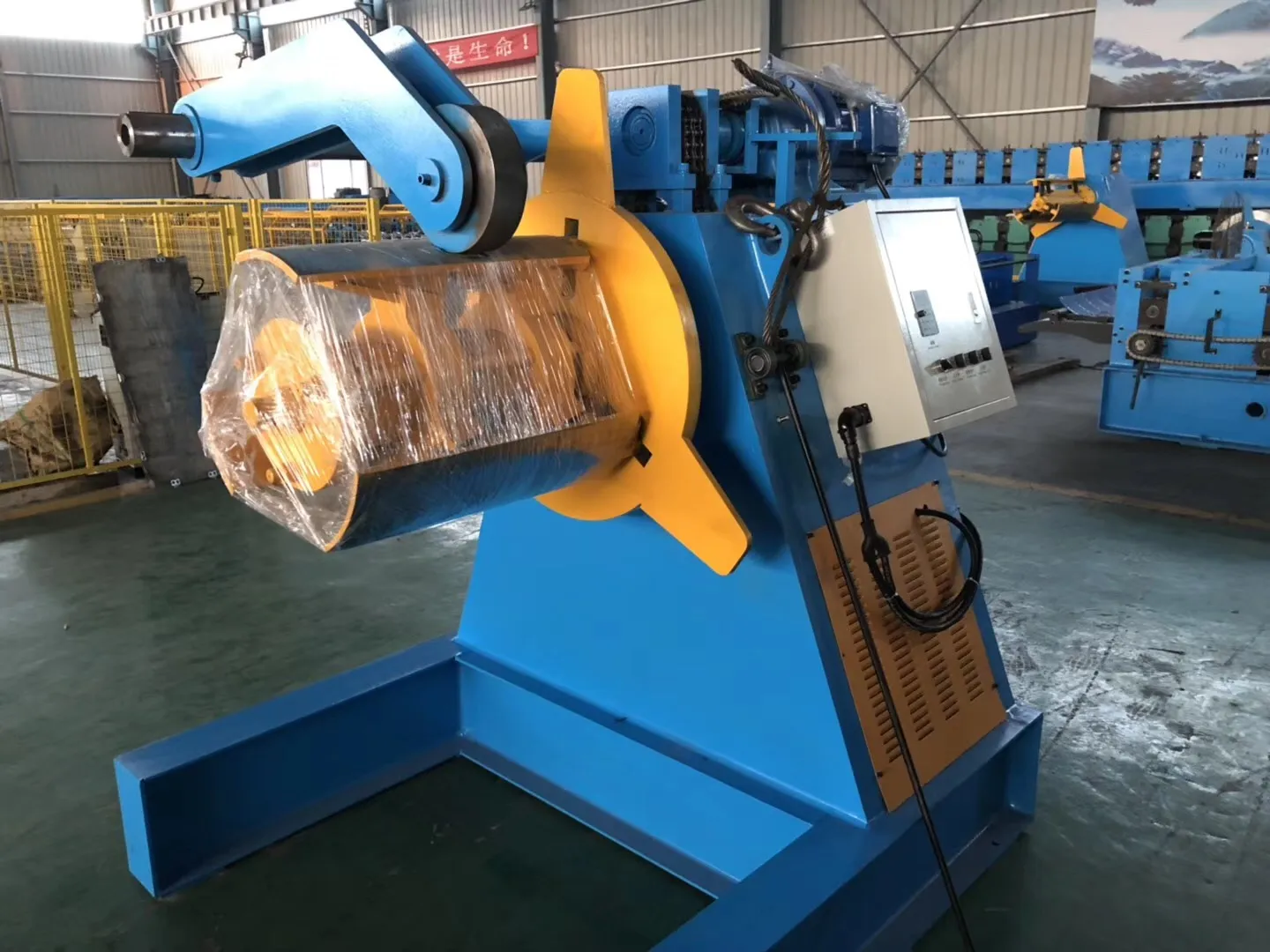

Hydraulic decoiler

Capacity:10 tons

Feeding width: max 1250mm
Structure: welded by the steel plates and profiled bar.
Our machine has pressurizer,this one can keep the hydraulic pressure.We also have a
pressing arm and a supporting arm in the decoiler especially for the material thickness over 1mm,it can help to keep the whole
process steady and protect the material to go smoothly.The pressing arm is used to prevent the coil from getting loose(not used in
thin material) and the supporting arm is used to support the coil on the uncoiler and it has the supporting function.

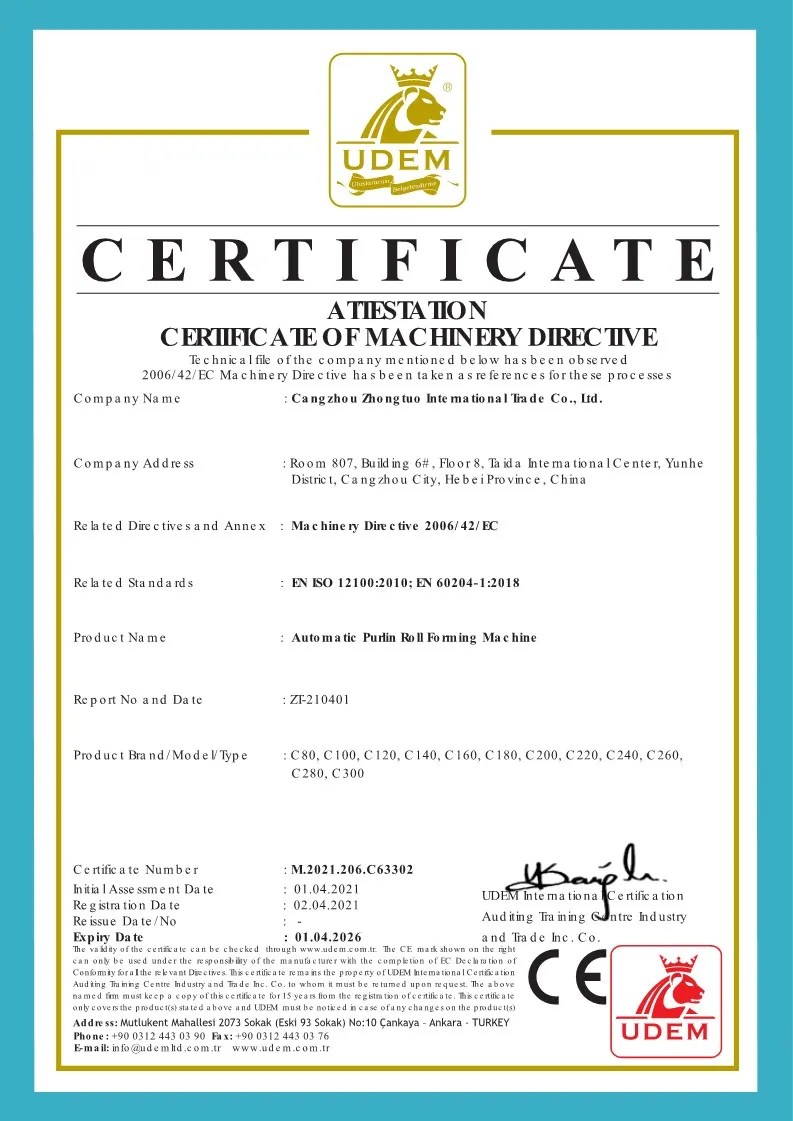

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
