Metal Steel Coil 5T 7T 10T 15T Hydraulic Decoiler with Cart for Roofing Roll Forming Machine 5-40/ min

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Steel Coil 5T 7T 10T 15T Hydraulic Decoiler with Cart for Roofing Roll Forming Machine 5-40/ min

Name: Metal Steel Coil 5T 7T 10T 15T Hydraulic Decoiler with Cart for Roofing Roll Forming Machine 5-40/ min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT76634441

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

5-40/ min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
380V 50Hz 3Phase(As your requirement)
Voltage
380V/50HZ 3Phase
Power(W)
7.5kw

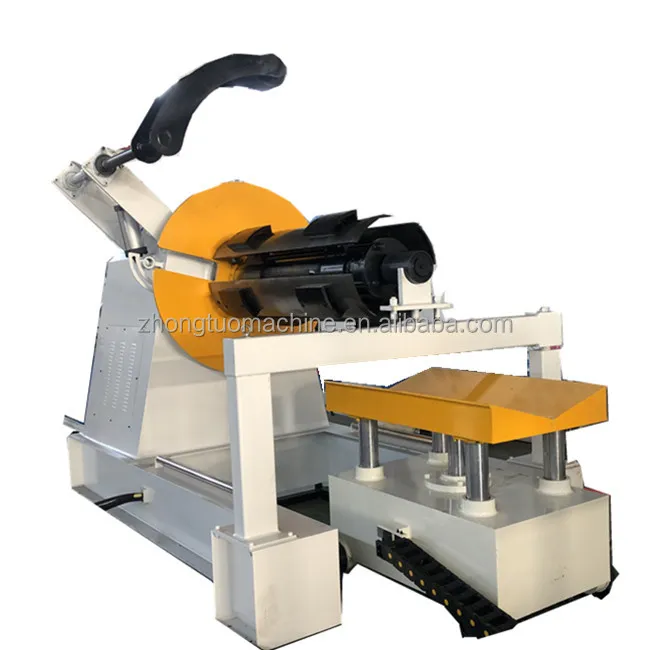

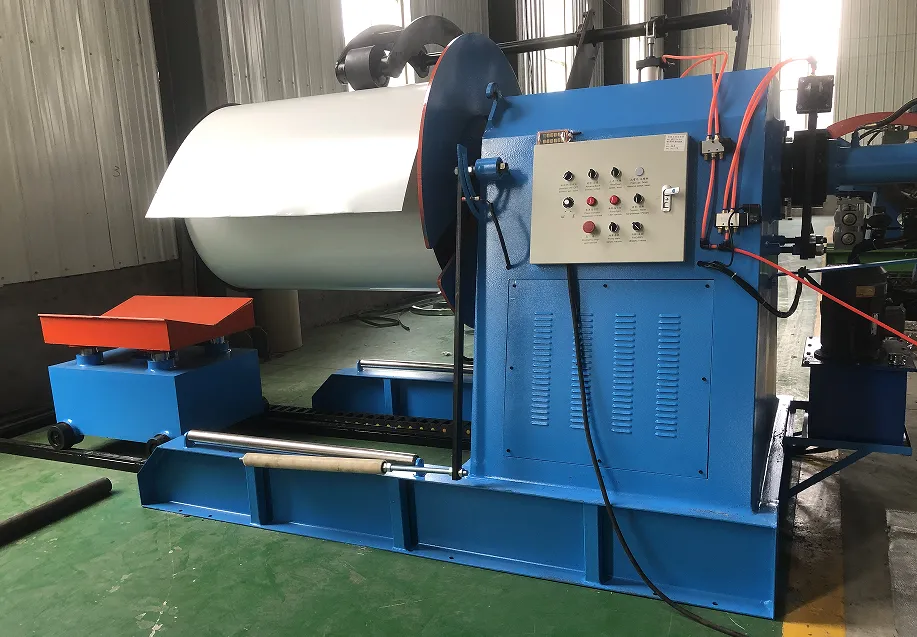

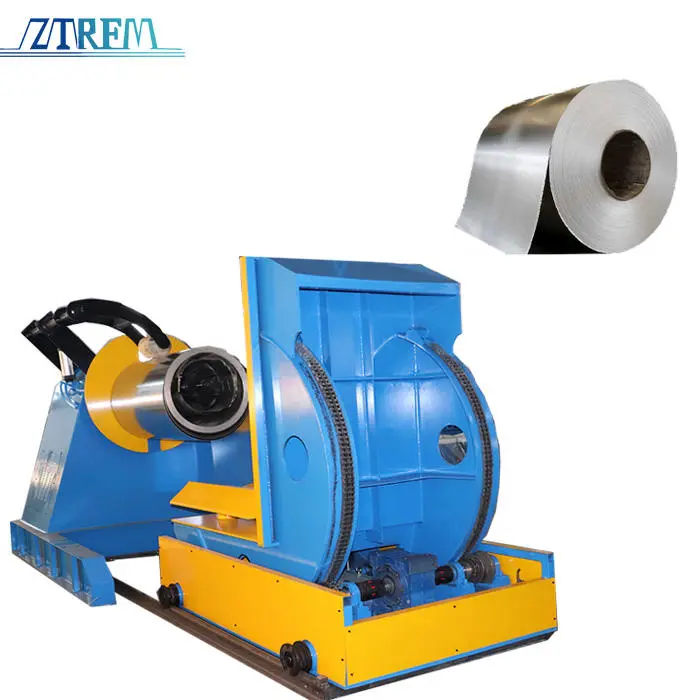

Metal Steel Coil 5T 7T 10T 15T Hydraulic Decoiler with Cart for Roofing Roll Forming Machine

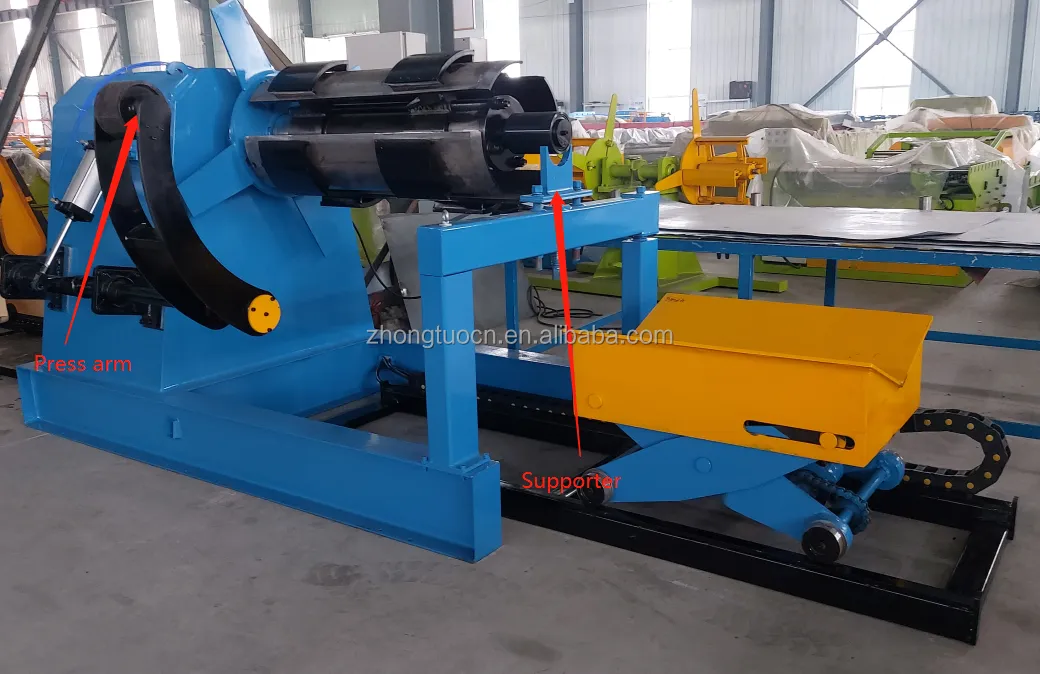

The whole transmission will operate automatically and the speed can be adjusted.Its bearing weight around 5-15 tons.Our machine has pressurizer,this one can keep the hydraulic pressure.We also have a pressing arm and a supporting arm in the decoiler especially for the material thickness over 1mm,it can help to keep the whole process steady and protect the material to go smoothly.The pressing arm is used to prevent the coil from getting loose(not used in thin material) and the supporting arm is used to support the coil on the uncoiler and it has the supporting function.Besides, this one will help you to save the manpower.(These two arms will be used for clients’ request to help to support coil)

Parameters
1.	Working speed	0-16m/min
2.	Weight	300kg
3.	Carry Capacity	5T,7T,10T
4.	Roller shaft	Φ75mm solid
5.	Number of roller stations	16
6.	Decoiler Carry Weight	3T
7.	Equipment size	LWH--5.5m1.8m1. 9m
8.	Main engine power	7.5kw
9.	Power of hydraulic station	5.5kw
10.	Shaft material and diameter	45# Steel finishing，Shaft diameter is￠150mm
11.	Voltage	380V, 50HZ,3 phase（According to customer requirements can be adjusted）
12.	Hydraulic pressure	12Mpa

Our Advantages

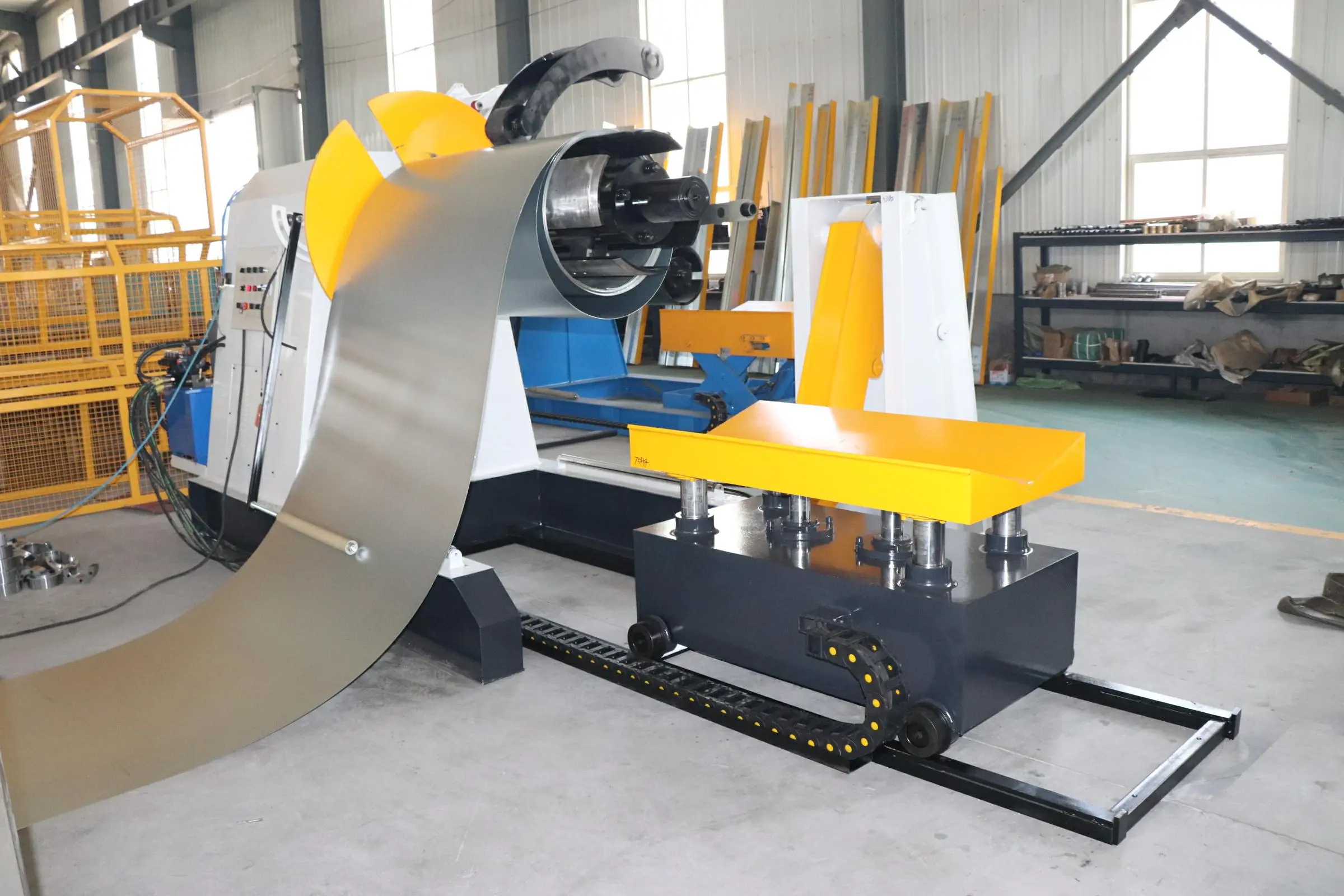

1.We will equip with loading table car of Hydraulic Decoiler upto the customers’ requirement.This loading table car has two types:X structure type hydraulic loading table car and Guide pillar type hydraulic loading table car(much more bearing). These two types can steadily deliver materials to the uncoiler and save manpower.
2. The uncoiler trolley has nylon plate, which can not only have hardness and strong support, but also protect the material.
3. The four support arms are arc-shaped, and the protection effect is better for materials with higher grades.
4.The advantage of the diagonal bracing of the dovetail groove:It can adjust while the transmission is on.It will be more stable.
