Metal Steel C Stud and Track System Drywall Roll Forming Machine C Channel

Name: Metal Steel C Stud and Track System Drywall Roll Forming Machine C Channel
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120390448

Cutting MaterialGalvanized steel

Machine TypeRoll forming machine

Machine Weight3000 kg

Warranty2 years

OperationTouch screen

FeatureHigh production speed

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

C Channel

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Cutting Material
Galvanized steel
Machine Type
Roll forming machine
Machine Weight
3000 kg
Warranty
2 years
Operation
Touch screen
Feature
High production speed
Profiles
C Channel (C stud and track), max 100 mm
Forming Speed
20 m/min
Power
7.5 kW
Roller Material
GCr12
Shaft Diameter
60 mm
Shaft Material
45# high grade steel
Cutting Blade
Cr12MoV mold steel
Control System
PLC (imported brand), touch screen

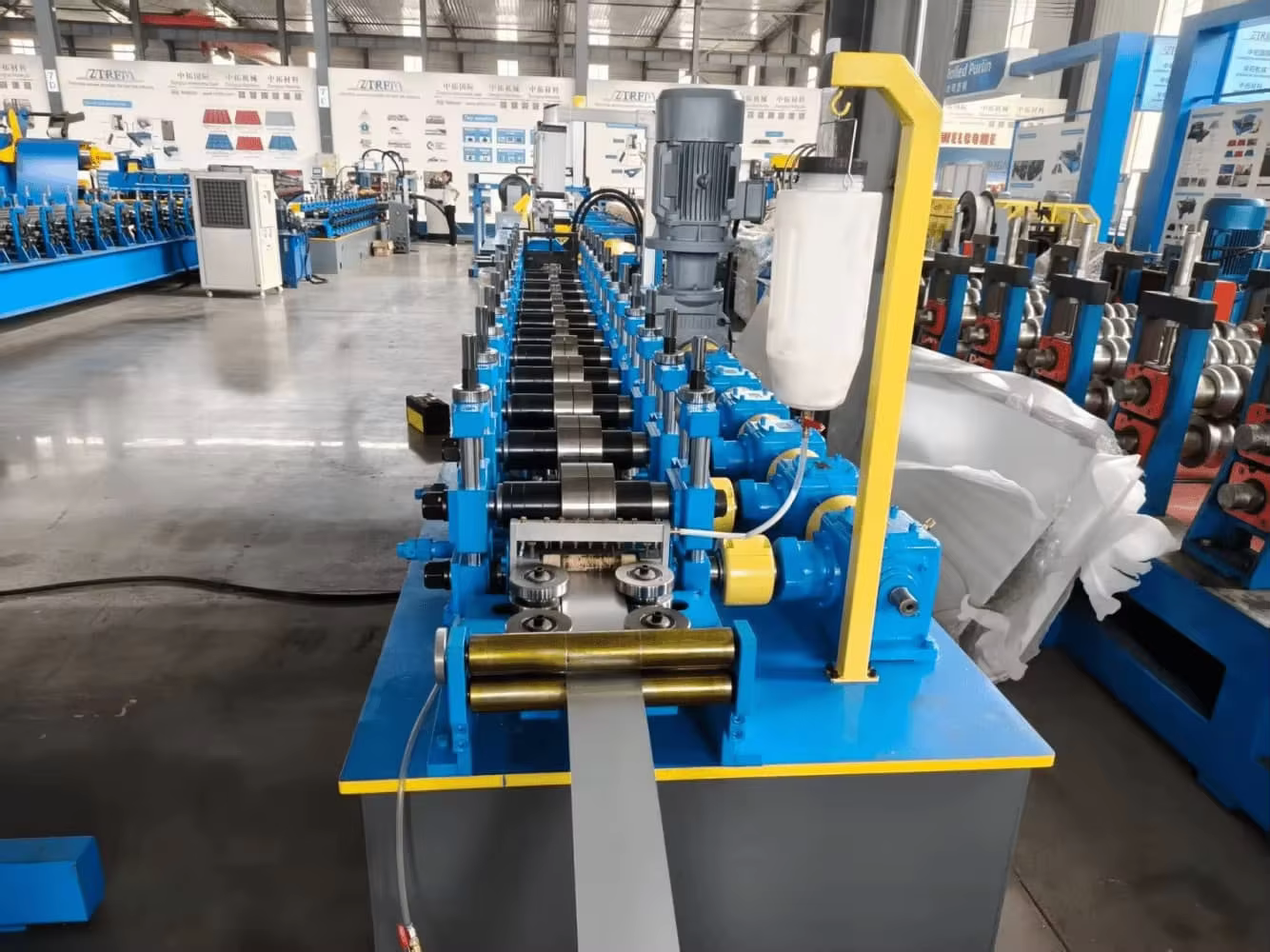

Metal steel C stud and track system drywall roll forming machine

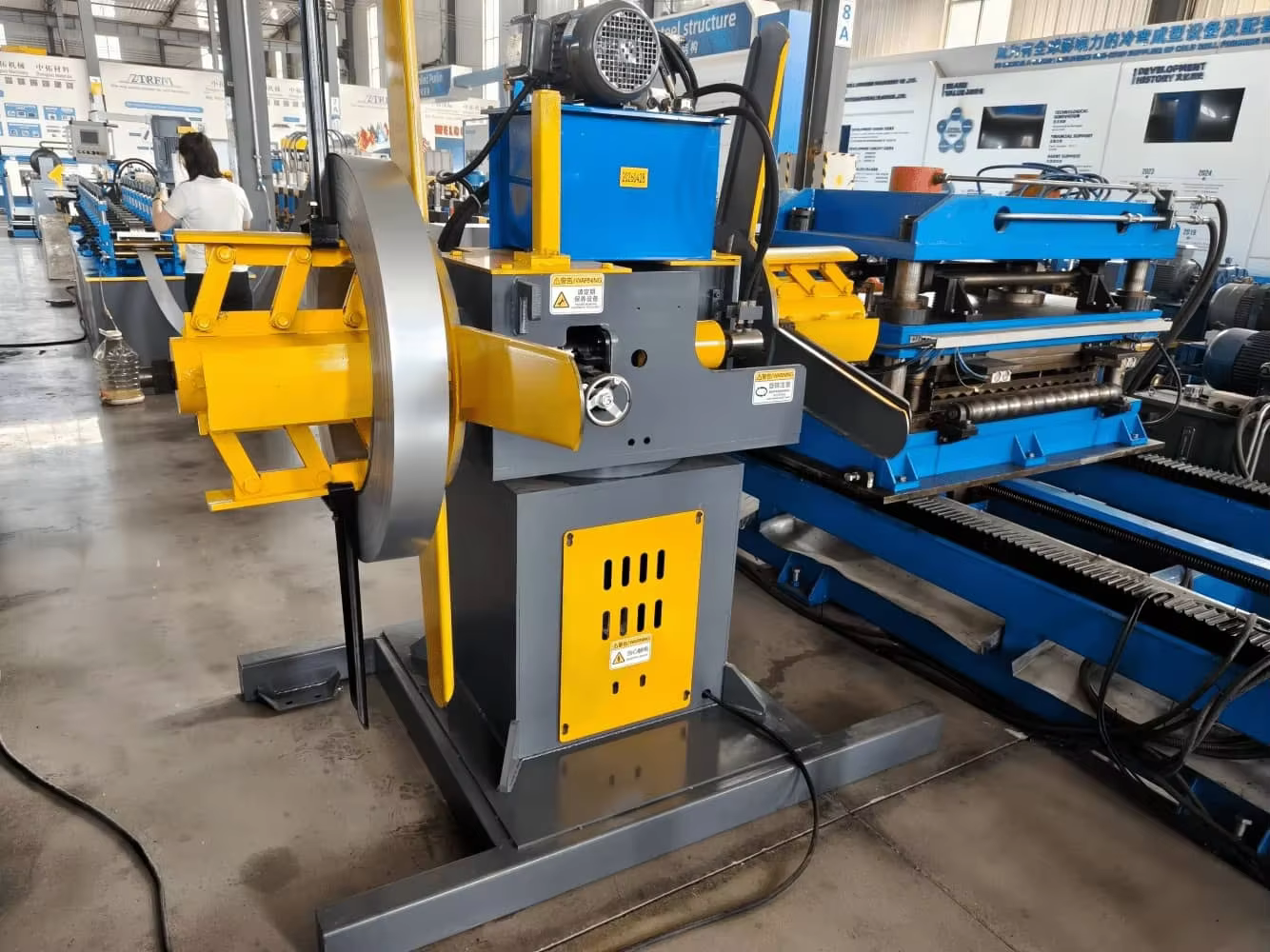

C stud machine with decoiler in factory

Product Overview

The metal steel C stud and track system drywall roll forming machine produces C-shaped steel studs and tracks for drywall framing systems. With a forming speed of 20 m/min, touch screen operation and imported PLC control, it delivers high output, stable forming and versatile drywall framing profiles.

High output with forming speed up to 20 m/min
Stable forming with GCr12 rollers and 45# high grade steel shafts
Versatile: produces C stud and track profiles for drywall framing
High accuracy with PLC (imported brand) and touch screen operation
Cuts galvanized steel with Cr12MoV mold steel blades
High production speed, machinery test report and video inspection provided

Key Features

High Output - Forming speed up to 20 m/min for efficient production of C stud and track profiles.
Stable Forming - GCr12 rollers, 45# high grade steel shafts (60 mm diameter) and a rigid roll forming line ensure consistent profile quality.
Versatile Drywall Framing - Produces C-shaped studs and tracks (max 100 mm) for interior wall and partition framing systems.
High Accuracy - Imported PLC control with touch screen operation for precise length and forming control.
Precision Cutting - Cr12MoV mold steel cutting blades cut galvanized steel cleanly without burrs.

Technical Specifications

Item	Specification
Machine type	Roll forming machine (C stud and track system)
Profiles	C Channel (C stud and track), max 100 mm
Forming speed	20 m/min
Cutting material	Galvanized steel
Roller material	GCr12
Shaft diameter / material	60 mm / 45# high grade steel
Cutting blade material	Cr12MoV mold steel
Control system	PLC (imported brand)
Operation	Touch screen
Power	7.5 kW
Machine weight	3000 kg
Warranty	2 years
Core components	PLC, motor, bearing

Machine Structure

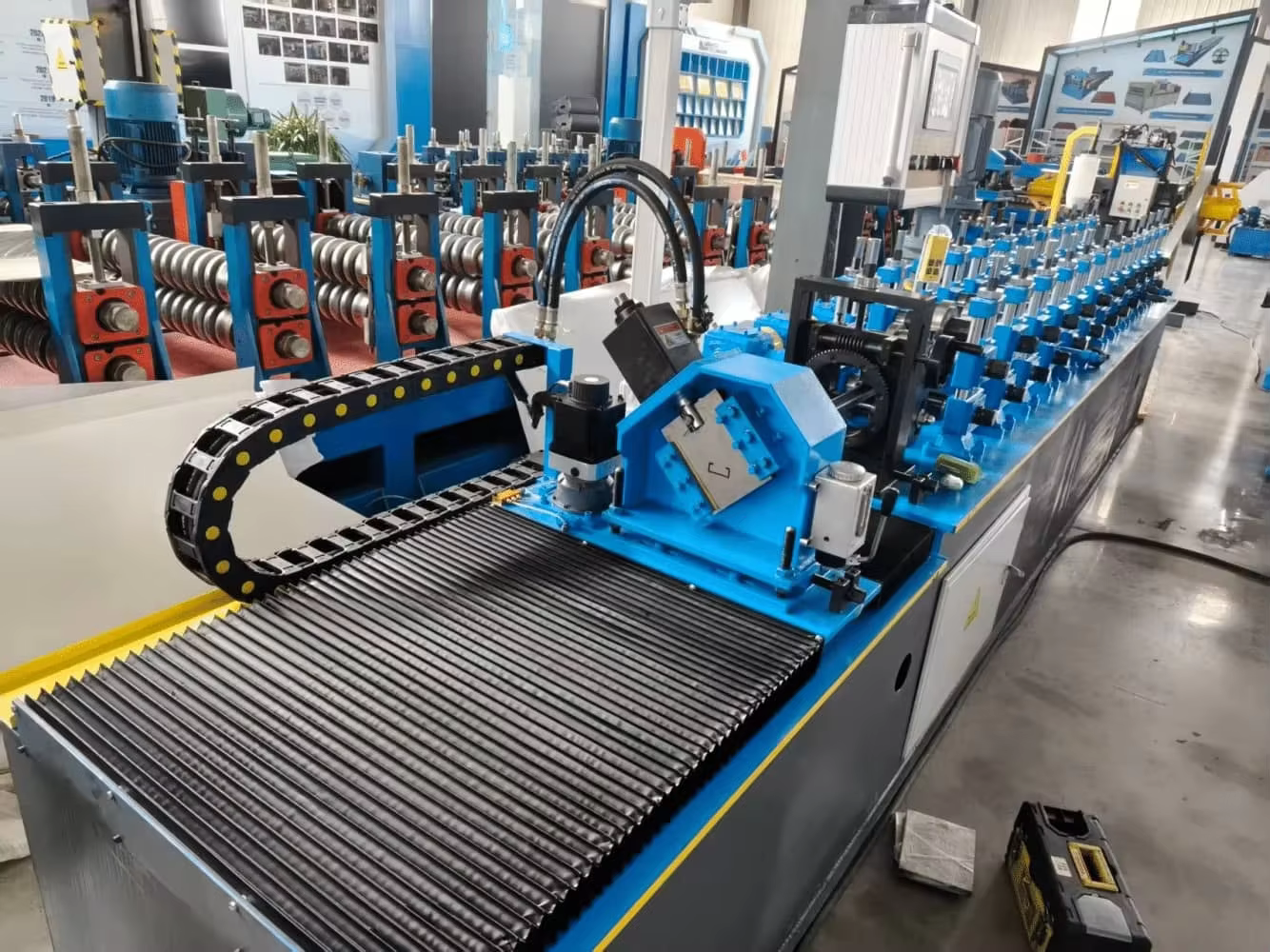

C stud machine forming stations

C stud forming line with stamped C-shaped die

The line consists of a decoiler, a long series of blue forming stations with precision rollers, a stamping unit with C-shaped die, and a control panel with touch screen mounted above the line.

Forming & Drive Section

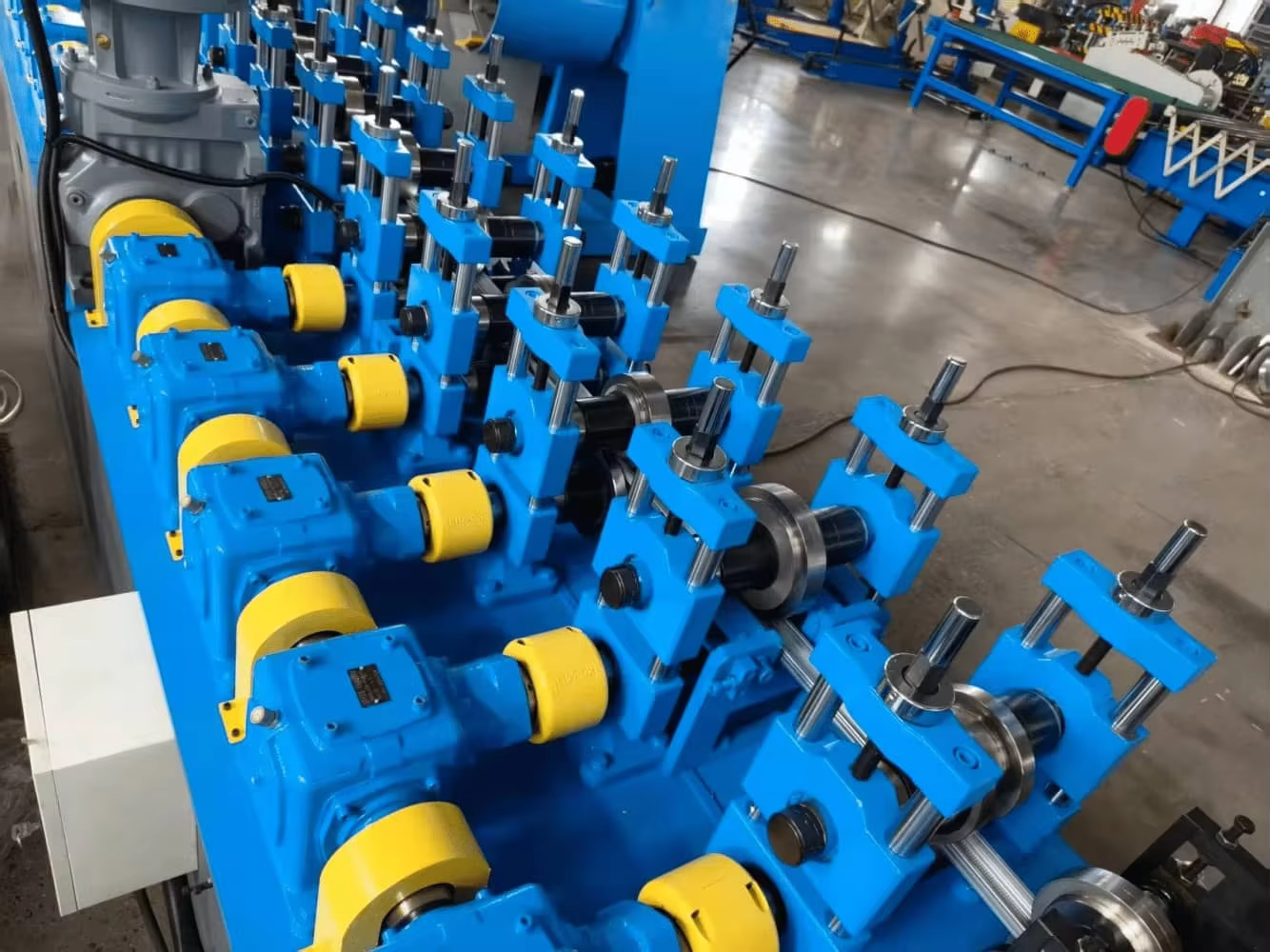

Forming stations with gearboxes and drive shafts

The forming section features blue gearbox housings with brass identification plates, bright yellow shaft couplings and polished steel rollers that gradually bend the galvanized strip into the C profile.

Finished Product

Finished C stud and track profiles stacked on conveyor

The finished C stud and track profiles have a hollow rectangular cross-section with ribbed surface, stacked on the blue discharge conveyor ready for bundling and shipment.

Packing & Shipping

Delivery time: 60 days
Machinery test report and video outgoing inspection provided
