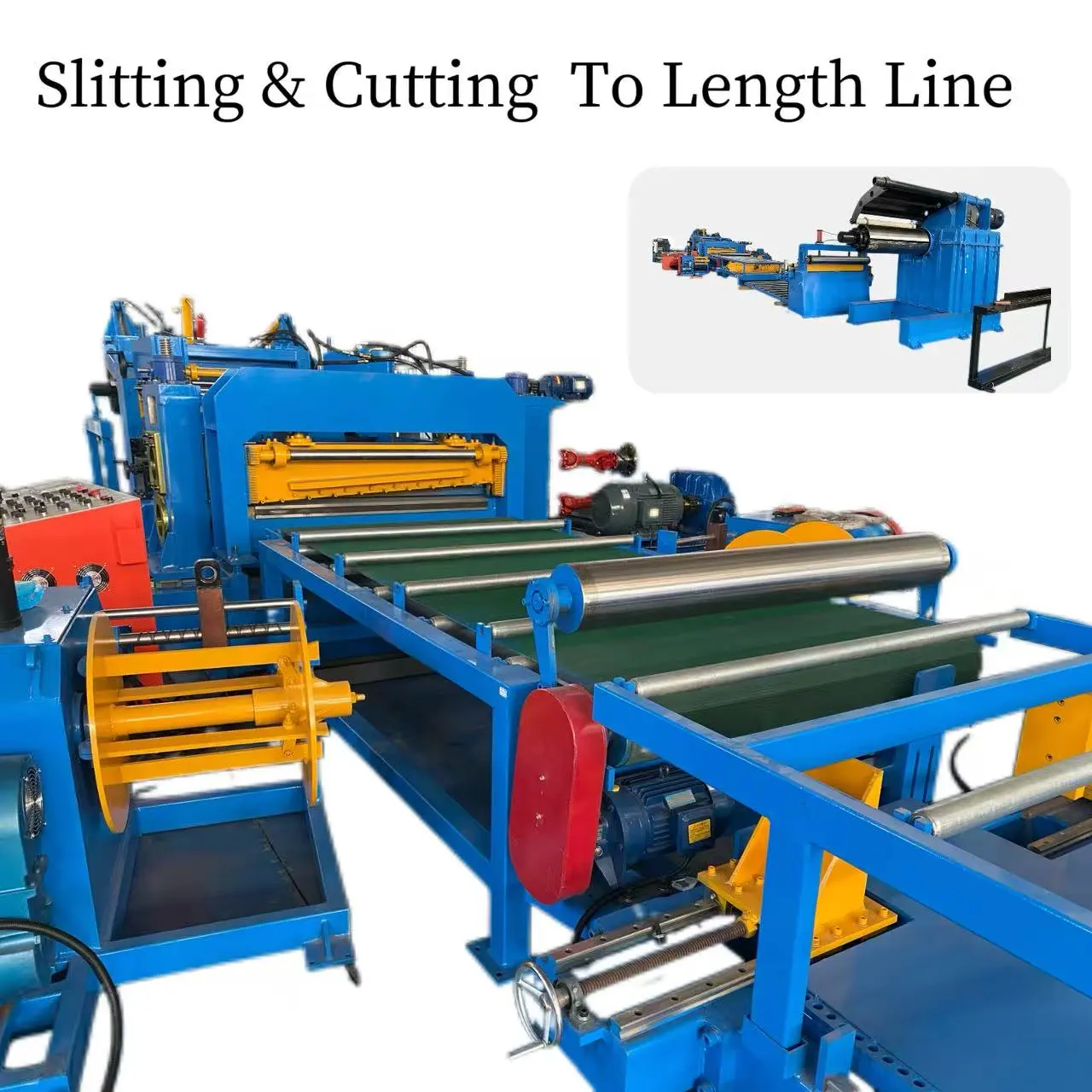

Metal Steel Aluminum PPGI Slitting & Cutting to Length Line CTL

Name: Metal Steel Aluminum PPGI Slitting & Cutting to Length Line CTL
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT88841835

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

model number:

CTL

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Cutting Width (Mm)
1 - 10000 mm
Material Thickness(Mm)
0.3 - 3.2 mm
Cutting Speed(M/Min)
1 - 20 mm
No. Of Slitting Lines
1 - 10
Voltage
380V,50Hz,3PH or as request

Product Description

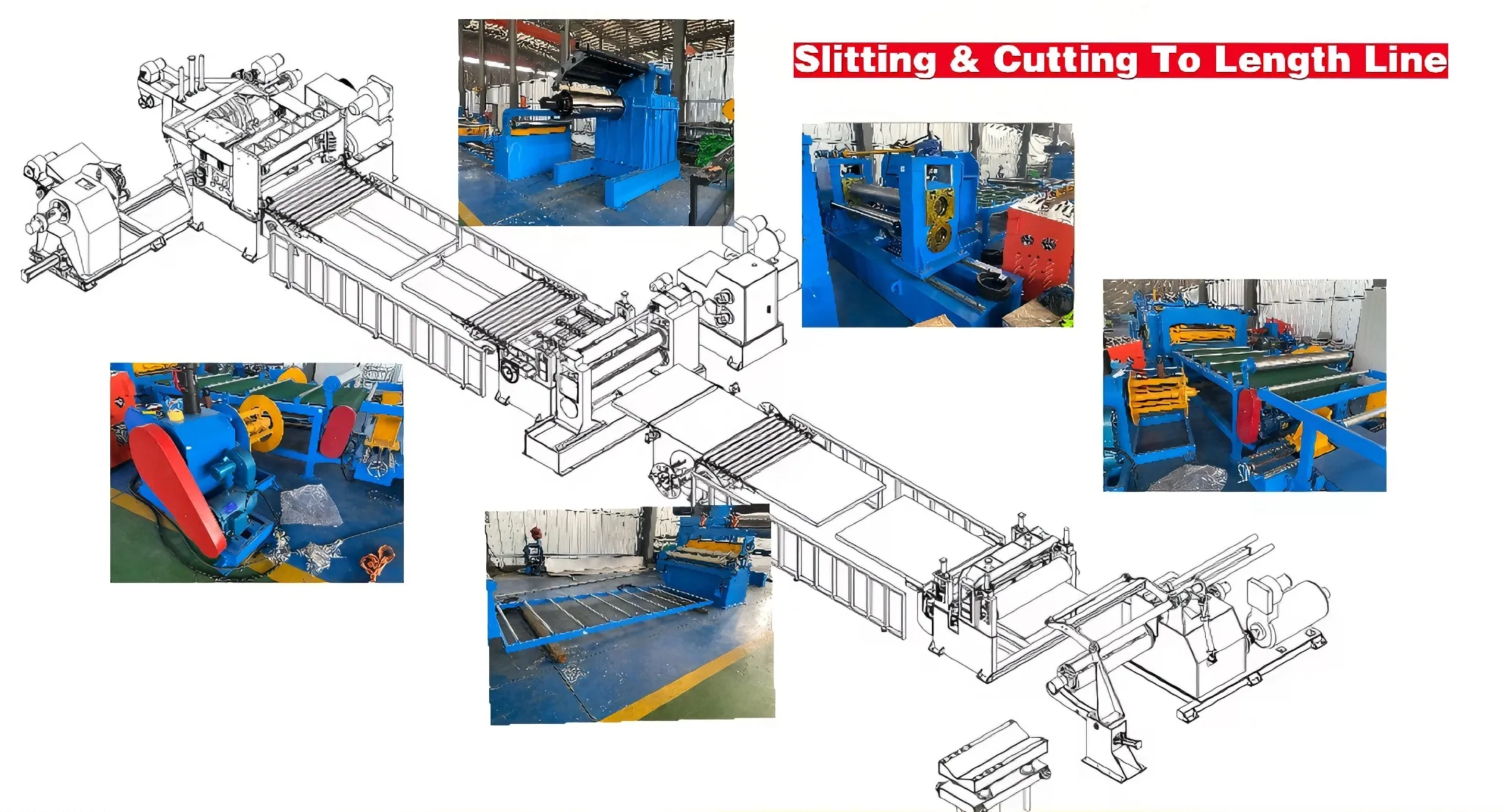

Main components:

Item	Description of Item	Unit	Quantity
1	12T Hydraulic decoiler with loading car	set	1

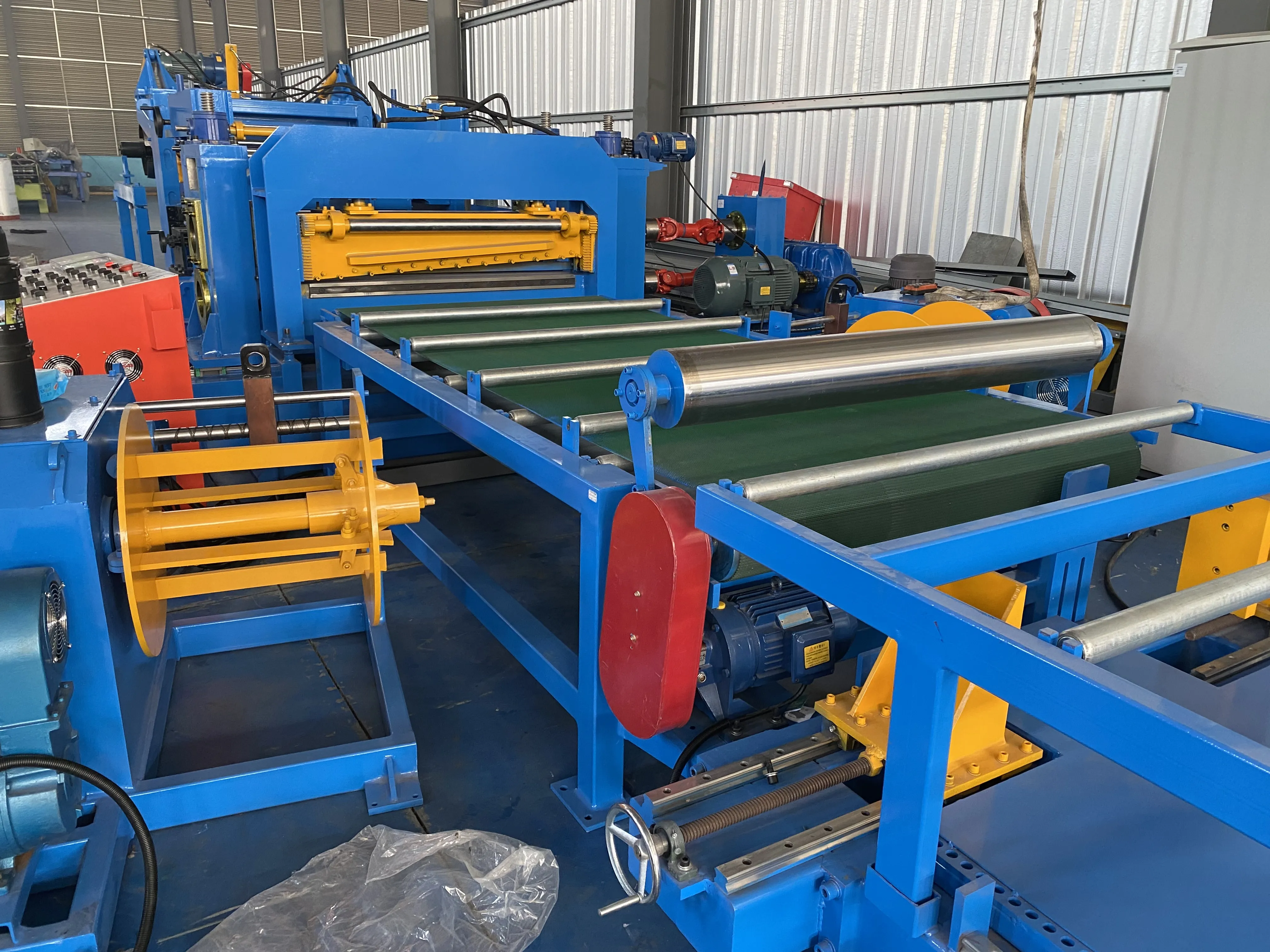

2	Leveling & slitting & cutting device	set	1

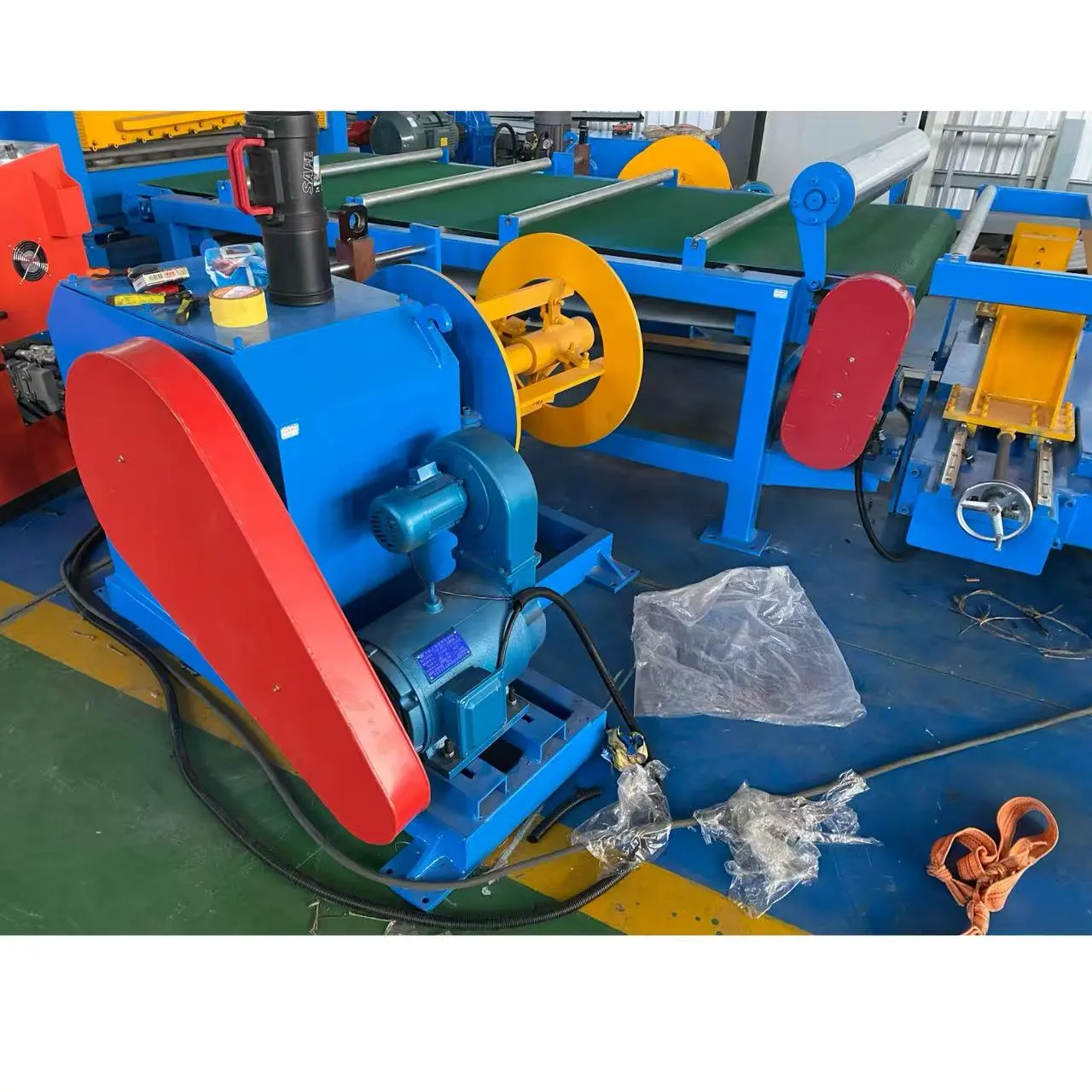

3	Waste rewinder	set	2

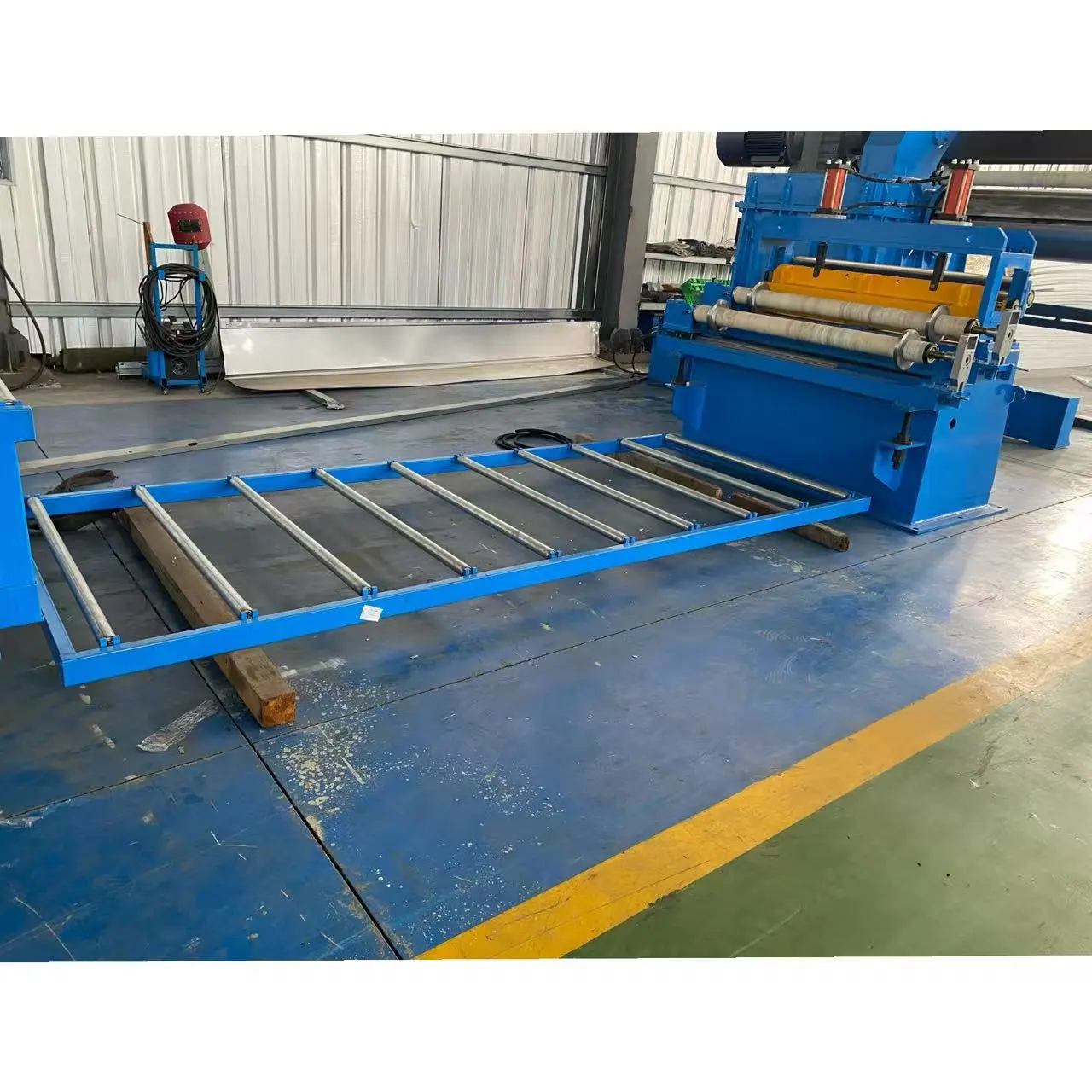

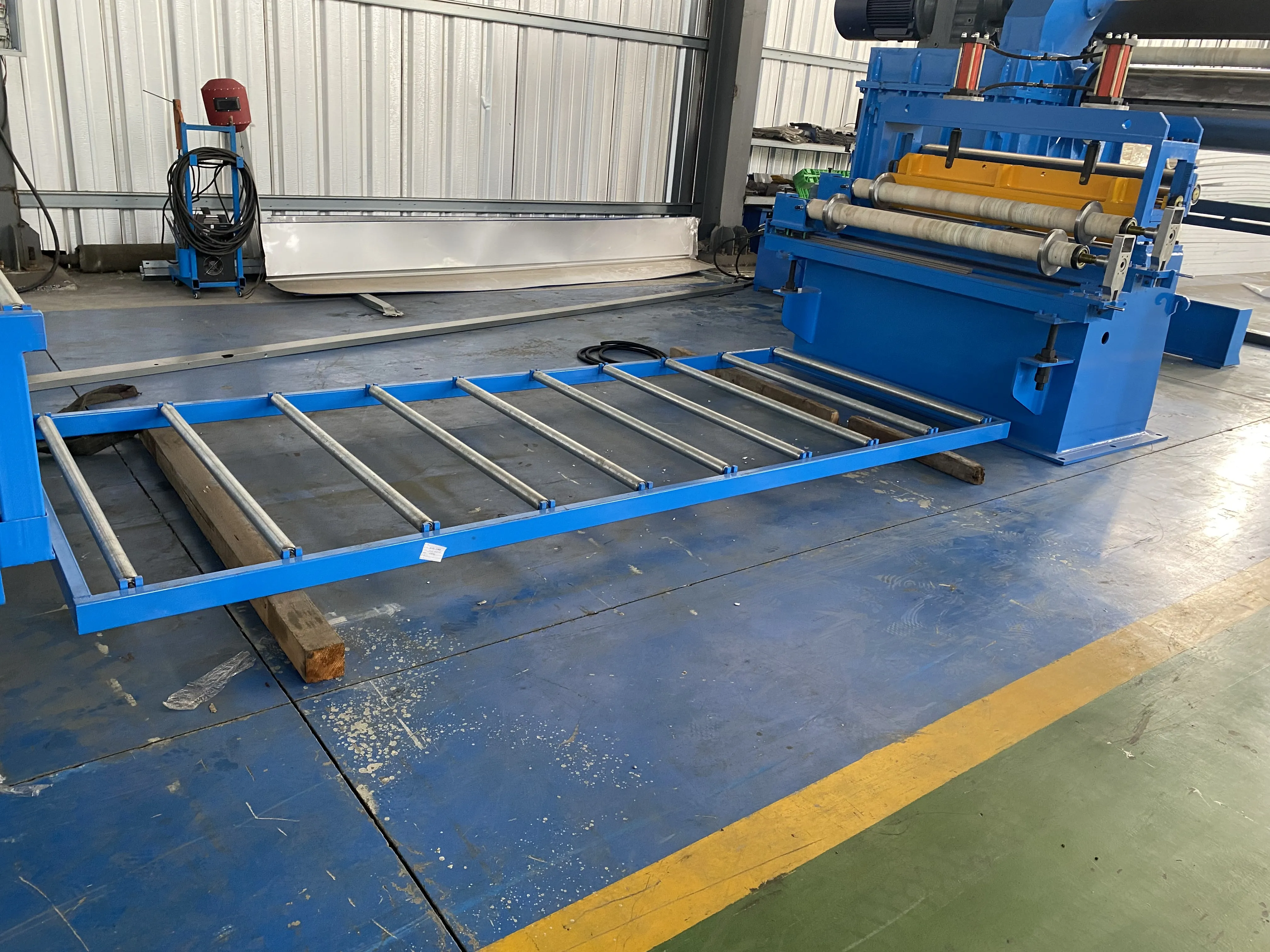

4	Conveyor	set	1
5	Auto stacker	set	1
6	Tension stand	set	1
7	Recoiler with unloading car	set	1
8	Control system	set	1
9	Hydraulic system	set	1

Working flow:
Uncoiling → Feeding material into machine →Leveling →Slitting (Waste rewinder) →Cutting(Optional) → Conveyor→Auto stacker →Tension stand→Recoiler

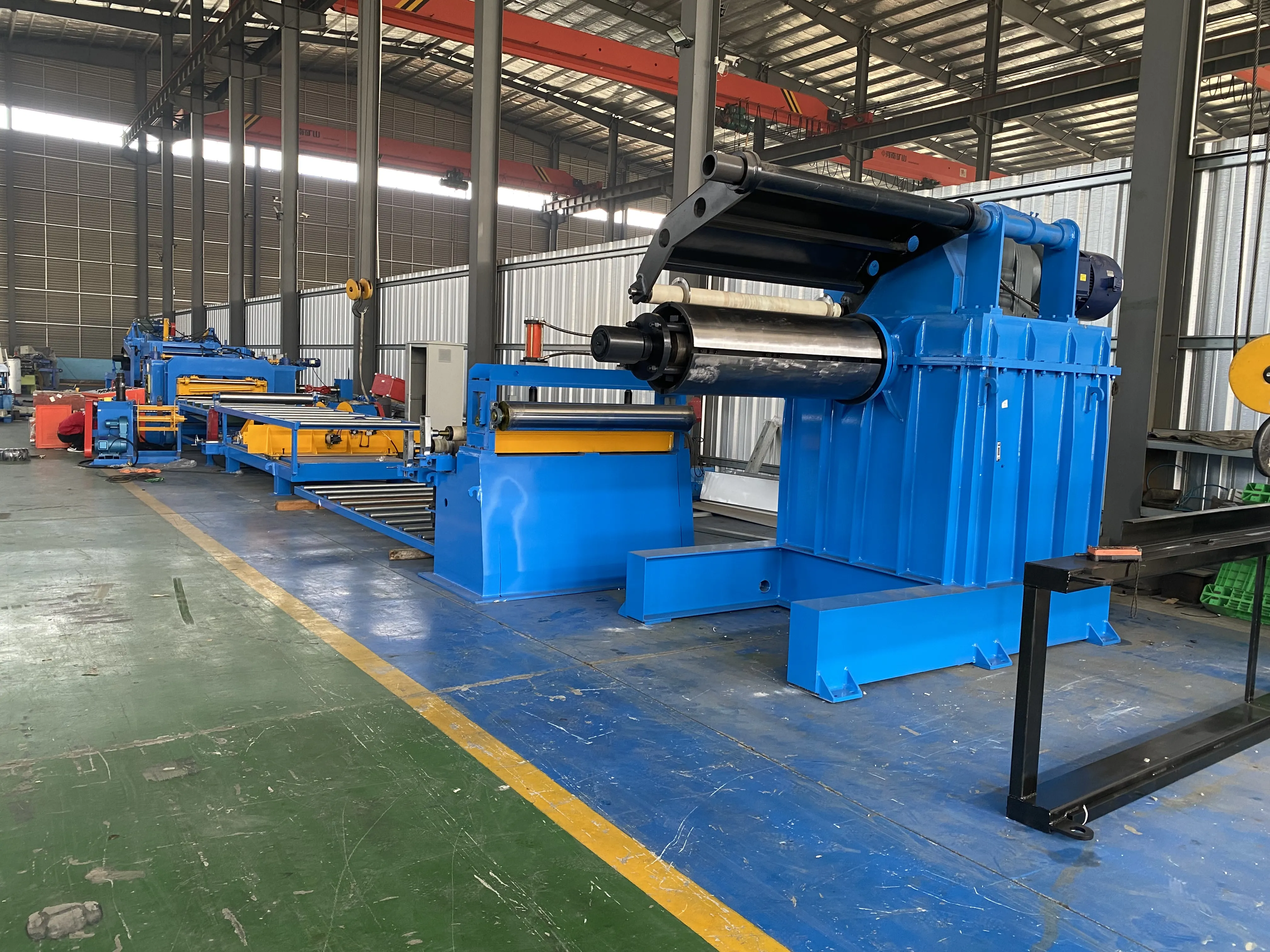

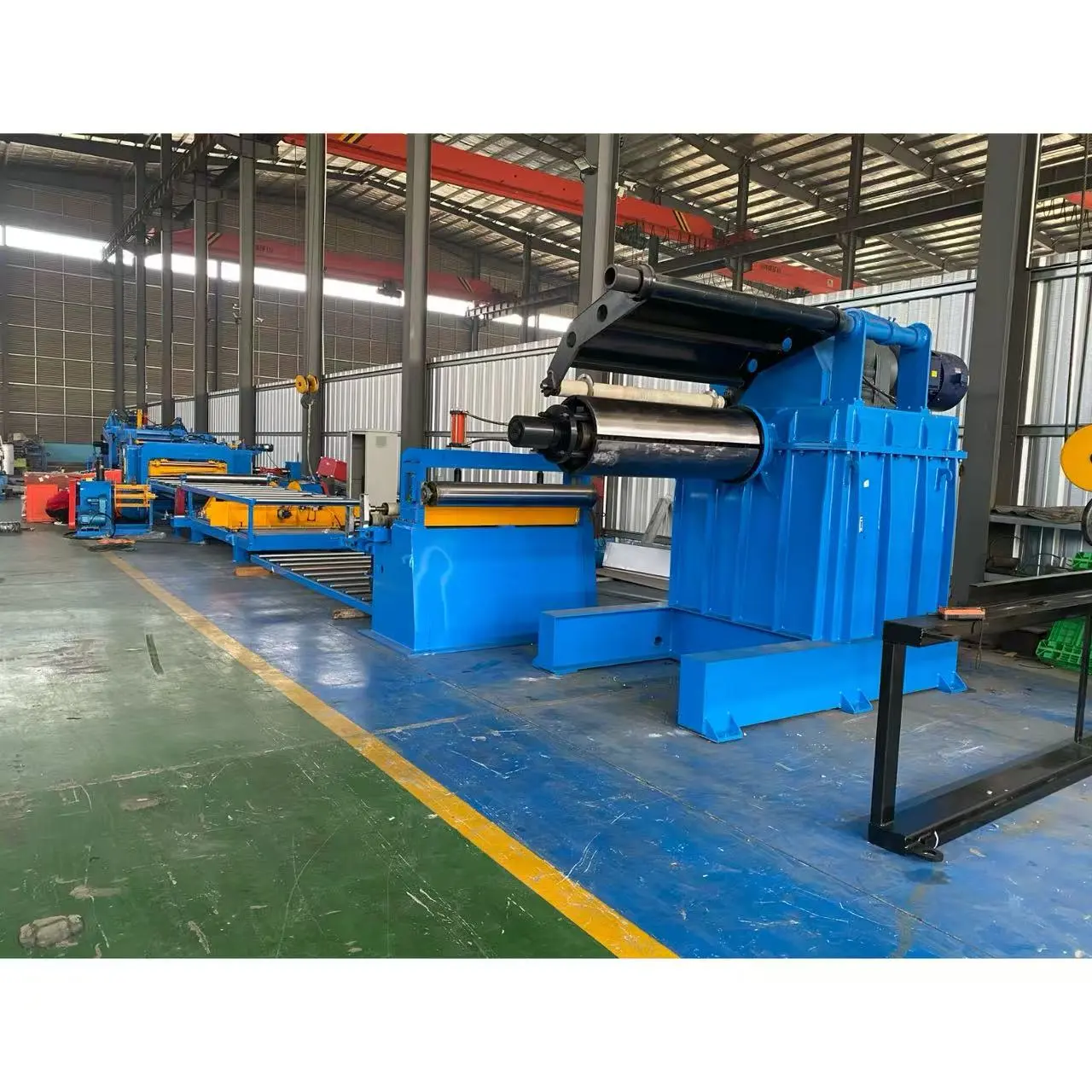

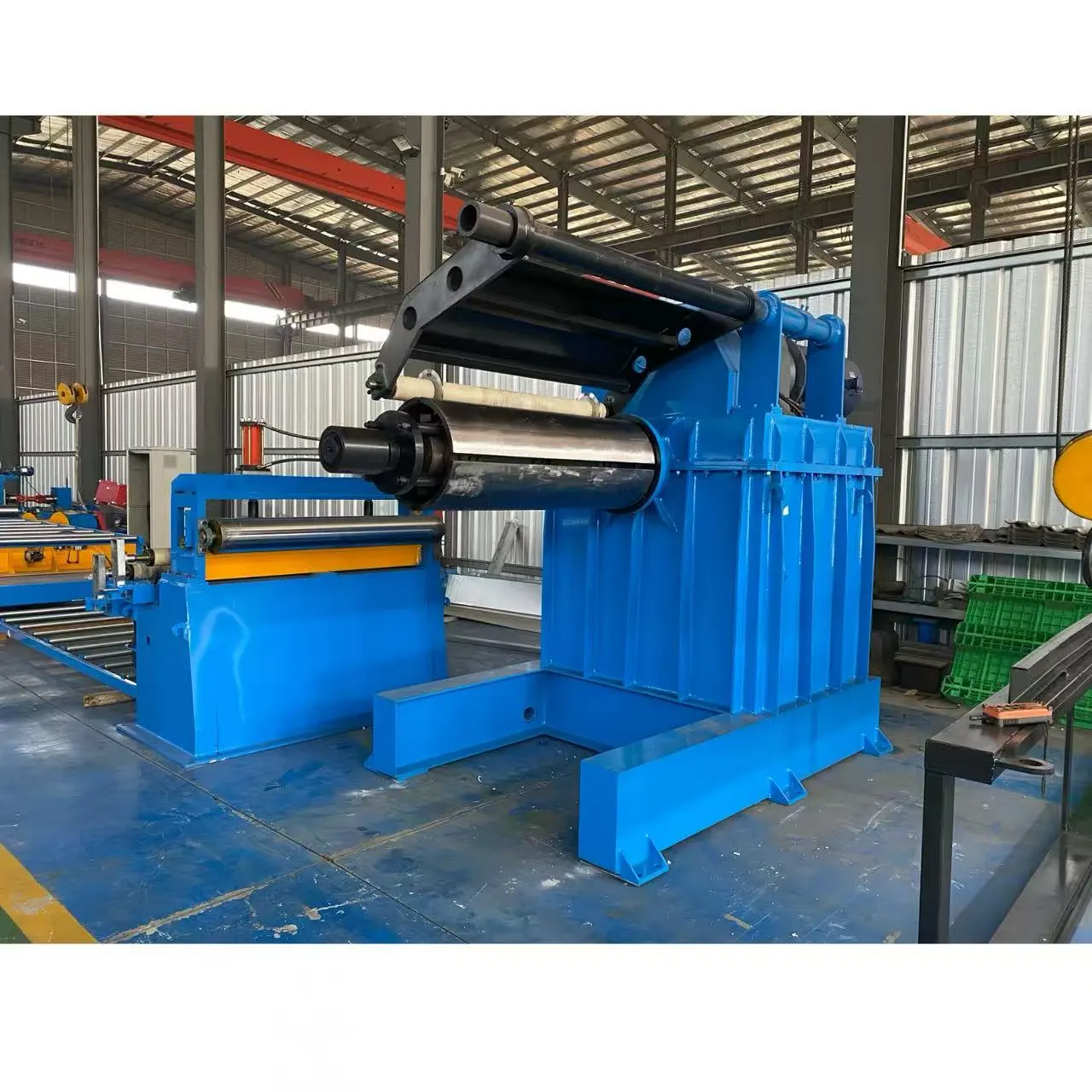

Part 1: 12T Hydraulic decoiler with loading car

1. Capacity :12 tons
2.Coil inner diameter :480-520mm,It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils.
3. Coil width :Max 1250mm
4. Hydraulic power: 5.5 kw
5. Motor power :7.5 kw

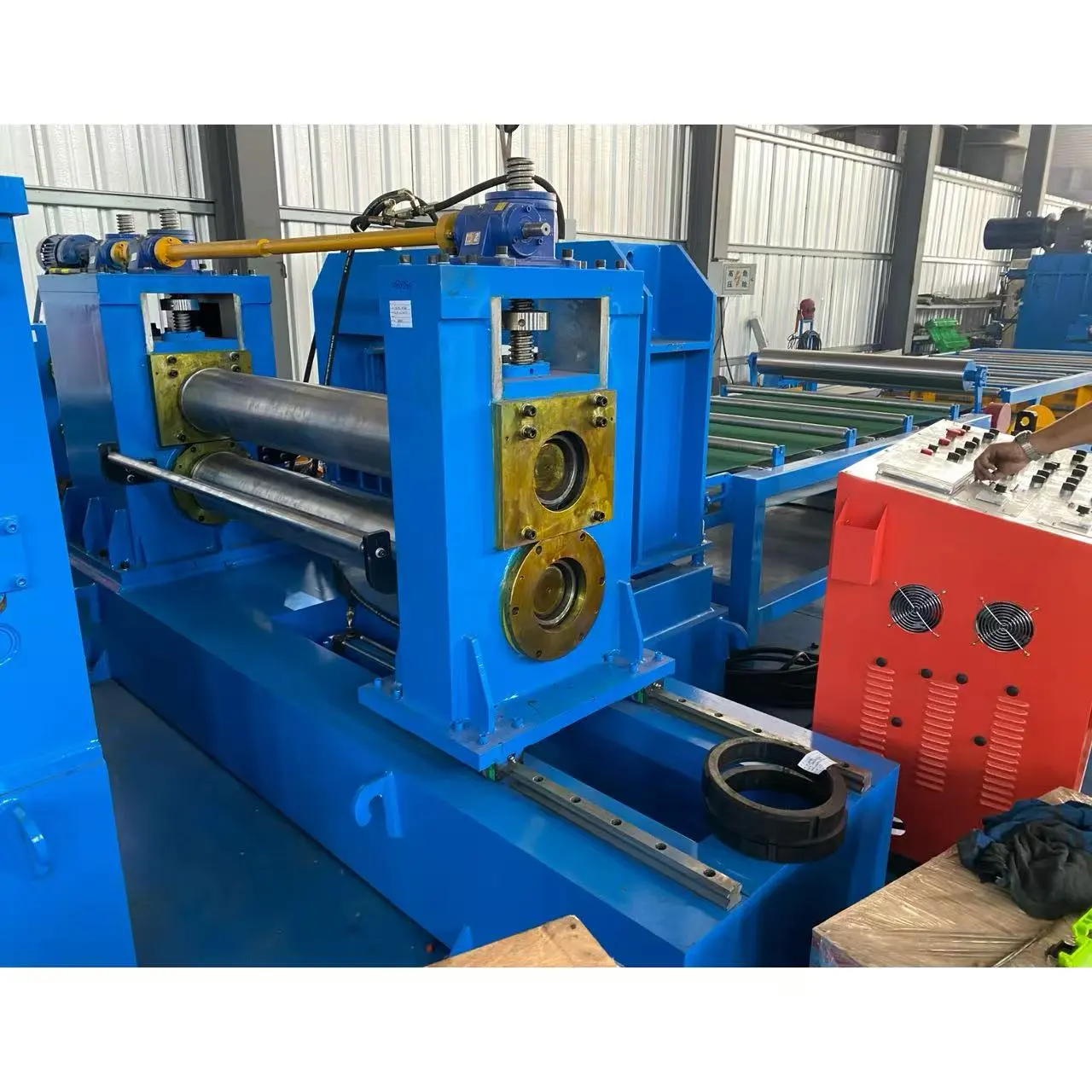

Part 2: Leveling & Slitting & Cutting to length Machine

1. Function :To make the sheet flat and cut the material during work if needed.
2.Leveling roller quantity: 17 pcs, up 7 down 8 with one pair of rubber roller,with the back up rollers
3.Leveling roller gap adjustment type: Motorized.
4.Main leveling roller diameter: 100mm
5.Back-up roller diameter: 90mm
6.Roller material: 40Cr steel with treatment, surface chromed
7.Power: 15 kw
8.Remote control: Equipped with remote control for easy operation.
9.Slitting blade quantity: 13 pcs, the width is adjustable. Min slit width is 20mm, max slit strip is 12 pcs.
10Slitting blade material: Cr12Mov
11.Slitting blade size: Φ220mm× Φ330mm×B
12.Power: 22 kw
13.Speed: 0-25m/min
14.Cutting type: Hydraulic
15.Cutting blade material: Cr12mov with quenched treatment
16.Power: 7.5 kw
