Sheet Metal Embossing 5m Speed for Consistent Patterns

A metal sheet embossing machine creates raised patterns on flat metal, and those patterns show up everywhere in daily life. The stair treads you walk on, the floors of truck beds, the shelving in warehouses, all use embossed metal.

If you make these products, or if you are thinking about adding this capability to your shop, you already know one thing. Flat plates have limits. Smooth surfaces create safety hazards. Plates deform under load. Rigidity is often insufficient.

Embossing addresses both concerns. Here is a breakdown of the process, applications, equipment advantages, and specifications.

What Is Sheet Metal Embossing

metal sheet embossing is a process that uses pressure to create raised or recessed patterns on the surface of a metal plate. Unlike etching or engraving, which remove material, embossing does not reduce the plate thickness. It only changes the surface shape.

In simple terms, the plate goes in flat and comes out with a pattern. The thickness remains largely the same.

Applications of Embossed Metal Sheets

Patterned metal plates show up in many places.

Truck floors. Embossed patterns add friction. Cargo stays in place during transport.

Shelving decking. Warehouse shelves need load capacity and slip resistance. Embossed decking delivers both.

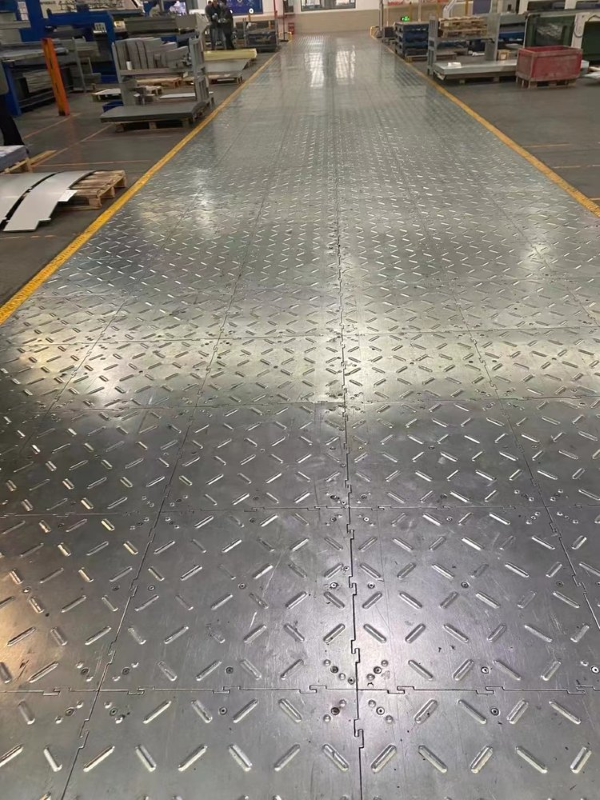

Industrial walkways and maintenance platforms. Safety comes first in factories. Embossed plates go on stair treads, equipment platforms, and machine access areas.

Equipment tread plates and stair treads. Public and industrial spaces use embossed plates in these applications.

What these products share is the need for a metal plate that is both slip resistant and load bearing.

Advantages of Using a Metal Sheet Embossing Machine

Mass production of embossed plates requires a metal sheet embossing machine. Here is what it offers:

Continuous processing. The machine runs continuously from feeding to embossing to collection. Plates go in one end, embossed plates come out the other.

Consistent pattern depth. A leveling machine sits upstream. Plates get corrected before embossing, so pattern depth stays uniform from start to finish.

One machine for multiple products. Thickness capacity from 1.2 to 5mm and width up to 1520mm covers truck floors, shelving decking, and industrial walkways.

Standardized operation. Clear layout. Simple maintenance. The workflow follows a consistent sequence.

How Does Sheet Metal Embossing Work

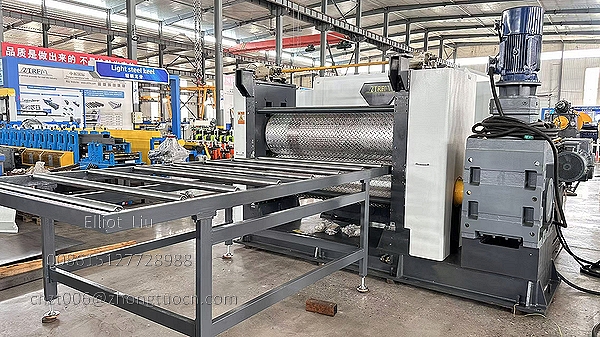

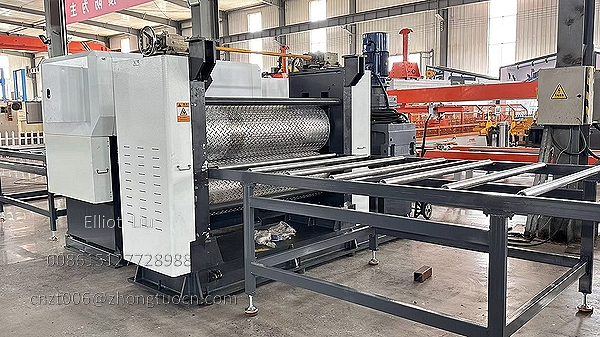

The basic principle is straightforward. The metal plate passes through a pair of embossing rollers. The upper roller carries the pattern, and the lower roller is flat or acts as a support. Under pressure, the plate surface deforms plastically, and the pattern transfers onto the plate.

The whole process runs continuously. No heating required. It is a cold forming operation. Plates go in one end and come out with patterns on the other.

Common pattern types:

• Diamond pattern. Used for truck floors and walkways.

• Nub pattern. Raised dots for traction.

• Rib pattern. Parallel lines that provide slip resistance and guidance.

• Custom patterns. Based on specific requirements.

Different patterns suit different applications. Anti slip patterns go where traction matters. Decorative patterns go where appearance matters.

Why Emboss Metal Sheets

Embossing addresses several real concerns with flat plates.

Slip resistance. Smooth metal surfaces get slippery when wet, oily, or angled. Embossed patterns add friction. This is the most direct benefit.

Increased rigidity. Cold working hardens the material locally. The pattern itself acts like ribs on the surface.

Surface defect hiding. Scratches, dents, and unevenness show up clearly on flat plates. Embossed patterns can hide these minor defects and improve the appearance pass rate.

Appearance. The pattern itself adds visual texture and meets design requirements for different applications.

What Metals Can Be Embossed

Many metals can go through embossing, but hardness and ductility vary, so results differ.

Carbon steel. Strong, cost effective, and processes well. The equipment uses carbon steel as the specified material.

Stainless steel. Good corrosion resistance. Used in food equipment, medical facilities, and decorative applications. Harder to emboss than carbon steel, requiring more pressure.

Aluminum. Lightweight. Used in aerospace, automotive, and architectural applications. Softer and easier to emboss, but spring back needs attention.

Copper. Good electrical conductivity. Used in electrical and decorative applications. Ductile and suitable for fine patterns.

Galvanized steel. Carbon steel with a zinc coating. Combines strength and corrosion resistance. Used in outdoor and building applications.

From Process to Production Equipment

Hand embossing and small batch embossing have limitations. Low efficiency. Poor pattern consistency. Hard to meet batch delivery requirements.

Industrial continuous production needs dedicated equipment. A typical embossing line includes these components:

• Input coil supporting table (Length 5m). Assists with loading. Keeps plates feeding smoothly into the line.

• Embossing machine. Forms the patterns.

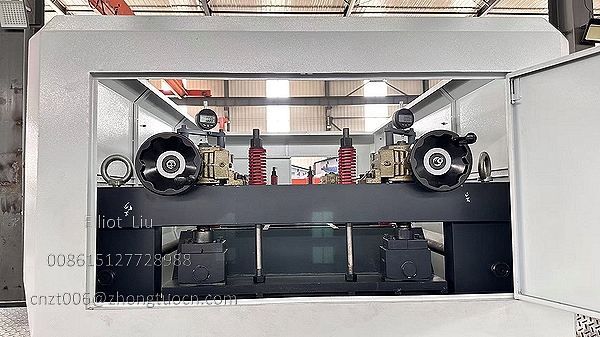

• Leveling machine. Releases internal stress and corrects shape.

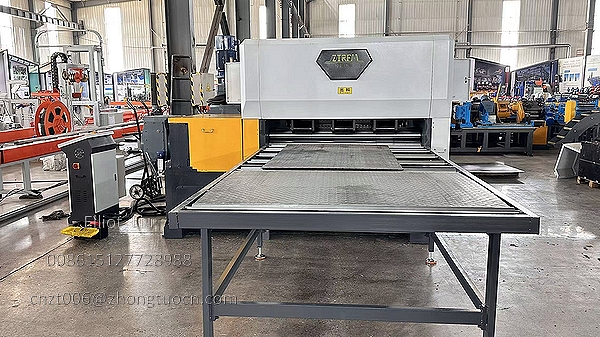

• Receiving table (Length 5m). Collects finished plates.

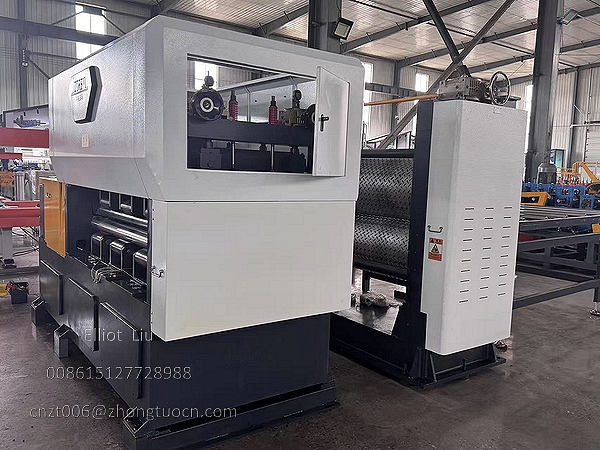

The leveling machine sits before the embossing machine. This order is critical. Plates get leveled before embossing. Uneven plates create uneven pattern depth.

Technical Specifications

All specifications come from the equipment quote.

What to Consider When Setting Up Embossing Production

A few points are worth thinking through before you set up embossing production.

Does the thickness and width range match your products? Check whether the machine covers your plate thickness (1.2 to 5mm) and width (up to 1520mm).

Do you need a full line? The leveling machine sits upstream and affects input quality.

Floor space. The input support table and receiving table are each 5 meters long. Add the embossing machine and leveling machine, and the whole line needs room to fit.

Embossing addresses two concerns with flat plates. Slippery surfaces and insufficient rigidity. One process forms the pattern and increases plate rigidity at the same time.

If you are making truck floors, shelving decking, or industrial walkways, or if your customers keep asking for slip resistance and load capacity, embossing is worth considering. Choosing the right equipment comes down to thickness, width, line configuration, and floor space.

If you have more questions, or want to check whether this equipment fits your product specifications, get in touch.
