Metal Roofing Self Lock Standing Seam Roll Forming Machine Standard

Product Overview

The metal roofing self lock standing seam roll forming machine is a specialized cold bending line used to produce the core panels of vertical locking edge metal roof systems. Its finished panels combine excellent waterproof and wind resistant performance with clean visual lines, making them a preferred roofing solution for modern large public buildings and high-end residences.

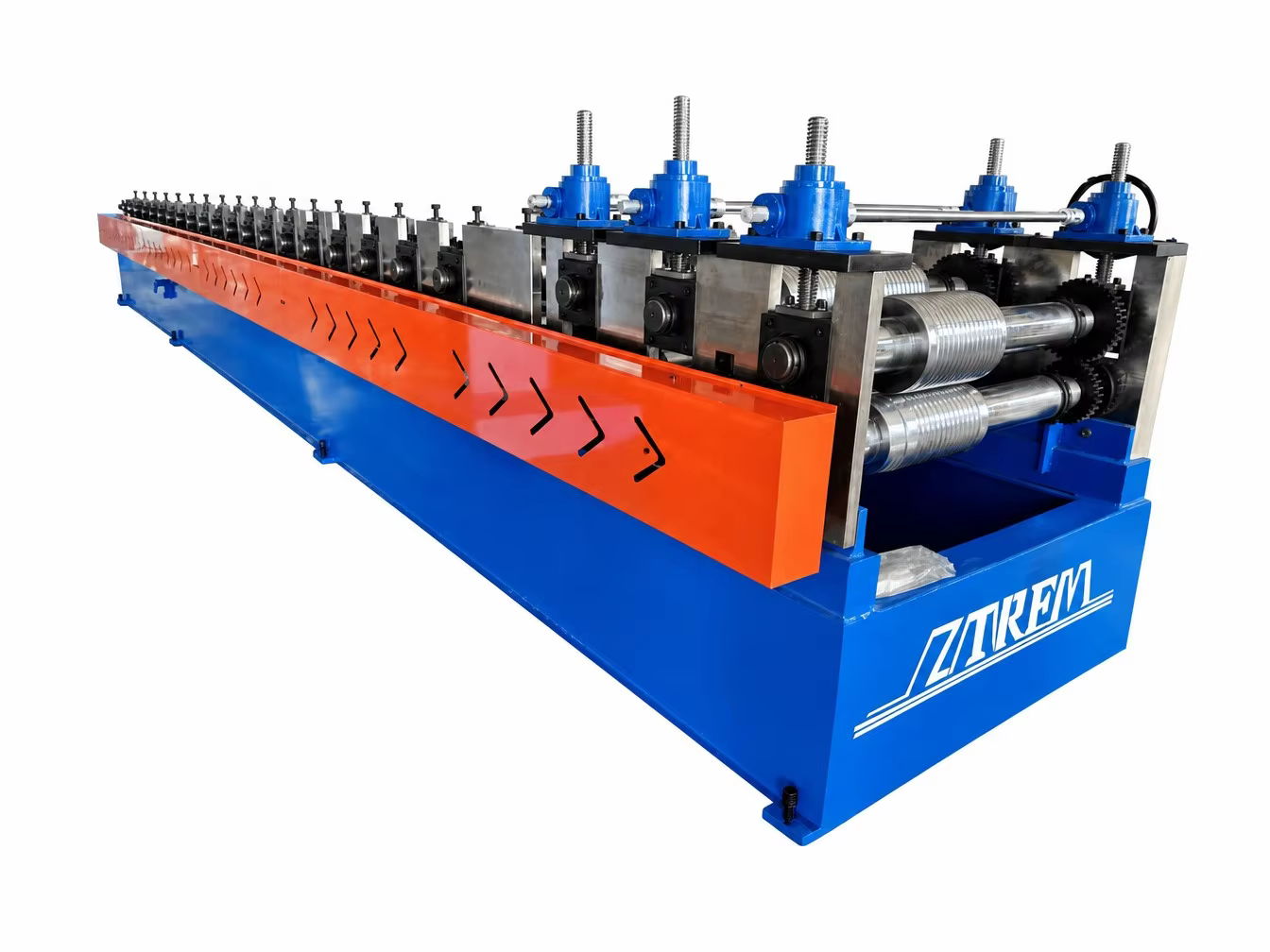

• 18 roller stations forming upright ribs with a self-locking buckle structure
• Φ75 mm solid shafts and 45# steel chromed rollers for long service life
• Forming speed of 15-20 m/min, driven by chains with cover
• Flying shear or rotating shear cuts panels online to preset lengths
• PLC control system for dimensional accuracy and consistent quality
• Works with PPGI, galvanized steel and aluminum magnesium manganese coils

Key Features

• On-Site Production, Lower Cost - The equipment can be containerized and process metal coils directly at the construction site, eliminating factory prefabrication, long-distance transport and on-site re-handling, significantly reducing logistics cost and storage pressure.
• Excellent Waterproof Performance - The upright locking edge and self-locking structure form continuous, precisely interlocked seams. Combined with fixed seats hidden under the panels, it avoids leakage risks caused by traditional screw penetration, creating a tight waterproof layer.
• Highly Automated and Precise - PLC control ensures dimensional accuracy and consistency; real-time thickness monitoring and automatic compensation respond to subtle material differences and keep product quality stable.
• Fast Installation - The self-locking design allows on-site installation by simply pressing and biting the panels, without extra electric locking machines or manual tools.
• Wide Material Adaptability - Processes aluminum magnesium manganese alloy, galvanized steel and color coated steel, typically 0.3-1.0 mm thick.

Machine Workflow

1. Feeding - Metal coils (steel coils, aluminum coils, etc.) are placed on the feeding rack.
2. Feeding and Forming - The strip is fed into the forming host with more than 18-20 rolling stations, which progressively cold bend the sheet into a panel with upright ribs and a self-locking buckle structure.
3. Cutting - A flying shear or rotating shear cuts the continuously formed panel online to the preset length.

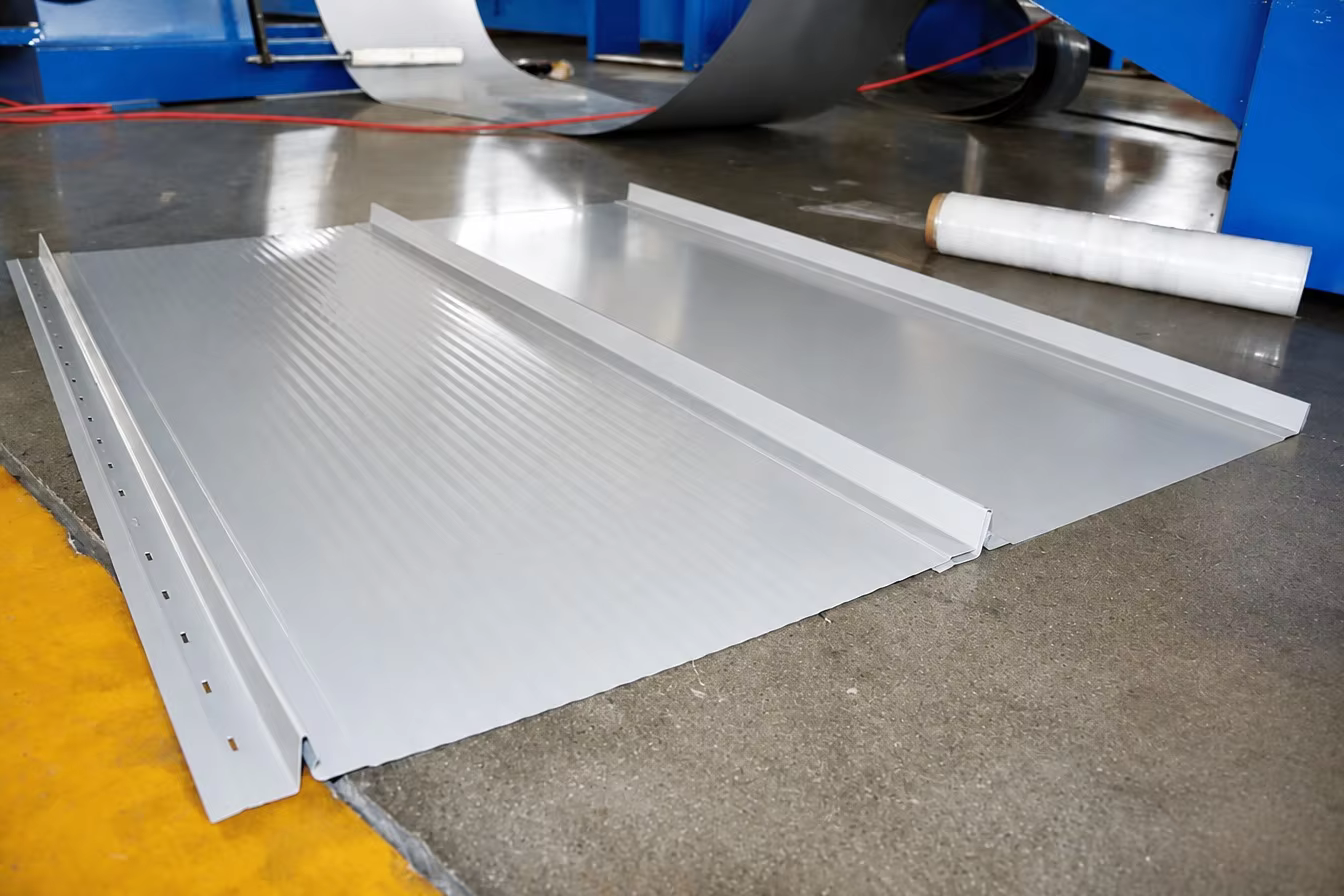

4. Discharge - The finished roof panels leave through the discharge platform, ready for installation.

Technical Specifications

Machine Structure

The forming host is built with chrome-plated grooved rollers and Φ75 mm solid shafts mounted in a 350# H steel welded frame, synchronized by covered chain transmission and black drive gears for stable progressive bending.

Applications

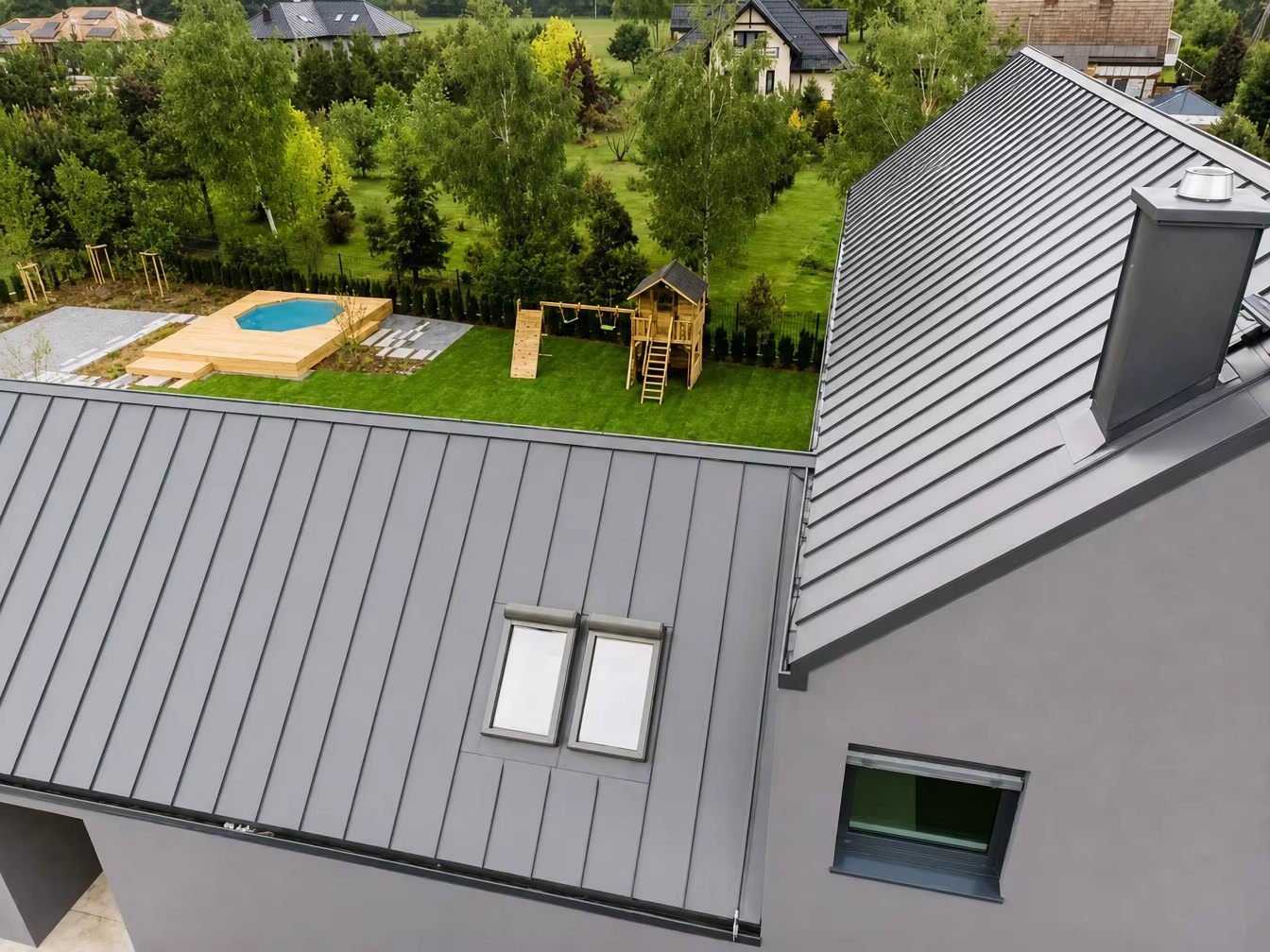

Panels produced by this machine are widely used on large public buildings (sports venues, convention centers, theaters, airport terminals), commercial and industrial buildings (shopping centers, industrial plants, warehouses), and high-end residential and special buildings (villas, private residences, building exterior decoration).
