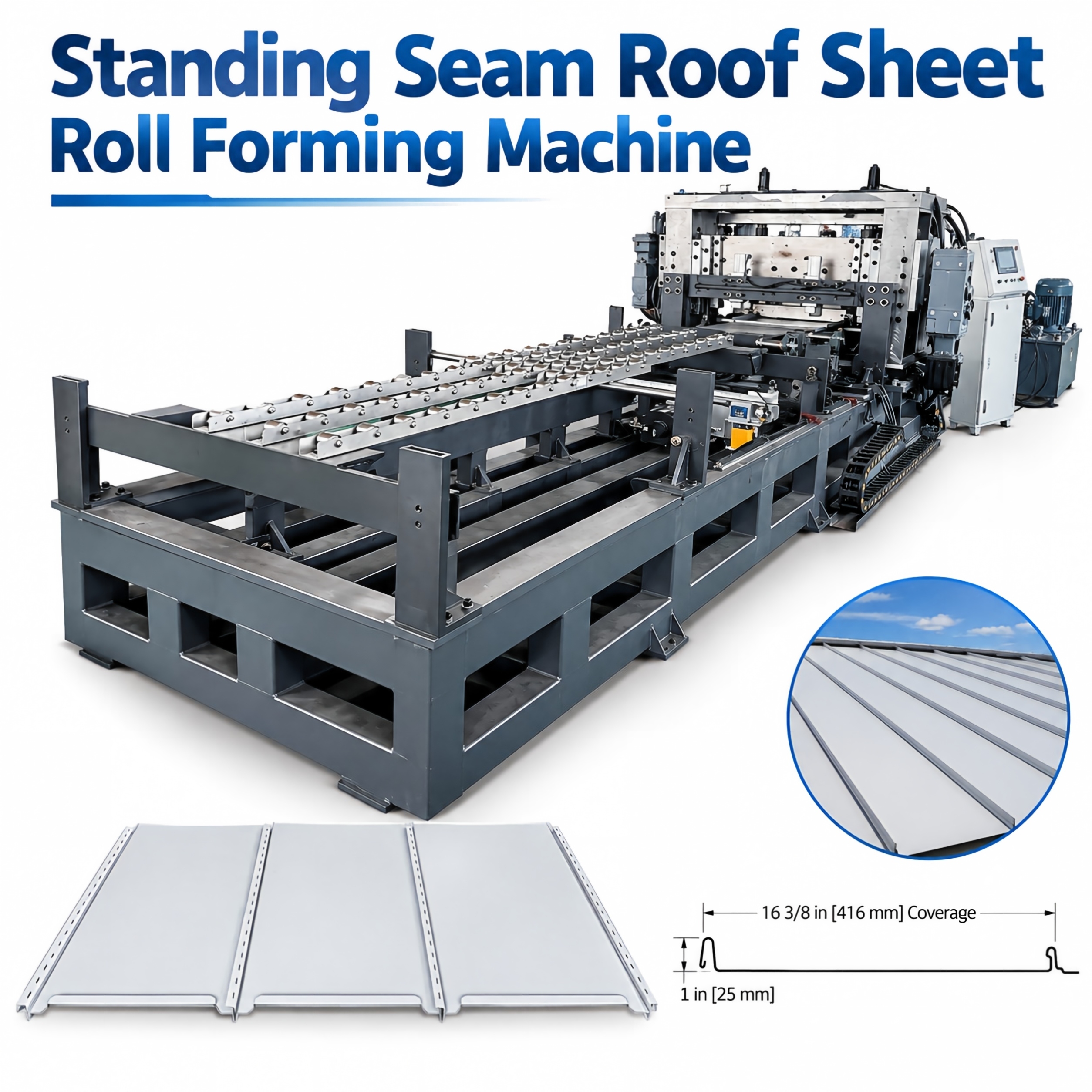

Metal Roofing Production Line: Standing Seam Roll Former Equipment 0-20m/min

Metal Roofing Panel Production Line: Standing Seam Roll Former Equipment

Product Introduction：

Standing Seam Roll Former Equipment is a roll forming production line specifically designed for producing vertical lock edge metal roof panels. It uses color coated steel plates, aluminum plates, copper plates, stainless steel and other metal coils, and continuously cold bends them through multiple progressive rollers to complete the plate surface forming, locking rib forming and fixed length cutting in one go, directly producing vertically installable locking edge roof panels.

The core structural feature of the Standing Seam Roll Former Equipment is that adjacent panels are interlocked by the raised edge locking ribs, and the fasteners are completely hidden under the panels, without a single through screw on the roof surface. This structure endows the roof with stronger wind resistance, leakage prevention, and adaptability to thermal expansion and contraction. The key to achieving this structure is the precise control of the shape, dimensional accuracy, and flatness of the locking ribs by the roll forming equipment.

A complete Standing Seam Roll Former Equipment usually consists of an uncoiler, a feed guide device, a progressive forming host, a shearing system, a discharge rack, and a CNC control system. According to different application scenarios, the equipment can be designed as a workshop fixed production line or a trailer/portable on-site forming equipment.

Core Features：

1.Progressive molding with stable accuracy.
Adopting a multi pass progressive cold bending process, the number of forming passes is usually 12. The internal stress of the plate is smaller during gradual deformation, the flatness of the plate surface is high, and the consistency of the locking rib size is good. Progressive design can effectively reduce the deformation of the horn mouth at the end of the board, ensuring the tightness of the locking edge bite.

2.One machine with multiple types, flexible adaptation.
Modern upright edge locking equipment supports quick replacement of roller sets or adjustment of roller spacing, and can produce multiple panel profiles and width specifications on the same production line. Some portable models can support more than 7 panel contours, with finished product widths covering 12 to 20 inches, meeting the design requirements of different projects.

3.Numerical control, material saving, high efficiency.
Equipped with PLC and touch screen control system, it can store job programs, automatically calculate sheet length and quantity, and track coil usage. The length accuracy can usually be controlled within ± 1 millimeter/4 meters, greatly reducing on-site cutting waste. High end models also support WiFi remote maintenance and program import and export.

4.On site molding, breaking through transportation restrictions.
Trailer and portable devices can be directly transported to the construction site and produced on-site according to the actual size of the roof. The length of the board is not limited by transportation, making it particularly suitable for projects with ultra long panels, complex roof geometries, and limited transportation conditions. At the same time, it saves the transportation cost of long boards and the waiting period for ordering.

5.Multiple driving modes, adapted to different production capacities.
The mechanical drive model has a simple structure and low maintenance costs, making it suitable for small and medium-sized production; Hydraulic driven models electrify cutting, positioning, and adjustment actions, with low operational intensity, suitable for high-frequency and multi specification production scenarios.

Application scenario：

•Renovation and construction of residential metal roofs.
Residential metal roofs are rapidly becoming popular, with renovation and renovation contributing the vast majority of demand. The upright locking system has become the preferred choice for high-end residential owners due to its over 50 year service life, attractive appearance brought by concealed fasteners, and low maintenance characteristics. Portable devices can produce panels on site that are the same length as the roof, avoiding overlapping and improving waterproof performance.

•Commercial building roofs.
Commercial buildings such as office buildings, shopping malls, hospitals, airports, and sports venues have high requirements for the appearance quality, waterproof rating, and service life of their roofs. The modern aesthetics and reliable performance of the upright locking system make it a common designated product for architects and homeowners. The workshop level high-speed production line can meet the large-scale and high-precision supply needs of commercial projects.

•Industrial plants and logistics warehousing.
The large-span roofs of factories, logistics centers, and storage facilities require lightweight, high-strength, and fast construction roof systems. The upright lock edge panel has a light weight, which can reduce the structural load. At the same time, its on-site forming ability can adapt to the long plate requirements of large-span roofs, accelerating the construction progress.


Pattern diagram:



Product Attributes :

1.Formed Material	PPGI,PPGL,AI.		Material Thickness:0.4-0.8mm
2.Decoiler	Hydraulic decoiler		Manual decoiler
3.Main body	Roller station		12 rows
	Diameter of shaft		80mm solid shaft
	Material of rollers		High Grade 45# Forged Steel, hard chrome plated on the surface
	Machine body frame		350 H steel
	Drive		Chain transmission
	Dimension		10500*1650*1400 mm
	Weight		15T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
	Hydraulic system power		4KW
6.Voltage	380V 50Hz 3Phase		380V 50Hz 3Phase
7.Control system	Electric Box		Famous brand
	Language		Support multiple languages
	PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-20m/min		The speed is adjustable

Machine photo:

Frequently Asked Questions (FAQ)：

Q1: What types of boards can be produced by an upright lock edge forming machine?

The equipment can produce various board types such as standard upright lock edge roof panels and Snap Lock upright lock edge panels. We can also customize the production of tapered panels and curved panels according to customer needs. We can design customized rolling mill molds for customers by providing plate drawings or samples.

Q2: What raw materials does the device support?

The device supports various metal coils such as pre coated color coated steel plate (PPGI), galvanized steel plate (GI), aluminum magnesium manganese alloy plate, aluminum plate, and copper plate. The applicable thickness range is 0.4-0.8mm, depending on the material and board type.

Q3: How to ensure the forming accuracy of the equipment?

Accuracy assurance comes from multiple levels: the rolling mill is made of high-quality 45 # steel, which undergoes CNC machining (rough turning, quenching, precision grinding, and fine turning) and hard chrome plating to ensure accurate forming contours; Real time monitoring and adjustment of production parameters by PLC closed-loop control system; The hydraulic shearing system, in conjunction with the sizing device, achieves a cutting tolerance of ± 1mm.

Q4: Does the device support portable/mobile configuration?

support. Some models adopt a detachable design, which can be divided into multiple components for easy transportation, suitable for on-site molding production on construction sites, especially for projects where ultra long boards cannot be transported by road.

Contact Us：

The upright locking edge roll forming equipment is not only a production machine, but also a key equipment for roof contractors and manufacturers to move from "material procurement" to "on-site manufacturing". Choosing equipment configurations that are suitable for one's own business scenario - whether it is workshop level production lines that pursue production capacity and accuracy, or portable models that emphasize site adaptability - can bring quantifiable improvements in board quality, material utilization, delivery efficiency, and profit structure.
