A Metal Roof Ridge Cap Roll Forming Machine is designed to produce durable and accurately formed ridge caps for metal roofing systems. It continuously processes galvanized steel, PPGI, GI, and other suitable metal coils into finished ridge cap profiles with consistent dimensions and clean forming surfaces.
For roofing manufacturers, this machine provides an efficient alternative to manual sheet bending. The production line combines coil decoiling, material feeding, multi-stage roll forming, hydraulic cutting, and PLC-controlled operation. With a standard forming speed of approximately 15 m/min and a material thickness range of 0.25–0.8 mm, it can support continuous production for different roofing projects.
The roller tooling can also be customized according to the customer's ridge cap drawing, finished dimensions, material thickness, and required profile.

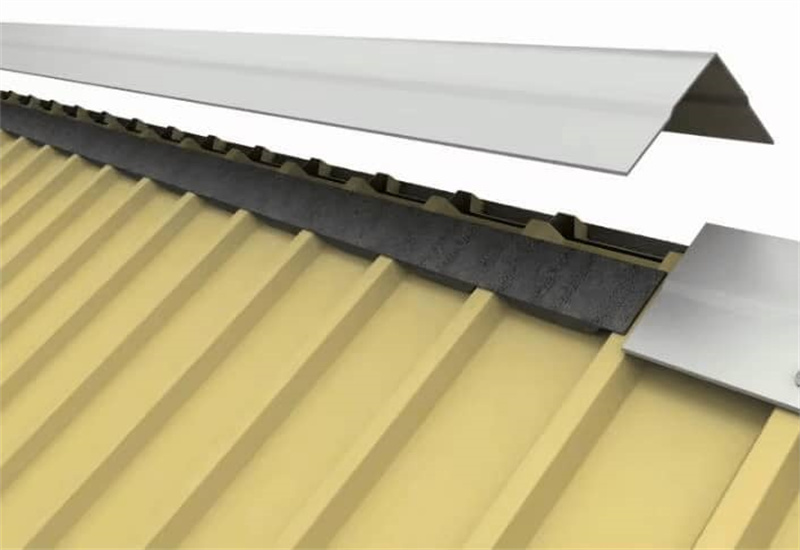

A ridge cap is installed along the peak of a pitched roof, covering the joint where two roof slopes meet. It helps protect the roof structure from rain, wind, dust, and other external elements while providing a finished appearance.
The metal roof ridge capping machine automatically forms flat metal coils into the required ridge cap shape through a series of precision rollers. Each forming station performs a controlled bending operation, allowing the profile to develop gradually rather than being shaped in a single step.
After the forming process, the hydraulic cutting system cuts the finished ridge caps to the programmed length.
This continuous production method offers several advantages:
The finished products can be used for:
The forming section of the roof ridge cap forming machine contains 18 roller stations. The rollers gradually bend the incoming metal sheet until it reaches the required ridge cap geometry.
This multi-stage forming method helps distribute the deformation across the forming stations. As a result, the machine can maintain a stable profile while reducing unnecessary stress on the material.
The standard roller configuration uses 45# steel rollers with polished and chrome-coated surfaces. The forming shafts use solid 45# steel with an approximate diameter of 70 mm.
A rigid machine frame supports the forming system during continuous operation, helping maintain stable alignment between the rollers.
| Item | Specification |
|---|---|
| Machine Type | Metal Roof Ridge Cap Roll Forming Machine |
| Application | Metal Roof Ridge Cap Production |
| Suitable Materials | PPGI, GI and similar metal coils |
| Material Thickness | 0.25–0.8 mm |
| Roller Stations | 18 |
| Roller Material | 45# Steel, Polished & Chrome Coated |
| Shaft Diameter | 70 mm Solid Shaft |
| Main Motor | 5.5 kW |
| Forming Speed | Approx. 15 m/min |
| Drive System | Wall Plate Chain Drive |
| Cutting Material | Cr12 Steel |
| Hydraulic Motor | 4 kW |
| PLC | Delta |
| Encoder | Omron |
| Cutting Accuracy | Approx. ±2 mm |
| Standard Power Supply | 380 V / 50 Hz / 3 Phase |
The actual material thickness and production speed can vary according to the ridge cap profile, steel grade, coil characteristics, and machine configuration.
The metal roof ridge capping machine uses a continuous production process from coil feeding to finished product cutting.
The basic workflow is:
Decoiling → Feeding → Roll Forming → Hydraulic Cutting → Product Receiving
The metal roof cap machine uses a Delta PLC, Omron encoder, and touchscreen control system.
Operators can set production parameters through the control panel, including the required product length and production quantity. The PLC coordinates material feeding, forming, length measurement, and cutting throughout the production cycle.
The standard control interface supports English and Chinese.
The standard electrical configuration is:
380 V / 50 Hz / 3 Phase
Other voltage and frequency configurations can be supplied according to the customer's local electrical requirements.
The Omron encoder provides length measurement for the cutting process. Under suitable production conditions, the specified cutting accuracy can reach approximately ±2 mm.
The hydraulic cutting system uses a 4 kW hydraulic motor to provide the required cutting force.
Different roofing projects may require different ridge cap widths, angles, heights, and profile geometries. Therefore, a standard roller set may not always be suitable for every application.
Our ridge cap roof panel roll forming machine can be customized according to the customer's actual profile.
For example, if you require a 300 mm ridge cap, our engineers can design the roller tooling based on your profile drawing rather than simply using a standard configuration.
Customization can include:
Customers can provide a CAD drawing, PDF profile drawing, or finished sample for evaluation.
This approach helps ensure that the finished ridge caps match the customer's roofing panels and installation requirements.
The standard metal roof ridge cap roll forming machine is designed for commonly used roofing materials such as:
The standard material thickness is approximately 0.25–0.8 mm. However, the final material range should be confirmed according to the material strength and actual ridge cap profile.
The machine can be used to produce ridge caps for a wide range of roofing applications, including residential houses, commercial buildings, steel workshops, warehouses, agricultural structures, and prefabricated buildings.
For roofing manufacturers serving markets such as Ghana and other international regions, continuous roll forming can help simplify ridge cap production and reduce dependence on manual fabrication.
Compared with manually bending individual metal sheets, automated roll forming provides a more consistent production process.
The metal roof ridge cap roll forming machine offers:
Continuous Production
The machine continuously processes metal coils instead of requiring operators to form each piece individually.
Consistent Profiles
Multiple forming stations help maintain the same ridge cap geometry throughout production.
Adjustable Product Length
The PLC-controlled cutting system allows operators to set the required finished length.
Flexible Configuration
Manual, electric, or hydraulic decoilers can be selected according to the customer's production requirements.
Custom Tooling
The roller system can be manufactured according to a specific ridge cap drawing.
Reduced Manual Labor
Automated forming and cutting reduce repetitive bending and cutting operations.
A complete ridge cap production line needs to match the customer's actual roofing profile rather than simply provide a generic bending machine.
Our metal roof ridge capping machine combines an 18-station forming system, 5.5 kW main motor, hydraulic cutting, Delta PLC control, Omron encoder, and flexible decoiler configurations.
The standard forming speed is approximately 15 m/min, while the suitable material thickness is generally 0.25–0.8 mm.
If your project requires a different ridge cap size or profile, the machine can be engineered around your specific requirements.
To recommend the correct configuration, you can provide:
Based on this information, the roller tooling, forming system, cutting unit, decoiler, and electrical components can be configured accordingly.
The standard machine can process PPGI, GI, and similar metal coils with a typical thickness of 0.25–0.8 mm. The final material range depends on the material strength and ridge cap design.
The standard forming speed is approximately 15 m/min. Actual production speed may vary depending on the ridge cap profile, material thickness, cutting length, and machine configuration.
Yes. A 300 mm ridge cap can be produced by designing the roller tooling according to the required profile drawing and finished dimensions.
Yes. The roller tooling, decoiler, feeding system, cutting unit, electrical configuration, production speed, and receiving or stacking system can be customized according to project requirements.
The standard configuration is 380 V / 50 Hz / 3 Phase. Other voltage and frequency specifications can be customized according to the customer's local power supply.
