Metal Checker Plate & Water Ripple Sheet Embossing Machine with Decoiler

This heavy-duty metal embossing machine is engineered for surface patterning and cold texture embossing on stainless steel, aluminum, galvanized steel, and carbon steel coils and sheets. Equipped with large-diameter Ø450 mm precision engraved alloy embossing rolls, high-torque dual motors (15 kW + 5.5 kW), a front leveling unit, and dedicated roller receiving conveyor tables, it produces high-definition water ripple sheets, anti-slip checker plates, diamond patterns, and decorative architectural panels with superior flat quality and low maintenance costs.

• High-Definition Metal Embossing: Handles coil and sheet materials up to 3 mm thickness and maximum 1500 mm width, creating uniform water ripple, checker plate, hammered, and custom decorative textures.
• Long-Life Embossing Rollers: Heavy forged alloy rolls with a large Ø450 mm diameter, precision engraved patterns, deep quenching heat treatment, and an estimated 10-year service life.
• Integrated Leveling Device: Built-in multi-roller leveling device eliminates internal material stress and ensures that embossed metal sheets remain completely flat without edge curl.
• Dual Motor Drive System: Heavy-duty 15 kW main drive motor combined with a 5.5 kW auxiliary drive and planetary gearbox delivers powerful, synchronized embossing torque.
• Versatile Material Compatibility: Successfully processes galvanized steel, carbon steel, stainless steel, and aluminum in both coil and cut sheet forms.
• Quality & Verification: Certified under CE and ISO, backed by full video outgoing-inspections, factory machinery test reports, and 1-year core component warranty.

Technical Specifications

Machine Structure & Embossing Cylinder Assemblies

The machine features an ultra-rigid fabricated steel arch stand housing large Ø450 mm diameter forged steel embossing rolls. Handwheel worm-gear adjustment mechanisms on top allow precise roll-gap setting according to sheet thickness. An integrated operator control console provides intuitive forward, reverse, and speed adjustment control.

Leveling Entry & Embossed Texture Applications

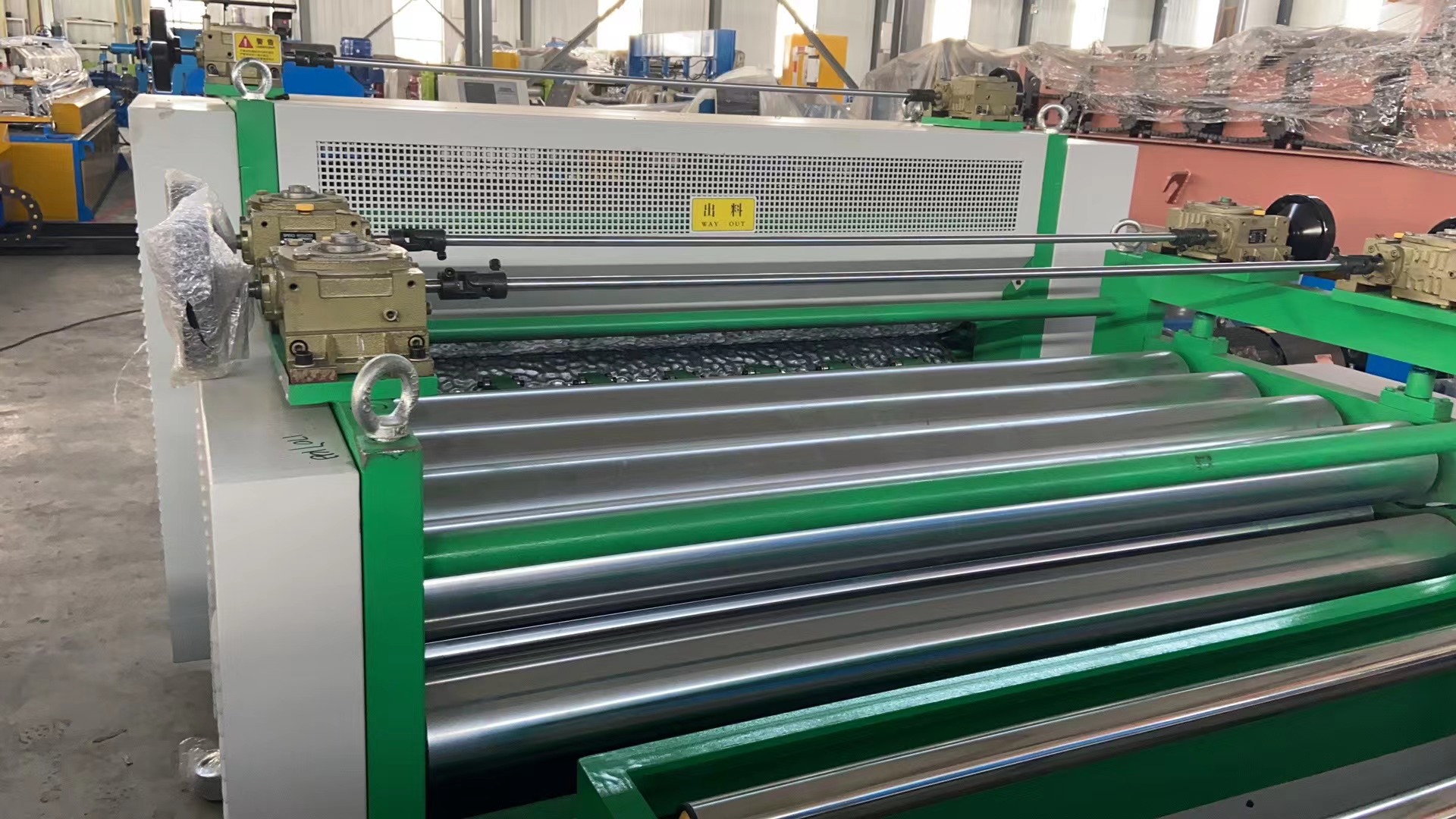

The front leveling unit flattens metal strips before they enter the embossing nip, ensuring consistent pattern depth across the full 1500 mm sheet width. Embossed metal panels are widely used in architectural wall cladding, elevator interiors, luxury ceiling panels, anti-skid industrial flooring, and decorative metal fabrication.

Frequently Asked Questions

What materials can be embossed?
The machine processes stainless steel, galvanized steel, carbon steel, and aluminum sheets and coils up to 3.0 mm thickness and 1500 mm width.

What is the diameter and life expectancy of the embossing rollers?
The embossing rollers have a diameter of Ø450 mm and an engineered design life of approximately 10 years under normal operation.

Does the machine include a leveling device?
Yes, a multi-roller leveling device is integrated at the entry station to flatten coil stock and ensure uniform pattern embossing.

What power setup is used?
The machine features a 15 kW main drive motor combined with a 5.5 kW auxiliary motor drive.
