Metal Plate Punching Machine Steel Hole Punching Machine CNC Metal Sheet Punching Machine
Metal coil width is 1220 mm, thickness is 0.3-0.8mm, the usages of the perforated metal sheet is for decorate metal panel.

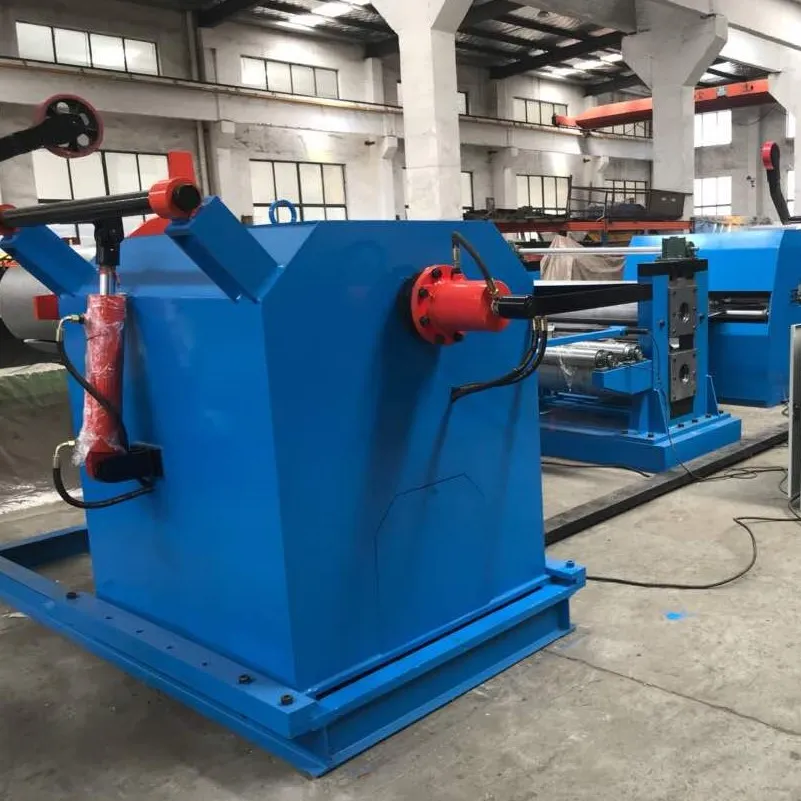

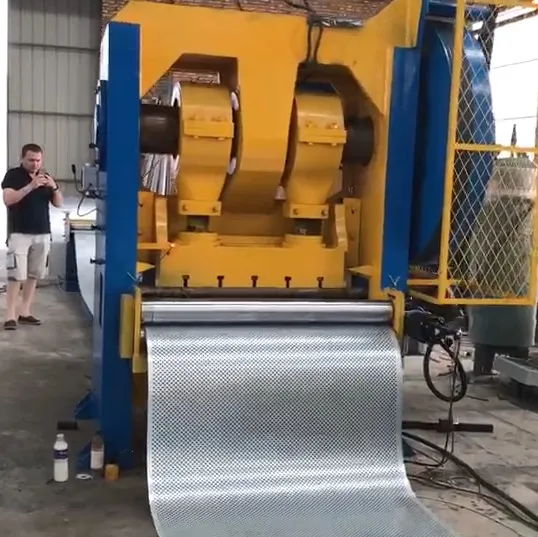

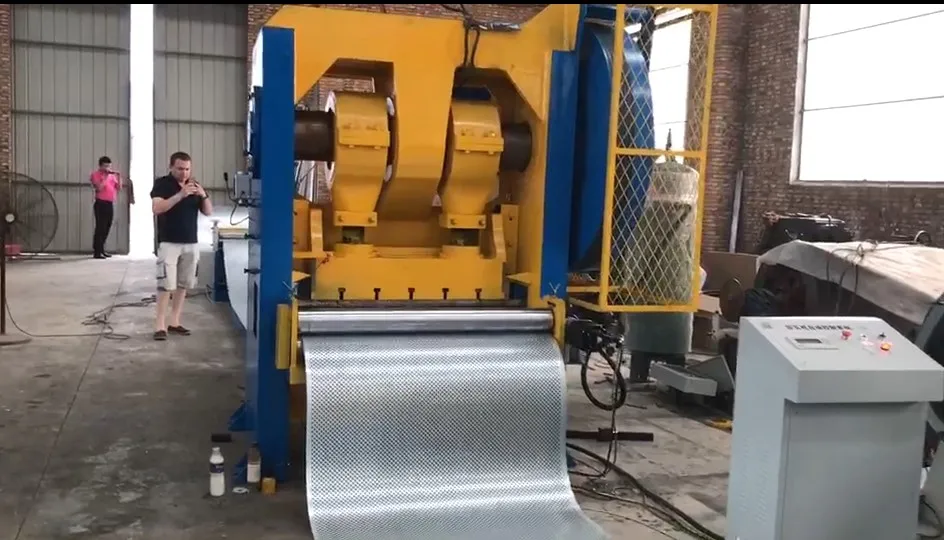

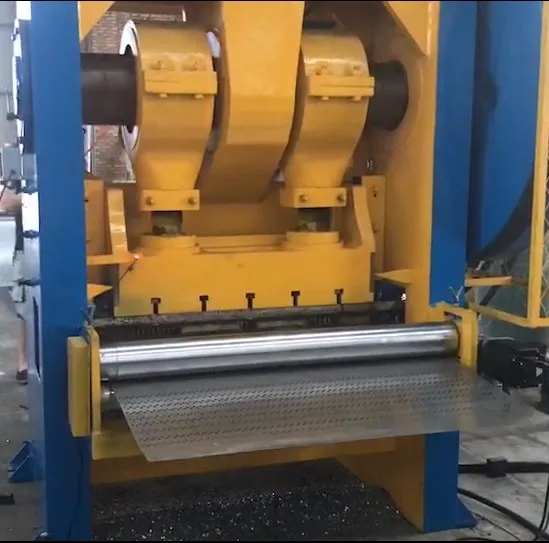

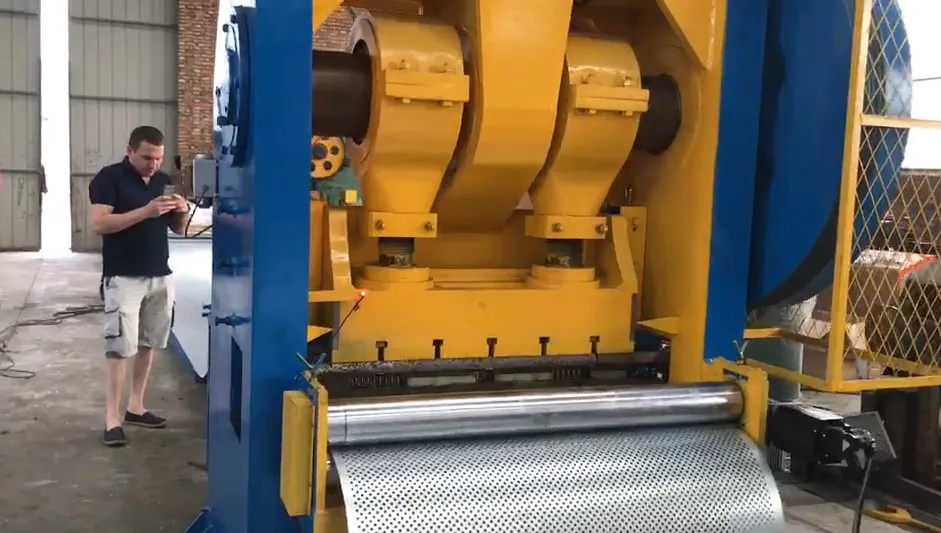

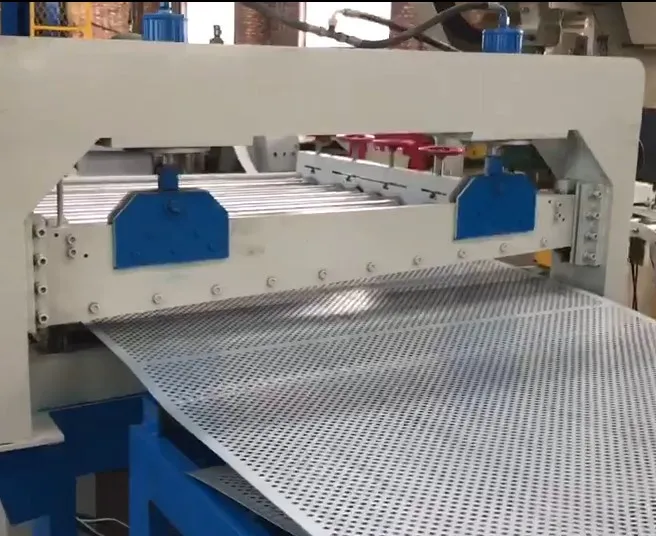

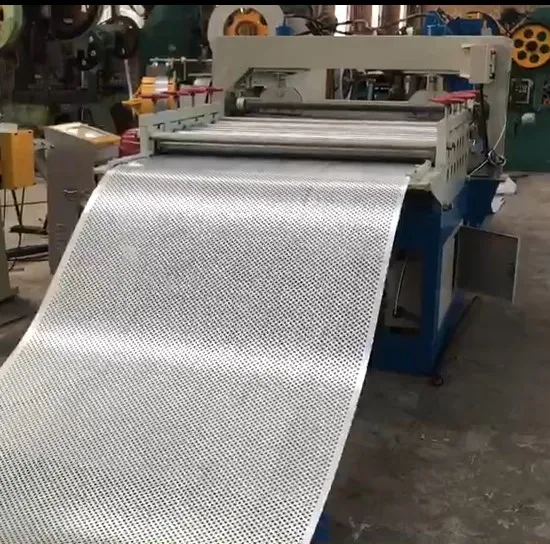

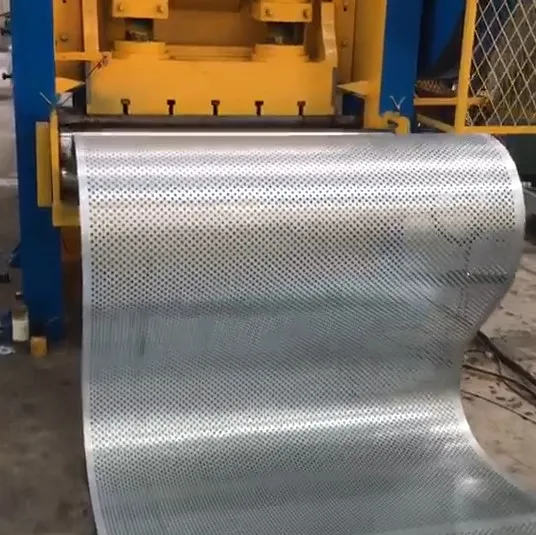

whole line of Metal sheet perforated machine steel plate punching machine High speed rotary punching machine is processing the perforated sheet from de-coiler, straigntener, punching, cut to length and re-coiling.
The Metal sheet perforated machine steel plate punching machine High speed rotary punching machine can be designed with 50 tons, 100 tons, 200 tons, 250 tons and higher tons according to the holes size and sheet width and thickness.
below is the specification of each perforated machine.
|
50T-1 500kn 1000mm 72times/min 4kw or as required 100T-1 1000kn 1000mm 72times/min 7.5kw or as required |
|
Nominal Pressure kn 1250 JMC-160 JMC-160 High Speed JF200-G D-250THigh Speed |
Nominal Pressure kn 1250
Slider Stroke mm 20
Perforating Speed times/min 120-140
Feeding Width mm ≤1250
Engine Power kw 18KW-4 or as required
JMC-160
Slider Stroke mm 30
Perforating Speed times/min 200
Feeding Width mm ≤1500
Engine Power kw 18.5 or as required
JMC-160 High Speed
Slider Stroke mm 30
Perforating Speed times/min 200
Feeding Width mm ≤1500
Engine Power kw 30kw-6 or as required
JF200-G
Nominal Pressure kn 2000
Slider Stroke mm 30
Perforating Speed times/min 100-200
Feeding Width mm ≤1500
Engine Power kw 30KW-6 or as required
D-250THigh Speed
Nominal Pressure kn 2500
Slider Stroke mm 30
Perforating Speed times/min 100-200
Feeding Width mm ≤1600
Engine Power kw 37-6
