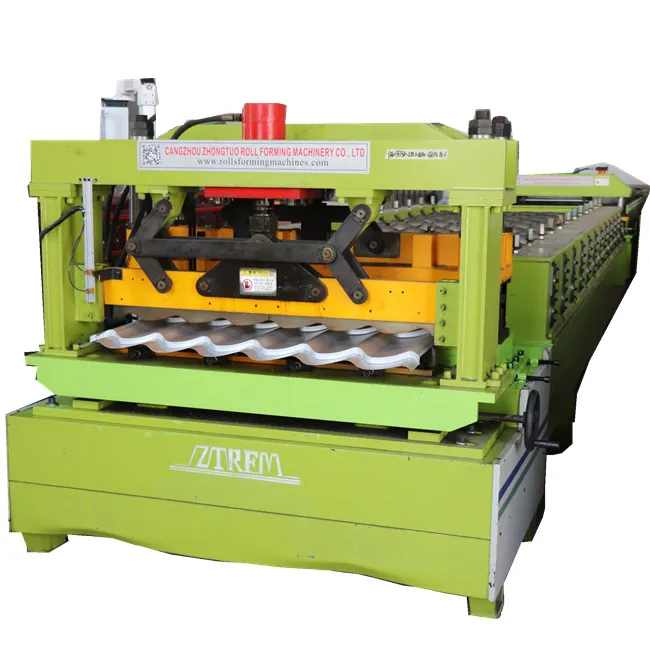

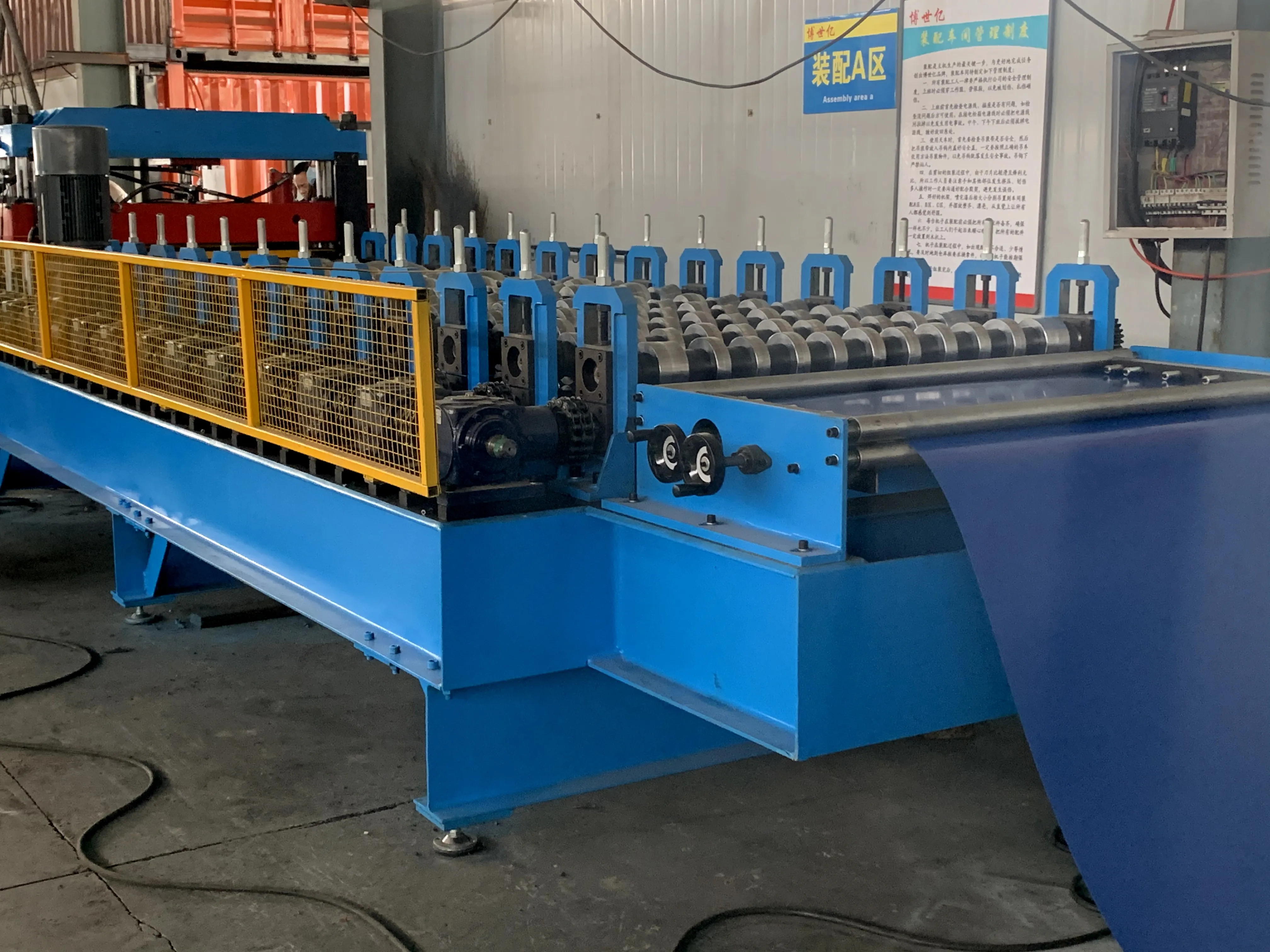

Metal Panel Glazed Tile Roof Roll Forming Machine with Motor Hydraulic Cutting for Building Construction 15 m/min+7.5KW

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Panel Glazed Tile Roof Roll Forming Machine with Motor Hydraulic Cutting for Building Construction 15 m/min+7.5KW

Name: Metal Panel Glazed Tile Roof Roll Forming Machine with Motor Hydraulic Cutting for Building Construction 15 m/min+7.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT52720240

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15 m/min

Power(W):

7.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
220V or as your request
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

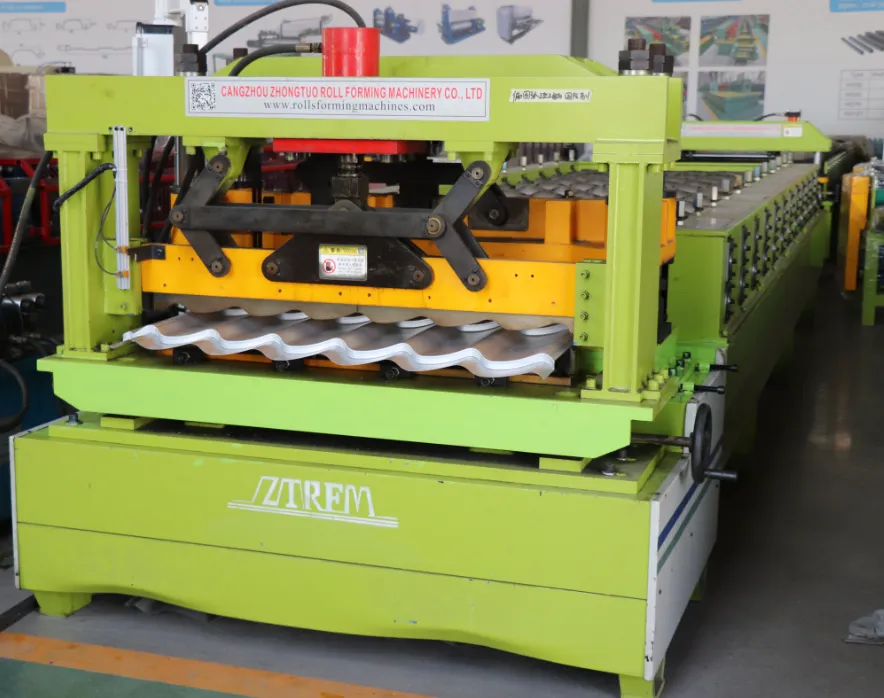

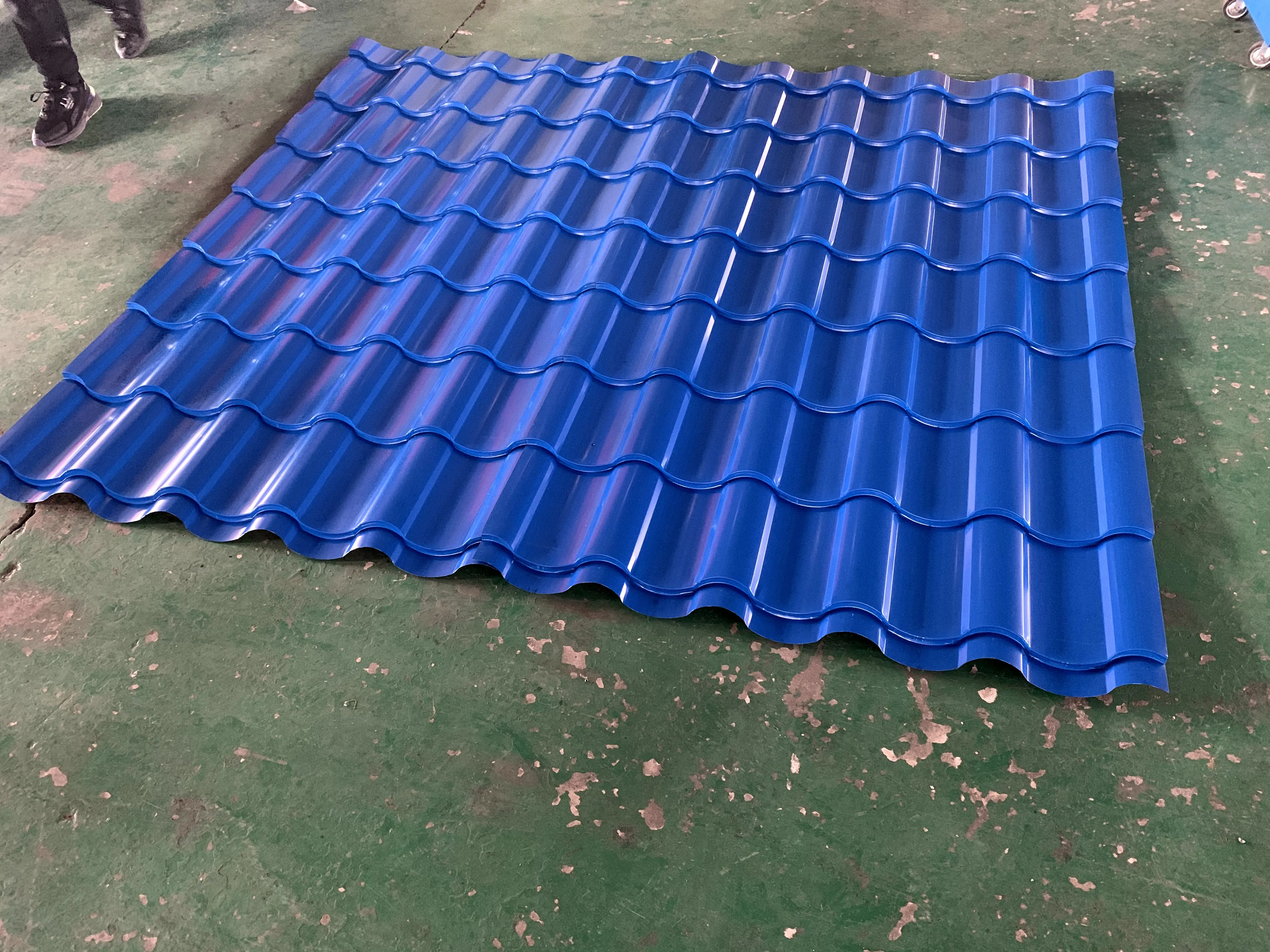

High speed metal glazed tile machine roofing sheet making machine

Hot sale to Peru

Design Idea：
High speed:0-8m/min

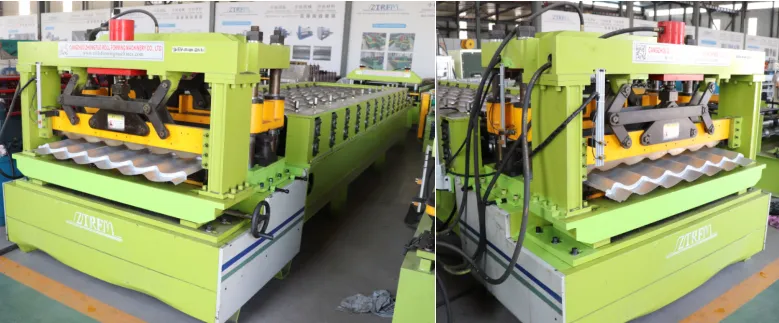

Special Design Cutting Device：As Peru customer’s requirement different with others,for the cutting device we made special design and obtain a patent.

Stable Transmission: gearbox drive.

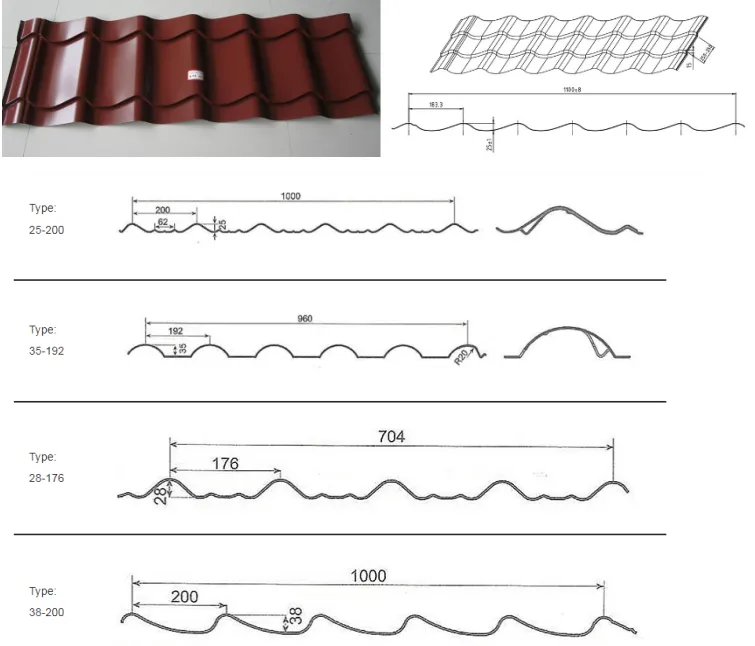

Profile drawing for reference:

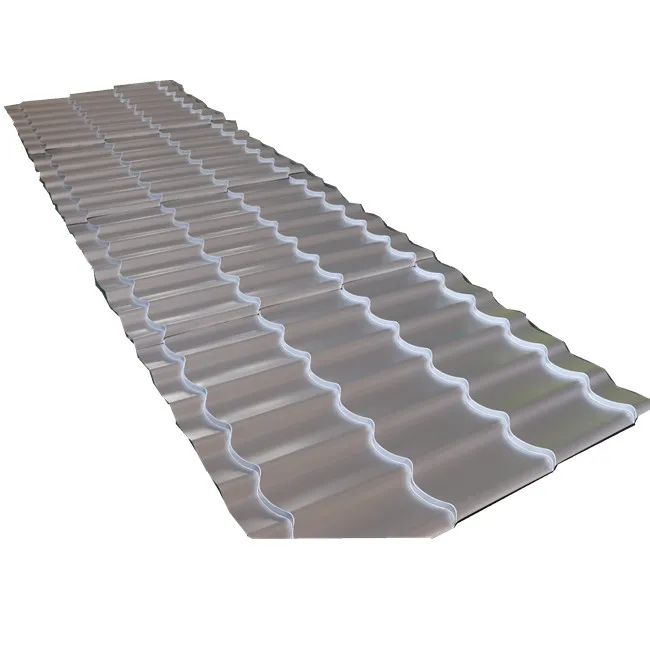

this type glazed tile roof sheet very hot sale in Peru, normally material feeding width1250 mm,and Product effective width 1000 mm.As we sold many glazed tile machines to Peru ,we have rich experience on it to confirm the finished product good and suit for market.

Processing Flow

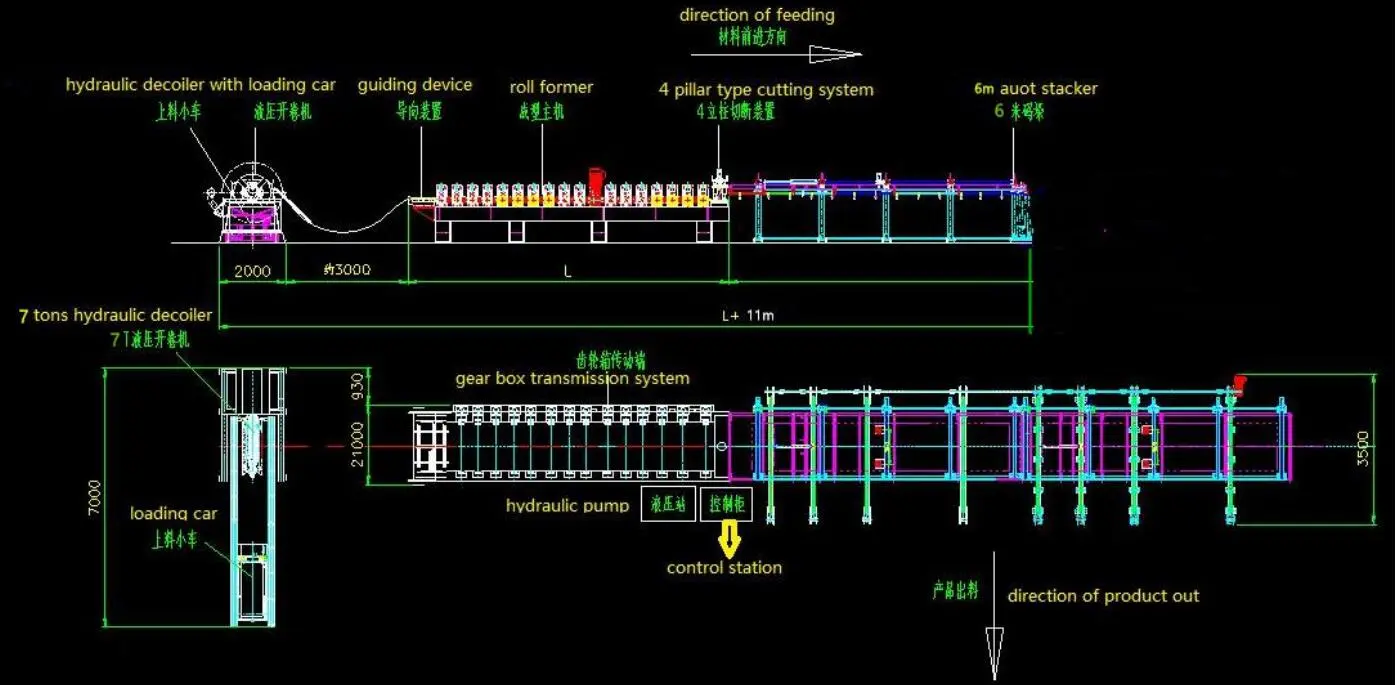

Decoiler-Feeding Material-Roll Forming-Cutting-Receiving The Product

Metal Glazed Roof Tile Roll Forming Machine Hot Sale To Azerbaijan
Raw Material	PPGI
Raw Material	Raw material	Material Thickness: 0.32-0.8 Mm
Machine Frame	350# H Steel Frame Welded
Machine Structure	Vertical Arch Frame Structure
Material Of Rollers	45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.
Forming stations	16 stations
Diameter of shafts	Φ80mm
Material of shafts	45# Steel Tampering Treatment, Prevent Deformed And Improve The Hardness
Forming speed	About 0-8m/min
Voltage	380v 50hz 3phase Or As Request

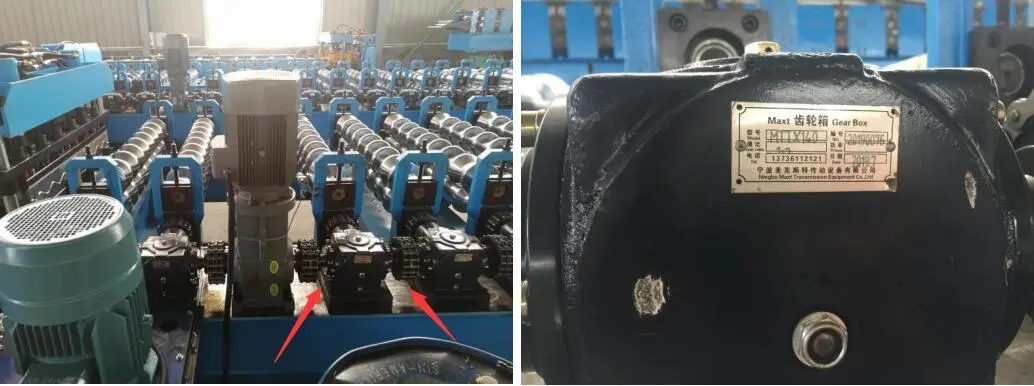

Transmission	Gear Box Transmission(Bevel Gear Inside)
		Material Of Gear: 20 Crmnti
		Material Of Gear Box: Iron Casting
		The connection between gear boxes are chains
		Gear box will connect with the rolling station one for one
		Advantage: can improve the speed directly after cutting
Work power	11 kw ( gear reducer and servo motor driving)
Cutting blade material	Cr12Mov quenched treatment to improve hardness
Cutting type	Hydraulic cutting

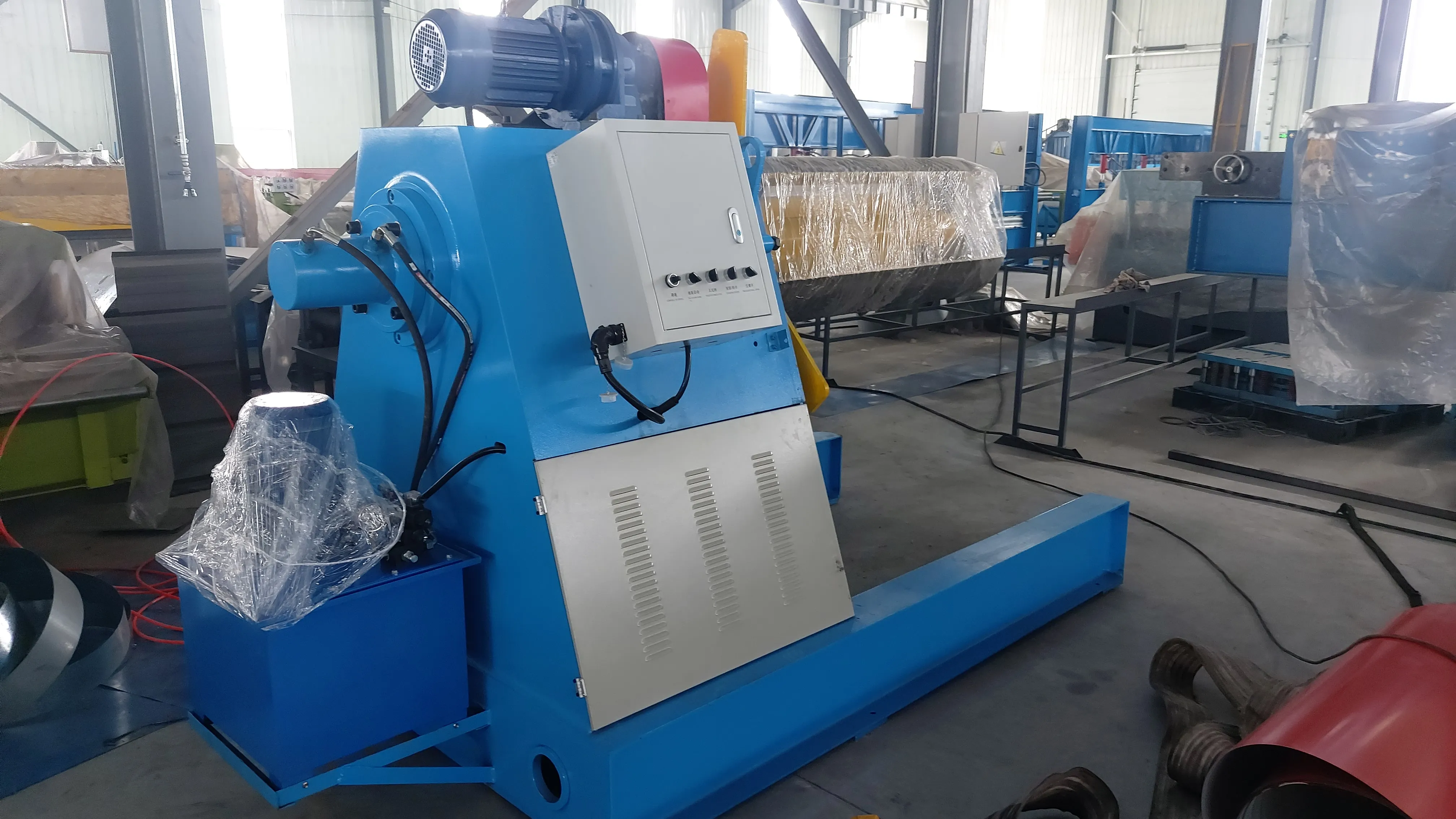

6 Tons Hydraulic Decoiler

Carrying capacity: 6 tons Max coil width: 1250 mm Feeding speed: 0-40 m/min (adjustable) Driving motor power: 3 kw Hydraulic motor power: 5.5 kw Structure: welding by the steel plates and profiled bar. The decoiler is equipped with the brake system

Feeding Device

1. Rubber rollers protect raw material surface 2. With handwheels easy adjust for feeding different thickness raw material. 3.the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet.

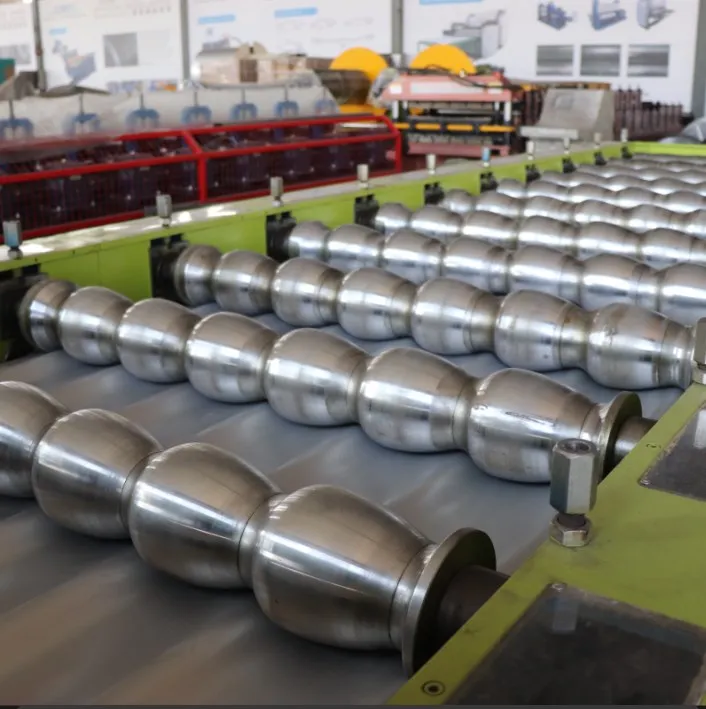

Roll Forming Device

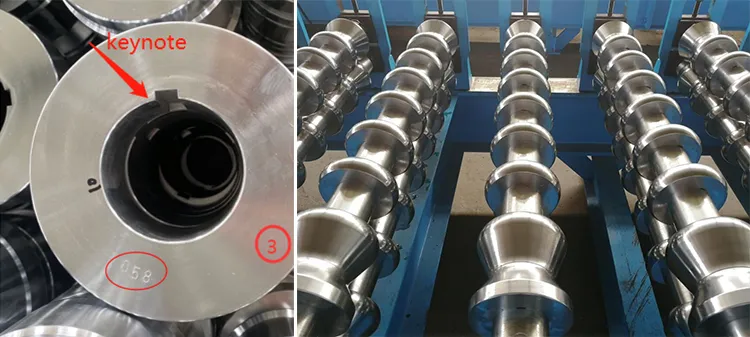

1.45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance. 2. Each roller has number and with keynotes, it can fix on the shaft stablely

Transmission Device

Gearbox transmission,stable and no loose.

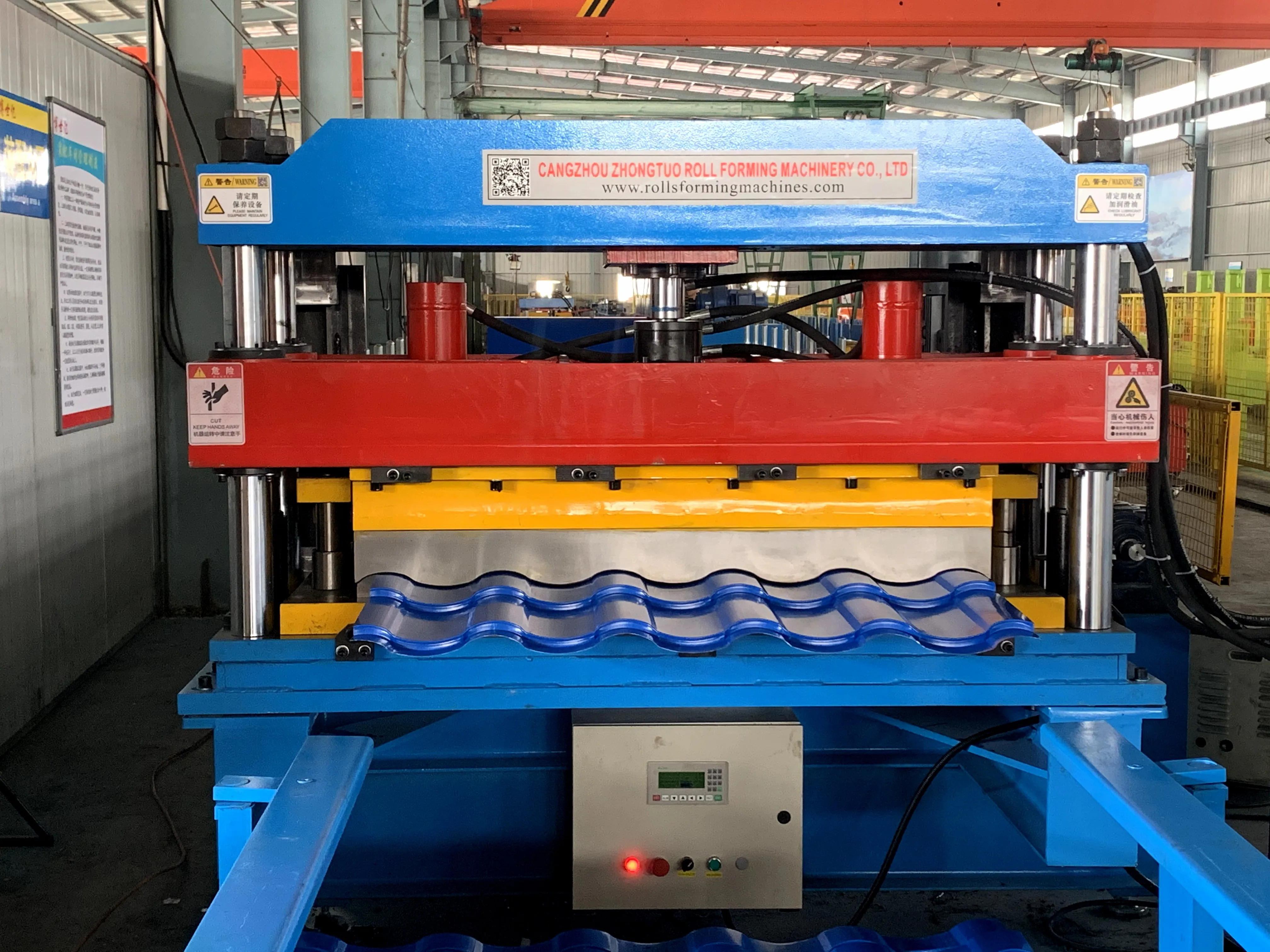

Hydraulic Cutting Device

1.Adopt double oil cylinder more stable than single oil cylinder 2.Hydraulic motor power 5.5 kw with energy accumulator 3.Cutter material ：GB-Cr12 with heat treatment 4.Cutting length tolerance ±10m/2mm 5.Cutting feature ：Steady and safe working condition and low sounds

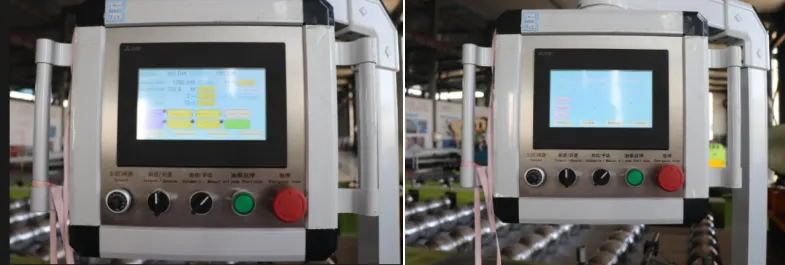

PLC control system

Brand
PLC brand : Delta
Inverter brand: Delta Low electric part: Schneider
Encoder: Omron
Function:
1.Adopted aviation plugs,easy installation. 2.Full automatic easy operation. 3.Operation language:English(provide customized)
4.National coinsurance,spar parts Brand Siemens and Schneider.

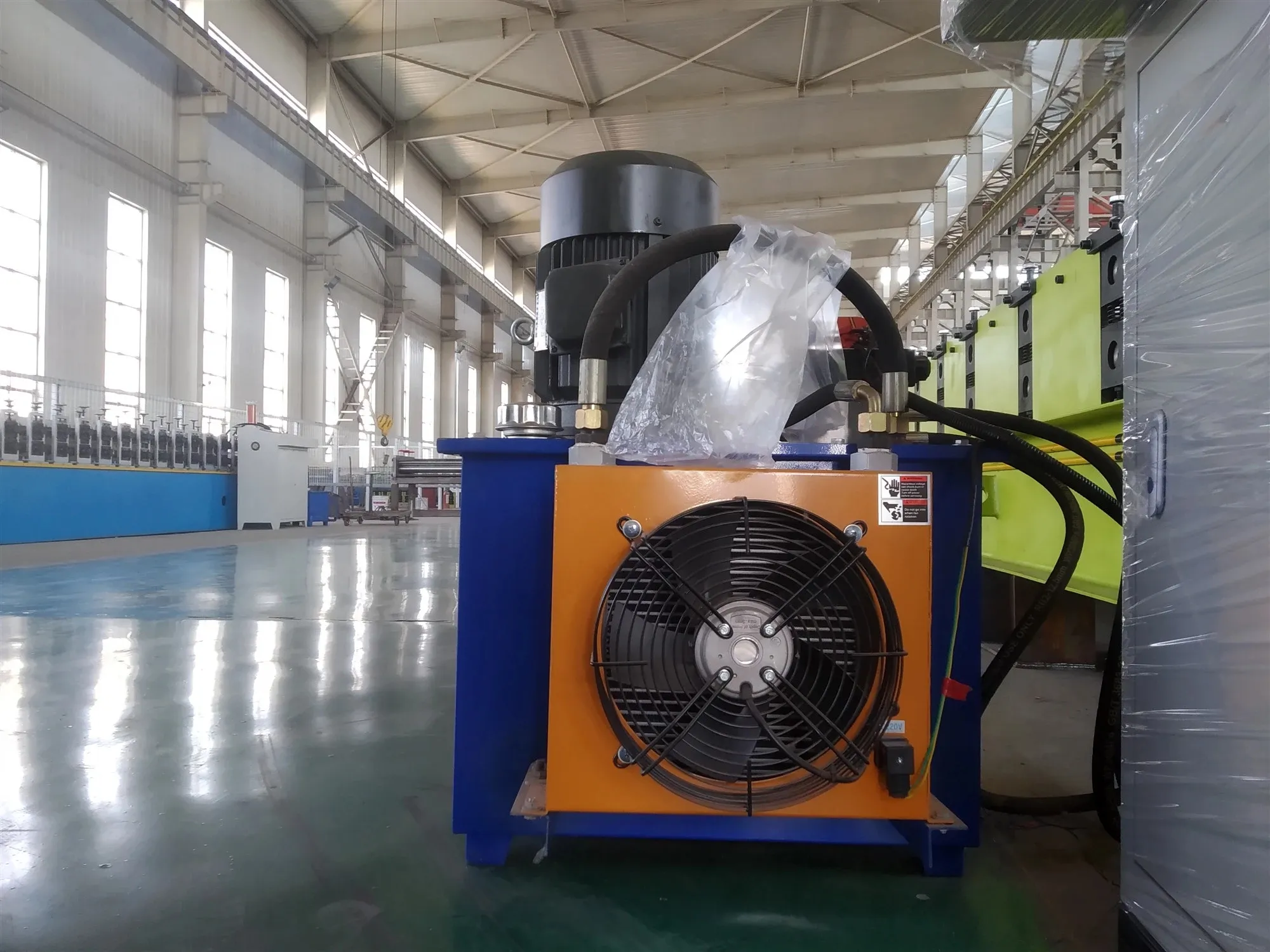

Hydraulic station

4.5kw motor with cooling system for long time using.

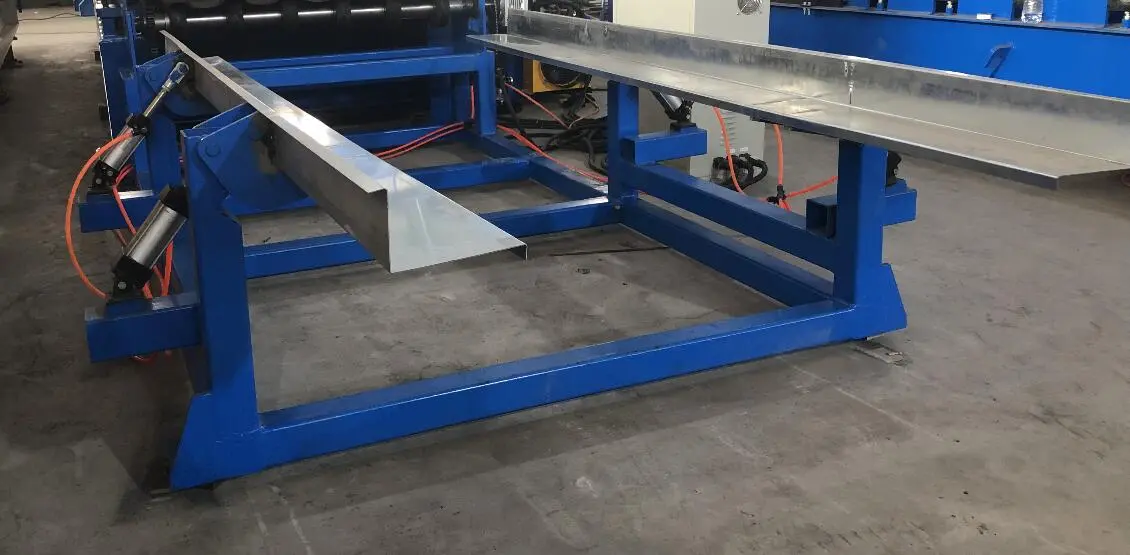

Automatic Stacker

Stacking principle: the top sheet will not damage the sheet below, the profile of the sheet below will match the profile of the top sheet Max. Length of the sheet: 3000 mm Max. Width of the sheet: 1250 mm The thickness of stack: 300 mm Carry arms control: pneumatic (the air pump is provided by the user) Push system: cylinder driving and controlled by control station, function: to align the sheets

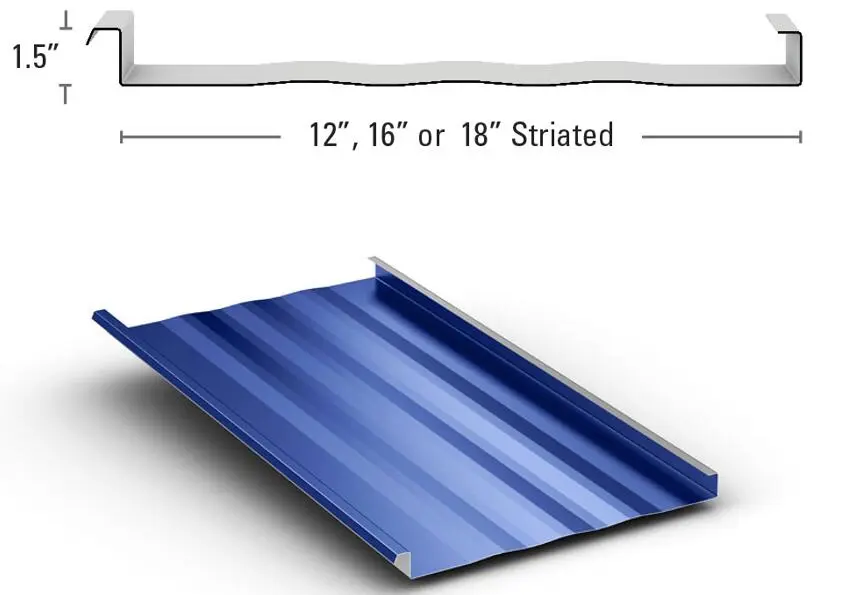

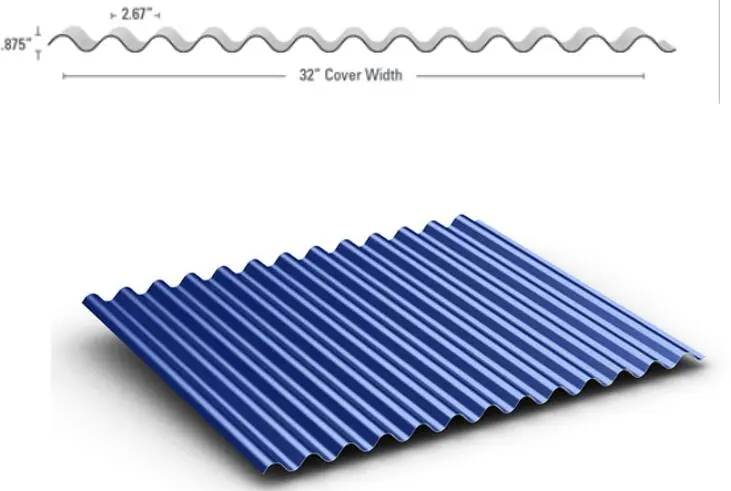

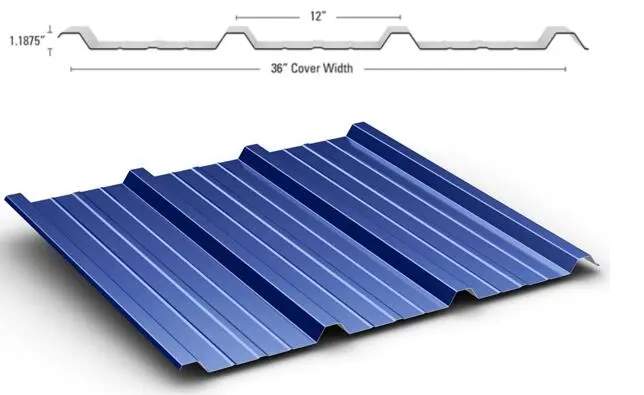

5v roof panel

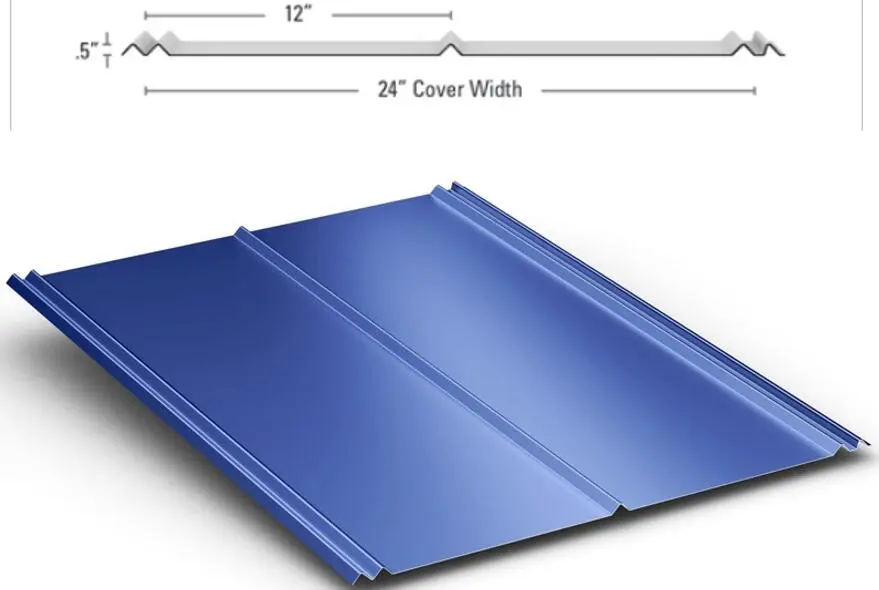

Maxima standing seam panel

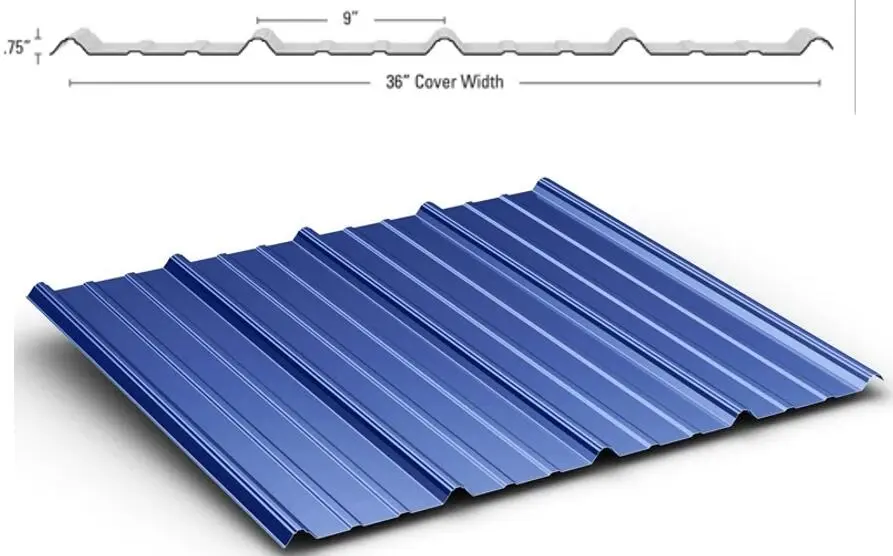

max-rib panel

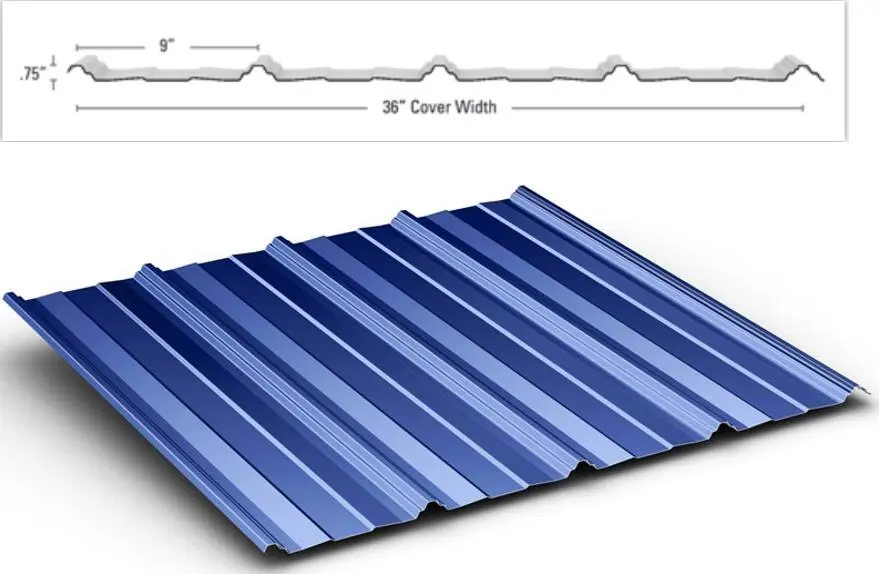

mega-rib panel

Mesa panel

multi-cor M-cor panel

muti-riv panel

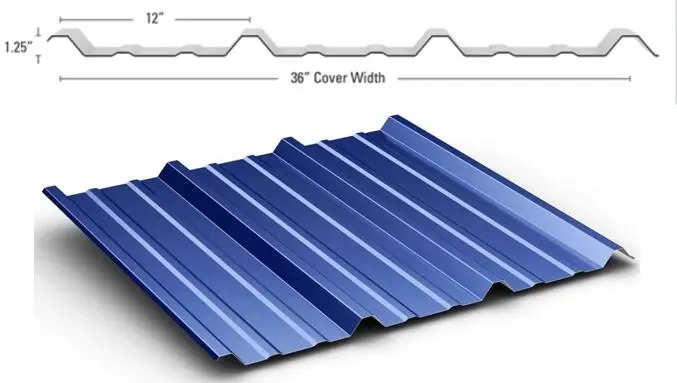

R panel

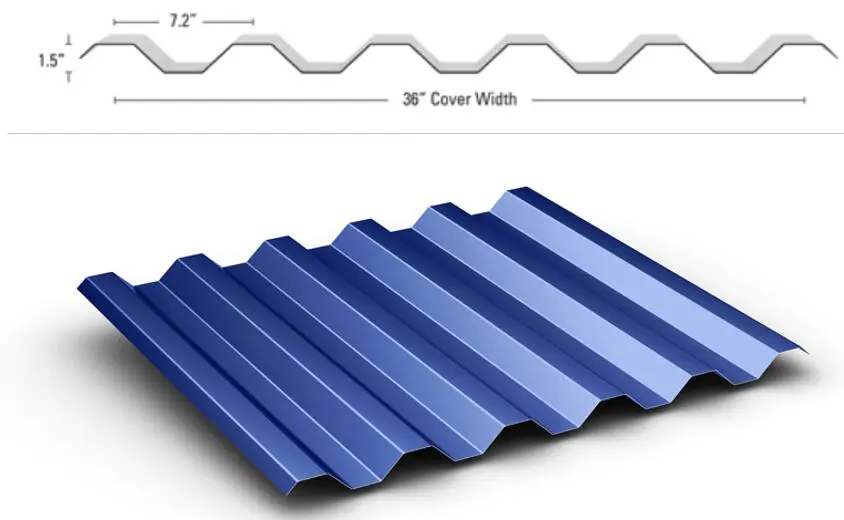

U panel

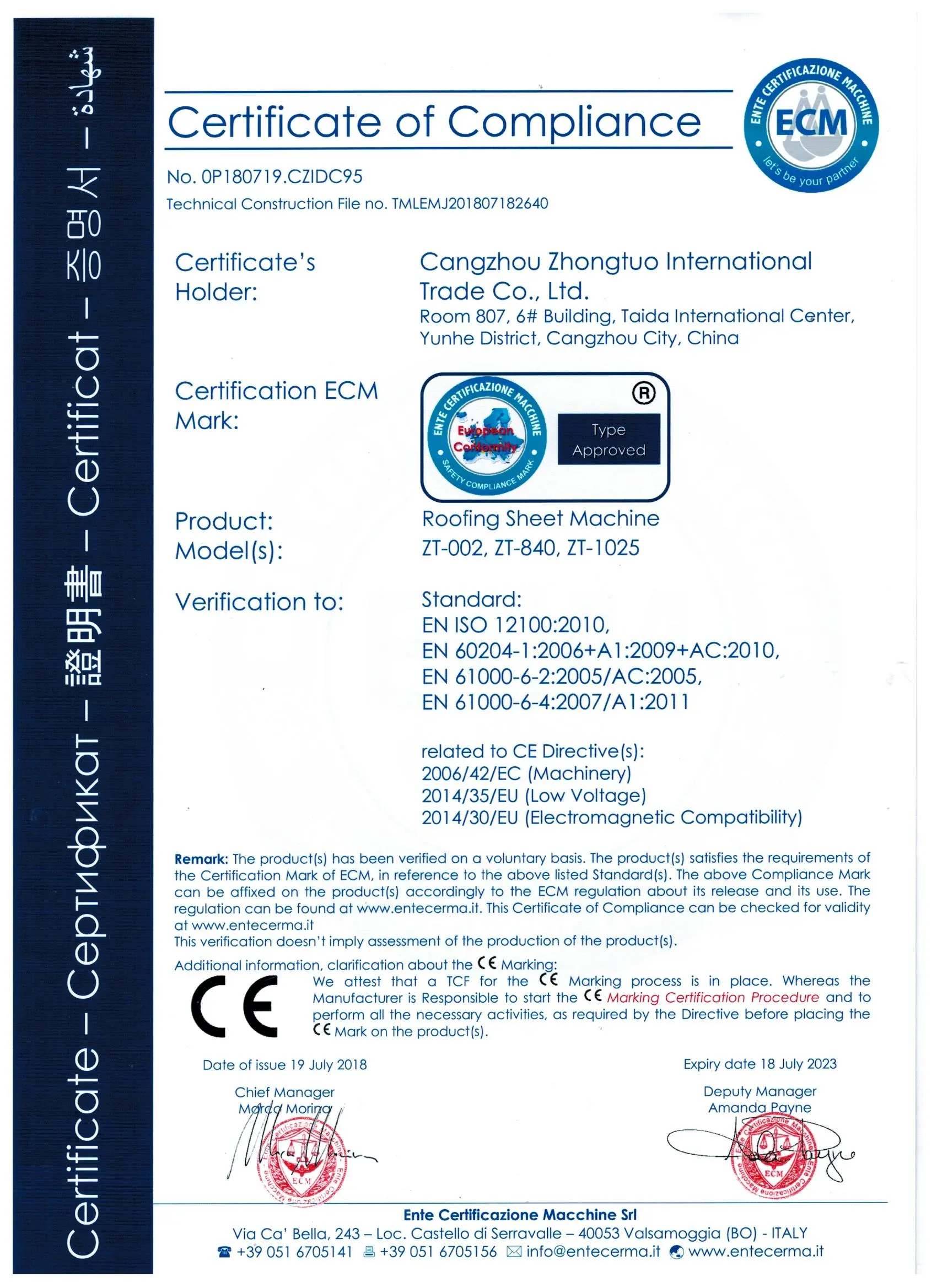

CE(No.OP180719.CZIDC95)

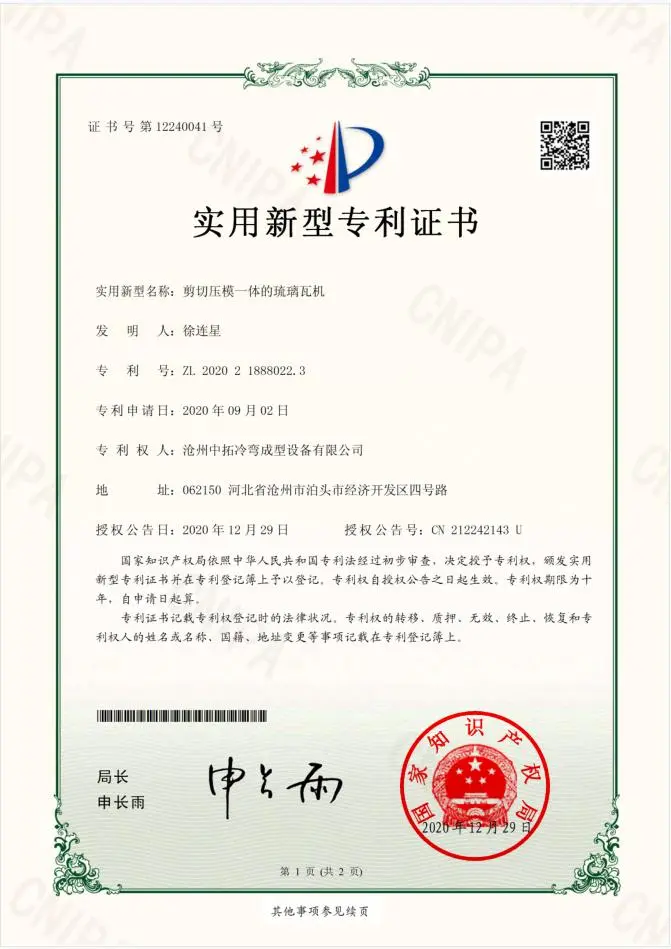

Patent(No:ZL202021888022.3)
