Metal Material Slitting/cutting Machine on Sale ZTAC

Metal Material Slitting/Cutting Producing line

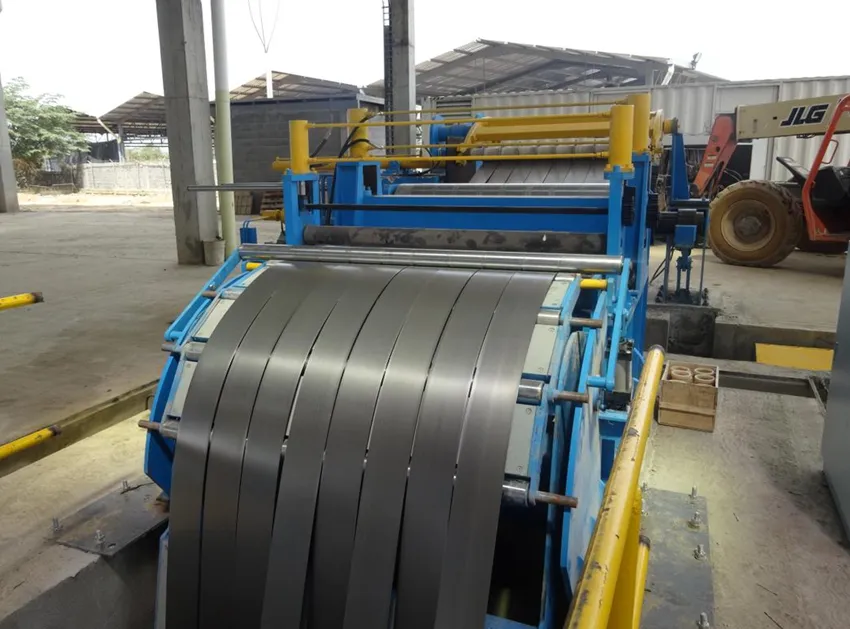

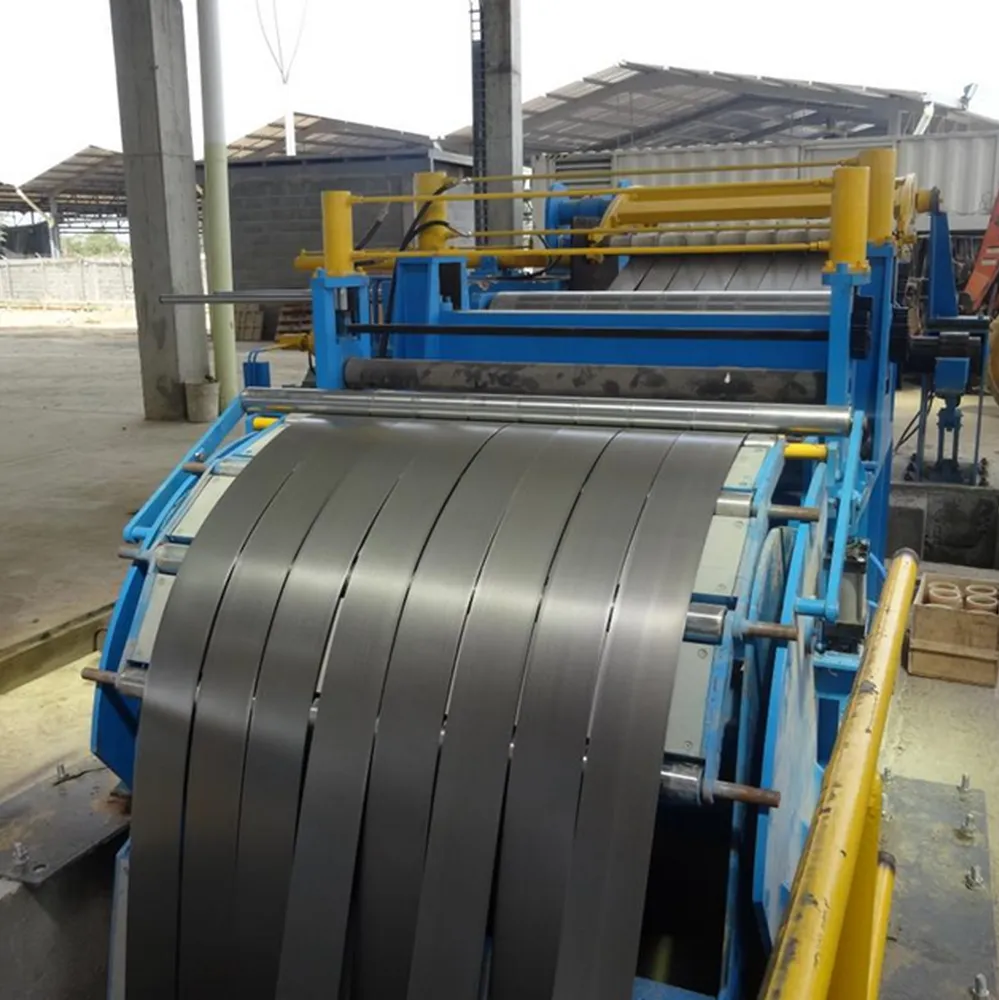

Metal steel slitting machine is a kind of machine of getting narrow coils from main coils.

As width and speed customized(The normal width can up to1600mm, thickness can up to 5 mm and speeds can up to 100 m/min.)

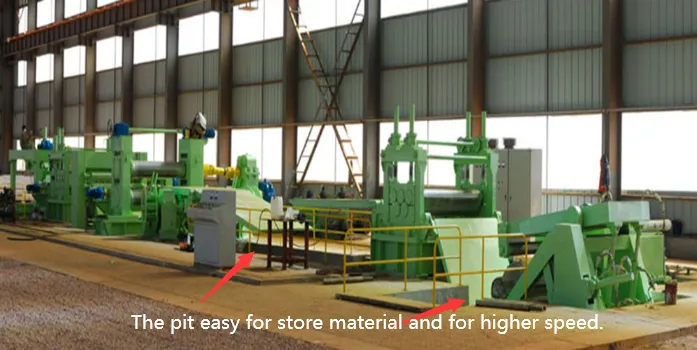

When you need high speed over 40m/min.need the pit.

Working Flow

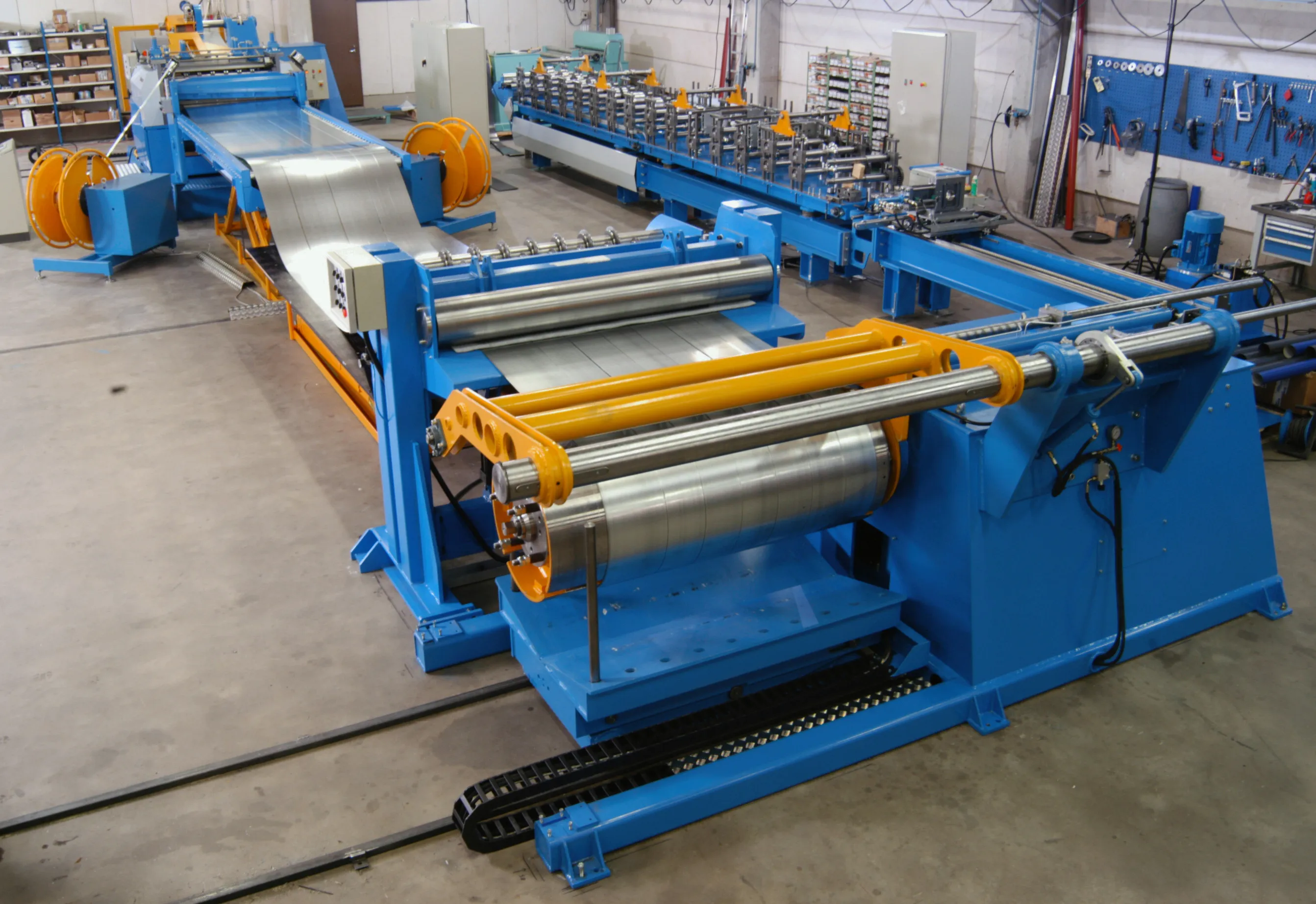

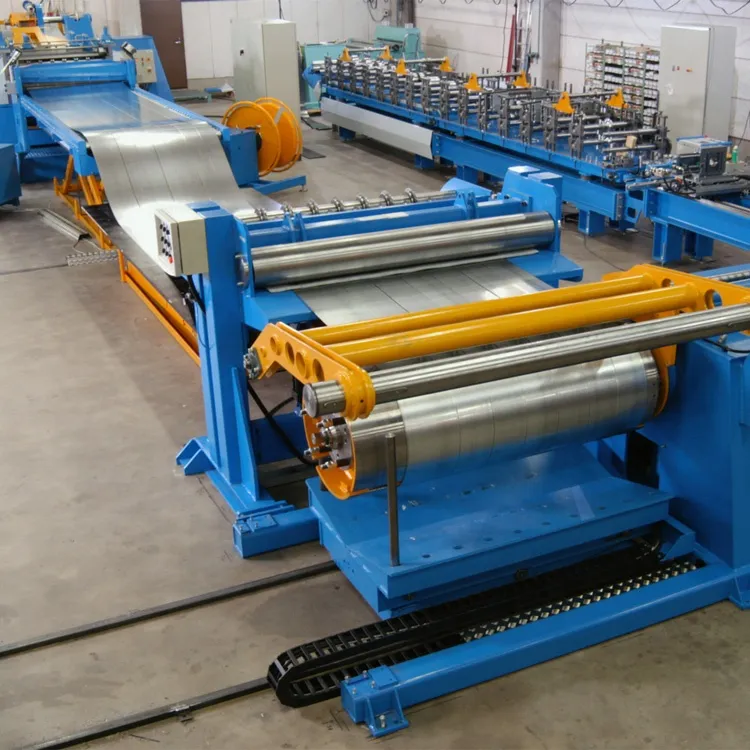

Decoiler-Slitting-Damping-Recoiler

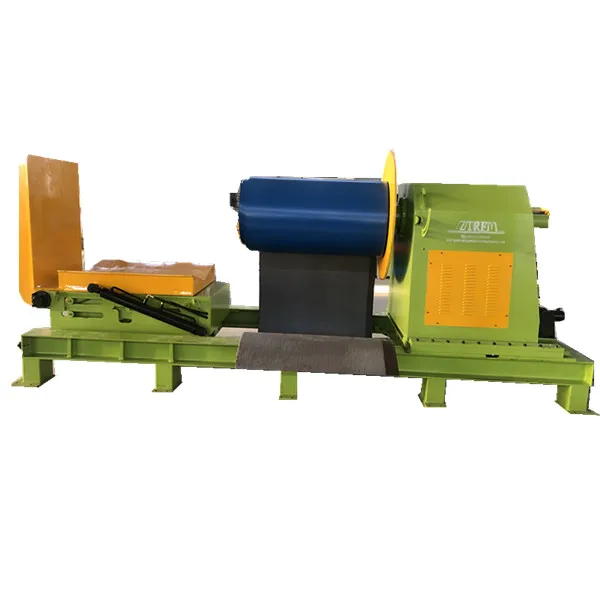

No.1 Decoiler/Recoiler

(Click to buy and for detail parameters)

No.2 Damping

It can make the strips straight and smooth before recoiling.

The cutter and thickness between cutters is customized.

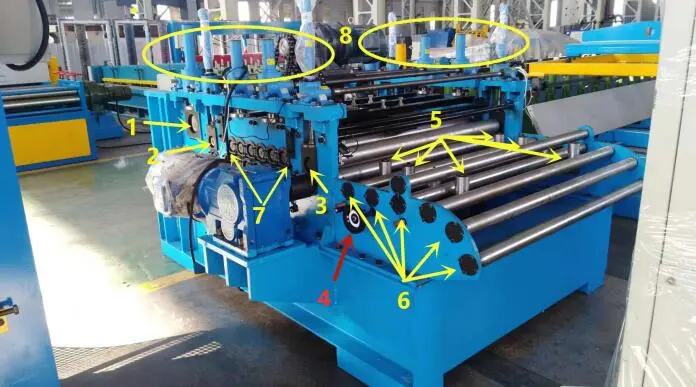

No.3 The Main Slitting Machine

• It is restricted to cutting relatively thin metal materials and then to narrow strips for easy using.
• It can involve both ferrous and nonferrous metals.
• Generally requires a high quality production tool to assure consistent quality in controlling metal width.

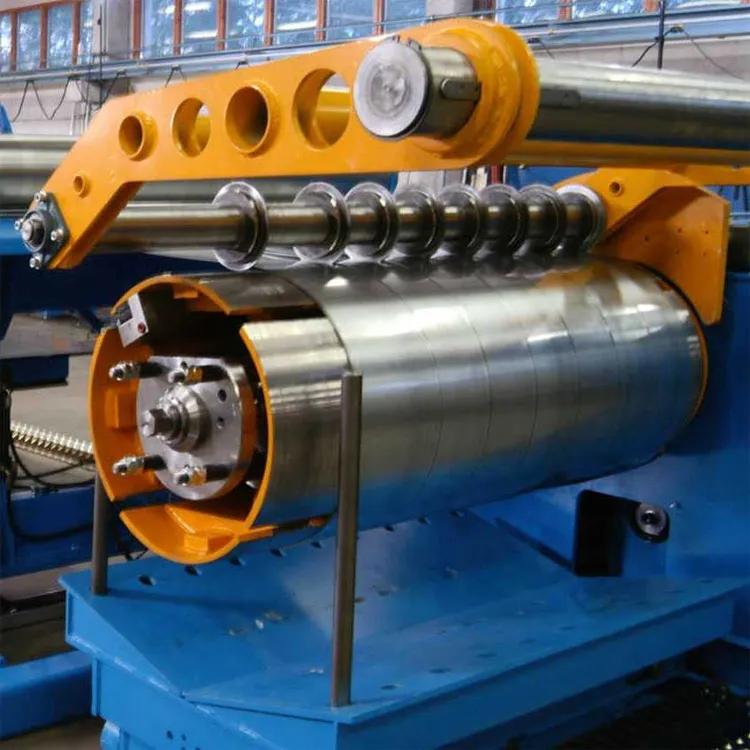

• Slitting blades are designed depending on the job required. By the spacer adjustment, and cutting balde adjustment, you can make small thin coil.

1.Raw Material	1). Material : carbon steel and others 2). The thickness of the material:0.4mm-5mm. 3).Width:10mm,12mm,15mm,20mm,25mm,30mm. 40mm,50mm,60mm 4),Input width:600-1600mm
2.slitting syste	1). The width range :200--1300mm  2). The precious of the width:±1mm  3). The speed of slitting:25m/min  4). The width can be change. 5). Material of the slitting: Cr12MoV. Hardness  of slitting blade:HRC5860.     6).slitting:2~3mm 6 lines.  7).quantity of blades:10 sets . 8).Width of side scrap:3-15mm  9).The precious of side scrap:±0.5mm  10).Quantity of side scrap:2 strips 11).Power of the slitting:37KW,1000r/min,with ZQ750 Reducer.
3. Control System	1). Screen:3.2inch button screen  2). PLC:Delta
