Metal Interior Cladding Wall Great Wall Panels Aluminum Decorative Fluted Steel Sheet Roll Forming Machine ZTRFM Cladding Wall Great Wall Panels Machine+11kw+15 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Interior Cladding Wall Great Wall Panels Aluminum Decorative Fluted Steel Sheet Roll Forming Machine ZTRFM Cladding Wall Great Wall Panels Machine+11kw+15 m/min

Name: Metal Interior Cladding Wall Great Wall Panels Aluminum Decorative Fluted Steel Sheet Roll Forming Machine ZTRFM Cladding Wall Great Wall Panels Machine+11kw+15 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT70161315

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM Cladding Wall Great Wall Panels Machine

Power(W):

11kw

Production Capacity:

15 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Type
  Roll Forming Machine
- Tile Type
  Steel
- Use
  ROOF
- Voltage
  380 V
- Rolling Thinckness
  0.3-0.6mm
- Feeding Width
  400mm

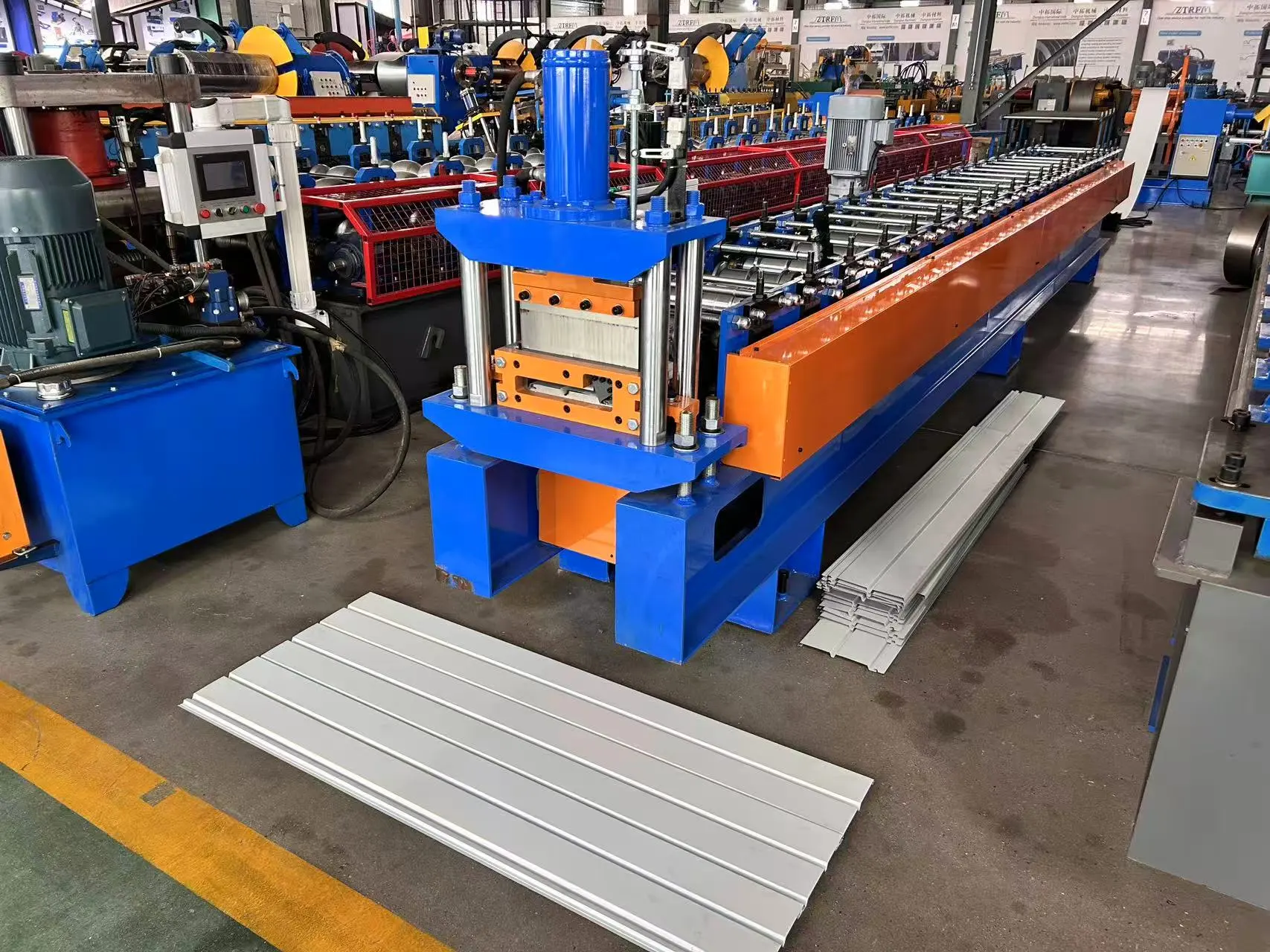

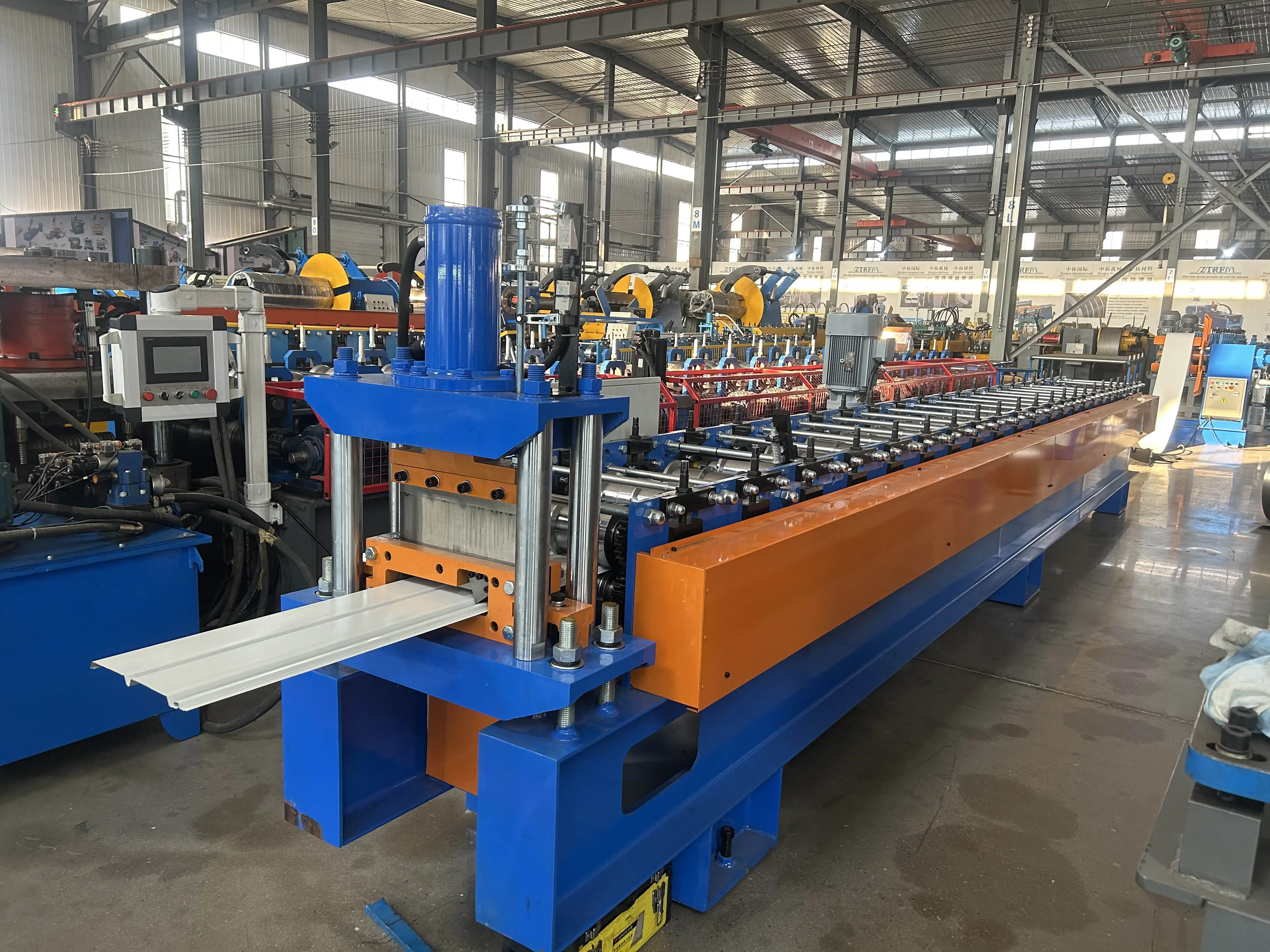

ZTRFM Metal Wall Cladding Machine
Advantages of our machines:
Metal Wall Cladding Machine Soffit panel Metal Siding Machine is fully auotmatic production line, machine using Cr12 materials rollers, prevent the formed plates from having waves, avoid plate deformation, burrs during cutting, and surface paint scratches, The machine can adjust the length of the finished product, production speed, and production quantity through the PLC control system, enabling one employee to operate and use the entire production line.
Cladding panels are used to cover the underside of roof overhangs, eaves, and balconies for protection, ventilation, and aesthetics, shielding the structure from pests, moisture, and weather while hiding wires/pipes and improving airflow for attic health. They provide a finished look, come in materials such as PVC, aluminum, or fiber cement, and often feature vents to regulate attic temperature and humidity, thereby preventing mold and ice dams.

Producing process:
Uncoiler-roll forming-automatic punching and cut-off after forming-finished products

Hydraulic decoiler

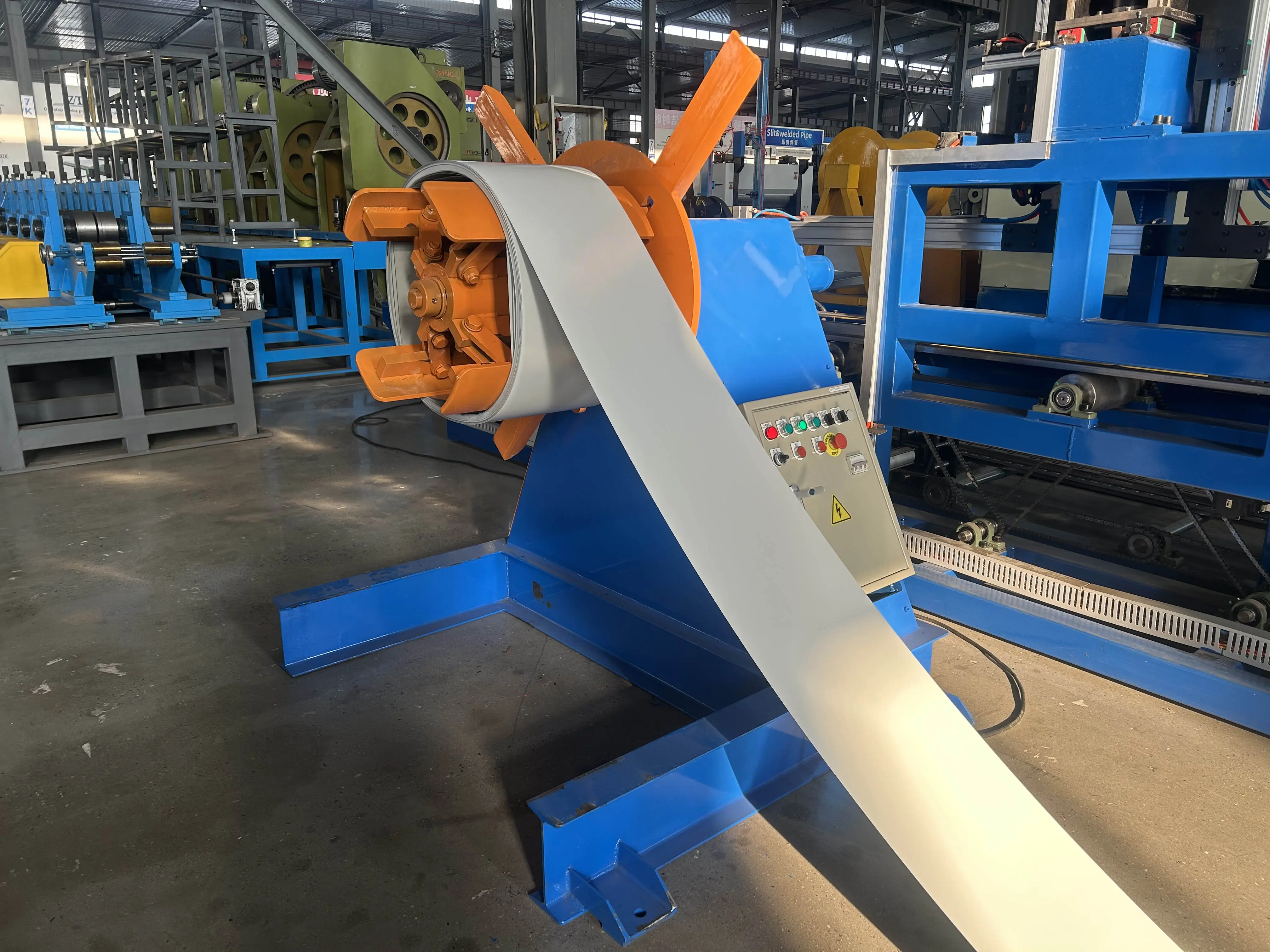

Fully automatic Electric Decoiler

1. Our decoiler have an emergency stop button can prevent open coils power to damage workers!
2. Through electric motor provide power to open coils. Save labors
3. Opening coils can reach 35m/min

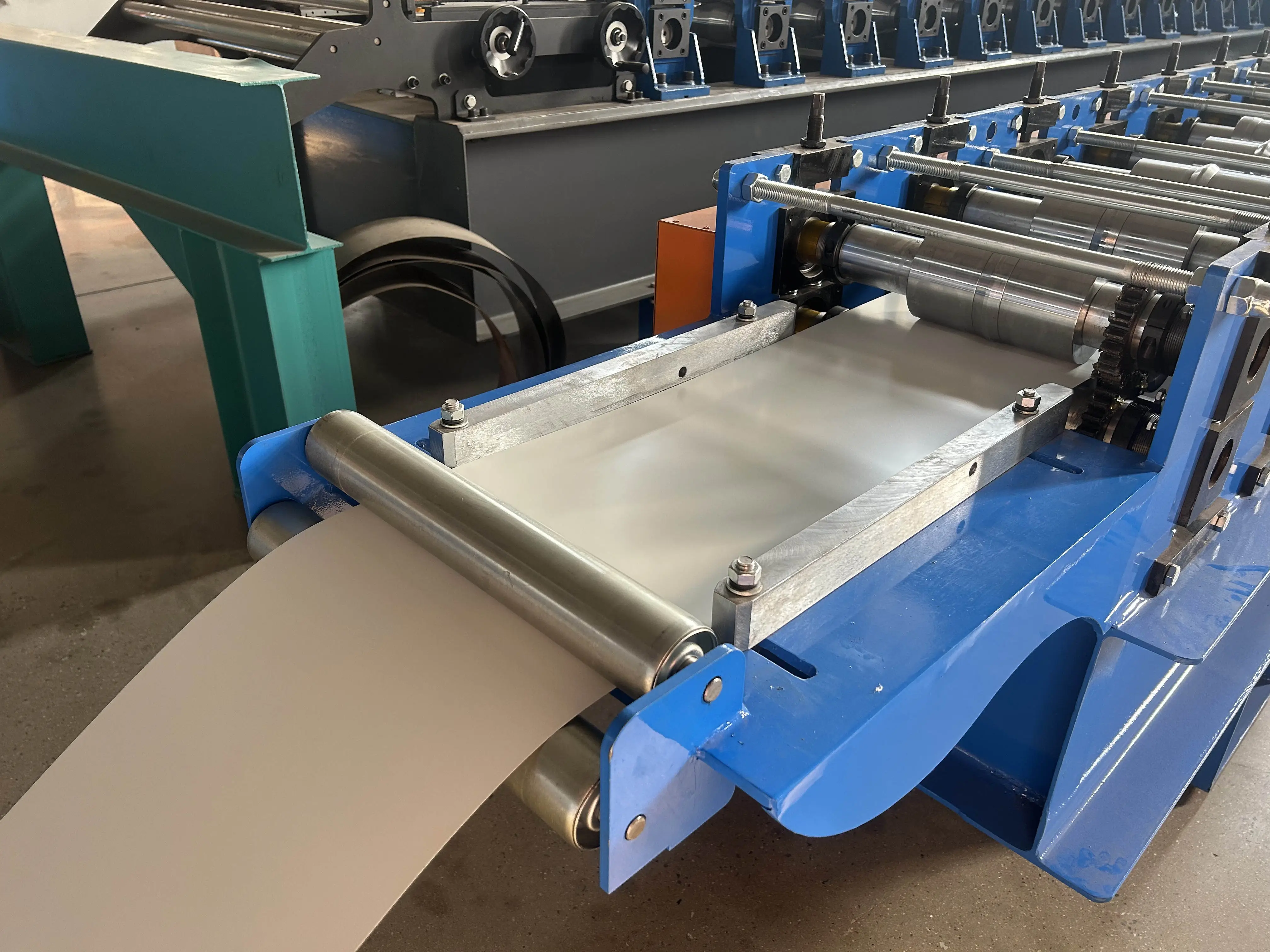

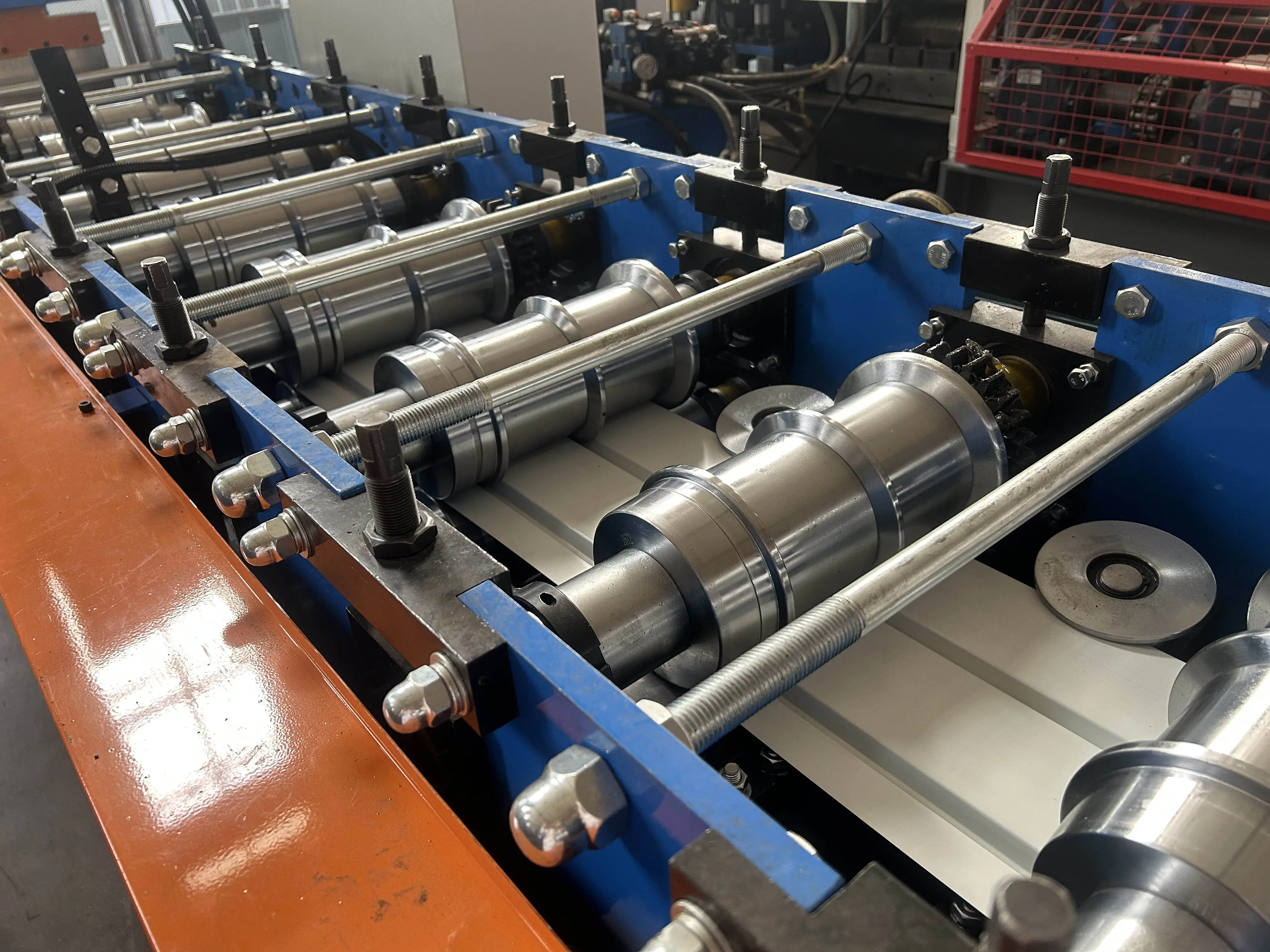

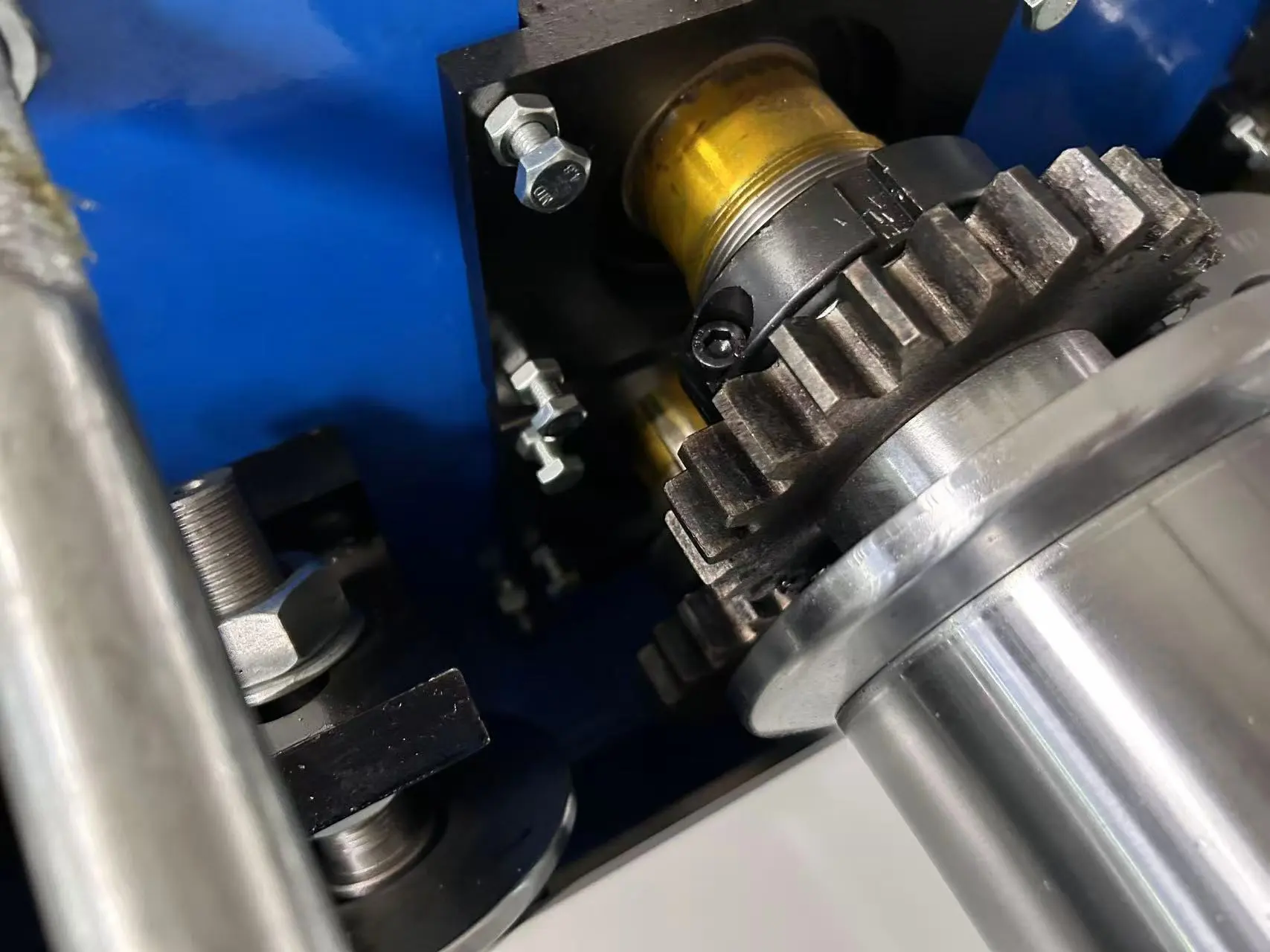

Roll Forming Section
Main forming machine

1.Rollers: Cr122. Shaft: Φ75mm solid
High grade 45#,with heat treatment
3. Roller station: corrugated 18 rows
4. Forming speed: 25m/min

Add additional trimming wheel

Ensuring that the small edges of the board are formed flat and the angles are precise can make the board lapping more convenient and the board more aesthetically pleasing

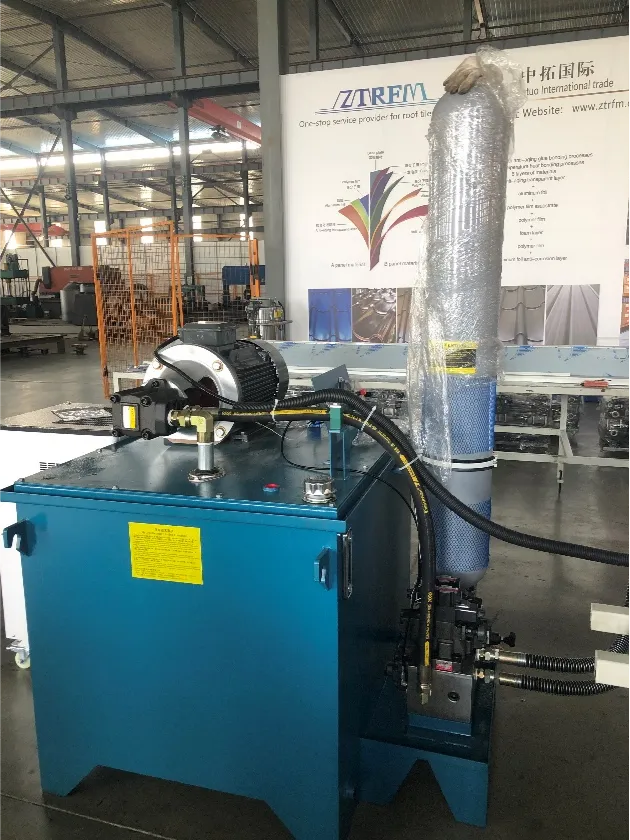

Hydraulic Power Pack

Hydraulic station

1. Hydraulic station motor:5.5KW
2. Hydraulic oil:46# hydraulic oil
3. Main components: Include a set of hydraulic tanks, a set of hydraulic oil pumps, and two hydraulic pipes. And one of the electromagnetism
valves

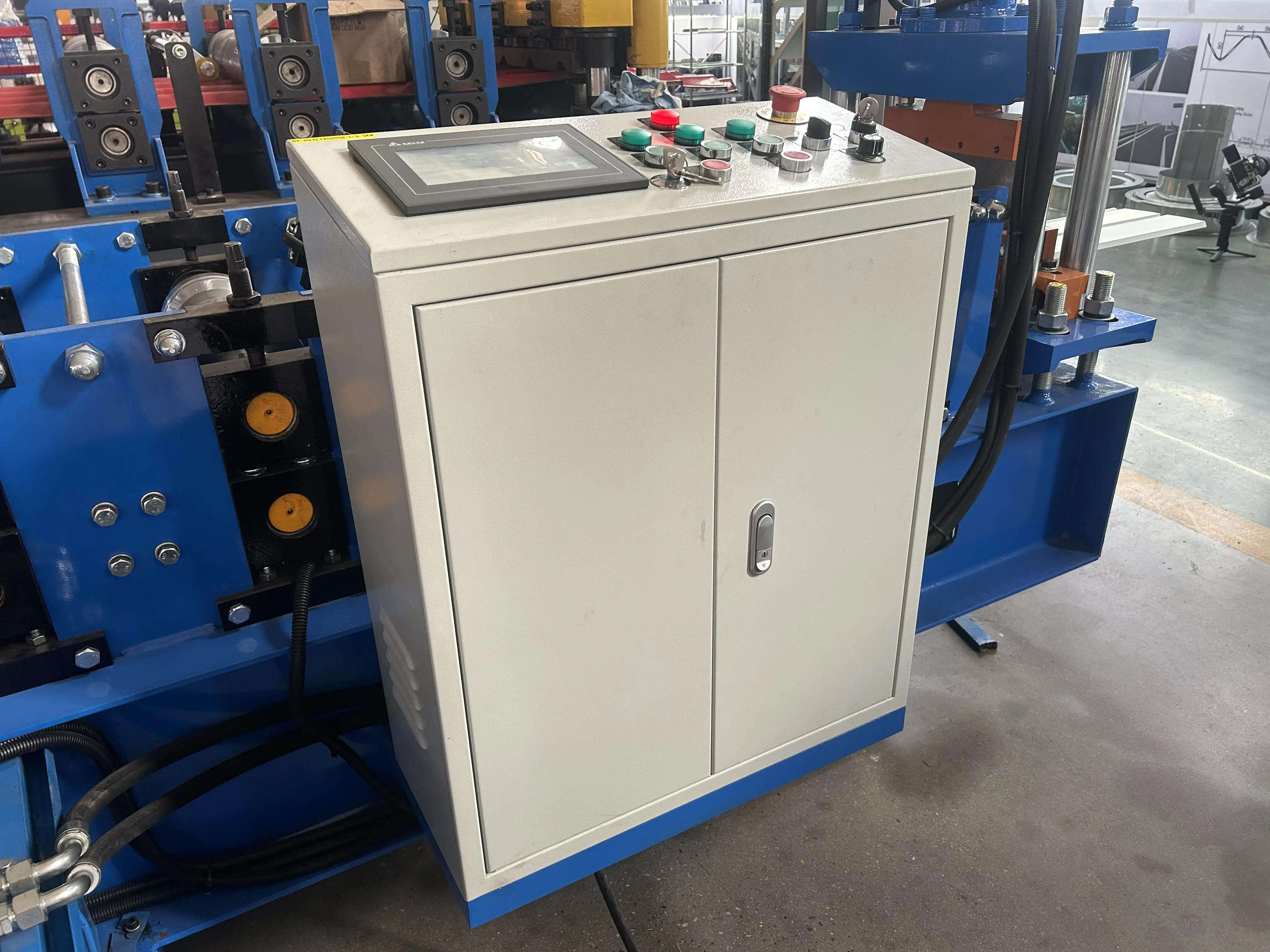

PLC control cabinet

1.Adopt Siemens electronic control, can support remote control2.Adopt touch screen for easy operation
3.Adopt aviation plugs for easy installation
4.We fix the electrical control cabinet beside the machine by welding the base support on the machine
