Color Coated Steel System > Production Equipment > Glazed Tile Roll Forming Machine

Metal Glazed Tile Roofing Sheet Making Machine Full Automatic Easy Installation 3D Effect Roof Sheet Roll Forming Machine 15 m/min+ZT004+11KW

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Glazed Tile Roofing Sheet Making Machine Full Automatic Easy Installation 3D Effect Roof Sheet Roll Forming Machine 15 m/min+ZT004+11KW

Name: Metal Glazed Tile Roofing Sheet Making Machine Full Automatic Easy Installation 3D Effect Roof Sheet Roll Forming Machine 15 m/min+ZT004+11KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT81072801

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15 m/min

Model Number:

ZT004

Power(W):

11KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
roofing tile
Use
ROOF
Voltage
customize
Rolling Thinckness
0.2-0.8 mm
Feeding Width
customized

Product Description

Metal Glazed Tile Roofing Sheet Making Machine Full Automatic Easy Installation 3D Effect Roof Sheet Roll Forming Machine

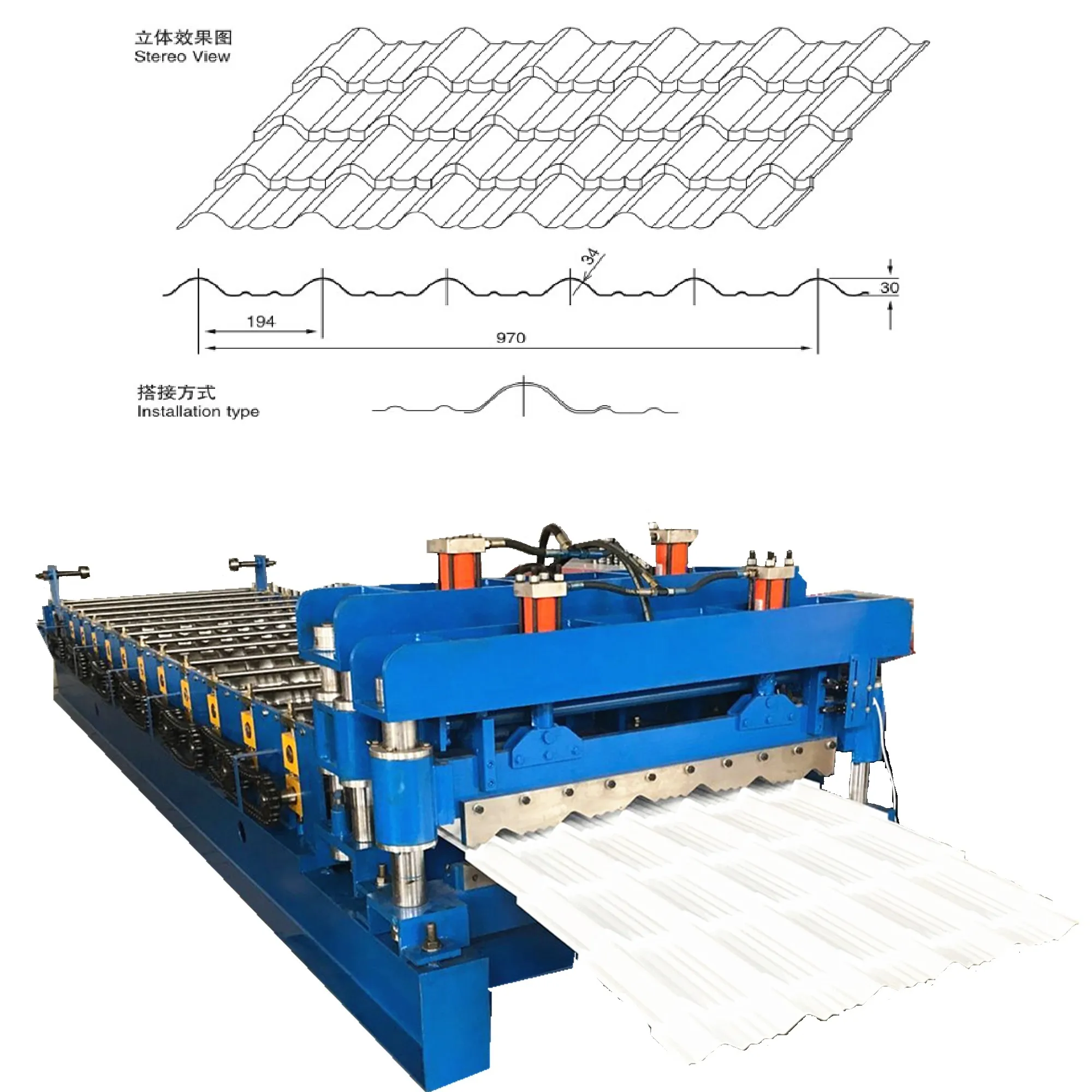

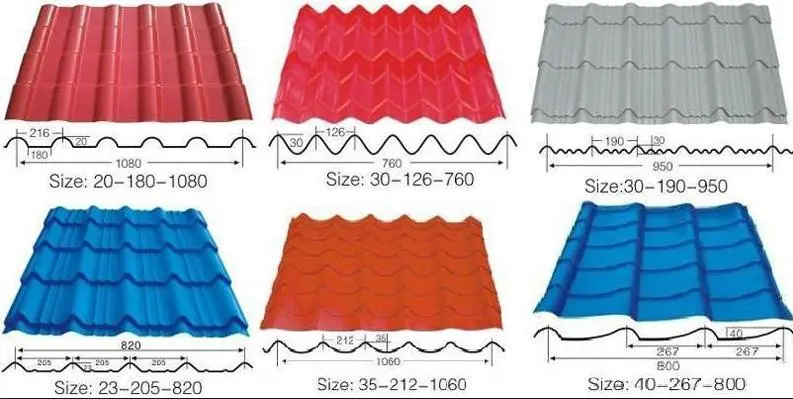

Glazed roofing sheet making machine with 3D effect it can help you control perfect 3D effict of the roofing. Compared with the normal roofing sheet machine, the glazed roofing tile making machine with one more steppnism. Take the following drawing profile for example:

Here one hot sale glazed roof sheet profile roll forming machine for your reference.

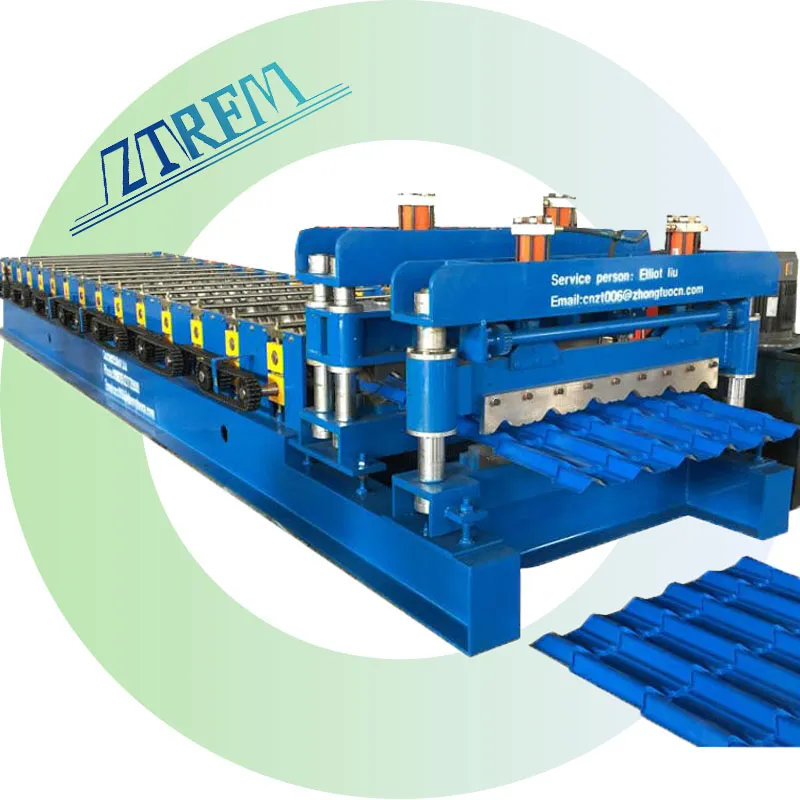

Metal glazed tile roofing sheet making machine full automatic easy installation 3D effect roof sheet roll forming machine
1.Formed Material	PPGI,GI,AI,ZTRFM composite material		Thickness:0.18-0.8mm Width:1000mm/1250mm(customized)
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		16 rows(As your requirement of profile)

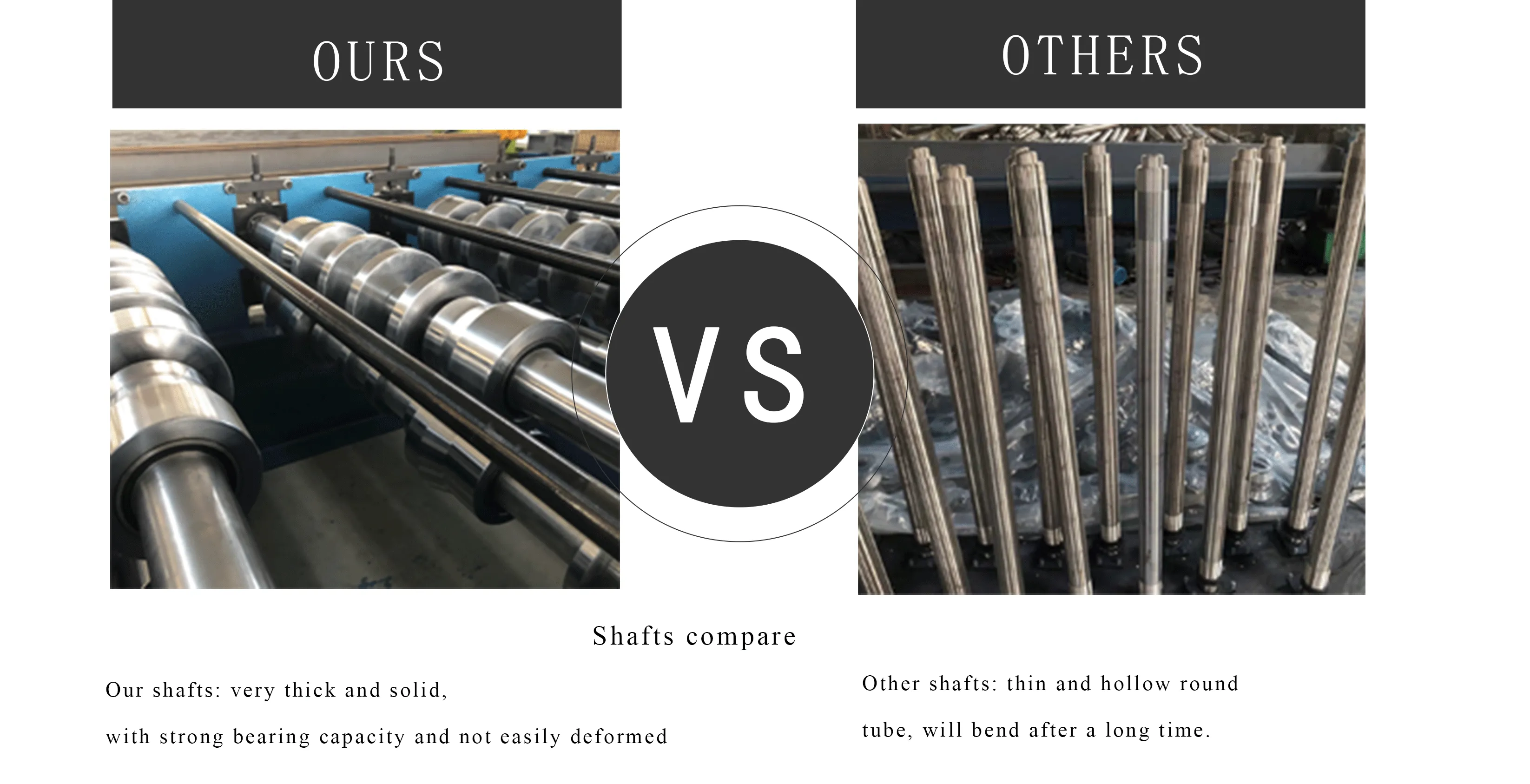

		Diameter of shaft		80mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		400 H steel
		Drive		Gear and chain transmission
		Dimension(LWH)		1500018001600(customize)
		Weight		8T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW* sets,Siemens brand
		Hydraulic system power		7.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	15-20m/min		The speed is adjustable

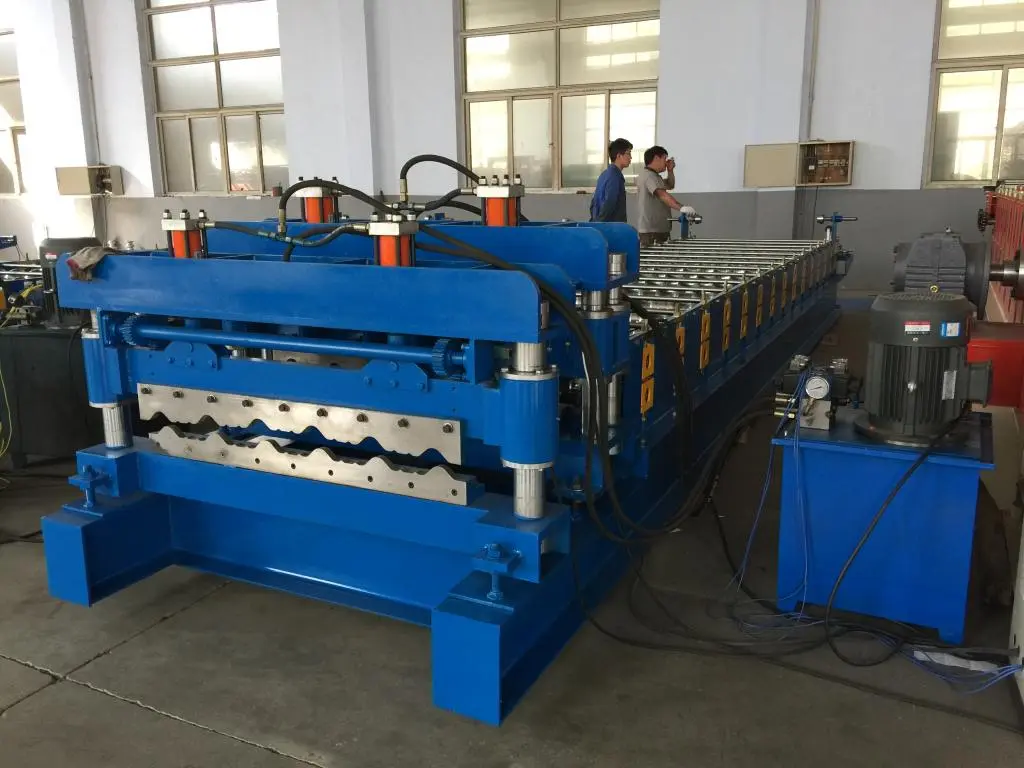

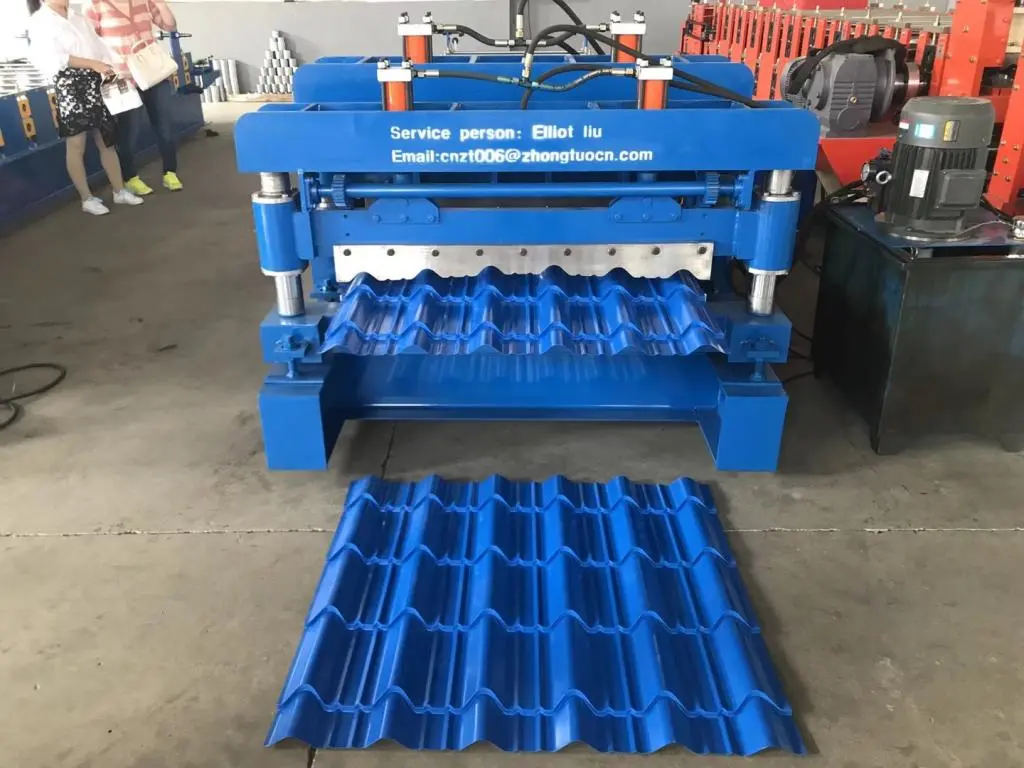

Products Display

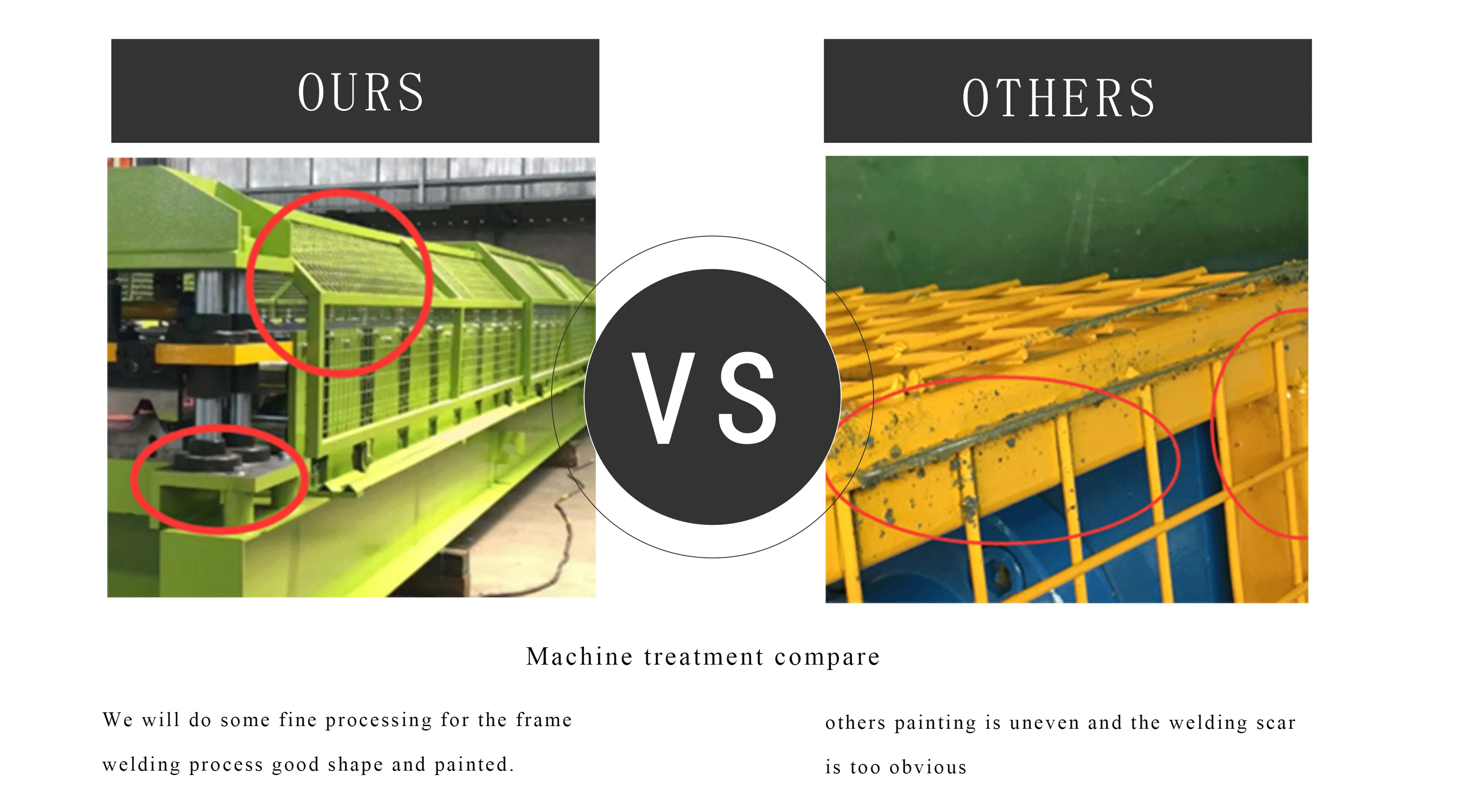

What makes Zhongtuo glazed tile making machine is different with other?

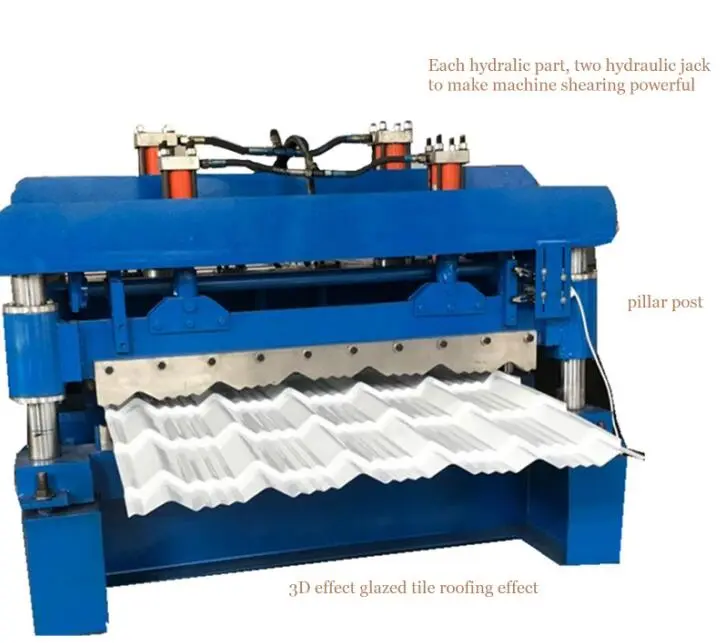

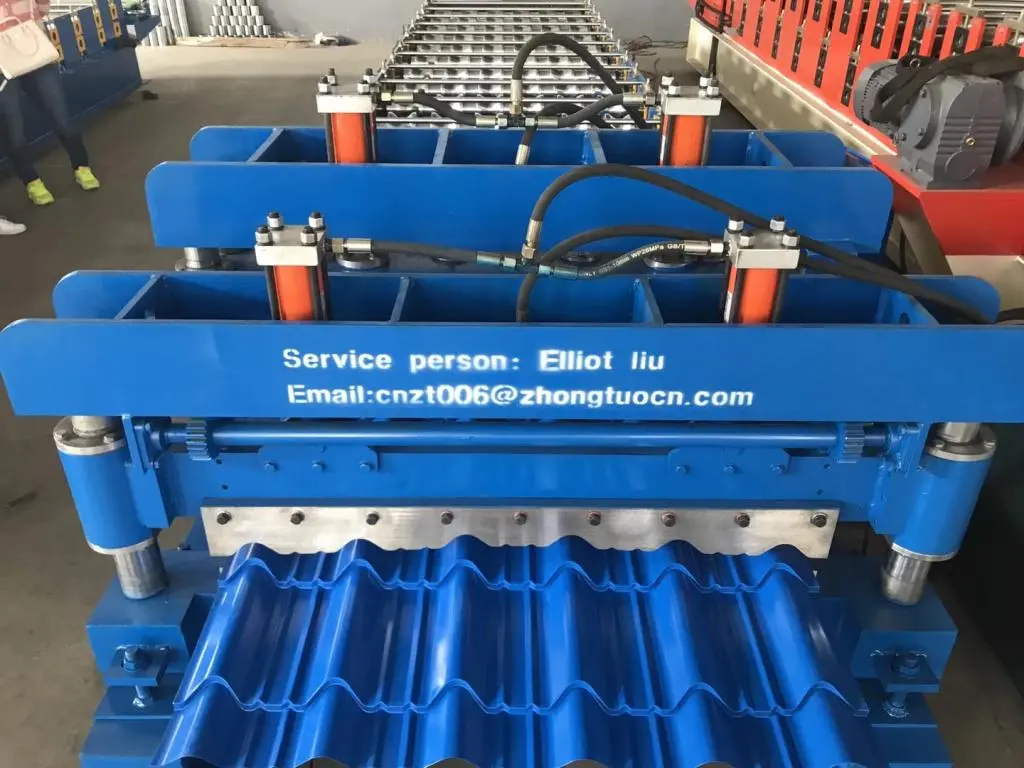

1. Each hydraulic part, we will use two hydraulic jack to make sure the shearing more poweful.
2. We use the pillar post as the shearing pole, it can add oil more easily.

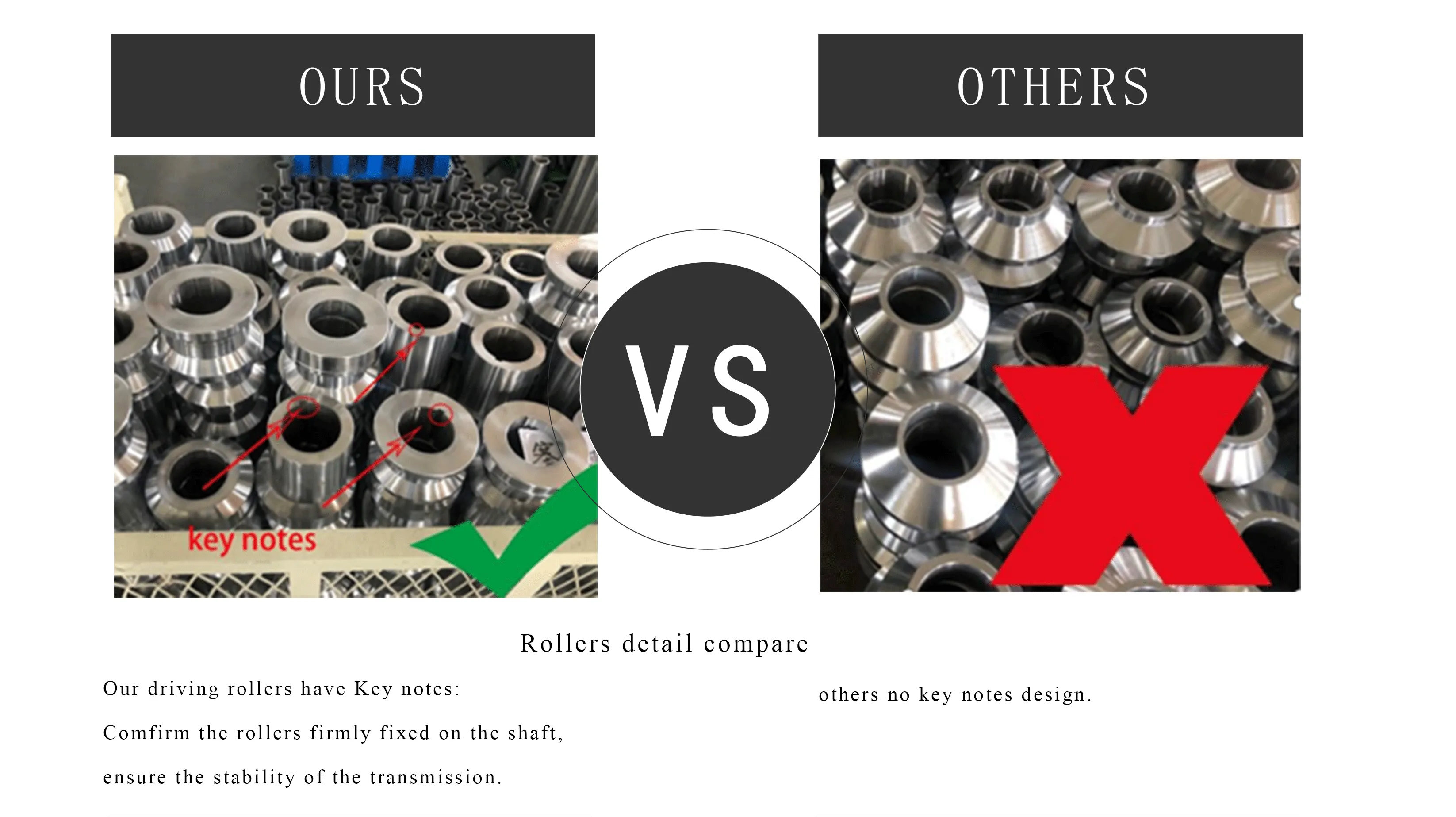

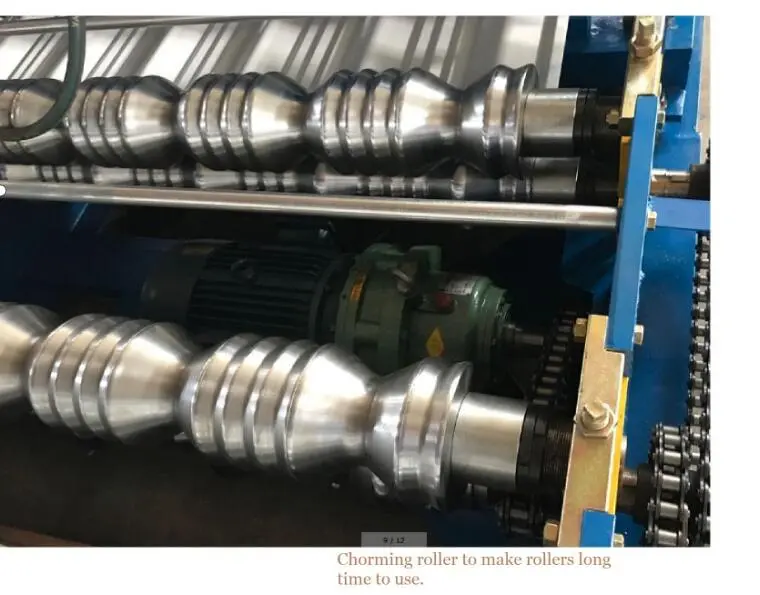

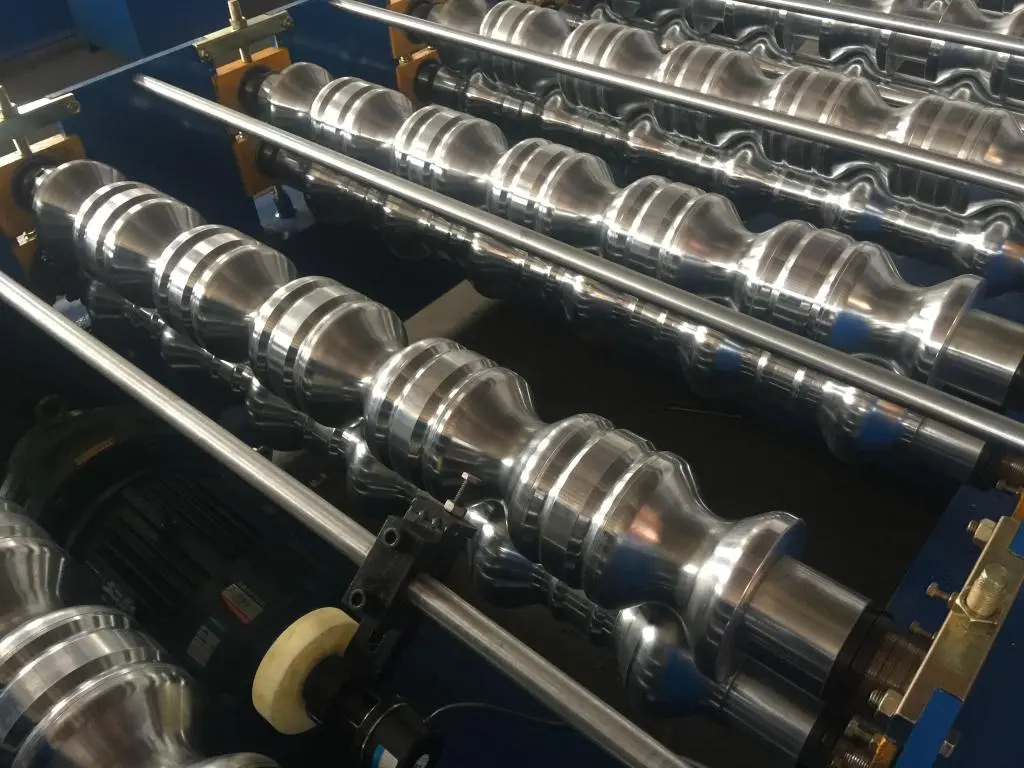

3. All the rollers we use the hard chroming, to make sure not damage the surface of the coil.

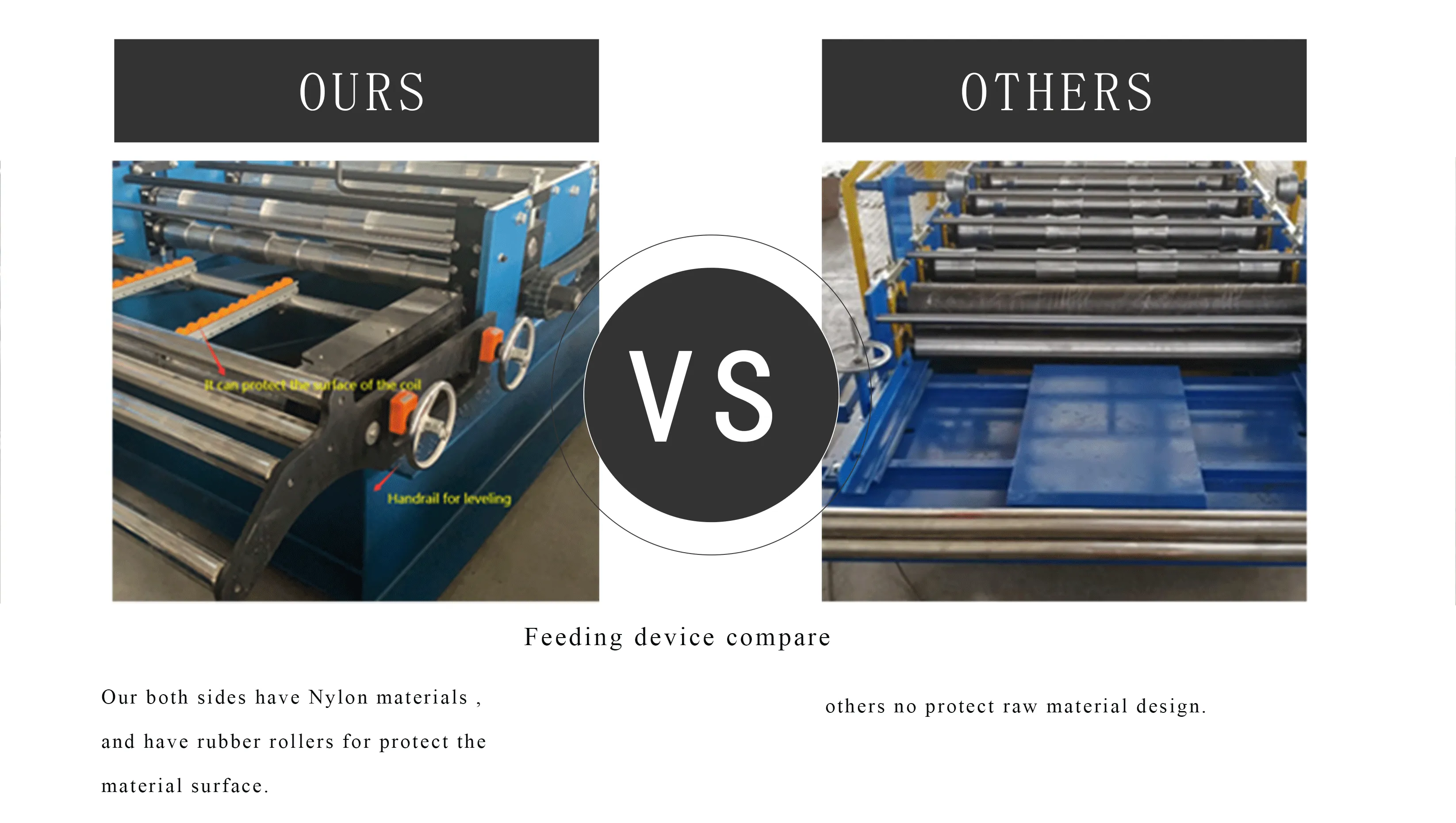

4. At the leveling part, we will add the filming system for the tile making machine.
5. And for the leveling part, we will manual cutter, hydraulic cutter or the others.

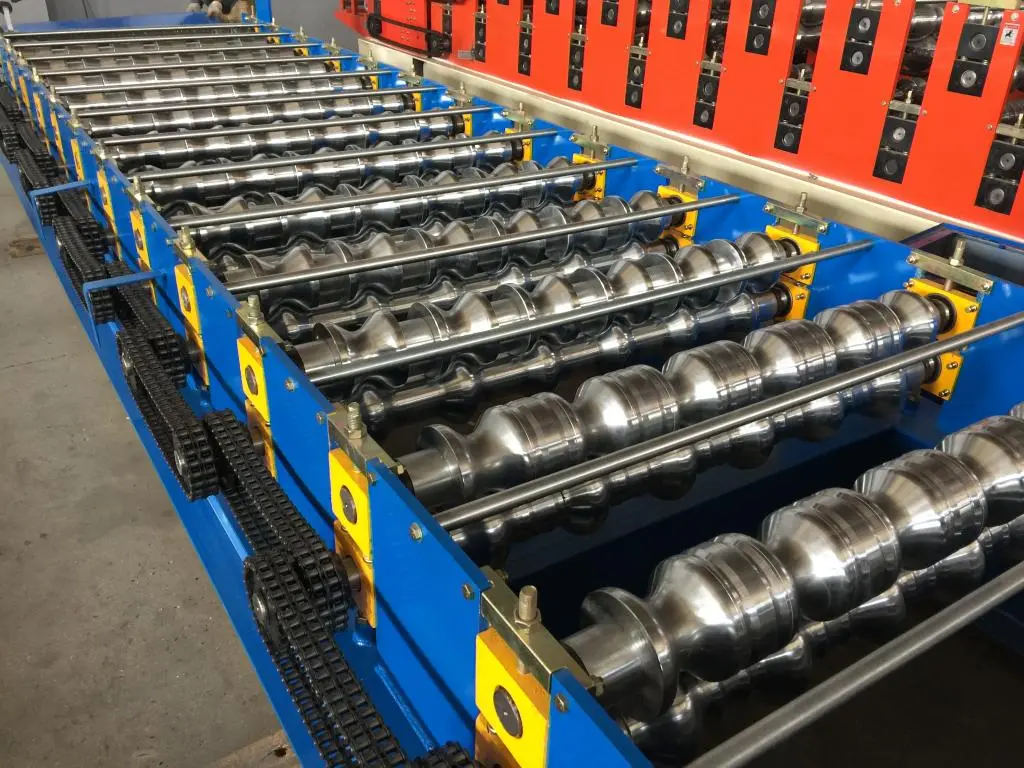

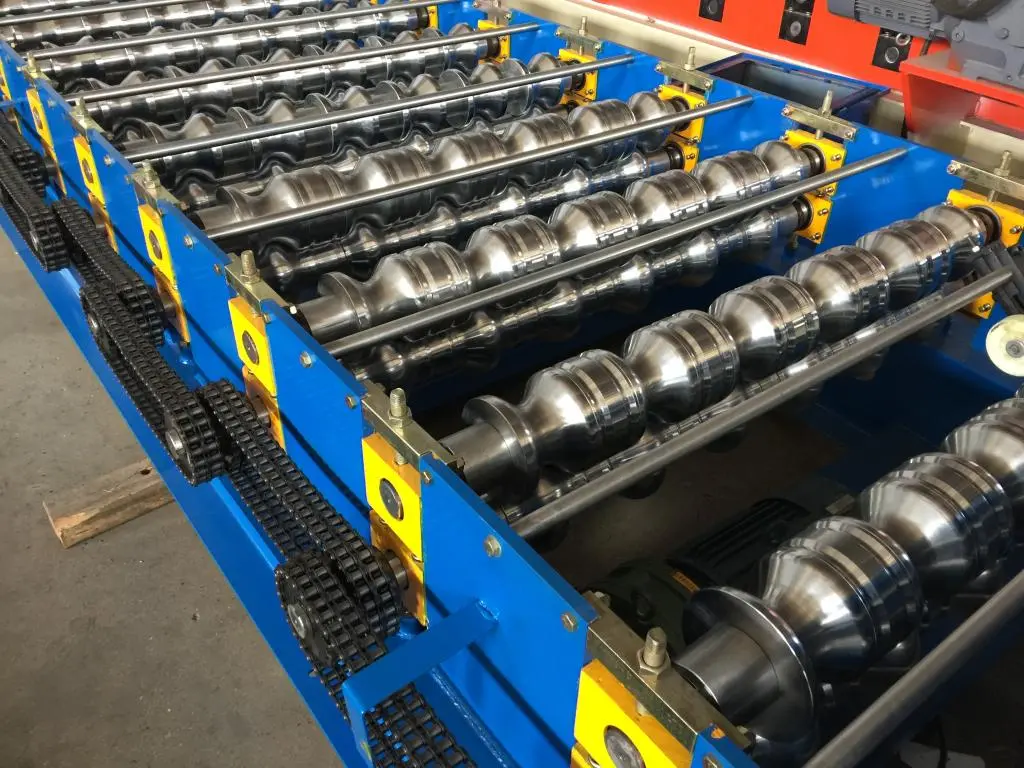

gear and chain transmission-double chain for strong structure

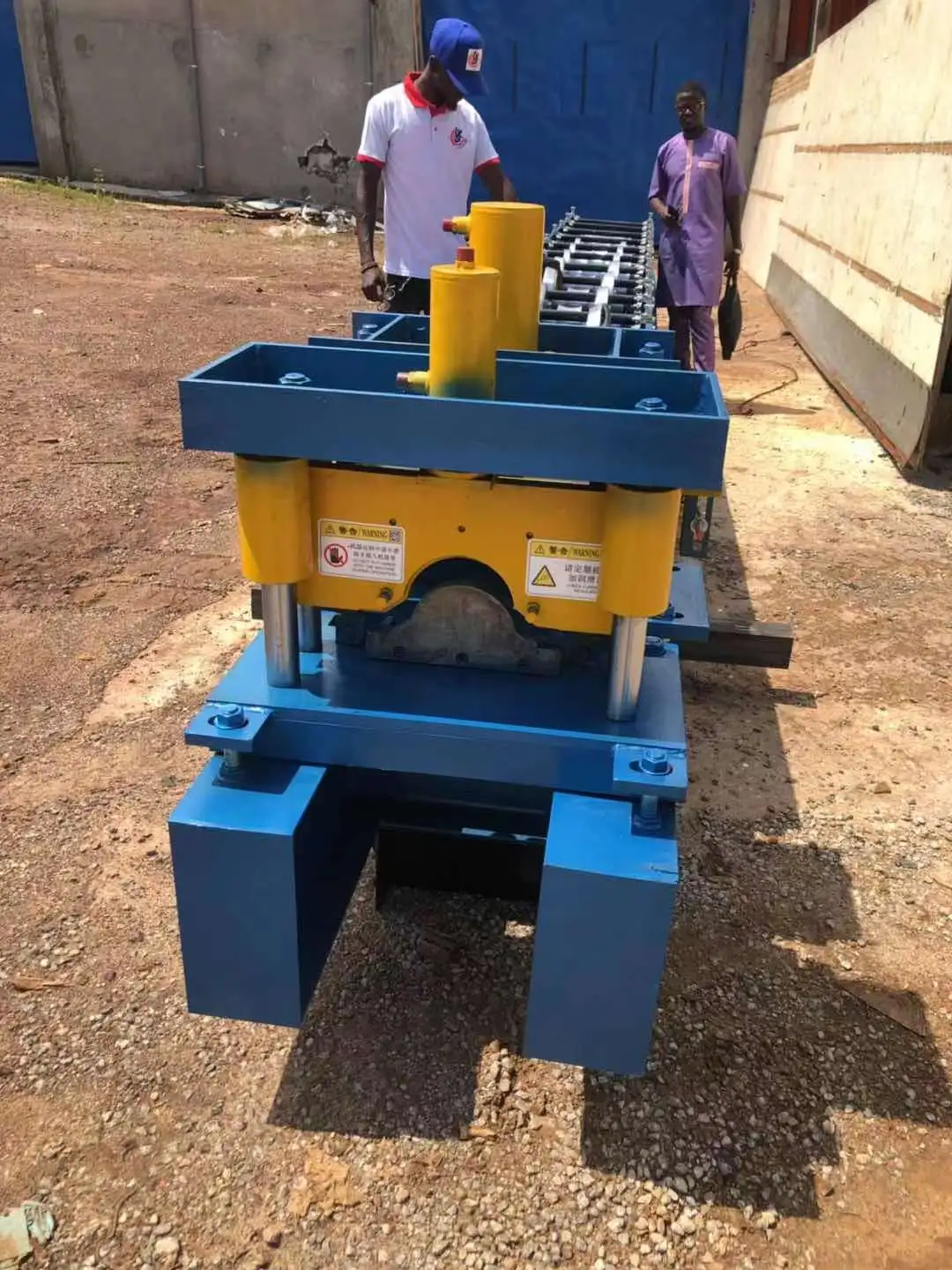

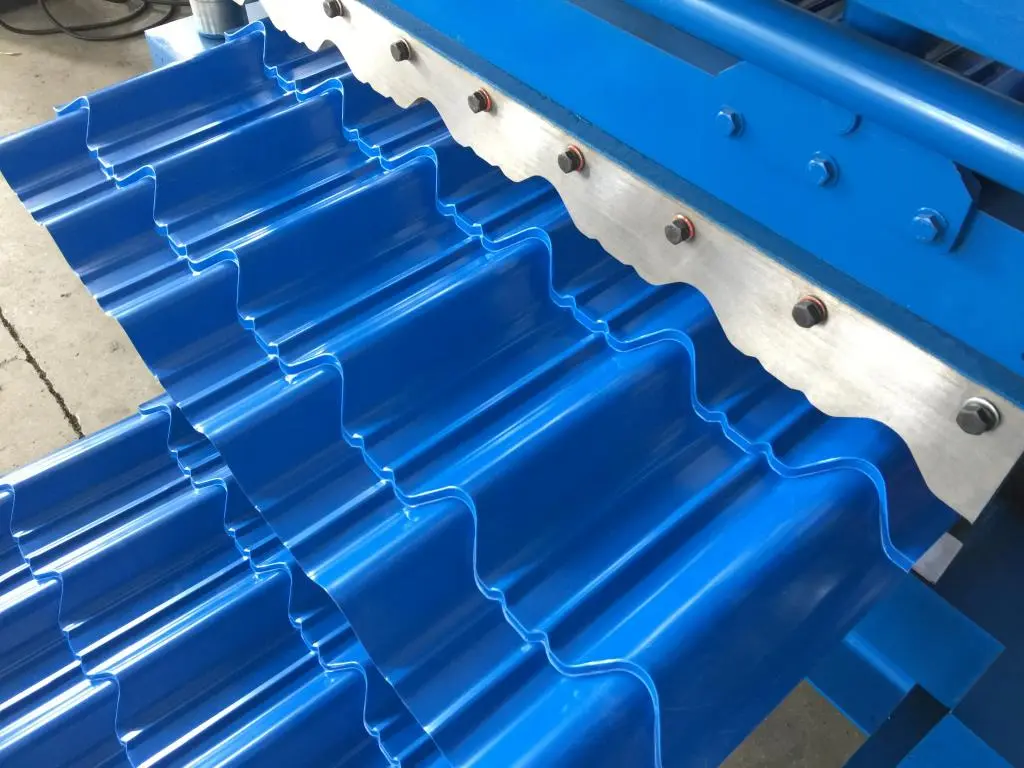

Gcr12 mov hydraulic cutting device

Recommend Products

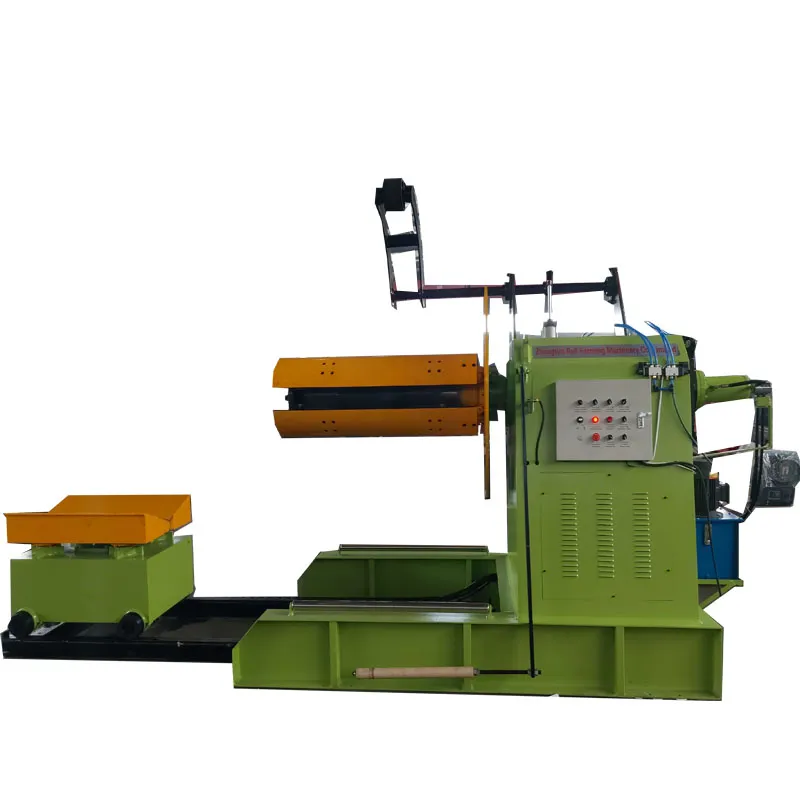

Hydraulic decoiler with loading car

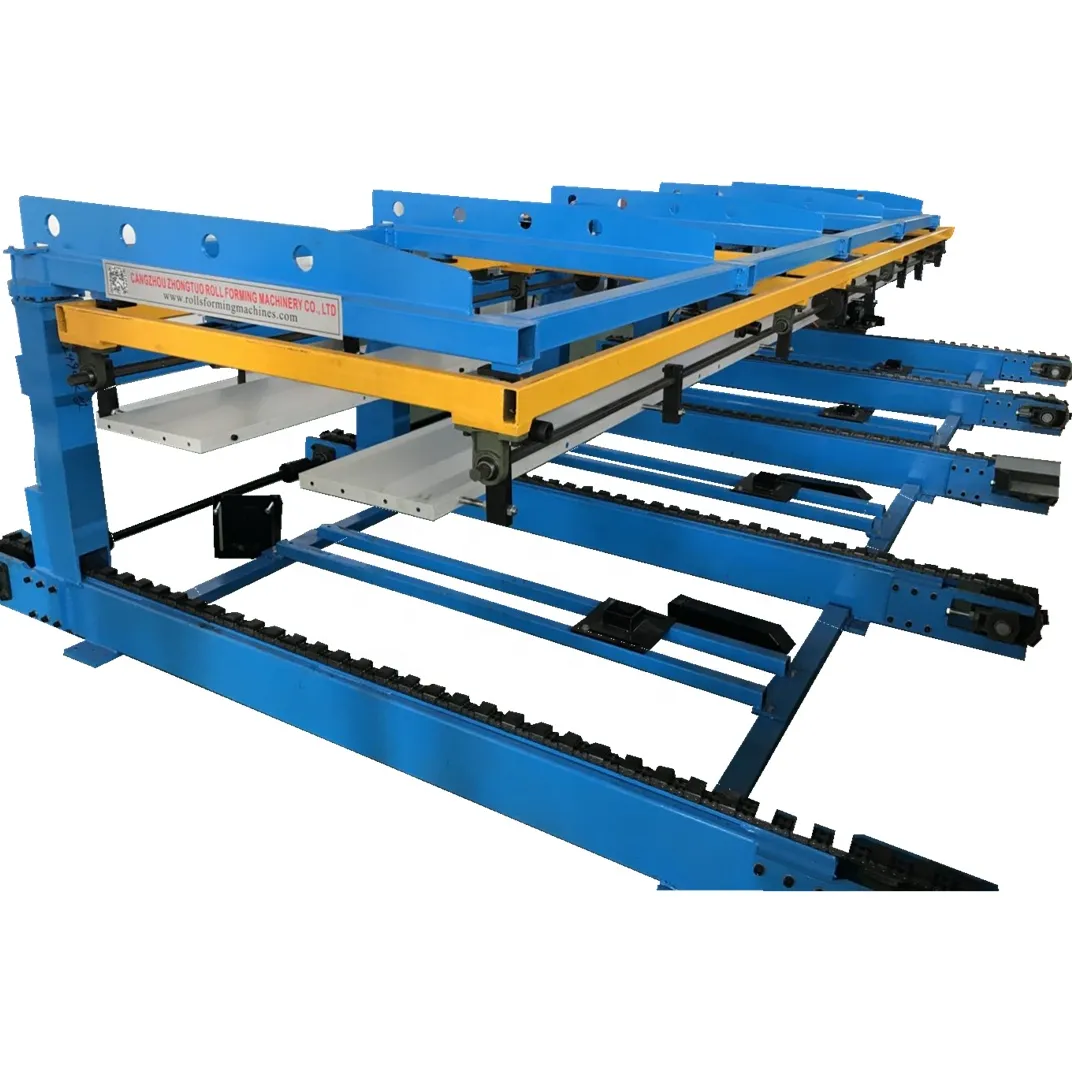

automatic stacker

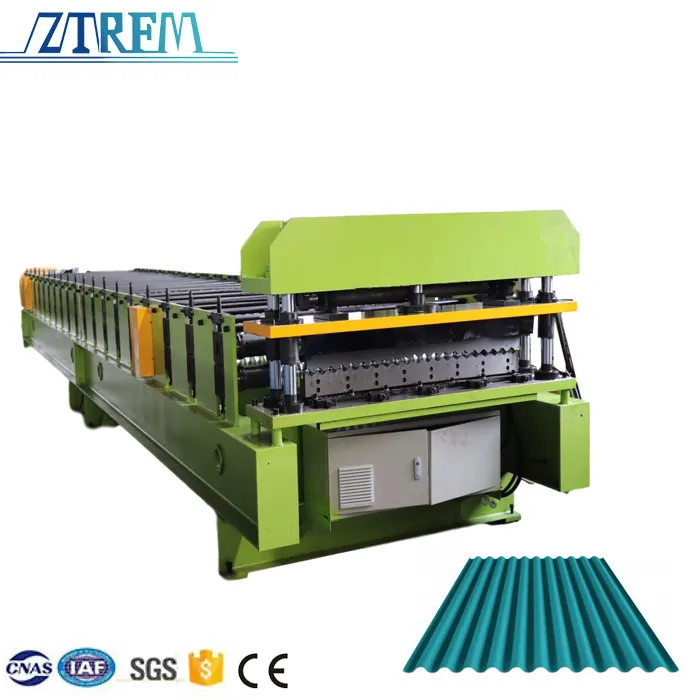

corrugated roof sheet making machine

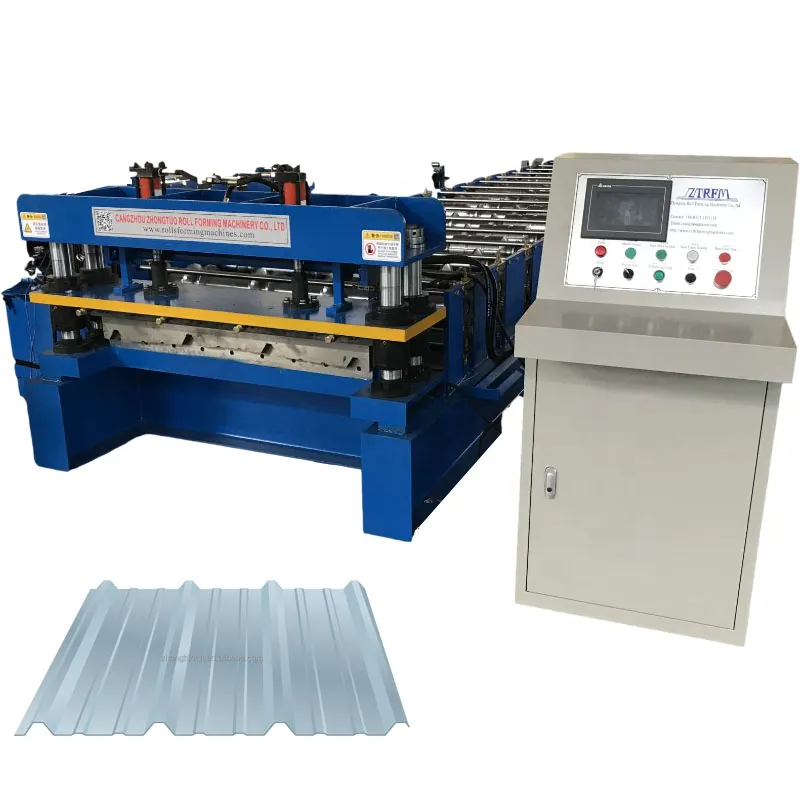

trapezoid IBR R TR4 TR5 roof sheet making machine

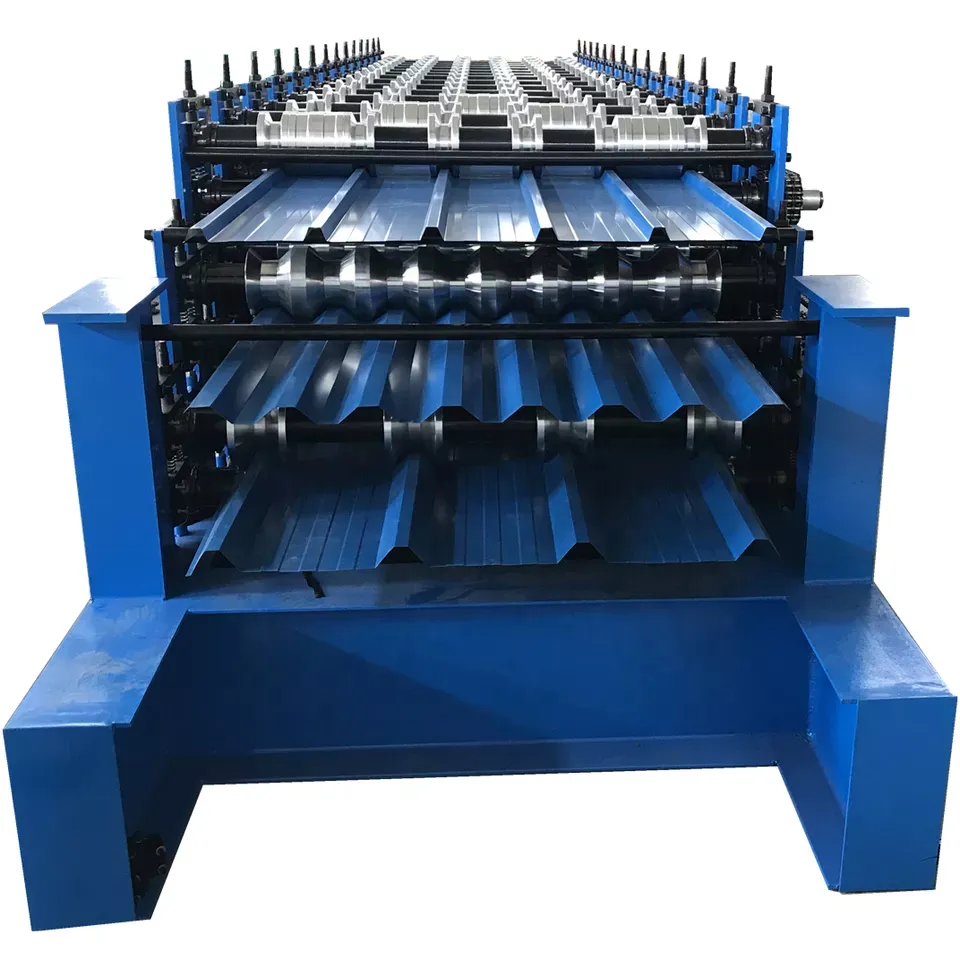

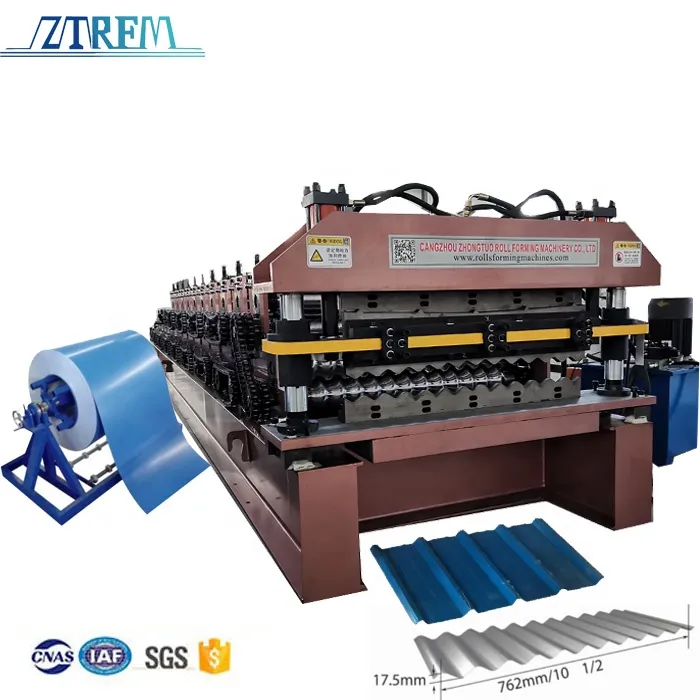

Double layer roofing machine

thrible layer roofing machine

Why Choose Us

Company Profile

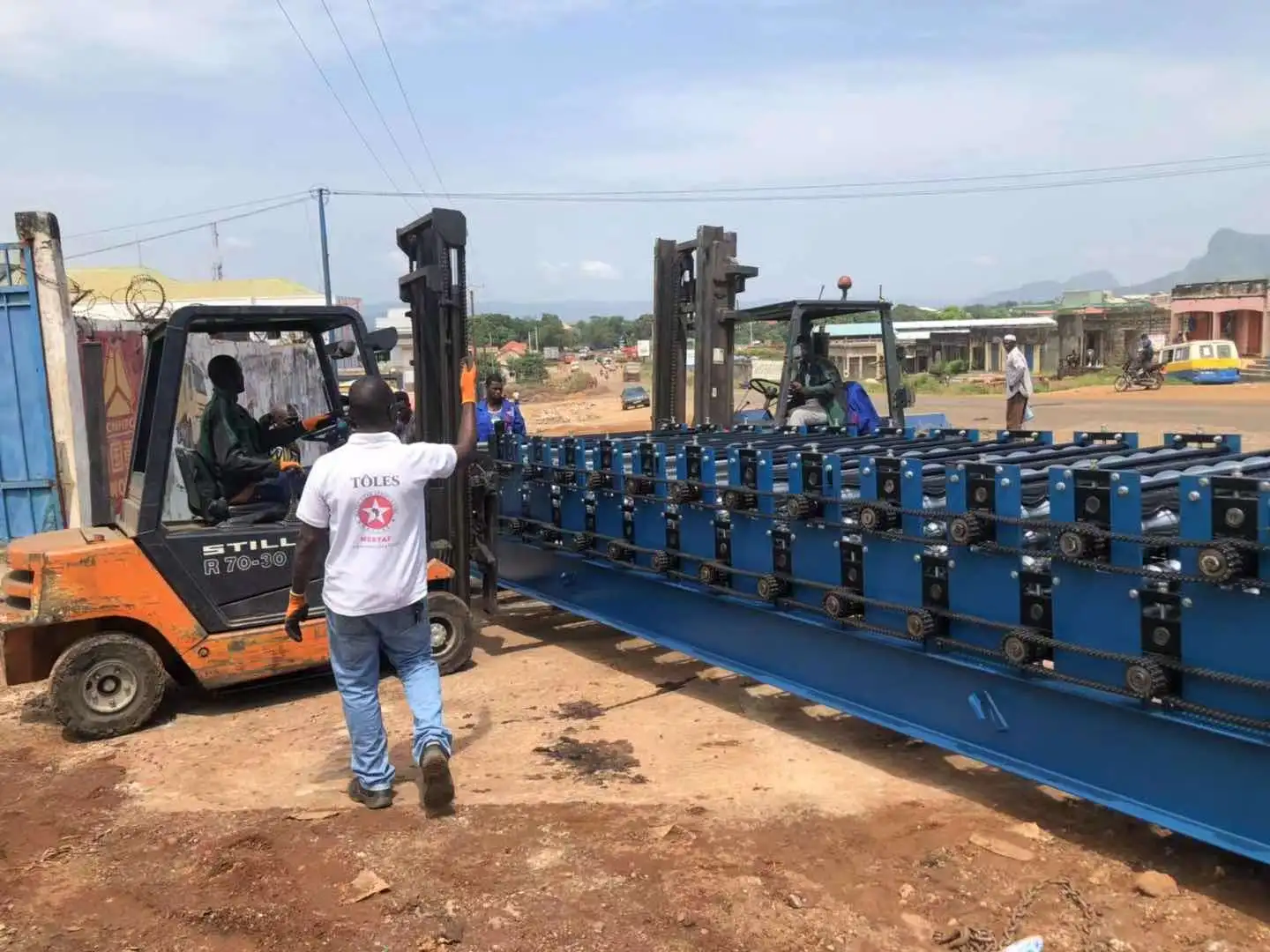

Customer Photos

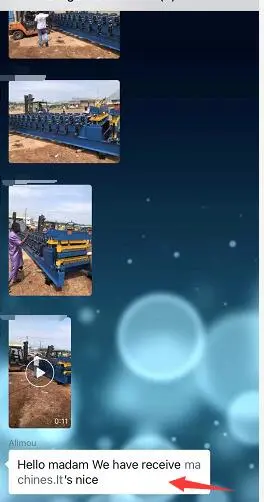

customer good feedback of our machines:
