Metal Fence Picket Machine Roll Forming Machine Metal Fence Picket Machine

Name: Metal Fence Picket Machine Roll Forming Machine Metal Fence Picket Machine
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT120505365

ProfilesMetal fence picket

Raw MaterialGalvanized sheet / color steel

Cutting TypeHydraulic cutting

Machine Weight6800 kg

WarrantyMore than 5 years

CertificationCE, BV, STV, ISO

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Metal Fence Picket Machine

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Profiles
Metal fence picket
Raw Material
Galvanized sheet / color steel
Cutting Type
Hydraulic cutting
Machine Weight
6800 kg
Warranty
More than 5 years
Certification
CE, BV, STV, ISO
Rolling Stations
15 stations
Forming Speed
20 m/min
Power
5.5 kW
Voltage
220 V / 380 V / 440 V, customized
Roller Material
Cr12MoV with quenched treatment
Shaft Material
45# steel, outer diameter 50 mm
Cutting Blade
Cr12 mould steel
Control System
Siemens PLC + touch screen + remote control

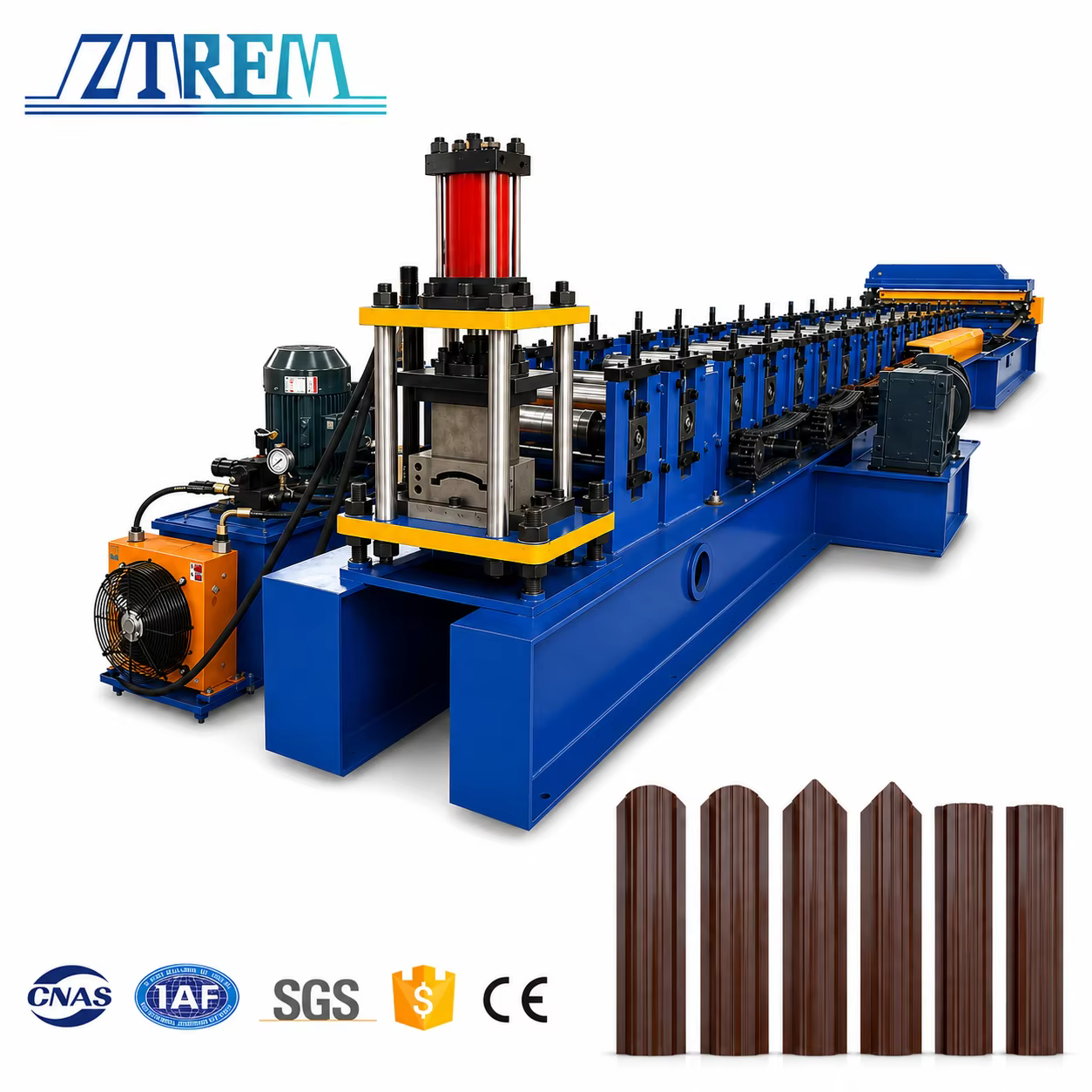

Metal fence picket machine with picket samples

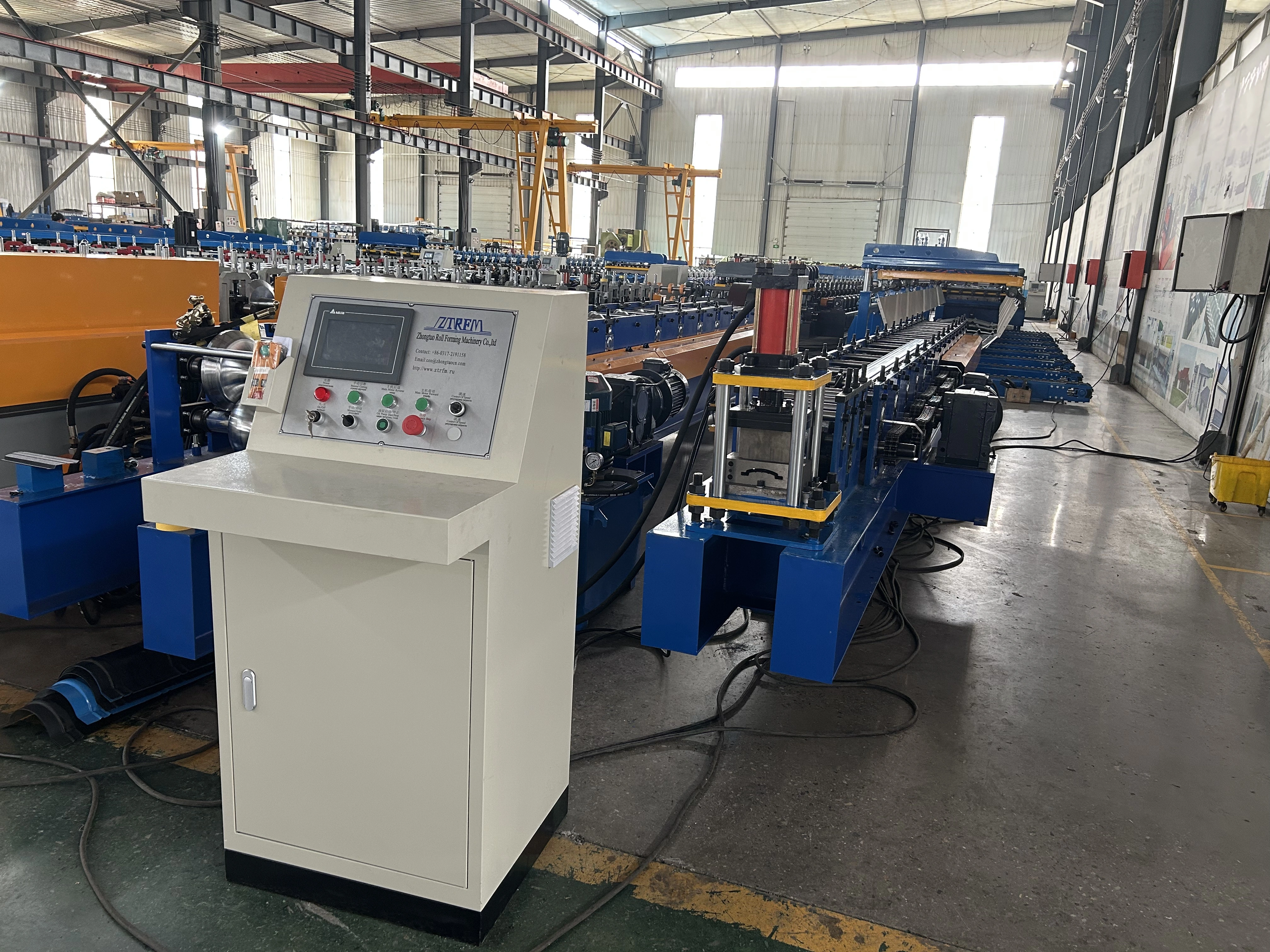

Fence picket machine in factory with control console

Product Overview

The metal fence picket machine is a fully automatic roll forming line that converts galvanized sheet or color steel into precise picket fence profiles at 20 m/min through 15 rolling stations. Built for high-volume fencing orders, it combines 3D lace top cutting, in-line hole punching, Siemens PLC control and touch screen operation in one continuous process.

Fully automatic continuous production - built for high-volume fencing orders
3D lace top cutting + in-line hole punching in one pass, no secondary drilling
Siemens PLC + touch screen + remote control, easy operation
Cr12MoV quench-treated rollers and 45# steel shafts (50 mm)
High accuracy, easy to operate, long service life, low noise level
CE, BV, STV, ISO certified

Key Features

15 Stations, 20 m/min - 20 m/min forming speed through 15 rolling stations turns galvanized sheet or color steel into precise picket profiles; fully automatic continuous production for high-volume fencing orders.
3D Lace Top Cutting + In-Line Hole Punching - The cutting die shapes an elegant lace-style 3D pattern on top of every panel for a high-end ornamental look; side mounting holes are punched automatically in-line, so panels leave the line ready for assembly - no secondary drilling.
Siemens PLC + Touch Screen + Remote Control - Siemens control with remote support; touch screen simplifies parameter setting, languages customizable, aviation plugs for quick installation - new operators produce after short training.
Cr12MoV Quenched Rollers & 45# Steel Shafts - Cr12MoV quench-treated rollers, 45# steel shafts (50 mm), Cr12 mould steel blades - durable tooling that keeps profile precision over long production runs.

Technical Specifications

Item	Specification
Machine type	Cold rolling mill (metal fence picket roll forming machine)
Profiles	One machine adjusts to produce metal fence picket
Rolling stations	15 stations
Forming speed	20 m/min
Raw material	Galvanized sheet / color steel
Roller material	Cr12MoV with quenched treatment
Shaft material	45# steel, outer diameter 50 mm
Cutting blade material	Cr12 mould steel
Cutting type	Hydraulic cutting
Power	5.5 kW
Voltage	220 V / 380 V / 440 V, customized
Control system	Siemens PLC + touch screen + remote control
Machine weight	6800 kg
Warranty	More than 5 years
Certification	CE, BV, STV, ISO

Machine Structure

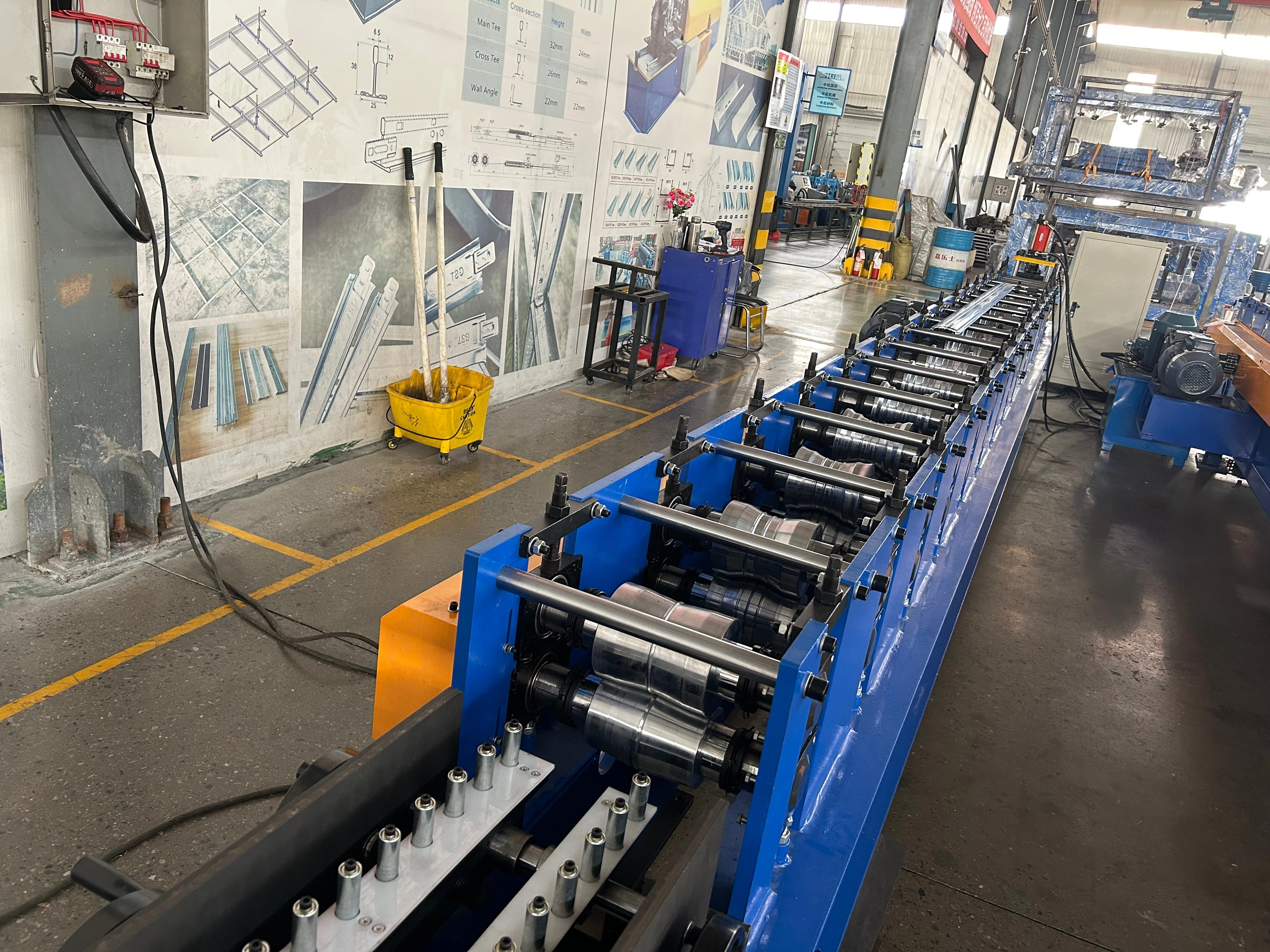

Roller stations with chrome rollers and guide cylinders

The forming section features a long series of chrome rollers secured in black brackets, with a front guide mechanism of vertical cylinders, an orange side panel and a hydraulic power unit with cooling fan and pressure gauge.

Finished Product

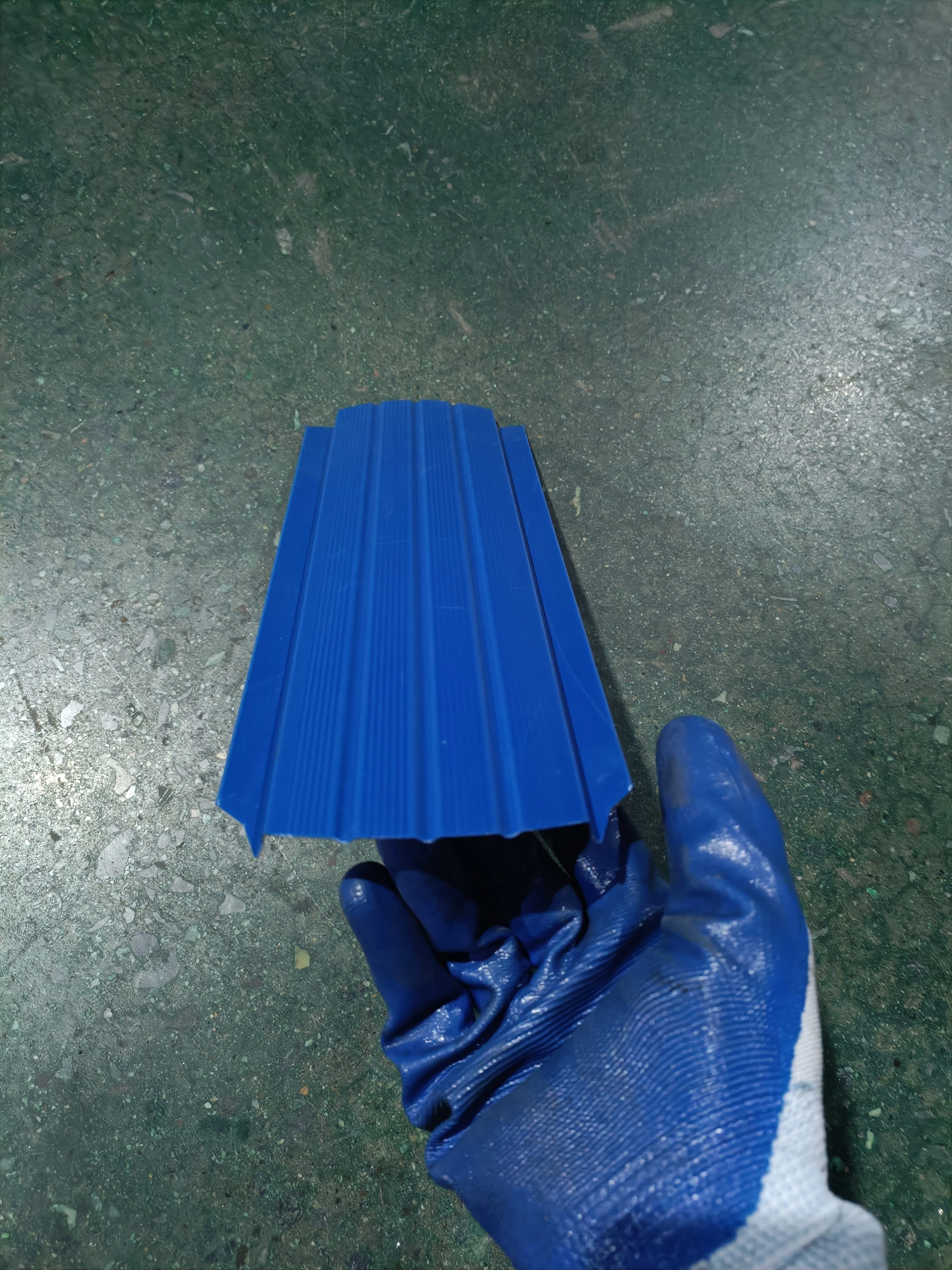

Corrugated metal picket profile held in hand

The finished picket profile has a corrugated structure with five raised ridges flanked by flat flanges, formed in one continuous pass. With the 3D lace top cutting die, panels leave the line with ornamental tops and punched mounting holes, ready for assembly.

Certifications

CE certified equipment certificates

The machine is CE certified for international procurement (CE trust No. 4Q230524.CZIDW02 / 4Q230524.CZIDW03), supported by certificates from COTECNA, UDEM and SAC; the company holds CE, BV, STV and ISO certifications.

Company Profile

ZTREM factory exterior, showroom and production floor

Zhongtuo Roll Forming Machinery Co., Ltd (ZTREM) is a dedicated cold forming equipment manufacturer with a modern factory, international showroom and high-capacity production floor, delivering complete roll forming solutions to global buyers.

Packing & Shipping

Package size: 600 x 100 x 110 cm; machine weight: 6800 kg
Delivery time: 50 days for 1 set, 70 days for 2 sets
Machinery test report and video outgoing inspection provided
