High-Efficiency Solution for Metal Electrical Cabinet Panel Production

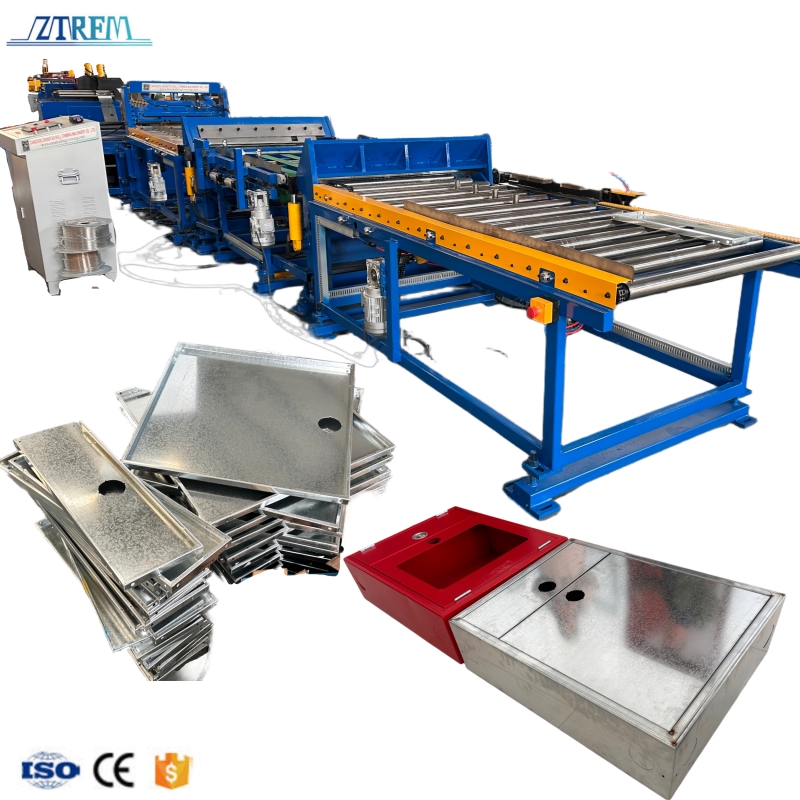

The metal electrical cabinet panel roll forming machine provides an efficient and reliable solution for manufacturers producing electrical enclosures, control cabinets, and industrial metal panels. The machine processes galvanized steel (GI) materials through a continuous roll forming process, creating accurate profiles with consistent quality.

Unlike traditional manual fabrication methods, this automatic production line improves forming precision, reduces labor requirements, and ensures stable output during long-term operation. Furthermore, the machine integrates hydraulic decoiling, precision forming rollers, automatic cutting, and PLC control to create a complete manufacturing solution.

With flexible customization options, the equipment can meet different cabinet panel designs, material specifications, and production requirements.

Advanced Structure for Stable Forming Performance

To achieve long-lasting operation, we design the main forming system with high-quality components and a robust mechanical structure. The machine uses a welded steel frame, solid shafts, and GCr15 roller material, which provide excellent strength and wear resistance.

The forming section adopts 14 roller stations, allowing the machine to gradually shape the GI steel sheet while maintaining smooth material movement. In addition, the chain transmission system delivers reliable power transfer and simplifies daily maintenance.

The carefully optimized structure helps minimize deformation during operation and improves the overall service life of the production line.

Automatic Production Process and Precise Control

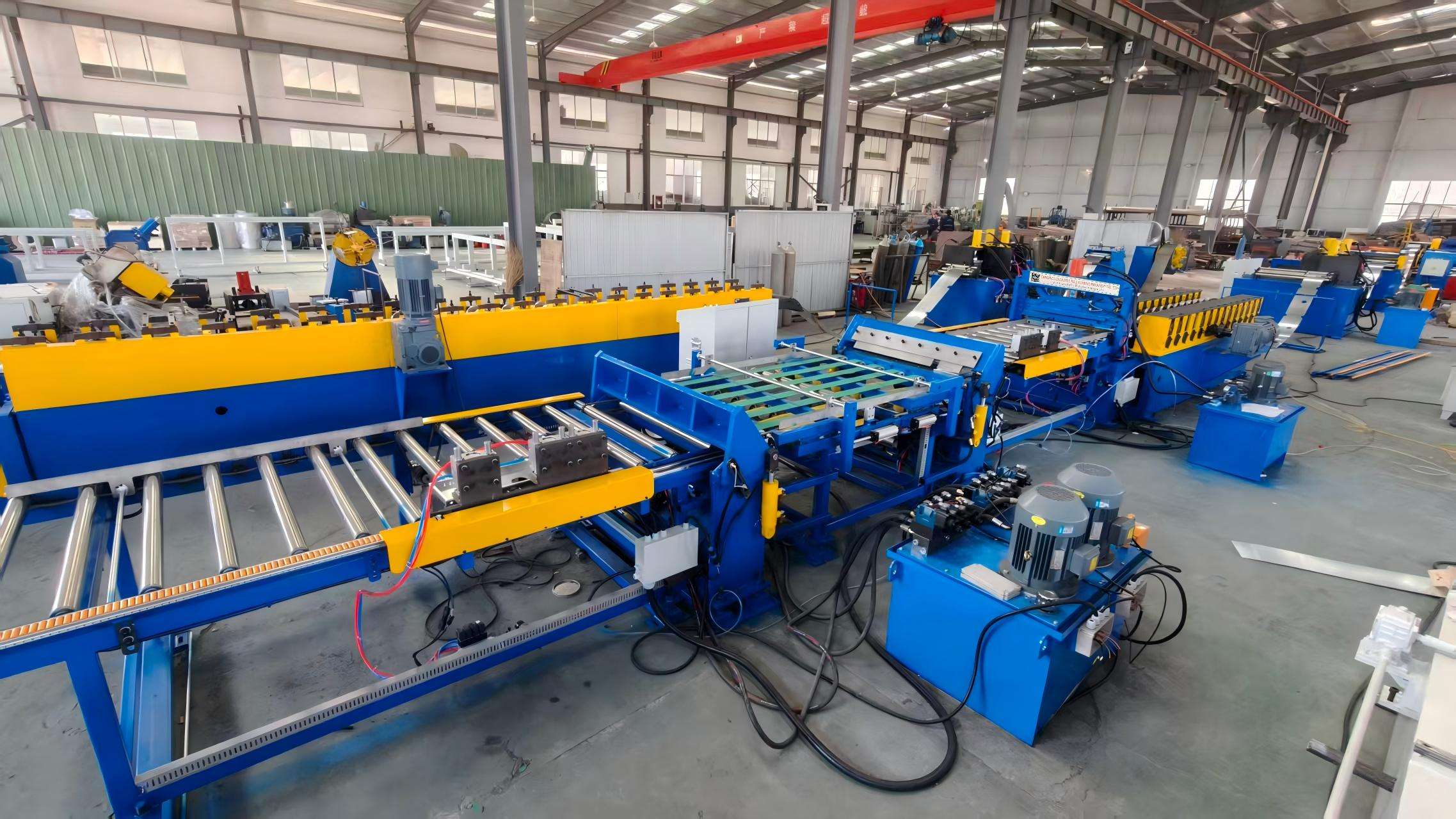

The production line starts with hydraulic automatic decoiling, which actively opens and feeds the steel coil into the forming system. Afterward, the rollers continuously shape the material into the required cabinet panel profile.

The automatic cutting system uses Cr12MoV material, providing excellent hardness and wear resistance. Therefore, it can achieve clean cutting performance without damaging the surface of the finished panels.

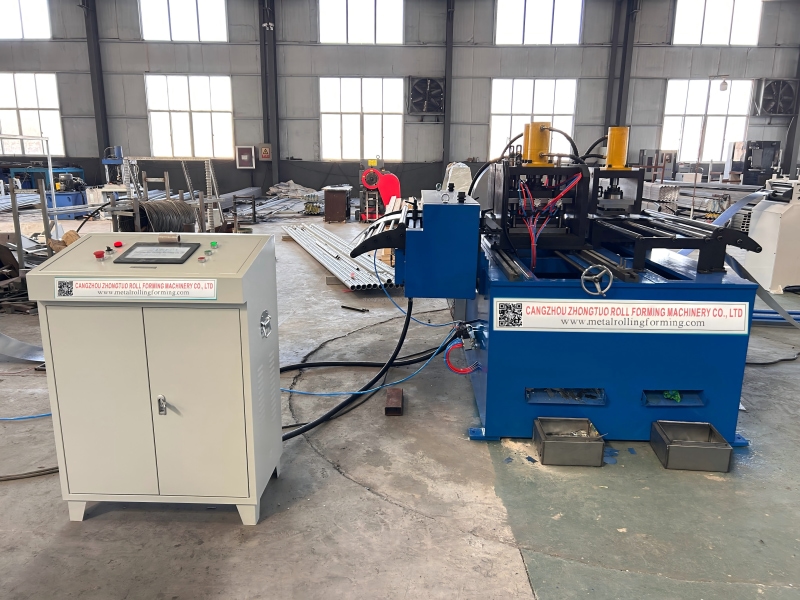

Moreover, the PLC control system manages the entire production process. Operators can easily set production length, quantity, and operating parameters through the control interface. The system also supports multiple languages to simplify operation for global customers.

Technical Specifications of Electrical Cabinet Panel Machine

Flexible Configuration for Different Applications

Every manufacturer has different production targets and product requirements. Therefore, we provide customized configurations according to customer drawings, material specifications, and factory conditions.

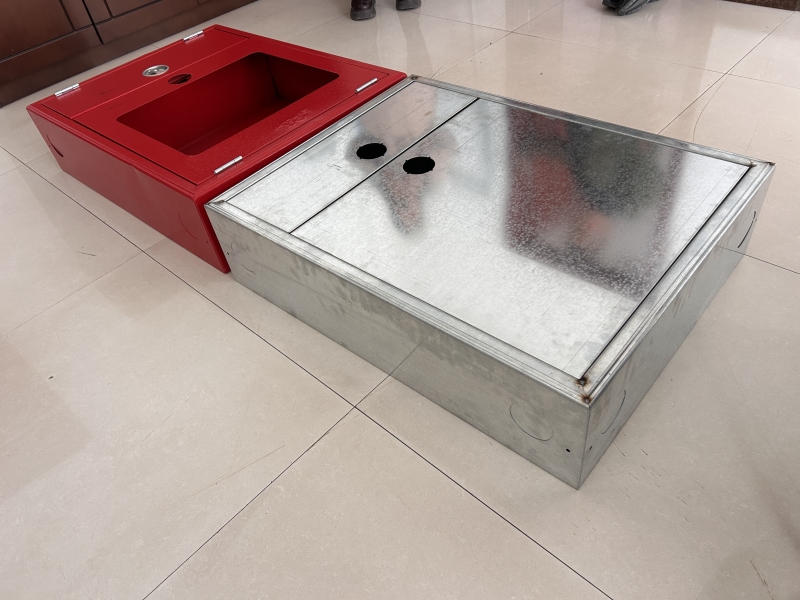

The electrical cabinet panel roll forming machine can be widely applied in:

• Industrial electrical cabinet production
• Control box manufacturing
• Distribution cabinet manufacturing
• Metal enclosure production
• Automation equipment housing production

Additionally, customers can choose different electrical brands, voltage standards, and machine layouts according to their local requirements.

Reliable Support from Design to Production

We focus not only on supplying machines but also on providing complete production solutions. Before manufacturing, our technical team analyzes customer requirements and confirms the forming design to ensure the equipment matches the final product.

During production, we provide professional assembly and testing. After delivery, our engineers support installation guidance, machine adjustment, and operation training.

Through remote technical service and continuous support, we help customers maintain stable production and achieve long-term value from their investment.

Customized Metal Cabinet Manufacturing Solution

The metal electrical cabinet panel roll forming machine combines automation, precision engineering, and durable components to help manufacturers improve production efficiency and product consistency.

With advanced forming technology, reliable control systems, and customized service capabilities, this machine is an ideal choice for companies seeking a stable solution for electrical cabinet panel production.

We are committed to providing efficient, durable, and professional roll forming equipment solutions for global customers.
