Door Roll Forming Machine System > Production Equipment > Metal Door Frame Roll Forming Machine

Metal Drywall Door Frame Rolling Forming Machine door frame machine+30 KW

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Drywall Door Frame Rolling Forming Machine door frame machine+30 KW

Name: Metal Drywall Door Frame Rolling Forming Machine door frame machine+30 KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT83355114

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

door frame machine

Power(W):

30 KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
metal door frame machine
Tile Type
door frame
Use
door frame
Voltage
380V or as required
Rolling Thinckness
1.5mm
Feeding Width
customize

Product Description

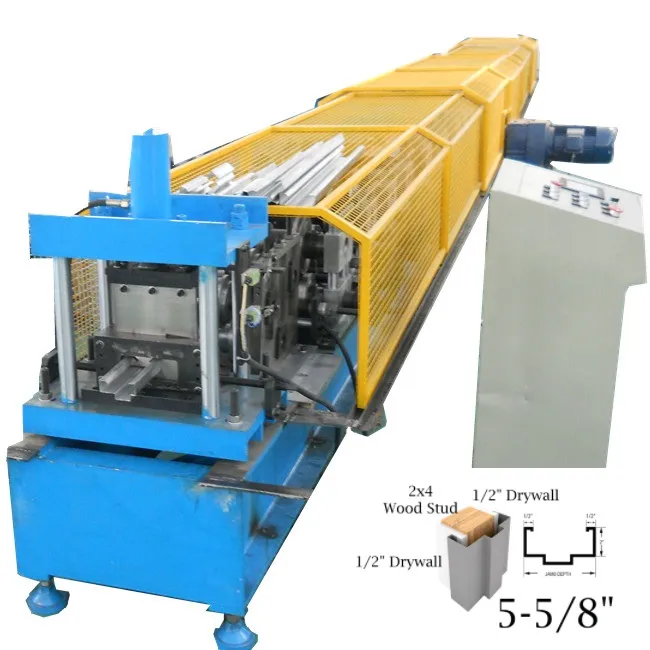

Metal drywall door frame rolling forming machine

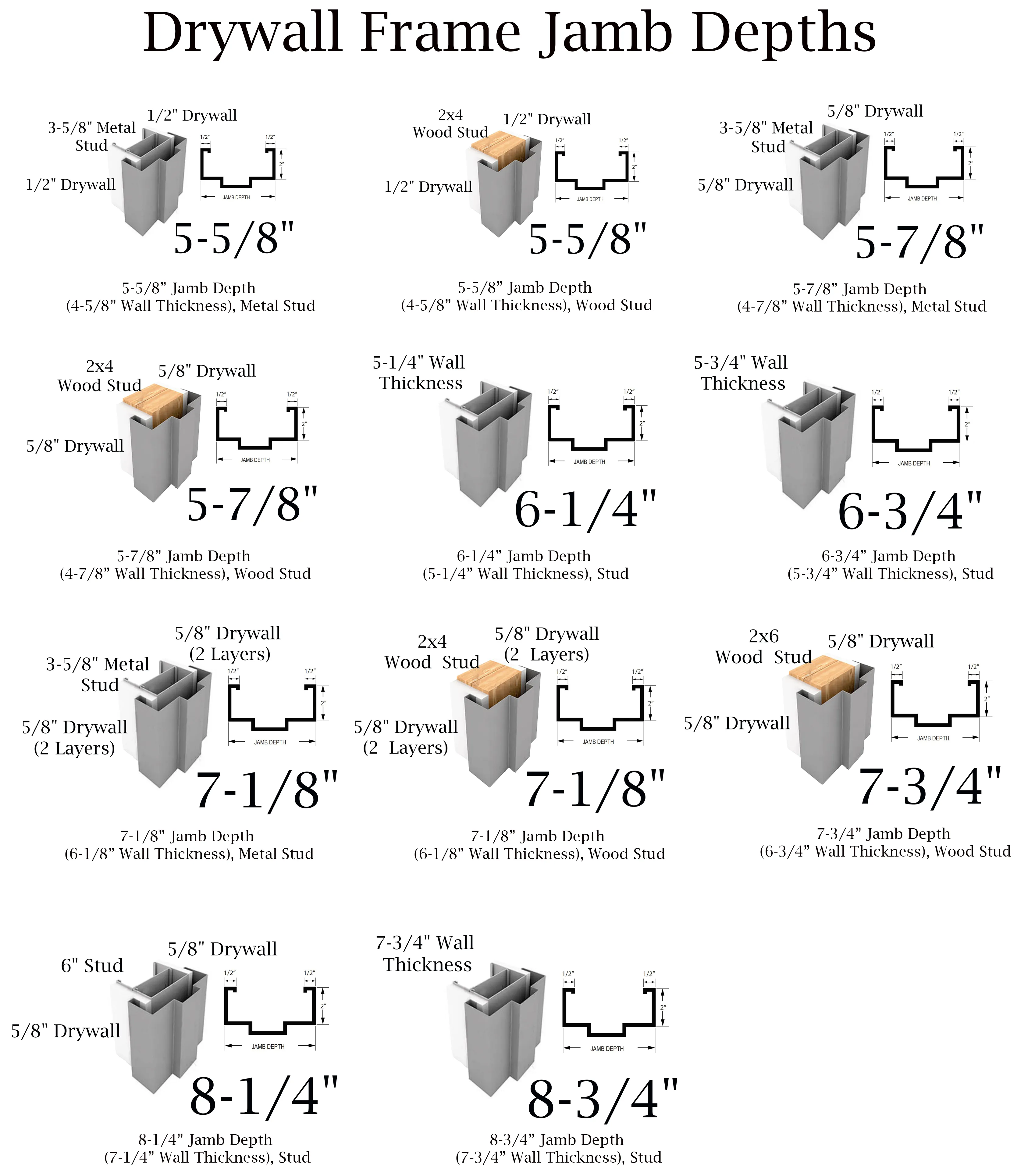

A hollow metal door frame is a type of door frame constructed from steel that has been formed into a hollow profile. This design provides structural integrity and durability while keeping the weight of the frame relatively light. Hollow metal door frames are commonly used in commercial and industrial buildings due to their strength and resistance to wear and tear. Here are some popular drawing profile for your reference:

Hollow metal door frames offer several advantages, including: - Strength: They are very strong and can support heavy doors. - Fire Rating: Many hollow metal frames are fire-rated and can withstand fire for a certain period of time. - Security: The solid construction resists forced entry. - Durability: They are resistant to warping, cracking, and damage from environmental factors. -Customization: Hollow metal frames can be easily modified on-site to fit various door sizes and requirements. Based on those we make the metal door frame rolling forming machine either has the fully automatic and half automatic metal door frame rolling machine. Metal door frame machine is a specialized piece of equipment used in the manufacturing process of hollow metal door frames. This machine is designed to shape or form steel strips or profiles into the desired shape of a door frame by a process called rolling. The main features and functions of a metal door frame rolling machine may include: 1. Rolling Process: The machine uses a series of rollers to bend and shape the steel strips into the U-shaped or C-shaped profile that makes up the door frame. 2. Adaptability: The machine is often adjustable to accommodate different sizes and types of door frames, allowing for versatility in production. 3. Automation: Modern machines can be automated to increase production efficiency and reduce labor costs. They can be programmed to produce frames of consistent size and shape.

Metal door frame rolling forming machine
1.Formed Material	PPGI,GI,AI		Thickness:1.5-3mm

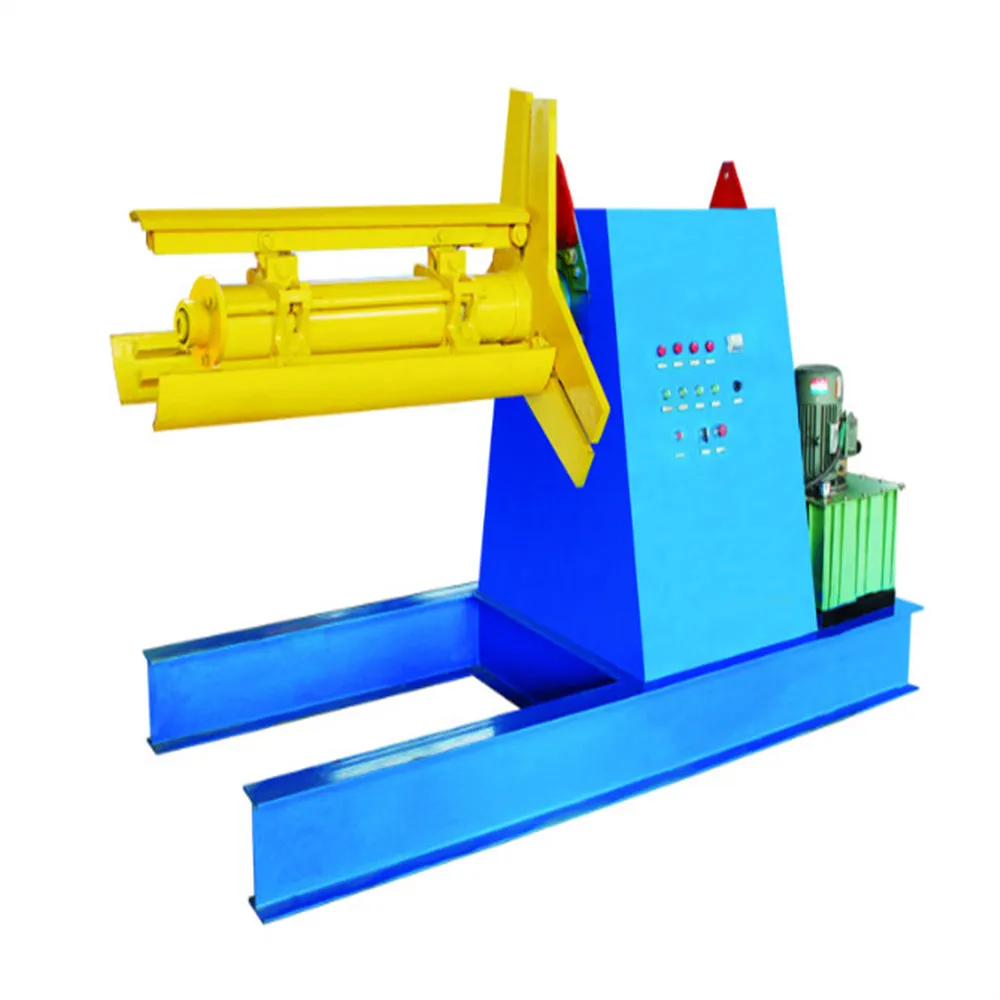

2.Decoiler	Hydraulic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		24 rows
		Diameter of shaft		90mm solid shaft
		Material of rollers		Gcr12mov
		Machine body frame		350 H steel
		Drive		Gearbox chain or gear
		Dimension(LWH)		750016001600(customize)
		Weight		10 Tons
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Main Power		30 KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	8-12m/min 15-20m/min		The speed depends on the shape of the tile and the thickness of the material.

Products Display

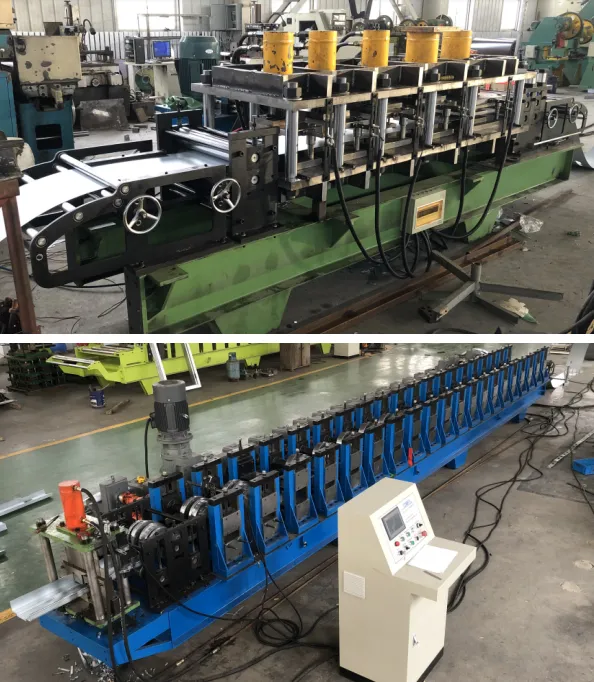

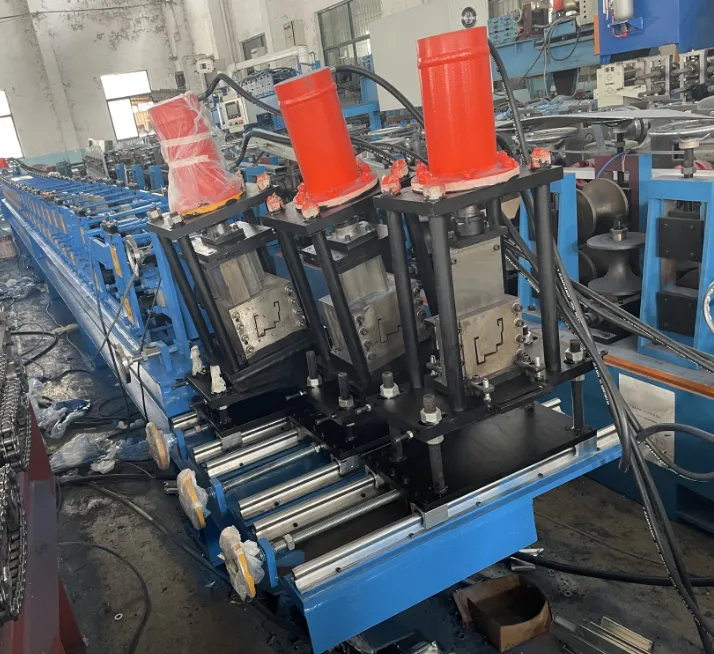

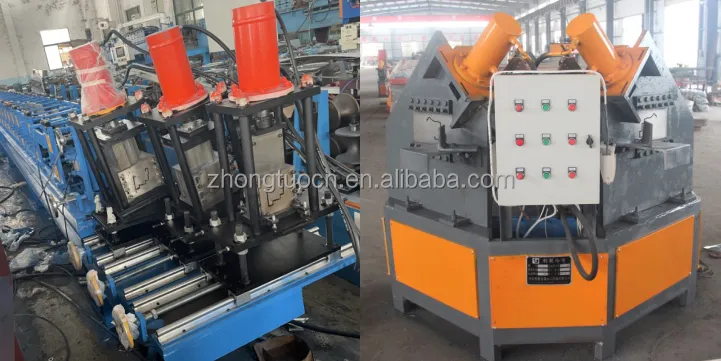

This is the half automatic type: half automatic means there is no punching online for hinges holes, connection holes and lock holes. If you like the automatic type we could also make for you like the following pictures.

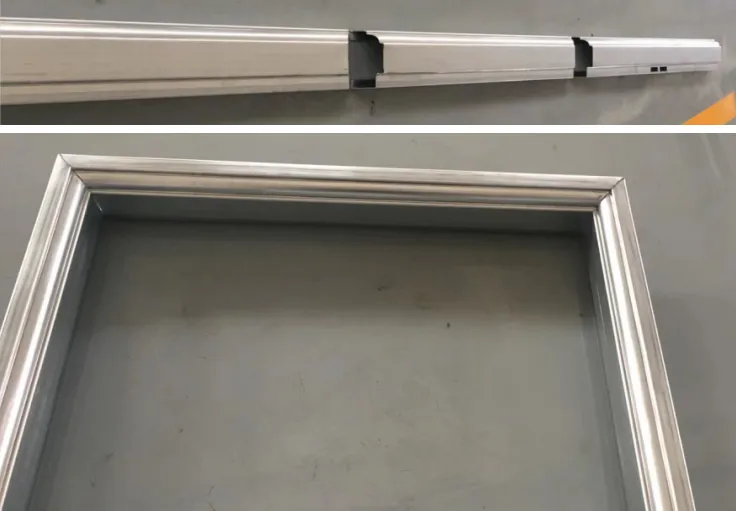

Here the door frame made by automatic door frame rolling forming machine:

We can design the machine fully based on your requirements but we need to know your drawing profile.

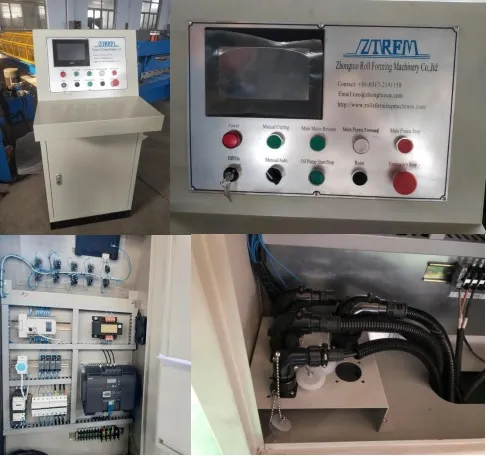

PLC control cabinet

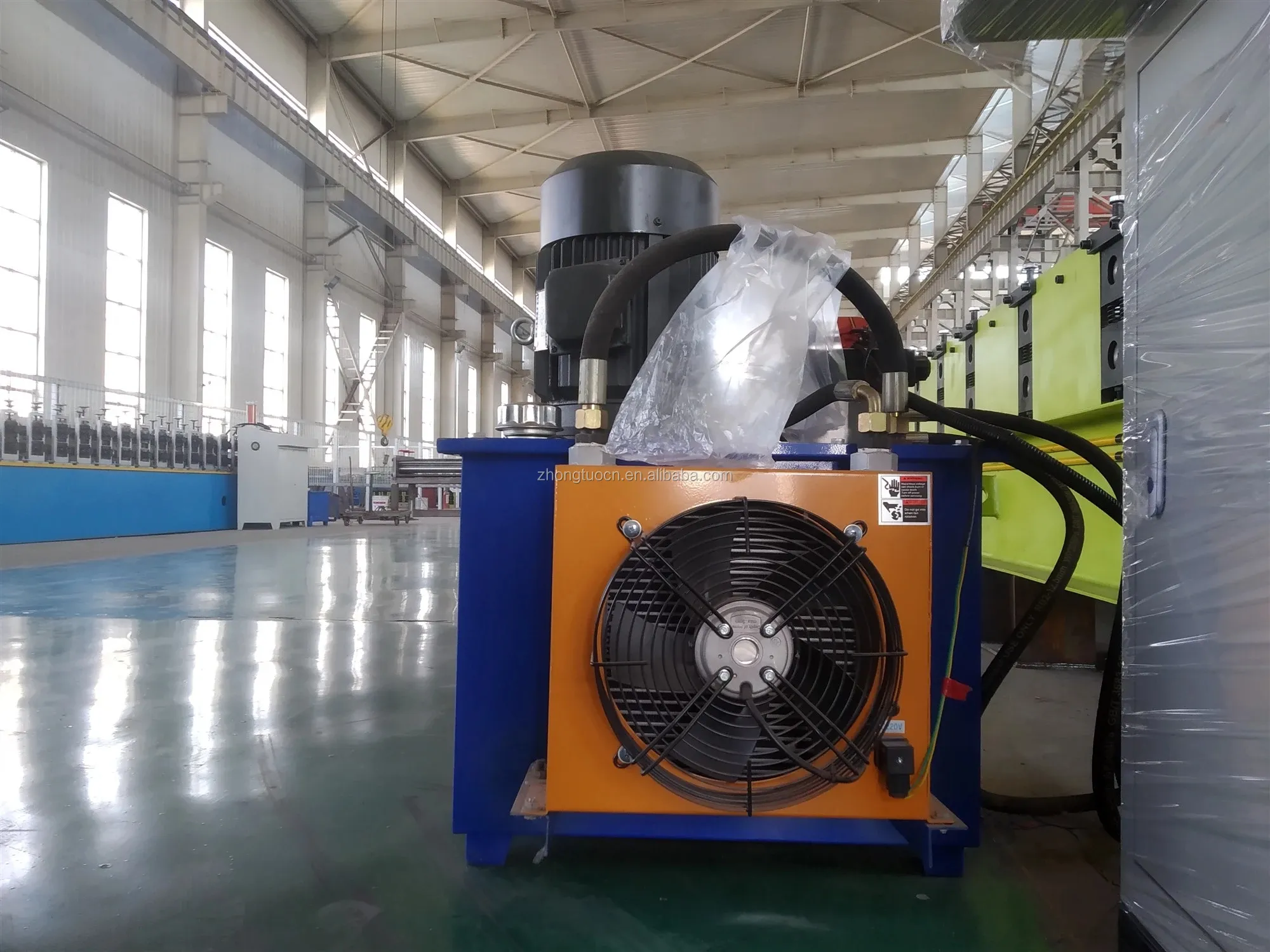

Hydraulic station
